Model Whirlpool LGV7858AN2 GAS DRYER – Common Parts & Diagrams

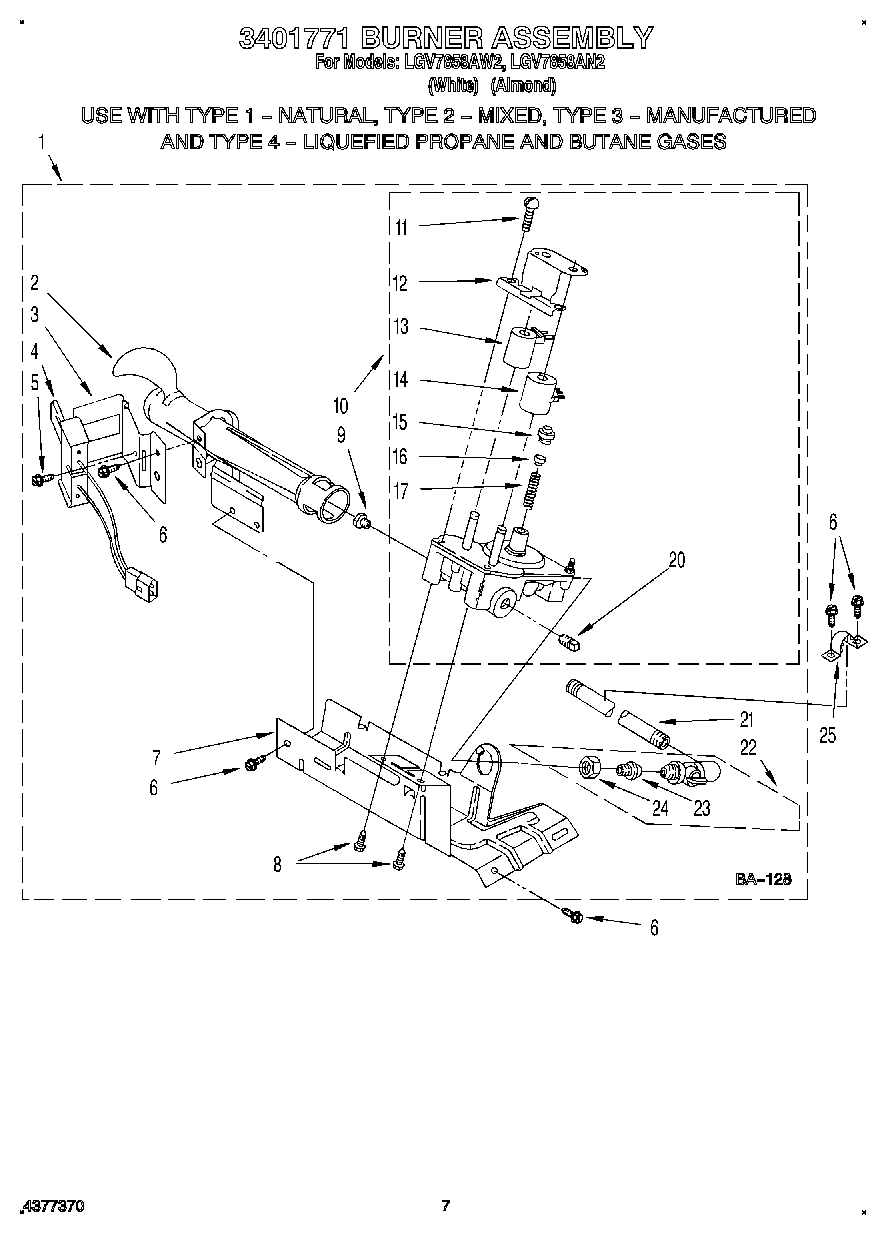

04 - 3401771 BURNER ASSEMBLY
03 - BULKHEAD
01 - TOP AND CONSOLE, LIT/OPTIONAL
02 - CABINET
Common parts from model Whirlpool LGV7858AN2 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL LIT3395332 WPL LIT3395332 Contact Us For Availability
WPL LIT3401083 WPL LIT3401083 Contact Us For Availability
WPL LIT3401725 WPL LIT3401725 Contact Us For Availability
WPL LIT677818 WPL LIT677818 Contact Us For Availability
1
Panel, Rear Console WPL 3397545 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability
5
Connector, Timer WPL 3397269 Contact Us For Availability
7
Switch, Clean-Touch WPL 3396236 Contact Us For Availability
8
Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability
8
Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
15
(Alt.) WPL 341196 Contact Us For Availability
15
Wire, Jumper (Violet) WPL 3393811 Contact Us For Availability
15
Wire, Jumper (Blue) WPL 3393812 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
17
Screw WPL 342043 Contact Us For Availability
18
Cabinet (Includes Illus. Nos. 5,7,16,48, & 57 WPL 3399585 Contact Us For Availability
18
Cabinet (Includes Illus. Nos. 5, 7, 16, 48, & WPL 3399586 Contact Us For Availability
21
Panel, Front (Almond) WPL 3395198 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
24
Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability
25
Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability
31
Harness, Wiring WPL 3401648 Contact Us For Availability
32
Wire, Jumper (Signal Bypass) WPL 3396032 Contact Us For Availability
36
Door, Front (Almond) WPL 3393550 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
39
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
39
Switch, Push-To-Start WPL 3395395 Contact Us For Availability
39
Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability
49
Button, Push To Start WPL 3396175 Contact Us For Availability
50
Receptacle, 2 Way WPL 717252 Contact Us For Availability
53
Bracket, Control WPL 3396295 Contact Us For Availability
54
Panel, Control (White) WPL 3398519 Contact Us For Availability
54
Panel, Control (Almond) WPL 3398520 Contact Us For Availability
67
Burner Assembly, 60 Hz. (See Burne WPL 3401771 Contact Us For Availability
70
Clip, Retainer WPL 689180 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
× ![]()
