Model Whirlpool LGV7646DQ1 GAS DRYER – Common Parts & Diagrams
04 - BULKHEAD
03 - 3401771 BURNER ASSEMBLY

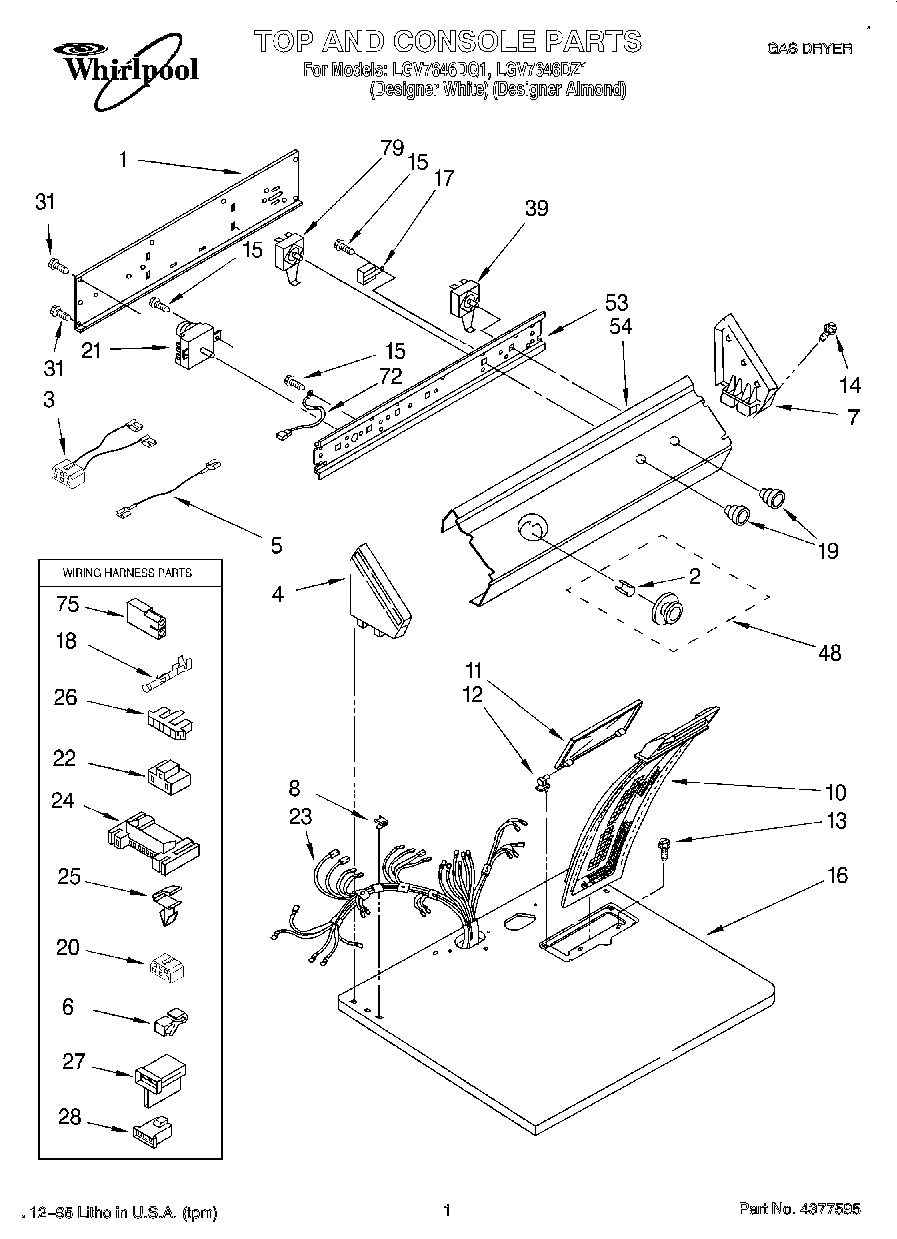

01 - TOP AND CONSOLE, LIT/OPTIONAL

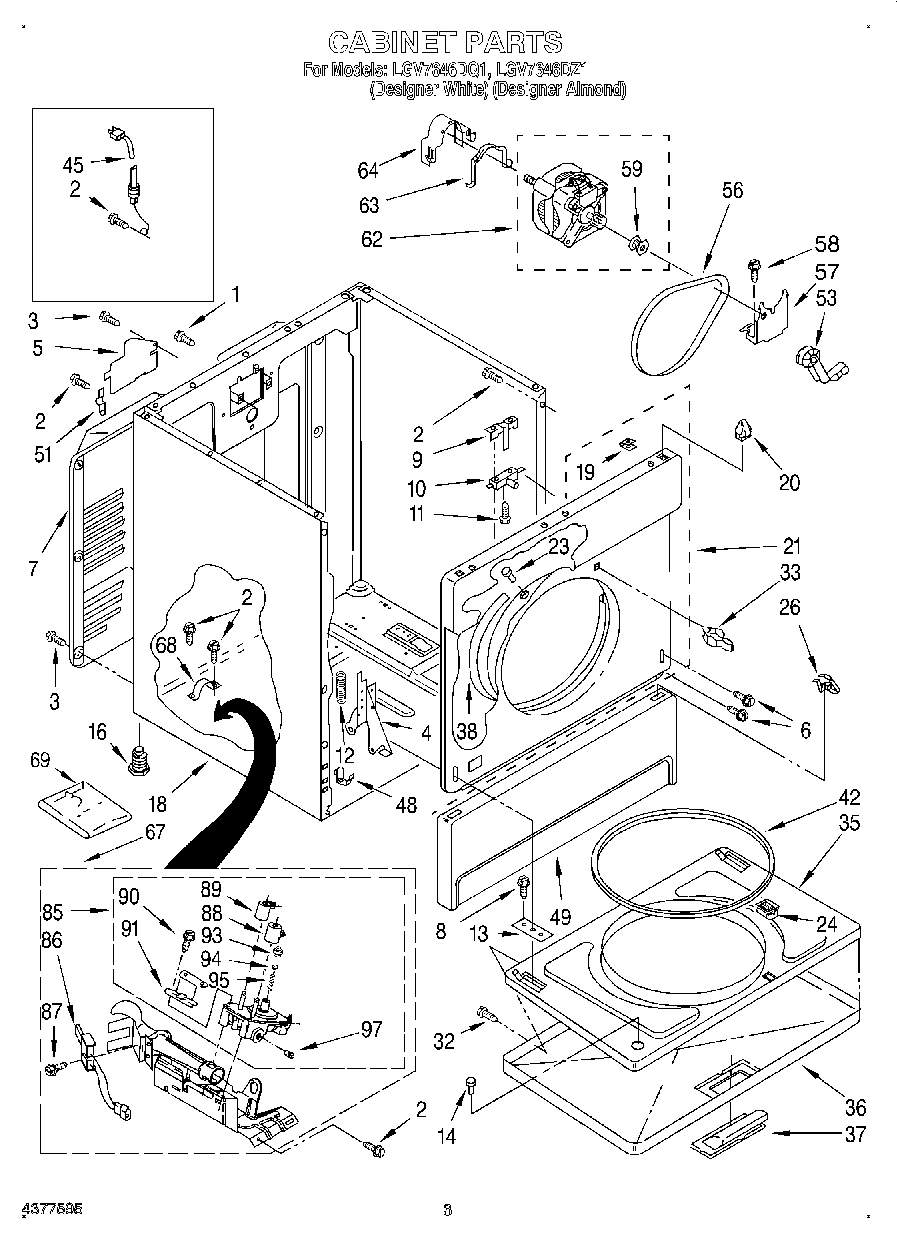

02 - CABINET
Common parts from model Whirlpool LGV7646DQ1 GAS DRYER
4
Hinge, R.H. WPL 687905 Contact Us For Availability
4
Hinge, L.H. WPL 687906 Contact Us For Availability
5
Wire, Jumper (Black) WPL 3401684 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
12
Spring, Door (2) WPL 237979 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
18
Cabinet (White) WPL 3399585 Contact Us For Availability
18
Cabinet (Almond (Includes Illus. Nos. 5, 7, 1 WPL 3399586 Contact Us For Availability
20
Connector 6-Circuit WPL 3347243 Contact Us For Availability
21
Upper Front Panel (White) WPL 338012 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 689533 Contact Us For Availability
23
Harness, Wiring WPL 3401632 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
26
Connector, Timer WPL 3397269 Contact Us For Availability
35
Door, Rear WPL 695954 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
49
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control (White) WPL 3399033 Contact Us For Availability
54
Panel, Control (Almond) WPL 3399034 Contact Us For Availability
66
Seal, Rear Drum WPL 3397509 Contact Us For Availability
67
Burner Assembly 60 Hz. (Alternate) (Refer To WPL 3401771 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, Latching (2-Way) WPL 717252 Contact Us For Availability
× ![]()
