  • Whirlpool LGR7646AW1

Model Whirlpool LGR7646AW1 GAS DRYER – Common Parts & Diagrams

Almond (Uncut)
Almond (Uncut) WPL 978883 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3395332 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT3396303 Contact Us For Availability
View on Model
Label, Wir
Label, Wir WPL LIT3399691 Contact Us For Availability
View on Model
WPL LIT677818
WPL LIT677818 WPL LIT677818 Contact Us For Availability
View on Model
1

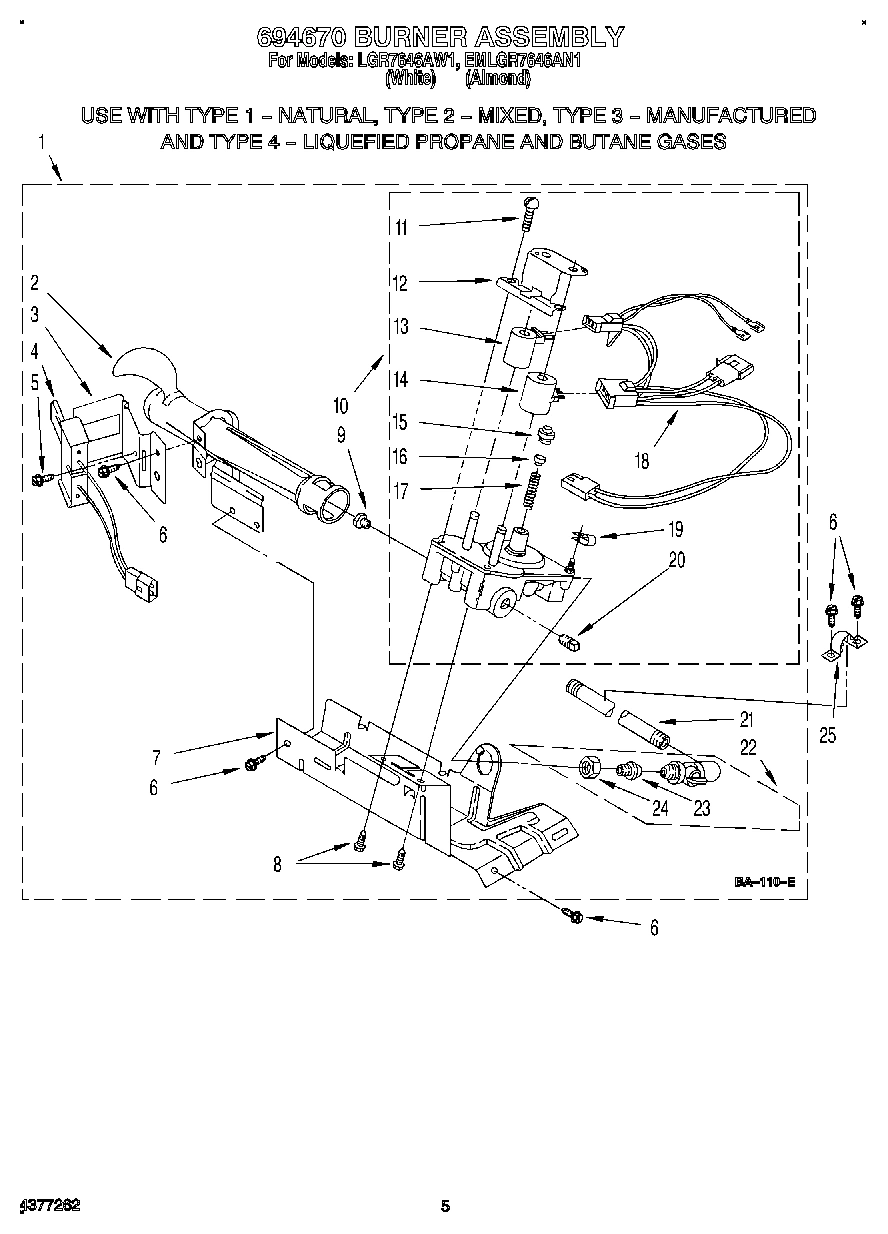

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability
View on Model
1

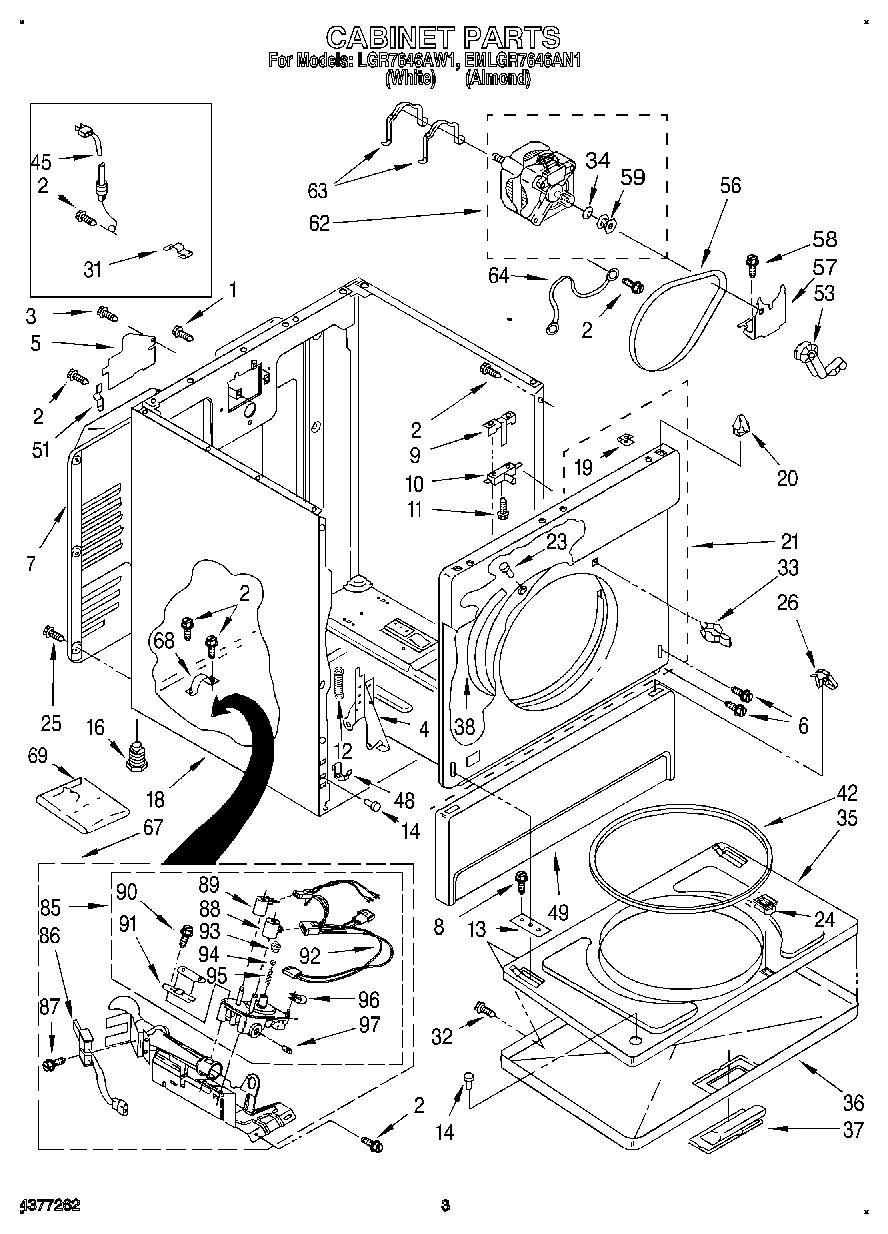

Panel, Rear Console
Panel, Rear Console WPL 3397545 Contact Us For Availability
View on Model
4
Hinge, R.H.
Hinge, R.H. WPL 687905 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Almond)
Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability
View on Model
6
Clip, Retainer
Clip, Retainer WPL 689180 Contact Us For Availability
View on Model
7
Cap, End (R.H.) (White)
Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability
View on Model
7
Cap, End (R.H.) (Almond)
Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability
View on Model
7
Base, Burner
Base, Burner WPL 693986 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 3)
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 2)
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
16

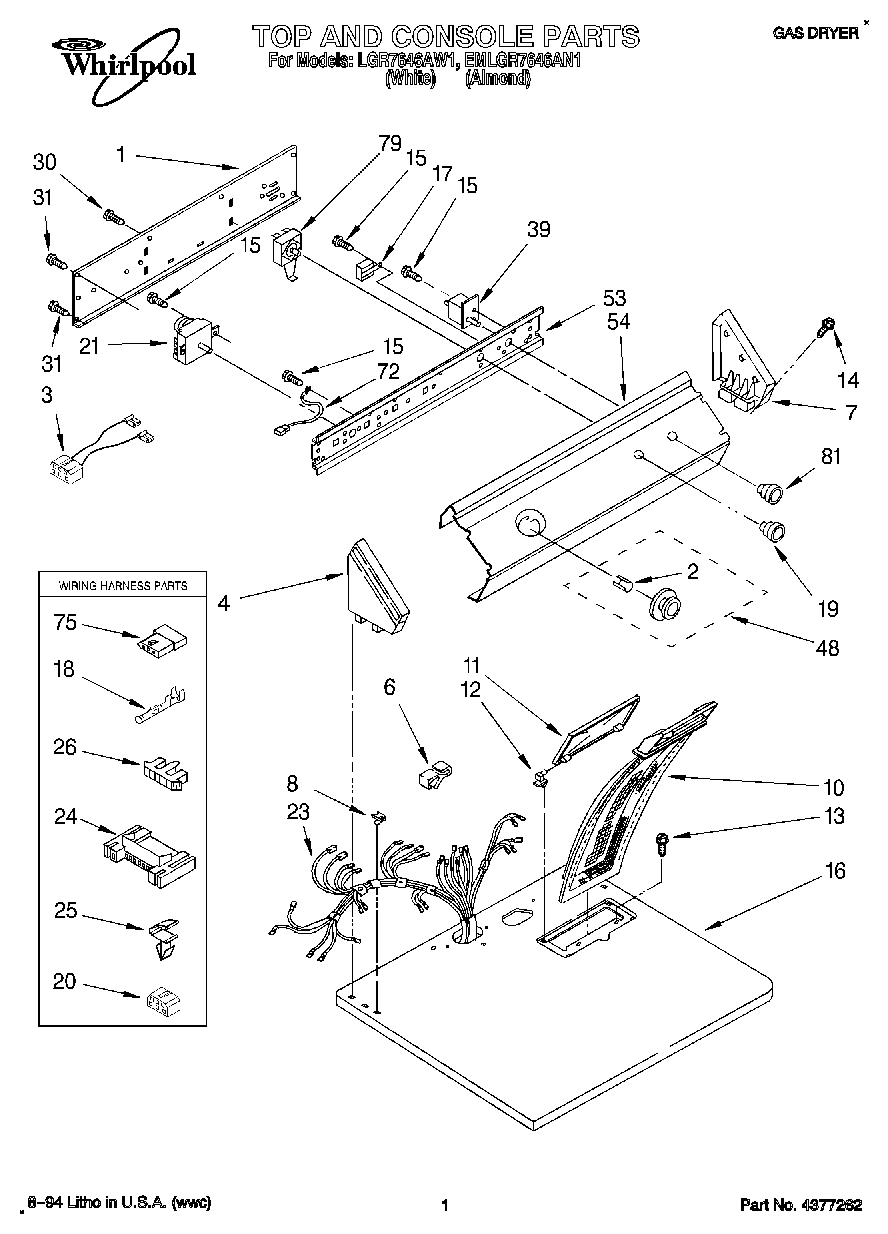

Top (White)
Top (White) WPL 3396022 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 3396023 Contact Us For Availability
View on Model
19
Clip, Harness
Clip, Harness WPL 694510 Contact Us For Availability
View on Model
20
Connector 6-Circuit
Connector 6-Circuit WPL 3347243 Contact Us For Availability
View on Model
21
Pipe, Gas Supply
Pipe, Gas Supply WPL 233273 Contact Us For Availability
View on Model
22
Valve & Union, Shut-Off
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
View on Model
23
Harness, Wiring
Harness, Wiring WPL 3399664 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
26
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 3395395 Contact Us For Availability
View on Model
49
Panel, Toe (Almond)
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 3396293 Contact Us For Availability
View on Model
54
Panel, Control (White)
Panel, Control (White) WPL 3399009 Contact Us For Availability
View on Model
54
Panel, Control (Almond)
Panel, Control (Almond) WPL 3399010 Contact Us For Availability
View on Model
64
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
66

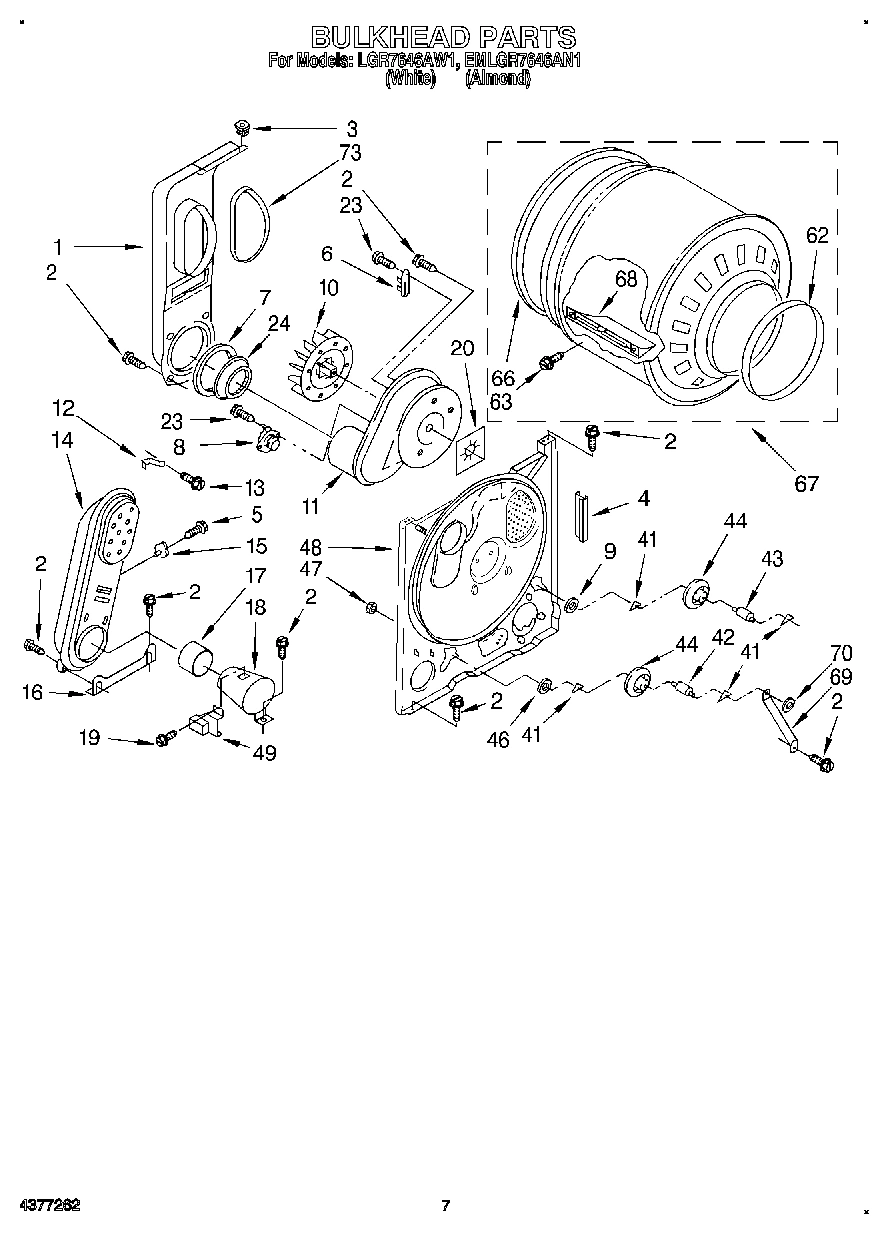

Seal, Rear Drum
Seal, Rear Drum WPL 3397509 Contact Us For Availability
View on Model
69
WPL 279243
WPL 279243 WPL 279243 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, Latching (3-Way) (Uses Terminal 9
Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability
View on Model
81
Knob, Push To Start
Knob, Push To Start WPL 3396160 Contact Us For Availability
