Model Whirlpool LGR6634BW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3395332 WPL LIT3395332 Contact Us For Availability

WPL LIT3396303 WPL LIT3396303 Contact Us For Availability

WPL LIT3399125 WPL LIT3399125 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Panel, Rear Console WPL 3397545 Contact Us For Availability

2

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

4

Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability

5

8283286 Whirlpool Wire Harness Backorder WPL 8283286 $26.21

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

7

Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability

7

Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

8

Switch, Temperature WPL 3354281 Contact Us For Availability

9

686889 Whirlpool Pad Backorder WPL 686889 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

11

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

11

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

15

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

15

Clip, Retainer WPL 689180 Contact Us For Availability

16

Top (White) WPL 3396022 Contact Us For Availability

16

Top (Almond) WPL 3396023 Contact Us For Availability

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

Backorder WPL 3358431 $32.90

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $30.93

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Connector, Timer WPL 3397269 Contact Us For Availability

20

Seal, Blower WPL 3392123 Contact Us For Availability

21

WP3976568 Whirlpool Timer In Stock WPL WP3976568 $145.53

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

24

Nut, Compression WPL 233076 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

27

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

28

Hinge, R.H. WPL 687905 Contact Us For Availability

29

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

Harness, Wiring WPL 3396224 Contact Us For Availability

34

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

35

Door, Rear WPL 695954 Contact Us For Availability

36

Door, Front (White) WPL 348728 Contact Us For Availability

36

Door, Front (Almond) WPL 689330 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

(Alt.) WPL 692021 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $34.13

48

Bulkhead WPL 685775 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

Panel, Toe (White) WPL 692427 Contact Us For Availability

49

Panel, Toe (Almond) WPL 692428 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control (FOR MODEL LGR6634BW0) WPL 3397205 Contact Us For Availability

54

Panel, Control (FOR MODEL LGR6634BN0) WPL 3397206 Contact Us For Availability

54

Panel, Control (FOR MODEL LGR6634BQ0) WPL 3397207 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

67

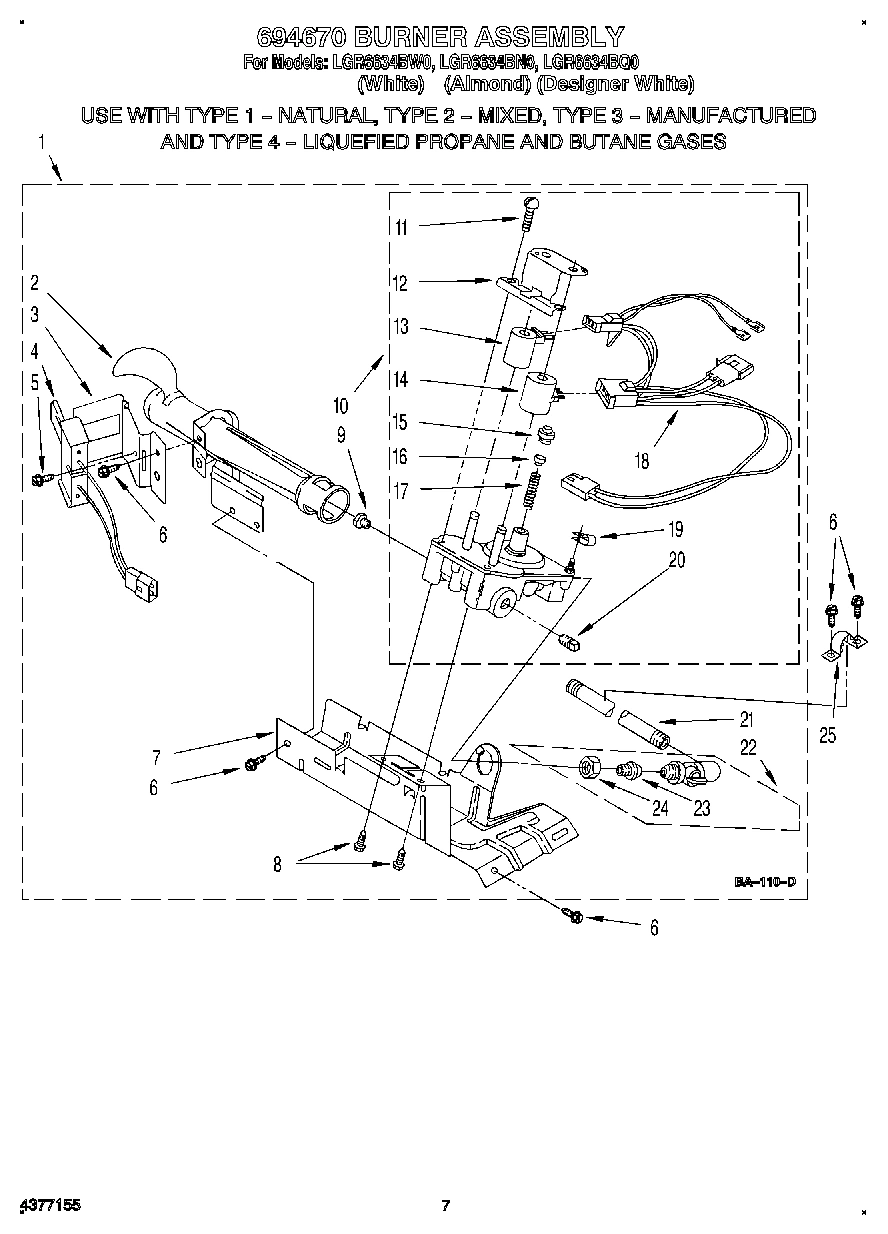

Burner Assembly, 60 Hz. (Refer To Burner Asse WPL 694670 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

72

Wire, Ground WPL 690853 Contact Us For Availability

73

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 691707 Contact Us For Availability

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

77

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

78

WPL 694510 WPL 694510 Contact Us For Availability

79

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

81

WP3957800 Whirlpool Knob Backorder WPL WP3957800 $29.43

81

Knob, Push To Start WPL 3396160 Contact Us For Availability

84

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51
