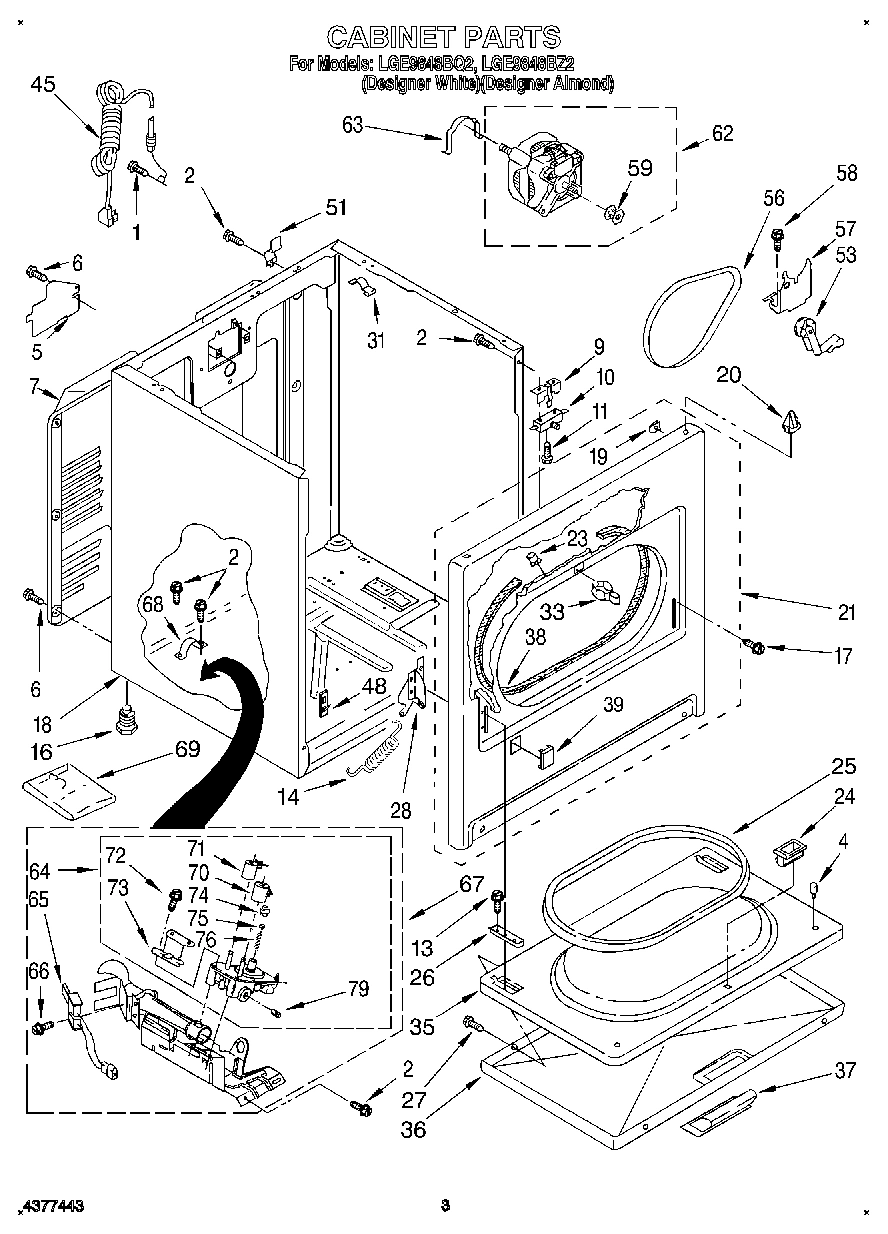

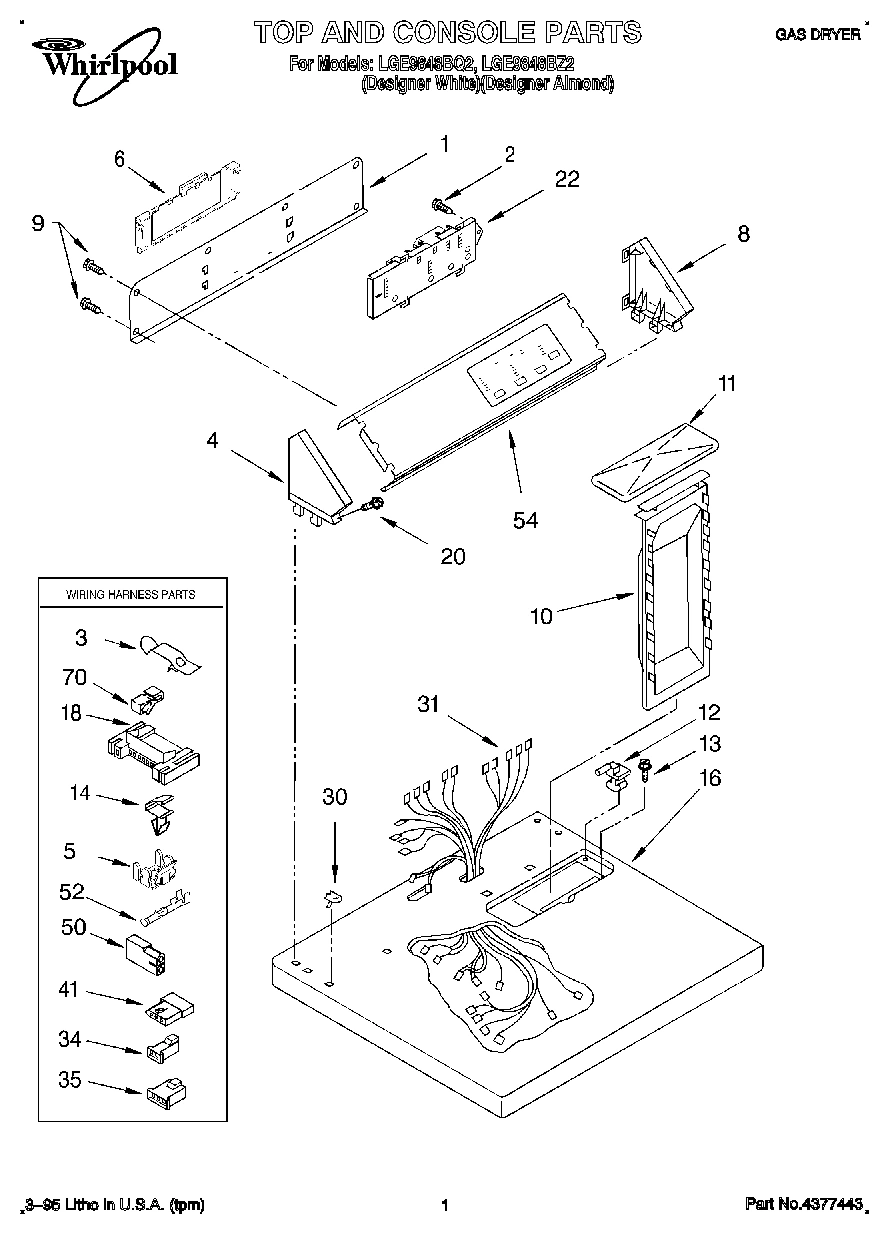

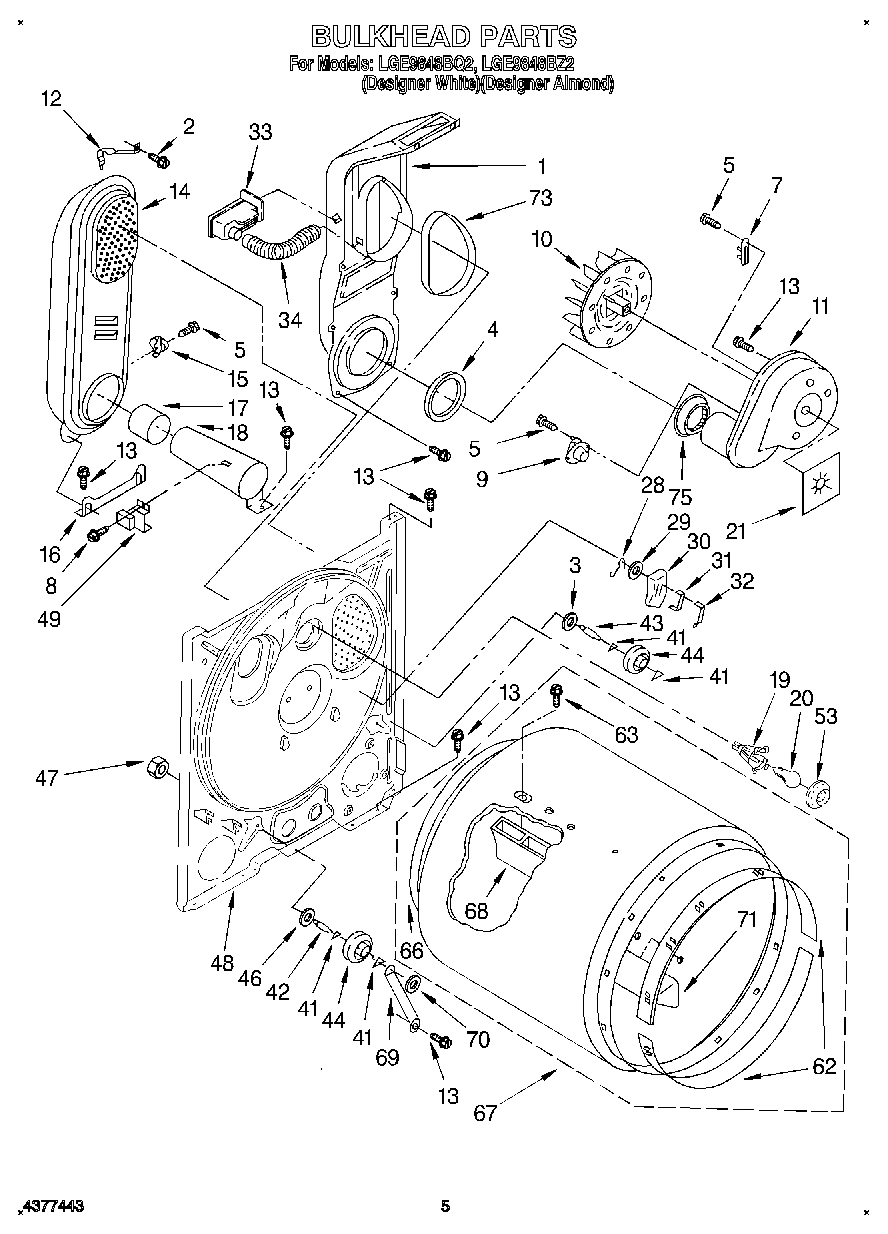

Model Whirlpool LGE9848BQ2 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

1

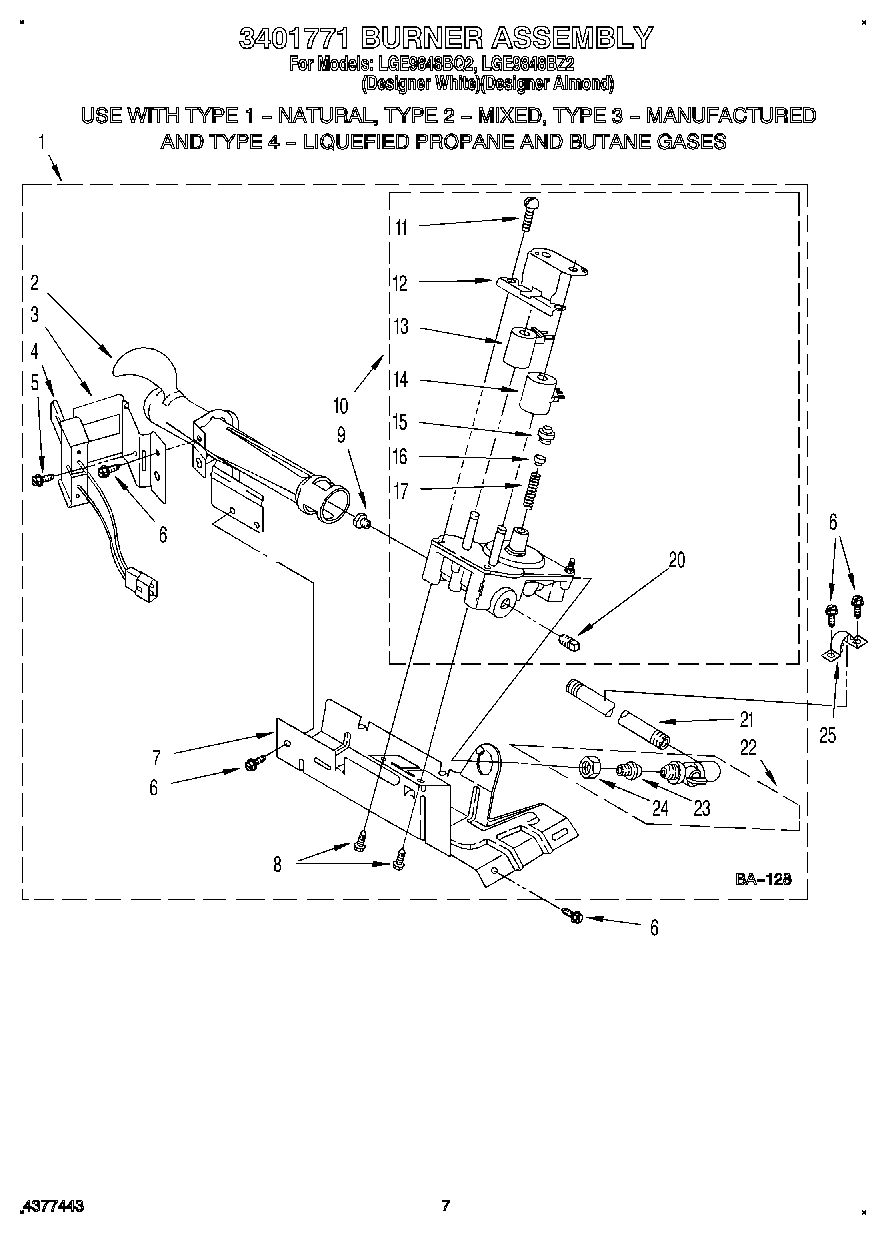

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401771 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.98

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

7

280043 Whirlpool Rear Panel Backorder WPL 280043 $135.83

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $151.32

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

12

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $4.52

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $4.52

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

16

Top (White) WPL 3396022 Contact Us For Availability

16

Top (Almond) WPL 3396023 Contact Us For Availability

17

Screw WPL 342043 Contact Us For Availability

18

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

18

Cabinet (Includes Illus. Nos. 5,7,16,48, & 57 WPL 3399585 Contact Us For Availability

18

Cabinet (Includes Illus. Nos. 5, 7, 16, 48, & WPL 3399586 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

20

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

21

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

21

Panel, Front (Almond) WPL 3395198 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Electronic Control Board WPL 3398015 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $12.76

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.10

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.60

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $33.45

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

31

Harness, Wiring WPL 3398178 Contact Us For Availability

34

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

35

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $46.54

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

39

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

39

Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability

41

Connector, 3-Circuit WPL 3353875 Contact Us For Availability

45

W11222083 Whirlpool Power Cord Backorder WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.32

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

50

Receptacle, 2 Way WPL 717252 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

54

Control Panel & Bracket Assembly (White) WPL 3403637 Contact Us For Availability

54

Control Panel & Bracket Assembly (Almond) WPL 3403638 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $23.68

62

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $53.07

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

70

Clip, Retainer WPL 689180 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
