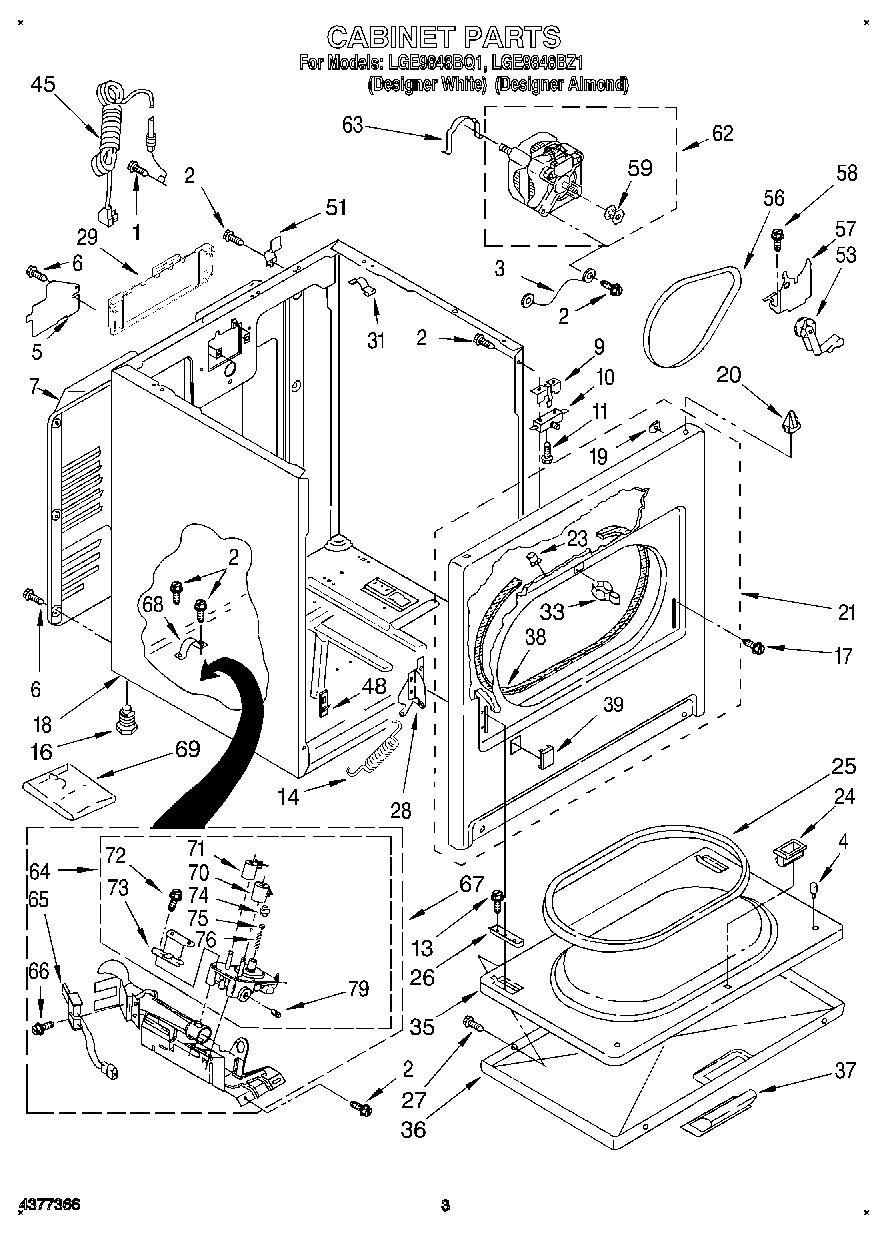

Model Whirlpool LGE9848BQ1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

1

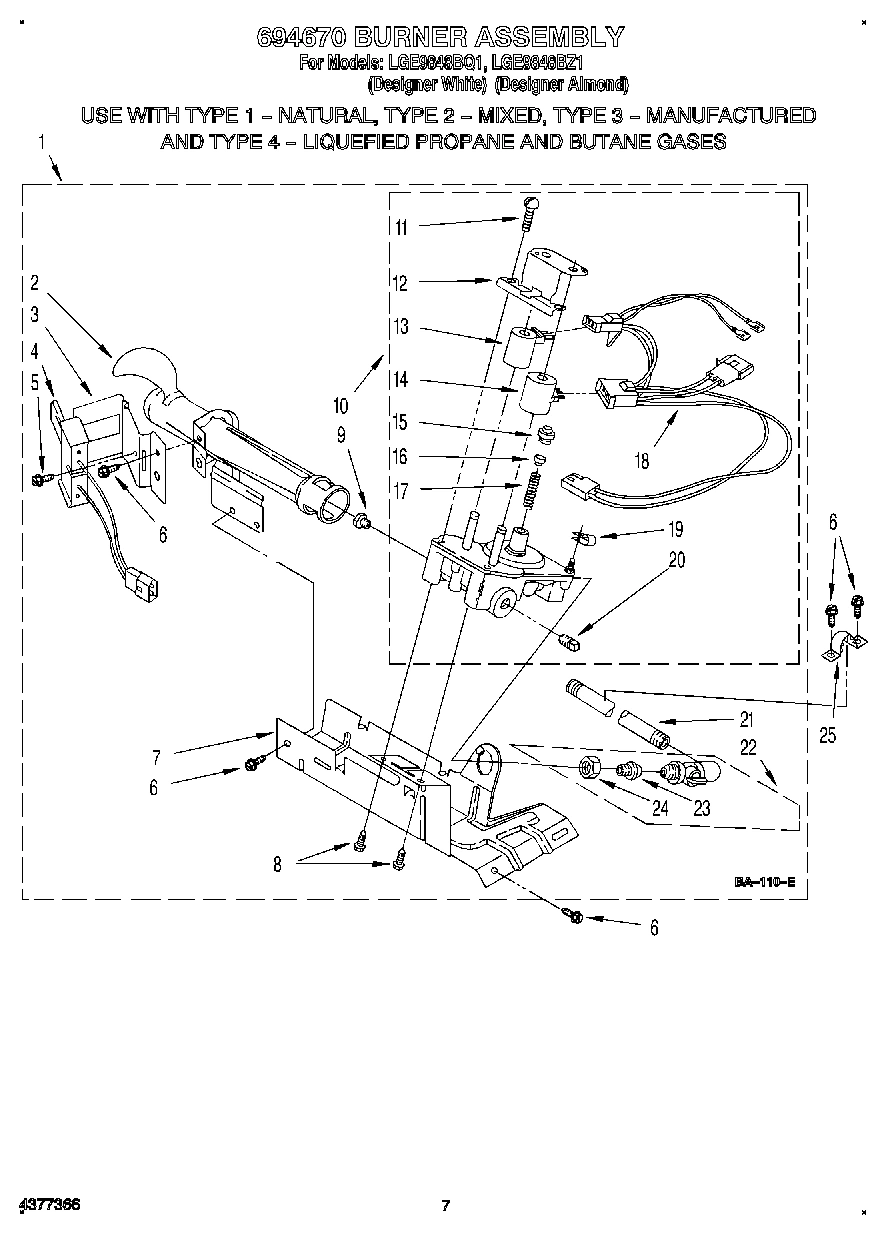

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Wire, Ground WPL 690236 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

6

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

280043 Whirlpool Rear Panel Backorder WPL 280043 $135.03

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

9

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

12

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

15

(Alt.) WPL 341196 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

17

Screw WPL 342043 Contact Us For Availability

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $107.10

Cabinet (Includes Illus. Nos. 5,7,16,48, & 57 WPL 3399585 Contact Us For Availability

Cabinet (Includes Illus. Nos. 5, 7, 16, 48, & WPL 3399586 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

21

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

21

Panel, Front (Almond) WPL 3395198 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $16.78

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $32.63

29

Card & Tray Assembly (White) WPL 3364201 Contact Us For Availability

29

Card & Tray Assembly (Almond) WPL 3364202 Contact Us For Availability

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

34

Hose, Differential WPL 686577 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.71

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $45.51

39

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

39

Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

48

Bulkhead WPL 3396791 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

53

Lens, Drum Light WPL 341165 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.04

62

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

66

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $132.34

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
