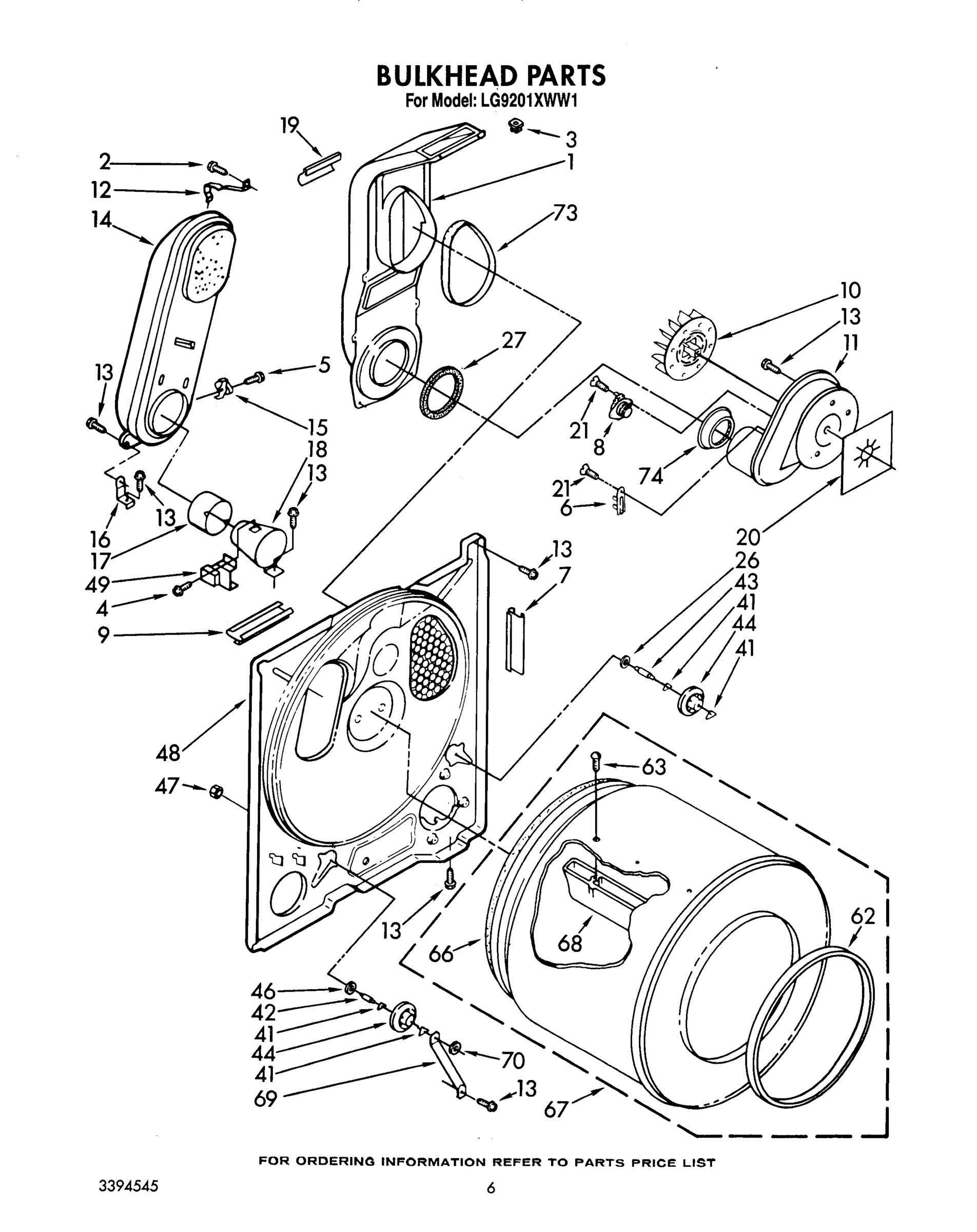

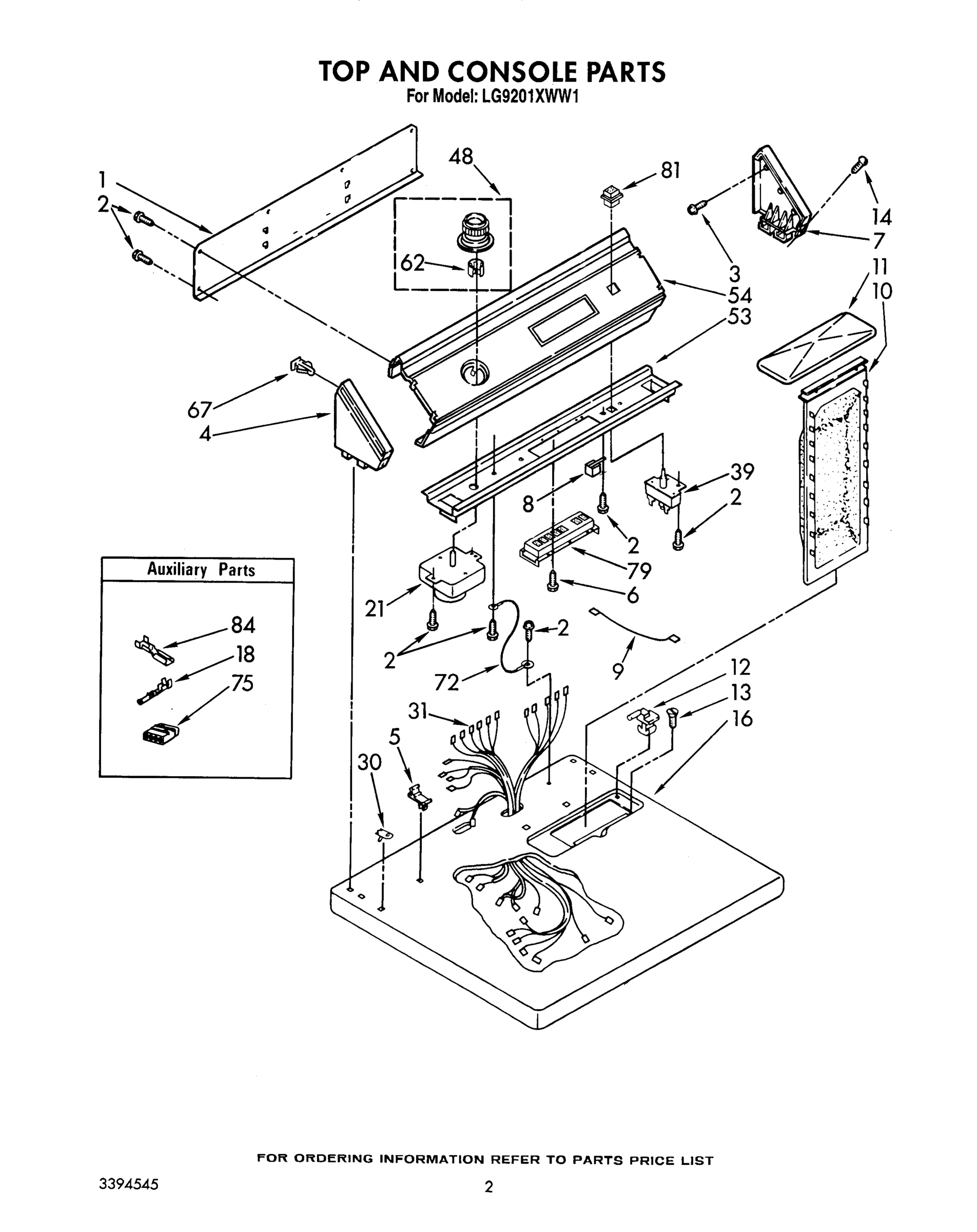

Model Whirlpool LG9201XWN1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

Clip, Harness WPL 688412 Contact Us For Availability

1

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

Panel, Rear WPL 347736 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

8

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

8

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

Screw, 8-18 x 1 WPL 64211 Contact Us For Availability

14

Spring, Door (2) WPL 237979 Contact Us For Availability

15

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

15

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

Top (White) WPL 3393385 Contact Us For Availability

16

Top (Almond) WPL 3393386 Contact Us For Availability

17

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

WP3394762 Whirlpool Timer Backorder WPL WP3394762 $148.22

Front Panel Assembly (White) WPL 338012 Contact Us For Availability

Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

Hinge, R.H. WPL 687905 Contact Us For Availability

28

Hinge, L.H. WPL 687906 Contact Us For Availability

29

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Harness, Wiring WPL 3394616 Contact Us For Availability

35

Door, Rear WPL 695954 Contact Us For Availability

36

Door, Front (White) WPL 348728 Contact Us For Availability

36

Door, Front (Almond) WPL 689330 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push To Start WPL 348314 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

Strap, Ground WPL 22965 Contact Us For Availability

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob & Dial WPL 3387900 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

Panel, Toe (White) WPL 692427 Contact Us For Availability

49

Panel, Toe (Almond) WPL 692428 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3391255 Contact Us For Availability

54

Panel, Control WPL 3391306 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 691707 Contact Us For Availability

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

79

Switch, Clean Touch WPL 3393926 Contact Us For Availability

81

Knob, Push To Start WPL 3391230 Contact Us For Availability

84

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51
