Model Whirlpool LG9101XTN0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Use & Care Guide WPL LIT3391372 Contact Us For Availability

Guide, Dryer WPL LIT3391427 Contact Us For Availability

Instructions, Installation WPL LIT3393137 Contact Us For Availability

List, Service Parts WPL LIT3394543 Contact Us For Availability

Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

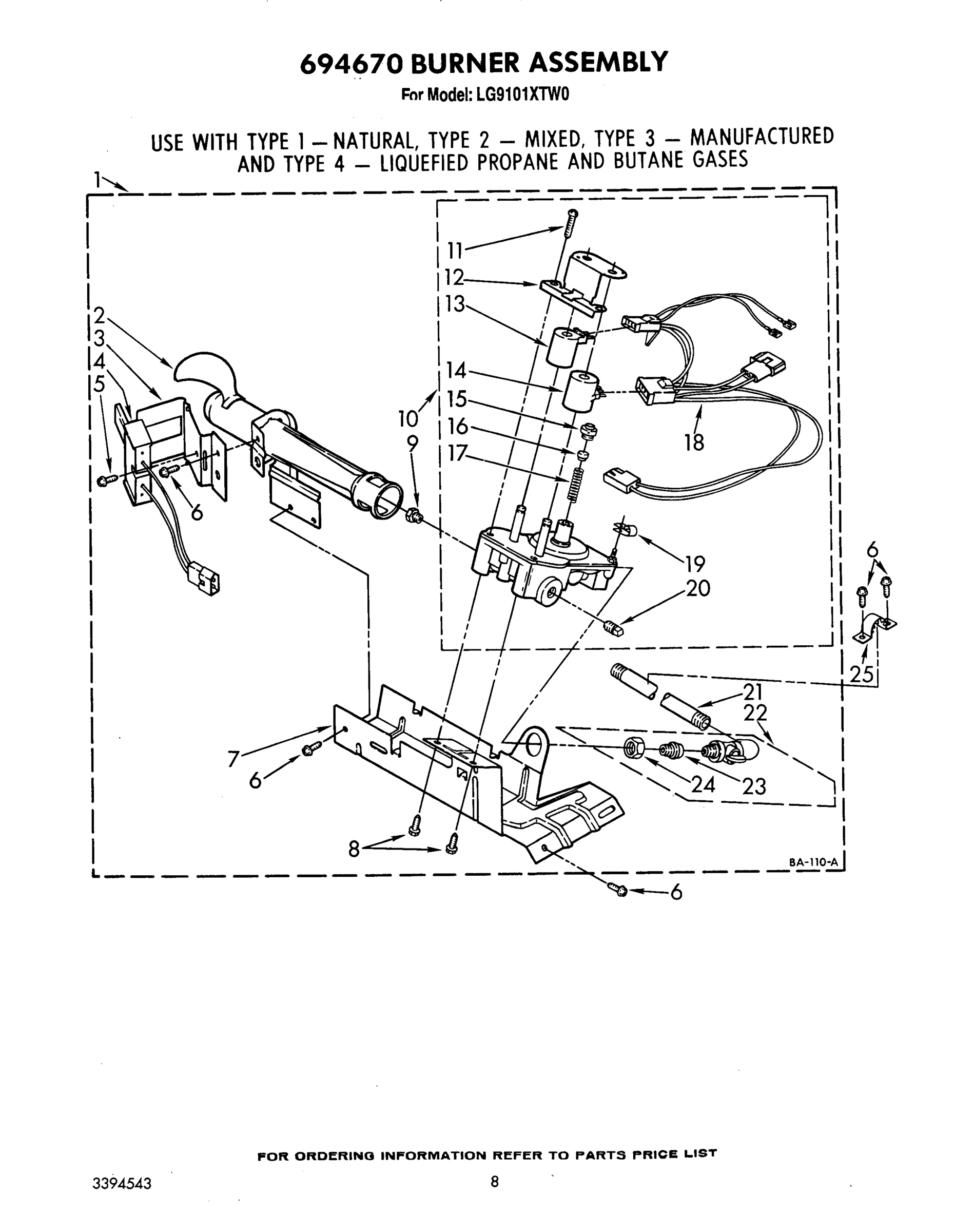

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

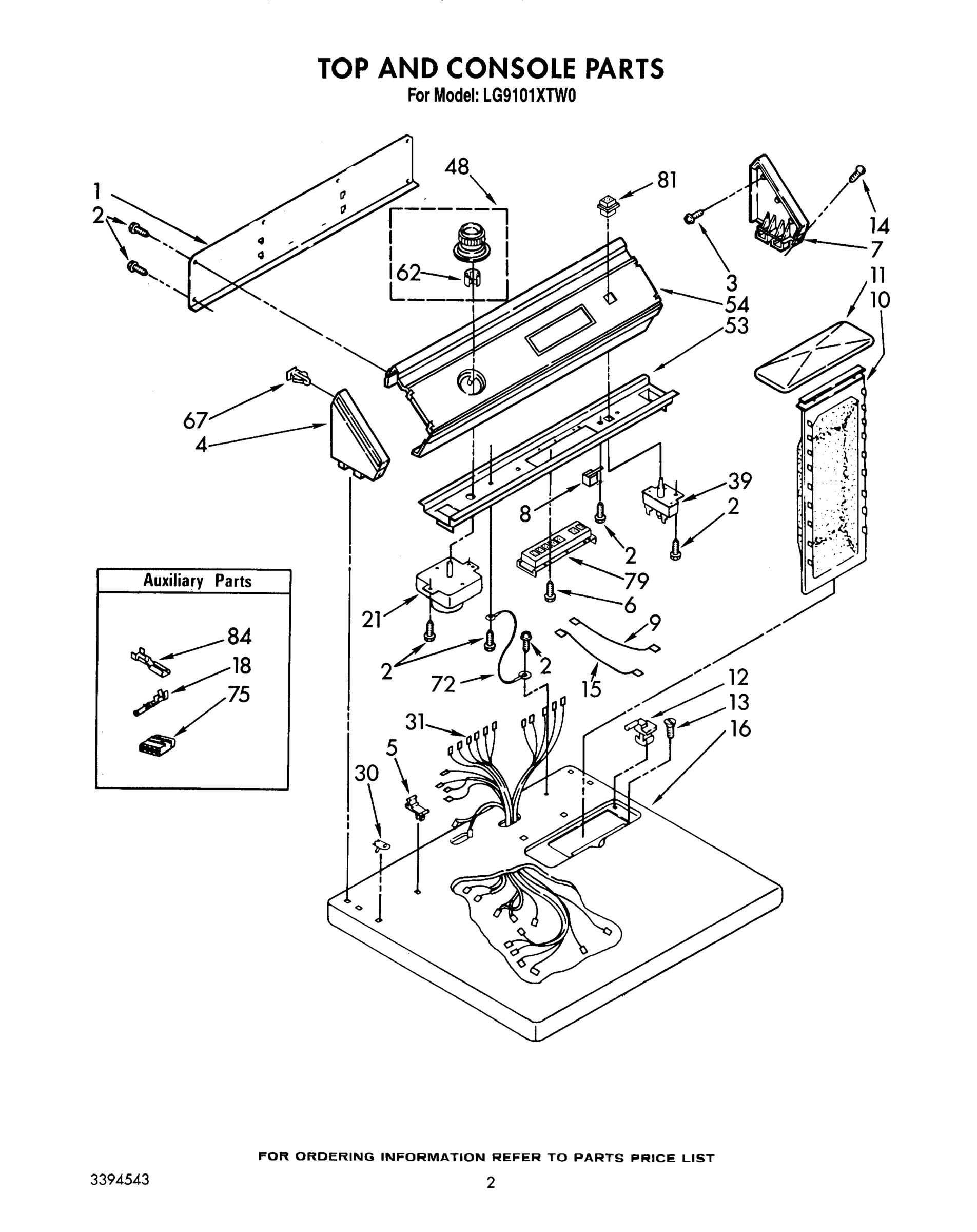

Panel, Rear Console WPL 386367 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

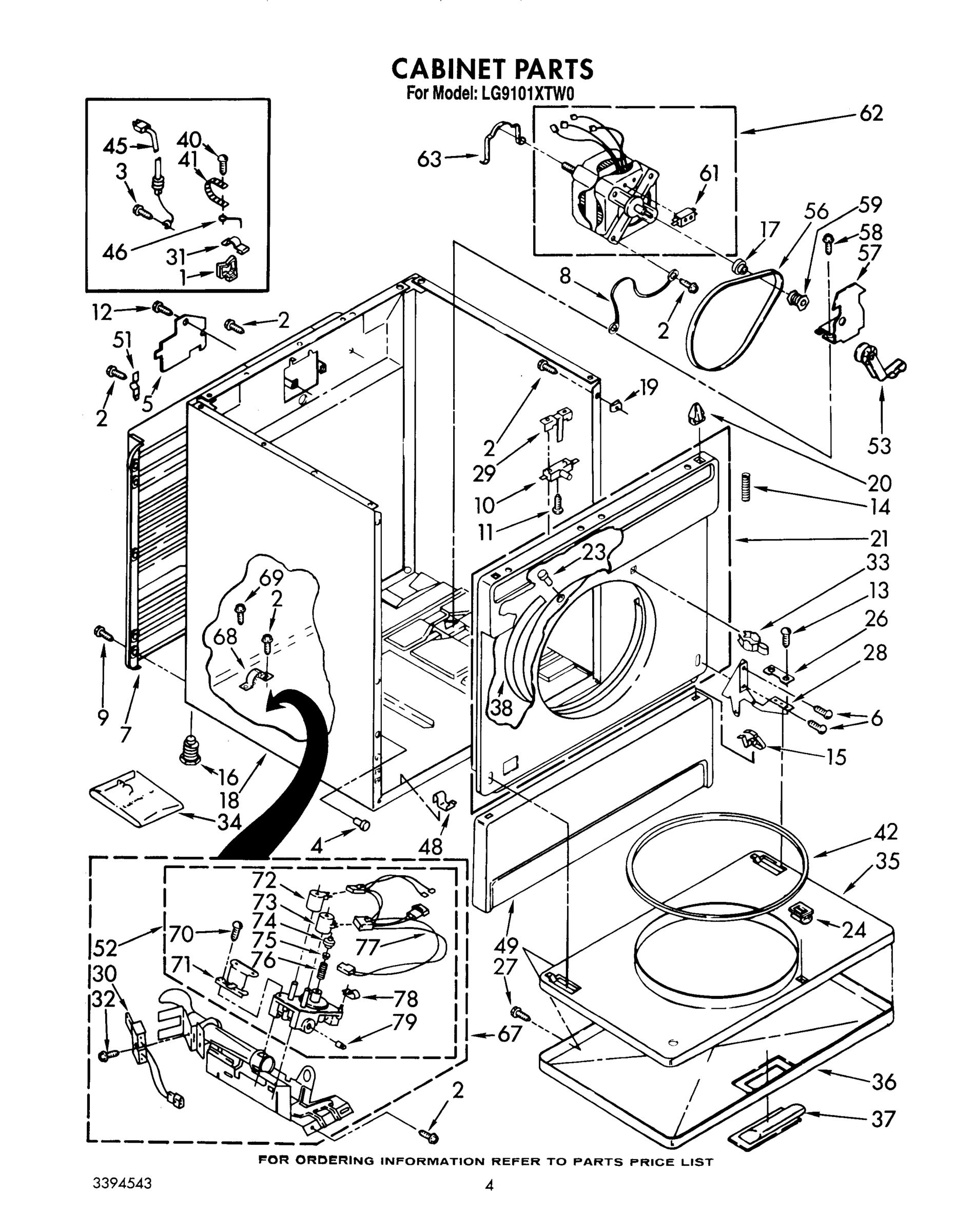

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Stop, Push-In (2) WPL 358472 Contact Us For Availability

6

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

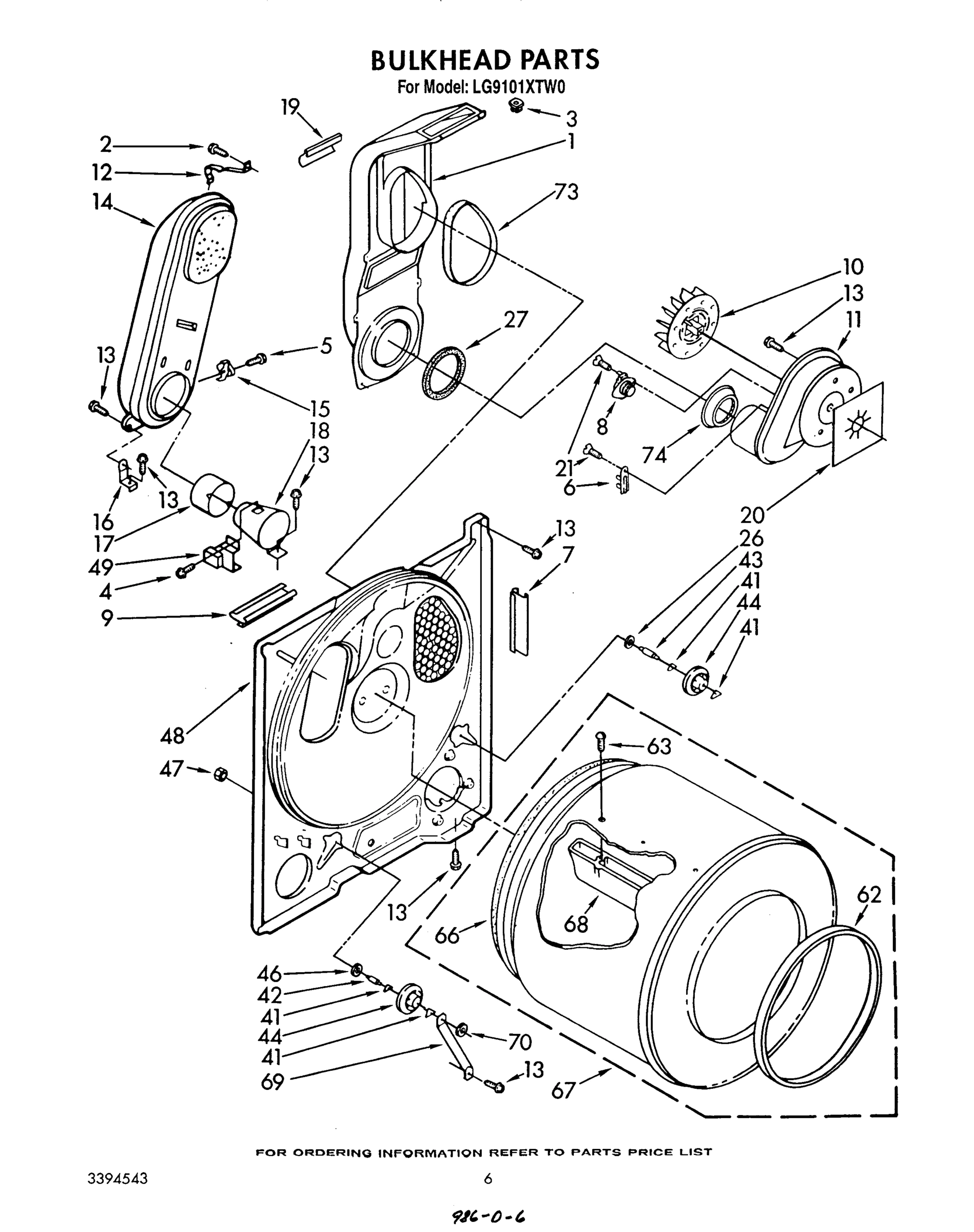

7

Base, Burner WPL 693986 Contact Us For Availability

7

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

8

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

686889 Whirlpool Pad Backorder WPL 686889 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

9

Wire, Jumper (Violet) WPL 3393811 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

Screw, 8-18 x 1 WPL 64211 Contact Us For Availability

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Wire, Jumper (Blue) WPL 3393812 Contact Us For Availability

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

Top (White) WPL 3393385 Contact Us For Availability

16

Top (Almond) WPL 3393386 Contact Us For Availability

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Seal, Blower WPL 3392123 Contact Us For Availability

21

WP3394762 Whirlpool Timer Backorder WPL WP3394762 $148.22

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

27

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

28

Hinge, R.H. WPL 687905 Contact Us For Availability

29

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

Harness, Wiring WPL 3394616 Contact Us For Availability

39

Switch, Push To Start WPL 348314 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob & Dial WPL 3387900 Contact Us For Availability

48

Bulkhead WPL 685775 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 3391255 Contact Us For Availability

54

Panel, Control WPL 3391305 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 691707 Contact Us For Availability

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

79

Switch, Clean Touch WPL 3393926 Contact Us For Availability

81

Knob, Push To Start WPL 3391230 Contact Us For Availability

84

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51
