Model Whirlpool LG7801XMW0 GAS DRYER – Common Parts &amp; Diagrams

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $63.75

1

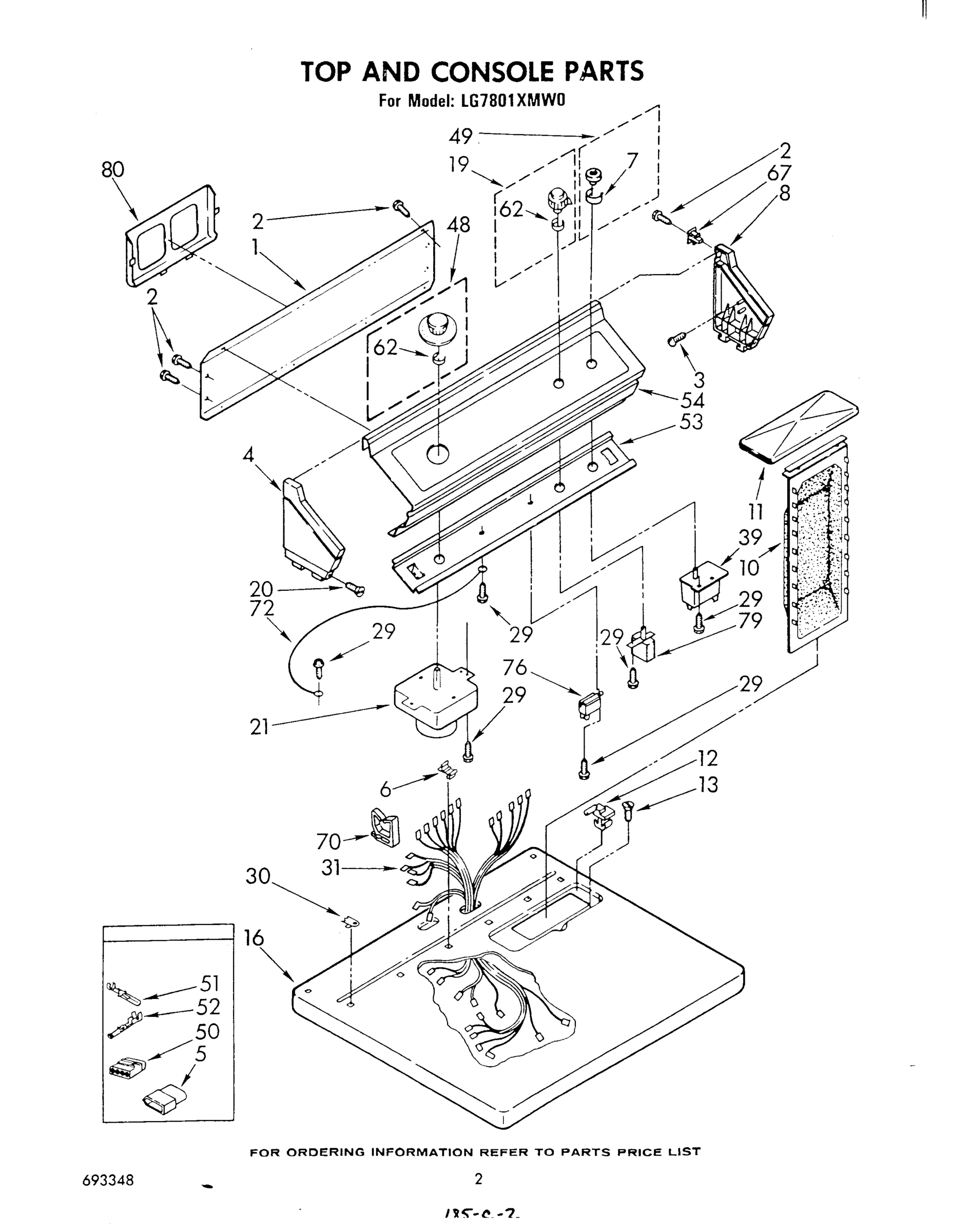

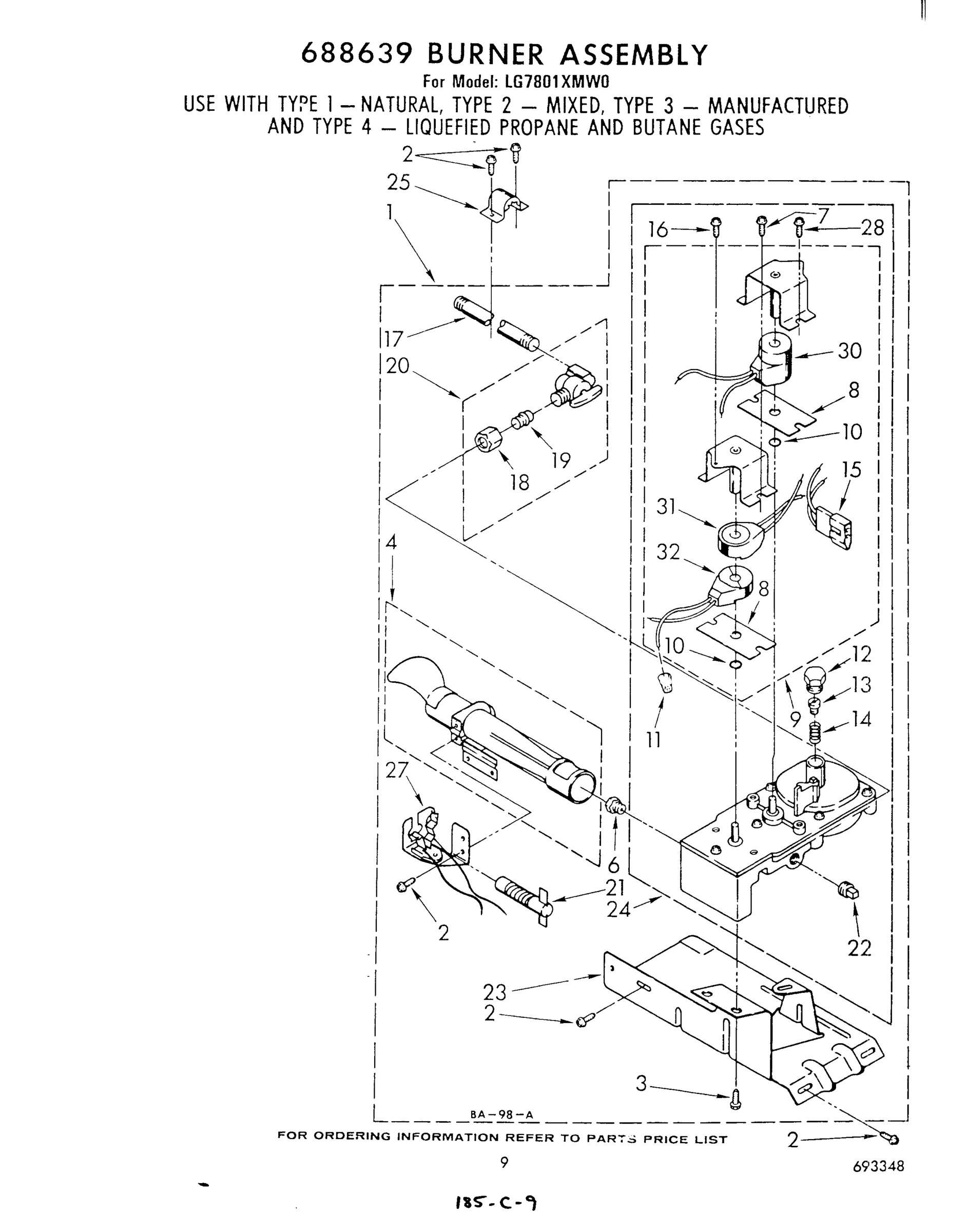

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability

1

Panel, Rear Console WPL 359372 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Coffee) WPL 375314 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

Dry Rack WPL 692990 Contact Us For Availability

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

6

Stop, Push-In (2) WPL 358472 Contact Us For Availability

7

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Clip WPL 90015 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

8

Plate (2) WPL 338869 Contact Us For Availability

8

Cap , End (R.H.) (White) WPL 375309 Contact Us For Availability

8

Cap , End (R.H.) (Almond) WPL 375315 Contact Us For Availability

8

Cap, End (R.H.) (Coffee) WPL 375316 Contact Us For Availability

8

Cap , End (R.H.) (Golden Harvest) WPL 377283 Contact Us For Availability

9

BURNER-GAS WPL 685947 Contact Us For Availability

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

10

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

Housing, Blower WPL 348493 Contact Us For Availability

Connector, Wire (3) WPL 340140 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Coffee) WPL 689311 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Wire, Ground WPL 690236 Contact Us For Availability

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

14

Spring, Regulator WPL 339226 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

Support, Heater Box WPL 348484 Contact Us For Availability

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Coffee) WPL 689450 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

Nut, Compression WPL 233076 Contact Us For Availability

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Coffee) WPL 690843 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

19

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Control Knob, Temperature Selector WPL 690292 Contact Us For Availability

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

Screw, 8-18 WPL 358225 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

Panel Front (Almond) WPL 692436 Contact Us For Availability

Panel Front (Coffee) WPL 692437 Contact Us For Availability

Panel Front (Golden Harvest) WPL 692439 Contact Us For Availability

Timer Assembly (60 Hz.) (3 Cy) WPL 693747 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

23

279220 Whirlpool Clip In Stock WPL 279220 $11.93

23

Baseplate WPL 338455 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

Screw WPL 689791 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

31

Harness, Wiring WPL 693748 Contact Us For Availability

32

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

32

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

Door, Front (Almond) WPL 692319 Contact Us For Availability

Door, Front (Coffee) WPL 692320 Contact Us For Availability

Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Coffee) WPL 690267 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

39

Relay, Push-To-Start WPL 348314 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Clamp, Ground WPL 22965 Contact Us For Availability

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

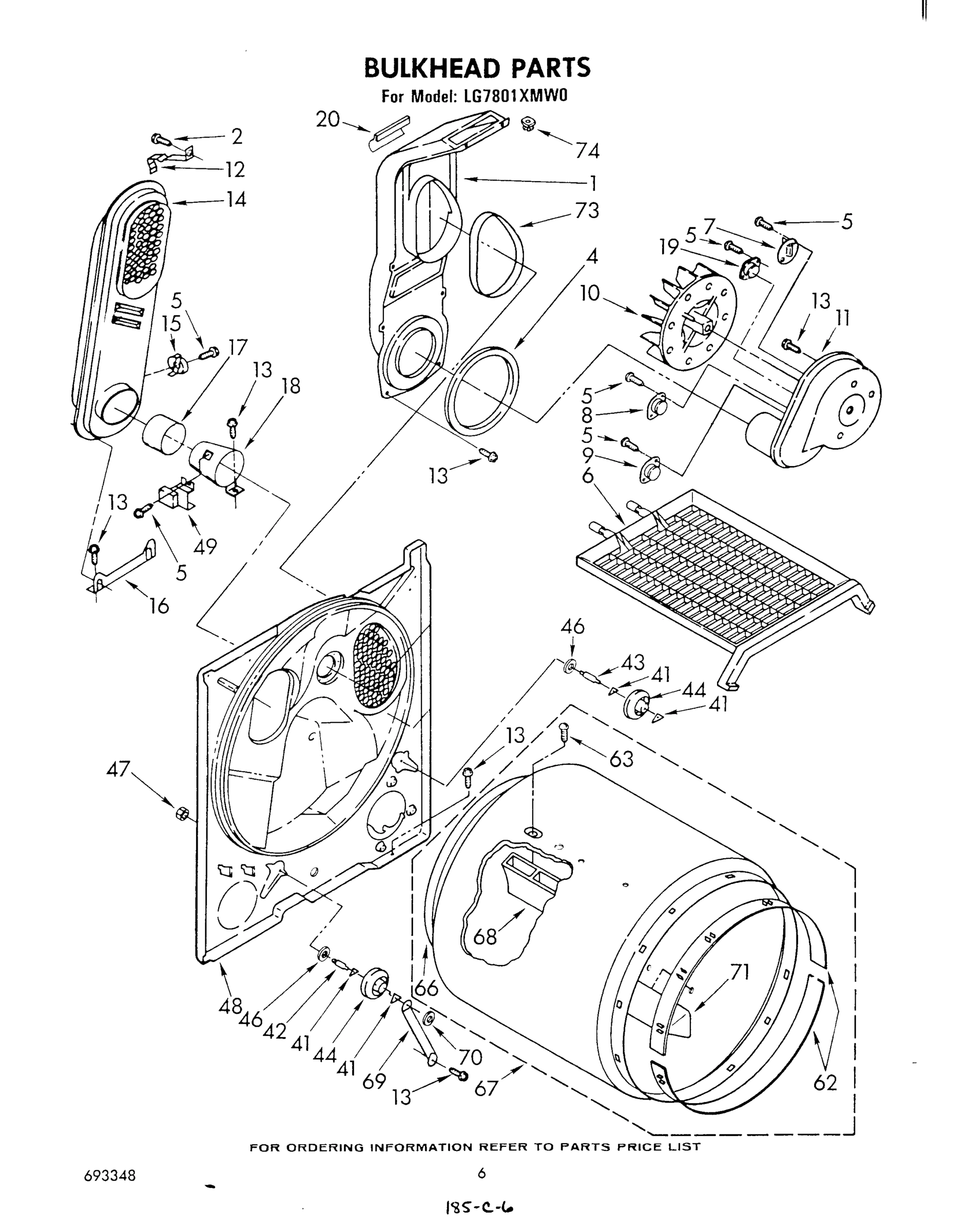

W11178667 Whirlpool Bulkhead Assembly In Stock WPL W11178667 $118.41

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690200 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

Panel, Toe (White) WPL 692427 Contact Us For Availability

Panel, Toe (Almond) WPL 692428 Contact Us For Availability

Panel, Toe (Coffee) WPL 692429 Contact Us For Availability

Panel, To WPL 692431 Contact Us For Availability

Button, Push To Start WPL 691614 Contact Us For Availability

50

Receptacle, Terminal WPL 353425 Contact Us For Availability

51

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 690417 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WPL 348946 WPL 348946 Contact Us For Availability

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $25.60

66

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

67

WPL 688637 WPL 688637 Contact Us For Availability

67

Drum Assembly WPL 692492 Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

70

Clip, Retainer WPL 688412 Contact Us For Availability

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

98460 Whirlpool Nut Backorder WPL 98460 $9.59

76

Buzzer, Mini WPL 686864 Contact Us For Availability

79

Switch, Fabric Selector Temperature WPL 693744 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Coffee WPL 261886 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 357645 WPL 357645 Contact Us For Availability

WPL 688644 WPL 688644 Contact Us For Availability

WPL 691270 WPL 691270 Contact Us For Availability

WPL 693348 WPL 693348 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

83

WPL 343826 WPL 343826 Contact Us For Availability
