Model Whirlpool LG7681XMW0 GAS DRYER – Common Parts &amp; Diagrams

1

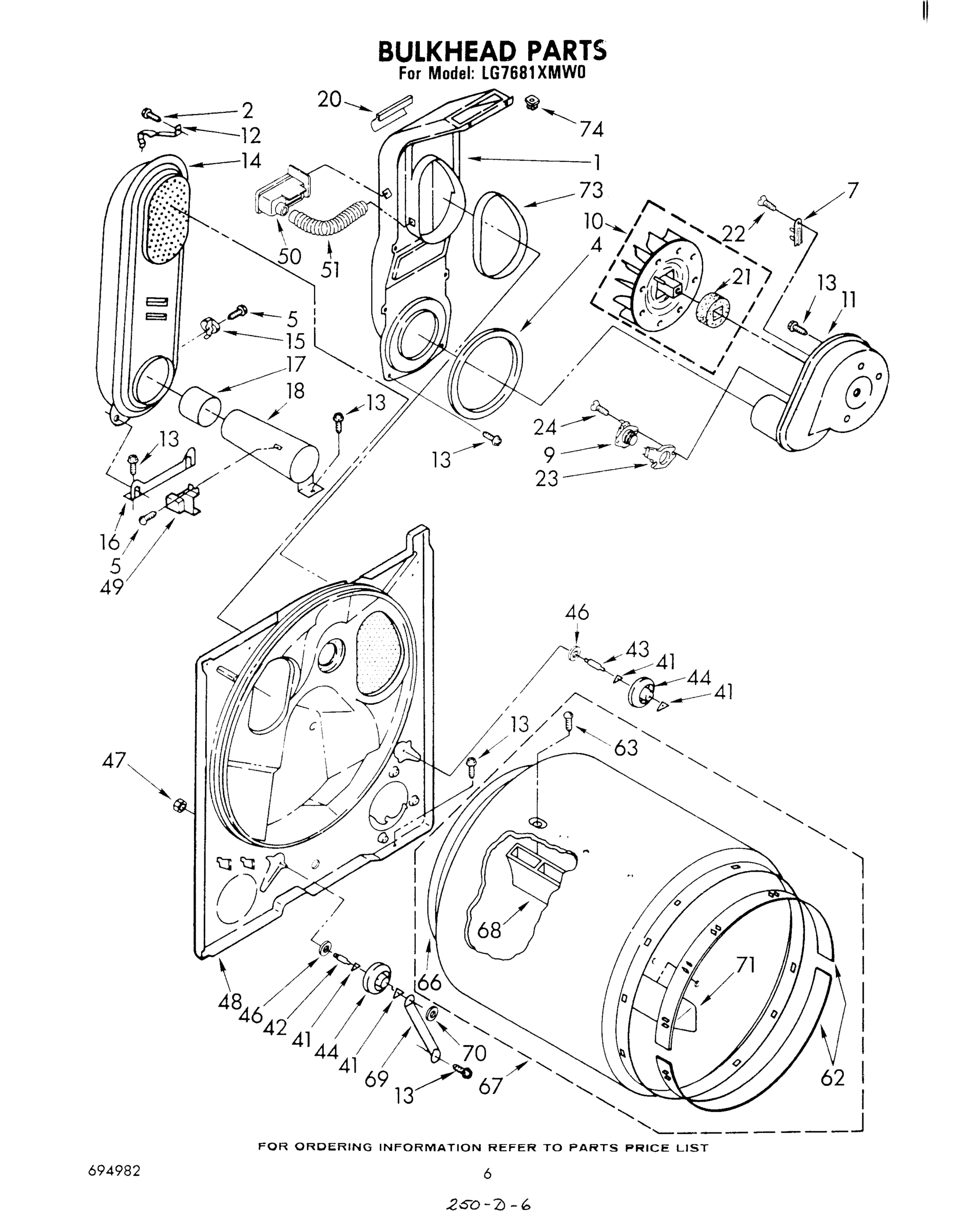

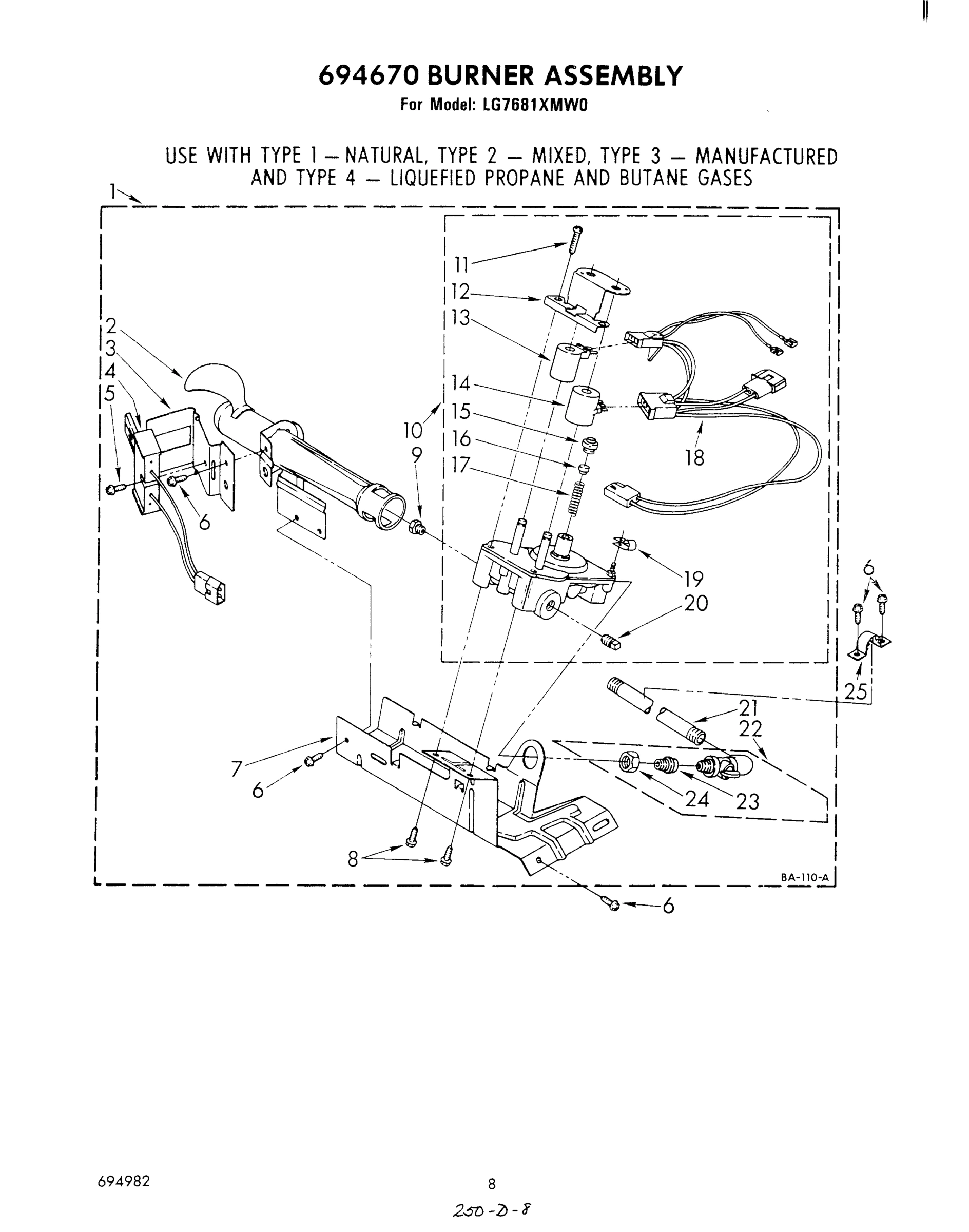

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

353424 Whirlpool Connector Backorder WPL 353424 $10.76

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

Panel, Rear WPL 348364 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

9

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

12

Wire, Ground WPL 690236 Contact Us For Availability

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Support, Heater Box WPL 348484 Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

cabinet (toast) WPL 694876 Contact Us For Availability

Cabinet (Platinum) WPL 694877 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Clip, Harness WPL 694510 Contact Us For Availability

20

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $176.01

Panel Front (Almond) WPL 692436 Contact Us For Availability

Panel Front (Golden Harvest) WPL 692439 Contact Us For Availability

Panel Front (Toast) WPL 692454 Contact Us For Availability

Panel Front (Platinum) WPL 692455 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

Seal, Blower WPL 694630 Contact Us For Availability

22

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

23

Thermostat, Heater WPL 61298 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

24

Nut, Compression WPL 233076 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Harness, Wiring WPL 695744 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

Door, Front (Almond) WPL 692319 Contact Us For Availability

Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

Handle, Door (Toast) WPL 695016 Contact Us For Availability

Handle, Door (Platinum) WPL 695017 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

39

Switch, Push-To-Start (Alt.) WPL 348771 Contact Us For Availability

39

Switch, Push-To-Start WPL 660648 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Clamp, Ground WPL 22965 Contact Us For Availability

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Grou WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

W11178667 Whirlpool Bulkhead Assembly In Stock WPL W11178667 $118.41

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690200 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

Button, Push-To-Start WPL 689857 Contact Us For Availability

WPL 692427 WPL 692427 Contact Us For Availability

WPL 692428 WPL 692428 Contact Us For Availability

WPL 692431 WPL 692431 Contact Us For Availability

WPL 695142 WPL 695142 Contact Us For Availability

WPL 695143 WPL 695143 Contact Us For Availability

50

Receptacle, Terminal WPL 353425 Contact Us For Availability

50

Alert, Lint WPL 690981 Contact Us For Availability

51

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

51

Hose, Differential WPL 686577 Contact Us For Availability

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

52

WPL 695885 WPL 695885 Contact Us For Availability

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 690422 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $25.60

67

Nut, Push-On (4) WPL 694055 Contact Us For Availability

67

Drum Assembly WPL 692492 Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

70

Clip, Retainer WPL 688412 Contact Us For Availability

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

72

Wire, Gro WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

74

98460 Whirlpool Nut Backorder WPL 98460 $9.59

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

79

WPL 695091 WPL 695091 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 357645 WPL 357645 Contact Us For Availability

WPL 693681 WPL 693681 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 694344 WPL 694344 Contact Us For Availability

WPL 694982 WPL 694982 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

83

WPL 343826 WPL 343826 Contact Us For Availability
