Model Whirlpool LG7001XPW0 GAS DRYER – Common Parts & Diagrams

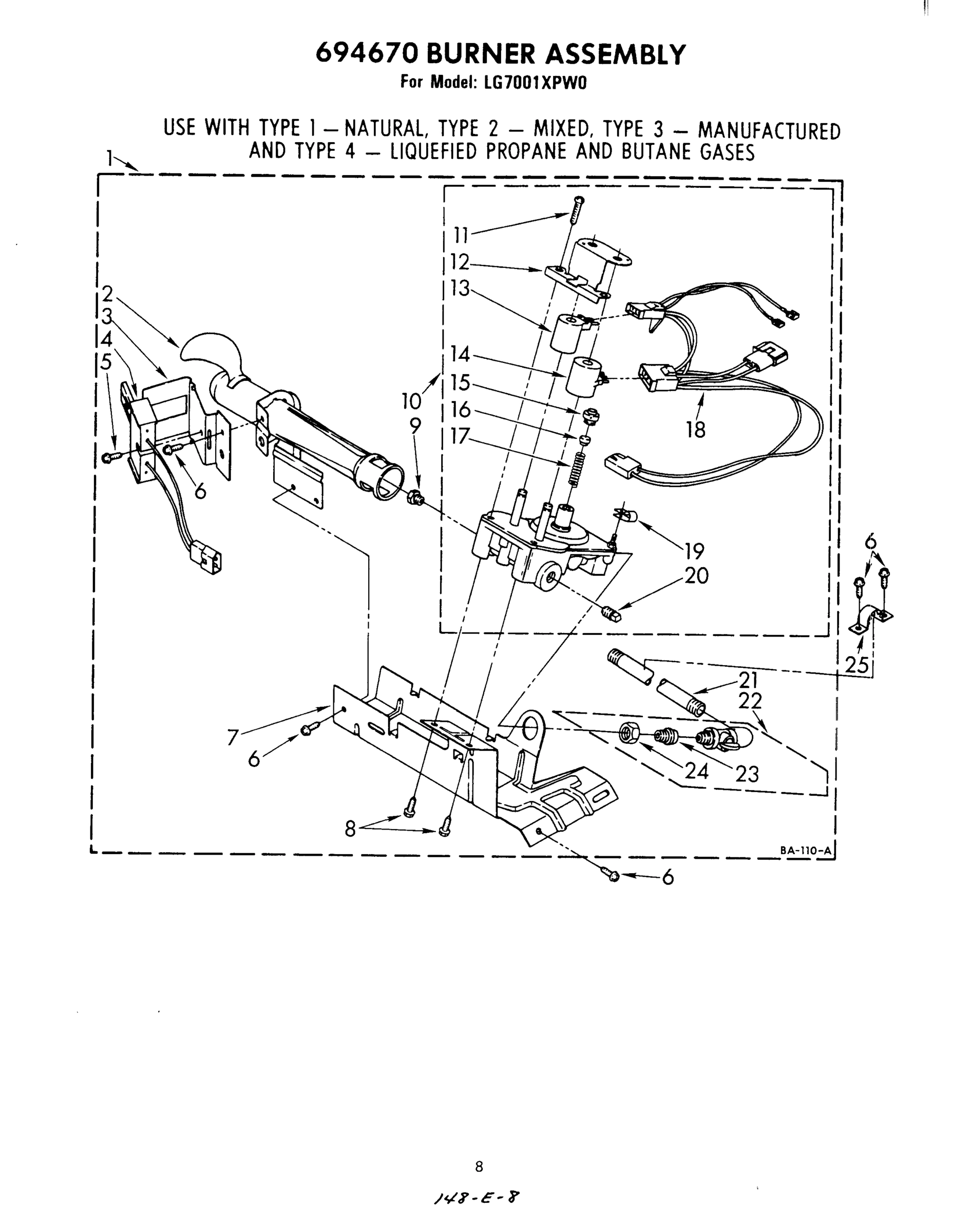

05 - 694670 BURNER ASSEMBLY

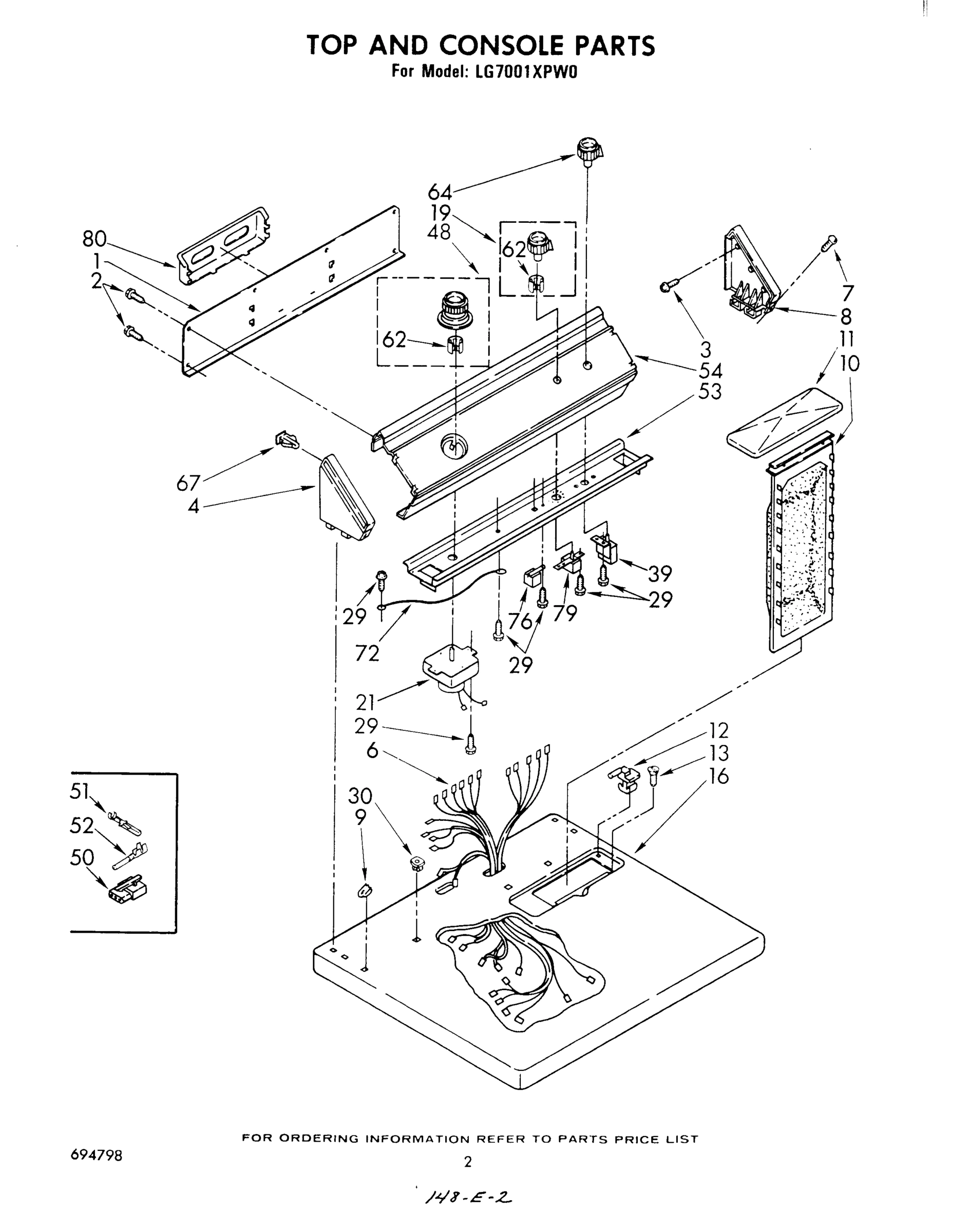

02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL
04 - BULKHEAD
03 - CABINET
Common parts from model Whirlpool LG7001XPW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
1
Lint Chute WPL 686215 Contact Us For Availability
3
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
11
Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability
11
Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
16
Top (White) WPL 695507 Contact Us For Availability
16
Top (Almond) WPL 695508 Contact Us For Availability
16
Top (Golden Harvest) WPL 695509 Contact Us For Availability
16
Top (Toast) WPL 695510 Contact Us For Availability
16
Top (Platinum) WPL 695511 Contact Us For Availability
16
Support, Heater Box WPL 337445 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
18
Cabinet (Toast) WPL 694874 Contact Us For Availability
18
Cabinet (Platinum) WPL 694875 Contact Us For Availability
19
Knob, Temperature Selector WPL 386629 Contact Us For Availability
20
Seal, Blower WPL 694630 Contact Us For Availability
21
Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability
21
Thermostat, Heater WPL 61298 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 338012 Contact Us For Availability
21
Upper Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability
21
Upper Front Panel Assembly (Golden Harvest) WPL 689535 Contact Us For Availability
21
Upper Front Panel Assembly (Toast) WPL 695026 Contact Us For Availability
21
Upper Front Panel Assembly (Platinum) WPL 695027 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
24
Alert, Lint WPL 690981 Contact Us For Availability
25
Hose, Differential WPL 686577 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
35
Door, Rear (White) WPL 346370 Contact Us For Availability
35
Door, Rear (Almond) WPL 689258 Contact Us For Availability
35
Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability
35
Door, Rear (Toast) WPL 695003 Contact Us For Availability
35
Door, Rear (Platinum) WPL 695004 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
36
Door, Front (Toast) WPL 695034 Contact Us For Availability
36
Door, Front (Platinum) WPL 695035 Contact Us For Availability
37
Handle, Door (Almond WPL 690266 Contact Us For Availability
37
WPL 690269 WPL 690269 Contact Us For Availability
37
WPL 695016 WPL 695016 Contact Us For Availability
37
WPL 695017 WPL 695017 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 348771 Contact Us For Availability
39
Switch, Push-To-Start WPL 660648 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability
40
WPL 132848 WPL 132848 Contact Us For Availability
41
WPL 22965 WPL 22965 Contact Us For Availability
46
WPL 364089 WPL 364089 Contact Us For Availability
48
Timer Knob & Dial WPL 695554 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
49
WPL 237035 WPL 237035 Contact Us For Availability
49
WPL 689537 WPL 689537 Contact Us For Availability
49
WPL 689539 WPL 689539 Contact Us For Availability
49
WPL 694999 WPL 694999 Contact Us For Availability
49
WPL 695000 WPL 695000 Contact Us For Availability
50
Receptacle, Latching (3-Way) WPL 691707 Contact Us For Availability
53
Bracket, Control WPL 386627 Contact Us For Availability
54
Panel, Control WPL 695961 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
64
Knob, Push To Start WPL 695946 Contact Us For Availability
67
Nut, Push-On (4) WPL 689559 Contact Us For Availability
67
WPL 694670 WPL 694670 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
69
WPL 279243 WPL 279243 Contact Us For Availability
69
WPL 695472 WPL 695472 Contact Us For Availability
70
WPL 688412 WPL 688412 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
79
Switch, Temperature Selector WPL 695091 Contact Us For Availability
80
Golden Harvest WPL 261890 Contact Us For Availability
80
Toast WPL 285365 Contact Us For Availability
80
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
80
Leveler (Thinner) WPL 350941 Contact Us For Availability
80
Rack, Literature WPL 63020 Contact Us For Availability
80
Use & Care Guide WPL 693688 Contact Us For Availability
80
Guide, Dryer WPL 693849 Contact Us For Availability
80
WPL 694798 WPL 694798 Contact Us For Availability
80
WPL 696233 WPL 696233 Contact Us For Availability
80
WPL 72112 WPL 72112 Contact Us For Availability
80
WPL 799351 WPL 799351 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
× ![]()
