Model Whirlpool LG6901XKW0 GAS DRYER – Common Parts & Diagrams

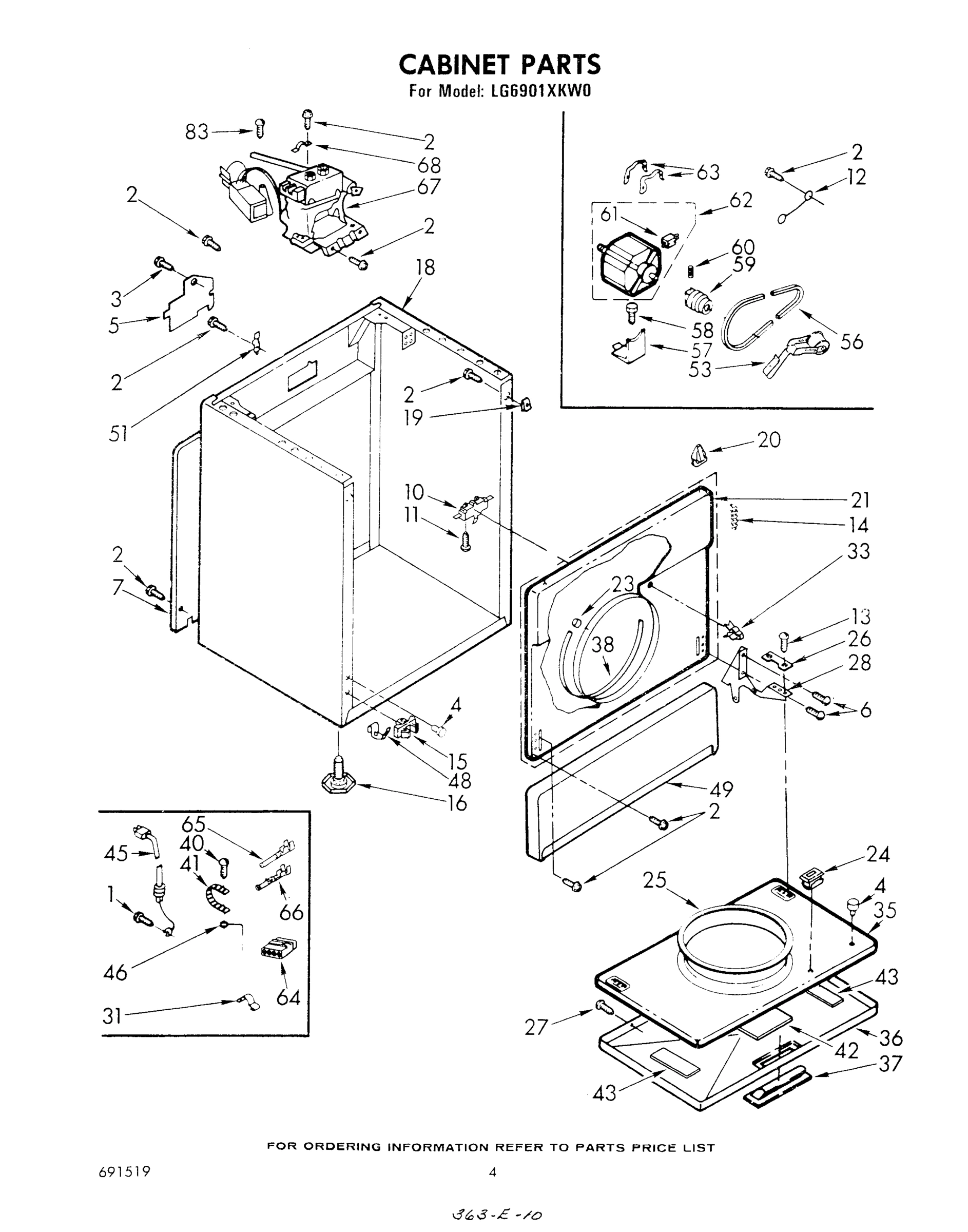

03 - CABINET

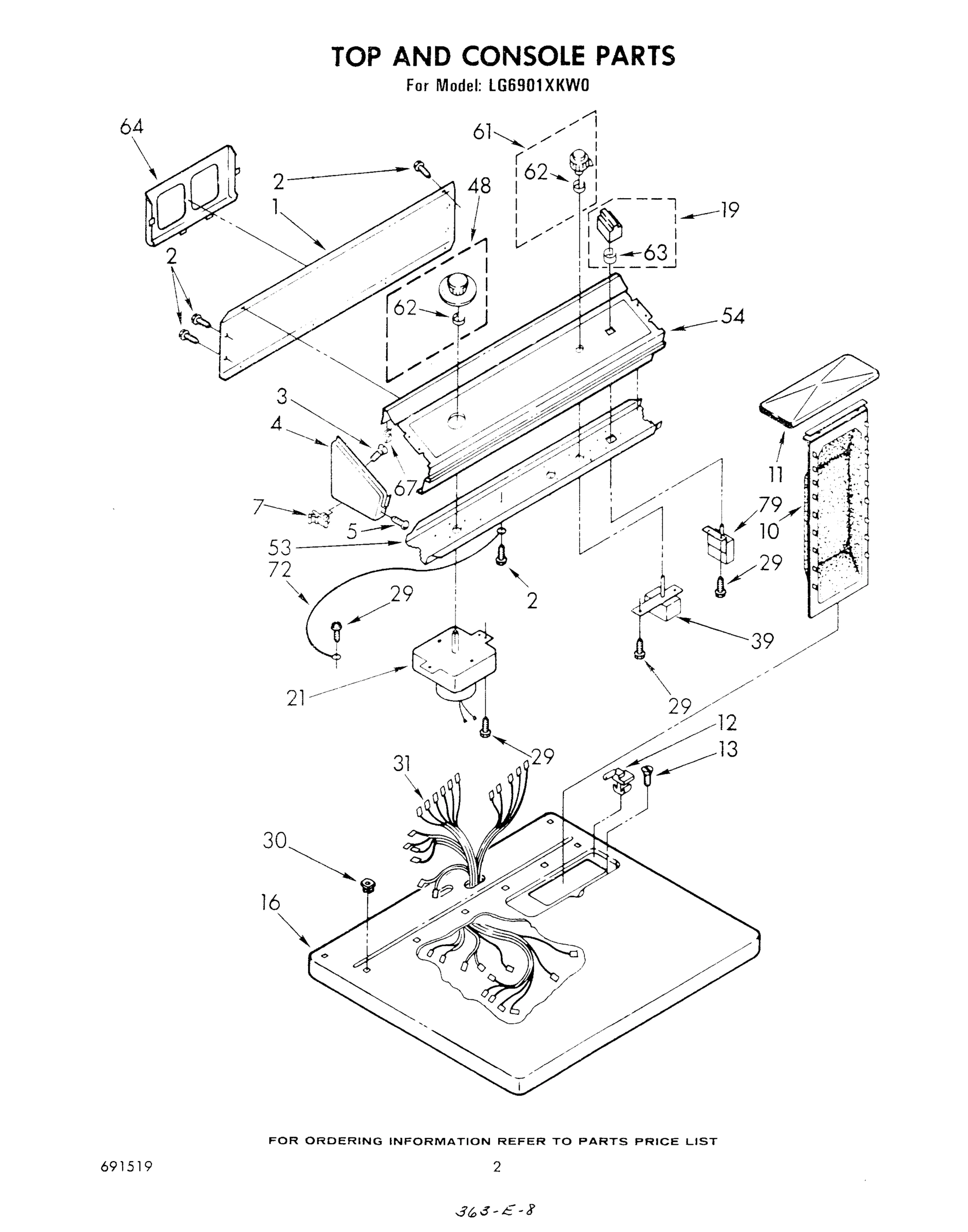

02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL
04 - BULKHEAD
06 - 688637 BURNER
05 - 688639 BURNER
Common parts from model Whirlpool LG6901XKW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability
1
Panel, Rear WPL 359372 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
5
Screw, 8-18 x 1 WPL 358225 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
7
Stop, Push-In WPL 358472 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
11
Housing, Blower WPL 348494 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alternate) WPL 341196 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alternate) WPL 338471 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
19
Button Assembly WPL 689857 Contact Us For Availability
19
Bracket, Support Shaft WPL 348945 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
21
Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
24
BURNER-GAS WPL 688631 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
31
Harness, Wiring WPL 692523 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
32
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
33
Receptacle, 2 Way WPL 717252 Contact Us For Availability
39
Switch, Rotary WPL 348687 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
49
Panel, Toe (White) WPL 337833 Contact Us For Availability
49
Panel, Toe (Almond) WPL 689246 Contact Us For Availability
49
Panel, Toe (Golden Harvest) WPL 689249 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 692005 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
61
Control Knob Assembly WPL 690292 Contact Us For Availability
63
Clip WPL 90015 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
64
WPL 353425 WPL 353425 Contact Us For Availability
64
Rack, Literature WPL 357645 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
79
Golden Harvest WPL 261890 Contact Us For Availability
79
Switch, Push-To-Start (Alternate) WPL 346364 Contact Us For Availability
79
Leveler (Thinner) WPL 350941 Contact Us For Availability
79
Instructions, Installation WPL 688644 Contact Us For Availability
79
Guide, Dryer WPL 688898 Contact Us For Availability
79
Use & Care Guide WPL 691265 Contact Us For Availability
79
List, Service Parts WPL 691519 Contact Us For Availability
79
Switch, Push-To-Start (Alternate) WPL 692021 Contact Us For Availability
79
WPL 799351 WPL 799351 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
× ![]()
