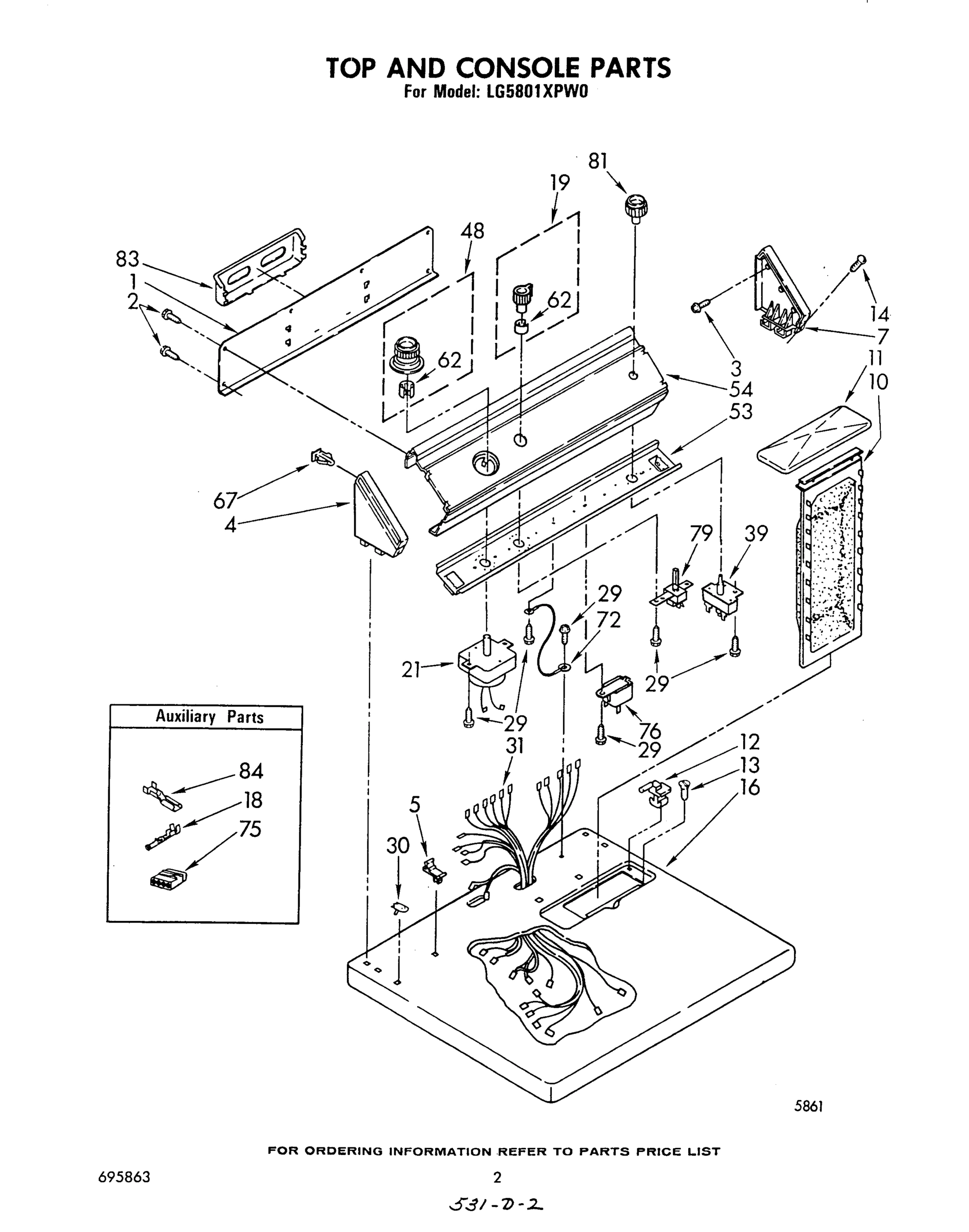

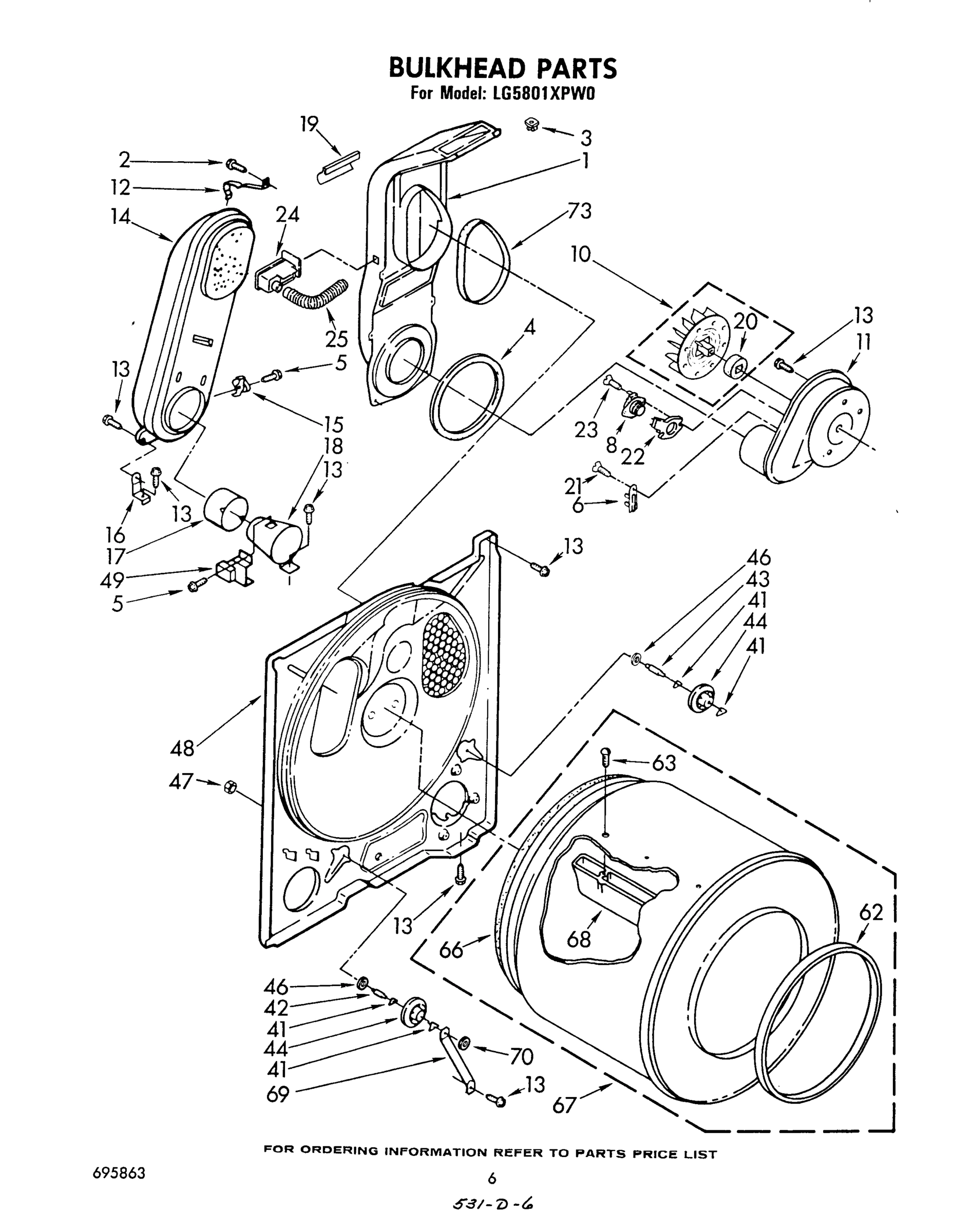

Model Whirlpool LG5801XPW0 GAS DRYER – Common Parts &amp; Diagrams

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

1

Lint Chute WPL 686215 Contact Us For Availability

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

Stop, Push-In (2) WPL 358472 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Screw, 8-18 x 1 WPL 64211 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

18

Cabinet (Toast) WPL 694874 Contact Us For Availability

18

Cabinet (Platinum) WPL 694875 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Knob, Temperature Selector WPL 386629 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

20

Seal, Blower WPL 694630 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Front Panel Assembly (White) WPL 338012 Contact Us For Availability

Front Panel Assembly (Almond) WPL 689533 Contact Us For Availability

Front Panel Assembly (Golden Harvest) WPL 689535 Contact Us For Availability

Front Panel Assembly (Toast) WPL 695026 Contact Us For Availability

Front Panel Assembly (Platinum) WPL 695027 Contact Us For Availability

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

22

Thermostat, Heater WPL 61298 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Alert, Lint WPL 690981 Contact Us For Availability

25

Hose, Differential WPL 686577 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

Hinge, R.H. WPL 687905 Contact Us For Availability

28

Hinge, L.H. WPL 687906 Contact Us For Availability

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

30

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Harness, Wiring WPL 694748 Contact Us For Availability

32

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

34

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

34

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

Door, Rear (White) WPL 346370 Contact Us For Availability

Door, Rear (Almond) WPL 689258 Contact Us For Availability

Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability

Door, Rear (Toast) WPL 695003 Contact Us For Availability

Door, Rear (Platinum) WPL 695004 Contact Us For Availability

Door, Front (White) WPL 348728 Contact Us For Availability

Door, Front (Almond) WPL 689330 Contact Us For Availability

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

Door, Front (Toast) WPL 695034 Contact Us For Availability

Door, Front WPL 695035 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

WPL 690266 WPL 690266 Contact Us For Availability

WPL 690269 WPL 690269 Contact Us For Availability

WPL 695016 WPL 695016 Contact Us For Availability

WPL 695017 WPL 695017 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start (Alt.) WPL 348771 Contact Us For Availability

39

Switch, Push-To-Start WPL 660648 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability

40

WPL 132848 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

WPL 22965 WPL 22965 Contact Us For Availability

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPL 364089 WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob & Dial WPL 695554 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WPL 237035 WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 695957 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

67

WPL 694670 WPL 694670 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

WPL 343826 WPL 343826 Contact Us For Availability

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

79

Switch, Temperature Selector WPL 695091 Contact Us For Availability

81

Knob, Push To Start WPL 695946 Contact Us For Availability

83

Rack, Literature WPL 63020 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Use & Care Guide WPL 693683 Contact Us For Availability

Guide WPL 693849 Contact Us For Availability

WPL 695863 WPL 695863 Contact Us For Availability

WPL 696233 WPL 696233 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
