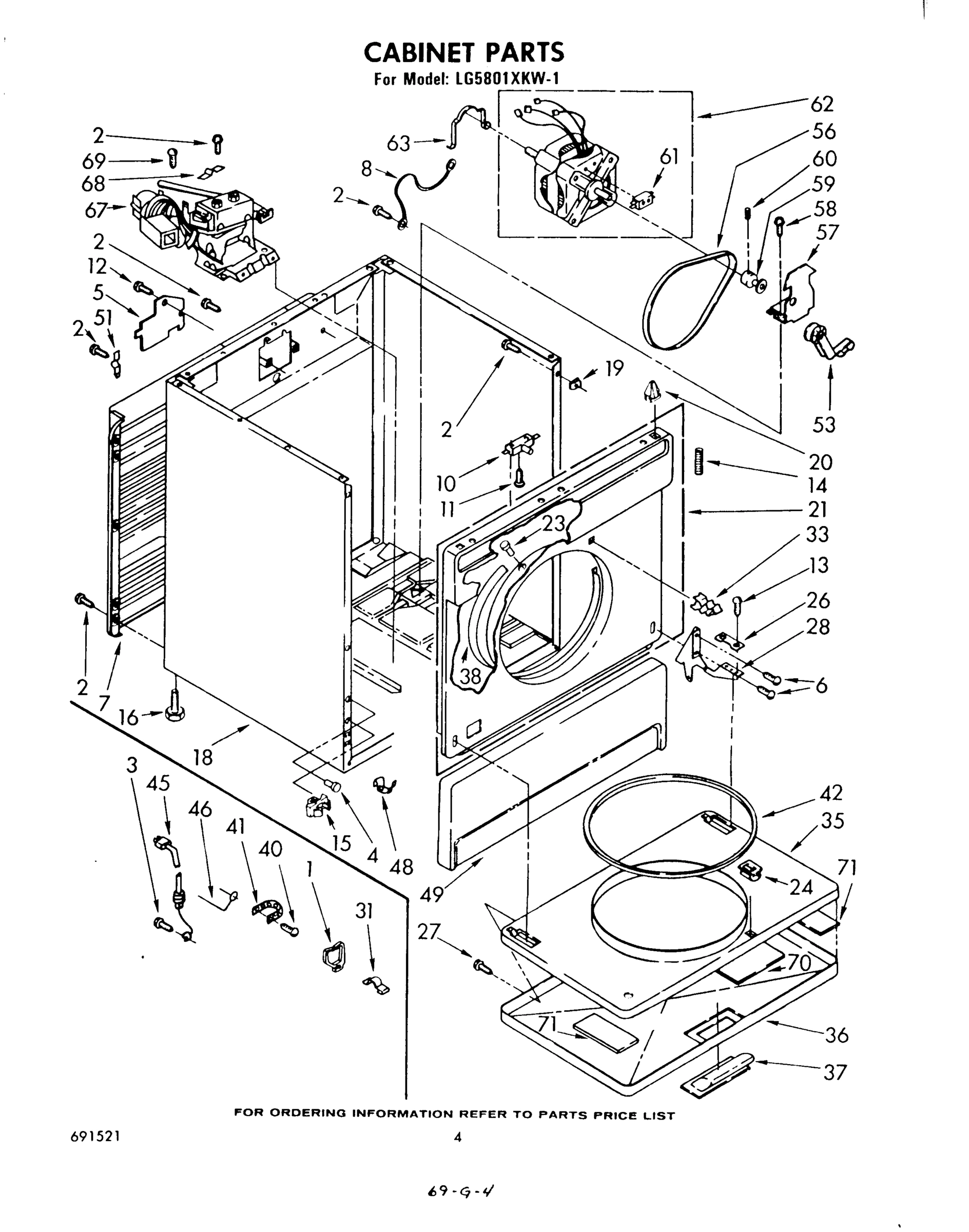

Model Whirlpool LG5801XKW1 GAS DRYER – Common Parts &amp; Diagrams

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Clip, Harness WPL 688412 Contact Us For Availability

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

4

Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability

4

Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

Stop, Push-In (2) WPL 358472 Contact Us For Availability

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

6

Clip WPL 90015 Contact Us For Availability

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

7

Panel, Rear WPL 347736 Contact Us For Availability

8

Plate (2) WPL 338869 Contact Us For Availability

8

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

9

BURNER-GAS WPL 685947 Contact Us For Availability

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (New Avocado) WPL 689312 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Connector, Wire (3) WPL 340140 Contact Us For Availability

Housing, Blower WPL 348493 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

Screw, 8-18 x 1 WPL 358225 Contact Us For Availability

14

Spring, Regulator WPL 339226 Contact Us For Availability

14

Spring, Door (2) WPL 237979 Contact Us For Availability

15

Thermostat, 205~F (96~C) (Alternate) WPL 341196 Contact Us For Availability

15

Clip, Toe Panel WPL 690625 Contact Us For Availability

15

Thermostat, 205~F (96~C) (Alternate) WPL 338471 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (New Avocado) WPL 689451 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Nut, Compression WPL 233076 Contact Us For Availability

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (New Avocado) WPL 690850 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

19

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Control Knob Assembly WPL 690304 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

20

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

Panel Assembly (White) WPL 337969 Contact Us For Availability

Panel Assembly (Almond) WPL 689334 Contact Us For Availability

Panel Assembly (New Avocado) WPL 689336 Contact Us For Availability

Panel Assembly (Golden Harvest) WPL 689337 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

Baseplate WPL 338455 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

BURNER-GAS WPL 688631 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

27

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

27

Screw WPL 689791 Contact Us For Availability

28

Hinge, R.H. WPL 687905 Contact Us For Availability

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

28

Hinge, L.H. WPL 687906 Contact Us For Availability

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Harness, Wiring WPL 692668 Contact Us For Availability

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

33

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

33

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

33

Receptacle, 2 Way WPL 717252 Contact Us For Availability

Door, Rear (White) WPL 346370 Contact Us For Availability

Door, Rear (Almond) WPL 689258 Contact Us For Availability

Door, Rear (New Avocado) WPL 689260 Contact Us For Availability

Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability

Door, Front (White) WPL 348728 Contact Us For Availability

Door, Front (Almond) WPL 689330 Contact Us For Availability

Door, Front (New Avocado) WPL 689332 Contact Us For Availability

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

37

Handle, Door (Almond) WPL 690266 Contact Us For Availability

37

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start (Alternate) WPL 348771 Contact Us For Availability

39

Switch, Push-To-Start (Alternate) WPL 685067 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Strap, Ground WPL 22965 Contact Us For Availability

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690203 Contact Us For Availability

48

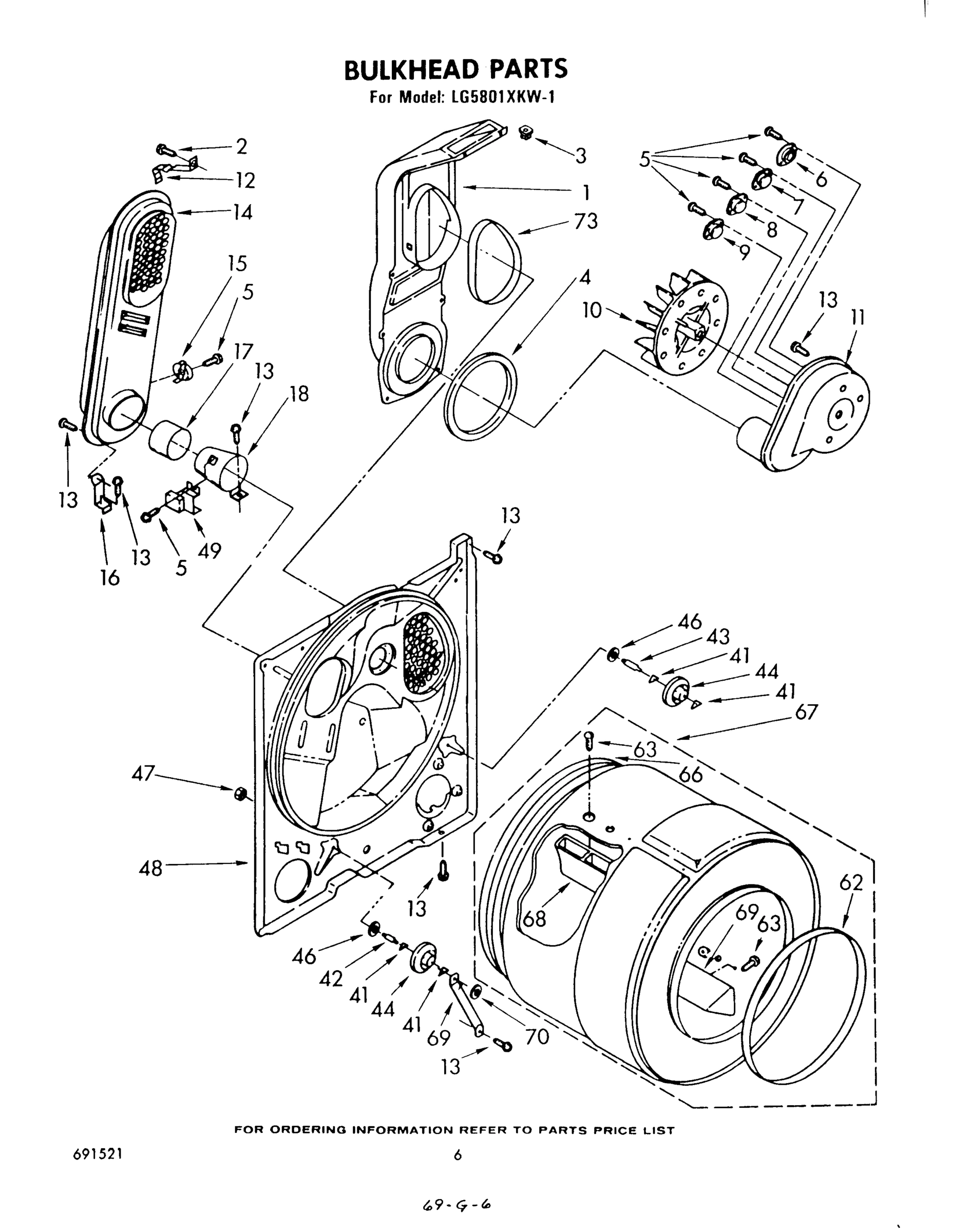

Bulkhead WPL 685769 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

Panel, Toe (White) WPL 337833 Contact Us For Availability

Panel, Toe (Almond) WPL 689246 Contact Us For Availability

Panel, Toe (New Avocado) WPL 689248 Contact Us For Availability

Panel, Toe WPL 689249 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 691674 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

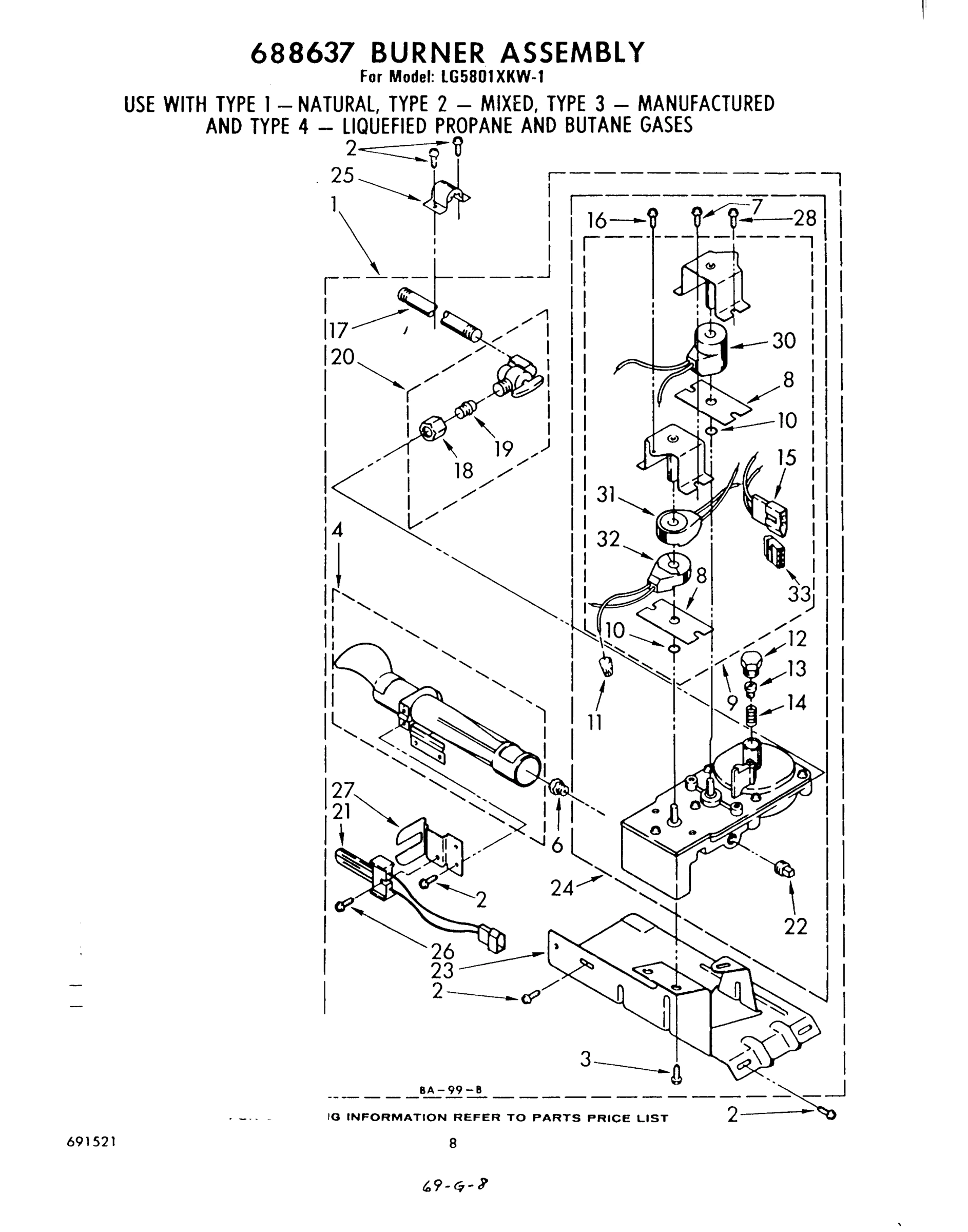

WPL 688637 WPL 688637 Contact Us For Availability

WPL 688639 WPL 688639 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

WPL 343826 WPL 343826 Contact Us For Availability

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

70

WPL 691207 WPL 691207 Contact Us For Availability

71

WPL 691206 WPL 691206 Contact Us For Availability

71

WPL 691525 WPL 691525 Contact Us For Availability

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

76

Buzzer WPL 686864 Contact Us For Availability

79

Switch, Rotary WPL 692239 Contact Us For Availability

81

Pushbutton Assembly WPL 689857 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

W10851673 Whirlpool Transformer Backorder WPL W10851673 $227.00

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Instructions, Wiring WPL 230082 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

WPL 299663 WPL 299663 Contact Us For Availability

WPL 299669 WPL 299669 Contact Us For Availability

WPL 340704 WPL 340704 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 688644 WPL 688644 Contact Us For Availability

WPL 688898 WPL 688898 Contact Us For Availability

WPL 690724 WPL 690724 Contact Us For Availability

WPL 691521 WPL 691521 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
