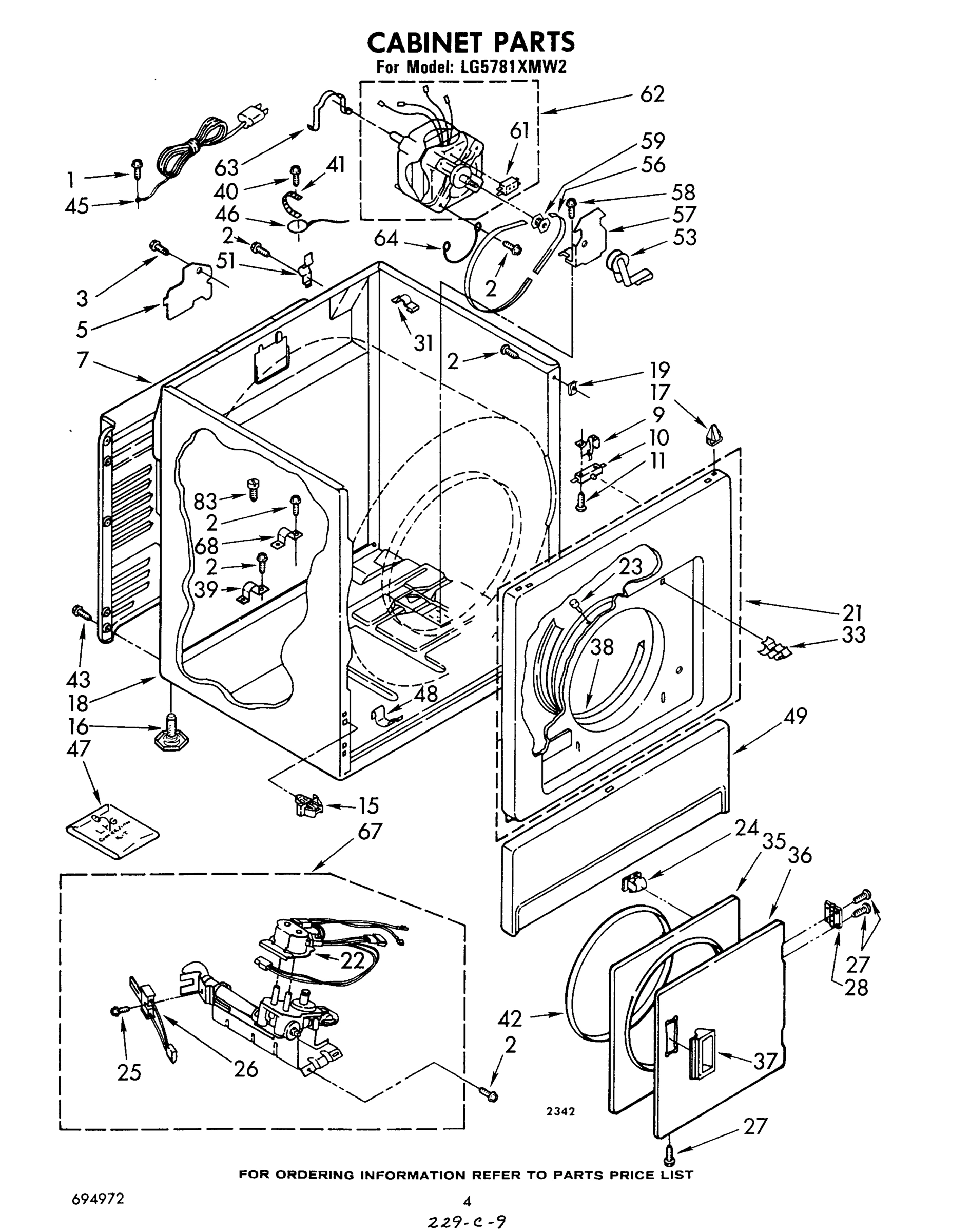

Model Whirlpool LG5781XMW2 GAS DRYER – Common Parts &amp; Diagrams

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

6

Clip, Harness Retainer WPL 688412 Contact Us For Availability

7

Panel, Rear WPL 347736 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Wheat) WPL 690851 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Control Knob, Temperature WPL 690292 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

Thermostat, Heater WPL 61298 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 693202 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 693203 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 693206 Contact Us For Availability

22

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

22

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

22

Harness, Wiring WPL 694690 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Nut, Compression WPL 233076 Contact Us For Availability

25

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

26

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

98460 Whirlpool Nut Backorder WPL 98460 $9.59

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

36

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

36

Door, Front (Almond) WPL 689314 Contact Us For Availability

36

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

37

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

37

Handle, Door (Almond) WPL 689306 Contact Us For Availability

37

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

Switch, Push-To-Start WPL 660936 Contact Us For Availability

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

Clamp, Pipe (Front) WPL 695885 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

47

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

47

Conversion Kit (Type 1 To Type 3) (MFD) (Gas) WPL 279243 Contact Us For Availability

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690200 Contact Us For Availability

48

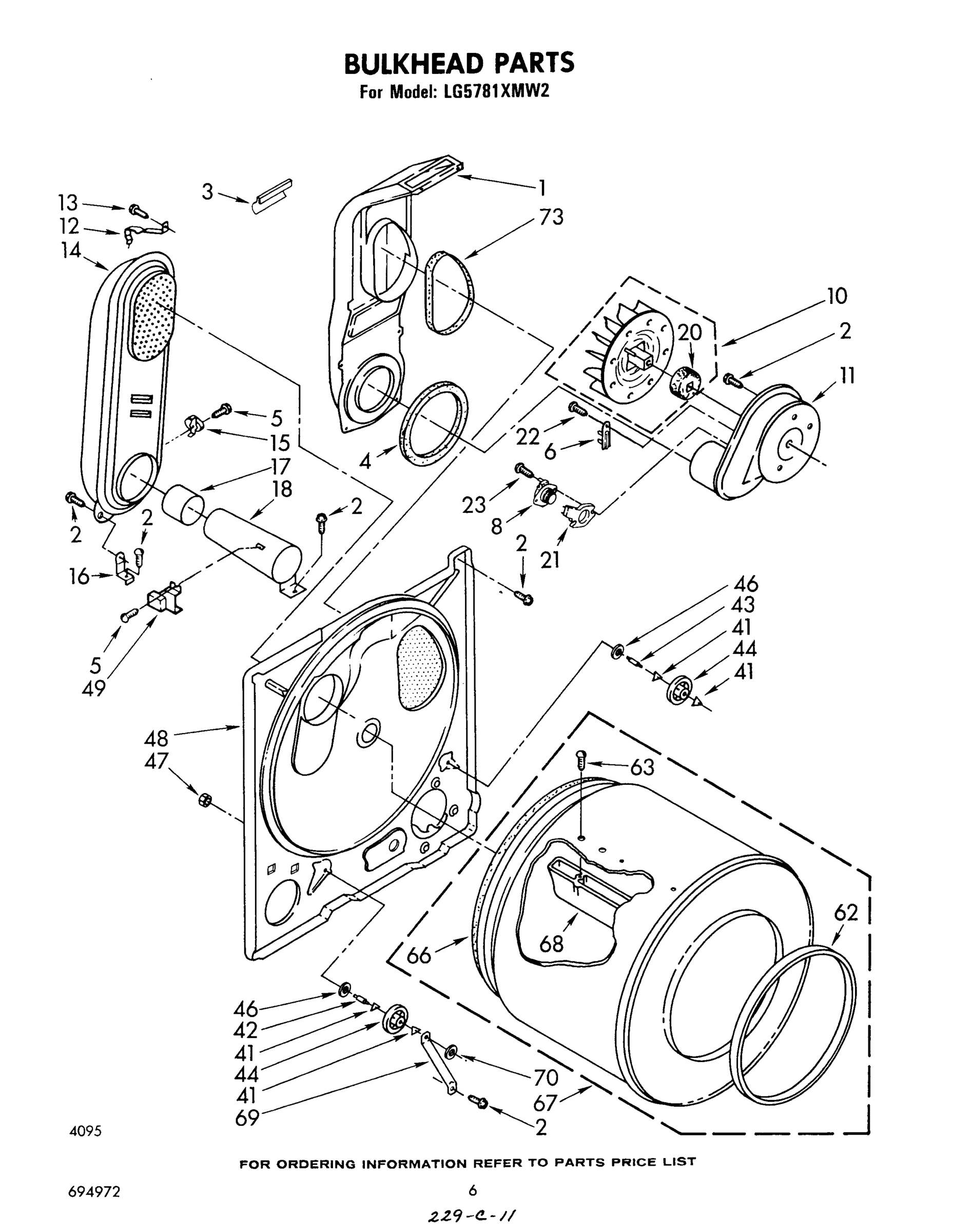

Bulkhead WPL 685769 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WPL 237035 WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

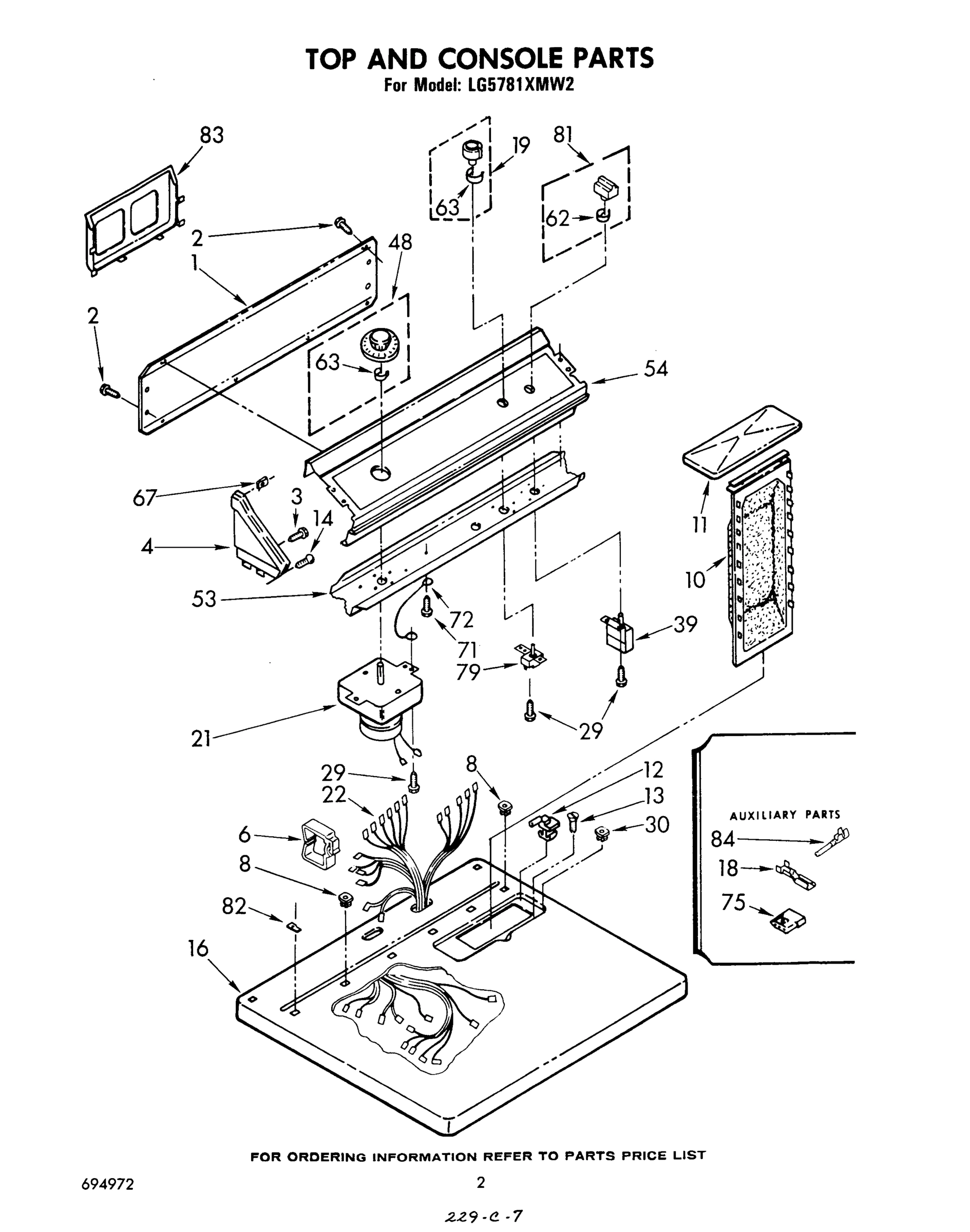

Panel, Control WPL 692006 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

Clip WPL 90015 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

Nut, Push-In WPL 694055 Contact Us For Availability

67

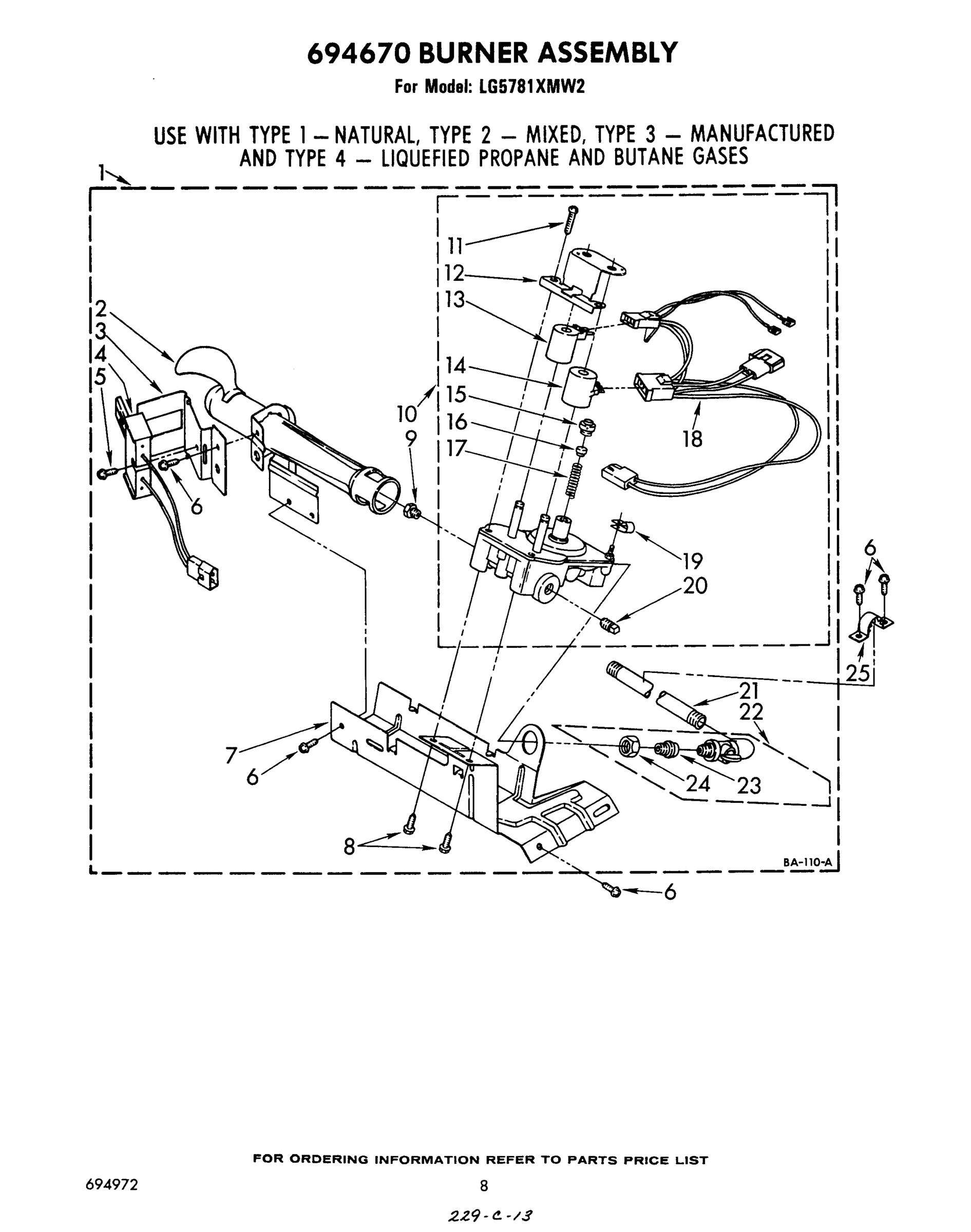

WPL 694670 WPL 694670 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

79

Switch, Temperature Selector WPL 695091 Contact Us For Availability

81

Button, Push-To-Start WPL 689857 Contact Us For Availability

82

Stop, Push-In (2) WPL 358472 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

83

WPL 343826 WPL 343826 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 693671 WPL 693671 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 694344 WPL 694344 Contact Us For Availability

WPL 694972 WPL 694972 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
