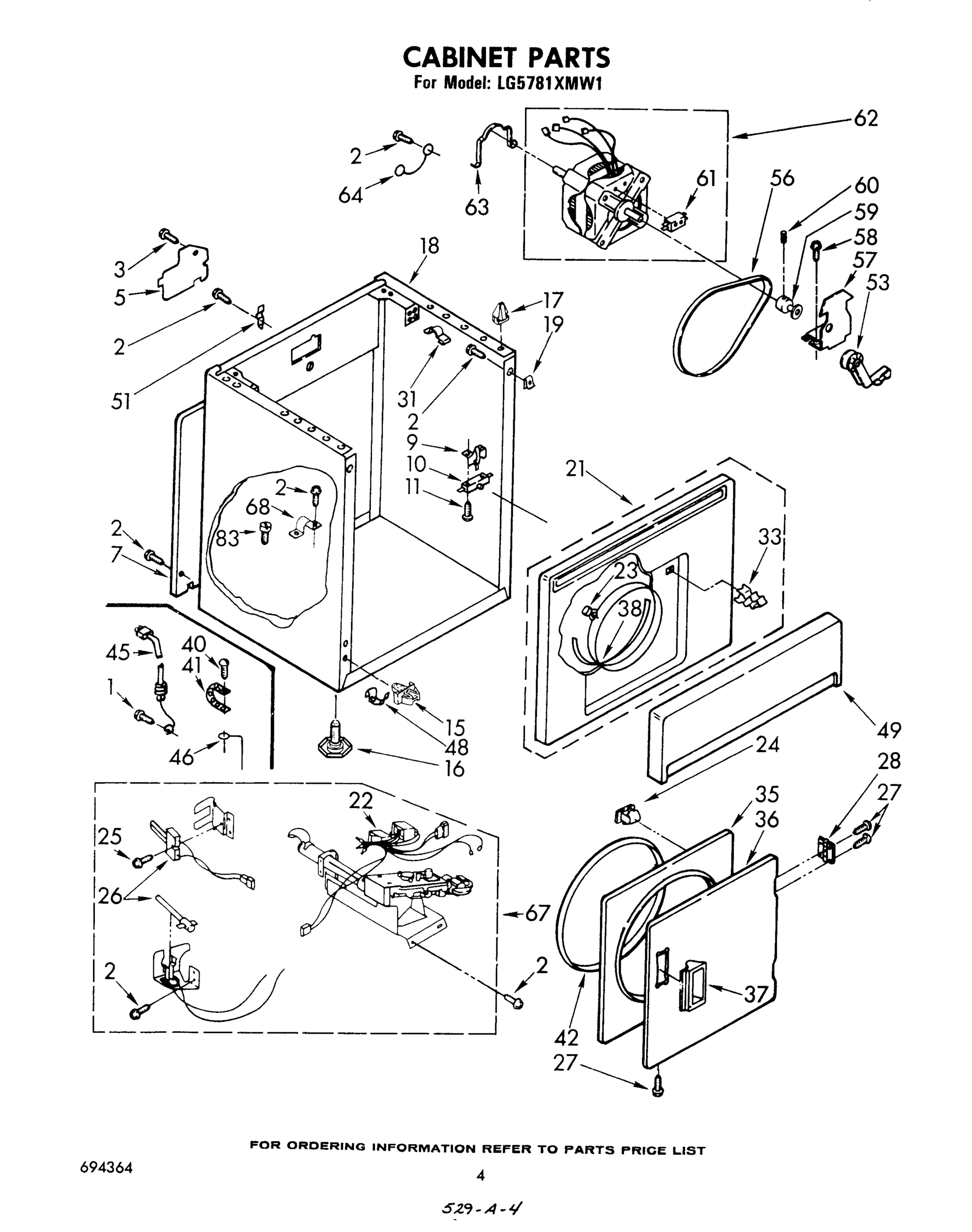

Model Whirlpool LG5781XMW1 GAS DRYER – Common Parts &amp; Diagrams

WPL 261891 WPL 261891 Contact Us For Availability

WPL 299885 WPL 299885 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

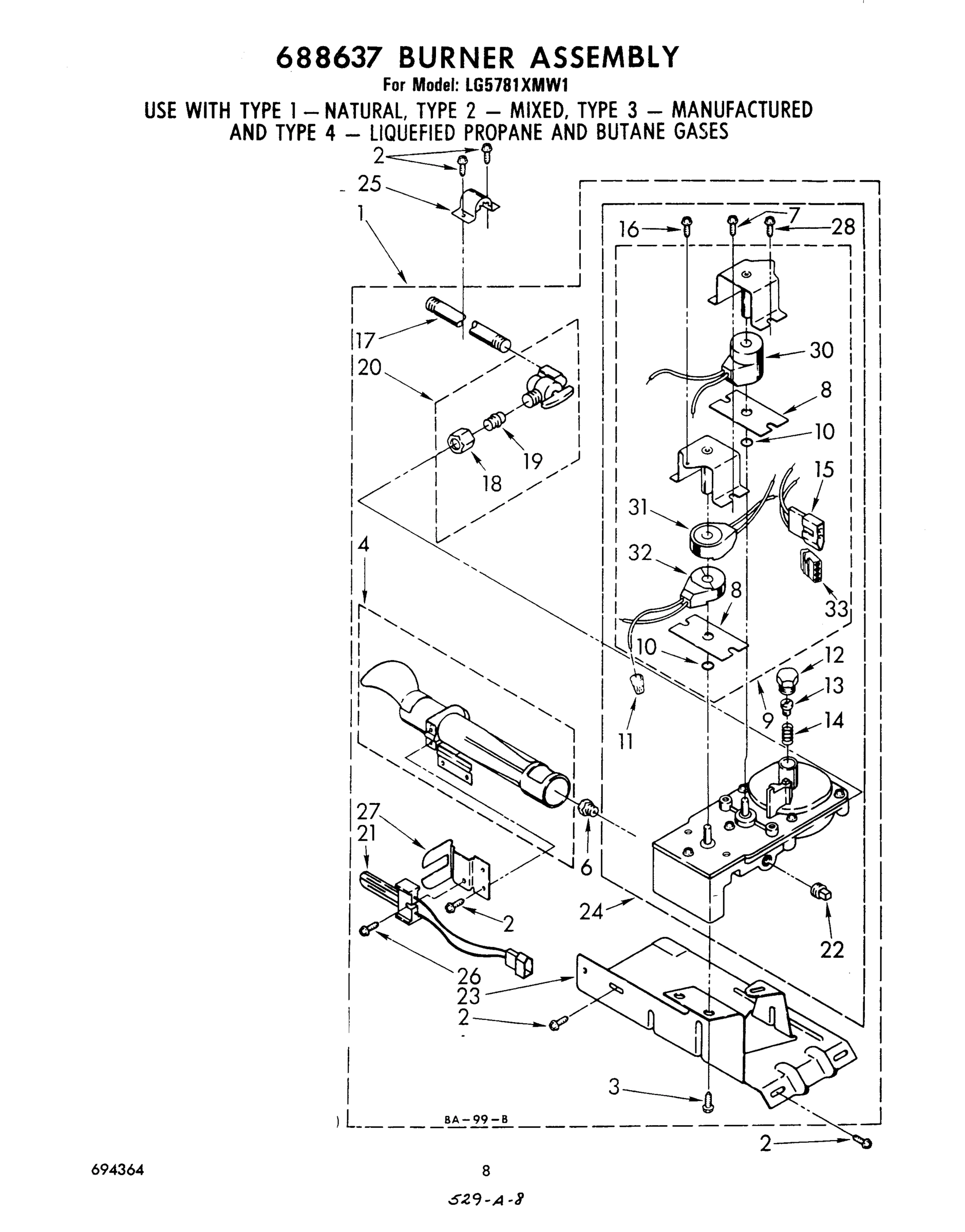

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability

1

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability

1

Panel, Rear Console WPL 359372 Contact Us For Availability

3

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

6

Clip, Harness Retainer WPL 688412 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

8

Plate (2) WPL 338869 Contact Us For Availability

9

BURNER-GAS WPL 685947 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

10

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

Connector, Wire (3) WPL 340140 Contact Us For Availability

Housing, Blower WPL 348493 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

Spring, Regulator WPL 339226 Contact Us For Availability

14

Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability

15

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

15

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

15

Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

18

Nut, Compression WPL 233076 Contact Us For Availability

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Control Knob, Temperature WPL 690292 Contact Us For Availability

20

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

21

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

21

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

22

Harness, Wiring WPL 692396 Contact Us For Availability

23

Baseplate WPL 338455 Contact Us For Availability

24

BURNER-GAS WPL 688631 Contact Us For Availability

24

Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

26

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

27

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

98460 Whirlpool Nut Backorder WPL 98460 $9.59

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

32

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

32

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

33

Receptacle, 2 Way WPL 717252 Contact Us For Availability

36

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

39

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Bulkhead WPL 685769 Contact Us For Availability

48

Timer Knob Assembly WPL 690200 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 692006 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

Clip WPL 90015 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

79

Switch, Temperature Selector WPL 688712 Contact Us For Availability

81

Button, Push-To-Start WPL 689857 Contact Us For Availability

82

Stop, Push-In (2) WPL 358472 Contact Us For Availability

83

WPL 343826 WPL 343826 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 693671 WPL 693671 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 694344 WPL 694344 Contact Us For Availability

WPL 694364 WPL 694364 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
