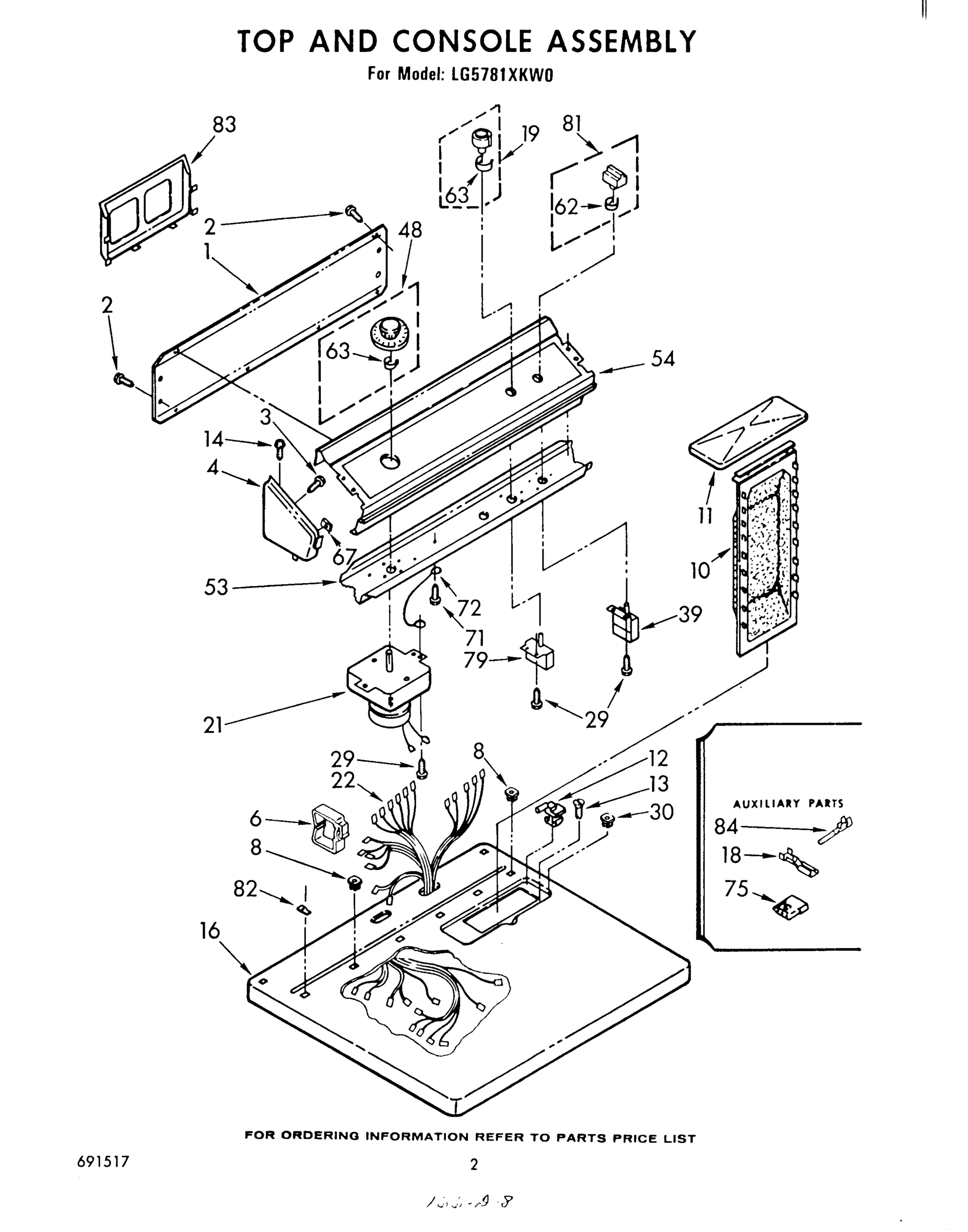

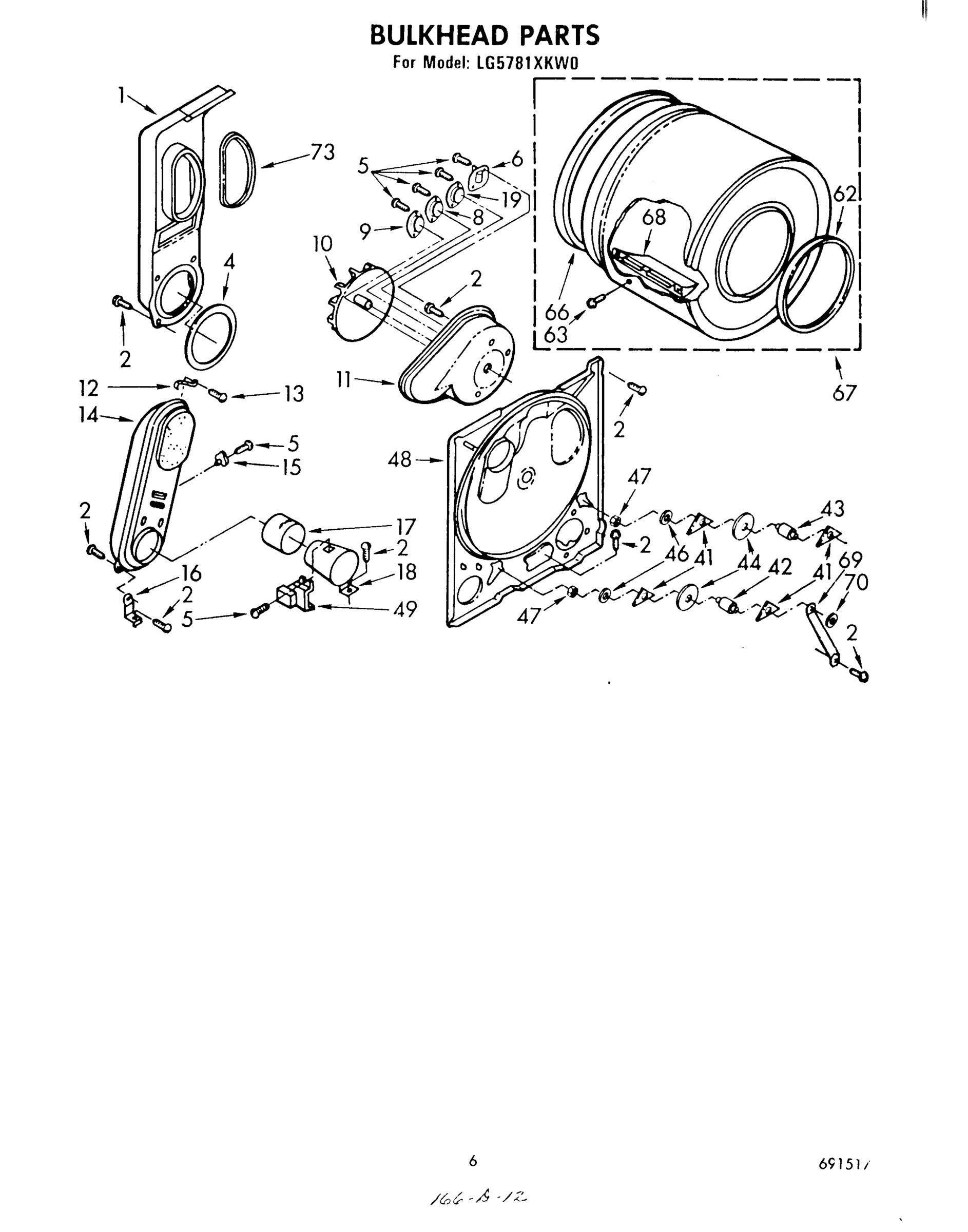

Model Whirlpool LG5781XKW0 GAS DRYER – Common Parts &amp; Diagrams

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 299885 WPL 299885 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

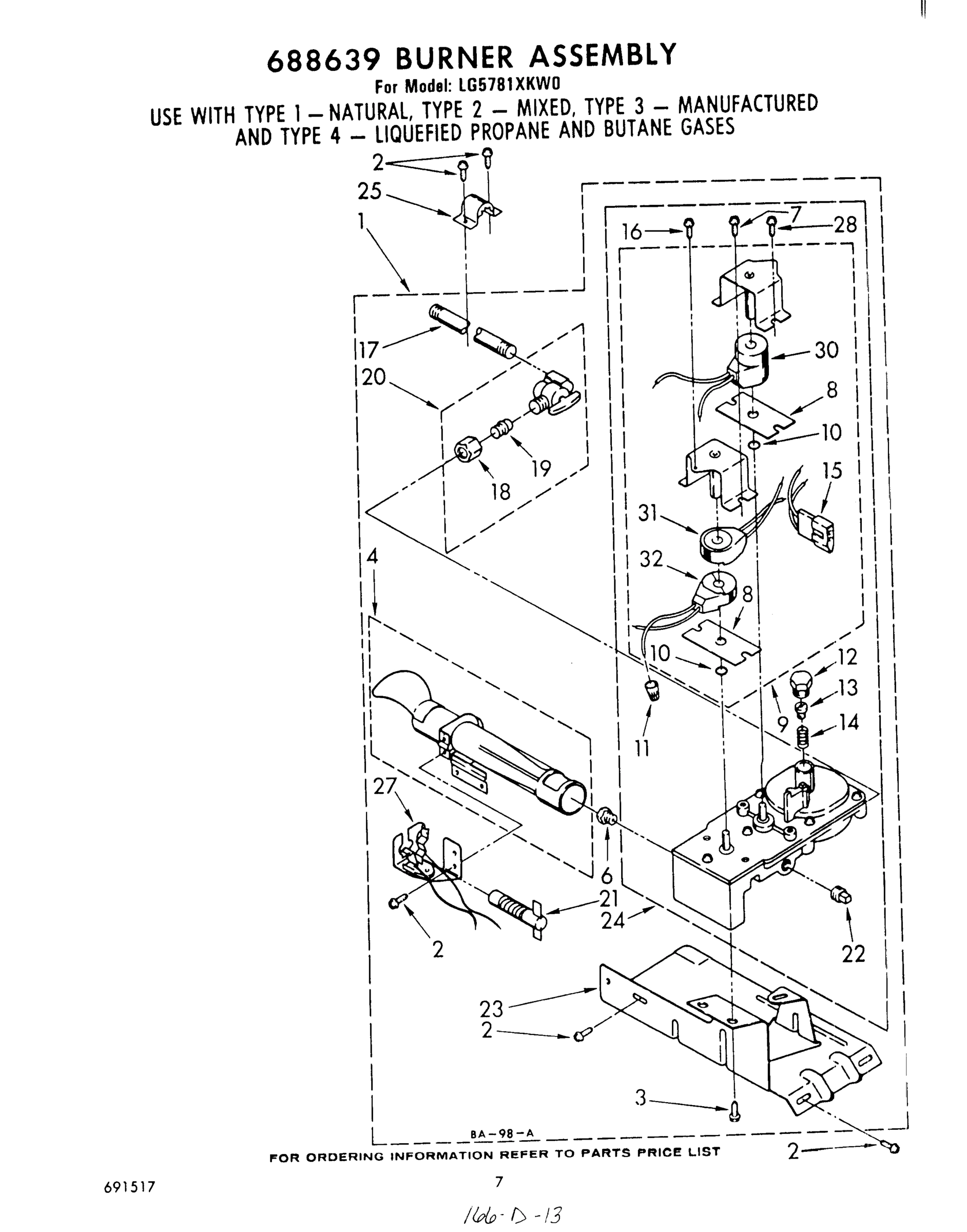

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability

1

Panel, Rear Console WPL 359372 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability

4

Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

6

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

6

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

6

Clip, Harness Retainer WPL 688412 Contact Us For Availability

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

8

Plate (2) WPL 338869 Contact Us For Availability

9

BURNER-GAS WPL 685947 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

10

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

Housing, Blower WPL 348493 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (New Avocado) WPL 689312 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Connector, Wire (3) WPL 340140 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability

14

Spring, Regulator WPL 339226 Contact Us For Availability

15

Thermostat, High Limit 205~F (96~C) (Alternat WPL 341196 Contact Us For Availability

15

Thermostat, High Limit 205~F (96~C) (Alternat WPL 338471 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

Support, Heater Box (2) WPL 337445 Contact Us For Availability

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (New Avocado) WPL 689451 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Nut, Compression WPL 233076 Contact Us For Availability

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (New Avocado) WPL 690850 Contact Us For Availability

Cabinet (Golden Wheat) WPL 690851 Contact Us For Availability

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Control Knob Assembly WPL 690303 Contact Us For Availability

20

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

Front Panel Assembly (White) WPL 348394 Contact Us For Availability

Front Panel Assembly (Almond) WPL 689296 Contact Us For Availability

Front Panel Assembly (New Avocado) WPL 689300 Contact Us For Availability

Front Panel Assembly (Golden Harvest) WPL 689301 Contact Us For Availability

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

22

Harness, Wiring WPL 692396 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

Baseplate WPL 338455 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

27

Screw WPL 689791 Contact Us For Availability

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

98460 Whirlpool Nut Backorder WPL 98460 $9.59

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

32

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

32

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door, Front (New Avocado) WPL 689318 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (New Avocado) WPL 689583 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start WPL 346364 Contact Us For Availability

39

(Alternate) WPL 692021 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Bulkhead WPL 685769 Contact Us For Availability

48

Timer Knob Assembly WPL 690203 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

Panel, Toe (White) WPL 337833 Contact Us For Availability

Panel, Toe (Almond) WPL 689246 Contact Us For Availability

Panel, Toe (New Avocado) WPL 689248 Contact Us For Availability

Panel, Toe (Golden Harvest) WPL 689249 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 692004 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

Clip WPL 90015 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

67

WPL 688637 WPL 688637 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

79

Switch, Rotary WPL 688712 Contact Us For Availability

81

Button, Push-To-Start WPL 689857 Contact Us For Availability

82

Stop, Push-In (2) WPL 358472 Contact Us For Availability

83

WPL 343826 WPL 343826 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

W10851673 Whirlpool Transformer Backorder WPL W10851673 $227.00

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Instructions, Wiring WPL 230082 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Golden Harve WPL 261890 Contact Us For Availability

WPL 299663 WPL 299663 Contact Us For Availability

WPL 299669 WPL 299669 Contact Us For Availability

WPL 340704 WPL 340704 Contact Us For Availability

WPL 349849 WPL 349849 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 687011 WPL 687011 Contact Us For Availability

WPL 688644 WPL 688644 Contact Us For Availability

WPL 688898 WPL 688898 Contact Us For Availability

WPL 691264 WPL 691264 Contact Us For Availability

WPL 691517 WPL 691517 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
