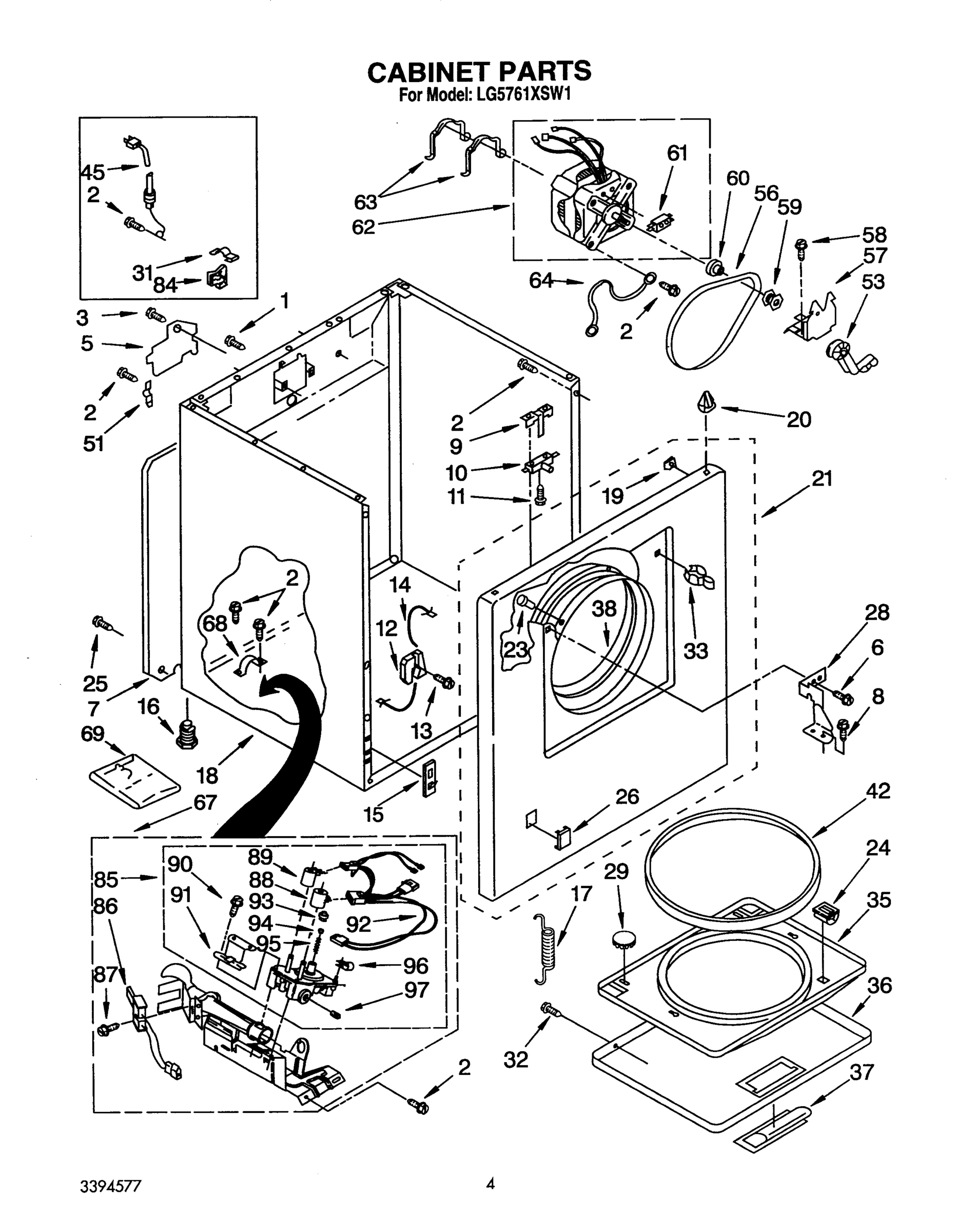

Model Whirlpool LG5761XSW1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

List, Service Parts WPL LIT3394577 Contact Us For Availability

Instructions, Installation WPL LIT3395320 Contact Us For Availability

Use & Care Guide WPL LIT3395415 Contact Us For Availability

Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

Do-It-Yourself Manual, Icemaker WPL LIT677971 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $131.33

1

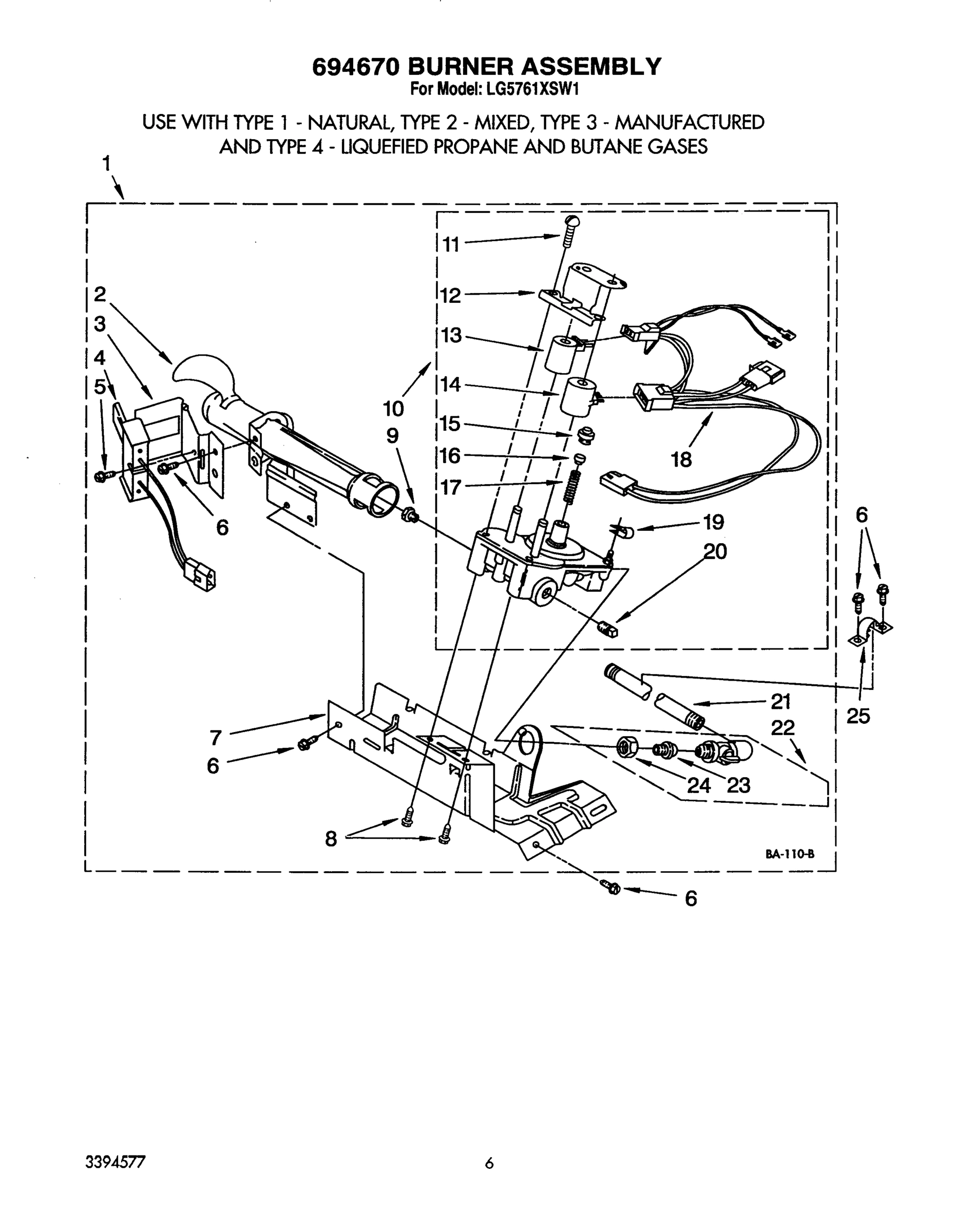

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

5

Stop, Push-In (2) WPL 358472 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

7

Base, Burner WPL 693986 Contact Us For Availability

7

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $12.25

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $151.32

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

10

SCREEN WPL 339392 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

Housing, Blower WPL 695081 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $4.52

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $4.52

GUIDE WPL 337182 Contact Us For Availability

Guide, Cable (R.H.) WPL 337183 Contact Us For Availability

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

Cable, Door (2) WPL 230131 Contact Us For Availability

14

Screw, End Cap To Top WPL 64211 Contact Us For Availability

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.32

(Alt.) WPL 341196 Contact Us For Availability

(Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

16

Top (White) WPL 3393385 Contact Us For Availability

16

Top (Almond) WPL 3393386 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $3.33

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $107.10

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

Clip, Harness WPL 694510 Contact Us For Availability

Control Knob, Temperature WPL 386635 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

21

Timer Assembly, 60 Hz. WPL 3391650 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

23

Harness, Wiring WPL 3393992 Contact Us For Availability

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.60

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

686889 Whirlpool Pad Backorder WPL 686889 $10.76

26

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

27

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.98

28

WP238460 Whirlpool Hinge In Stock WPL WP238460 $3.33

28

Hinge, Door (R.H.) WPL 238456 Contact Us For Availability

28

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

29

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

39

(Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

(Alt.) WPL 692021 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

Bulkhead WPL 685775 Contact Us For Availability

48

Timer Knob Assembly WPL 3387900 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

53

Bracket, Control WPL 3394061 Contact Us For Availability

54

Panel, Control WPL 3387985 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

60

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $43.76

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $30.40

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

Clip, Push-On (4) WPL 689559 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

75

Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability

79

Switch, Temperature WPL 694720 Contact Us For Availability

81

Knob, Push-To-Start WPL 3387894 Contact Us For Availability

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
