Model Whirlpool LG5751XKW1 GAS DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNC
PAINT, BULK (1 QT.) (WHITE (UNC WPL 799344 Contact Us For Availability
View on Model
Wire, Splicing, 120 Volt
Wire, Splicing, 120 Volt WPL 010875 Contact Us For Availability
View on Model
Wire, Splicing 240 Volt
Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability
View on Model
1

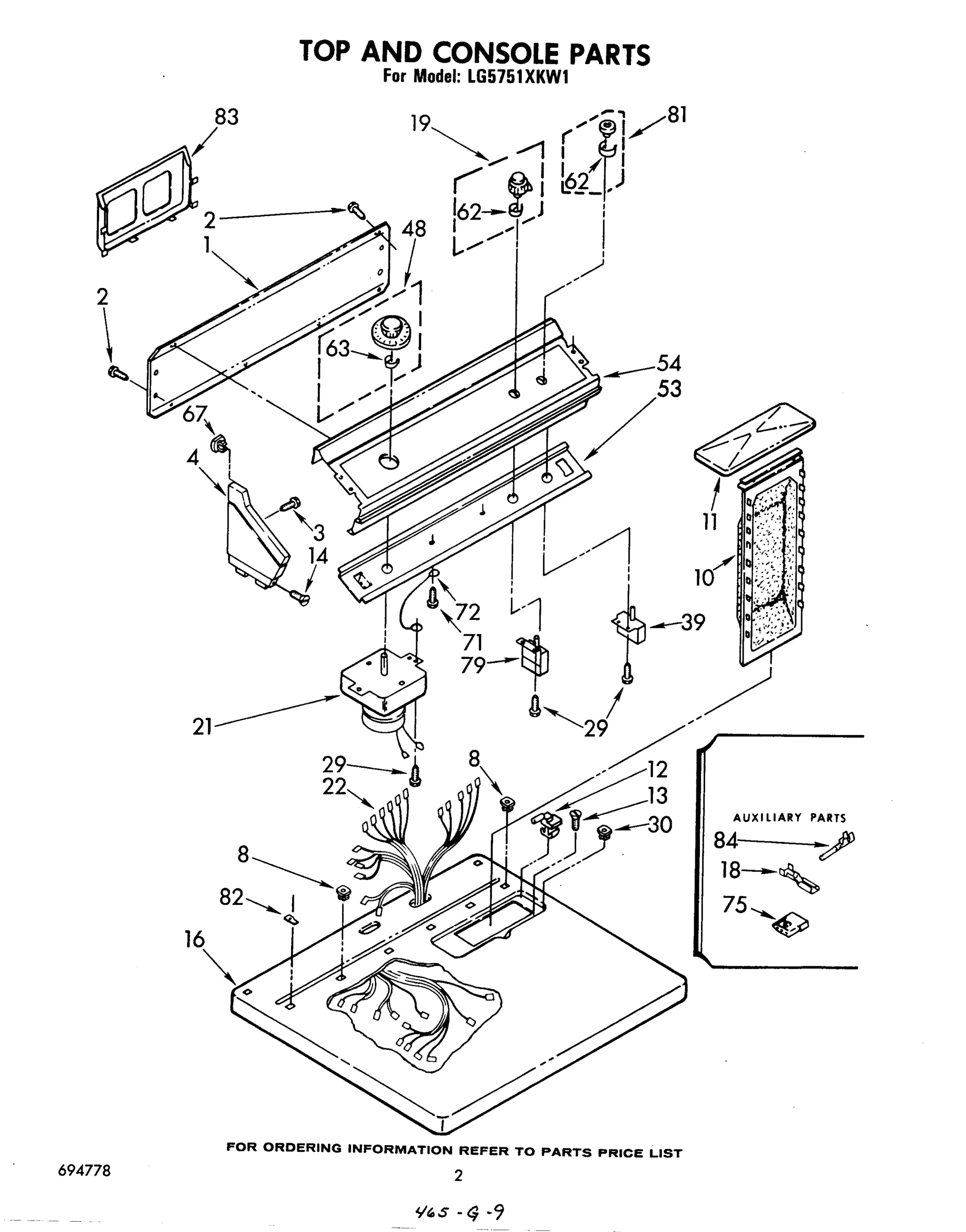

Panel, Rear Console
Panel, Rear Console WPL 358470 Contact Us For Availability
View on Model
3
Screw, 13/16 x 5/8 (4)
Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability
View on Model
3
Seal, Blower
Seal, Blower WPL 694630 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White Cap, End (R.H.))
Cap, End (L.H.) (White Cap, End (R.H.)) WPL 375333 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 375337 Contact Us For Availability
View on Model
8
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
10
SCREEN
SCREEN WPL 339392 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 695081 Contact Us For Availability
View on Model
14
Screw, 8-18 x 1 (2)
Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability
View on Model
15
Thermostat, High Limit 205~F (96~C)
Thermostat, High Limit 205~F (96~C) WPL 341196 Contact Us For Availability
View on Model
16
top (white)
top (white) WPL 688479 Contact Us For Availability
View on Model
16
Support, Heater Box (2)
Support, Heater Box (2) WPL 337445 Contact Us For Availability
View on Model
18

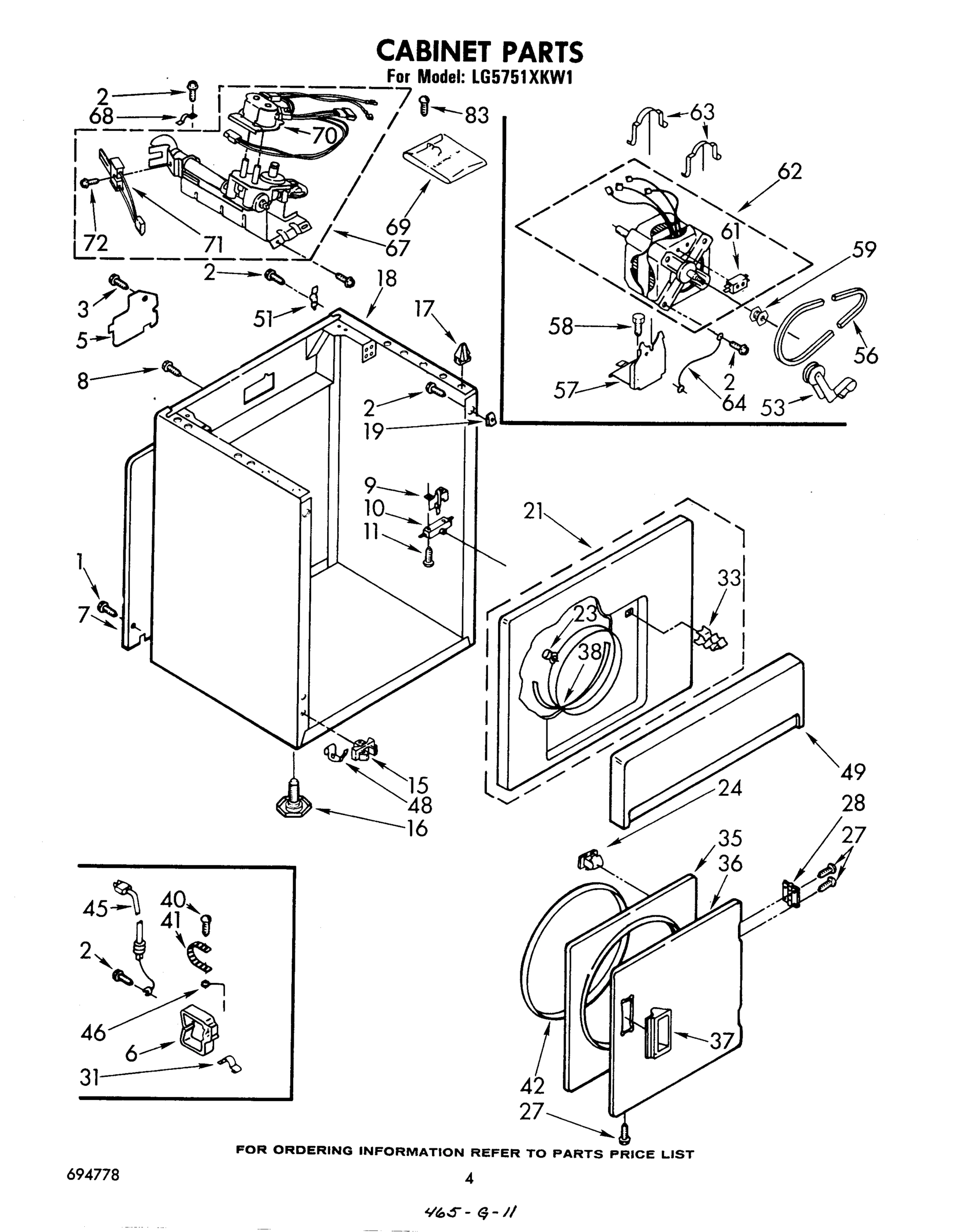

Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
19
Control Knob, Air Heat Switch
Control Knob, Air Heat Switch WPL 690292 Contact Us For Availability
View on Model
20
Thermostat, Heater
Thermostat, Heater WPL 61298 Contact Us For Availability
View on Model
21
Upper Front Panel Assembly (White)
Upper Front Panel Assembly (White) WPL 693202 Contact Us For Availability
View on Model
21
Timer Assembly 60 Hz.
Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability
View on Model
22
Harness, Wiring
Harness, Wiring WPL 694690 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 660936 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
View on Model
40
Screw, 10-24 x 1
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
View on Model
41
Strap, Ground
Strap, Ground WPL 22965 Contact Us For Availability
View on Model
46
Wire, Ground
Wire, Ground WPL 364089 Contact Us For Availability
View on Model
48
Timer Knob Assembly
Timer Knob Assembly WPL 690200 Contact Us For Availability
View on Model
48

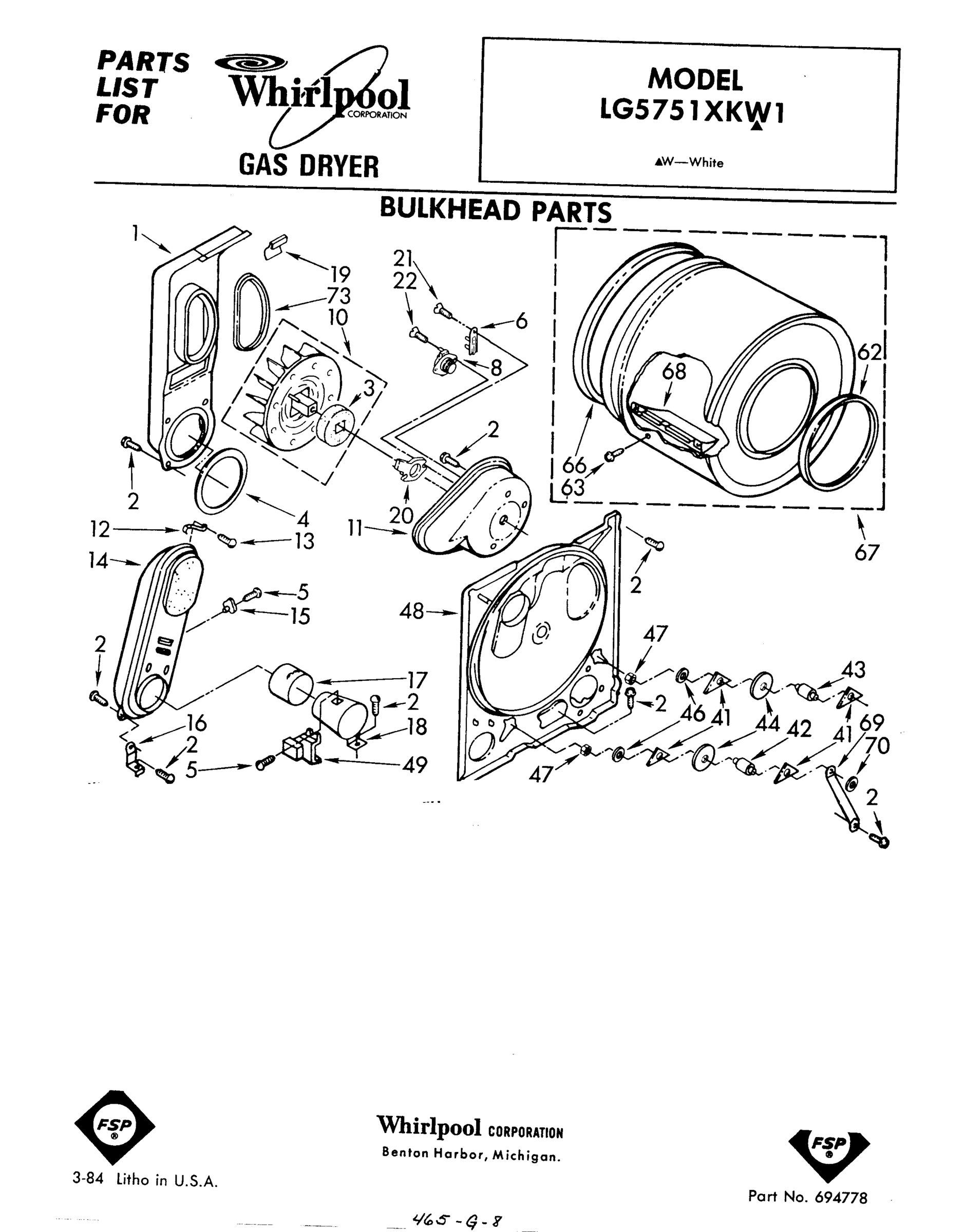

Bulkhead
Bulkhead WPL 685769 Contact Us For Availability
View on Model
49
Panel, Toe (White)
Panel, Toe (White) WPL 237035 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 359708 Contact Us For Availability
View on Model
54
Panel, Control
Panel, Control WPL 688349 Contact Us For Availability
View on Model
62
Clip
Clip WPL 90015 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
64
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
67

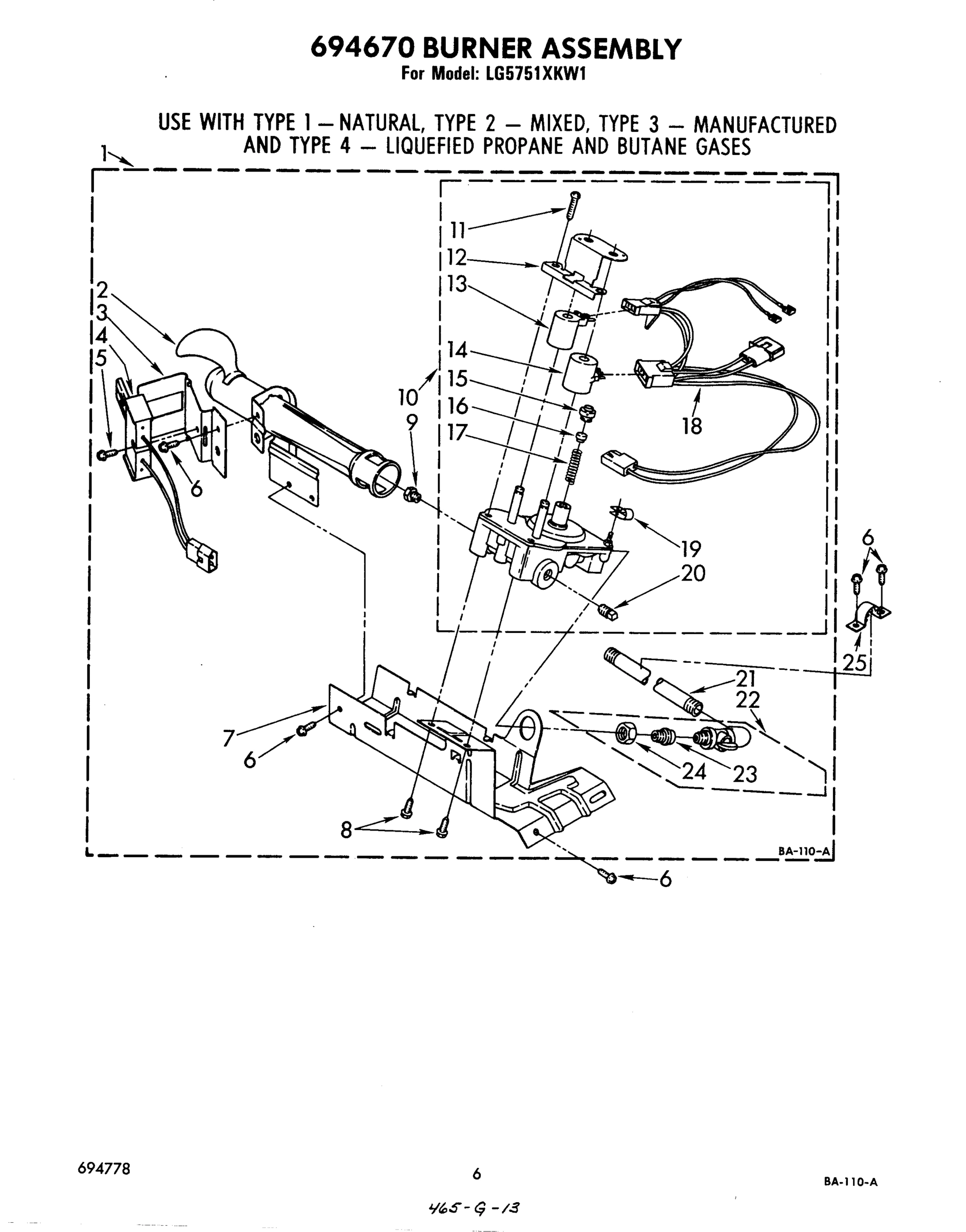

Burner Assembly, 60 Hz. (Complete) (Refer to
Burner Assembly, 60 Hz. (Complete) (Refer to WPL 694670 Contact Us For Availability
View on Model
67
Nut, Push-In (4)
Nut, Push-In (4) WPL 694055 Contact Us For Availability
View on Model
69
kit, conversion (type 1 to type 3) (mfd gas)
kit, conversion (type 1 to type 3) (mfd gas) WPL 279243 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, 3-Way Terminal (Use W/94614)
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
View on Model
79
Switch, Air Heat
Switch, Air Heat WPL 694720 Contact Us For Availability
View on Model
81
Button, Push-to-Start
Button, Push-to-Start WPL 346219 Contact Us For Availability
View on Model
82
Stop, Push-In (2)
Stop, Push-In (2) WPL 358472 Contact Us For Availability
View on Model
83
Screw, Burner Mounting
Screw, Burner Mounting WPL 343826 Contact Us For Availability
View on Model
83
Rack, Literature
Rack, Literature WPL 357645 Contact Us For Availability
View on Model
84
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
84
Use & Care Guide
Use & Care Guide WPL 693676 Contact Us For Availability
View on Model
84
Guide, Dryer
Guide, Dryer WPL 693849 Contact Us For Availability
View on Model
84
Instructions, Installation
Instructions, Installation WPL 694344 Contact Us For Availability
View on Model
84
List, Service Parts
List, Service Parts WPL 694778 Contact Us For Availability
View on Model
84
Thinner (1 Gal.)
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
View on Model
