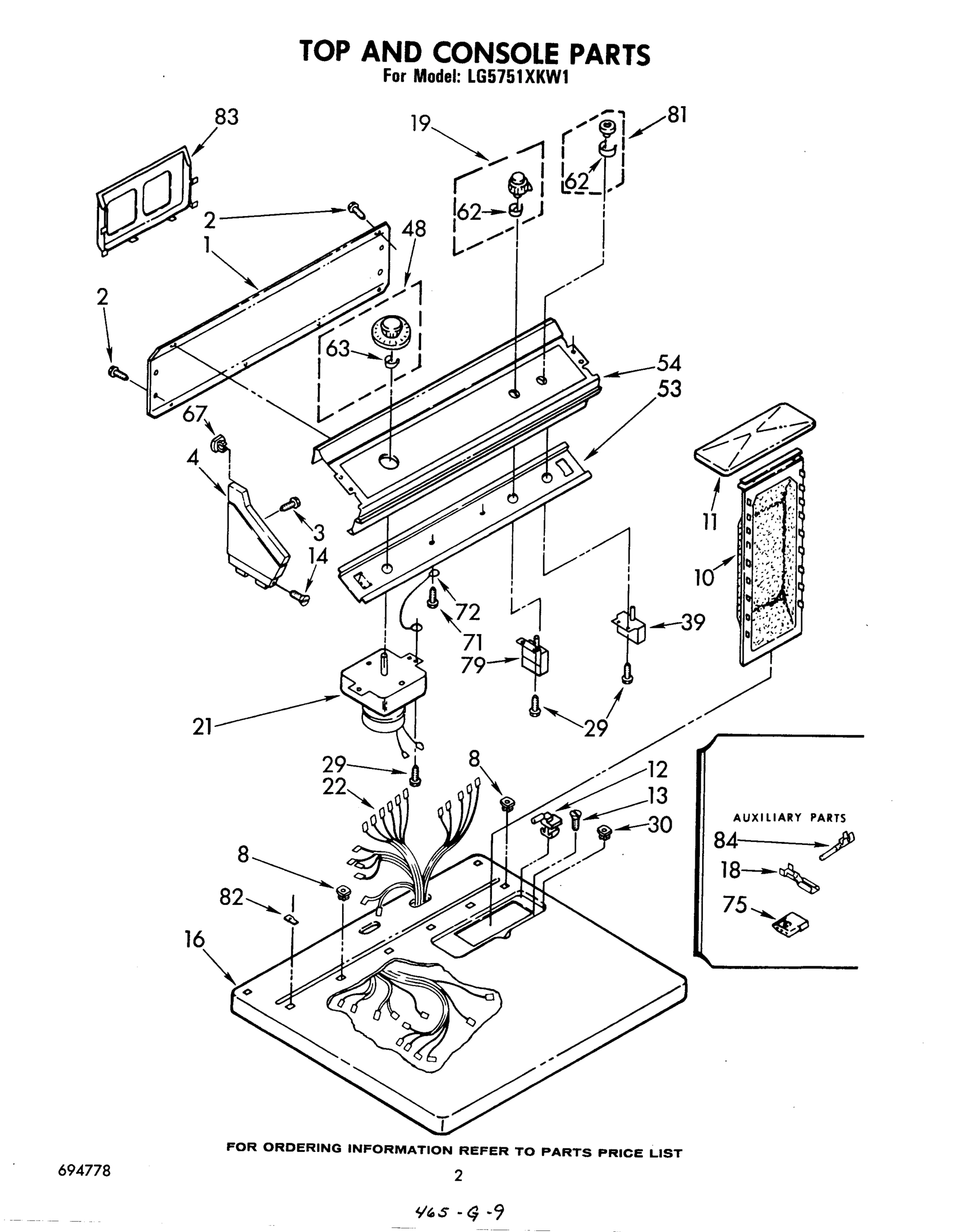

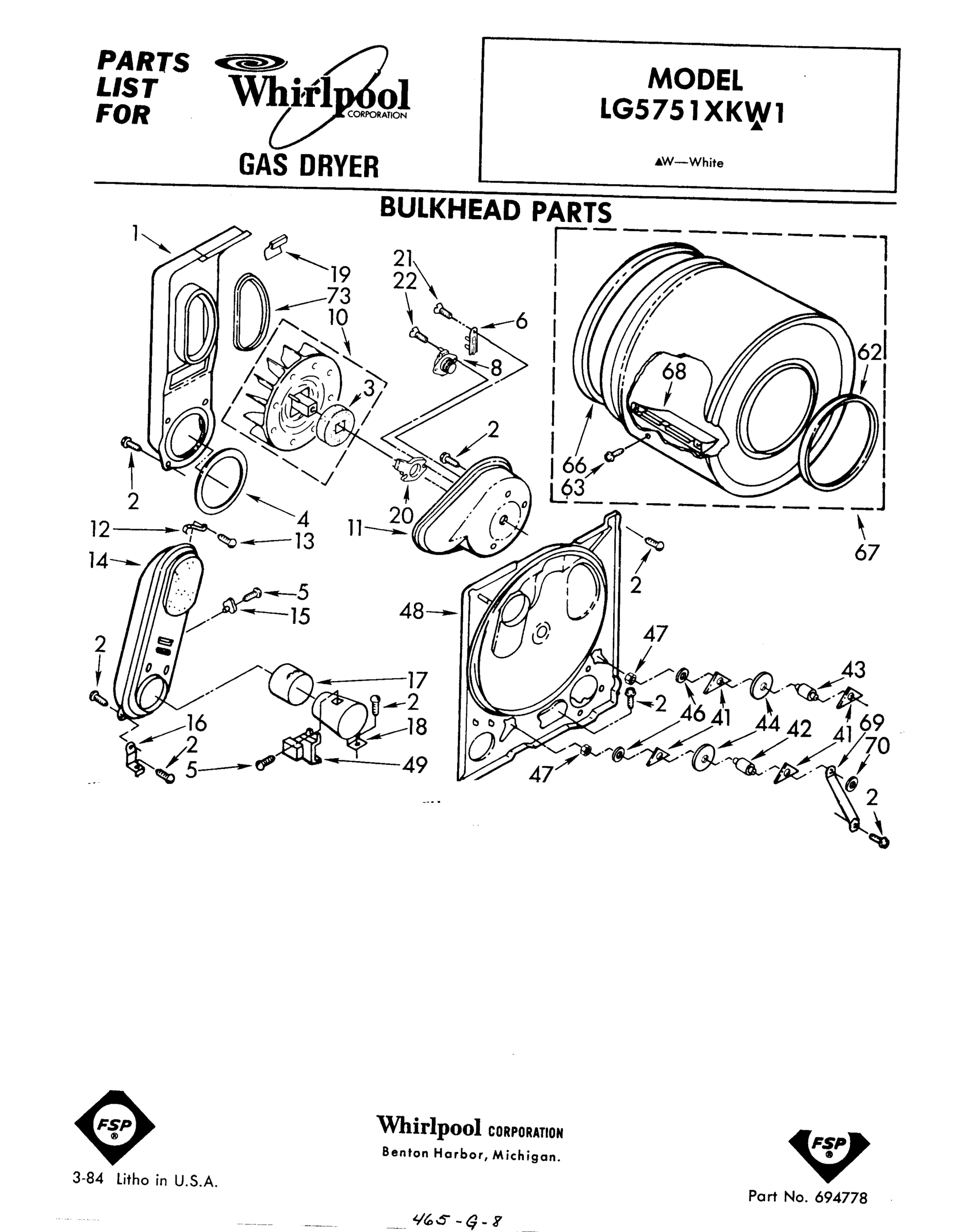

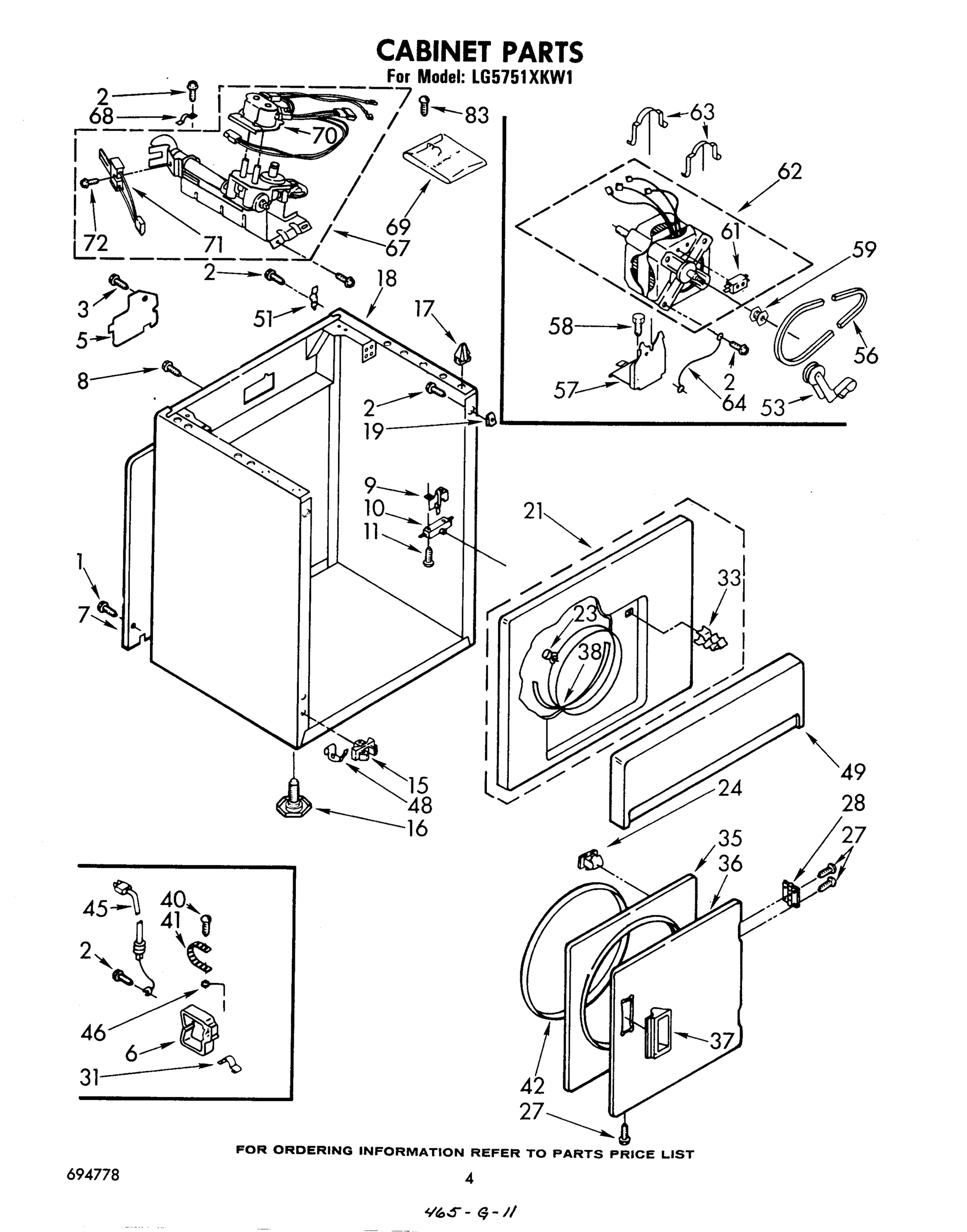

Model Whirlpool LG5751XKW1 GAS DRYER – Common Parts &amp; Diagrams

Wire, Splicing, 120 Volt WPL 010875 Contact Us For Availability

Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Panel, Rear Console WPL 358470 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

3

Seal, Blower WPL 694630 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) (White Cap, End (R.H.)) WPL 375333 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 375337 Contact Us For Availability

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Thermostat, High Limit 205~F (96~C) WPL 341196 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

top (white) WPL 688479 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

18

Cabinet (White) WPL 690847 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Control Knob, Air Heat Switch WPL 690292 Contact Us For Availability

20

Thermostat, Heater WPL 61298 Contact Us For Availability

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

21

Upper Front Panel Assembly (White) WPL 693202 Contact Us For Availability

21

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

22

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

22

Harness, Wiring WPL 694690 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Nut, Compression WPL 233076 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

98460 Whirlpool Nut Backorder WPL 98460 $9.59

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

36

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

37

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690200 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

Panel, Toe (White) WPL 237035 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 688349 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

Clip WPL 90015 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

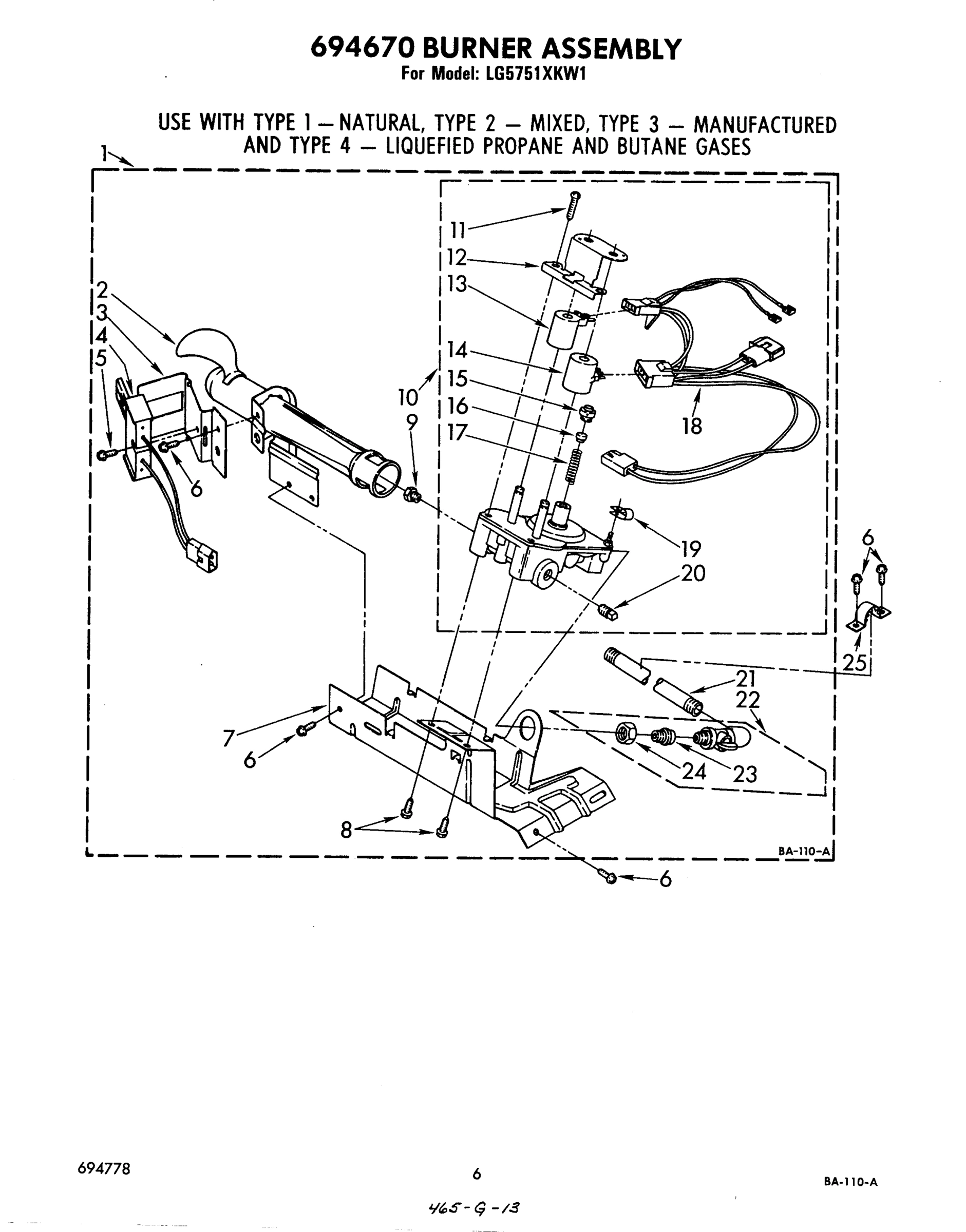

Burner Assembly, 60 Hz. (Complete) (Refer to WPL 694670 Contact Us For Availability

67

Nut, Push-In (4) WPL 694055 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

69

kit, conversion (type 1 to type 3) (mfd gas) WPL 279243 Contact Us For Availability

69

Bracket, Support WPL 348945 Contact Us For Availability

70

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

72

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

79

Switch, Air Heat WPL 694720 Contact Us For Availability

81

Button, Push-to-Start WPL 346219 Contact Us For Availability

82

Stop, Push-In (2) WPL 358472 Contact Us For Availability

83

Screw, Burner Mounting WPL 343826 Contact Us For Availability

83

Rack, Literature WPL 357645 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

Leveler (Thinner) WPL 350941 Contact Us For Availability

Use & Care Guide WPL 693676 Contact Us For Availability

Guide, Dryer WPL 693849 Contact Us For Availability

Instructions, Installation WPL 694344 Contact Us For Availability

List, Service Parts WPL 694778 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability
