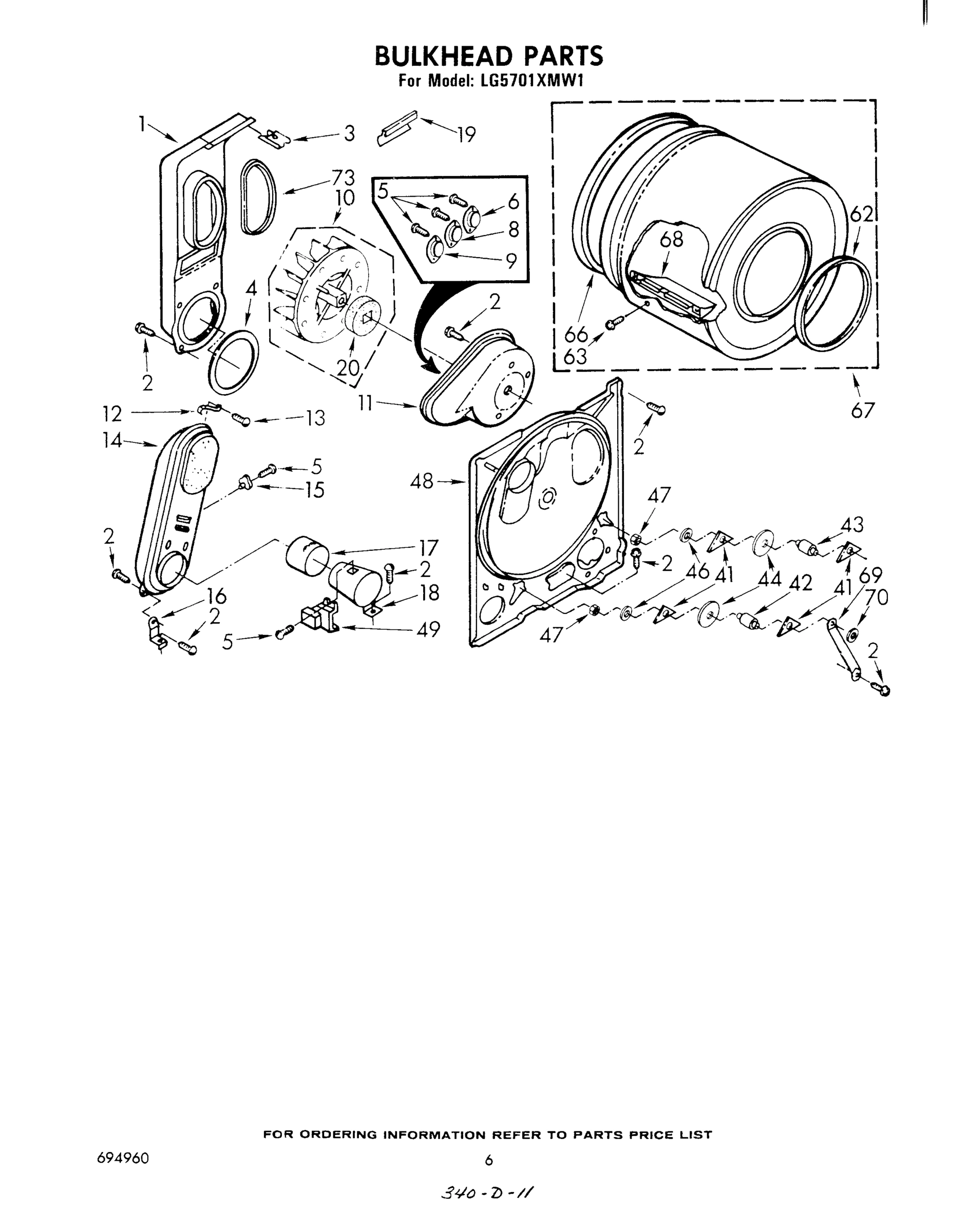

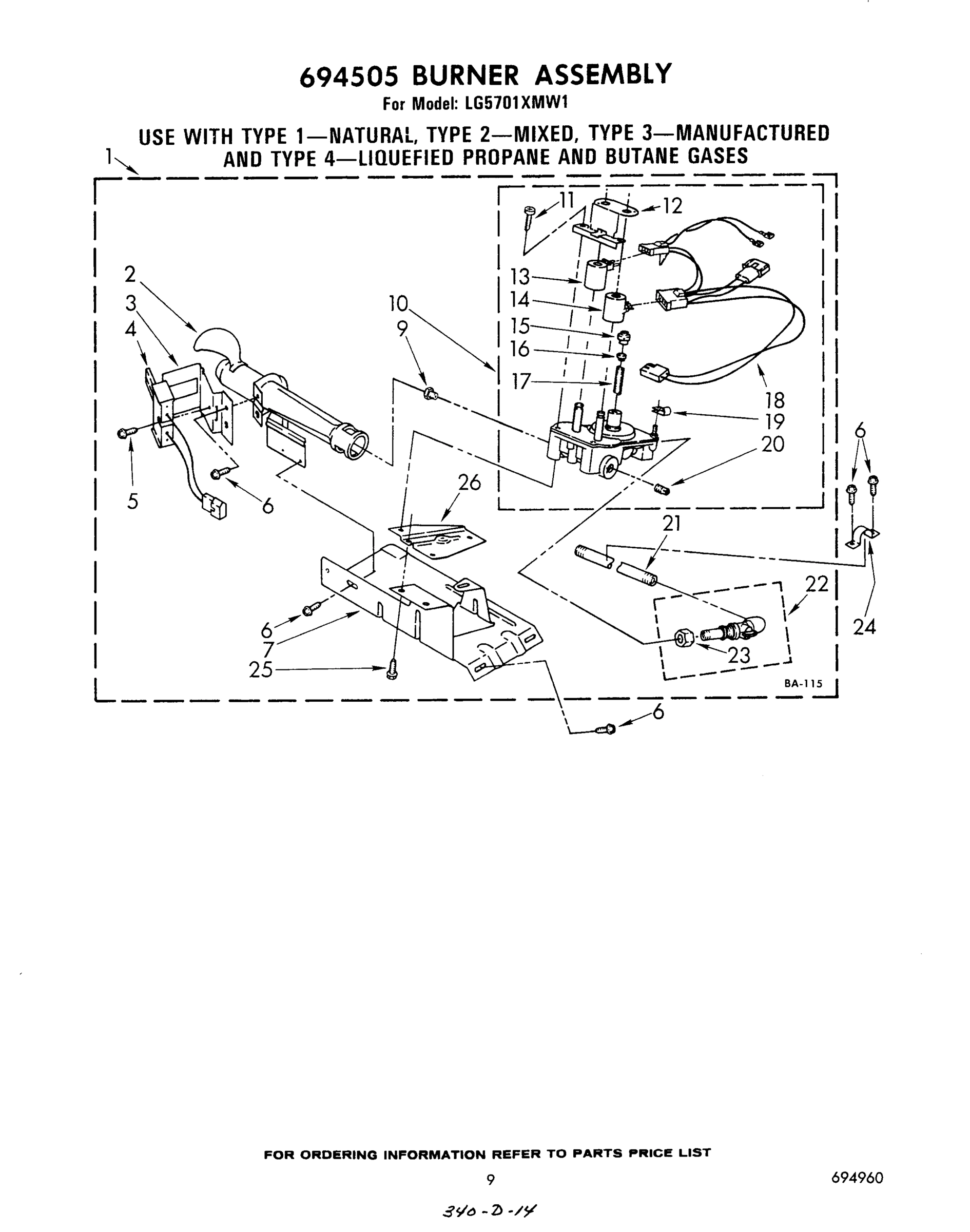

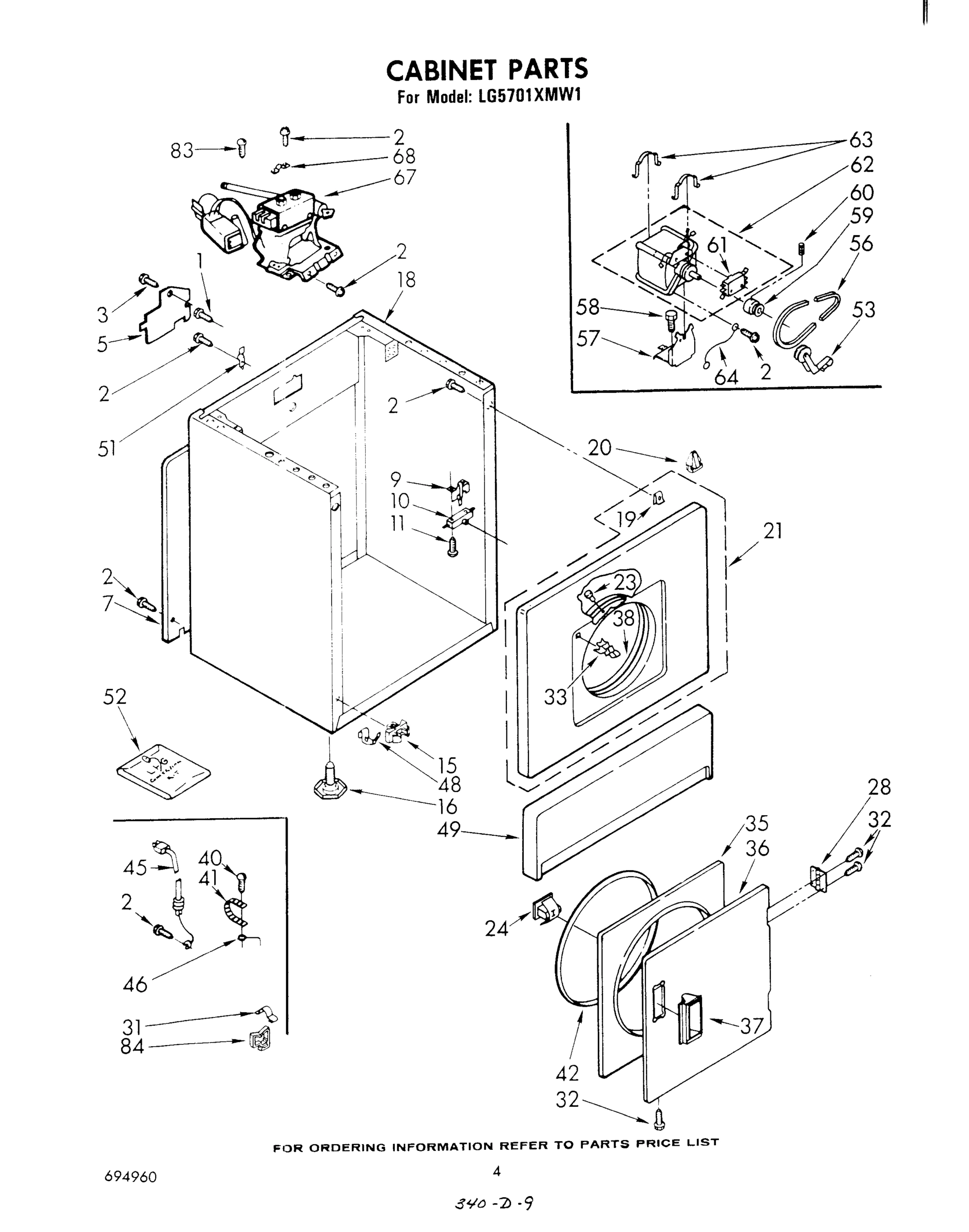

Model Whirlpool LG5701XMW1 GAS DRYER – Common Parts &amp; Diagrams

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

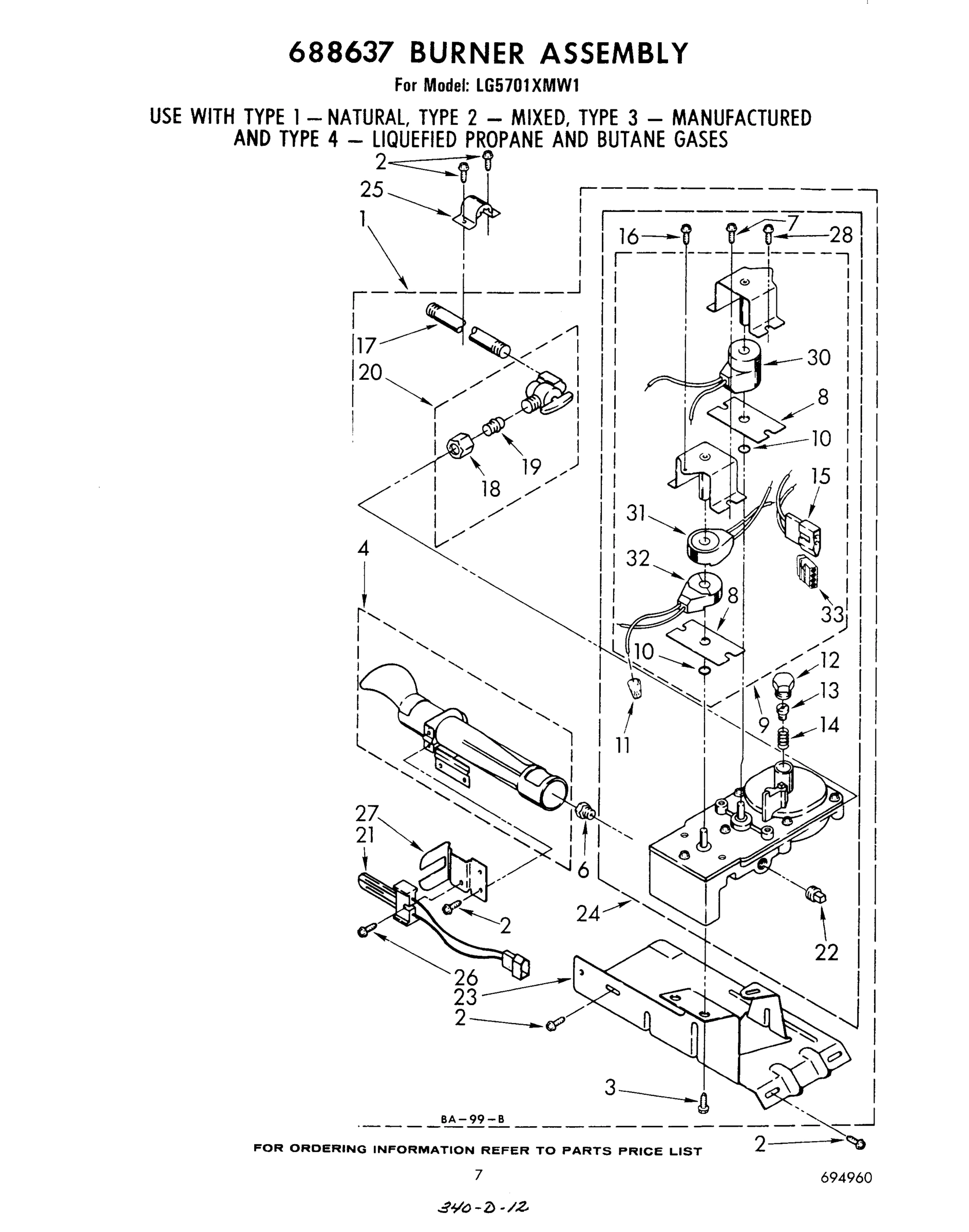

Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688637 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

6

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

6

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Panel, Rear WPL 347736 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

8

Plate (2) WPL 338869 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

9

BURNER-GAS WPL 685947 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Ring, ``O`` (2) WPL 296302 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Connector, Wire (3) WPL 340140 Contact Us For Availability

Housing, Blower WPL 348494 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

12

Screw, Leak Limiter WPL 338868 Contact Us For Availability

13

Screw, Regulator Adjustment WPL 99996 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

Spring, Regulator WPL 339226 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

Clip, Toe Panel (2) WPL 690625 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

Pipe, Gas Supply WPL 233273 Contact Us For Availability

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $103.71

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Nut, Compression WPL 233076 Contact Us For Availability

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Cabinet (Toast) WPL 694874 Contact Us For Availability

Cabinet (Platinum) WPL 694875 Contact Us For Availability

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Clip, Harness WPL 694510 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

20

Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

Upper Front Panel (White) WPL 693202 Contact Us For Availability

Upper Front Panel (Almond) WPL 693203 Contact Us For Availability

Upper Front Panel (Golden Harvest) WPL 693206 Contact Us For Availability

Upper Front Panel (Toast) WPL 695261 Contact Us For Availability

Upper Front Panel (Platinum) WPL 695262 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

22

Valve & Union, Shut-Off WPL 694504 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

Baseplate WPL 338455 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability

24

BURNER-GAS WPL 688631 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

26

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

26

Bracket, Gas Valve (Not a Serviceable Part) WPL ARI156743A Contact Us For Availability

27

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

28

Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability

30

Coil Assembly (Main) WPL 348376 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Coil Assembly (Hold) WPL 348375 Contact Us For Availability

32

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

32

Coil Assembly (Assist) WPL 348374 Contact Us For Availability

33

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

33

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

33

Receptacle, 2 Way WPL 717252 Contact Us For Availability

35

280077 Whirlpool Door Backorder WPL 280077 $116.57

WP348205 Whirlpool Door Backorder WPL WP348205 $55.84

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

Door, Front (Toast) WPL 695247 Contact Us For Availability

Door, Front (Platinum) WPL 695248 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.70

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

Handle, Door (Platinum) WPL 695286 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $19.71

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $39.98

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

Wire, Ground (60 Hz.) WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Bulkhead WPL 685769 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

Panel, Toe WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

52

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $15.98

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.88

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

67

WPL 688639 WPL 688639 Contact Us For Availability

67

WPL 694505 WPL 694505 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

75

353424 Whirlpool Connector Backorder WPL 353424 $10.76

79

Switch, Temperature WPL 348686 Contact Us For Availability

81

Button Asse WPL 689857 Contact Us For Availability

83

WPL 357645 WPL 357645 Contact Us For Availability

83

WPL 343826 WPL 343826 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 691272 WPL 691272 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 694344 WPL 694344 Contact Us For Availability

WPL 694960 WPL 694960 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 688412 WPL 688412 Contact Us For Availability
