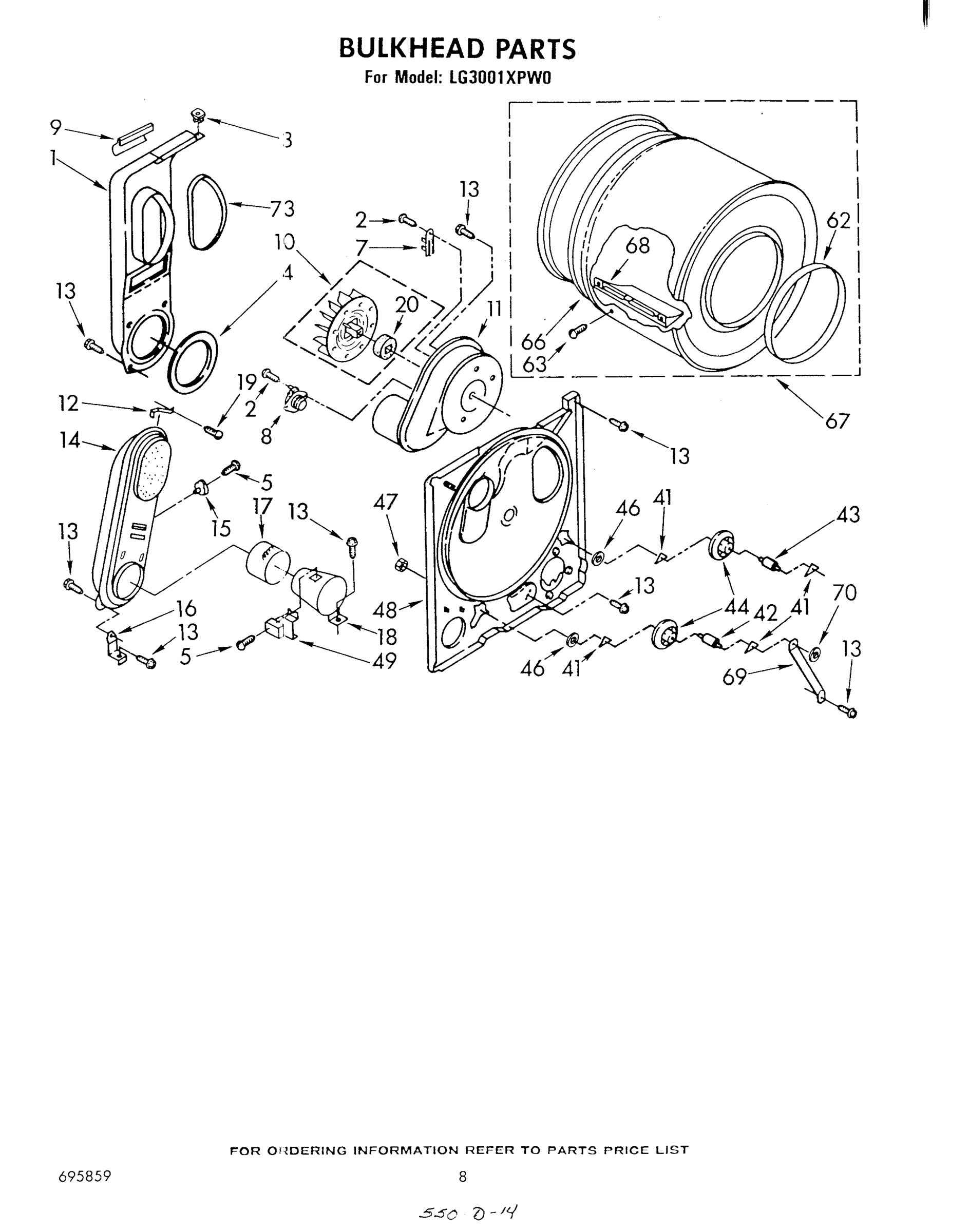

Model Whirlpool LG3001XPW0 GAS DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
Automatic Washer (Belt Drive)
Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability
View on Model
Dryer
Dryer WPL LIT677818 Contact Us For Availability
View on Model
Compactor
Compactor WPL LIT677821 Contact Us For Availability
View on Model
Dishwasher
Dishwasher WPL LIT677967 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT693685 Contact Us For Availability
View on Model
Guide, Dryer
Guide, Dryer WPL LIT693849 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT694344 Contact Us For Availability
View on Model
List, Service Parts
List, Service Parts WPL LIT695859 Contact Us For Availability
View on Model
1
Panel, Rear Console
Panel, Rear Console WPL 386367 Contact Us For Availability
View on Model
3
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
3
Screw, 13-16 x 5/8
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
View on Model
4
Cap, End (L.H.)
Cap, End (L.H.) WPL 63790 Contact Us For Availability
View on Model
6
Cap , End (R.H.)
Cap , End (R.H.) WPL 63796 Contact Us For Availability
View on Model
7
Panel, Rear
Panel, Rear WPL 347736 Contact Us For Availability
View on Model
8
Stop, Push-In (2)
Stop, Push-In (2) WPL 358472 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 3)
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
View on Model
9
Orifice, Burner (Type 2)
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
View on Model
10
SCREEN
SCREEN WPL 339392 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
14
Screw, 8-18 x 1
Screw, 8-18 x 1 WPL 64211 Contact Us For Availability
View on Model
15
Thermostat, 205~F (96.1~C) (Alt.)
Thermostat, 205~F (96.1~C) (Alt.) WPL 341196 Contact Us For Availability
View on Model
15
Clip, Toe Panel (2)
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 695507 Contact Us For Availability
View on Model
18
Cabinet (White)
Cabinet (White) WPL 690847 Contact Us For Availability
View on Model
19
Clip, Harness
Clip, Harness WPL 694510 Contact Us For Availability
View on Model
21
Pipe, Gas Supply
Pipe, Gas Supply WPL 233273 Contact Us For Availability
View on Model
21
Upper Front Panel (White)
Upper Front Panel (White) WPL 693202 Contact Us For Availability
View on Model
21
Timer Assembly, 60 Hz.
Timer Assembly, 60 Hz. WPL 687952 Contact Us For Availability
View on Model
22
Valve & Union, Shut-Off
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
30
Harness, Wiring
Harness, Wiring WPL 695358 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 660936 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
View on Model
40
Screw, 10-24 x 1
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
View on Model
41
Strap, Ground
Strap, Ground WPL 22965 Contact Us For Availability
View on Model
46
Wire, Ground
Wire, Ground WPL 364089 Contact Us For Availability
View on Model
48
Timer Knob & Dial
Timer Knob & Dial WPL 695556 Contact Us For Availability
View on Model
49
Panel, Toe (White)
Panel, Toe (White) WPL 237035 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 386627 Contact Us For Availability
View on Model
54
PANEL, CONTROL
PANEL, CONTROL WPL 695959 Contact Us For Availability
View on Model
62
Clip
Clip WPL 90015 Contact Us For Availability
View on Model
67
Nut, Push-In (4)
Nut, Push-In (4) WPL 689559 Contact Us For Availability
View on Model
67

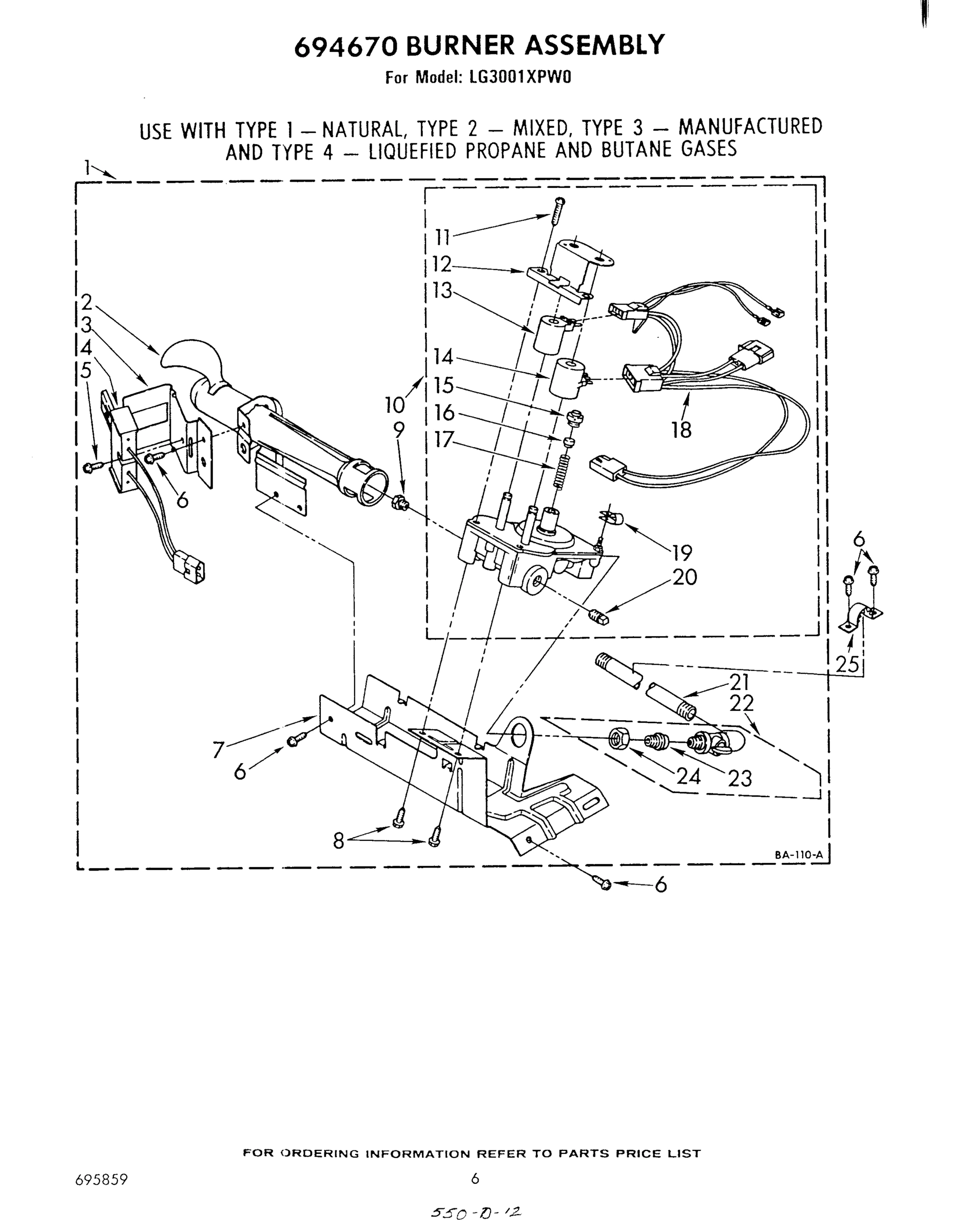

Burner Assembly, 60 Hz. (Refer to Pages 6 & 7
Burner Assembly, 60 Hz. (Refer to Pages 6 & 7 WPL 694670 Contact Us For Availability
View on Model
69
Kit, Conversion Type 1 To Type 3 (MFG. Gas)
Kit, Conversion Type 1 To Type 3 (MFG. Gas) WPL 279243 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, 3-Way Terminal (Use W/94614)
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
View on Model
81
Knob, Push-To-Start
Knob, Push-To-Start WPL 696075 Contact Us For Availability
View on Model
82
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
83
Screw, B
Screw, B WPL 343826 Contact Us For Availability
View on Model
83
Rack, Literature
Rack, Literature WPL 63020 Contact Us For Availability
View on Model
85
Clip, Harness Retainer
Clip, Harness Retainer WPL 688412 Contact Us For Availability
View on Model
