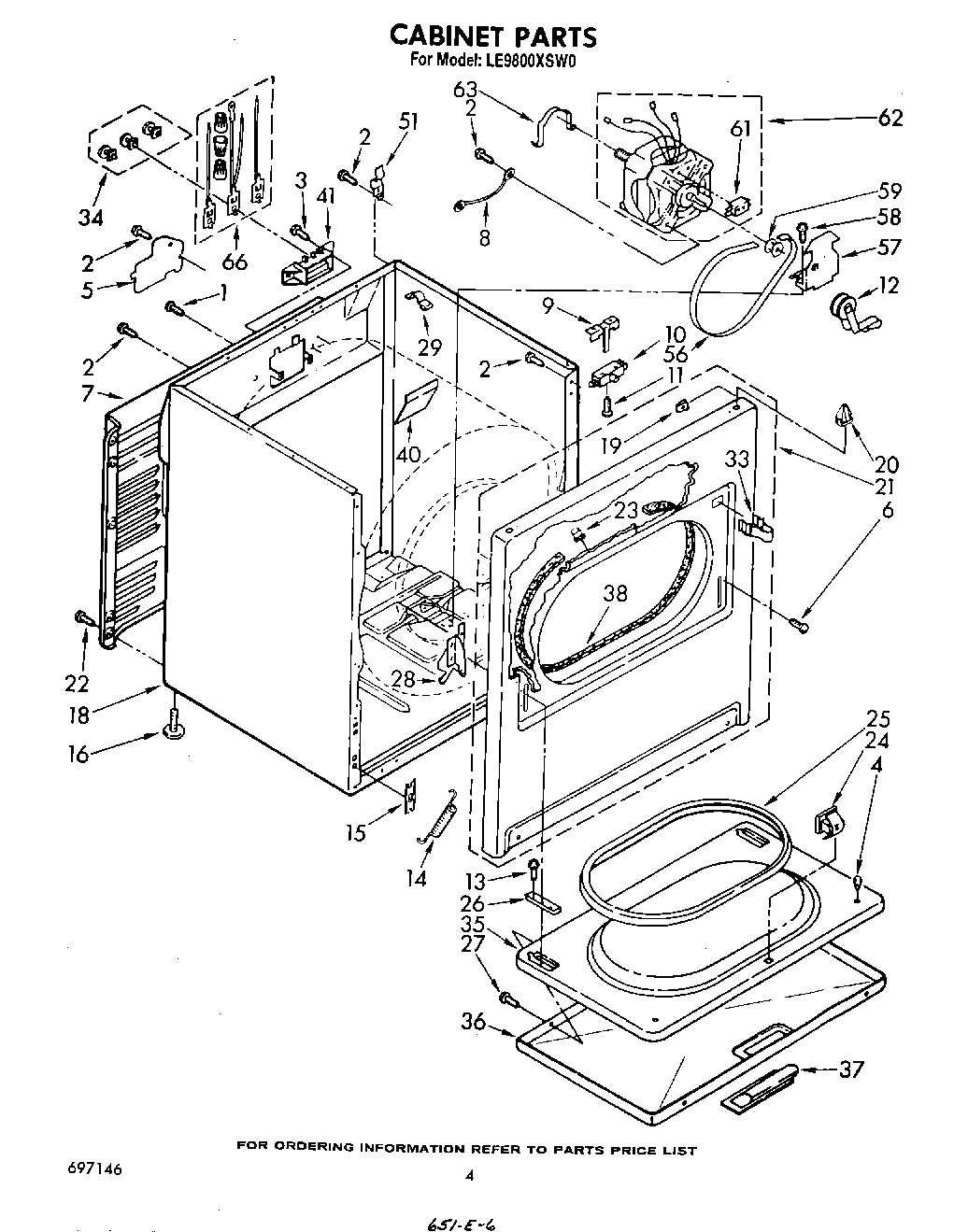

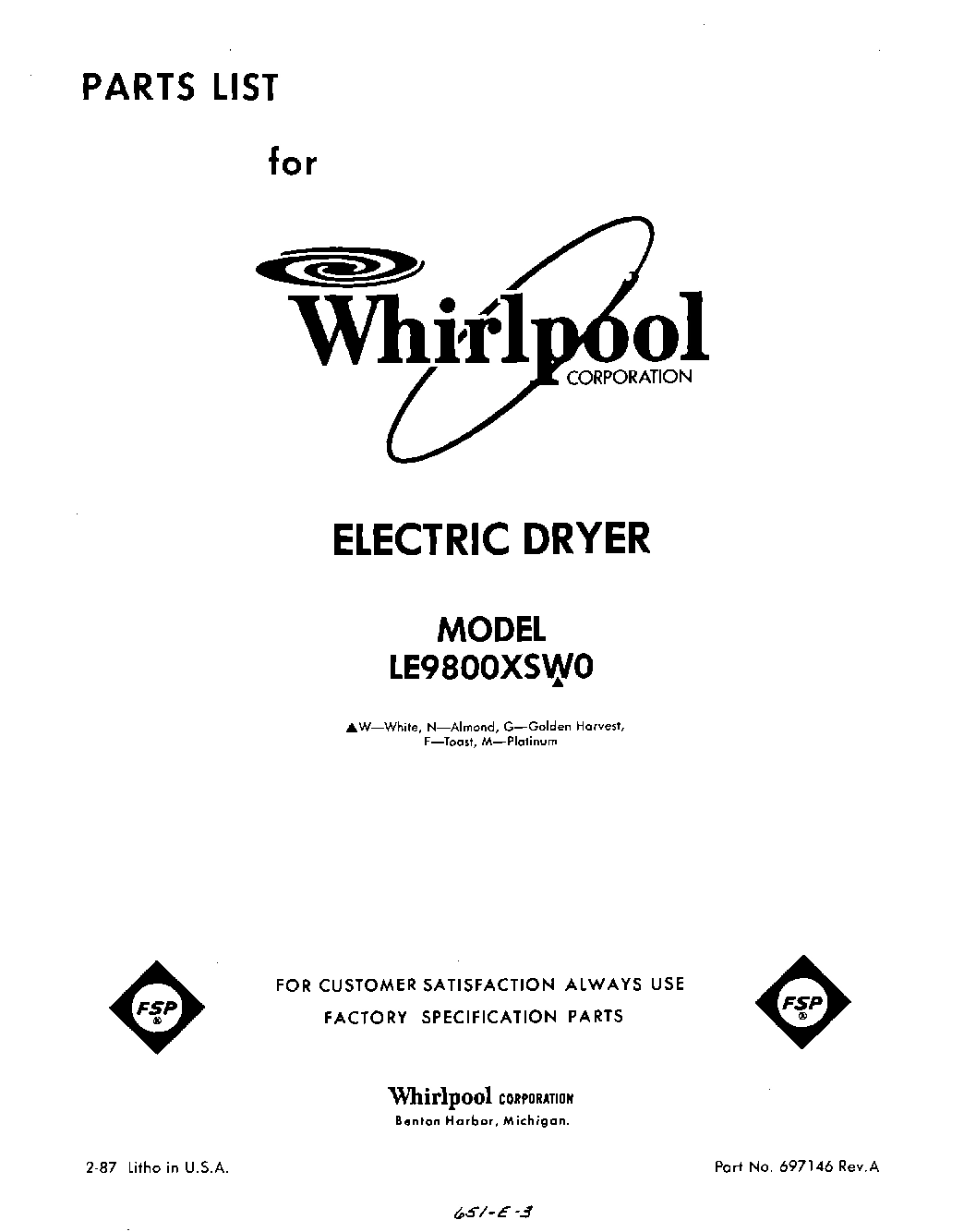

Model Whirlpool LE9800XSW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3387071 WPL LIT3387071 Contact Us For Availability

WPL LIT677813 WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT693849 WPL LIT693849 Contact Us For Availability

WPL LIT696234 WPL LIT696234 Contact Us For Availability

WPL LIT697146 WPL LIT697146 Contact Us For Availability

WPL LIT697615 WPL LIT697615 Contact Us For Availability

1

Panel, Rear Console WPL 696727 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

2

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

2

Panel, Control WPL 696700 Contact Us For Availability

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

5

Rack, Literature WPL 63020 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

7

Bracket, Control WPL 387861 Contact Us For Availability

8

Console, Bracket WPL 387856 Contact Us For Availability

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

17

Transformer WPL 60996 Contact Us For Availability

18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

18

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Stop, Push-In (2) WPL 358473 Contact Us For Availability

20

Module, Touch WPL 3407001 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

21

Nut, Push-On WPL 445189 Contact Us For Availability

21

Alert, Lint WPL 690981 Contact Us For Availability

22

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

22

Hose, Differential WPL 686577 Contact Us For Availability

23

Motor Relay WPL 696819 Contact Us For Availability

24

Screw, 6-32 x 1/4 WPL 302252 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

25

Power Relay WPL 696300 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Microcomputer Assembly WPL 772563 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

28

Speaker & Housing WPL 3388227 Contact Us For Availability

29

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Nut, Push-In (2) WPL 358472 Contact Us For Availability

31

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

34

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

Door, Front (Almond) WPL 692319 Contact Us For Availability

Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

Handle, Door (Toast) WPL 695016 Contact Us For Availability

Handle, Door (Platinum) WPL 695017 Contact Us For Availability

Terminal WPL 60279 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

38

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

39

Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability

40

Light Shield WPL 690262 Contact Us For Availability

40

Housing, Speaker WPL 359188 Contact Us For Availability

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

41

Connector WPL 60278 Contact Us For Availability

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

42

Harness, Electric WPL 3387195 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

43

Clip, Harness (Rear Bulkhead Area) WPL 688412 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

45

Clip, Harness Retainer (Door Switch Wires) WPL 689180 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

BULKHEAD WPL 685821 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

56

98460 Whirlpool Nut Backorder WPL 98460 $9.59

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

59

Socket Assembly WPL 691034 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $25.60

67

W10899578 Whirlpool Dryer Drum Assembly Backorder WPL W10899578 $132.34

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

79

Dry Rack Assembly WPL 692990 Contact Us For Availability

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $52.19

83

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32
