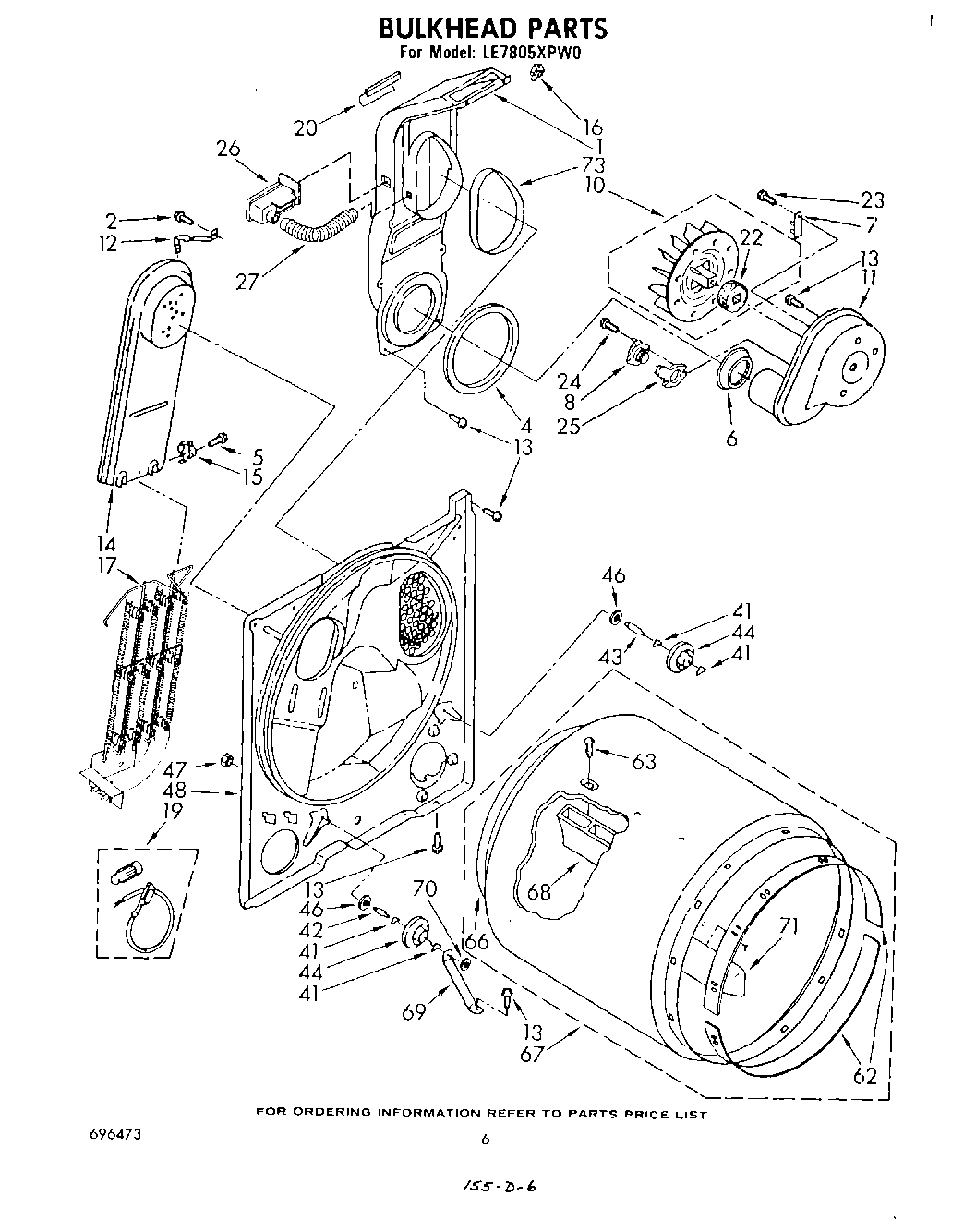

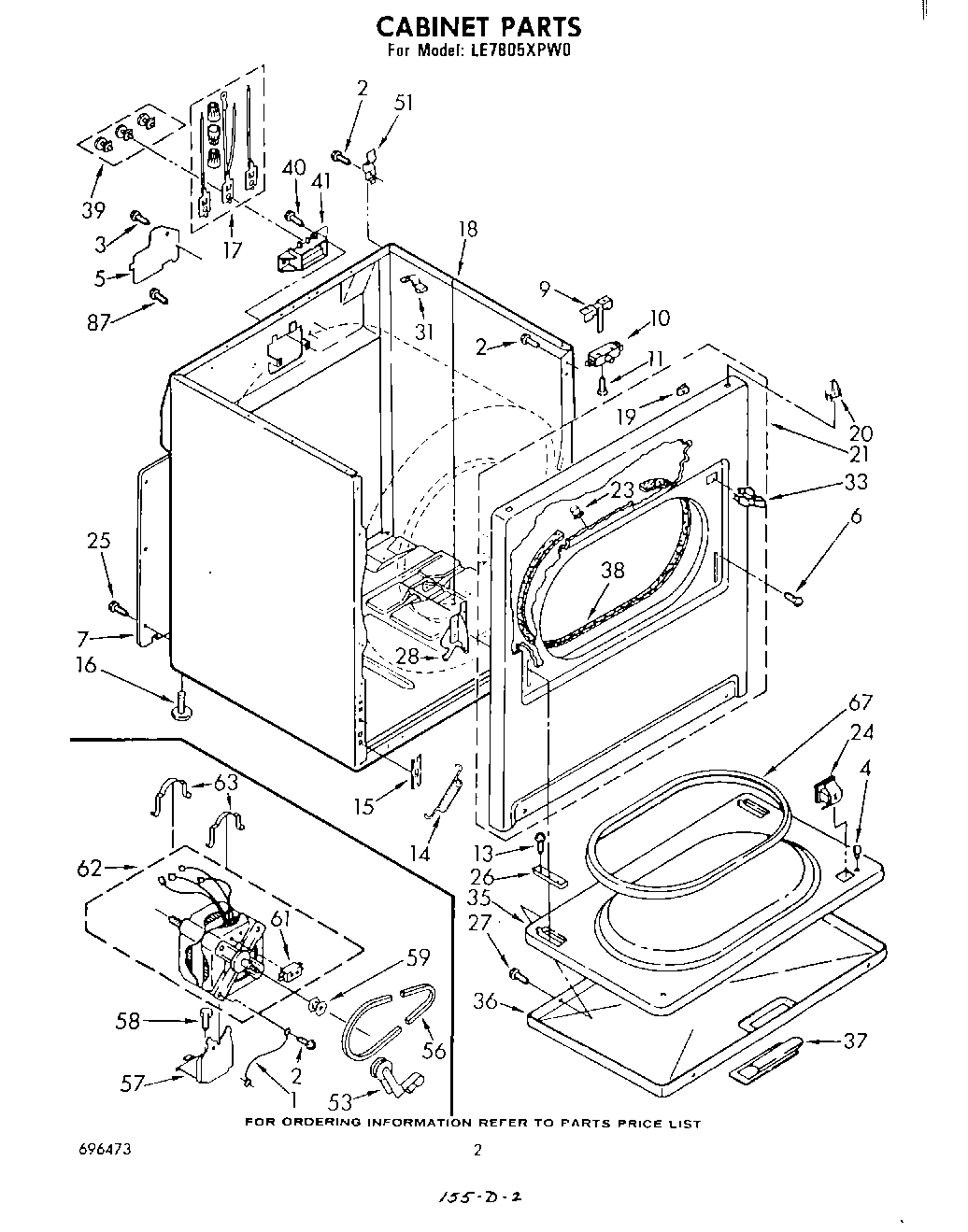

Model Whirlpool LE7805XPW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

Wire, Ground WPL 690236 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $23.61

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

Panel, Rear WPL 348365 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

11

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

15

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

15

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

98460 Whirlpool Nut Backorder WPL 98460 $9.59

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

17

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

Control Knob, Temperature Selector WPL 386629 Contact Us For Availability

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability

cabinet (toast) WPL 694876 Contact Us For Availability

Cabinet (Platinum) WPL 694877 Contact Us For Availability

19

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

279443 Whirlpool Primary Panel In Stock WPL 279443 $184.59

Timer & Resistor, 60 Hz. WPL 695755 Contact Us For Availability

Panel, Front (Almond) WPL 695621 Contact Us For Availability

Panel, Front (Golden Harvest) WPL 695622 Contact Us For Availability

Panel, Front (Toast) WPL 695623 Contact Us For Availability

Panel, Front (Platinum) WPL 695624 Contact Us For Availability

22

Seal, Blower WPL 694630 Contact Us For Availability

23

279220 Whirlpool Clip Backorder WPL 279220 $11.93

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

25

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

25

Heater, Thermostat WPL 61894 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

Alert, Lint WPL 690981 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

27

Hose, Differential WPL 686577 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

30

Nut, Push-In (2) WPL 358473 Contact Us For Availability

31

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

31

Harness, Wiring WPL 695646 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

Door, Front (Almond) WPL 692319 Contact Us For Availability

Door, Front (Golden Harvest) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

Handle, Door (Toast) WPL 695016 Contact Us For Availability

Handle, Door (Platinum) WPL 695017 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.64

39

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

39

Relay, Push-To-Start WPL 348314 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

W11178667 Whirlpool Bulkhead Assembly In Stock WPL W11178667 $118.41

48

Timer Knob Assembly WPL 695554 Contact Us For Availability

49

Knob, Push To Start WPL 695946 Contact Us For Availability

50

Clip, Harness Retainer (Rear of Bulkhead) WPL 688412 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

51

Rack, Literature WPL 63020 Contact Us For Availability

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 695956 Contact Us For Availability

55

Cip, Harness Retainer (Door Switch Leads) WPL 689180 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $40.53

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $25.60

67

W10899578 Whirlpool Dryer Drum Assembly Backorder WPL W10899578 $132.34

67

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

79

Switch, Fabric Temperature Selector WPL 695091 Contact Us For Availability
