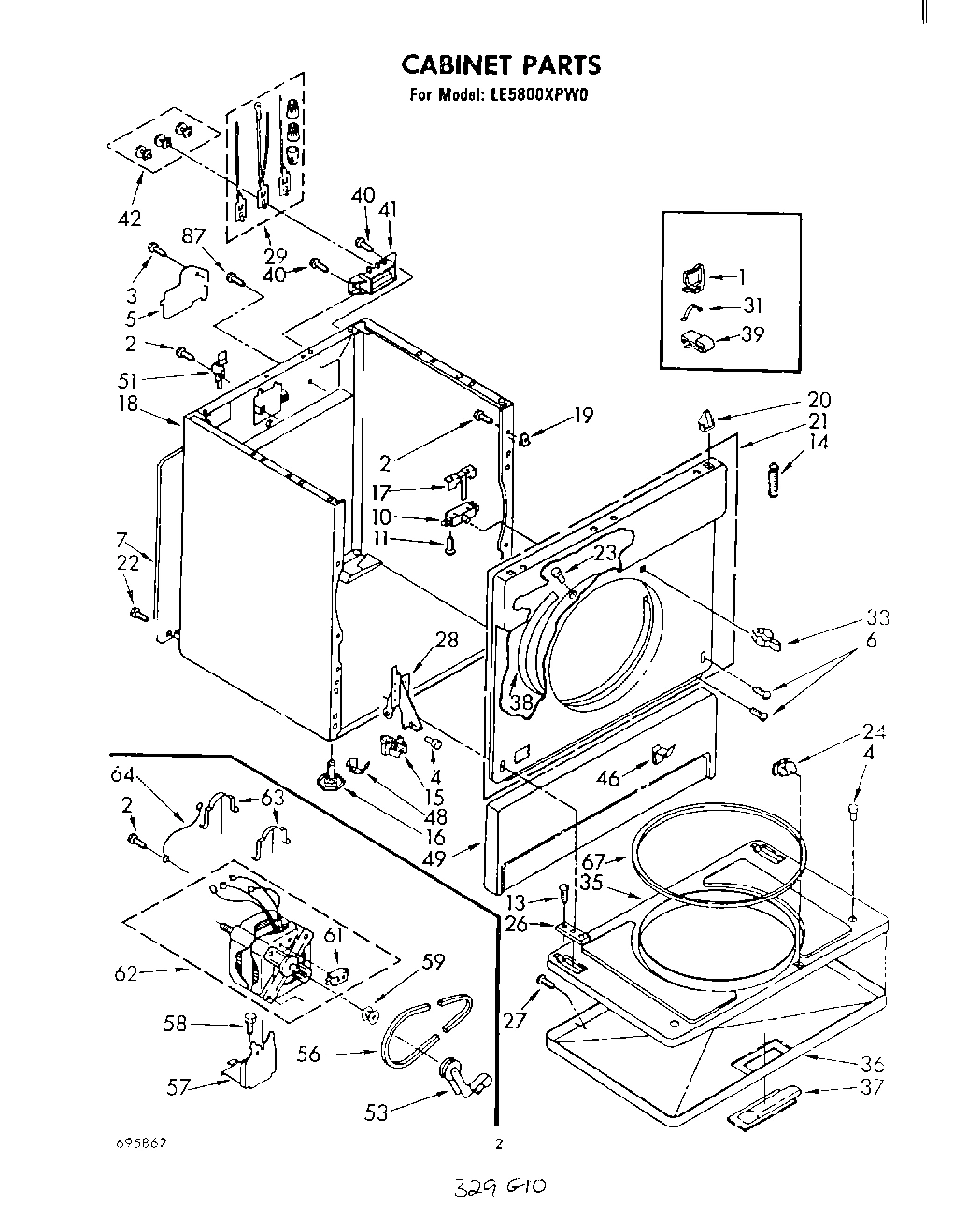

Model Whirlpool LE5800XPW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

1

Lint Chute WPL 686215 Contact Us For Availability

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

279872 Whirlpool Resistor In Stock WPL 279872 $26.21

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

6

Stop, Push-In WPL 358473 Contact Us For Availability

8

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

8

Nut, Push-In (2) WPL 358472 Contact Us For Availability

9

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Screw, End Cap WPL 64211 Contact Us For Availability

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

Thermostat, Heater WPL 61298 Contact Us For Availability

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

18

Knob, Temperature Selector WPL 386629 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Seal, Blower WPL 694630 Contact Us For Availability

20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

21

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

21

Timer & Resistor Assembly, 60 Hz. WPL 690344 Contact Us For Availability

22

Alert, Lint WPL 690981 Contact Us For Availability

23

Hose, Differential WPL 686577 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

28

Hinge, R.H. WPL 687905 Contact Us For Availability

29

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

31

Harness, Wiring WPL 694747 Contact Us For Availability

35

Door, Rear (Toast) WPL 695003 Contact Us For Availability

35

Door, Rear (Platinum) WPL 695004 Contact Us For Availability

Door, Front (White) WPL 348728 Contact Us For Availability

Door, Front (Almond) WPL 689330 Contact Us For Availability

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

Door, Front (Toast) WPL 695034 Contact Us For Availability

Door, Front (Platinum) WPL 695035 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harv WPL 690269 Contact Us For Availability

WPL 695016 WPL 695016 Contact Us For Availability

WPL 695017 WPL 695017 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

WPL 689180 WPL 689180 Contact Us For Availability

Switch, Push-To-Start (Alt.) WPL 348771 Contact Us For Availability

Switch, Push-To-Start WPL 660648 Contact Us For Availability

Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPL 341776 WPL 341776 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob & Dial Assembly WPL 695554 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

WPL 237035 WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 695957 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

67

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

79

Switch, Rotary (Temperature Selector) WPL 695091 Contact Us For Availability

81

Knob, Push To Start WPL 695946 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Rack, Literature WPL 63020 Contact Us For Availability

Use & Care Guide WPL 693683 Contact Us For Availability

Guide, Dryer WPL 693849 Contact Us For Availability

List, Service Parts WPL 695862 Contact Us For Availability

Instructions, Ins WPL 696234 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
