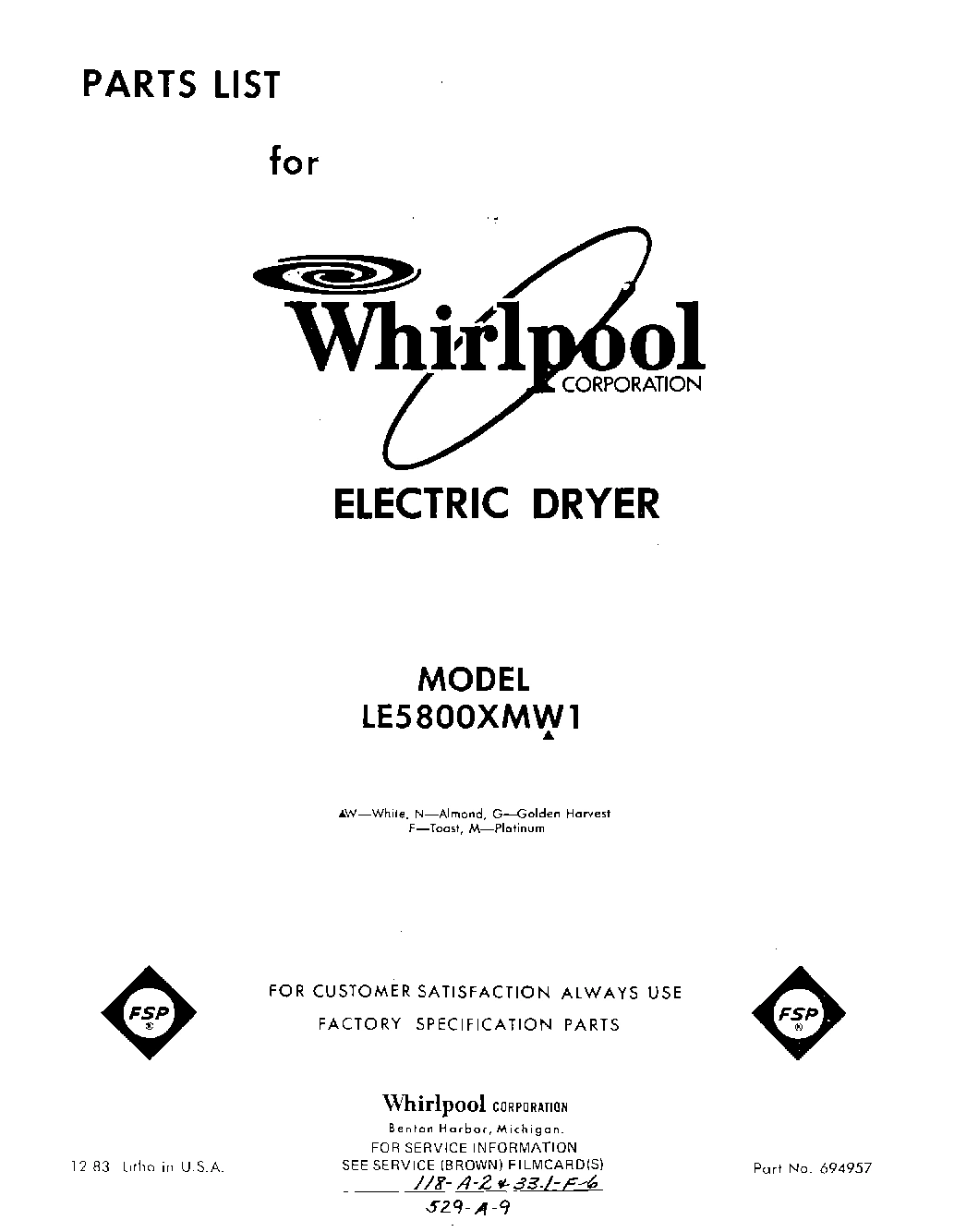

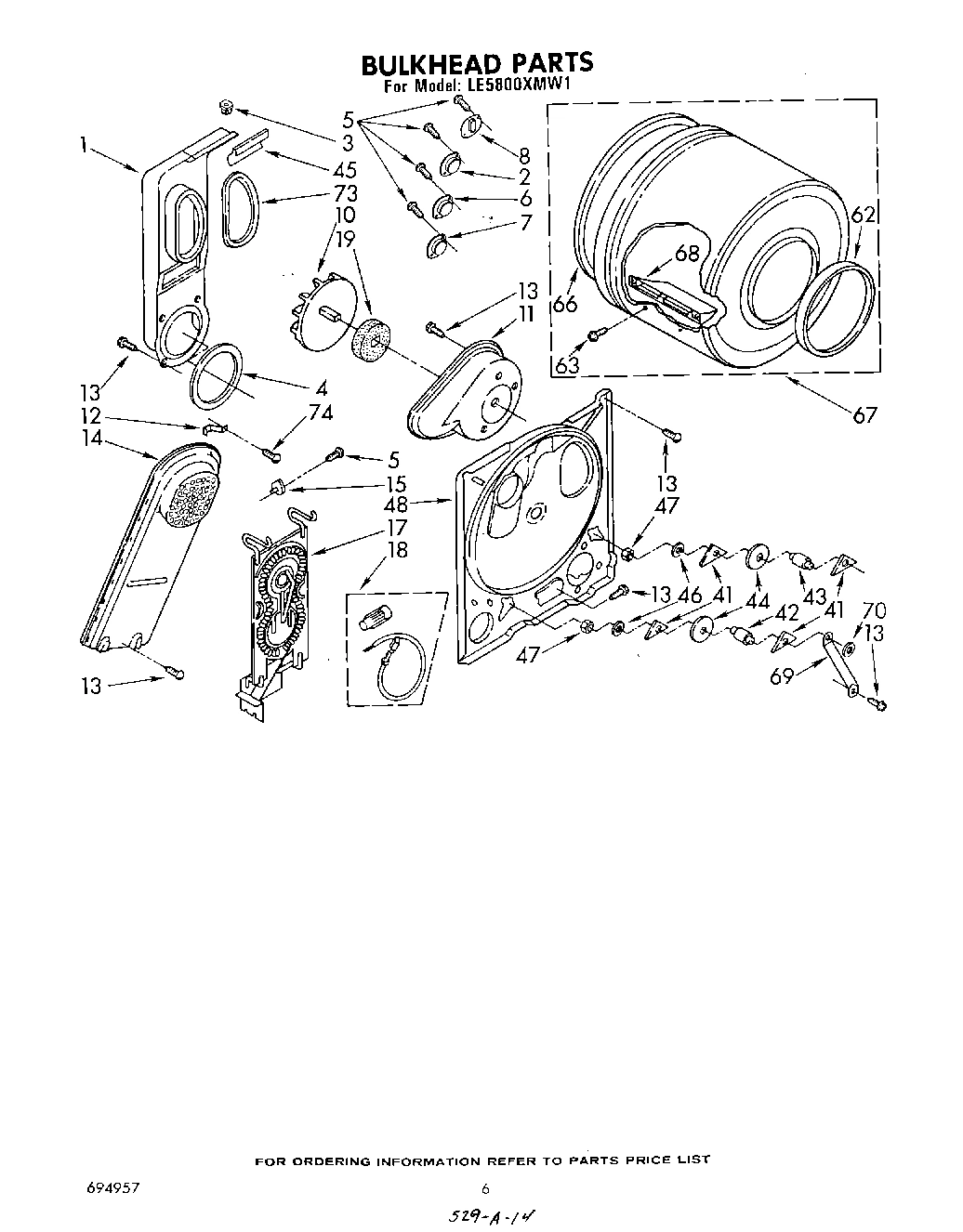

Model Whirlpool LE5800XMW1 ELECTRIC DRYER – Common Parts &amp; Diagrams

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $125.08

1

Panel, Rear Console WPL 359372 Contact Us For Availability

3

98460 Whirlpool Nut Backorder WPL 98460 $9.59

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

4

Cap, End (L.H.) (Toast) WPL 377284 Contact Us For Availability

4

Cap, End (L.H.) (Platinum Cap, End (R.H.)) WPL 377285 Contact Us For Availability

4

Cap, End L.H. (Toast) WPL 377286 Contact Us For Availability

4

Cap, End L.H. (Platinum) WPL 377287 Contact Us For Availability

5

279872 Whirlpool Resistor In Stock WPL 279872 $26.21

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

6

Stop, Push-In WPL 358472 Contact Us For Availability

7

Clip WPL 90015 Contact Us For Availability

8

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $20.15

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 348493 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Screw, 8-18 x 1 WPL 358225 Contact Us For Availability

14

Box, Heater WPL 685457 Contact Us For Availability

15

279052 Whirlpool Thermostat L250 3W Backorder WPL 279052 $48.53

top (white) WPL 688479 Contact Us For Availability

Top (Almond) WPL 689449 Contact Us For Availability

Top (Golden Harvest) WPL 689452 Contact Us For Availability

Top (Toast) WPL 694983 Contact Us For Availability

Top (Platinum) WPL 694984 Contact Us For Availability

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $18.74

18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

18

Control Knob, Temperature WPL 690292 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Seal, Blower WPL 694630 Contact Us For Availability

21

Timer & Resistor Assembly, 60 Hz. WPL 690344 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

28

Hinge, R.H. WPL 687905 Contact Us For Availability

29

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

29

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

31

Harness, Wiring WPL 693290 Contact Us For Availability

Door, Front (White) WPL 348728 Contact Us For Availability

Door, Front (Almond) WPL 689330 Contact Us For Availability

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

Door, Front (Toast) WPL 695034 Contact Us For Availability

Door, Front (Platinum) WPL 695035 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $43.54

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

Handle, Door (Toast) WPL 695016 Contact Us For Availability

Handl WPL 695017 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $46.61

39

Switch, Push-To-Start 348771 (Alt.) 685067 (A WPL 660648 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

42

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $30.85

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $30.76

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $6.97

45

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPL 341776 WPL 341776 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

48

Timer Knob Assembly WPL 690200 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

WPL 237035 WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

53

Bracket, Control WPL 359708 Contact Us For Availability

54

Panel, Control WPL 690418 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $5.71

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $40.37

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $69.66

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $39.35

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $24.27

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $252.54

67

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $37.79

67

Clip, Push-On WPL 98084 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $49.59

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

79

Switch, Rotary (Temperature Selector) WPL 688712 Contact Us For Availability

81

Pushbutton Assembly WPL 689857 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 357645 WPL 357645 Contact Us For Availability

WPL 691271 WPL 691271 Contact Us For Availability

WPL 693849 WPL 693849 Contact Us For Availability

WPL 694345 WPL 694345 Contact Us For Availability

WPL 694957 WPL 694957 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability
