Model Speed Queen LDME5BGS543KW01 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Models (Drawing 2 of 3)

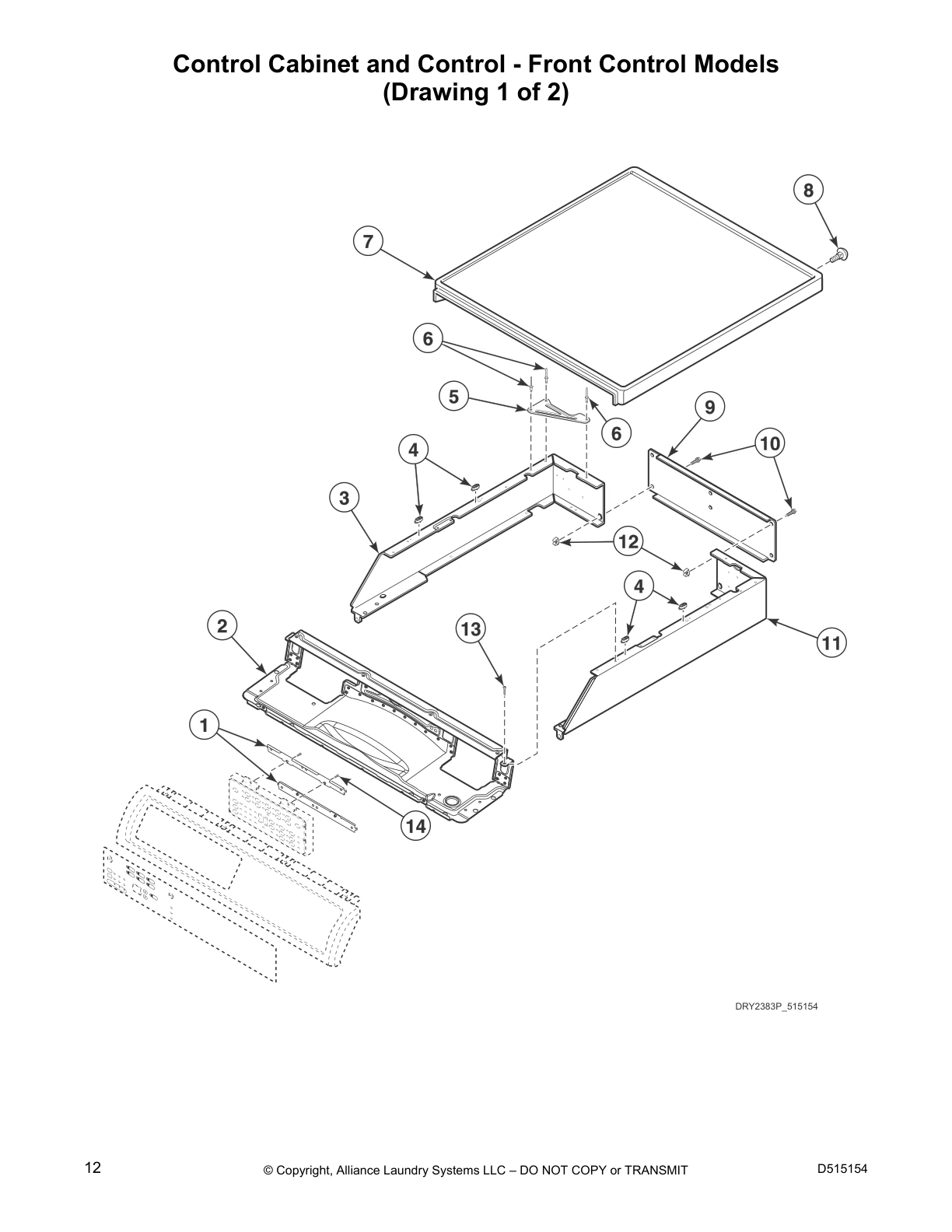

Control Cabinet and Control - Front Control Models
(Drawing 1 of 2)
Control Cabinet and Control - Front Control Models
(Drawing 2 of 2)
Loading Door
Front Panel and Seal
Access Panel
Motor, Exhaust Fan and Belt (Drawing 1 of 2)
Motor, Exhaust Fan and Belt (Drawing 2 of 2)
Thermistor
Front Bulkhead and Seal - Without Light
Front Bulkhead and Seal - With Light
Air Duct
Cylinder and Baffles
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block and Shield (Drawing 1 of 2)
Terminal Block and Shield (Drawing 2 of 2)
Heater Duct and Element Assembly - 1 Phase Models
Heater Duct and Element Assembly - 3 Phase Models
Heater Duct Assembly
Gas Valve and Igniter Through Serial No. 1908000001
Gas Valve and Igniter Starting Serial No. 1908000001
Gas Valve Through Serial No. 1908000001
Gas Valve Starting Serial No. 1908000001
Gas Conversion Kits
Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base (Drawing 1 of 2)
Cabinet, Exhaust Duct and Base (Drawing 2 of 2)
Contactor and Transformer
Ignition Control Module
Power Cord (Drawing 1 of 2)
Power Cord (Drawing 2 of 2)
Junction Box
Junction Box Filter and Harnesses (Drawing 1 of 3)
Junction Box Filter and Harnesses (Drawing 2 of 3)
Junction Box Filter and Harnesses (Drawing 3 of 3)
Terminal Block and Terminals
Terminals
Motor Connection Block, Terminal Extractor Tools
Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Rear Control Models
Common parts from model Speed Queen LDME5BGS543KW01 Dryer
N.G. Orifice SPQ D503778 Contact Us For Availability
SPQ 38384 SPQ 38384 Contact Us For Availability
1
Door Strike Mount SPQ D510127 Contact Us For Availability
1
Adhesive SPQ D511637P Contact Us For Availability
1
Idler Spring SPQ D510185 Contact Us For Availability
1
Cylinder Baffle SPQ D510102W Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Lead-In Pipe Assembly SPQ D510204 Contact Us For Availability
1
Panel Locator SPQ 56079 Contact Us For Availability
1
Control Assembly SPQ D514565P Contact Us For Availability
1
Screw SPQ 33562 Contact Us For Availability
1
L.P. Orifice SPQ D503786 Contact Us For Availability
1
Screw SPQ D502535 Contact Us For Availability
2
Outlet Cover SPQ D518524 Contact Us For Availability
2
Bar Sensor SPQ D513737 Contact Us For Availability
2
Door Pull and Wedge Kit SPQ D510103WP Contact Us For Availability
2
Thermistor SPQ M414704 Contact Us For Availability
2
N.G. Conversion Kit SPQ 650P3 Contact Us For Availability
2
Idler Lever SPQ 56156 Contact Us For Availability
2
Burner Assembly SPQ 51782 Contact Us For Availability
2
Rear Wrapper Brace SPQ 804613 Contact Us For Availability
3
Drip Shield SPQ D512973 Contact Us For Availability
3
Door Strike SPQ D510181 Contact Us For Availability
3
Moisture Sensor Base SPQ D513738 Contact Us For Availability
3
Spark Electrode SPQ 44328701P Contact Us For Availability
3
Top Hinge SPQ 39733 Contact Us For Availability
3
Screw SPQ 62588 Contact Us For Availability
3
Pop Rivet SPQ 804627W Contact Us For Availability
3
Dryer Base SPQ 804667 Contact Us For Availability
3
Screw SPQ D503661 Contact Us For Availability
4
Washer SPQ 56461P Contact Us For Availability
4
Motor Mount Clamp SPQ D511969WP Contact Us For Availability
4
Drying Rack SPQ D512082P Contact Us For Availability
4
Front Bulkhead Assembly SPQ D515532 Contact Us For Availability
4
Heat Duct Shroud SPQ D510101 Contact Us For Availability
4
Flexible Venting Kit SPQ 56128 Contact Us For Availability
5
Retaining Ring SPQ 52549 Contact Us For Availability
5
Lint Filter Cover SPQ D510502W Contact Us For Availability
5
Retaining Ring SPQ D501285 Contact Us For Availability
5
Motor and Pulley Assembly SPQ D510180 Contact Us For Availability
5
Cabinet Rear Panel SPQ D510136 Contact Us For Availability
6
Combustion Duct SPQ D510703 Contact Us For Availability
6
Liner Door Seal SPQ D510147P Contact Us For Availability
6
Rubber Foot SPQ D514245 Contact Us For Availability
6
Cylinder Glide SPQ D500226 Contact Us For Availability
7
Screw SPQ 23748 Contact Us For Availability
7
SPQ D510145 SPQ D510145 Contact Us For Availability
7
SPQ D510135 SPQ D510135 Contact Us For Availability
7
SPQ D511056 SPQ D511056 Contact Us For Availability
7
SPQ 804685WP SPQ 804685WP Contact Us For Availability
7
SPQ D510149P SPQ D510149P Contact Us For Availability
7
Motor Pulley SPQ D505869P Contact Us For Availability
8
SPQ D513710 SPQ D513710 Contact Us For Availability
8
Motor Hub Ring Kit SPQ D500011 Contact Us For Availability
8
SPQ D501855 SPQ D501855 Contact Us For Availability
8
Hinge SPQ D511036 Contact Us For Availability
8
Adhesive SPQ D510100 Contact Us For Availability
9
SPQ D503688 SPQ D503688 Contact Us For Availability
9
SPQ D514632P SPQ D514632P Contact Us For Availability
9
SPQ D500824 SPQ D500824 Contact Us For Availability
9
Anti-Seize Compound SPQ 590P3 Contact Us For Availability
10
Felt Pad SPQ D510189 Contact Us For Availability
10
Washer SPQ D504082 Contact Us For Availability
10
Exhaust Duct SPQ D516196 Contact Us For Availability
10
Door Handle Wedge SPQ D510129W Contact Us For Availability
10
Screw SPQ 70240301 Contact Us For Availability
11
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
11
Hinge Hole Plug SPQ D510186 Contact Us For Availability
11
Gas Valve Mounting Bracke SPQ D510128 Contact Us For Availability
11
Control Wrapper SPQ 804630W Contact Us For Availability
11
Screw SPQ 52864 Contact Us For Availability
12
Nut SPQ 52566 Contact Us For Availability
13
Screw SPQ D510001WP Contact Us For Availability
13
Elbow SPQ D513072 Contact Us For Availability
17
Wire Tie SPQ 23033 Contact Us For Availability
21
2 Circuit Receptacle SPQ 00360 Contact Us For Availability
NI
SPQ 27604P SPQ 27604P Contact Us For Availability
NI
SPQ 283P4 SPQ 283P4 Contact Us For Availability
NI
SPQ 122P4P SPQ 122P4P Contact Us For Availability
NI
12 Gauge Wire SPQ 45380 Contact Us For Availability
NI
Washer SPQ 29443 Contact Us For Availability
NI
Wire Clip SPQ 687500 Contact Us For Availability
NI
SPQ 55881 SPQ 55881 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
NI
Screw Orifice SPQ 58719 Contact Us For Availability
× ![]()
