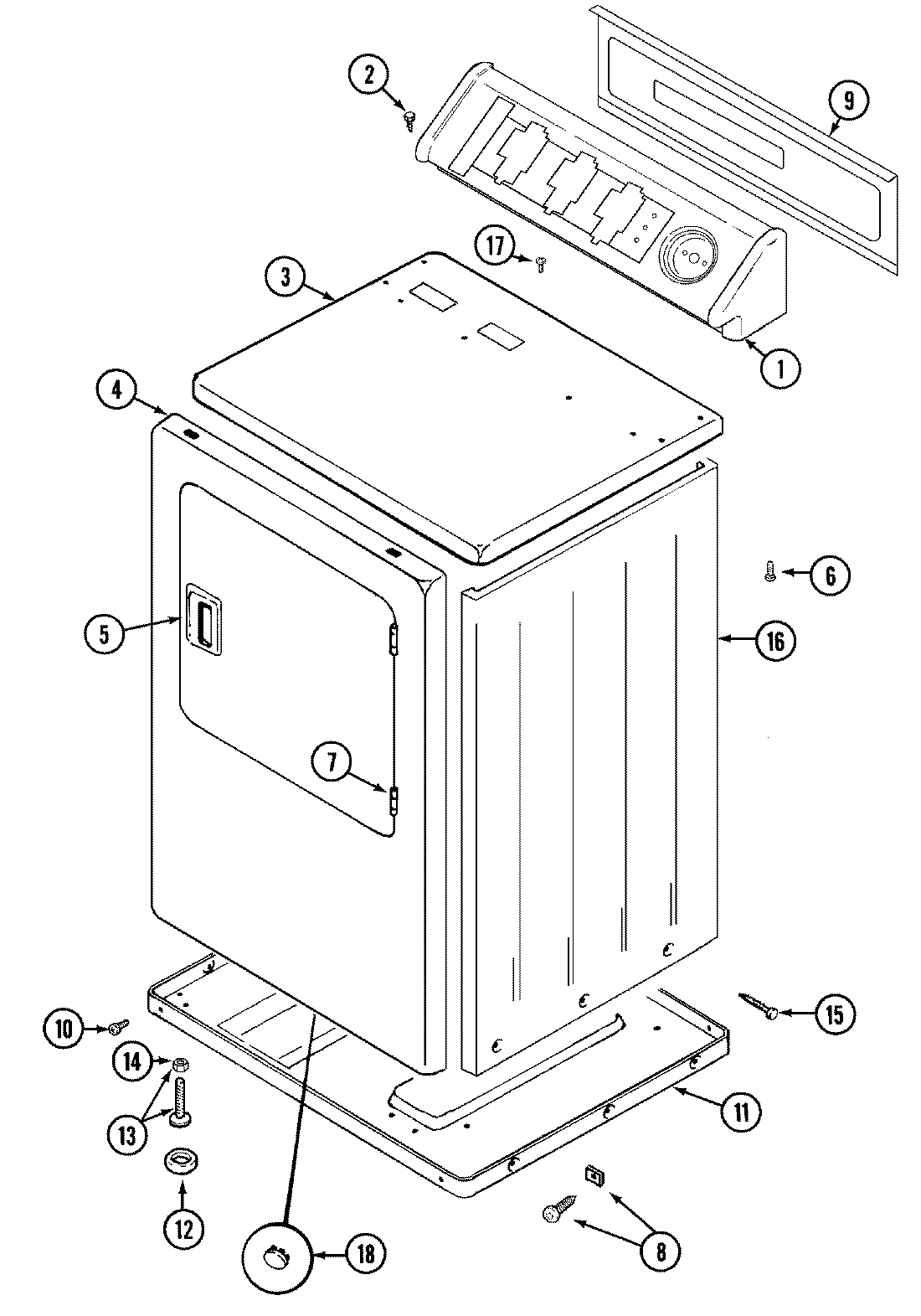

Model Whirlpool LDG9316AAM GAS DRYER – Common Parts &amp; Diagrams

1

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

1

DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability

1

COVER, TERMINAL WPL Y312905 Contact Us For Availability

1

SCREW WPL Y314062 Contact Us For Availability

1

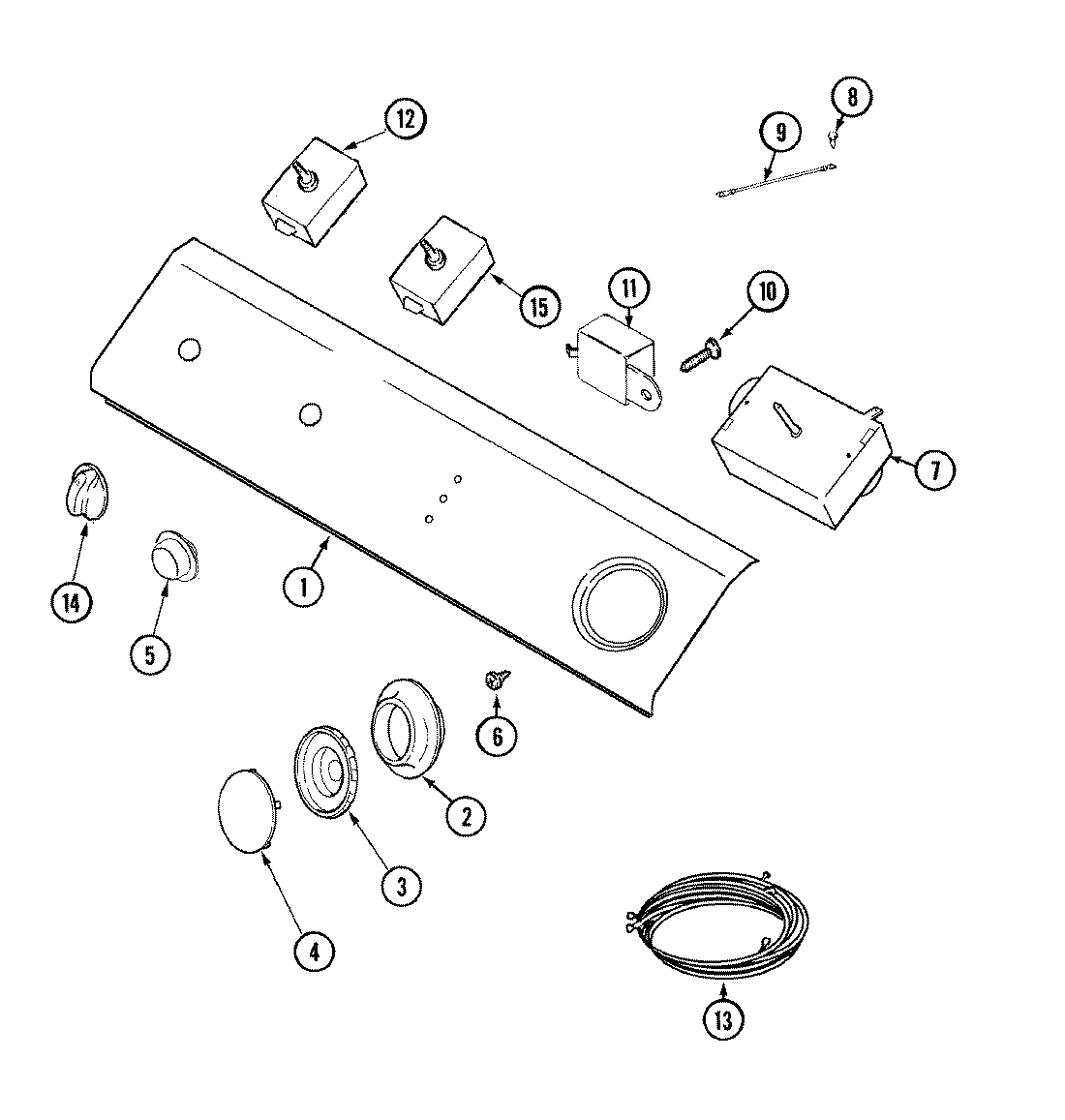

PANEL, CONTROL (ALM) WPL 33001587 Contact Us For Availability

1

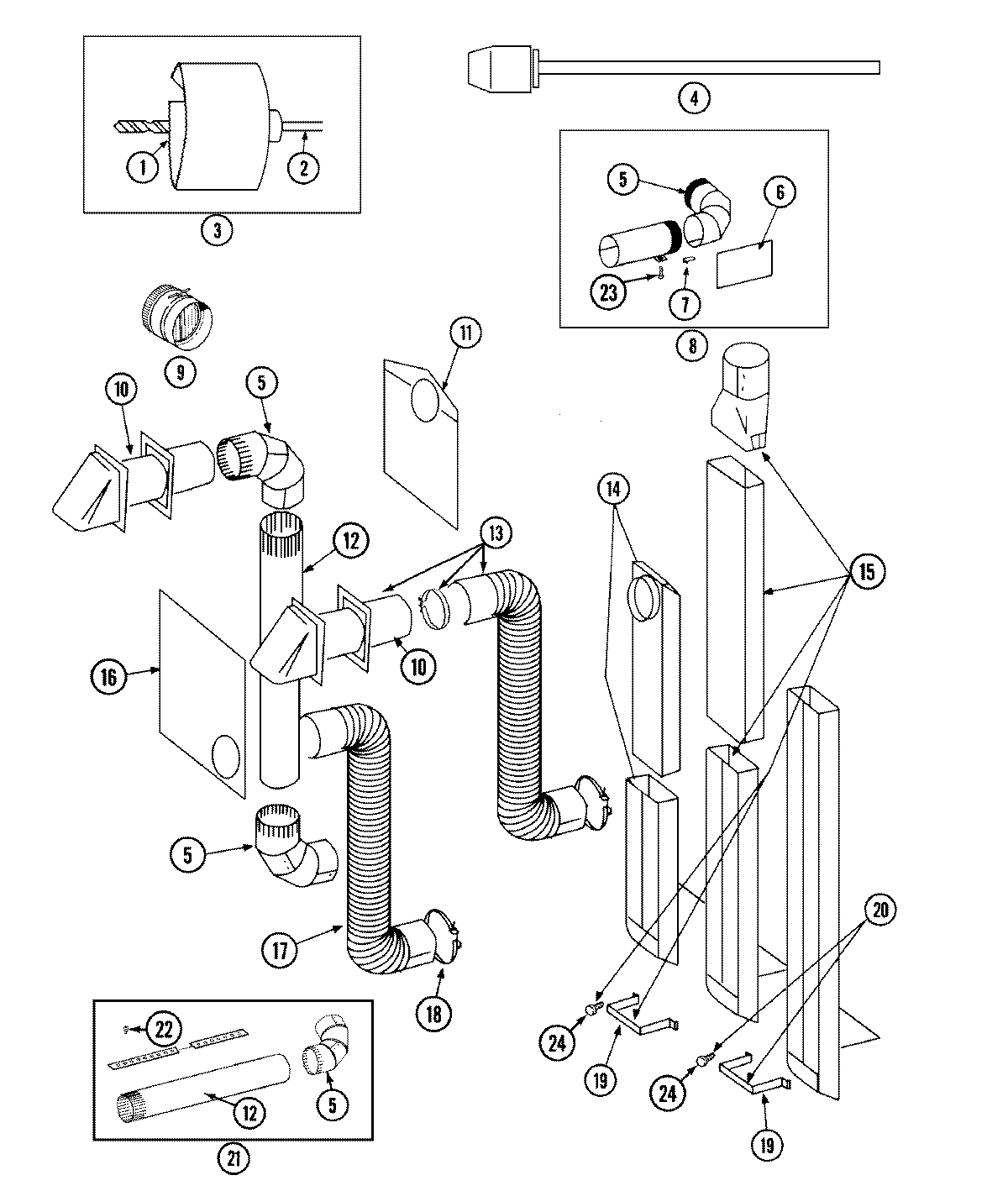

BLADE, SAW WPL 038179 Contact Us For Availability

2

WP33002346 Whirlpool Dial Knob Backorder WPL WP33002346 $27.79

2

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $53.80

2

FILTER, LINT WPL 33001171 Contact Us For Availability

2

HINGE, DOOR WPL 33001230 Contact Us For Availability

2

REPLACEMENT DRILL WPL 038180 Contact Us For Availability

2

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $14.48

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.05

3

SCREW WPL 313764 Contact Us For Availability

3

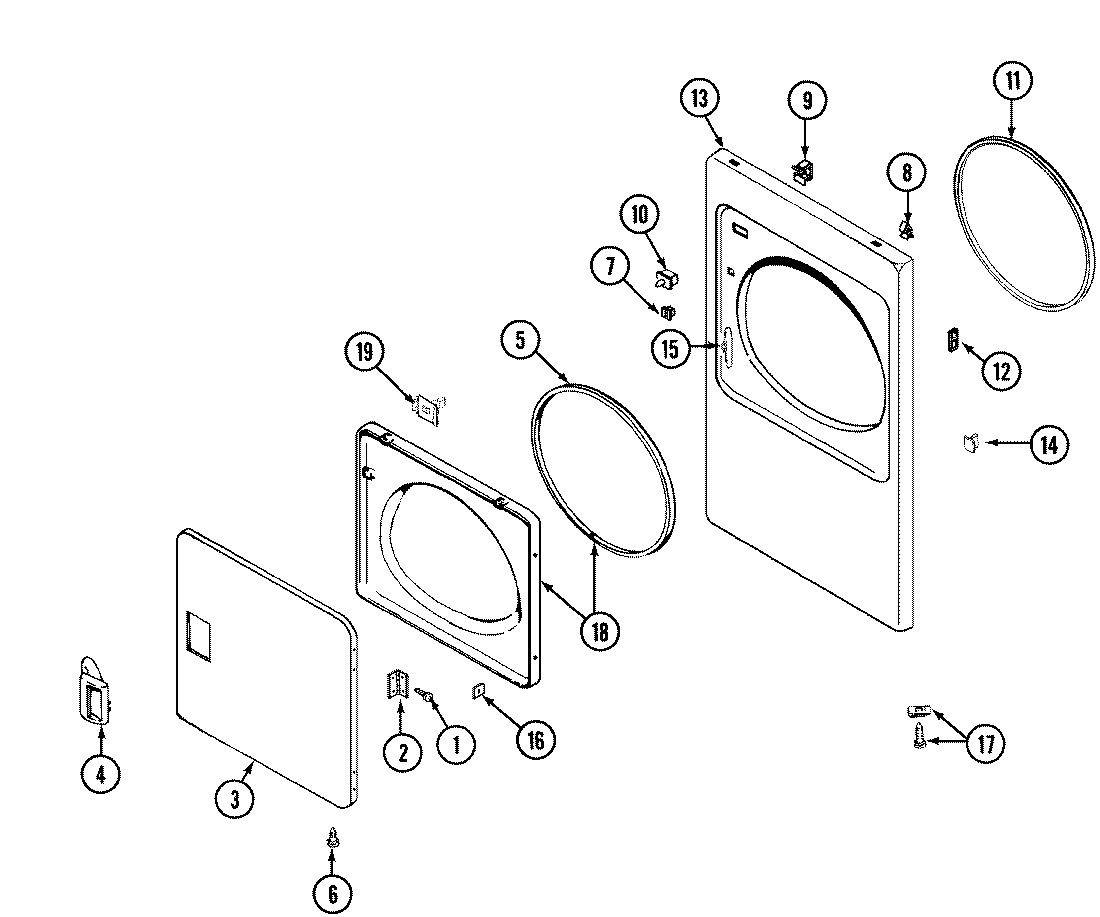

DOOR (ALM) SUB WPL 33001257 Contact Us For Availability

3

SCREW WPL 304971 Contact Us For Availability

3

HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability

4

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $14.26

4

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $9.74

4

HANDLE, DOOR (ALM) WPL 33001254 Contact Us For Availability

4

INSERT, TIMER KNOB (ALM) WPL 22001665 Contact Us For Availability

4

EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $4.78

5

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $100.24

5

FRONT ASSY., TUMBLER (W/LIGHT) WPL 33001421 Contact Us For Availability

5

SEAL, DOOR WPL 33001131 Contact Us For Availability

5

BUTTON, PUSH TO START (ALM) WPL 33001620 Contact Us For Availability

5

ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability

6

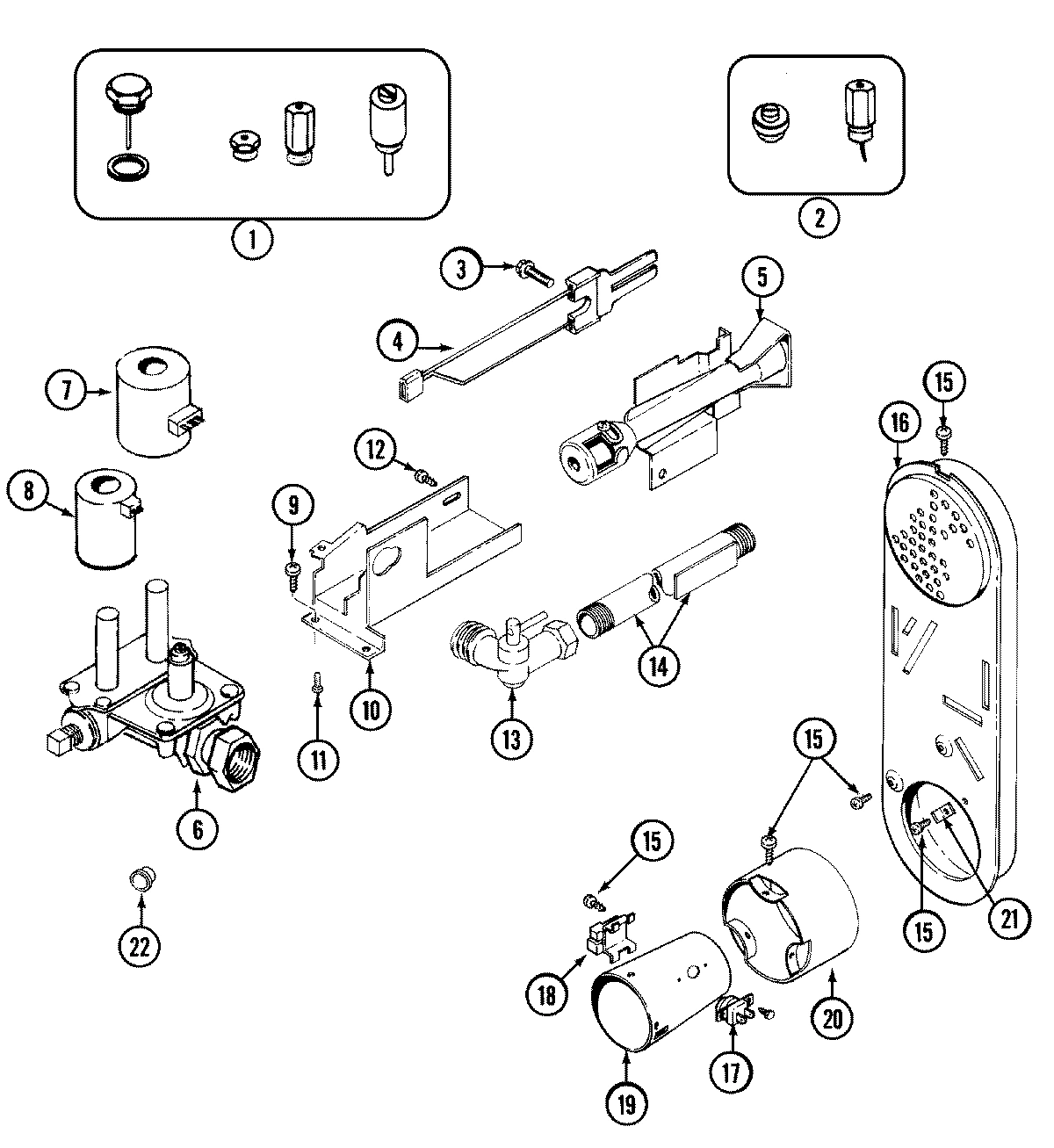

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $180.10

6

PLUG, SIGHT HOLE (ALM) WPL 33001168 Contact Us For Availability

6

INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability

7

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

7

WP33001631 Whirlpool Timer Backorder WPL WP33001631 $199.16

7

SCREW----NA WPL Y313561 Contact Us For Availability

7

FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

8

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $5.29

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $3.88

8

WP307250 Whirlpool Thermostat In Stock WPL WP307250 $48.60

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

8

EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability

9

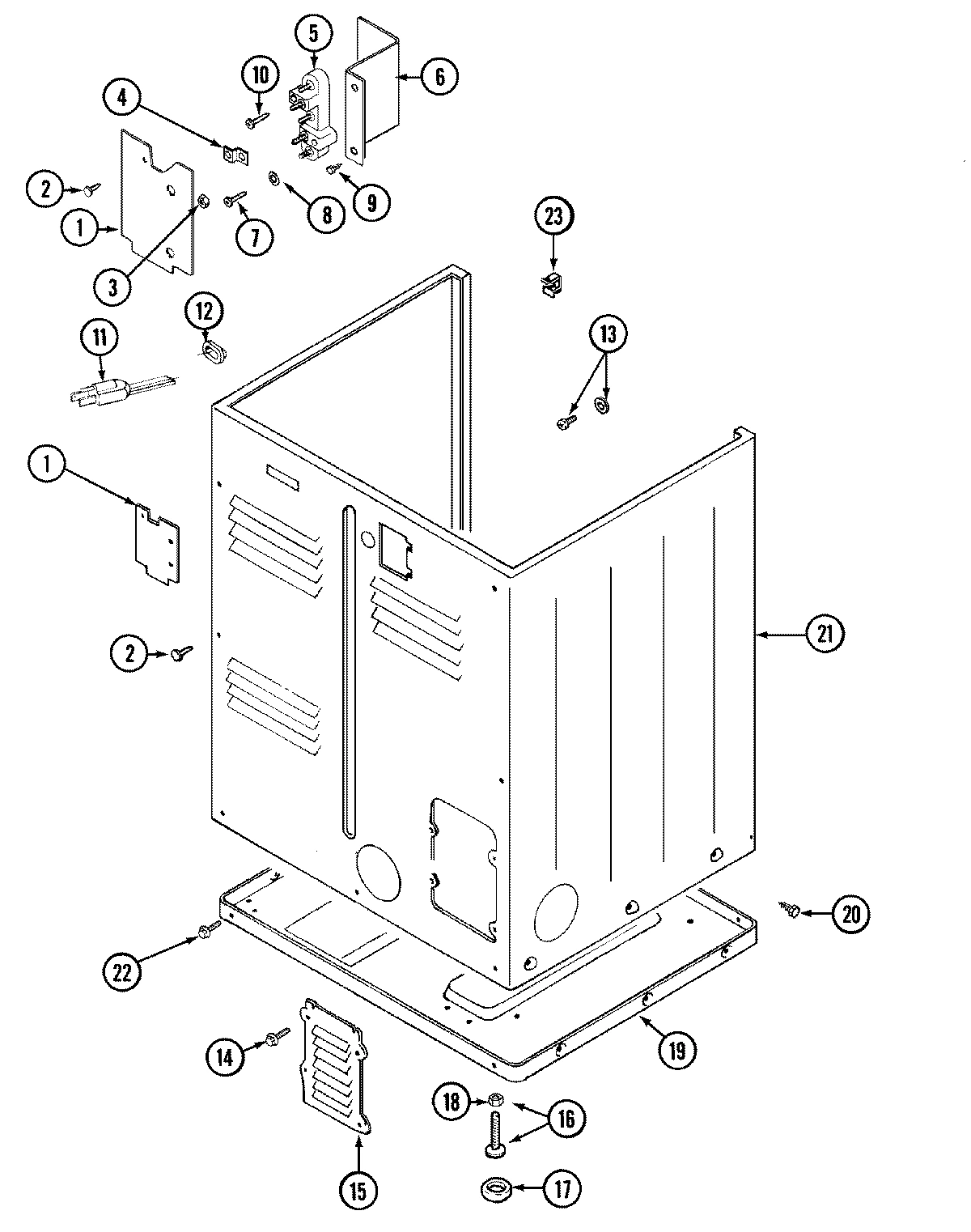

PANEL, BACK----NA WPL 33001625 Contact Us For Availability

9

WIRE, GROUND WPL 22001654 Contact Us For Availability

9

DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability

4396007RW Whirlpool Dryer Vent Hood In Stock WPL 4396007RW $11.90

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $11.09

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $14.55

WP314820 Whirlpool Felt Seal In Stock WPL WP314820 $15.28

BRACKET, GAS VALVE WPL 314566 Contact Us For Availability

BAFFLE (SHORT) WPL 33001012 Contact Us For Availability

CORD, POWER WPL 33001246 Contact Us For Availability

SEAL, FRONT PANEL WPL 314937 Contact Us For Availability

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

BAG, LINT (DACRON) WPL 311353 Contact Us For Availability

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $31.81

WASHER WPL 314158 Contact Us For Availability

GROMMET, CORD WPL 211881 Contact Us For Availability

NUT, SPEED WPL 33001487 Contact Us For Availability

SWITCH, PUSH-TO-START (ALM) WPL 33001727 Contact Us For Availability

PIPE, VENTING WPL Y059130 Contact Us For Availability

3406051 Whirlpool Elbow Backorder WPL 3406051 $42.05

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.55

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.68

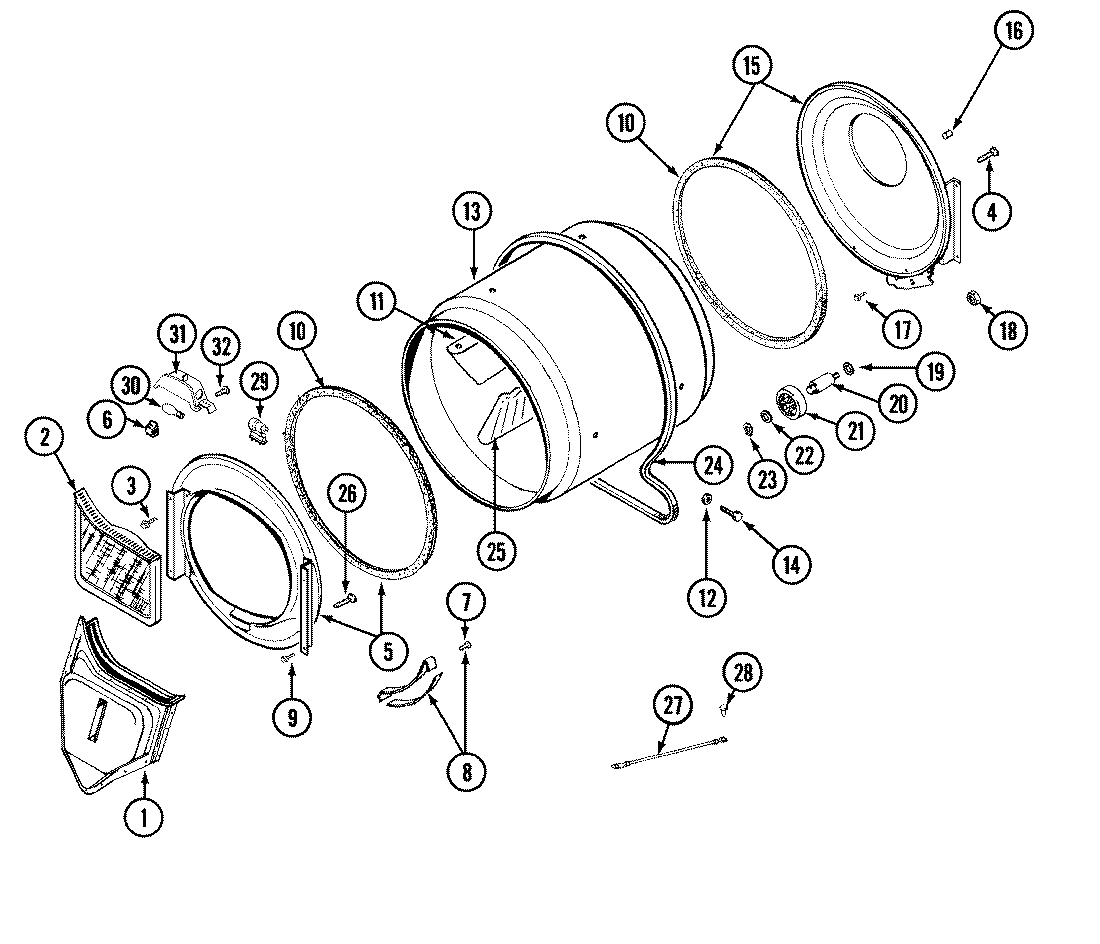

DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability

PANEL, FRONT (ALM)----NA WPL 33001611 Contact Us For Availability

SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability

WIRE HARNESS, MAIN WPL 33001666 Contact Us For Availability

FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $11.82

SCREW WPL Y310759 Contact Us For Availability

PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability

KNOB, SELECTOR SWITCH (ALM) WPL 22001667 Contact Us For Availability

VENT DUCT ASSY. WPL Y059135 Contact Us For Availability

SCREW WPL 314818 Contact Us For Availability

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $79.39

BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability

SWITCH, TEMPERATURE (GAS) WPL 33001639 Contact Us For Availability

RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $9.36

COVER, THREAD WPL 313915 Contact Us For Availability

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

INLET DUCT ASSY. WPL Y308504 Contact Us For Availability

MANUAL, USE & CARE WPL 33001680 Contact Us For Availability

PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability

4396010RP Whirlpool Dryer 6 Ft. Secure Connec In Stock WPL 4396010RP $15.37

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $22.07

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.14

SCREW & FASTENER KIT (ALM) WPL 12001340 Contact Us For Availability

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $2.55

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

PLUG, FRONT PANEL (ALM) WPL 33001615 Contact Us For Availability

DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability

CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

WP33001305 Whirlpool Door Strike Assembly Backorder WPL WP33001305 $1.84

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $11.86

BASE ASSY. WPL Y303361 Contact Us For Availability

CONE, COMBUSTION WPL Y308548 Contact Us For Availability

BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability

6-3129480CM Choice Shaft-Tumblr In Stock CMP 6-3129480CM $3.19

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.55

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $8.00

CABINET (ALM) WPL 33001160 Contact Us For Availability

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

EXHAUST DEFLECTOR KIT WPL 306399 Contact Us For Availability

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

WP312535 Whirlpool Washer Backorder WPL WP312535 $5.02

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.55

CAP, GAS PIPE WPL 33001693 Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

23

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $46.70

24

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $29.65

25

33001004 Whirlpool Baffle In Stock WPL 33001004 $59.53

25

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $4.04

26

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $2.55

26

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $6.70

27

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

28

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $4.78

29

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.55

29

HOLDER, LIGHT WPL 307097 Contact Us For Availability

30

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $6.31

30

WIRE, GROUND WPL 901220 Contact Us For Availability

31

ENCLOSURE, LIGHT WPL 314955 Contact Us For Availability

31

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

32

SCREW WPL Y310632 Contact Us For Availability

32

PALNUT, END CAP WPL 214872 Contact Us For Availability

33

BASE WPL Y305084 Contact Us For Availability

34

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

36

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

37

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.55

38

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

39

RETAINER, WIRE WPL 315471 Contact Us For Availability

40

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

41

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $2.55

NI

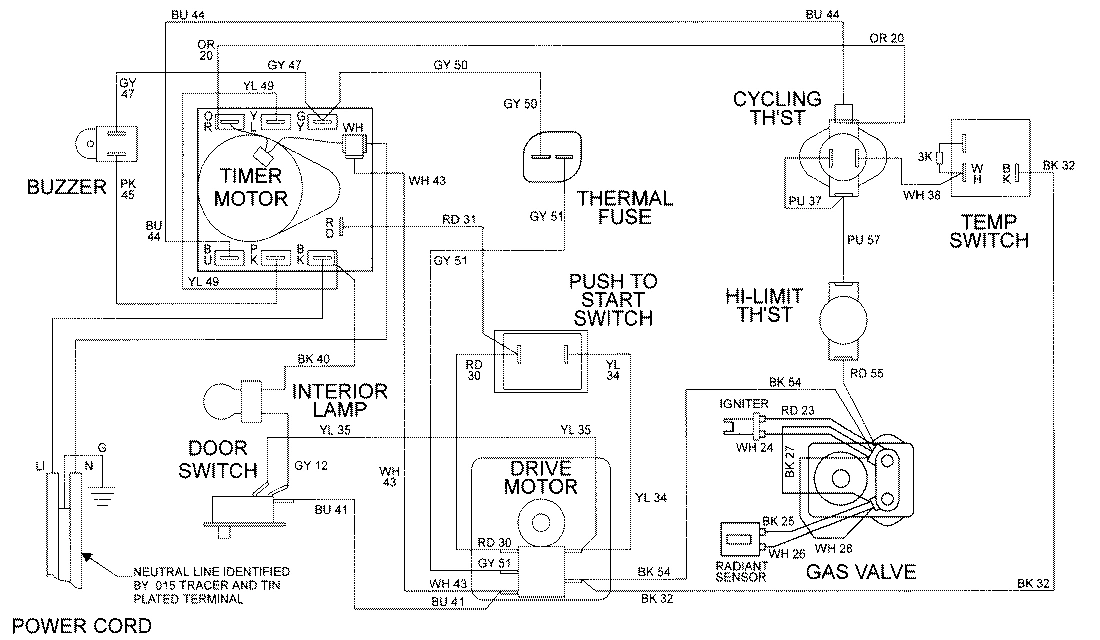

WIRING INFORMATION WPL 15001935 Contact Us For Availability
