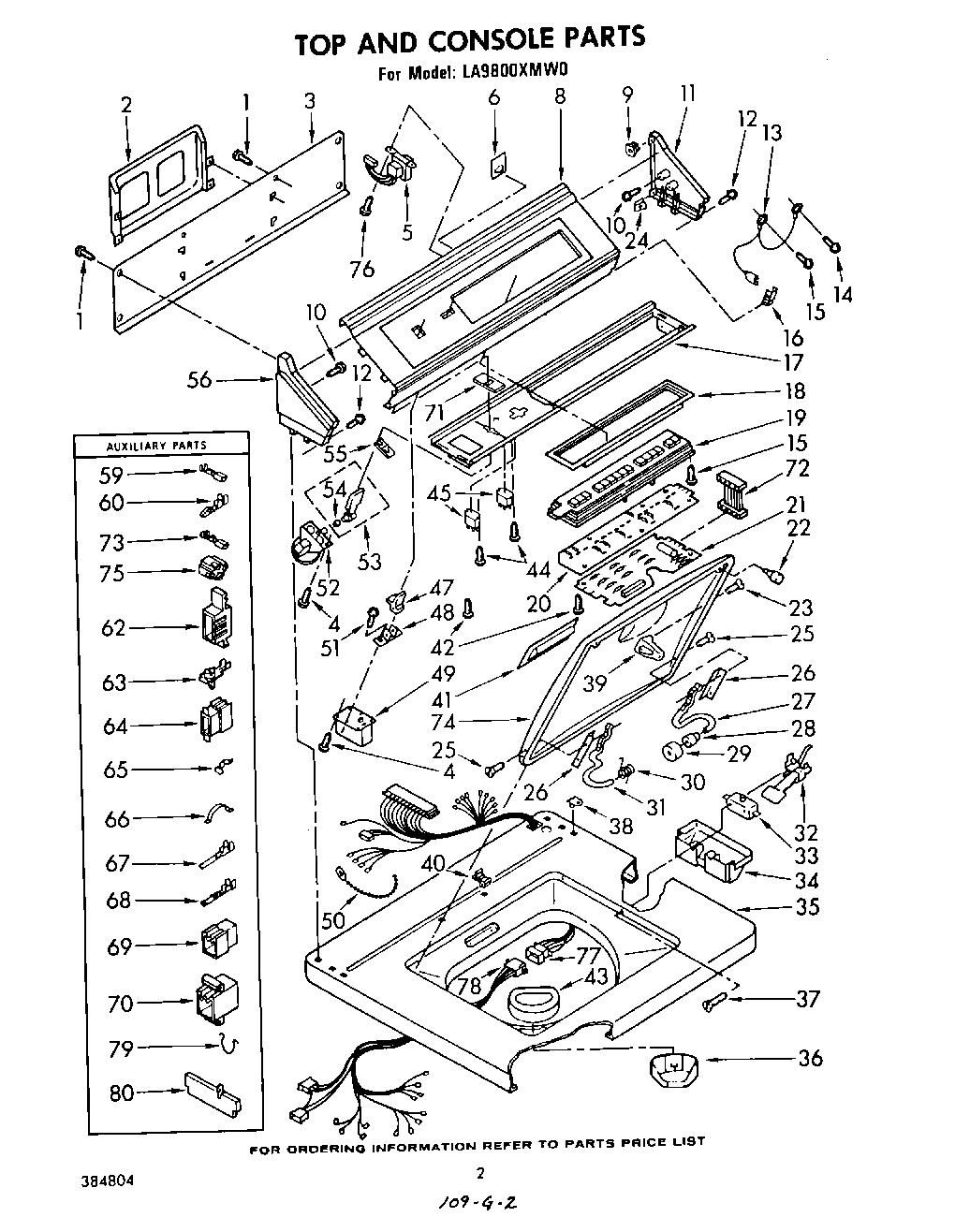

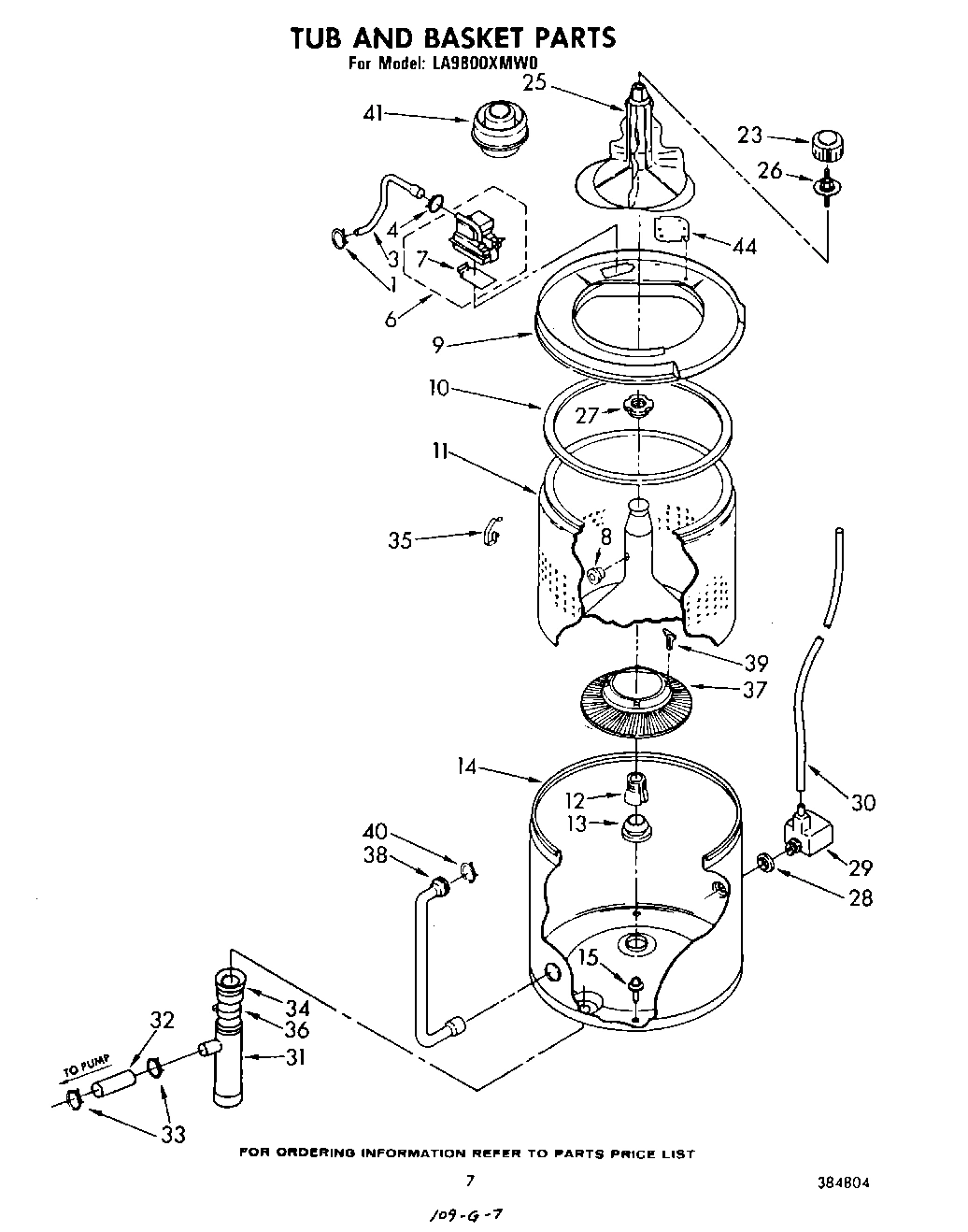

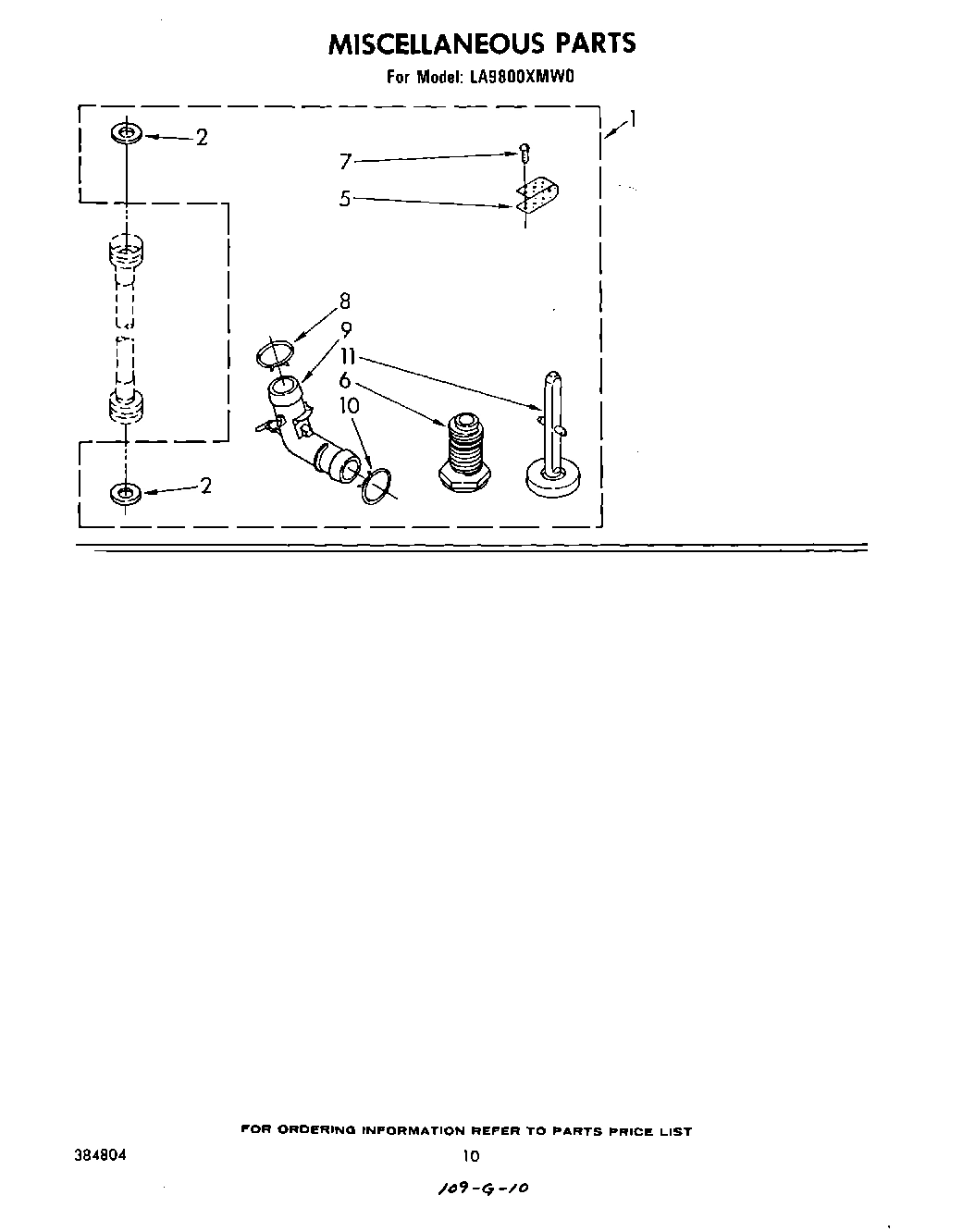

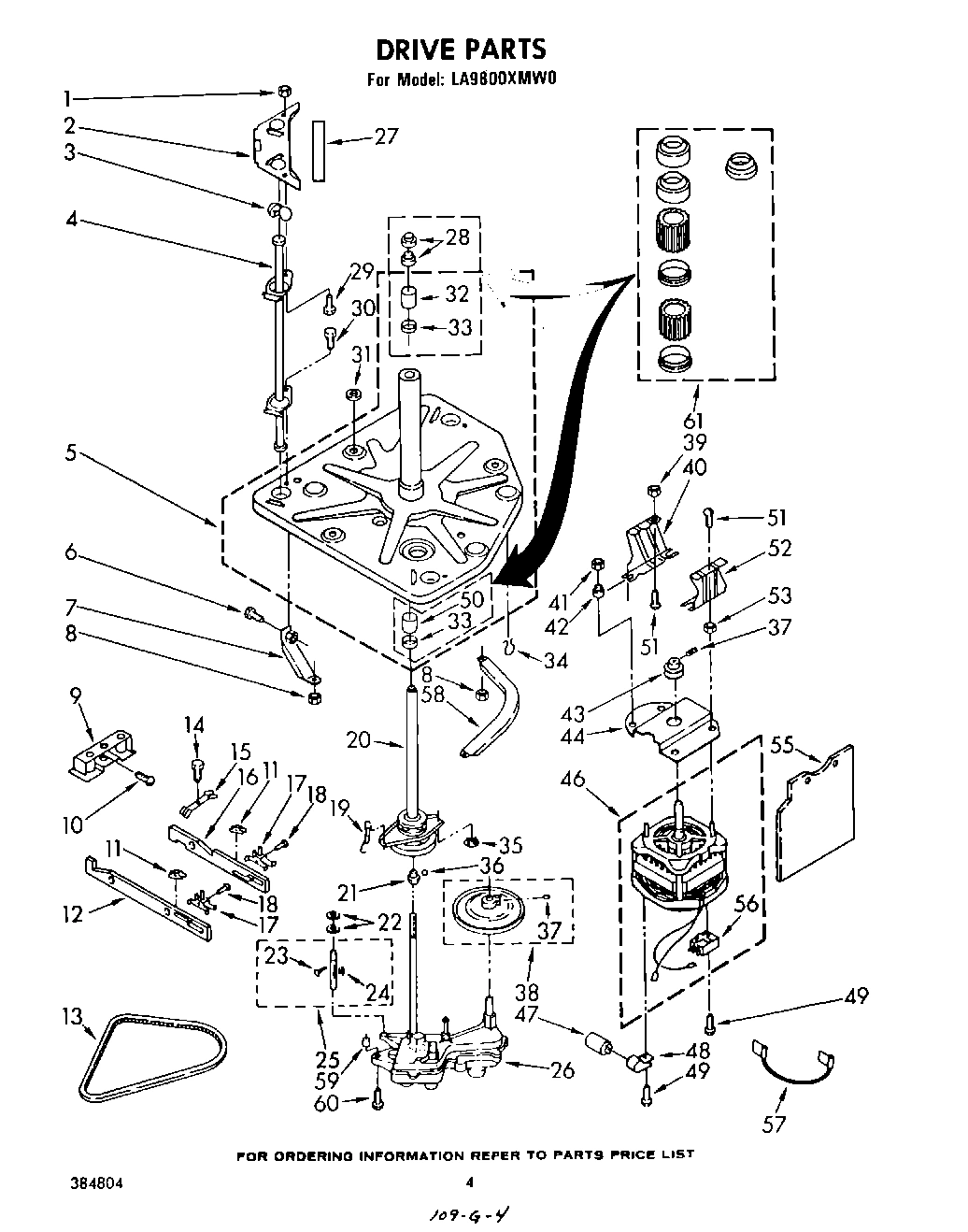

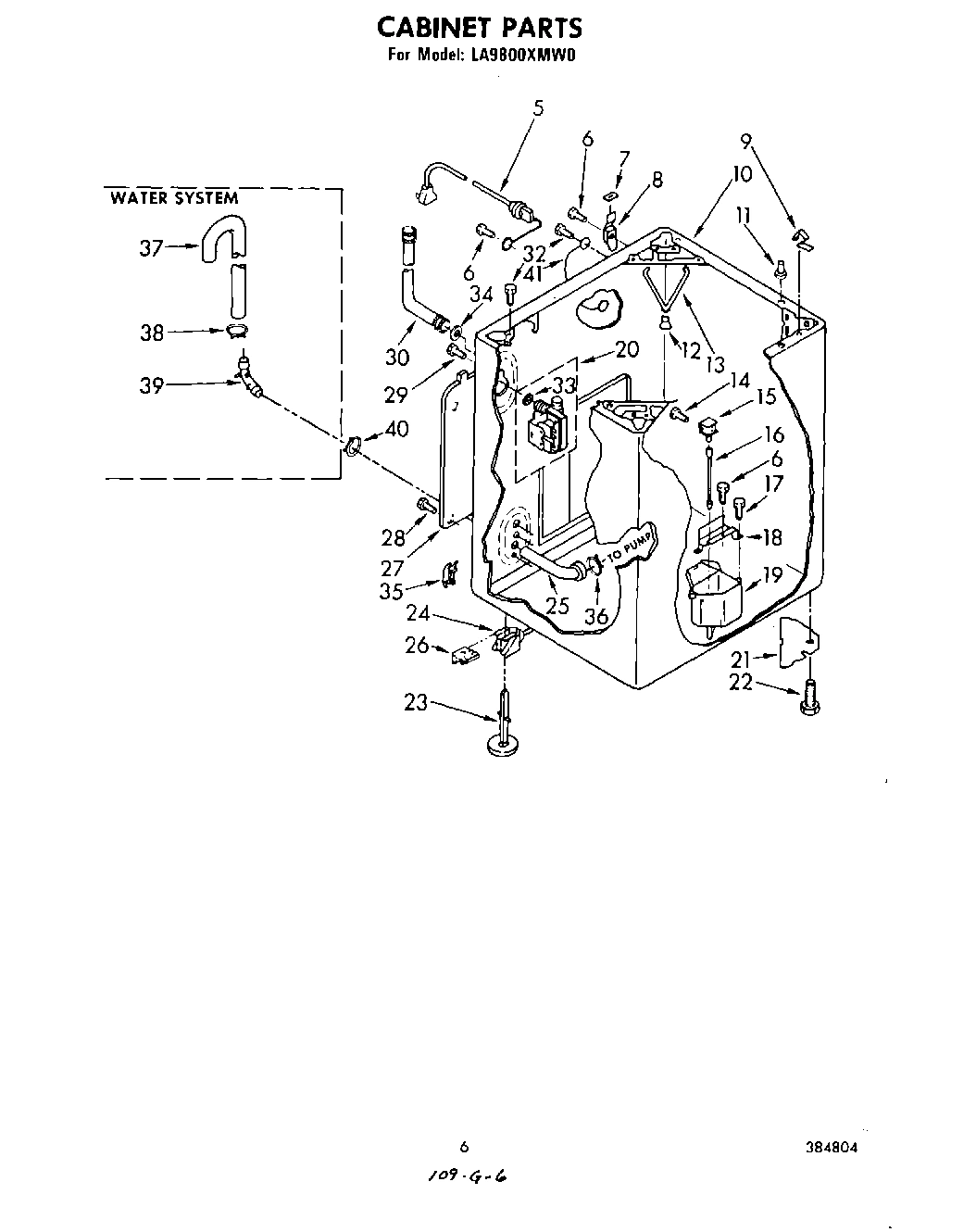

Model Whirlpool LA9800XMW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

Miscellaneous Parts Bag WPL 375976 Contact Us For Availability

1

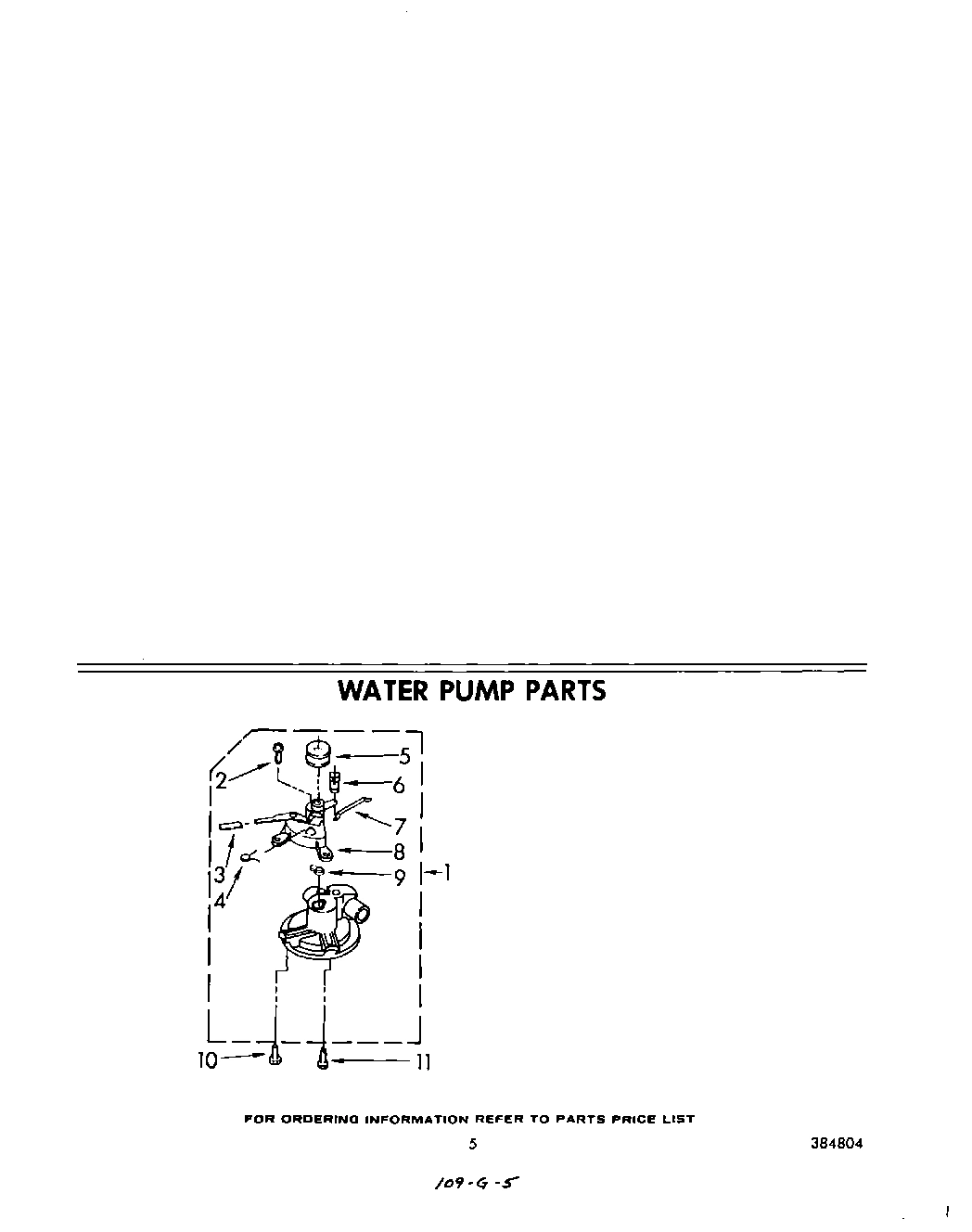

Pump Assembly WPL 383957 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability

2

Cover, Front Gusset WPL 352144 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Cord, Power WPL 92667 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Pulley WPL 359630 Contact Us For Availability

5

Baseplate & Centerpost WPL 359721 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lever, Valve WPL 355538 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

7

18849 Whirlpool Pad Backorder WPL 18849 $9.13

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

8

Hinge, R.H. WPL 18775 Contact Us For Availability

8

Hinge, L.H. WPL 92657 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Bearing Block Assembly WPL 383750 Contact Us For Availability

8

Stopper (2) WPL 21265 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

9

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

9

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

9

Connector, Hose WPL 95440 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

9

Ring, Tub (Includes Illus. 44) WPL 381971 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Seal, Tub Ring WPL 383553 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Tech (Service Information) WPL 377903 Contact Us For Availability

Sheet, Installation Instructions WPL 378953 Contact Us For Availability

Guide, Use & Care WPL 383174 Contact Us For Availability

Label, Energy Guide WPL 383371 Contact Us For Availability

List, Repair Parts WPL 384804 Contact Us For Availability

Guide, Laundry WPL 385238 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Locator, Top WPL 98669 Contact Us For Availability

Screw, 5/16-18 x 1-3/8 WPL 355612 Contact Us For Availability

Basket WPL 384025 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

12

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

12

Snubber WPL 358336 Contact Us For Availability

12

Cam, Bar Spin WPL 354838 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Spring, Snubber WPL 357977 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

Screw, 10-16 x 5/16 WPL 96141 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Tub WPL 384076 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Solenoid (Alternate) WPL 87170 Contact Us For Availability

Solenoid (Alternate) WPL 88464 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Rod & Stopper WPL 82506 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

17

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

17

Bearing, Gear Fork WPL 96853 Contact Us For Availability

17

Plunger WPL 84866 Contact Us For Availability

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Bracket, Dispenser WPL 93492 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

19

Reservoir WPL 95916 Contact Us For Availability

19

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

19

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

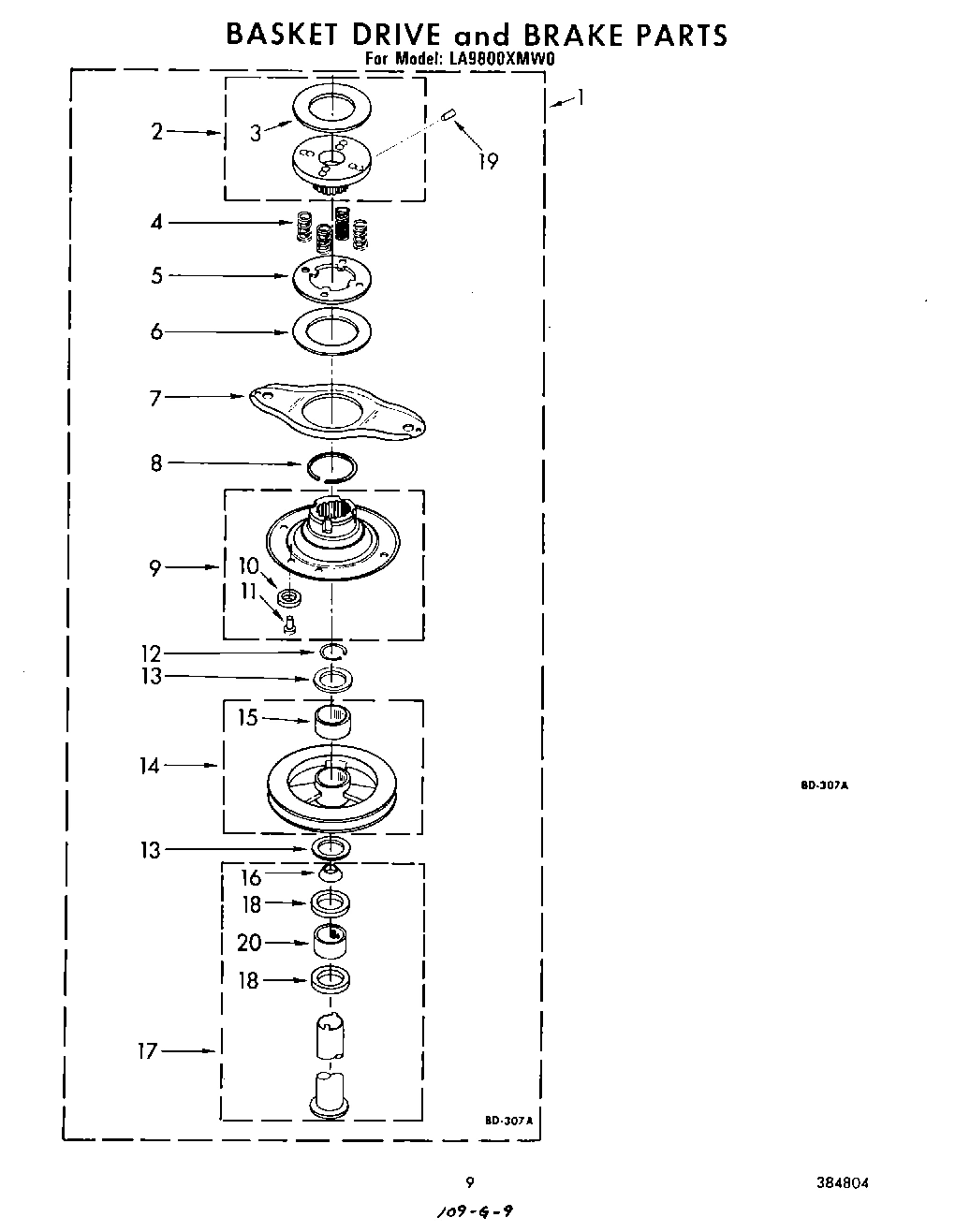

Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability

21

Plate, Gusset (2) WPL 356459 Contact Us For Availability

21

Support, Spin Tube WPL 358586 Contact Us For Availability

22

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

22

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Pin, Roll WPL 90532 Contact Us For Availability

Rod, Connecting WPL 76577 Contact Us For Availability

Cap, Agitator WPL 359990 Contact Us For Availability

24

Link, Leveling WPL 359059 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

Hose, Pump to Cabinet WPL 358560 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Agitator Assembly WPL 383951 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Gearcase For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability

Gear, Main Drive WPL 353397 Contact Us For Availability

Stud and Seal Assembly WPL 358440 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

Panel, Rear WPL 85279 Contact Us For Availability

Washer, Thrust WPL 363362 Contact Us For Availability

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Seal WPL 351830 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

31

Pinion, Drive WPL 84467 Contact Us For Availability

31

Manifold WPL 84091 Contact Us For Availability

31

Gasket, Tub (7) WPL 17235 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Actuator, Switch WPL 370959 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Ring, Retainer WPL 90094 Contact Us For Availability

34

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

34

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

34

Hose, Tub Outlet WPL 93553 Contact Us For Availability

Top (White) WPL 380283 Contact Us For Availability

Top (Almond) WPL 380284 Contact Us For Availability

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Top (Toast) WPL 386483 Contact Us For Availability

Top (Platinum) WPL 386484 Contact Us For Availability

Plug, Cabinet WPL 354179 Contact Us For Availability

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Tray, Dispenser WPL 352827 Contact Us For Availability

36

Clip, Hose WPL 9421321 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

Screw & Washer WPL 354764 Contact Us For Availability

Filter, Element (Includes Illus. 39) WPL 383719 Contact Us For Availability

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

Nut, Push-In (2) WPL 358473 Contact Us For Availability

Hose, Dispenser WPL 352978 Contact Us For Availability

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

39

Strike, Lid Switch WPL 357633 Contact Us For Availability

39

Clip, Filter Element (4) WPL 383718 Contact Us For Availability

40

Stop, Push-In Top WPL 358472 Contact Us For Availability

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

Dispenser, Rinse WPL 88932 Contact Us For Availability

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Screw (11) WPL 690756 Contact Us For Availability

43

Beze WPL 352821 Contact Us For Availability

43

Pulley, Motor WPL 92216 Contact Us For Availability

44

WPL 339583 WPL 339583 Contact Us For Availability

44

Plate, Snubber WPL 355852 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WPL 384674 WPL 384674 Contact Us For Availability

46

Motor (Emerson) 60 Hz. WPL 357822 Contact Us For Availability

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

47

WPL 358564 WPL 358564 Contact Us For Availability

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

48

WPL 358563 WPL 358563 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

WPL 383731 WPL 383731 Contact Us For Availability

50

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

50

Bearing, L WPL 354195 Contact Us For Availability

51

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 359774 WPL 359774 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 358559 WPL 358559 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 90015 WPL 90015 Contact Us For Availability

55

WPL 359068 WPL 359068 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

WPL 375305 WPL 375305 Contact Us For Availability

WPL 375313 WPL 375313 Contact Us For Availability

WPL 375318 WPL 375318 Contact Us For Availability

WPL 377284 WPL 377284 Contact Us For Availability

WPL 377285 WPL 377285 Contact Us For Availability

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 308569 WPL 308569 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 60279 WPL 60279 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

62

WPL 96894 WPL 96894 Contact Us For Availability

63

WPL 357695 WPL 357695 Contact Us For Availability

64

WPL 96895 WPL 96895 Contact Us For Availability

65

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

66

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

67

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

68

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

69

WPL 94697 WPL 94697 Contact Us For Availability

70

WPL 94696 WPL 94696 Contact Us For Availability

71

WPL 358516 WPL 358516 Contact Us For Availability

72

WPL 60862 WPL 60862 Contact Us For Availability

73

WPL 690367 WPL 690367 Contact Us For Availability

WPL 379949 WPL 379949 Contact Us For Availability

WPL 379950 WPL 379950 Contact Us For Availability

WPL 379953 WPL 379953 Contact Us For Availability

WPL 382800 WPL 382800 Contact Us For Availability

WPL 382801 WPL 382801 Contact Us For Availability

75

WPL 359267 WPL 359267 Contact Us For Availability

76

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

77

WPL 385222 WPL 385222 Contact Us For Availability

78

WPL 359299 WPL 359299 Contact Us For Availability

79

16515 Whirlpool Clip Backorder WPL 16515 $11.62

80

WPL 60816 WPL 60816 Contact Us For Availability
