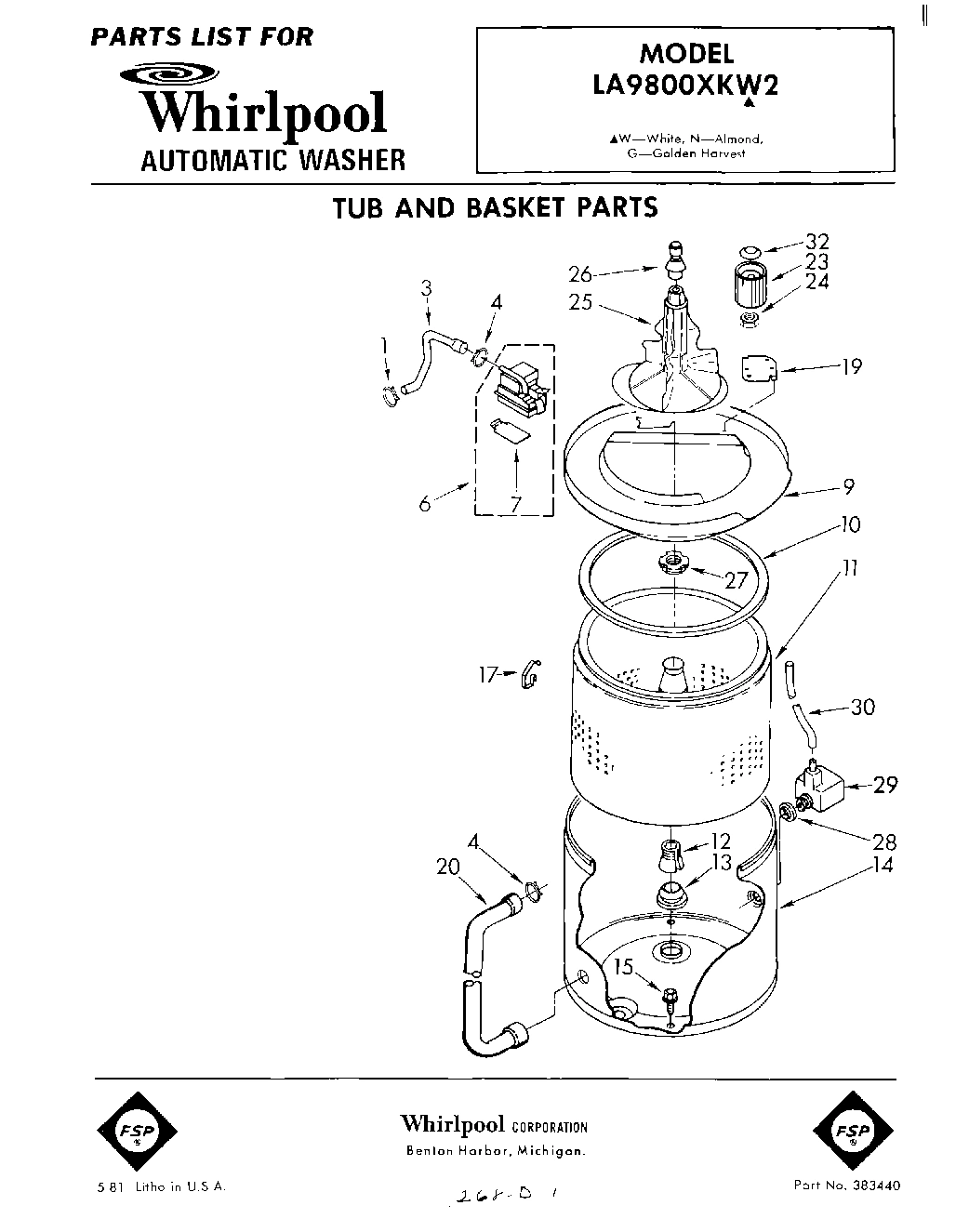

Model Whirlpool LA9800XKW2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

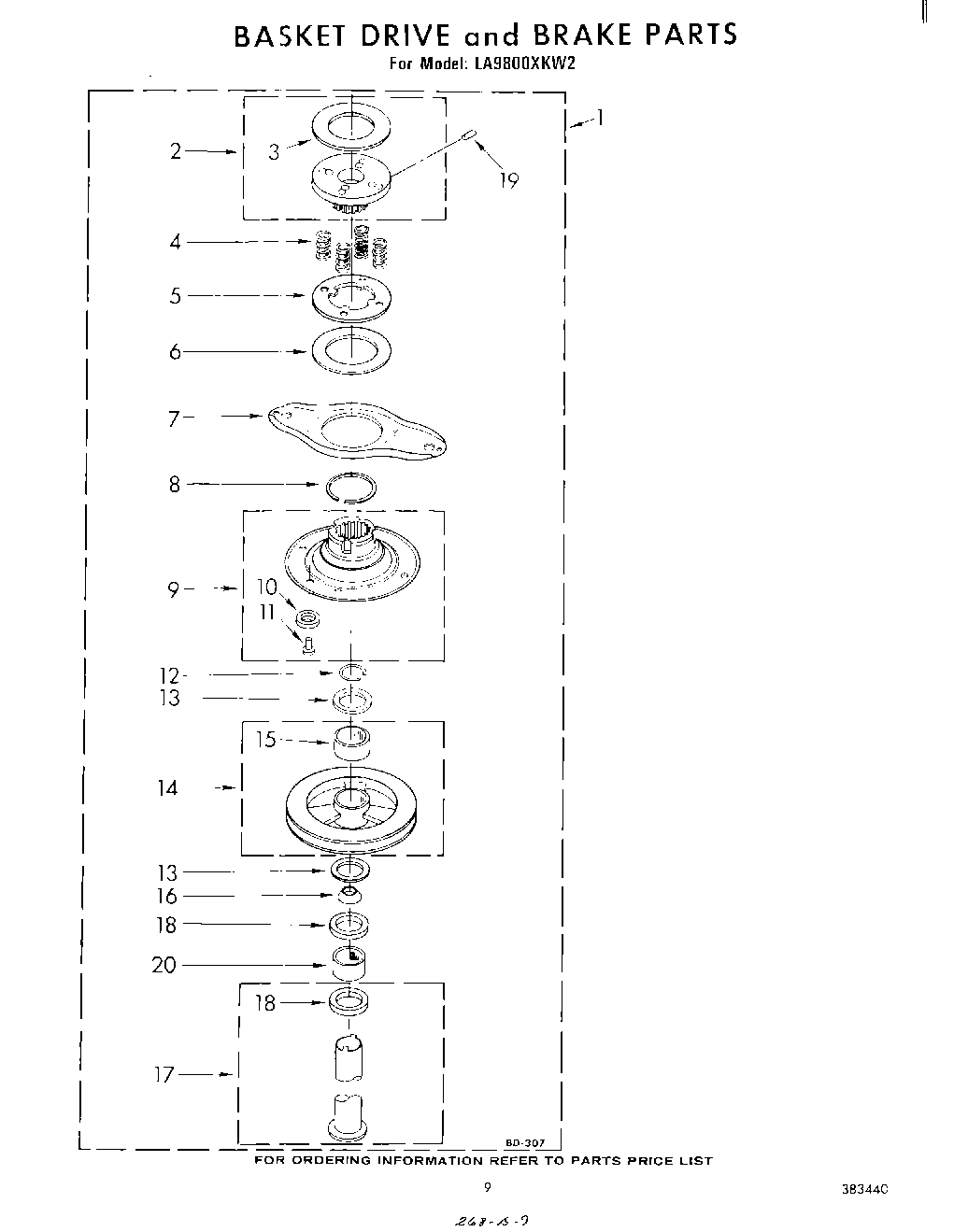

Basket Drive & Brake WPL 359699 Contact Us For Availability

1

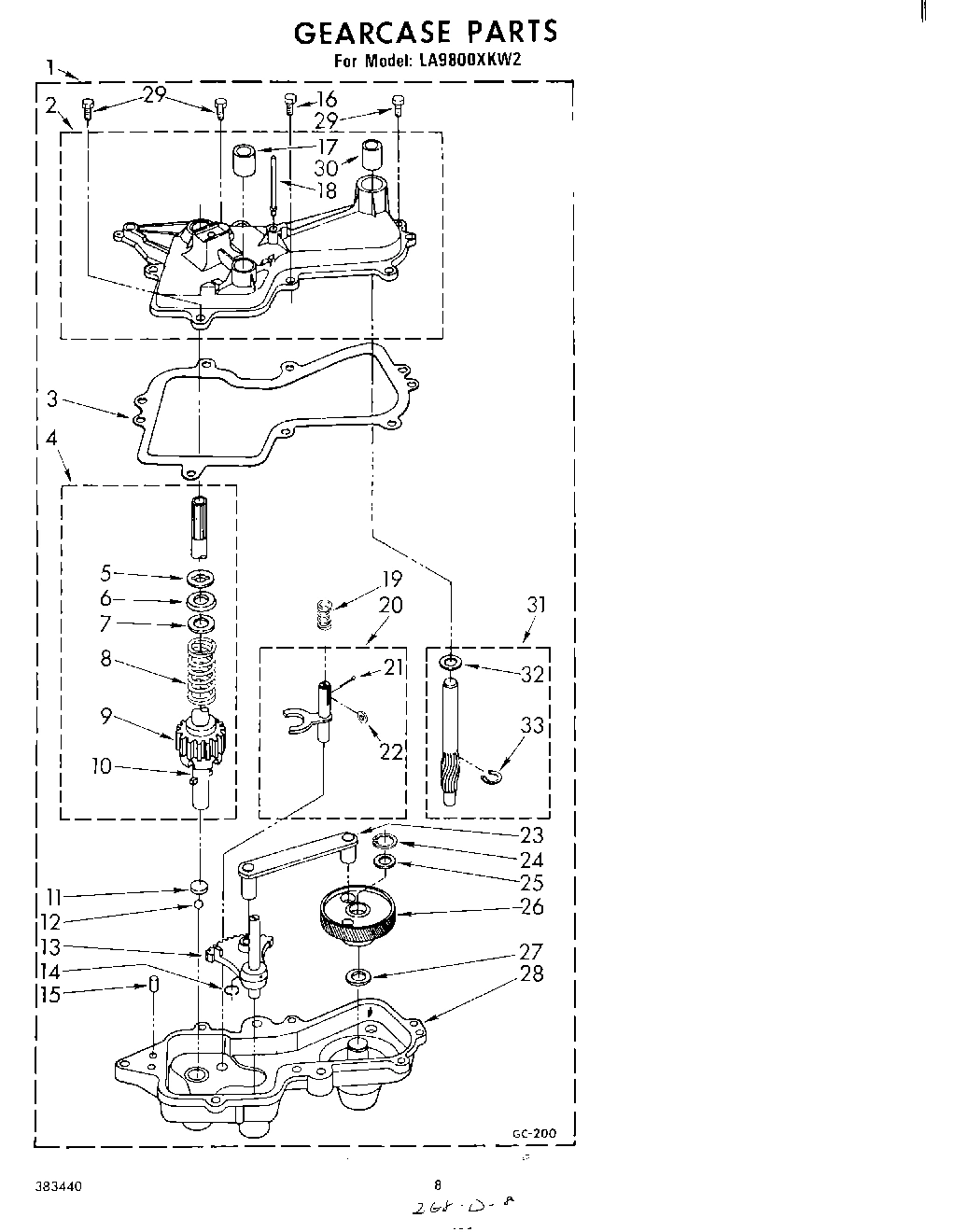

Gearcase (Complete) WPL 358483 Contact Us For Availability

1

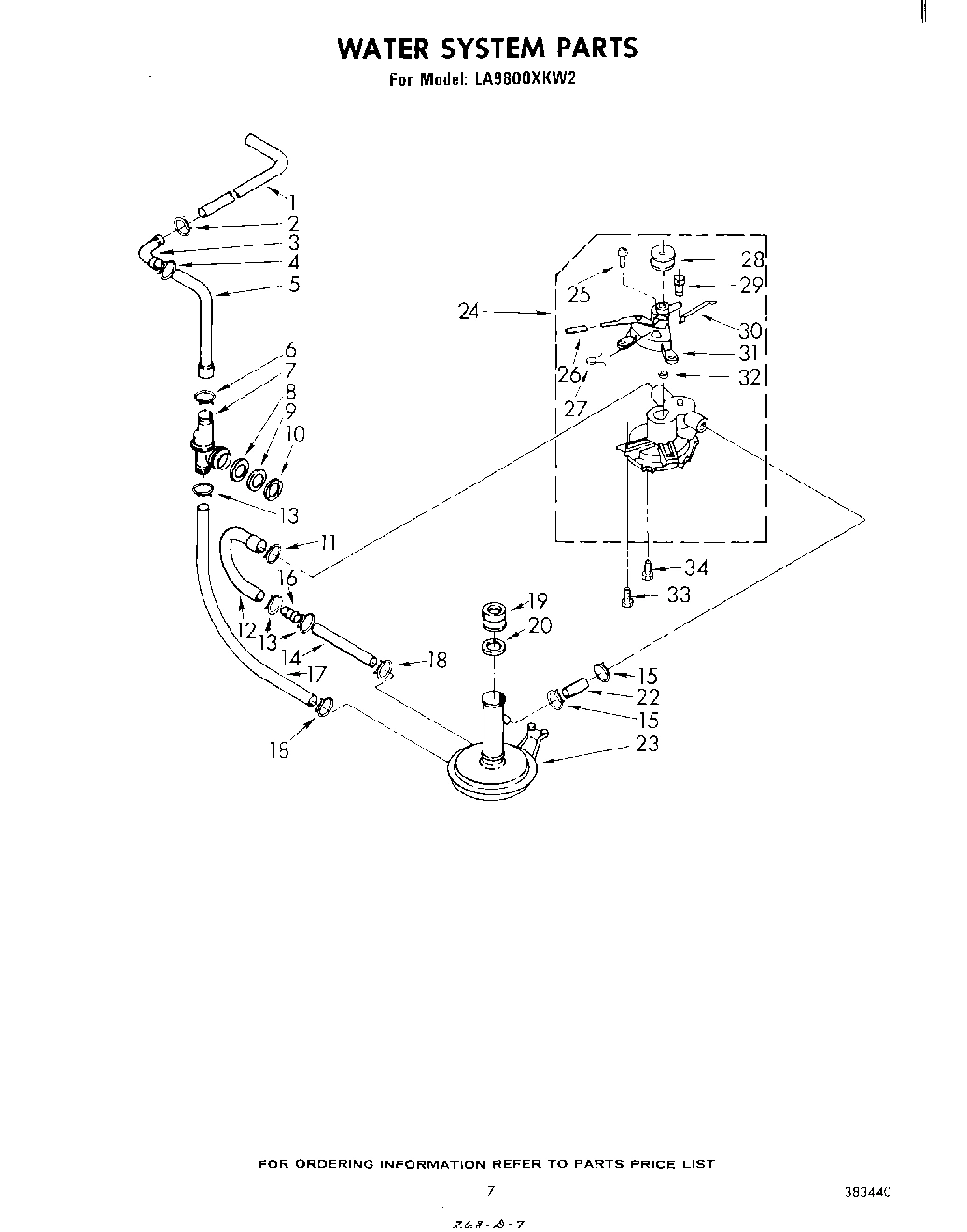

Hose, Gooseneck WPL 96865 Contact Us For Availability

1

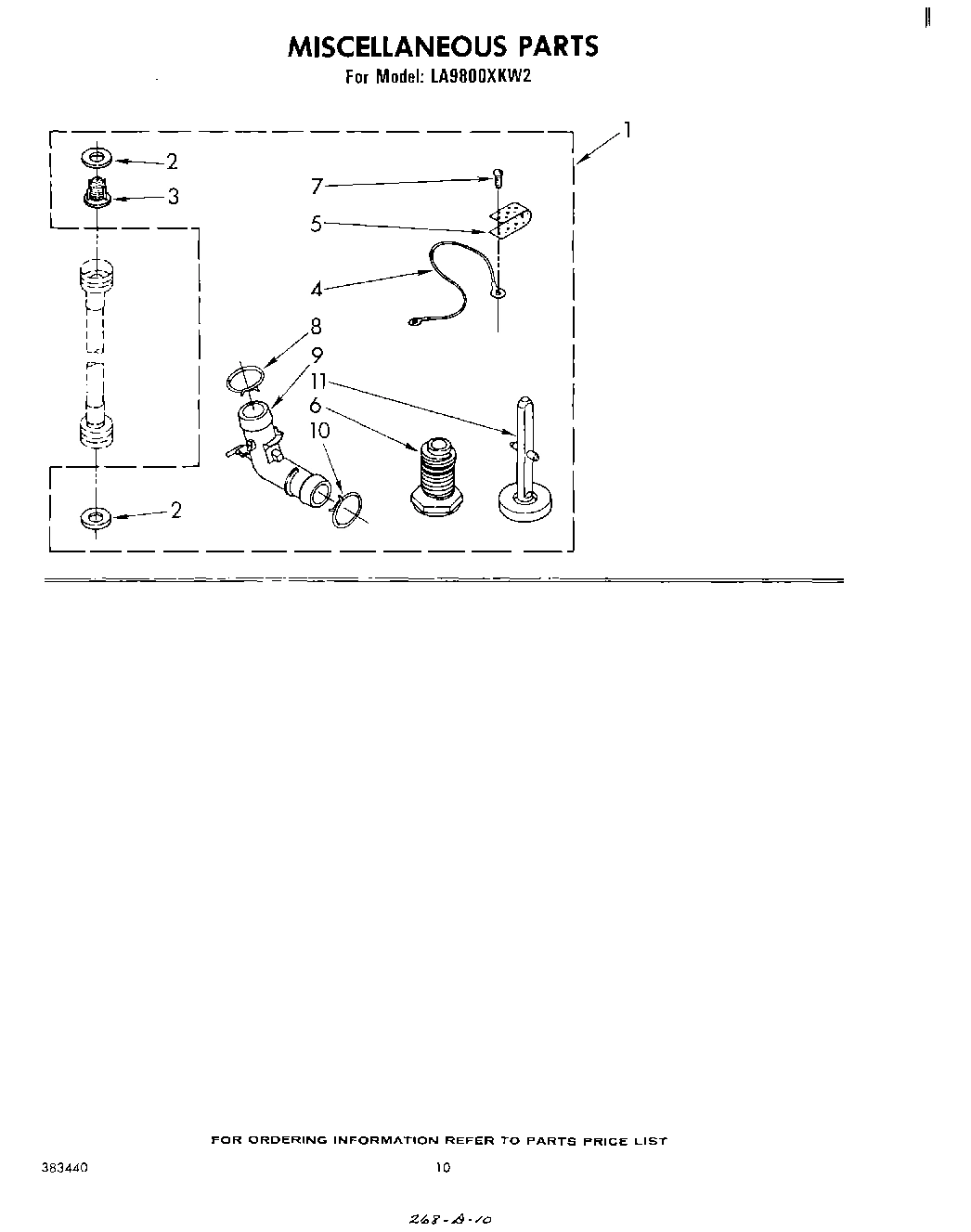

Miscellaneous Parts Bag WPL 375962 Contact Us For Availability

2

Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability

2

Cover, Front Gusset WPL 352144 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

3

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

3

Connector, Hose WPL 95440 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

4

Wire, Ground WPL 364089 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability

5

Cord, Power WPL 92667 Contact Us For Availability

5

Baseplate & Centerpost WPL 359721 Contact Us For Availability

5

Hose WPL 96816 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

Inlet, Water WPL 366072 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

18849 Whirlpool Pad Backorder WPL 18849 $9.13

7

Flapper WPL 355584 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Valve, Side Check WPL 88677 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

8

Hinge, R.H. WPL 18775 Contact Us For Availability

8

Hinge, L.H. WPL 92657 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Washer, Rubber WPL 92235 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

9

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

9

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

9

Ring, Tub (Includes Illus. 19) WPL 381971 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Washer, Fiber WPL 92232 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

Cabinet (White) WPL 379101 Contact Us For Availability

Cabinet (Almond) WPL 379102 Contact Us For Availability

Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability

Seal, Tub Ring WPL 359757 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

Nut, Spanner WPL 92229 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Locator, Top WPL 98669 Contact Us For Availability

Basket WPL 359704 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Sheet, Installation Instructions WPL 372847 Contact Us For Availability

Sheet, Tech (Service Information) WPL 377900 Contact Us For Availability

Instructions, Operating WPL 380477 Contact Us For Availability

Label, Energy Guide WPL 382285 Contact Us For Availability

List, Repair Parts WPL 383440 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Snubber WPL 358336 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

Hose WPL 355152 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Spring, Snubber WPL 357977 Contact Us For Availability

Clamp, Hose WPL 272857 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Screw, 10-16 x 5/16 WPL 96141 Contact Us For Availability

Tub WPL 359668 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Hose, Pump To Filter WPL 356167 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Pulley, Basket Drive WPL 359697 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

Spring, Brake WPL 94726 Contact Us For Availability

Solenoid (Alternate) WPL 87170 Contact Us For Availability

Solenoid (Alternate) WPL 88464 Contact Us For Availability

Screw, Tub WPL 356973 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Rod & Stopper WPL 82506 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Hose WPL 355151 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Drive Tube & Bearing, Baske WPL 357965 Contact Us For Availability

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Bracket, Dispenser WPL 93492 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Reservoir WPL 95916 Contact Us For Availability

Plate, Snubber WPL 355852 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Hose WPL 93553 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Valve, Mixing (Alternate) (Serviced Only as C WPL 358971 Contact Us For Availability

Hose, Dispenser WPL 352169 Contact Us For Availability

Clamp, Hose WPL 9421321 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

21

Plate, Gusset (2) WPL 356459 Contact Us For Availability

21

Support, Spin Tube WPL 358586 Contact Us For Availability

21

Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Cap, Agitator WPL 356863 Contact Us For Availability

Manifold & Filter Assembly WPL 363358 Contact Us For Availability

Rod, Connecting WPL 76577 Contact Us For Availability

350365 Whirlpool Dryer Washer Water Pump, 2-P In Stock WPL 350365 $79.91

Link, Leveling WPL 359059 Contact Us For Availability

Nut, Lock WPL 357732 Contact Us For Availability

Ring, Retaining WPL 95082 Contact Us For Availability

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

Agitator WPL 358370 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Stud & Washer WPL 369516 Contact Us For Availability

Sleeve WPL 96175 Contact Us For Availability

Gear, Main Drive WPL 353397 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

Panel, Rear WPL 85279 Contact Us For Availability

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

Spring, Toggle WPL 96266 Contact Us For Availability

Washer, Thrust WPL 363362 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Seal, Air Dome WPL 351830 Contact Us For Availability

Pulley WPL 16113 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Air Dome WPL 360804 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Rod, Connecting WPL 96264 Contact Us For Availability

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

31

Gasket, Tub (7) WPL 17235 Contact Us For Availability

31

Block, Bearing WPL 87290 Contact Us For Availability

31

Pinion, Drive WPL 84467 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Actuator, Switch WPL 370959 Contact Us For Availability

Insert, Agitator Cap WPL 358773 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

386011 Whirlpool Screw Backorder WPL 386011 $26.43

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Ring, Retainer WPL 90094 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

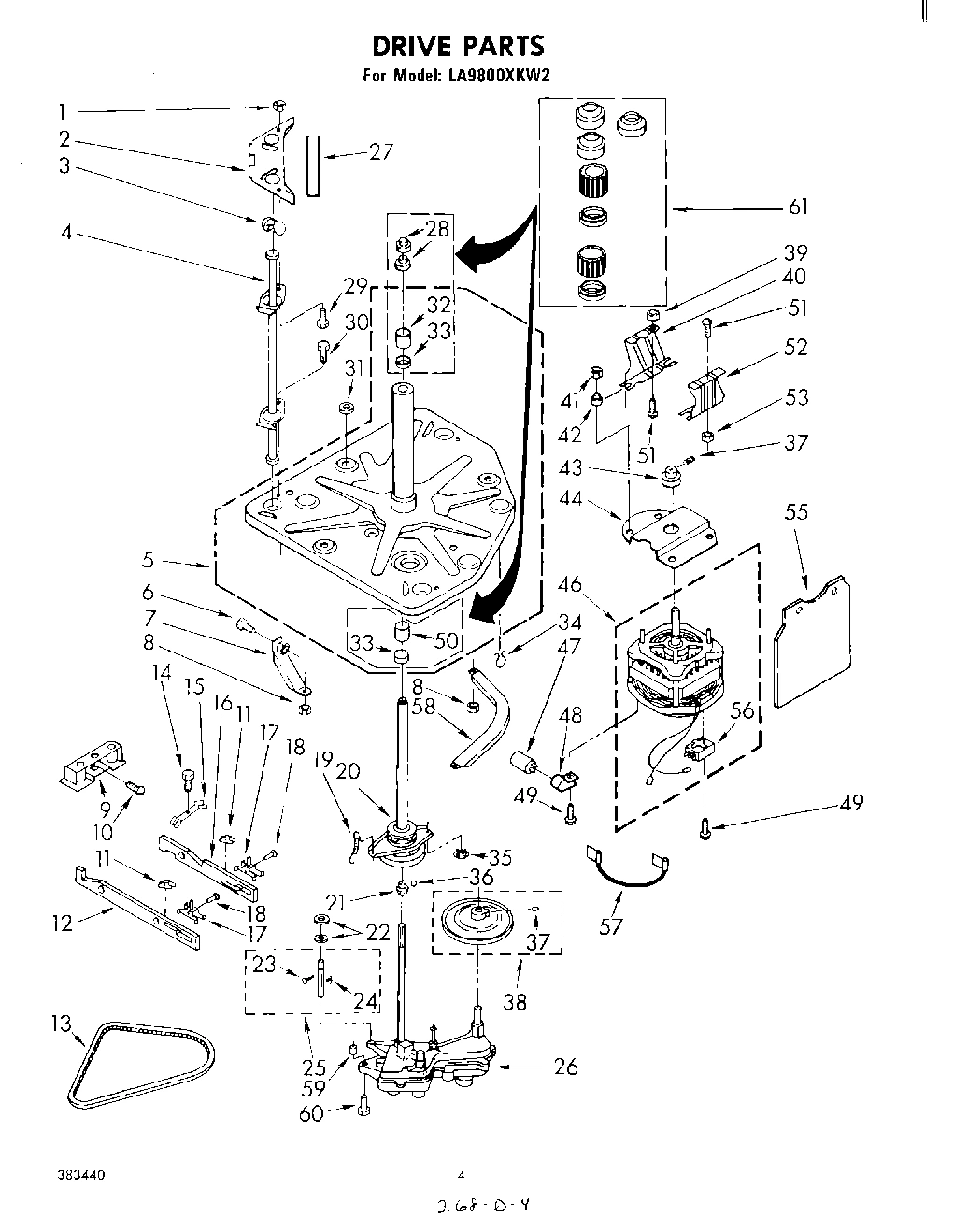

34

Screw, 5/16-18 x 1-3/8 WPL 355612 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

Nut, Push-In (2) WPL 358473 Contact Us For Availability

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Pulley, Motor WPL 92216 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

46

Relay, Hold (1) WPL 359301 Contact Us For Availability

46

Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability

46

Motor (General Electric) (Alternate) 60 Hz. WPL 370653 Contact Us For Availability

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

47

Lever, Push To Start WPL 358564 Contact Us For Availability

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

48

Pivot, Lever WPL 358563 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

Relay, Push To St WPL 359127 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 359774 WPL 359774 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 358559 WPL 358559 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 90015 WPL 90015 Contact Us For Availability

55

WPL 359068 WPL 359068 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

WPL 375305 WPL 375305 Contact Us For Availability

WPL 375313 WPL 375313 Contact Us For Availability

WPL 375318 WPL 375318 Contact Us For Availability

WPL 359642 WPL 359642 Contact Us For Availability

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 60683 WPL 60683 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

58

WPL 60688 WPL 60688 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 308569 WPL 308569 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 60279 WPL 60279 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

62

WPL 96894 WPL 96894 Contact Us For Availability

63

WPL 357695 WPL 357695 Contact Us For Availability

64

WPL 96895 WPL 96895 Contact Us For Availability

65

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

66

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

67

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

68

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

69

WPL 94697 WPL 94697 Contact Us For Availability

70

WPL 94696 WPL 94696 Contact Us For Availability

71

WPL 358516 WPL 358516 Contact Us For Availability

72

WPL 60770 WPL 60770 Contact Us For Availability

73

WPL 690367 WPL 690367 Contact Us For Availability

74

WPL 379949 WPL 379949 Contact Us For Availability

74

WPL 379950 WPL 379950 Contact Us For Availability

74

WPL 379953 WPL 379953 Contact Us For Availability

75

WPL 359267 WPL 359267 Contact Us For Availability

76

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

77

WPL 359481 WPL 359481 Contact Us For Availability

78

WPL 359480 WPL 359480 Contact Us For Availability
