Model Whirlpool LA6800XKW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

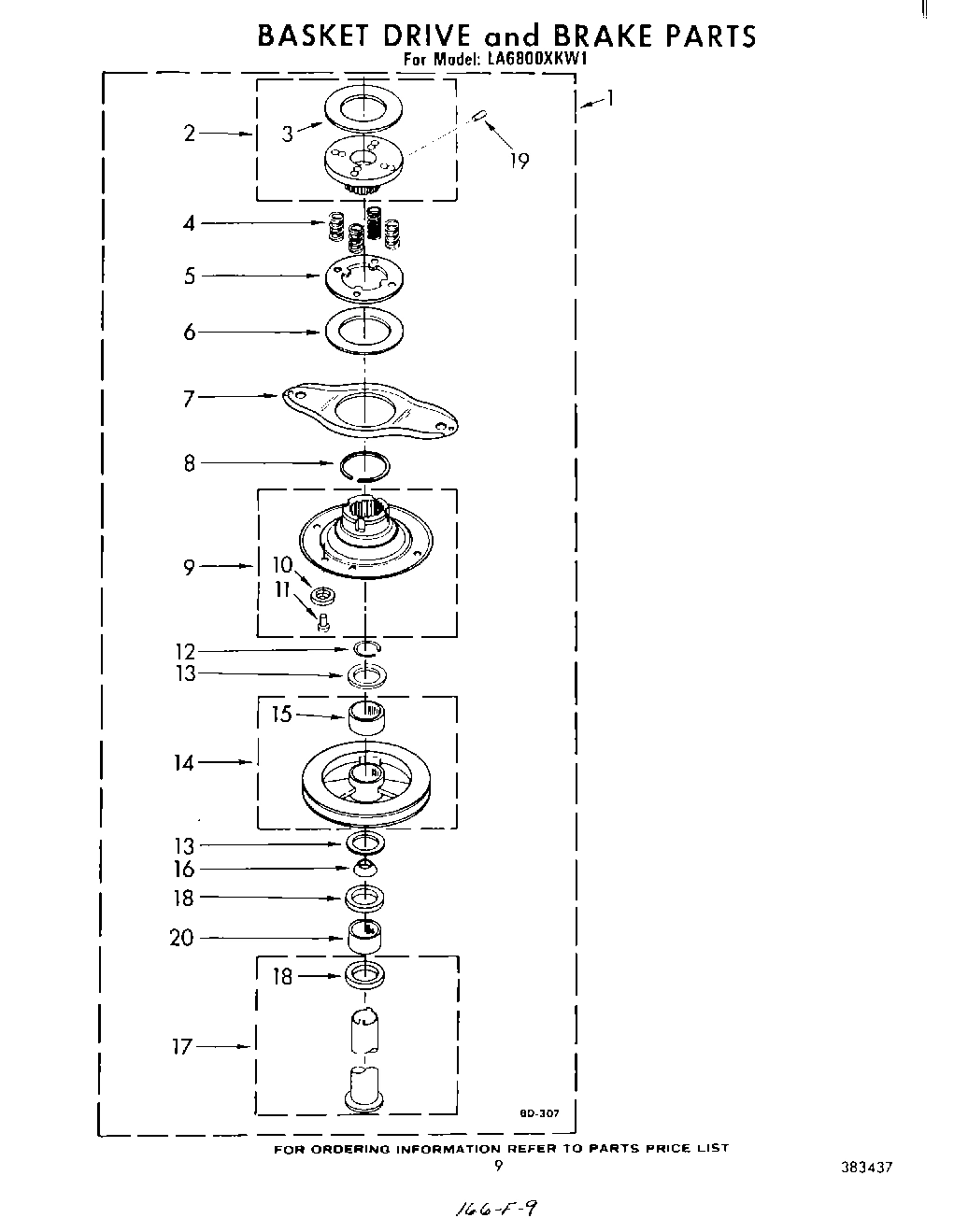

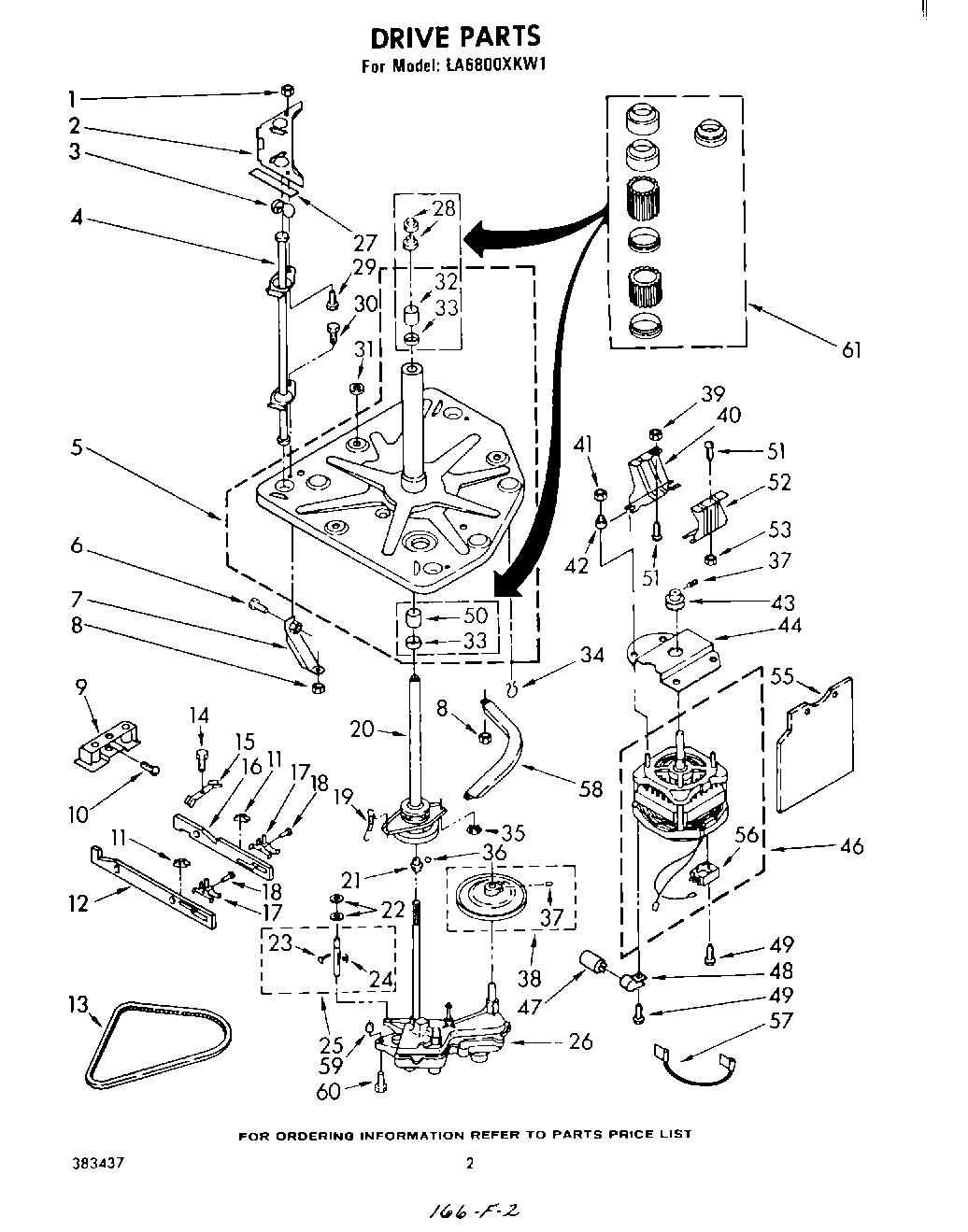

Basket Drive & Brake WPL 359699 Contact Us For Availability

1

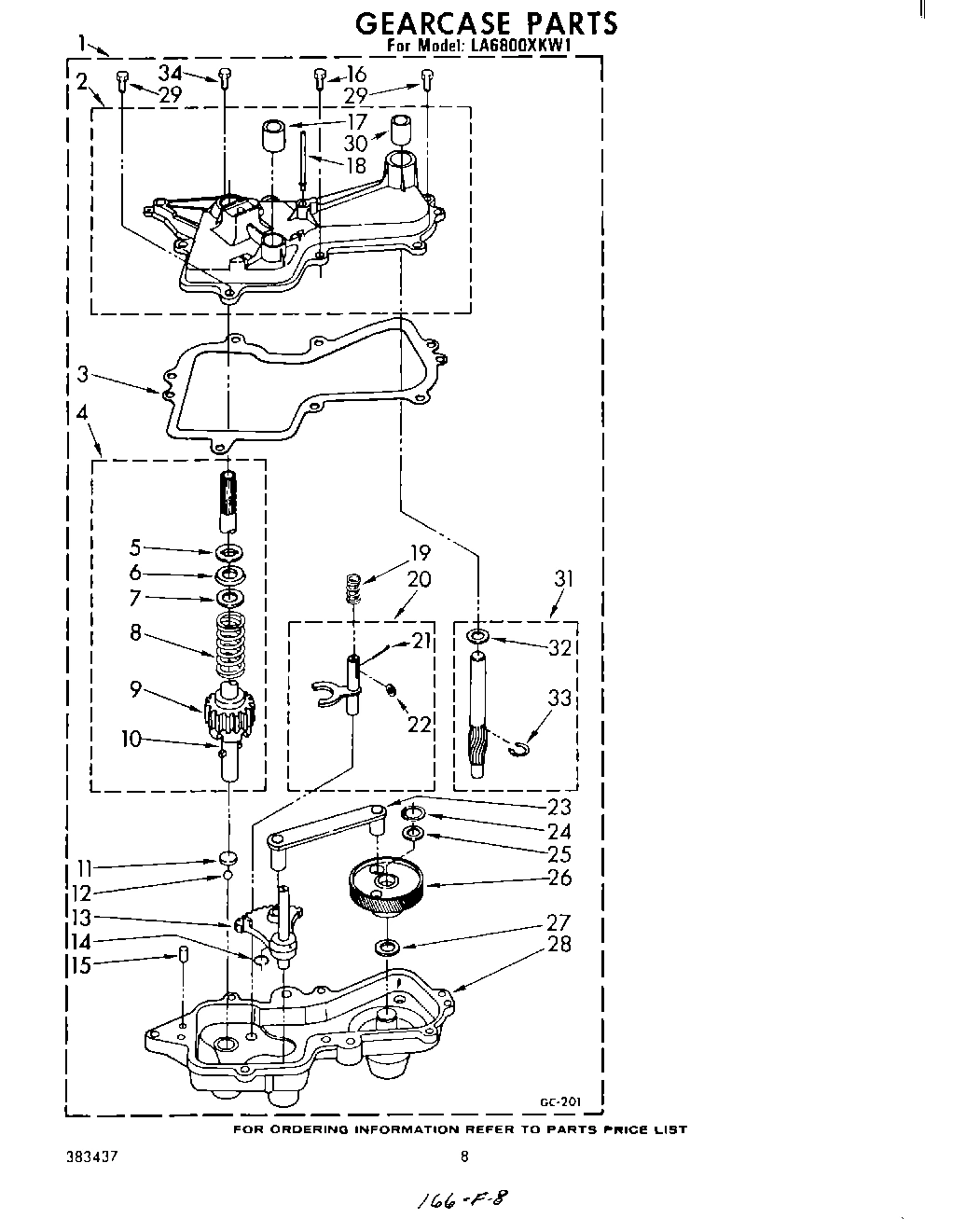

Gearcase (Complete) WPL 362901 Contact Us For Availability

1

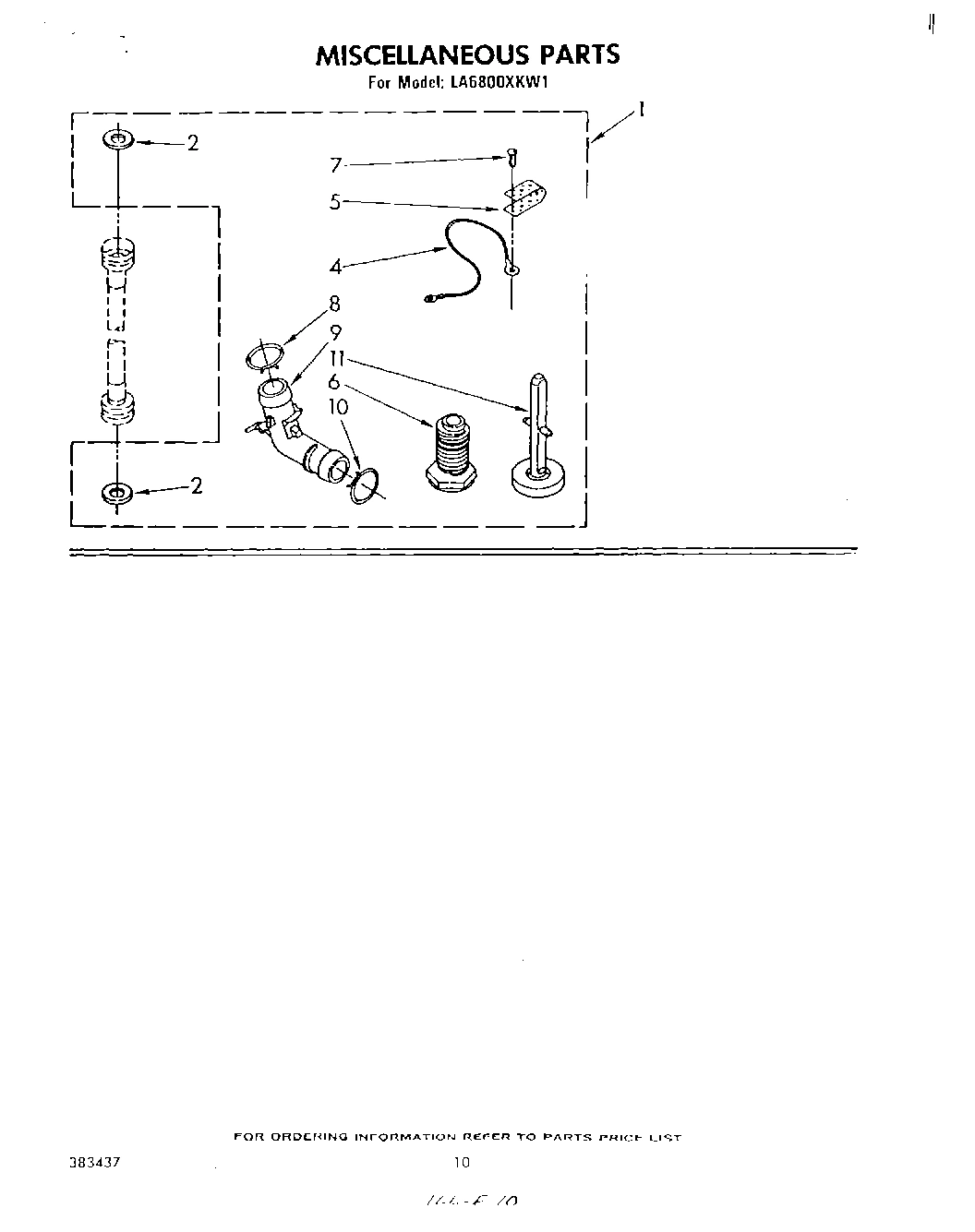

Miscellaneous Parts Bag WPL 375962 Contact Us For Availability

1

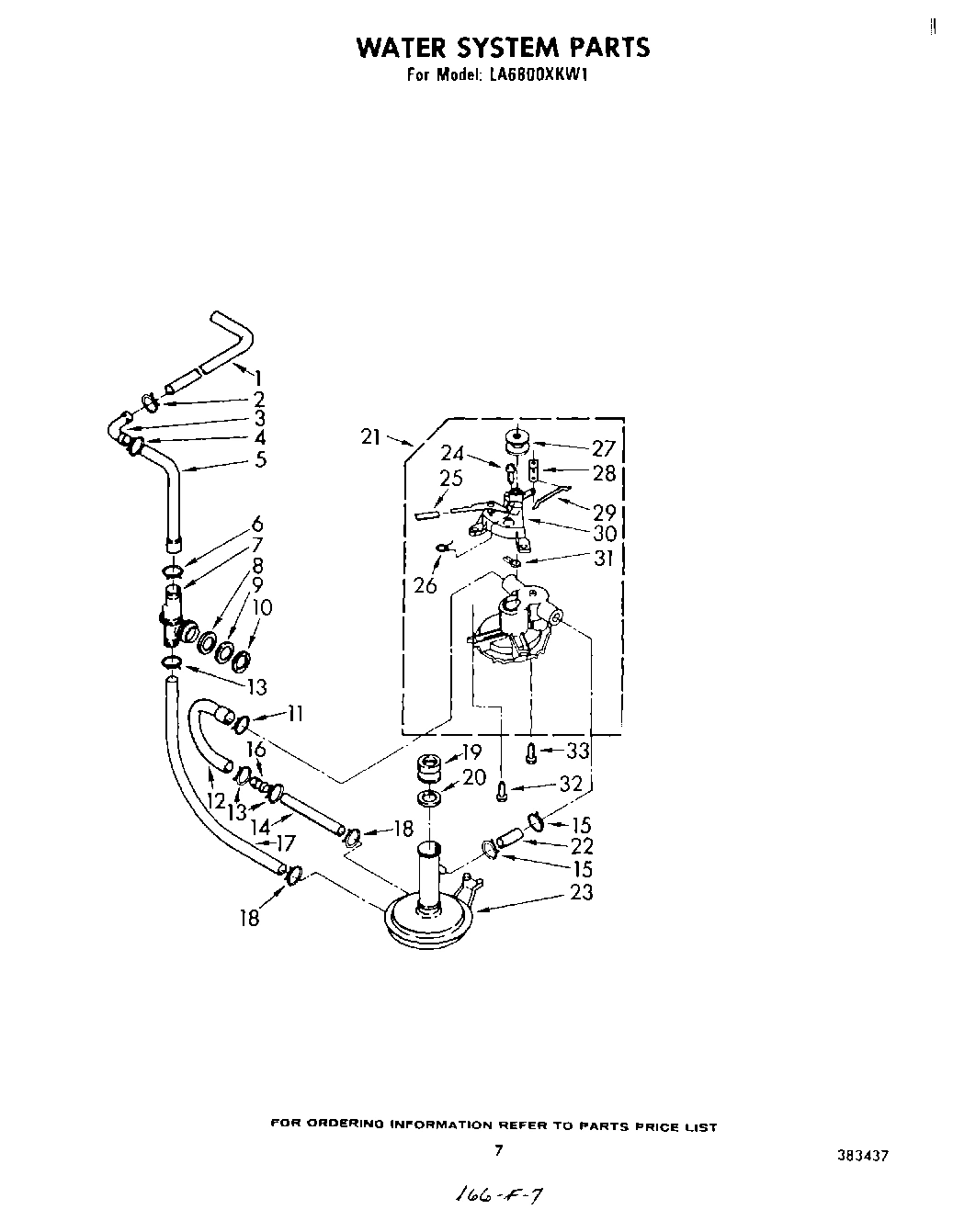

Hose, Gooseneck WPL 96865 Contact Us For Availability

2

Cover, Gusset (L.R. & R.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

3

Connector, Hose WPL 95440 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Wire, Ground WPL 364089 Contact Us For Availability

4

Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability

5

Baseplate & Centerpost WPL 359721 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Hose WPL 96816 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

6

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Valve, Side Check WPL 88677 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

8

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.64

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Washer, Rubber WPL 92235 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Washer, Fiber WPL 92232 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Screw, Taper End WPL 16135 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Nut, Spanner WPL 92229 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Guide, Cam Bar WPL 95462 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Sheet, Installation Instructions WPL 372847 Contact Us For Availability

Instructions, Operating WPL 382608 Contact Us For Availability

Label, Energy Guide WPL 383325 Contact Us For Availability

List, Repair Parts WPL 383437 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cam, Bar Spin WPL 354838 Contact Us For Availability

Panel, Rear WPL 85279 Contact Us For Availability

Hose WPL 355152 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Gear, Sector WPL 75073 Contact Us For Availability

Clamp, Hose WPL 272857 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Hose, Pump To Filter WPL 356167 Contact Us For Availability

Pulley, Basket Drive WPL 359697 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

Spring, Brake WPL 94726 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

Plunger WPL 84866 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Hose WPL 355151 Contact Us For Availability

Drive Tube & Bearing, Baske WPL 357965 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Rivet WPL 354959 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

20

Fork, Agitator Gear WPL 80398 Contact Us For Availability

20

Clamp, Hose WPL 9421321 Contact Us For Availability

20

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

21

350365 Whirlpool Dryer Washer Water Pump, 2-P Backorder WPL 350365 $79.91

21

Support, Spin Tube WPL 358586 Contact Us For Availability

21

Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

23

Rod, Connecting WPL 76577 Contact Us For Availability

23

Manifold & Filter Assembly WPL 363358 Contact Us For Availability

24

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

24

Rack, Literature WPL 357645 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

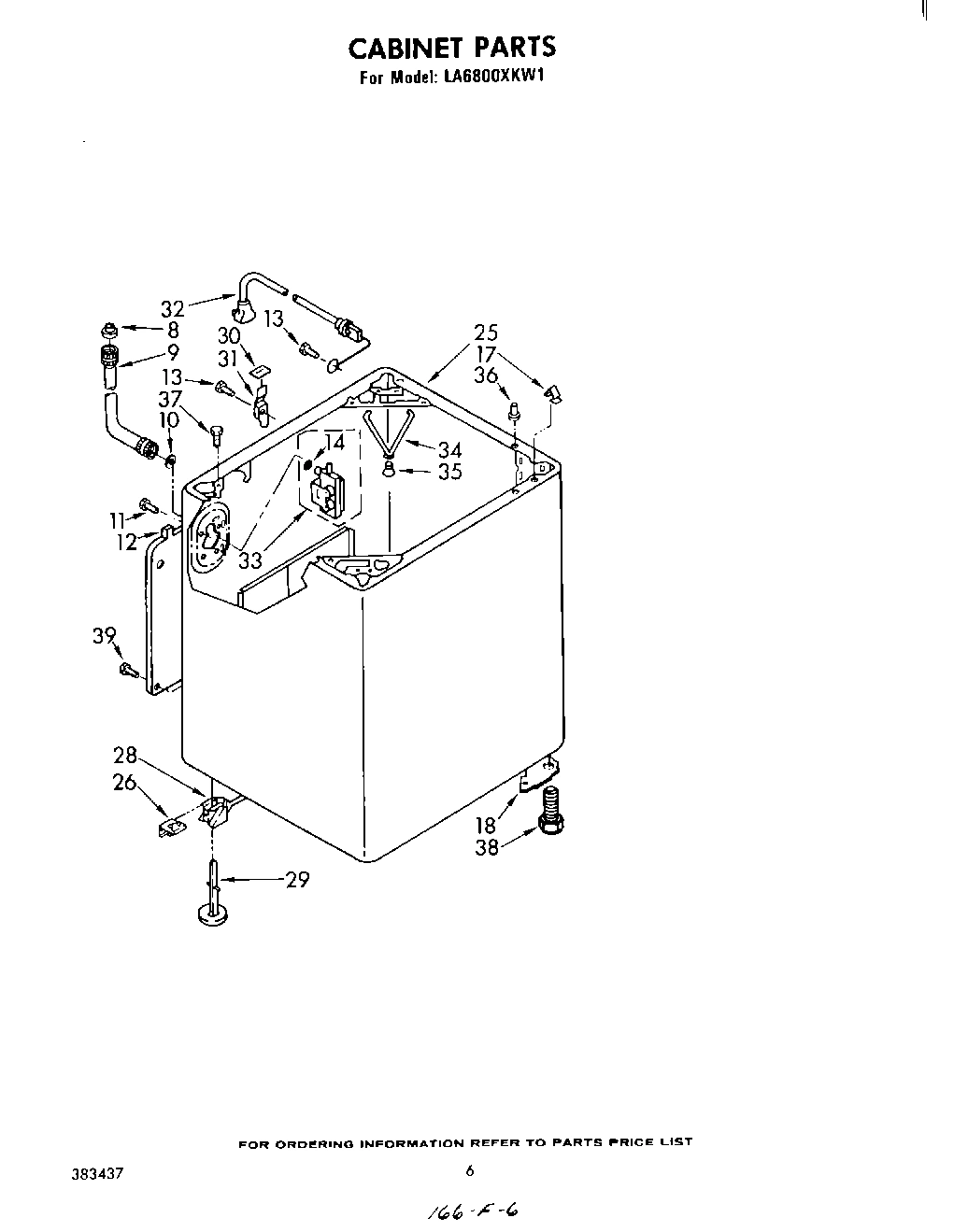

Cabinet (White) WPL 379101 Contact Us For Availability

Cabinet (Almond) WPL 379102 Contact Us For Availability

Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Sleeve WPL 96175 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

26

Gear, Main Drive WPL 353397 Contact Us For Availability

26

Spring, Toggle WPL 96266 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

Washer, Thrust WPL 363362 Contact Us For Availability

Pulley WPL 16113 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Seal WPL 351830 Contact Us For Availability

Screw, 8-18 x 1 WPL 358225 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Switch, Water Level WPL 359711 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

Rod, Connecting WPL 96264 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $9.13

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Bearing Block Assembly WPL 87290 Contact Us For Availability

Switch, Water Temperature WPL 358553 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $27.74

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 359707 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Valve, Mixing (Alternate) (Serviced Only As C WPL 358971 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

Screw, 5/16-18 x 1-3/8 WPL 355612 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

Spring, Snubber WPL 357977 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Hose, Dispenser WPL 352978 Contact Us For Availability

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

40

Timer Assembly 60 Hz. (C.C.A.) WPL 380327 Contact Us For Availability

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 362681 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Pulley, Motor WPL 92216 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

46

Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability

46

Motor (General Electric) (Alternate) 60 Hz. WPL 370653 Contact Us For Availability

47

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

48

Block, Disconnect WPL 352090 Contact Us For Availability

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

49

Terminal, Female WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Panel, Control WPL 382420 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

Dial, Timer WPL 359254 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

58

Knob, Timer WPL 359206 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

Push Button (4) WPL 301008 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

Knob Assembly, Water Level WPL 690301 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

67

Clip, End Cap (4) WPL 689559 Contact Us For Availability

75

Cap, Terminal (Console Harness) WPL 94612 Contact Us For Availability

76

Plug, Terminal (Cabinet Harness) WPL 94611 Contact Us For Availability

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

82

WPL 352821 WPL 352821 Contact Us For Availability

83

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

87

WPL 352827 WPL 352827 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

90

WPL 359325 WPL 359325 Contact Us For Availability

91

WPL 358116 WPL 358116 Contact Us For Availability

95

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability
