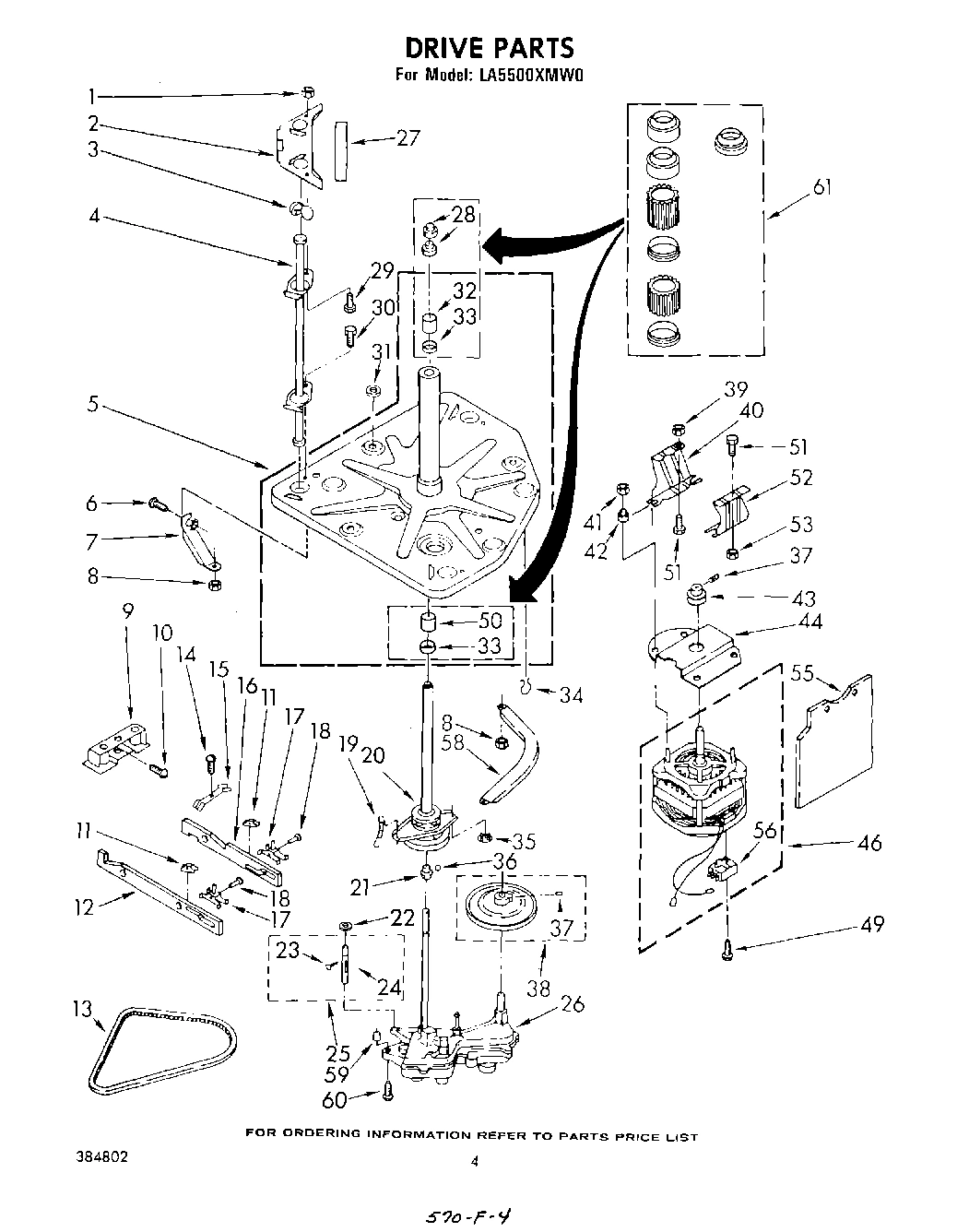

Model Whirlpool LA5500XMW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use & Care WPL LIT383172 Contact Us For Availability

Label, Energy Guide WPL LIT383369 Contact Us For Availability

Instructions, Installation WPL LIT383971 Contact Us For Availability

List, Repair Parts WPL LIT384802 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

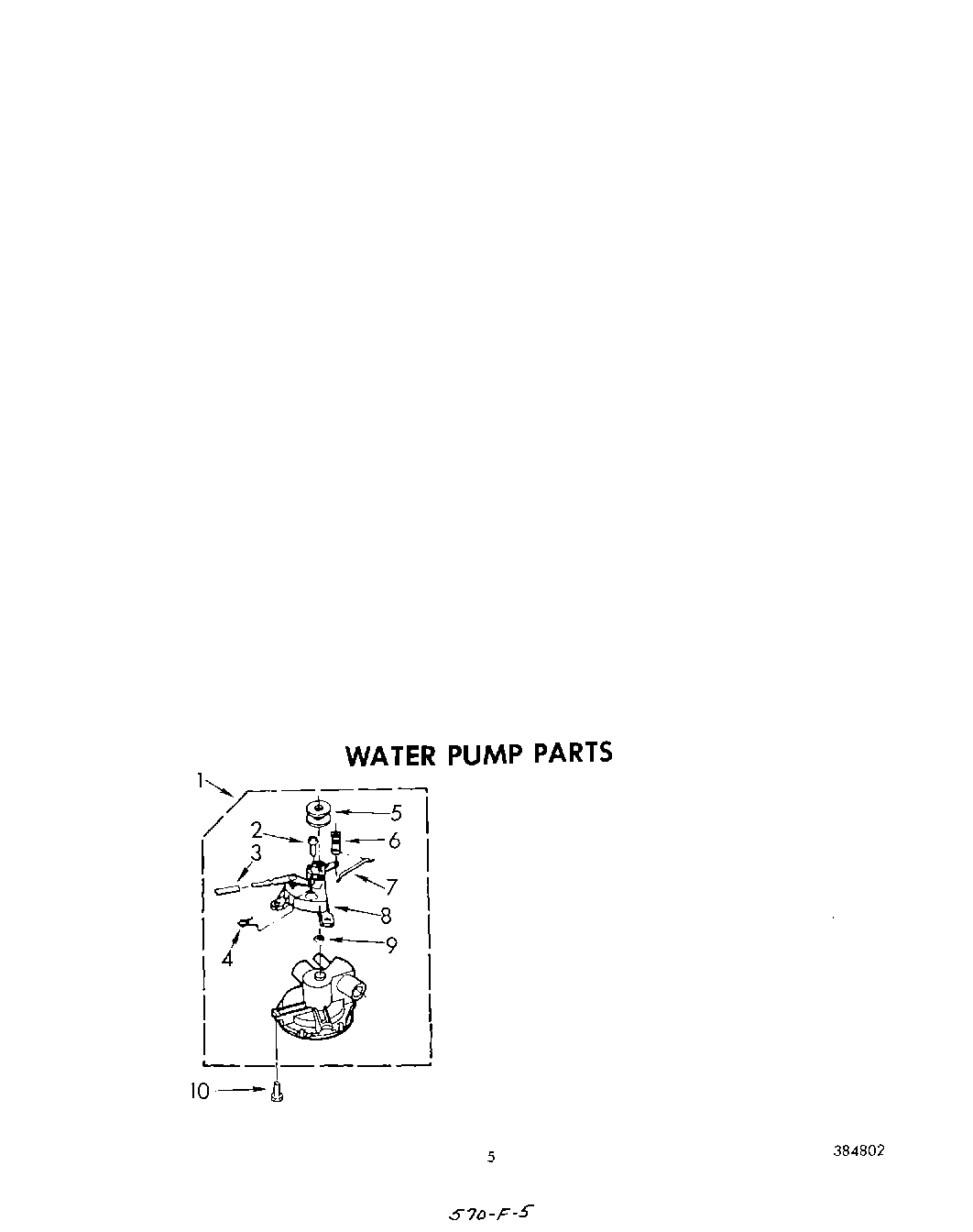

Pump Assembly WPL 357729 Contact Us For Availability

1

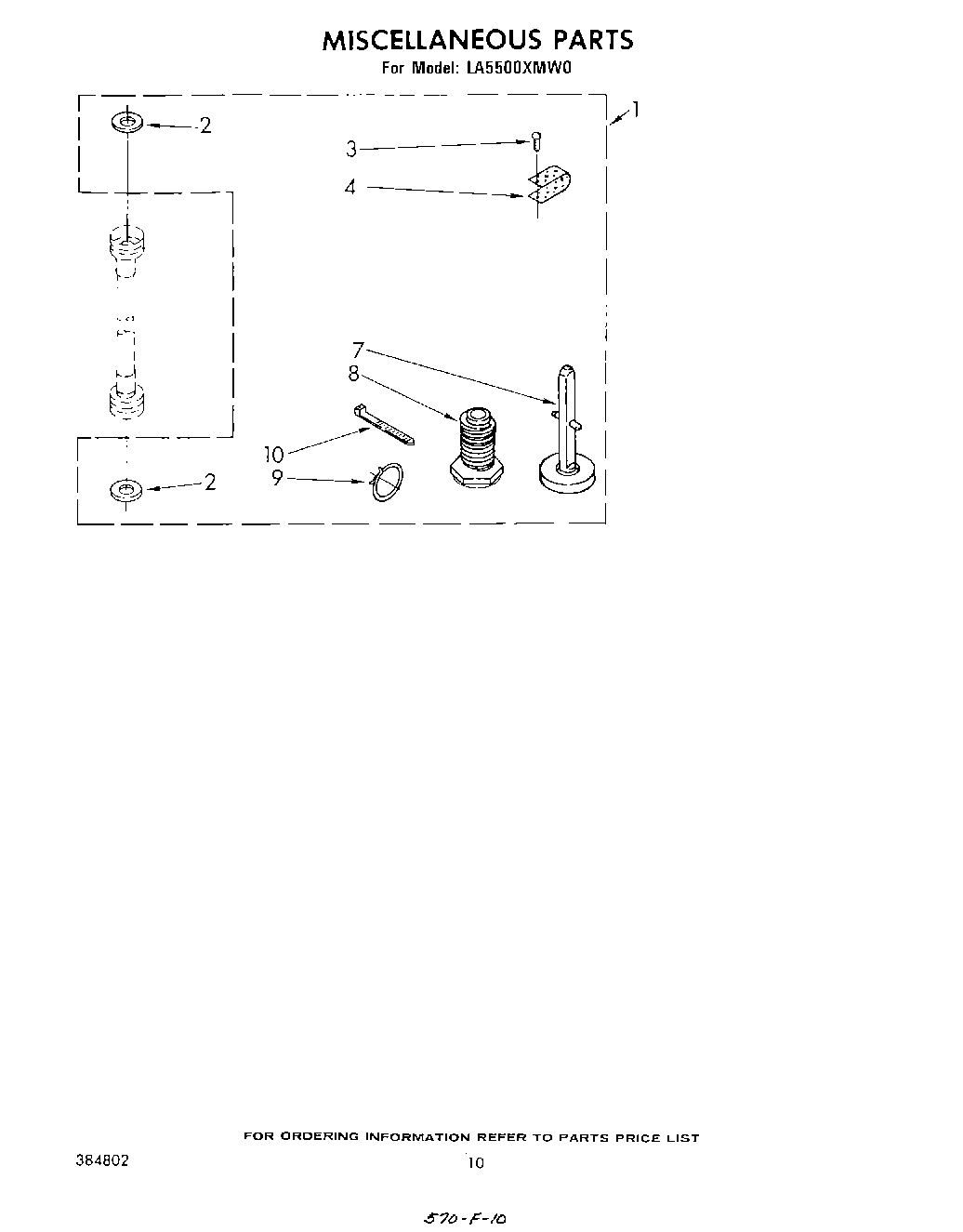

Miscellaneous Parts Bag WPL 387200 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Screw, 8 x 7/8 WPL 358225 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End L.H. (Almond Cap, End R.H.) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

4

Strap, Ground WPL 22965 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

5

Pulley WPL 359630 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Baseplate & Centerpost WPL 358949 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

Lever, Valve WPL 355538 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (White) WPL 379889 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

8

Stop, Push-In Top (1) WPL 358472 Contact Us For Availability

8

Bearing Block Assembly WPL 383750 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

9

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Eyelet (3) WPL 98281 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Block, Drive WPL 96384 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

Panel, Rear WPL 85279 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

16

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

16

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

16

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Hinge, L.H. WPL 91099 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

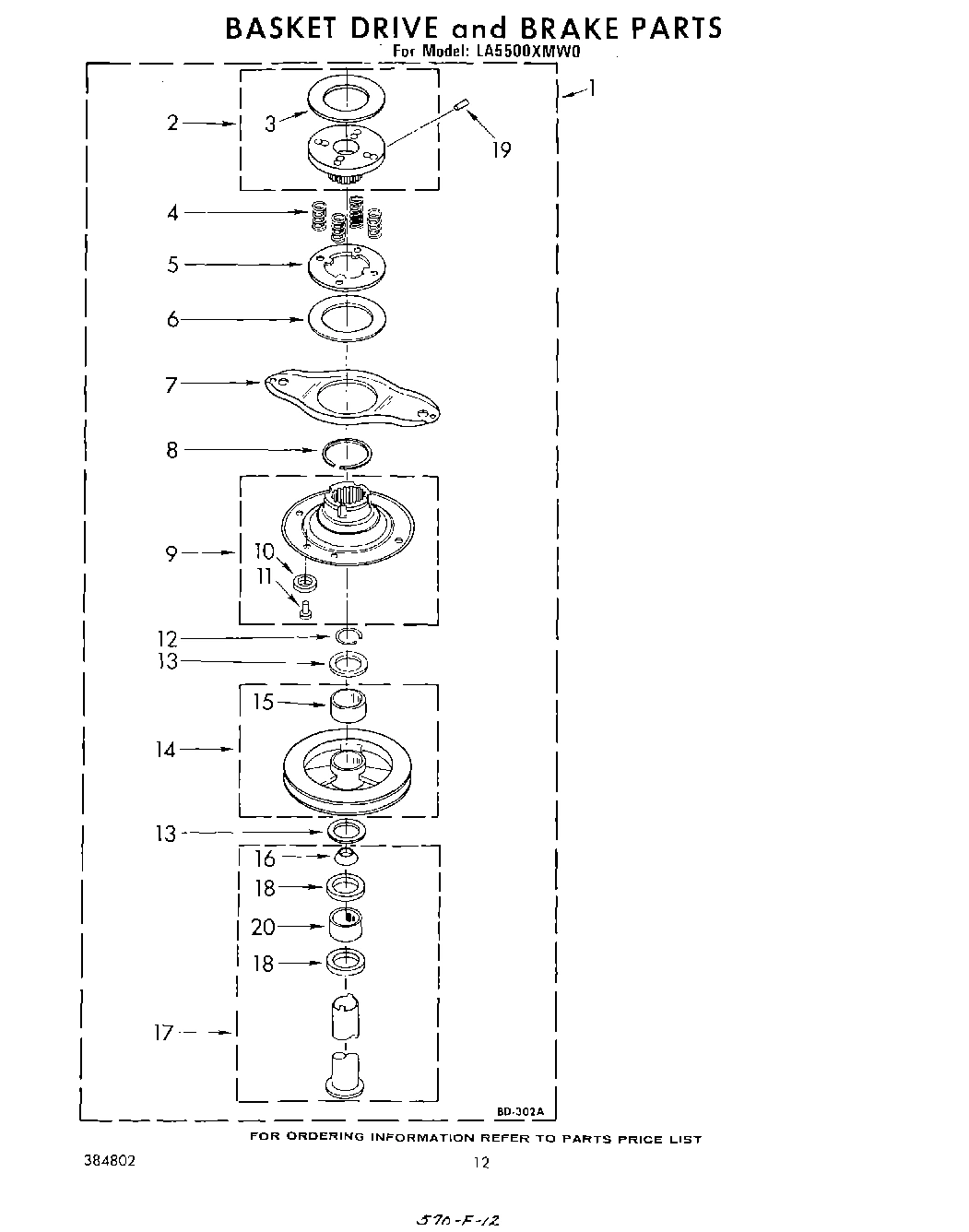

Basket Drive & Brake (Refer To Page 12 For Fu WPL 358364 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

21

Lid (White) WPL 384718 Contact Us For Availability

21

Lid (Almond) WPL 384719 Contact Us For Availability

21

Support, Spin Tube WPL 358586 Contact Us For Availability

22

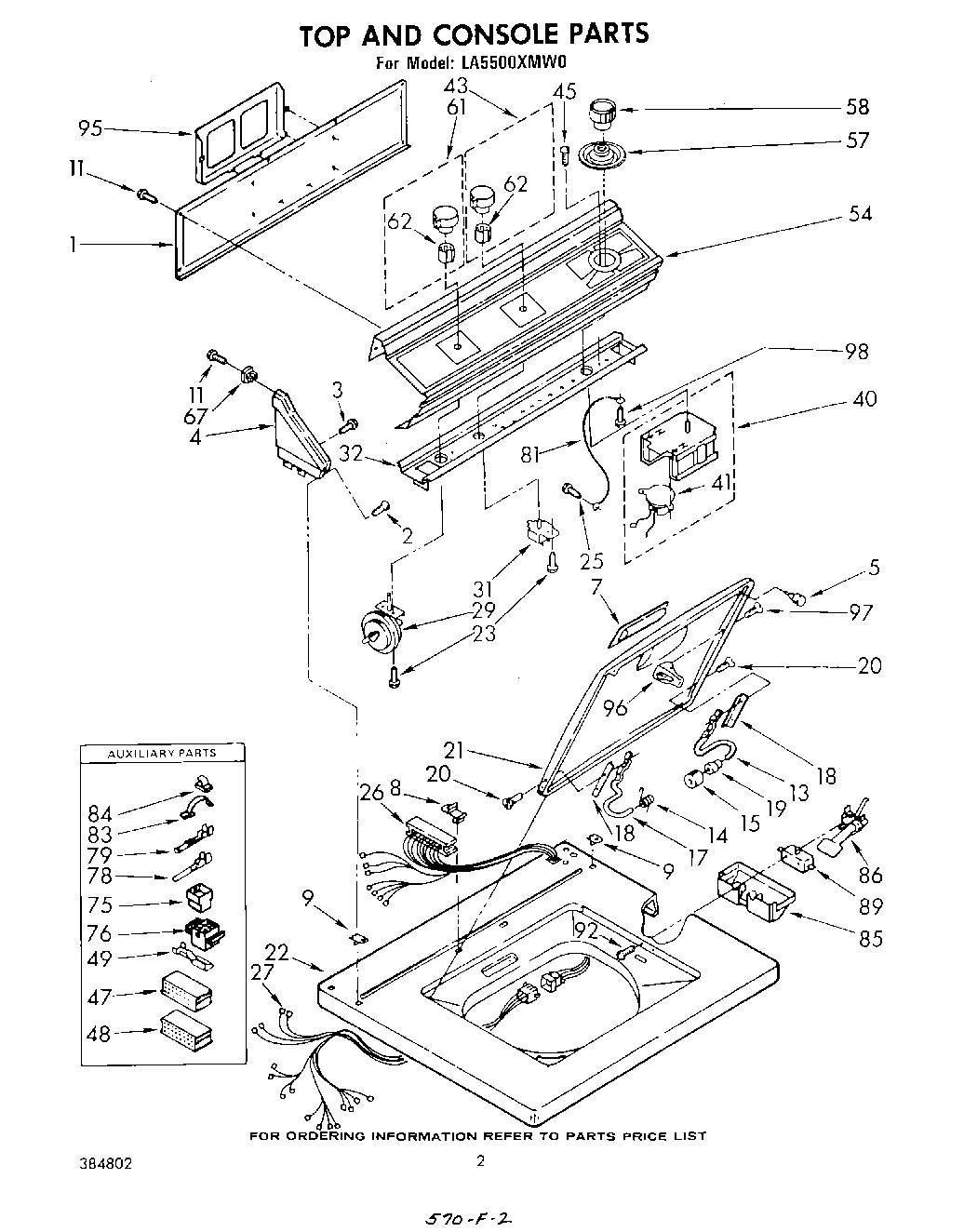

Top (White) WPL 384018 Contact Us For Availability

22

Top (Almond) WPL 384019 Contact Us For Availability

22

Spacer, Clutch Shaft WPL 359332 Contact Us For Availability

23

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Rod, Connecting WPL 76577 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Shaft, Basket Clutch WPL 383723 Contact Us For Availability

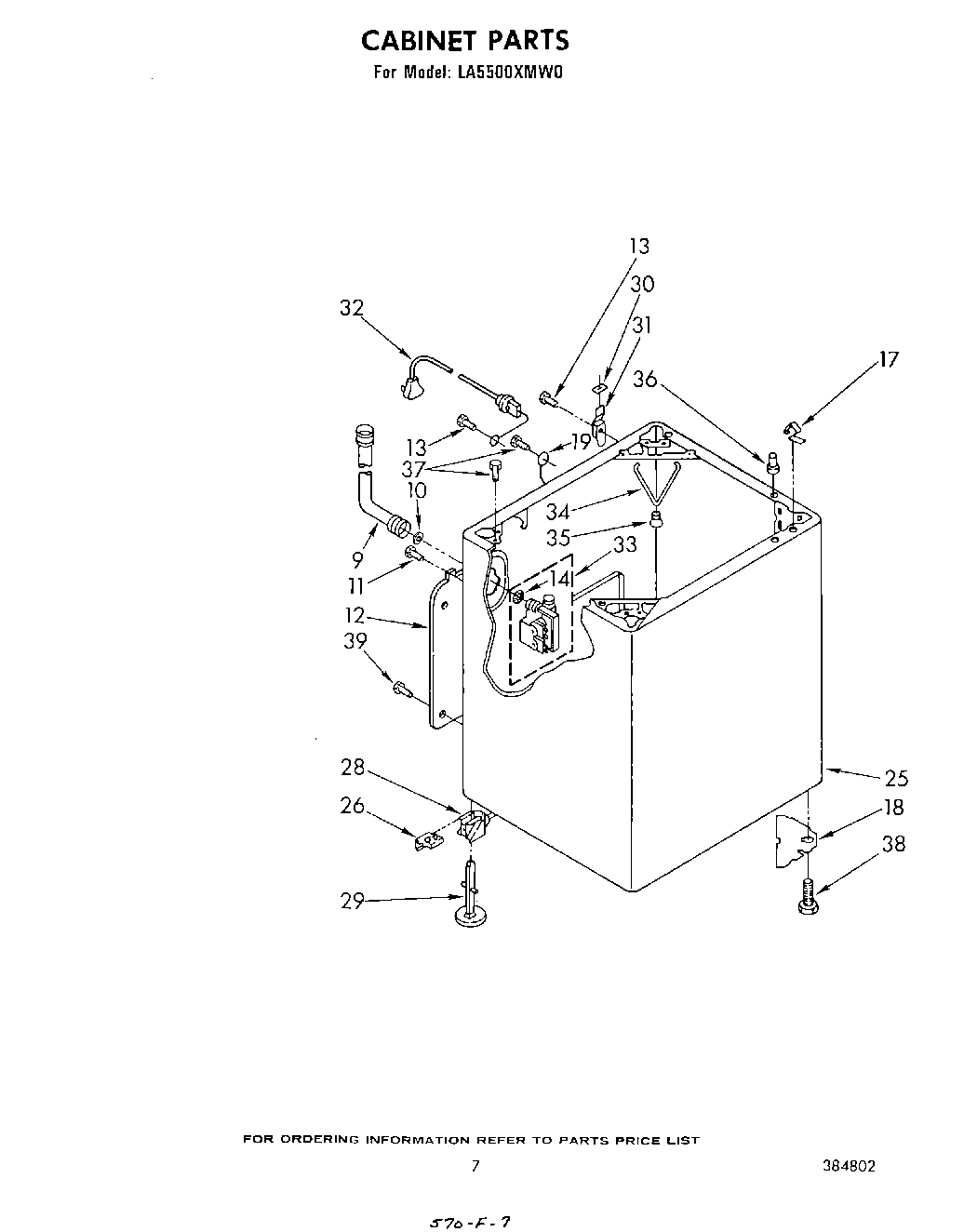

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Harness, Console WPL 359327 Contact Us For Availability

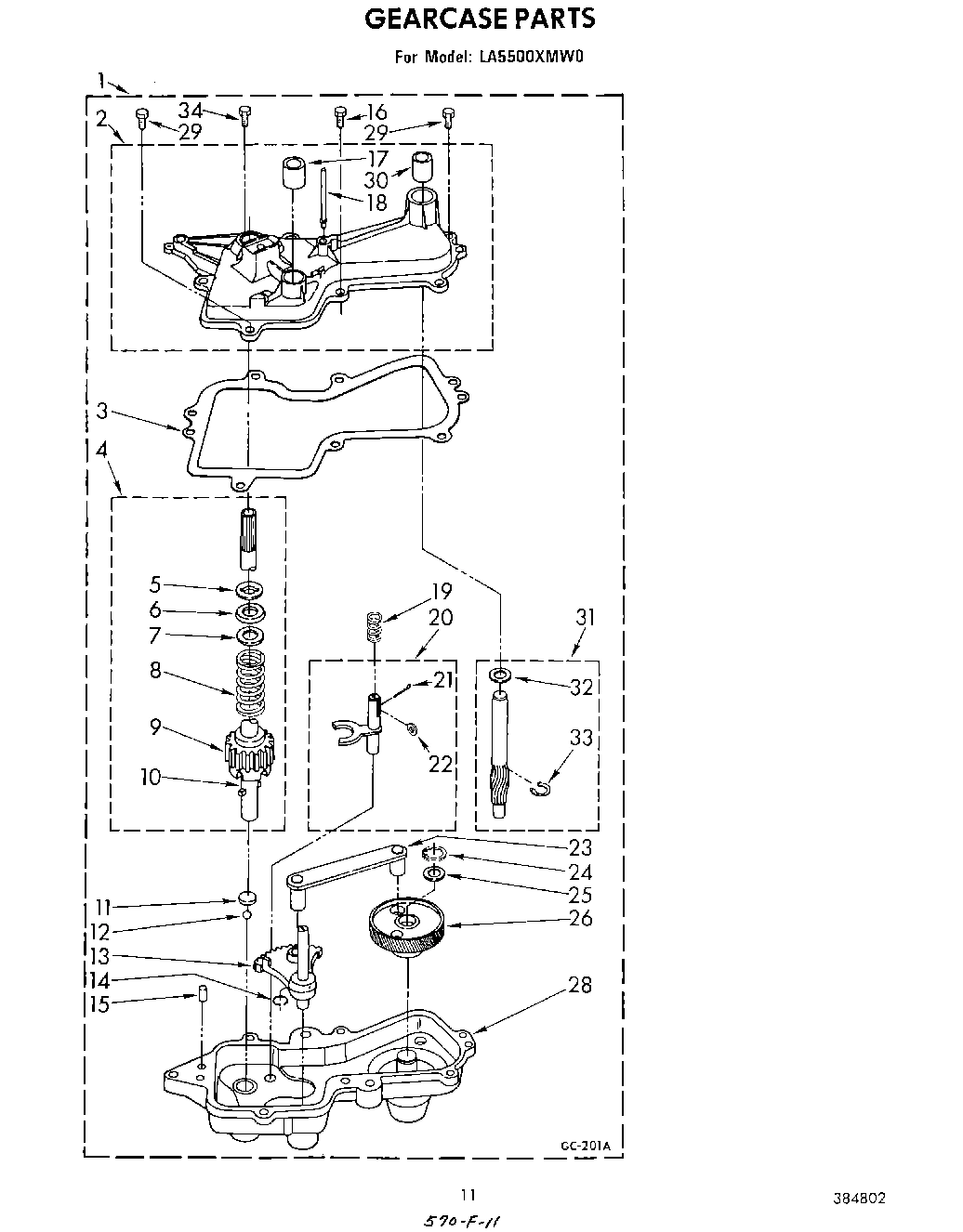

Gearcase (Refer To Page 11 For Further Breakd WPL 362901 Contact Us For Availability

Gear, Main Drive WPL 353397 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Harness, Base WPL 358115 Contact Us For Availability

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Seal WPL 351830 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Switch, Water Level (Alternate) WPL 359647 Contact Us For Availability

Switch, Water Level (Alt.) WPL 363301 Contact Us For Availability

Switch, Water Level WPL 660930 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Switch, Water Temperature WPL 660746 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 358934 Contact Us For Availability

Switch, Water Temperature (Alt.) WPL 358935 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Bracket, Control WPL 359708 Contact Us For Availability

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

Spring, Snubber WPL 357977 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 365941 Contact Us For Availability

Timer, 60 Hz. C.C.A. (Alt.) WPL 385322 Contact Us For Availability

Timer, 60 Hz. Mallory (Alt.) WPL 385325 Contact Us For Availability

Timer, 60 Hz. WPL 660970 Contact Us For Availability

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 362681 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Knob, Water Temperature Switch WPL 690300 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

46

Motor, 60 Hz. (Alt.) (Emerson) WPL 357875 Contact Us For Availability

46

Motor, 60 Hz. (Alt.) (G WPL 362856 Contact Us For Availability

46

WPL 660198 WPL 660198 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

48

Block, Disconnect WPL 352090 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

Terminal, Female WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Panel, Control WPL 384764 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

Dial, Timer WPL 359254 Contact Us For Availability

58

Knob, Timer WPL 359206 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

Knob, Water Level Switch WPL 690297 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

WPL 94612 WPL 94612 Contact Us For Availability

WPL 94611 WPL 94611 Contact Us For Availability

LIT677813 (Belt Drive) (Dryer) WPL LIT677818 Contact Us For Availability

LIT677813 (Belt Drive) (Compactor) WPL LIT677821 Contact Us For Availability

LIT677813 (Belt Drive) (Dishwasher) WPL LIT677967 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

92

WPL 354764 WPL 354764 Contact Us For Availability

95

WPL 357645 WPL 357645 Contact Us For Availability

96

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354975 WPL 354975 Contact Us For Availability
