Model Whirlpool LA5310XPW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Laundry WPL LIT385238 Contact Us For Availability

Label, Energy Guide WPL LIT387730 Contact Us For Availability

Sheet, Installation Instructions WPL LIT387930 Contact Us For Availability

List, Repair Parts WPL LIT388302 Contact Us For Availability

Guide, Use & Care WPL LIT388505 Contact Us For Availability

Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

Compactor WPL LIT677821 Contact Us For Availability

Dishwasher WPL LIT677967 Contact Us For Availability

Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

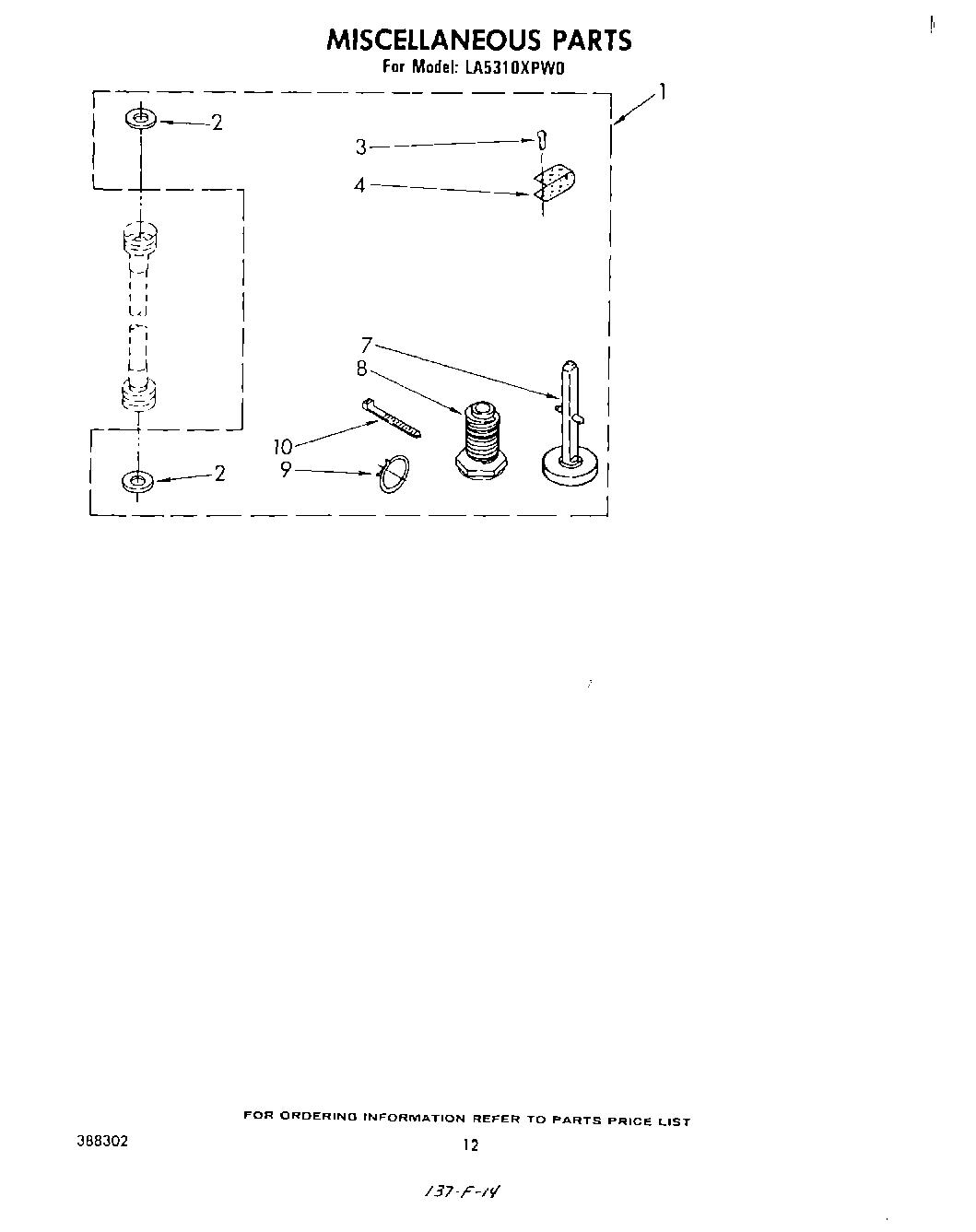

Miscellaneous Parts Bag WPL 387200 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

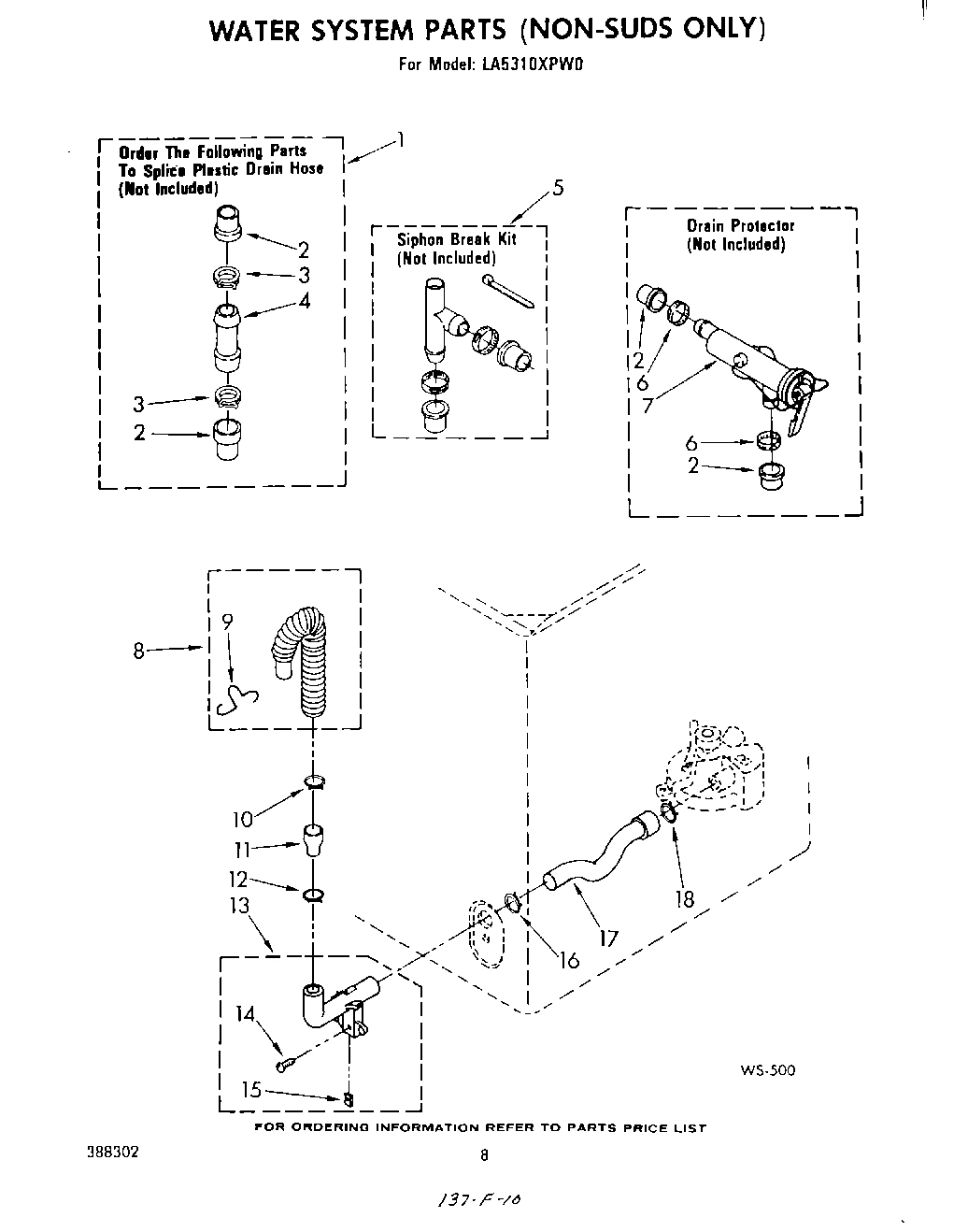

Hose, Tub Outlet WPL 93553 Contact Us For Availability

2

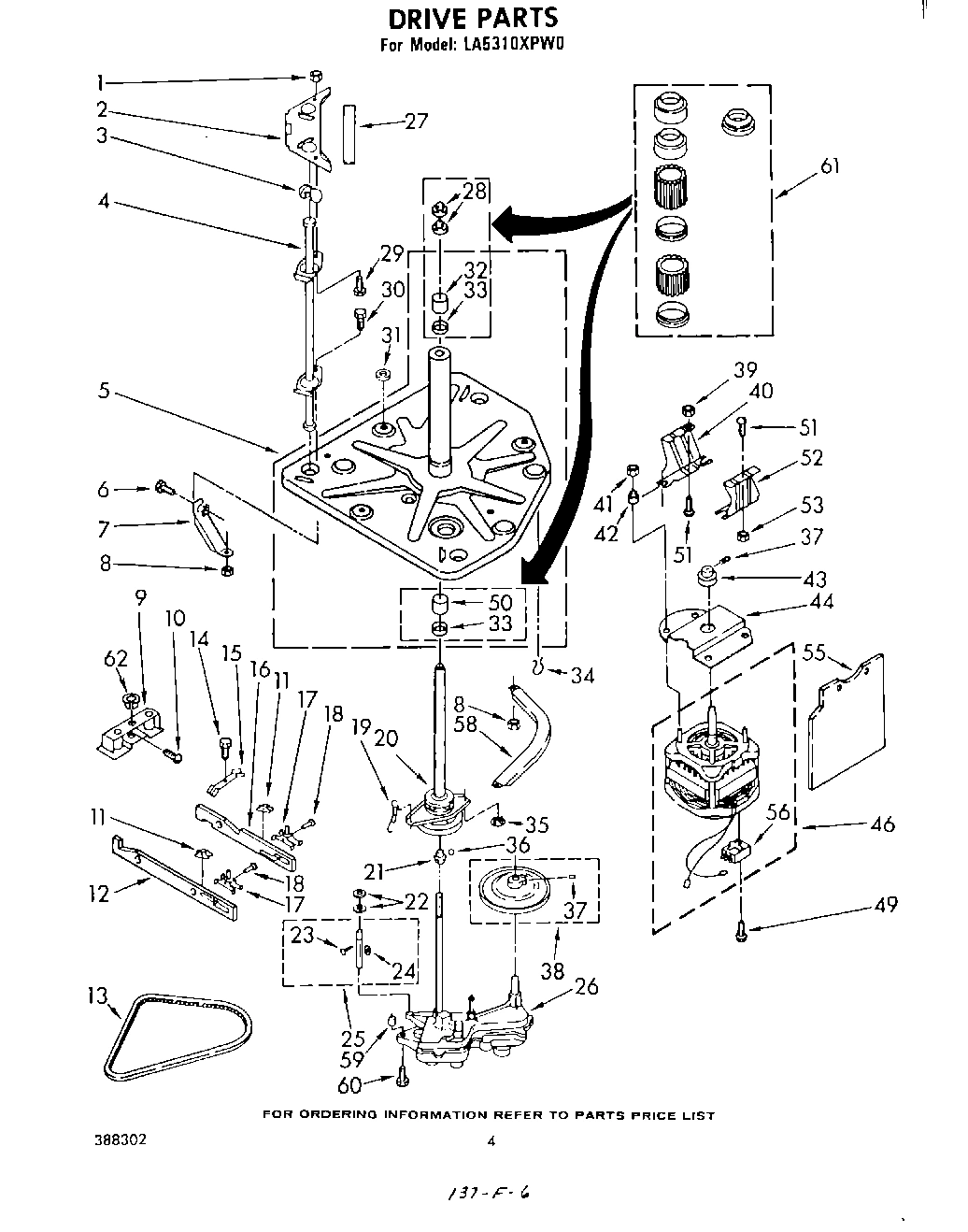

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (L.F.) WPL 353230 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

Strap, Ground WPL 22965 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

Clip, Hose WPL 9421321 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Baseplate & Centerpost WPL 358949 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

Inlet, Water WPL 366072 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

Plate, Snubber WPL 355852 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Ring & Filter, Tub (Includes Illus. 8 & 41) WPL 381978 Contact Us For Availability

9

Retainer, Wire WPL 357247 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Magnet WPL 359997 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Seal, Tub Ring WPL 383553 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

Basket WPL 383960 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Panel, Rear WPL 85279 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Connector, Hose WPL 358805 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

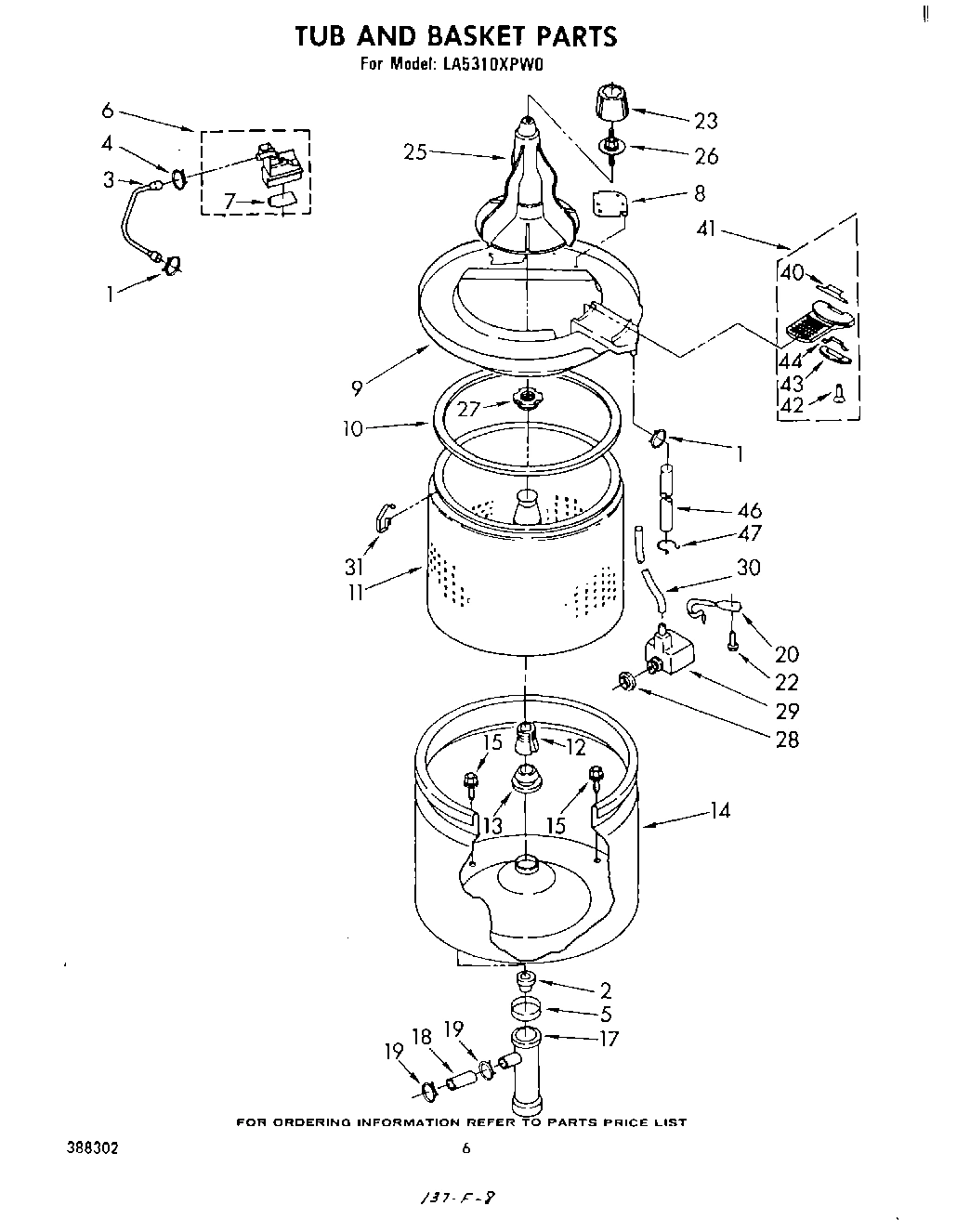

Tub WPL 384123 Contact Us For Availability

Screw, Connector Mounting WPL 90876 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Spring, Brake WPL 94726 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Clip WPL 351395 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Manifold WPL 84091 Contact Us For Availability

Hose, Pump to Cabinet WPL 358560 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Hose WPL 92231 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Bracket, Hose WPL 358339 Contact Us For Availability

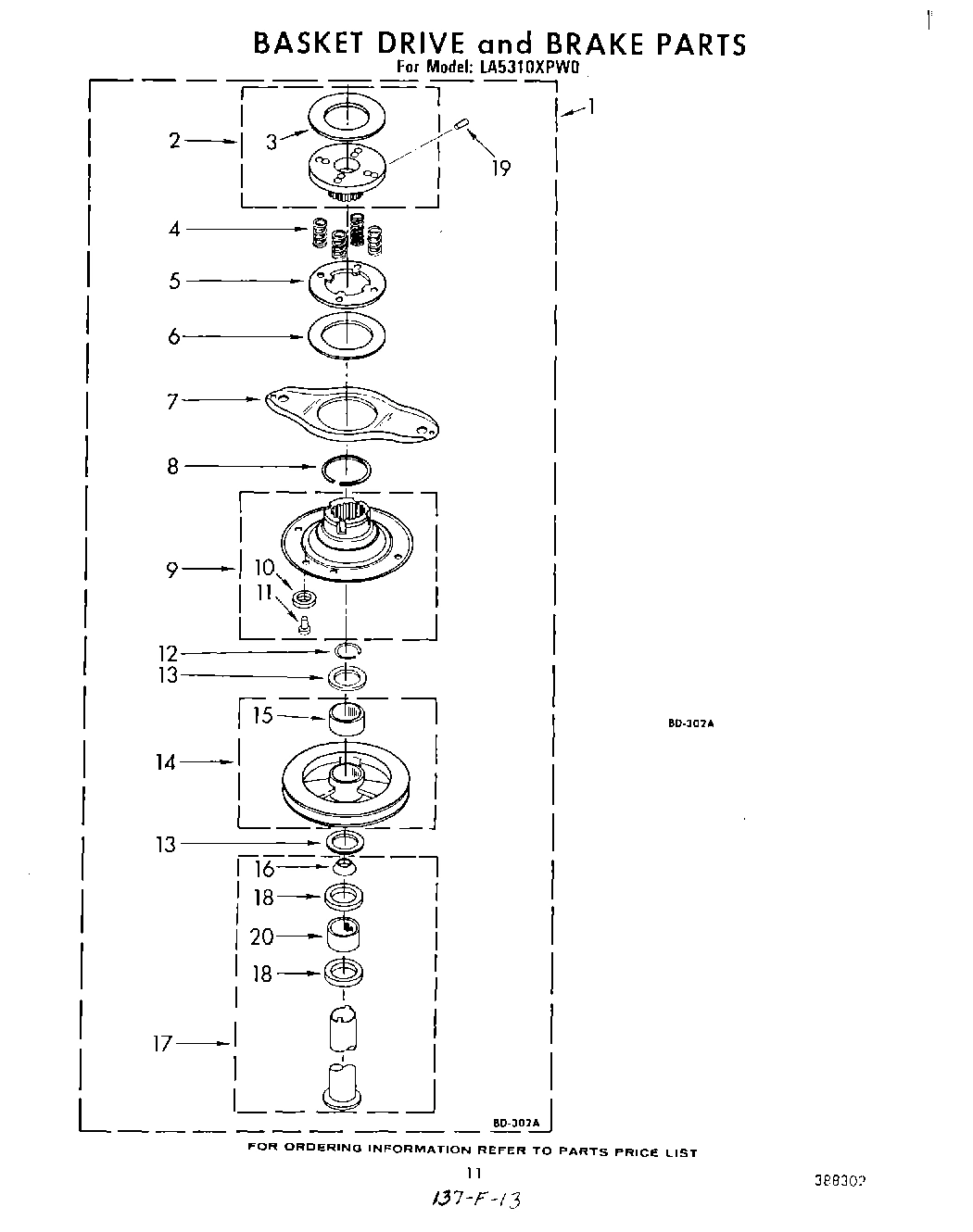

Basket Drive & Brake (Refer To Page 11 for Fu WPL 358364 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

21

Support, Spin Tube WPL 358586 Contact Us For Availability

22

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

22

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Cap, Agitator WPL 358431 Contact Us For Availability

Pin, Roll WPL 90532 Contact Us For Availability

Rod, Connecting WPL 76577 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

Agitator WPL 363633 Contact Us For Availability

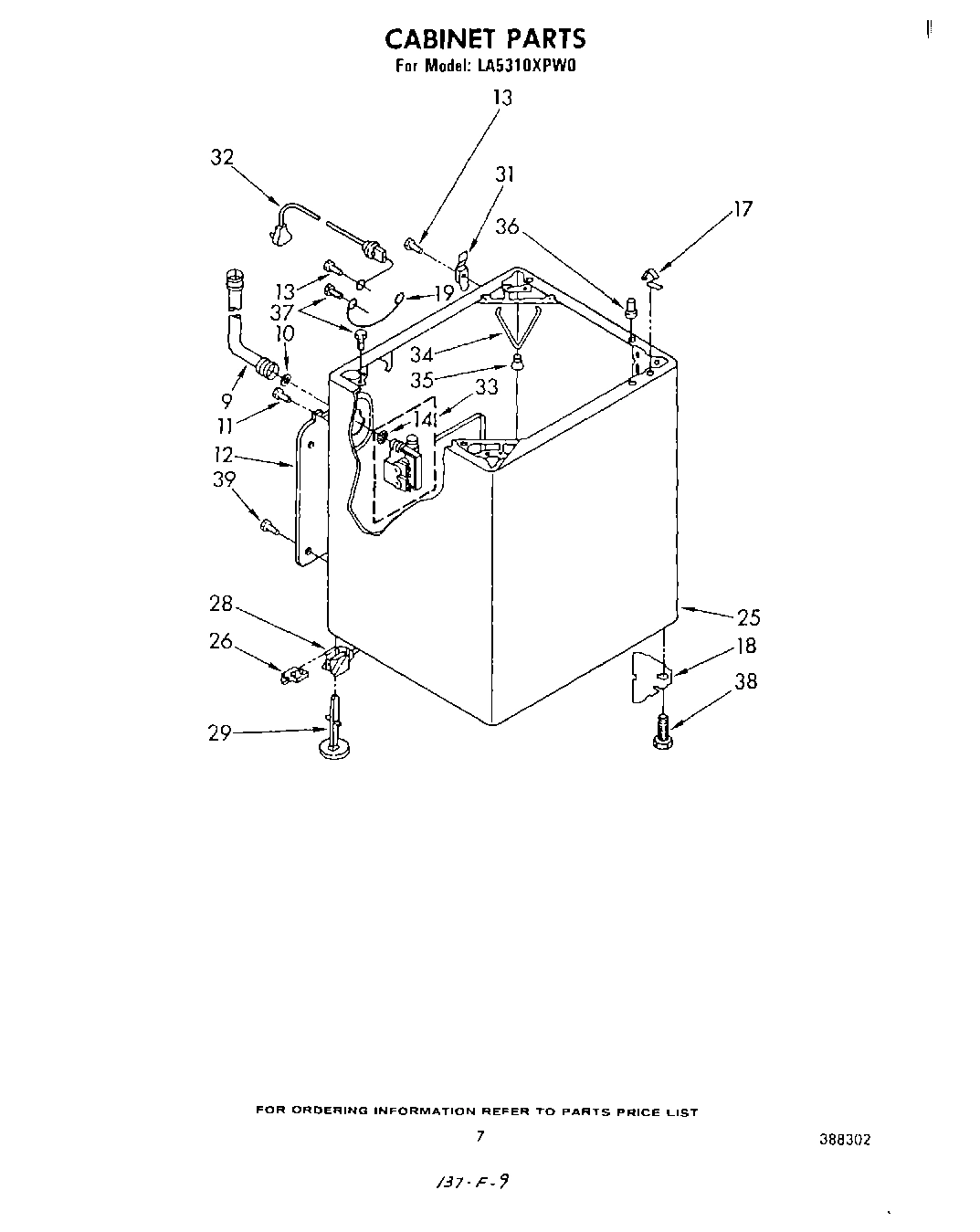

Cabinet (White) WPL 384793 Contact Us For Availability

Cabinet (Almond) WPL 384794 Contact Us For Availability

Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability

Cabinet (Toast) WPL 386477 Contact Us For Availability

Cabinet (Platinum) WPL 386478 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Stud & Seal WPL 358440 Contact Us For Availability

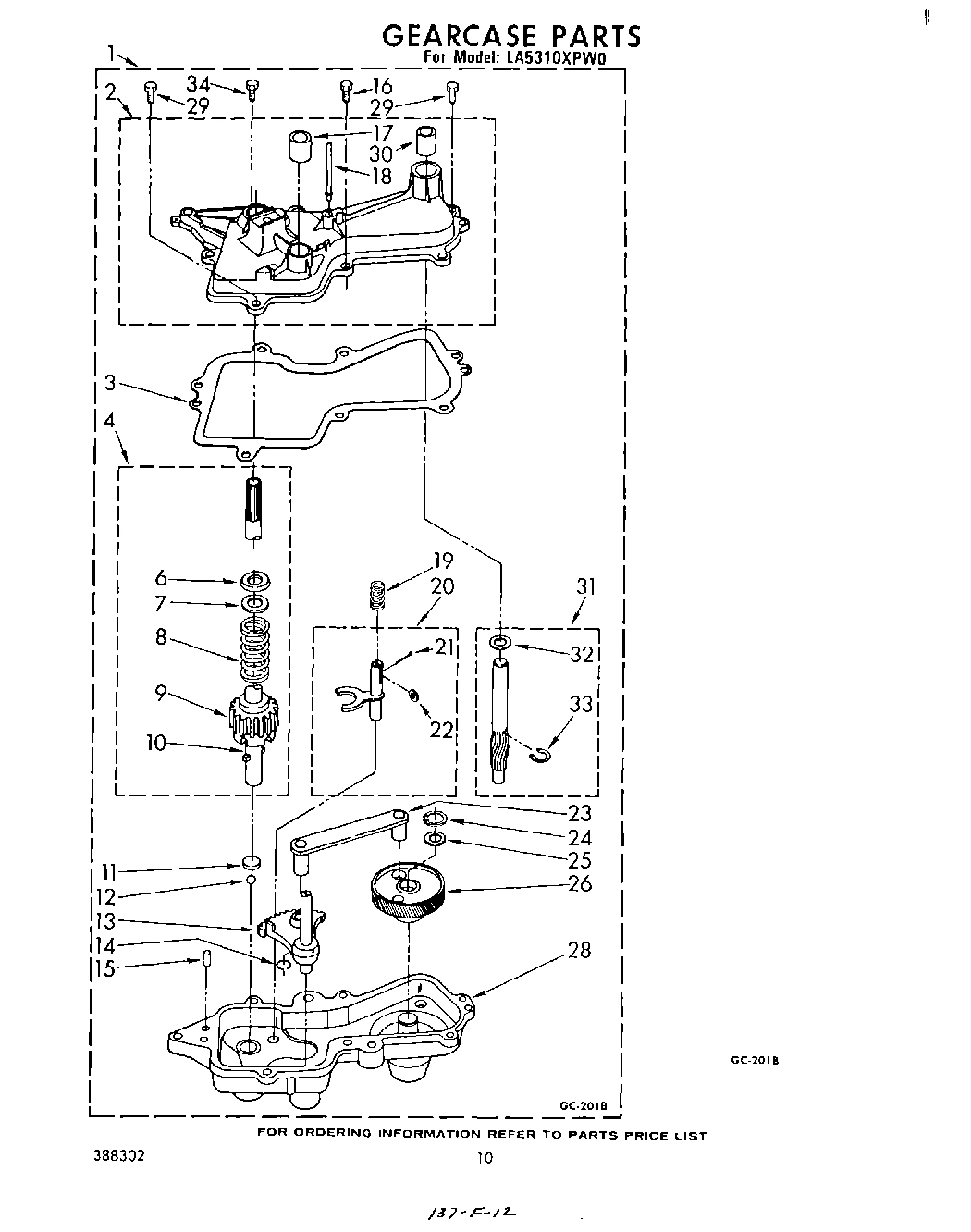

Gearcase (Refer To Page 10 For Further Breakd WPL 362901 Contact Us For Availability

Gear, Main Drive WPL 353397 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Seal WPL 351830 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Air Dome Assembly WPL 360804 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

30

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

30

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

30

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Switch, Water Temperature WPL 660746 Contact Us For Availability

Clip, Tub Ring (4) WPL 359763 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

32

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

32

Washer, Drive Pinion WPL 16024 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability

Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability

Valve, Mixing WPL 660749 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

Spring, Snubber WPL 357977 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

40

Latch WPL 357249 Contact Us For Availability

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Filter WPL 359785 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

42

Screw (2) WPL 176360 Contact Us For Availability

43

Knob Assembly, Water Temperature WPL 386630 Contact Us For Availability

43

Retainer WPL 357250 Contact Us For Availability

43

Pulley, Motor (60 Hz.) WPL 357514 Contact Us For Availability

44

Knob, Water Level WPL 386629 Contact Us For Availability

44

Spring WPL 94403 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

Hose, Pump To Filter WPL 357346 Contact Us For Availability

Motor, 60 Hz. (Alt.) (Emerson) WPL 358589 Contact Us For Availability

Motor, 60 Hz. (Alt. WPL 362857 Contact Us For Availability

WPL 660303 WPL 660303 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

47

Clip, Hose To Cabinet WPL 387551 Contact Us For Availability

49

Terminal, Female WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Panel, Control WPL 387788 Contact Us For Availability

55

WPL 357571 WPL 357571 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

Dial, Timer WPL 387183 Contact Us For Availability

58

Knob, Timer WPL 386570 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

386011 Whirlpool Screw Backorder WPL 386011 $26.43

61

WPL 285134 WPL 285134 Contact Us For Availability

62

WP385728 Whirlpool Bushing Backorder WPL WP385728 $2.51

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $28.80

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

84

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

95

WPL 357633 WPL 357633 Contact Us For Availability

97

WPL 354764 WPL 354764 Contact Us For Availability

98

WPL 63020 WPL 63020 Contact Us For Availability

99

WPL 354975 WPL 354975 Contact Us For Availability

100

WPL 357695 WPL 357695 Contact Us For Availability
