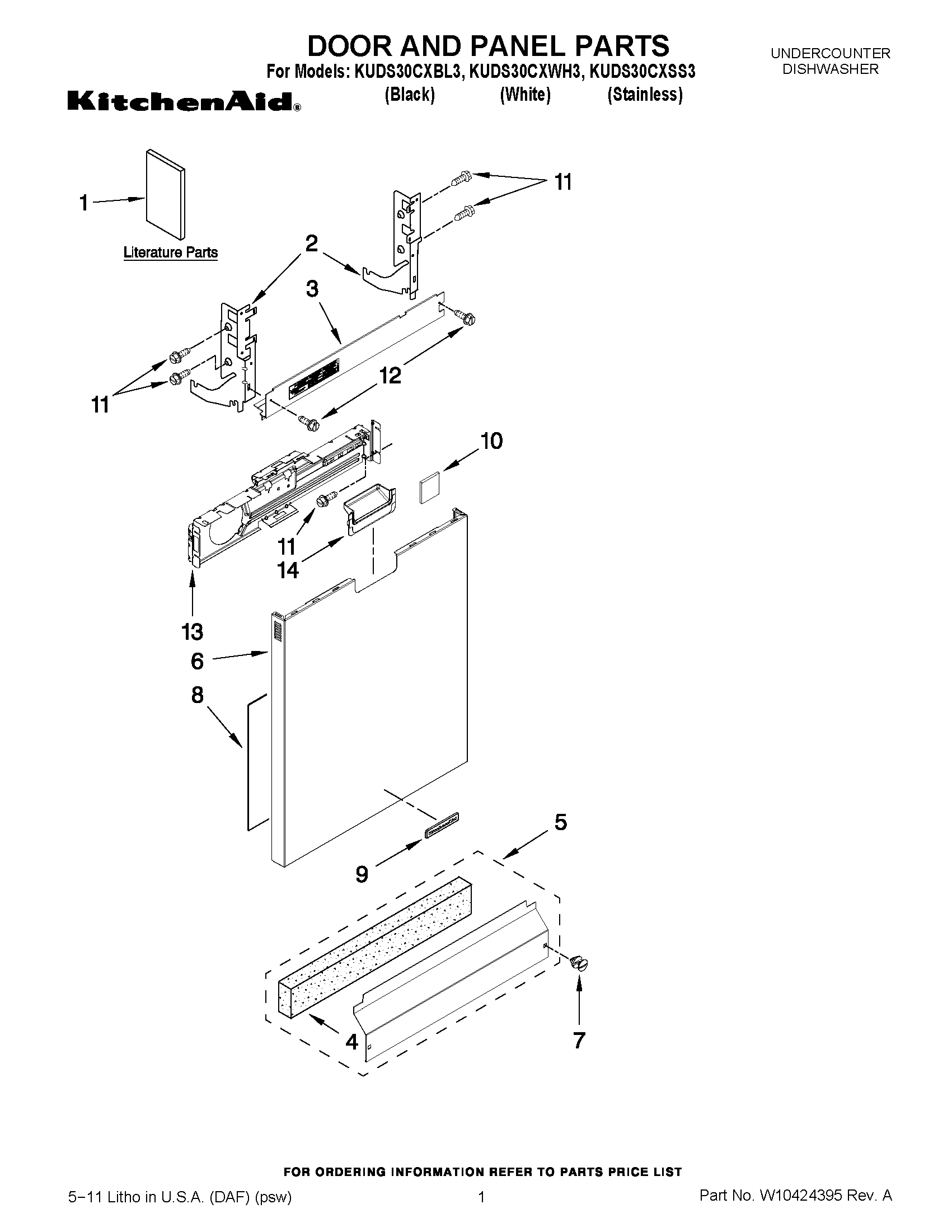

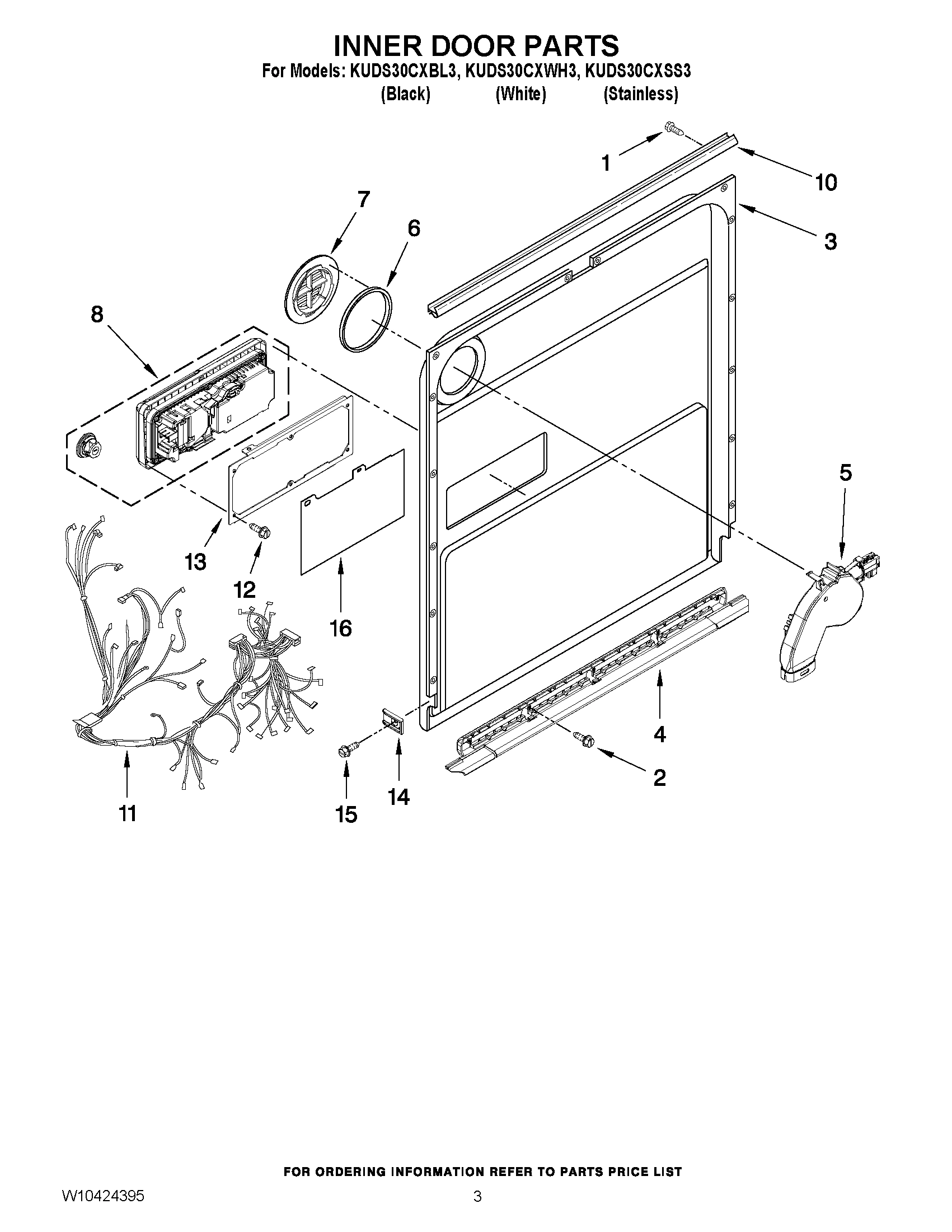

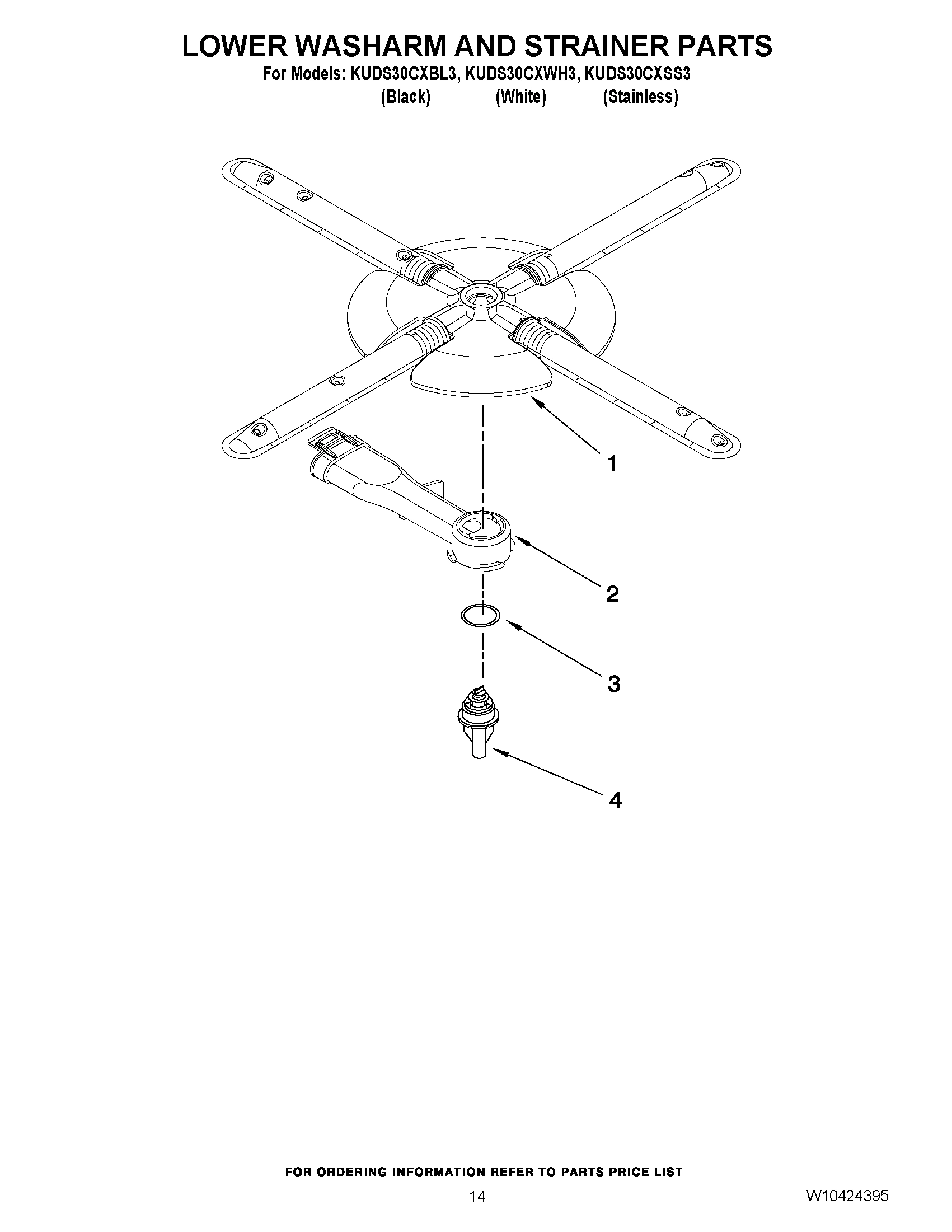

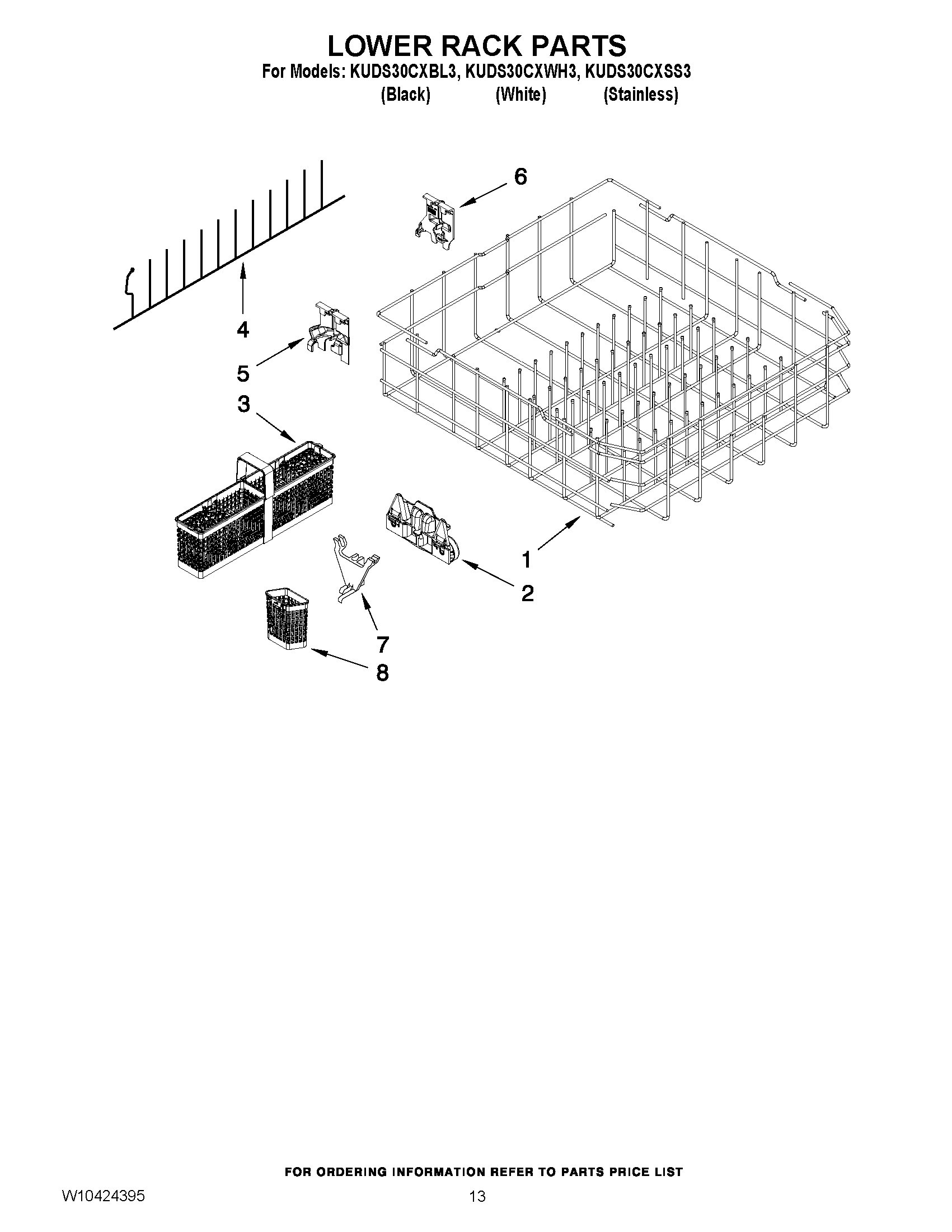

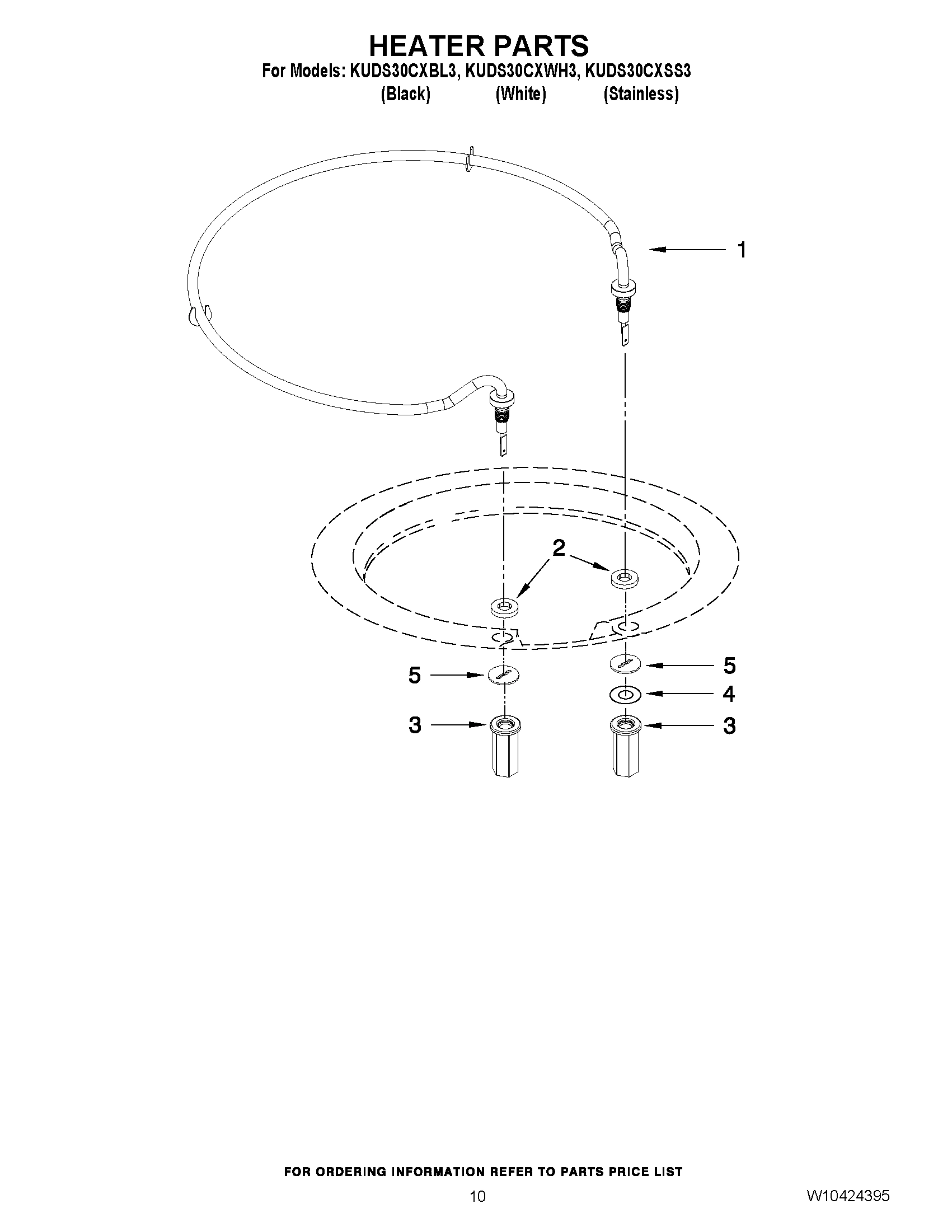

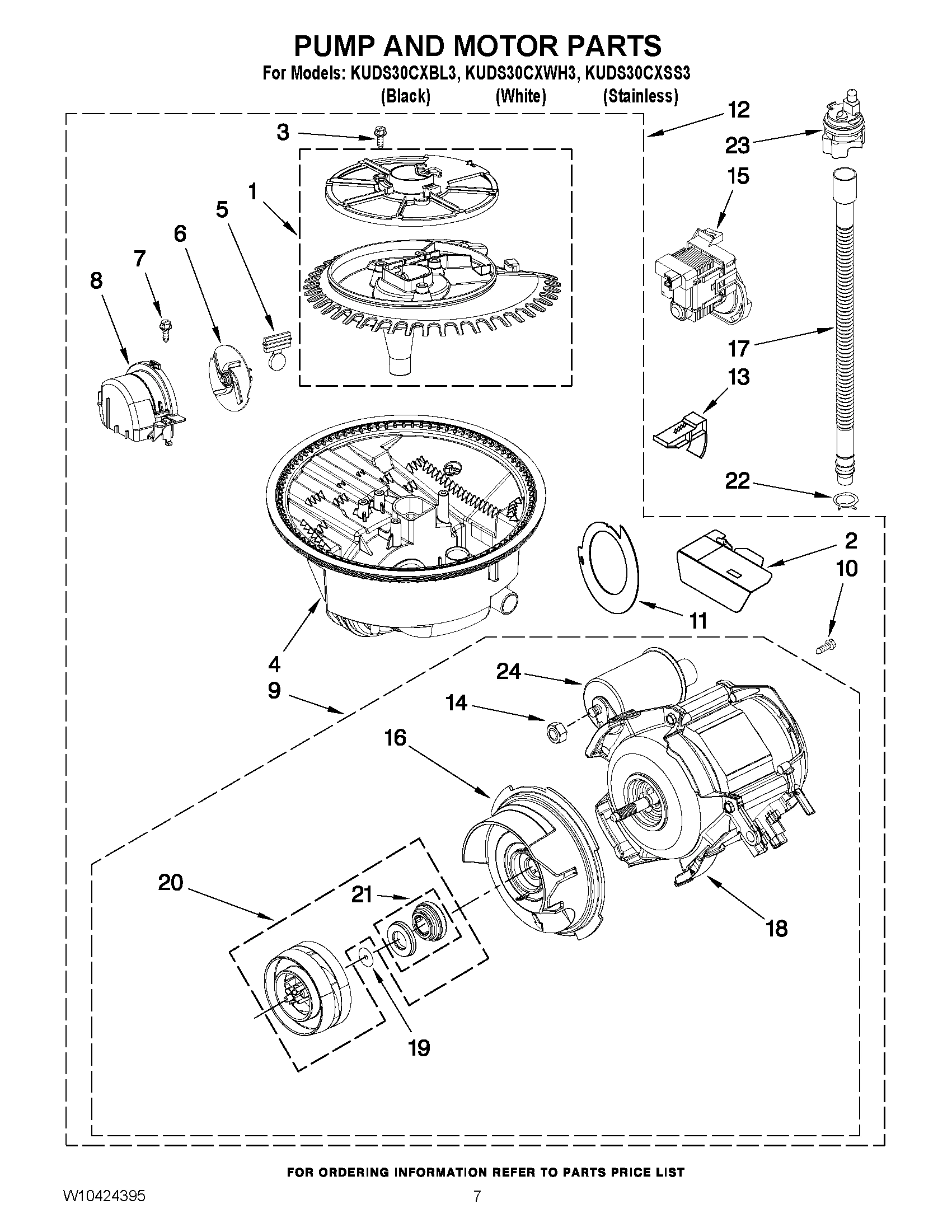

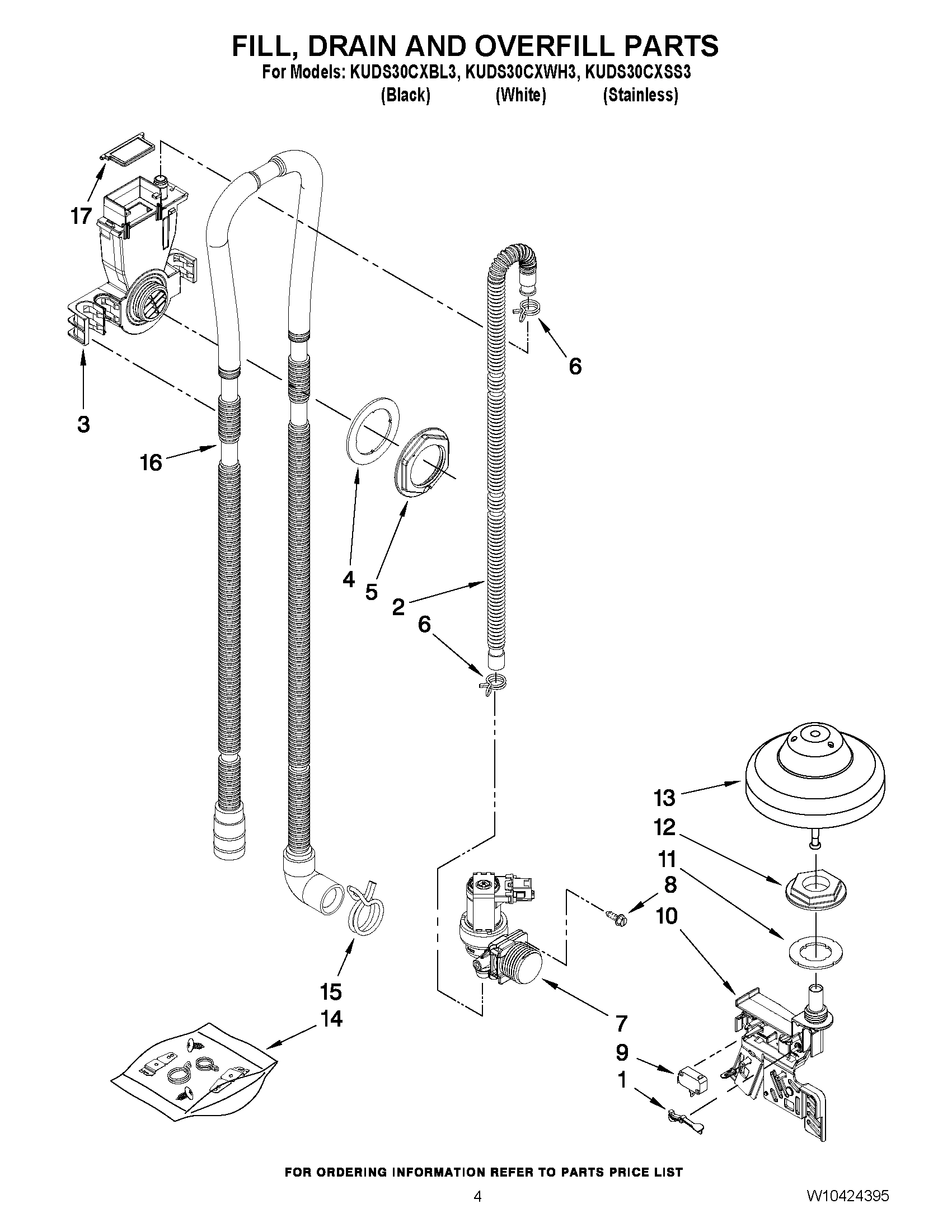

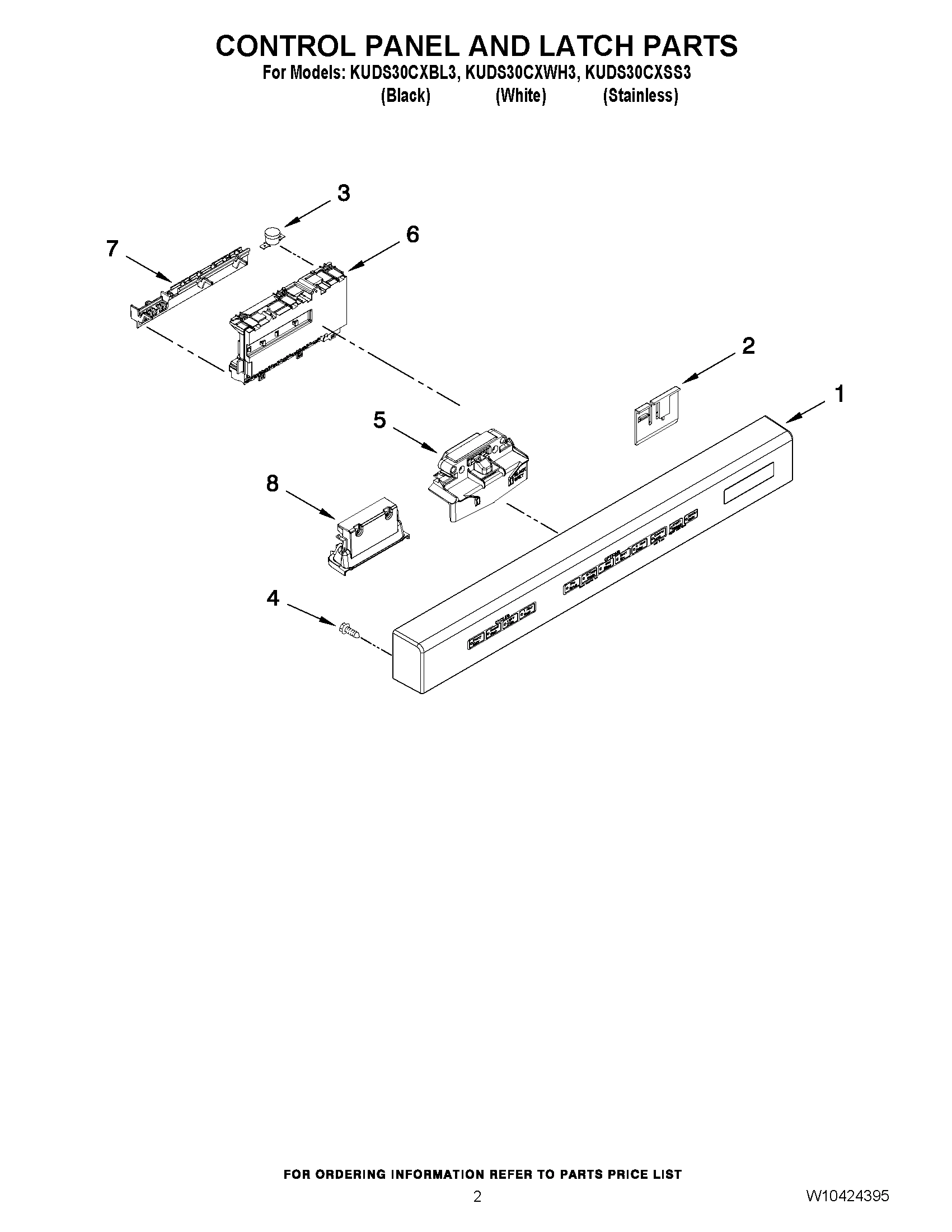

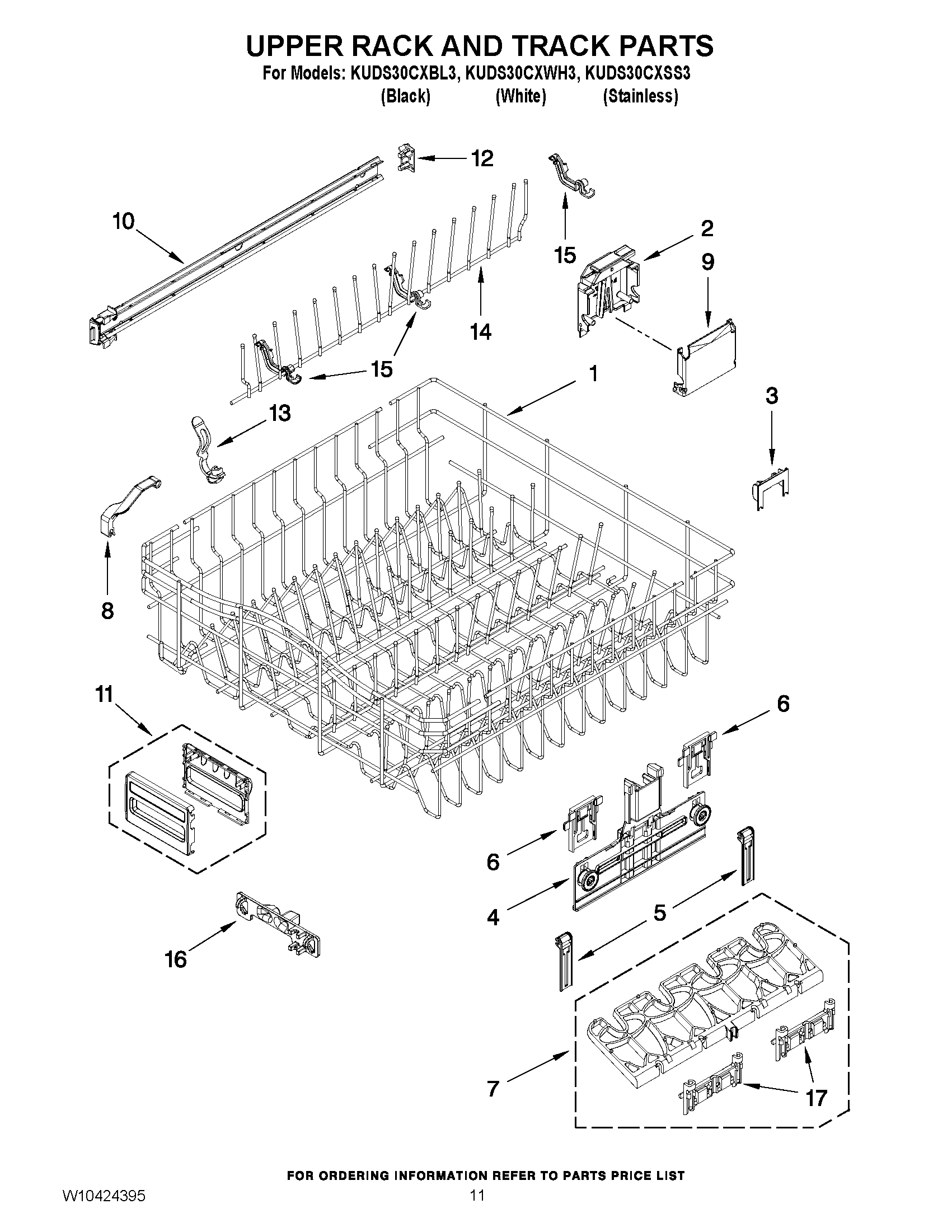

Model Whirlpool KUDS30CXWH3 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WPW10077859 Whirlpool Dishwasher Tube In Stock WPL WPW10077859 $77.80

1

WPW10195037 Whirlpool Lever Assembly In Stock WPL WPW10195037 $4.41

1

WPW10320510 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10320510 $85.56

2

W10195416V Whirlpool Dishwasher Roller Wheel In Stock WPL W10195416V $18.37

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11256107 Whirlpool Dishwasher Clip Backorder WPL W11256107 $10.76

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $10.41

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

WPW10077899 Whirlpool Dishwasher Cap In Stock WPL WPW10077899 $36.98

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

2

WPW10588164 Whirlpool Dishwasher Left Hand Ho In Stock WPL WPW10588164 $11.20

2

WPW10588165 Whirlpool Adjuster Housing In Stock WPL WPW10588165 $30.71

3

W10850371 Whirlpool Dishwasher Door Brace In Stock WPL W10850371 $13.63

3

W11177741 Whirlpool Dishwasher Door Gasket In Stock WPL W11177741 $38.77

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $3.46

3

WPW10250160 Whirlpool Clip In Stock WPL WPW10250160 $27.18

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $4.52

3

WATER INLET (ALSO ORDER ITEMS 4 & 17) WPL W10316375 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $6.44

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.87

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $118.74

4

WPW10077898 Whirlpool Dishwasher Arm Support Backorder WPL WPW10077898 $78.32

4

WPW10118464 Whirlpool Dishwasher Wash Arm Plu Backorder WPL WPW10118464 $4.43

4

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.33

4

Retainer, Spring WPL 3400931 Contact Us For Availability

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WPW10078215 Whirlpool Dishwasher Tine Row Com In Stock WPL WPW10078215 $4.52

5

WPW10082867 Whirlpool Dishwasher Mount Backorder WPL WPW10082867 $2.93

5

WPW10195839 Whirlpool Dishwasher Rack Adjuste In Stock WPL WPW10195839 $20.62

5

WPW10300779 Whirlpool Dishwasher Strike Backorder WPL WPW10300779 $35.52

5

WPW10343251 Whirlpool Dishwasher Shield Backorder WPL WPW10343251 $3.81

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

WPW10175279 Whirlpool Retainer In Stock WPL WPW10175279 $3.70

6

WPW10195532 Whirlpool Dishwasher Panel Backorder WPL WPW10195532 $148.97

6

WPW10195840 Whirlpool Dishwasher Adjuster Arm In Stock WPL WPW10195840 $27.76

6

WPW10323424 Whirlpool Manifold In Stock WPL WPW10323424 $43.27

6

WPW10380685 Whirlpool Dishwasher Electronic C In Stock WPL WPW10380685 $166.11

6

PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE) WPL W10195533 Contact Us For Availability

6

PANEL, FULL FRONT (INCLUDES 9 & 14) (STAINLES WPL W10195531 Contact Us For Availability

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $50.29

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.33

7

WPW10078227 Whirlpool Dishwasher Pivot Tine Backorder WPL WPW10078227 $7.14

7

WPW10082649 Whirlpool Dishwasher Cup Shelf In Stock WPL WPW10082649 $33.42

7

WPW10194937 Whirlpool Dishwasher Control Brac Backorder WPL WPW10194937 $11.09

7

WPW10195032 Whirlpool Dishwasher Deflector Backorder WPL WPW10195032 $28.97

7

Hanger WPL W10082832 Contact Us For Availability

8

W11032769 Whirlpool Dishwasher Dispenser In Stock WPL W11032769 $78.27

8

W11126003 Whirlpool Dishwasher Insulation Pad Backorder WPL W11126003 $30.98

8

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

8

WPW10195718 Whirlpool Dishwasher Handle In Stock WPL WPW10195718 $47.85

8

WPW10267076 Whirlpool Guard Clip In Stock WPL WPW10267076 $12.00

8

HANDLE (WHITE) WPL W10195833 Contact Us For Availability

8

HANDLE (STAINLESS) WPL W10195835 Contact Us For Availability

9

WPW10082831 Whirlpool Dishwasher Probe In Stock WPL WPW10082831 $17.33

9

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $13.34

9

WPW10195039 Whirlpool Dishwasher Float Switch In Stock WPL WPW10195039 $38.71

9

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

9

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

9

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

9

WPW10250162 Whirlpool Dishwasher Rack Adjuste In Stock WPL WPW10250162 $4.52

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

W10873429 Whirlpool Housing In Stock WPL W10873429 $13.38

WPW10082841 Whirlpool Spray Arm In Stock WPL WPW10082841 $29.21

WPW10195007 Whirlpool Dishwasher Seal In Stock WPL WPW10195007 $60.89

BLOCK, FOAM WPL W10354790 Contact Us For Availability

W10084567 Whirlpool Dishwasher Screen Backorder WPL W10084567 $30.25

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $6.27

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

WPW10077600 Whirlpool Dishwasher Manifold In Stock WPL WPW10077600 $48.01

WIRING HARNESS WPL W10330845 Contact Us For Availability

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $3.33

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $4.45

WPW10195038 Whirlpool Dishwasher Nut In Stock WPL WPW10195038 $4.52

WPW10195622 Whirlpool Stop In Stock WPL WPW10195622 $5.56

Valve Assembly, Manifold WPL W10077903 Contact Us For Availability

W11116870 Whirlpool Dishwasher Control Bracke Backorder WPL W11116870 $30.95

WPW10077844 Whirlpool Dishwasher Clip In Stock WPL WPW10077844 $5.56

WPW10195036 Whirlpool Dishwasher Float In Stock WPL WPW10195036 $32.28

WPW10300599 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10300599 $31.92

W10195837 Whirlpool Dishwasher Barrier Backorder WPL W10195837 $10.47

WPW10292152 Whirlpool Hardware Kit In Stock WPL WPW10292152 $18.21

WPW10348411 Whirlpool Roller Wheel Screw In Stock WPL WPW10348411 $4.50

POCKET ASSEMBLY (BLACK) WPL W10195653 Contact Us For Availability

POCKET ASSEMBLY (WHITE) WPL W10195654 Contact Us For Availability

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $3.33

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $5.54

WPW10082853 Whirlpool Dishwasher Tine Pivot C In Stock WPL WPW10082853 $4.21

WPW10348269 Whirlpool Dishwasher Drain Pump In Stock WPL WPW10348269 $60.46

16

W10385977 Whirlpool Dishwasher Cover Assembly Backorder WPL W10385977 $10.60

16

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $9.02

16

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $43.85

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.37

W10316376 Whirlpool Dishwasher Float Check Backorder WPL W10316376 $10.76

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

WPW10082848 Whirlpool Clip In Stock WPL WPW10082848 $2.51

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $13.60

18

WPW10239401 Whirlpool Dishwasher Pump Motor Backorder WPL WPW10239401 $184.08

19

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

19

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

20

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

22

W10292870 Whirlpool Dishwasher Housing Backorder WPL W10292870 $10.76

22

WP8269146 Whirlpool Dishwasher Clamp Backorder WPL WP8269146 $3.70

24

W10877094 Whirlpool Shield In Stock WPL W10877094 $84.53

24

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $72.33

26

WPW10195091 Whirlpool Thermostat In Stock WPL WPW10195091 $31.52

27

W10195630 Whirlpool Dishwasher Spacer Backorder WPL W10195630 $6.39

27

W10195631 Whirlpool Dishwasher Tank Spacer Backorder WPL W10195631 $6.35

29

WP8572661 Whirlpool Dishwasher Actuator Backorder WPL WP8572661 $56.85

30

Motor, Wax WPL W10082769 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $29.65

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $14.48

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $10.80

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $17.29

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $11.09

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $16.60

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $16.25

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability
