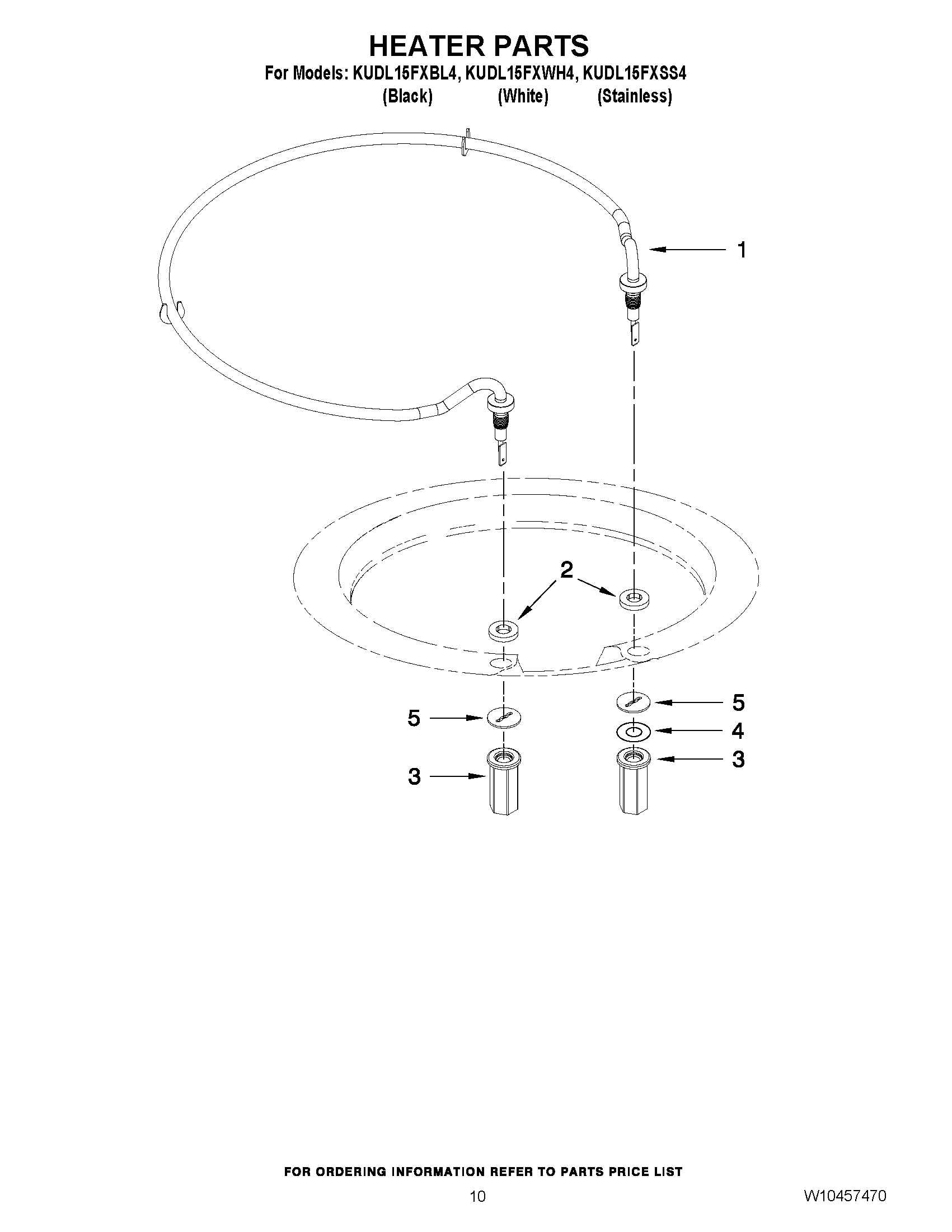

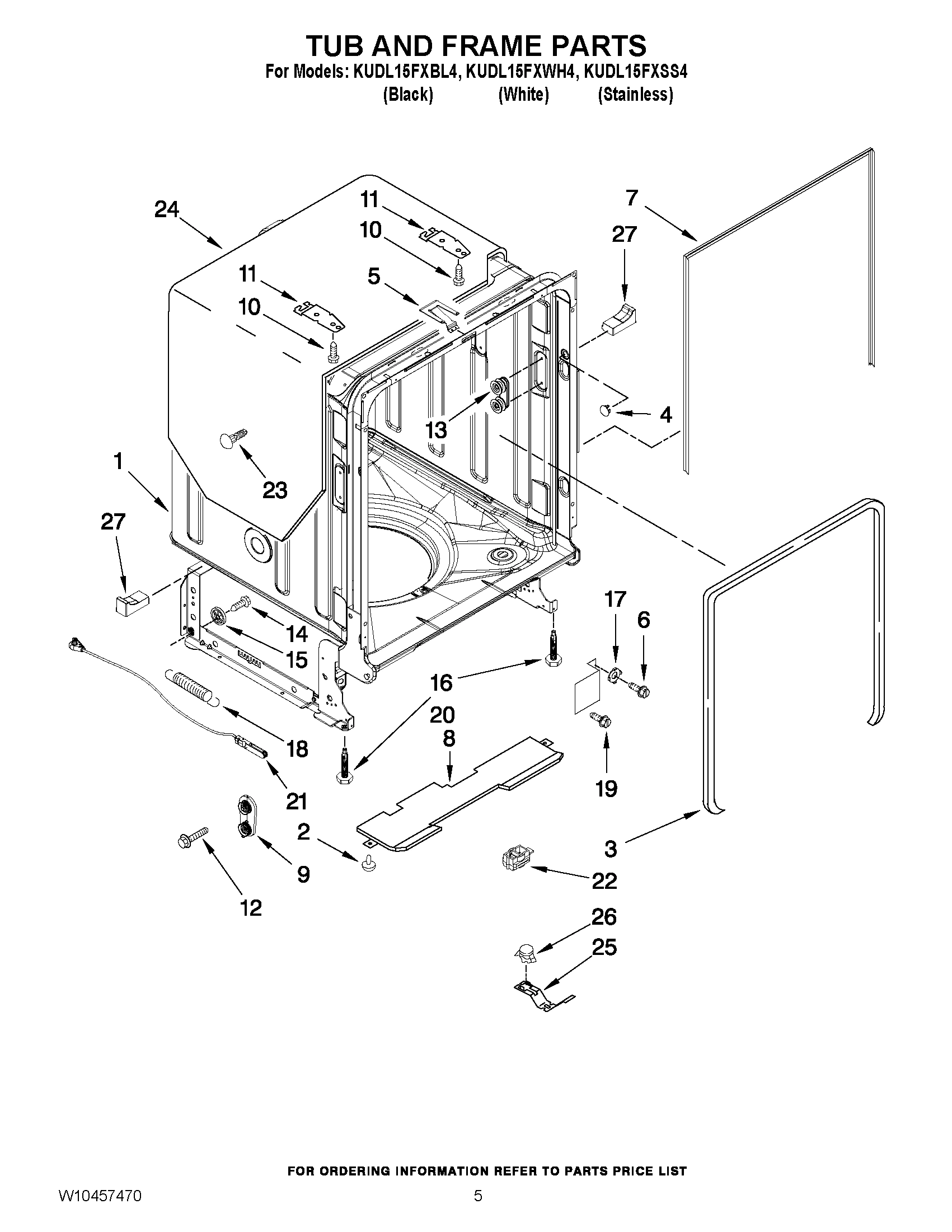

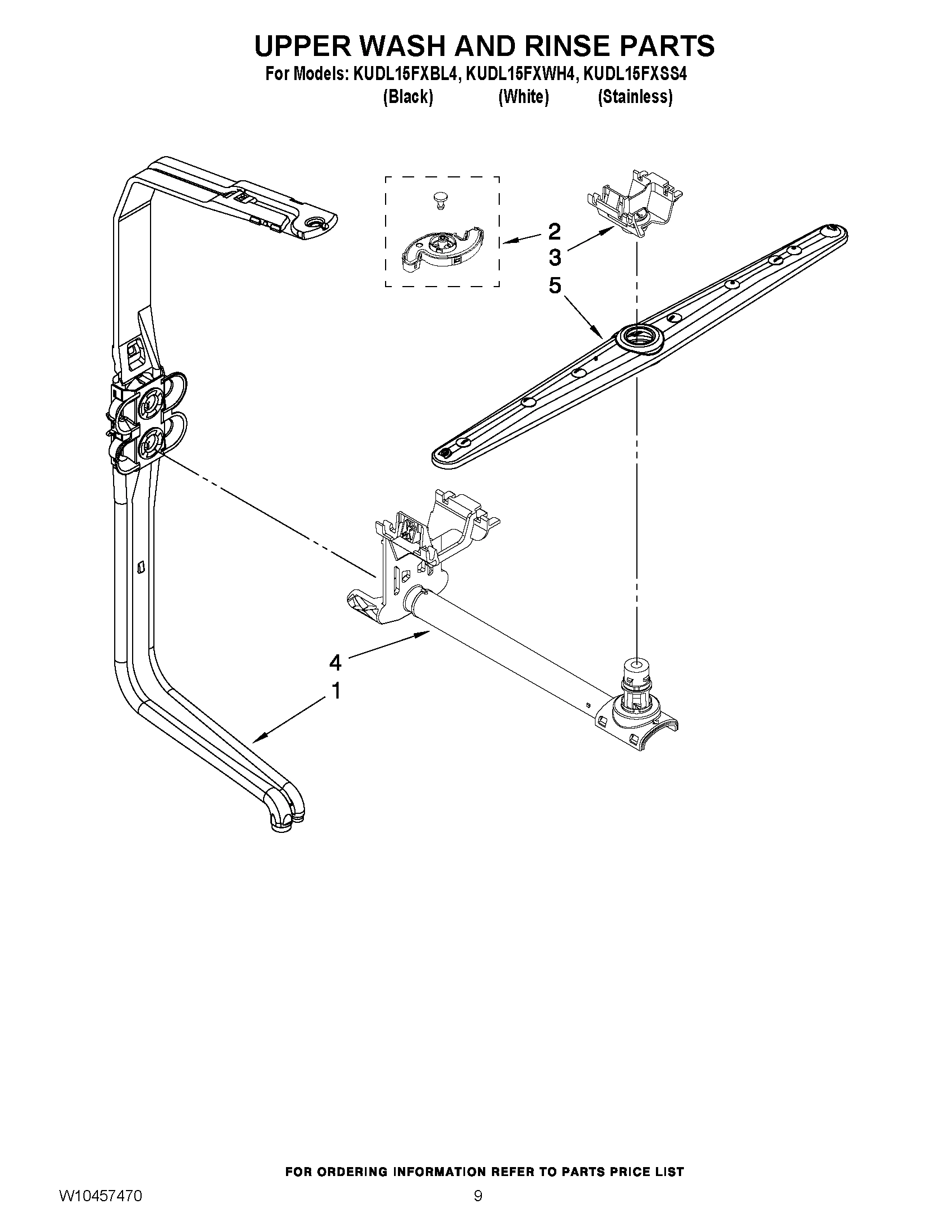

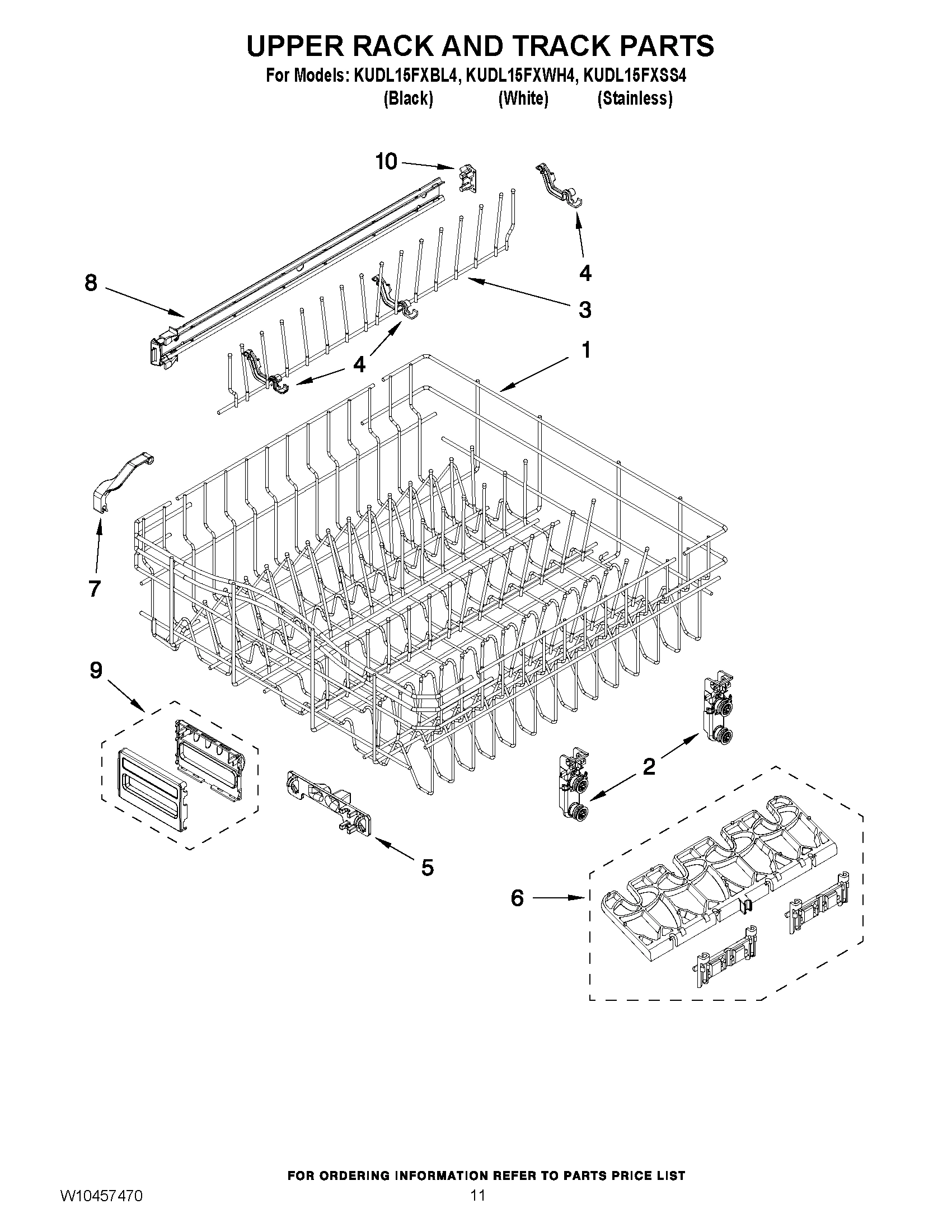

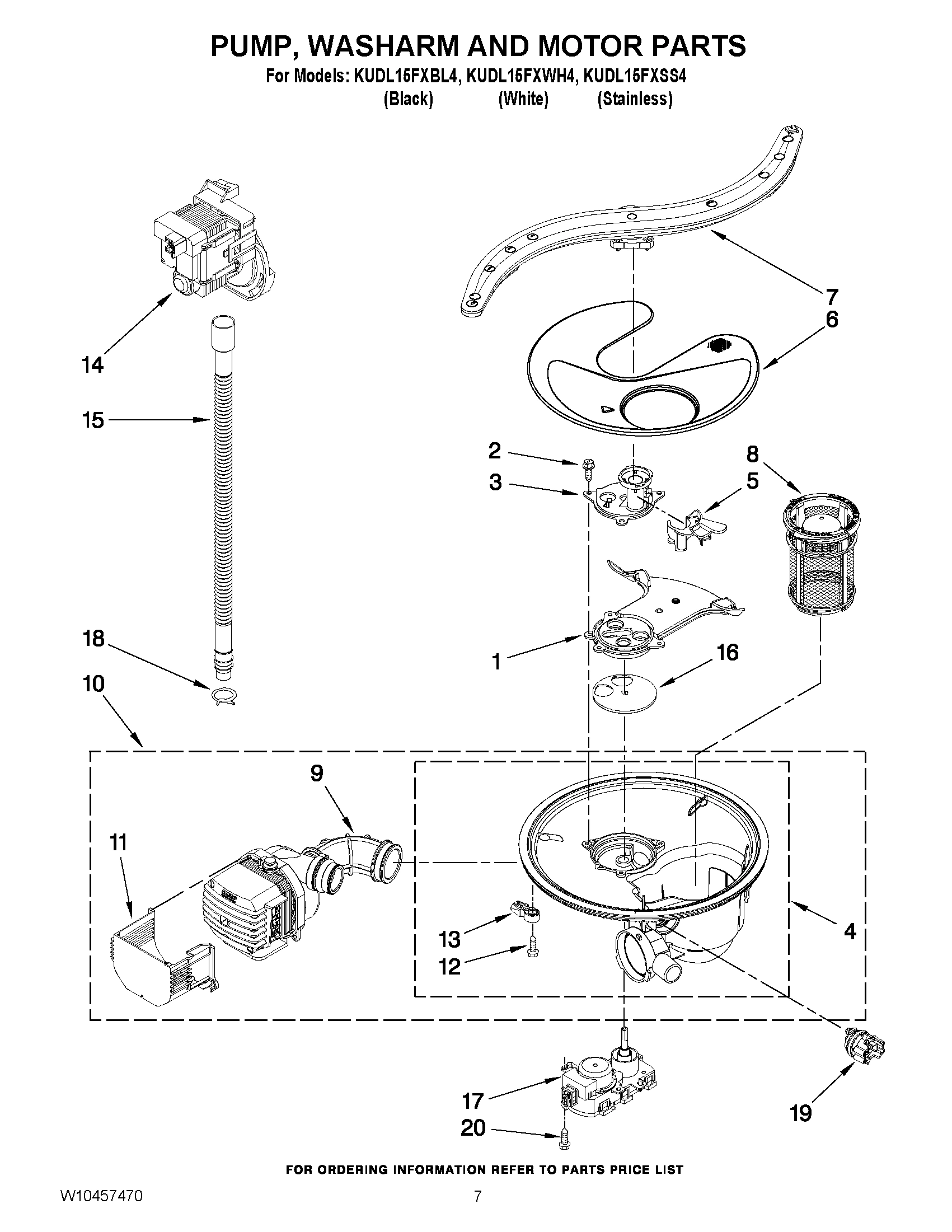

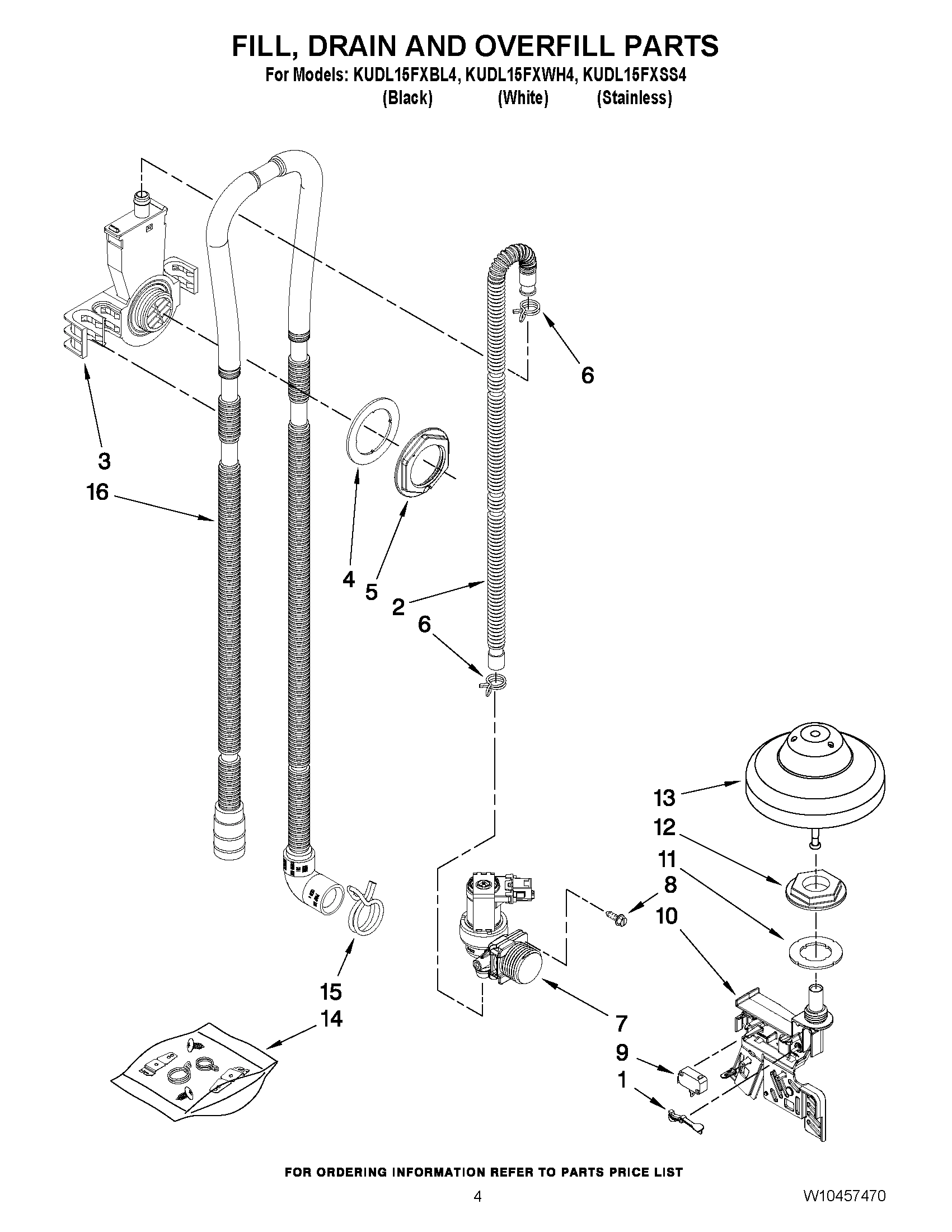

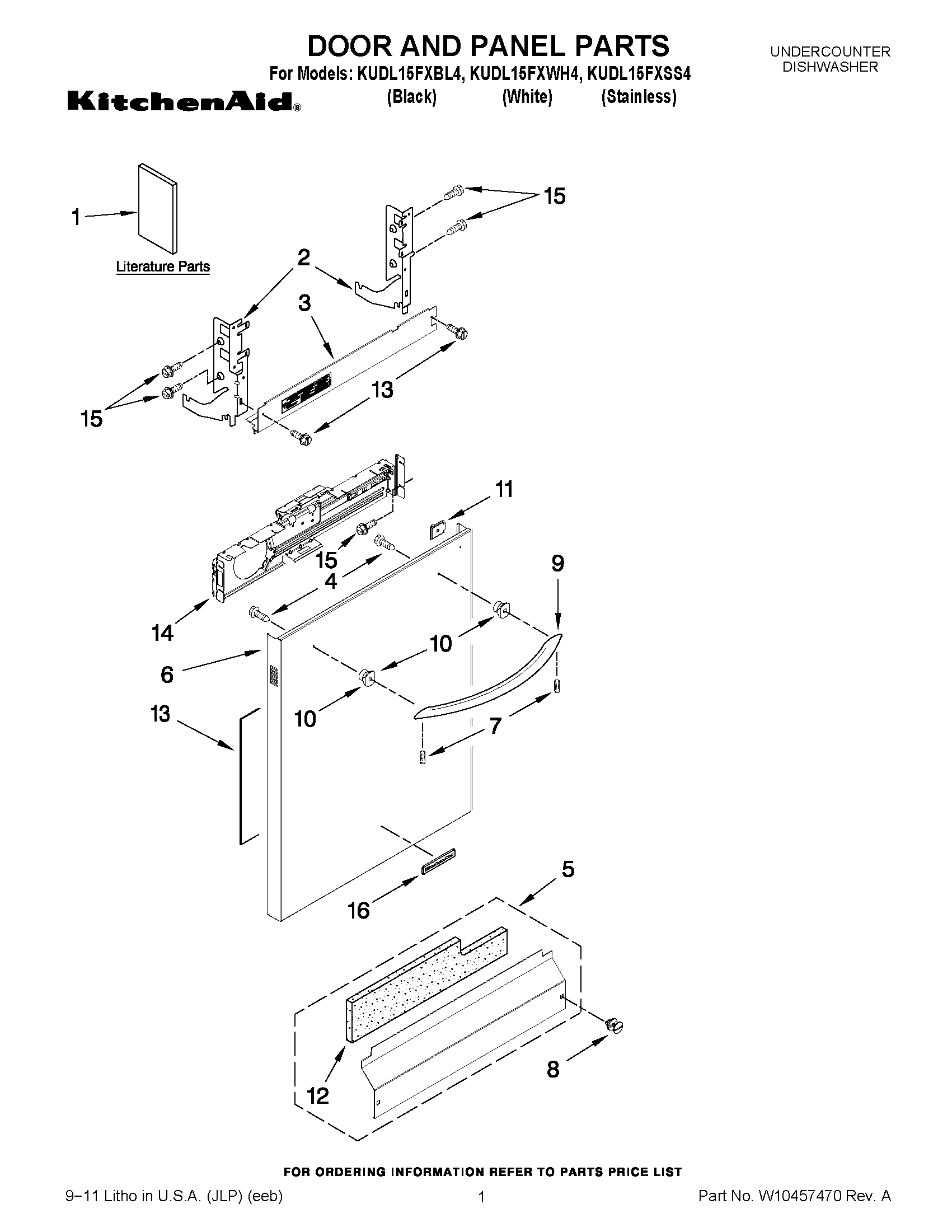

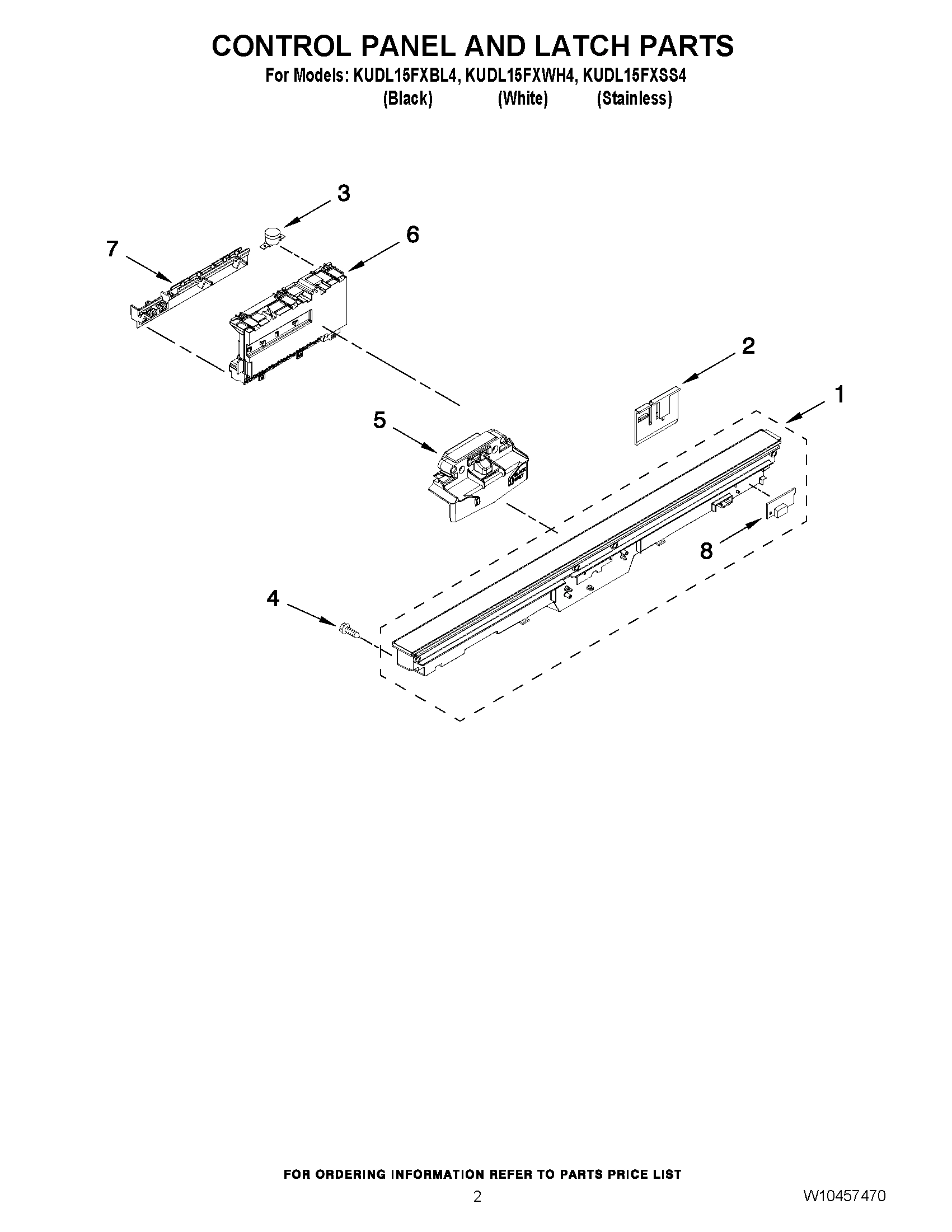

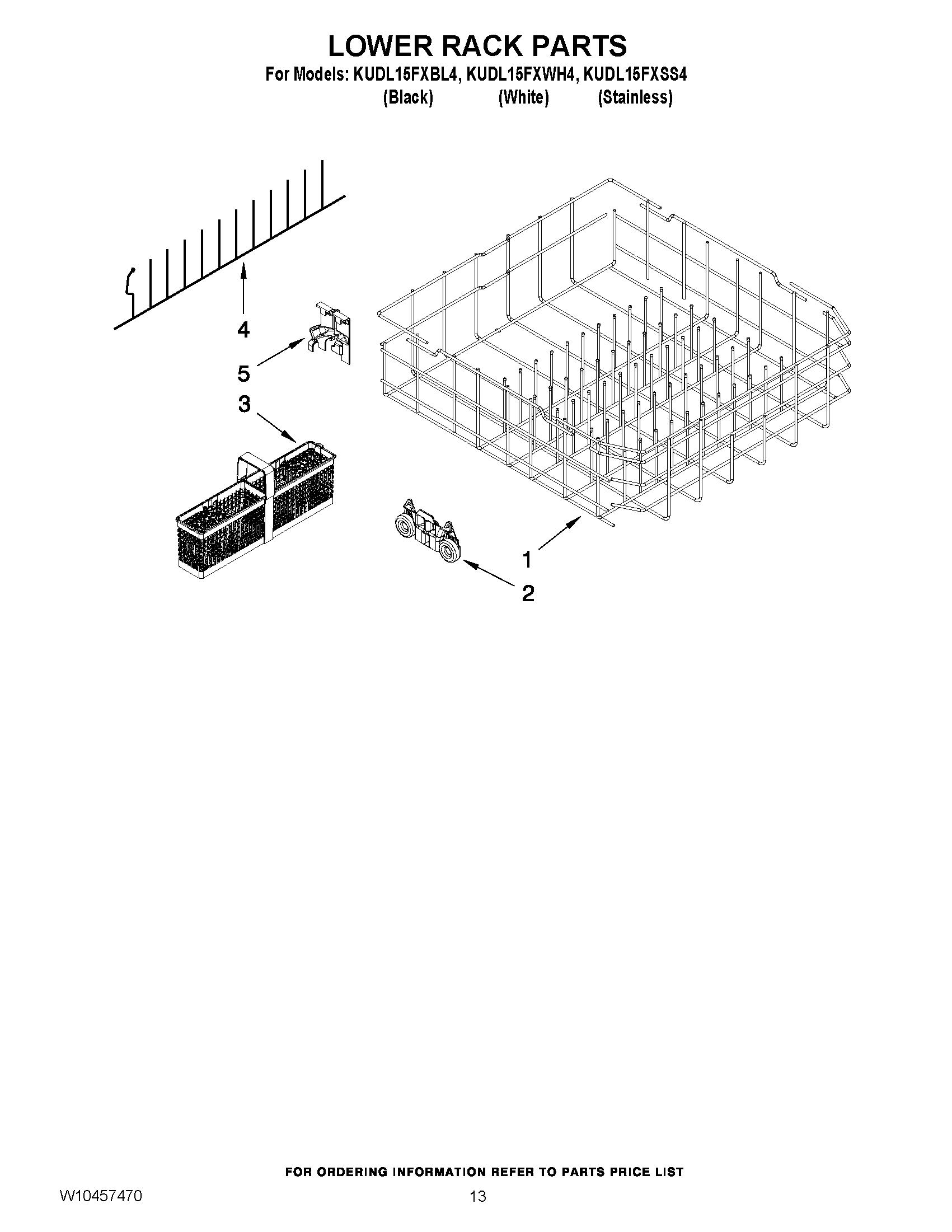

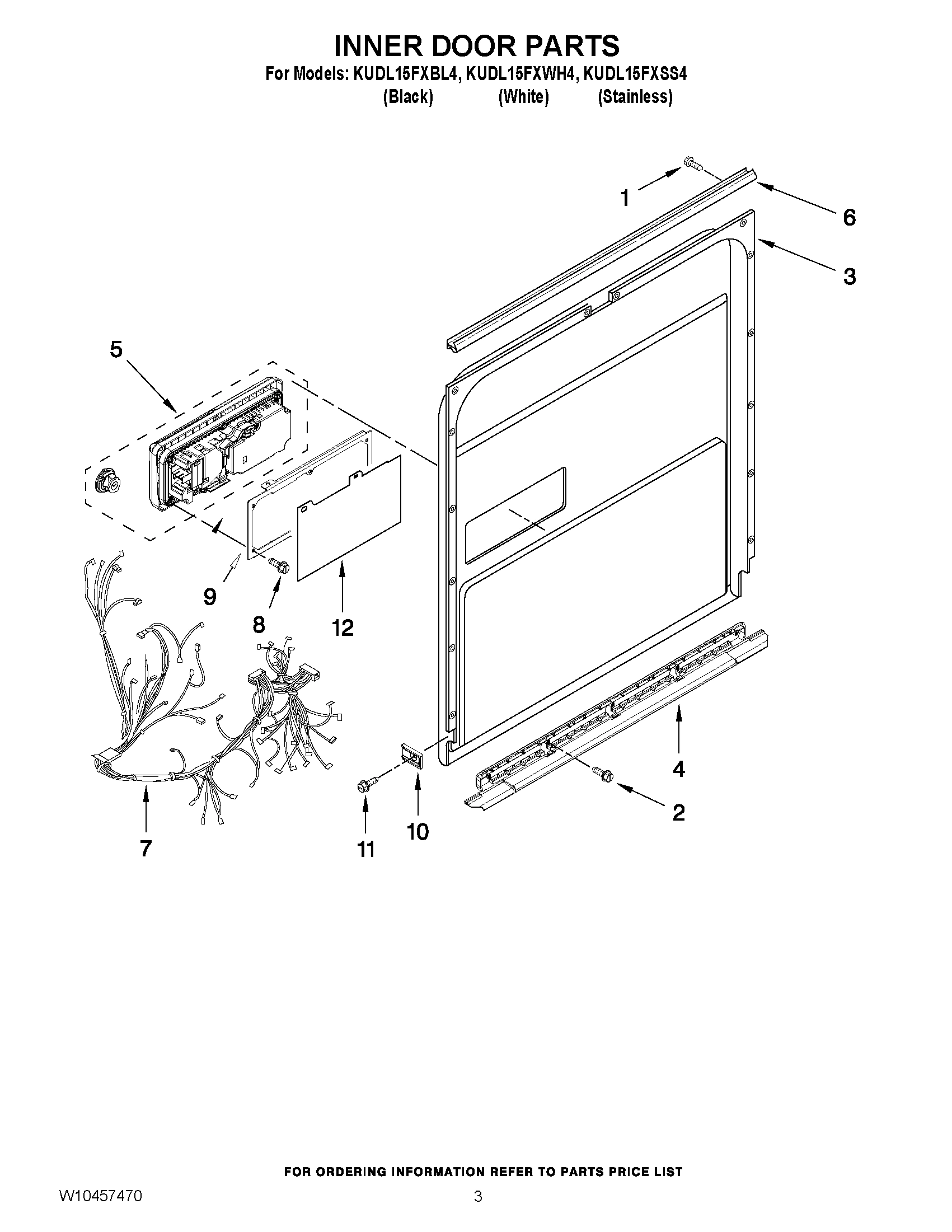

Model Whirlpool KUDL15FXBL4 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WPW10195037 Whirlpool Lever Assembly In Stock WPL WPW10195037 $3.59

1

Cover, Sieve WPL 8579241 Contact Us For Availability

2

W10195416V Whirlpool Dishwasher Roller Wheel In Stock WPL W10195416V $16.71

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

W11256107 Whirlpool Dishwasher Clip Backorder WPL W11256107 $10.76

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $61.92

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $61.92

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

3

W10850371 Whirlpool Dishwasher Door Brace In Stock WPL W10850371 $12.81

3

W11177741 Whirlpool Dishwasher Door Gasket In Stock WPL W11177741 $36.57

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $51.46

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

COVER, OUTLET WPL W10324447 Contact Us For Availability

3

MOUNT WPL 8579242 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $5.34

4

W10826179 Whirlpool Dishwasher Screw In Stock WPL W10826179 $2.51

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WPW10082853 Whirlpool Dishwasher Tine Pivot C In Stock WPL WPW10082853 $3.39

4

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

4

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

W10827631 Whirlpool Toe Panel In Stock WPL W10827631 $70.17

5

W10827632 Whirlpool Dishwasher Control Panel Backorder WPL W10827632 $72.82

5

W11032769 Whirlpool Dishwasher Dispenser In Stock WPL W11032769 $78.27

5

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $40.97

5

WPW10078215 Whirlpool Dishwasher Tine Row Com In Stock WPL WPW10078215 $3.70

5

WPW10300779 Whirlpool Dishwasher Strike Backorder WPL WPW10300779 $33.84

5

WPW10343251 Whirlpool Dishwasher Shield Backorder WPL WPW10343251 $3.81

5

SPRAYARM WPL W10324452 Contact Us For Availability

5

Retainer, Feed Tube WPL 8579298 Contact Us For Availability

6

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

6

WP8579253 Whirlpool Screen Filter Backorder WPL WP8579253 $55.19

6

WPW10082649 Whirlpool Dishwasher Cup Shelf Backorder WPL WPW10082649 $31.82

6

WPW10195007 Whirlpool Dishwasher Seal Backorder WPL WPW10195007 $57.21

6

WPW10195870 Whirlpool Door Outer Panel Backorder WPL WPW10195870 $186.91

6

WPW10195872 Whirlpool Dishwasher Panel Backorder WPL WPW10195872 $183.04

6

WPW10195873 Whirlpool Dishwasher Panel Backorder WPL WPW10195873 $146.35

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $47.10

7

WPW10194937 Whirlpool Dishwasher Control Brac Backorder WPL WPW10194937 $11.09

7

WPW10267076 Whirlpool Guard Clip In Stock WPL WPW10267076 $11.18

7

WPW10307614 Whirlpool Dishwasher Screw Backorder WPL WPW10307614 $2.51

7

WPW10491331 Whirlpool Dishwasher Lower Spray In Stock WPL WPW10491331 $24.76

8

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.46

8

WPW10195836 Whirlpool Dishwasher Indicator Li Backorder WPL WPW10195836 $29.24

9

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $13.34

9

WPW10195039 Whirlpool Dishwasher Float Switch In Stock WPL WPW10195039 $28.16

W10195837 Whirlpool Dishwasher Barrier Backorder WPL W10195837 $10.47

W10873429 Whirlpool Housing In Stock WPL W10873429 $11.95

W11157086 Whirlpool Dishwasher Door Handle St In Stock WPL W11157086 $29.59

WPW10195622 Whirlpool Stop In Stock WPL WPW10195622 $4.74

WPW10418332 Whirlpool Dishwasher Pump and Mot In Stock WPL WPW10418332 $171.21

11

W10319007 Whirlpool Dishwasher Indicator Ligh Backorder WPL W10319007 $25.40

11

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

11

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $21.28

W10385977 Whirlpool Dishwasher Cover Assembly Backorder WPL W10385977 $10.60

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WPW10195038 Whirlpool Dishwasher Nut In Stock WPL WPW10195038 $3.70

WPW10348407 Whirlpool Dishwasher Screw Backorder WPL WPW10348407 $3.70

13

W11126003 Whirlpool Dishwasher Insulation Pad Backorder WPL W11126003 $29.50

13

WPW10195036 Whirlpool Dishwasher Float In Stock WPL WPW10195036 $29.96

13

WPW10372113 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10372113 $10.21

14

W11116870 Whirlpool Dishwasher Control Bracke Backorder WPL W11116870 $29.46

14

WPW10292152 Whirlpool Hardware Kit In Stock WPL WPW10292152 $17.39

14

WPW10348411 Whirlpool Roller Wheel Screw In Stock WPL WPW10348411 $3.68

15

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

15

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

Disc-Valve Diverter WPL 8579251 Contact Us For Availability

17

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

18

WP8269146 Whirlpool Dishwasher Clamp Backorder WPL WP8269146 $3.70

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.17

19

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

20

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

22

W10292870 Whirlpool Dishwasher Housing Backorder WPL W10292870 $10.76

24

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

25

W10300703 Whirlpool Dishwasher Bracket Stat Backorder WPL W10300703 $7.37

27

W10195630 Whirlpool Dishwasher Spacer Backorder WPL W10195630 $6.39

27

W10195631 Whirlpool Dishwasher Tank Spacer Backorder WPL W10195631 $6.35

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $12.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $12.99

W10195735A Whirlpool Dishwasher Door Handle B Backorder WPL W10195735A $28.26

W10195736A Whirlpool Dishwasher Handle Backorder WPL W10195736A $25.69

W10195738A Whirlpool Stainless Steel Door Han Backorder WPL W10195738A $25.97

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability
