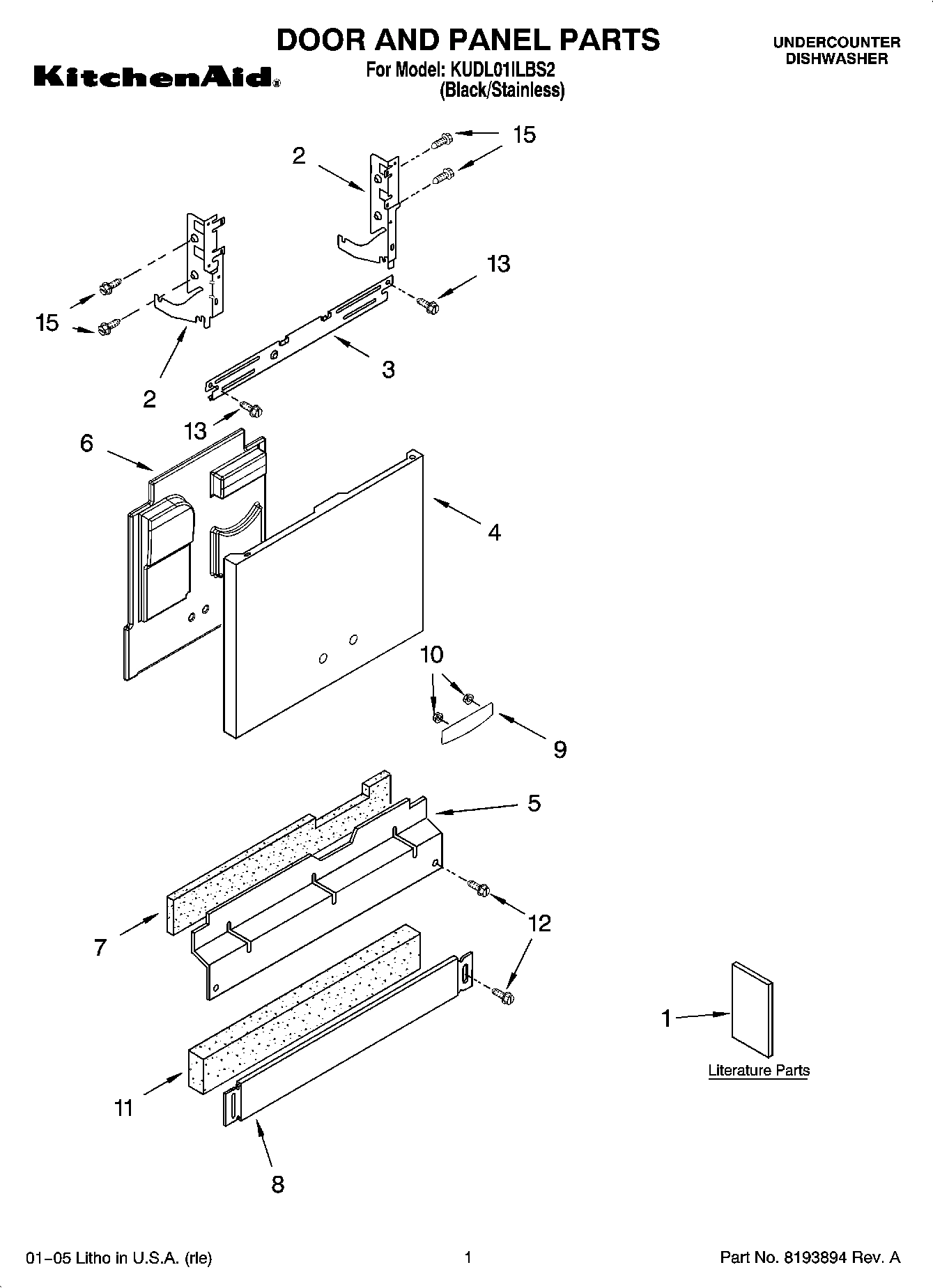

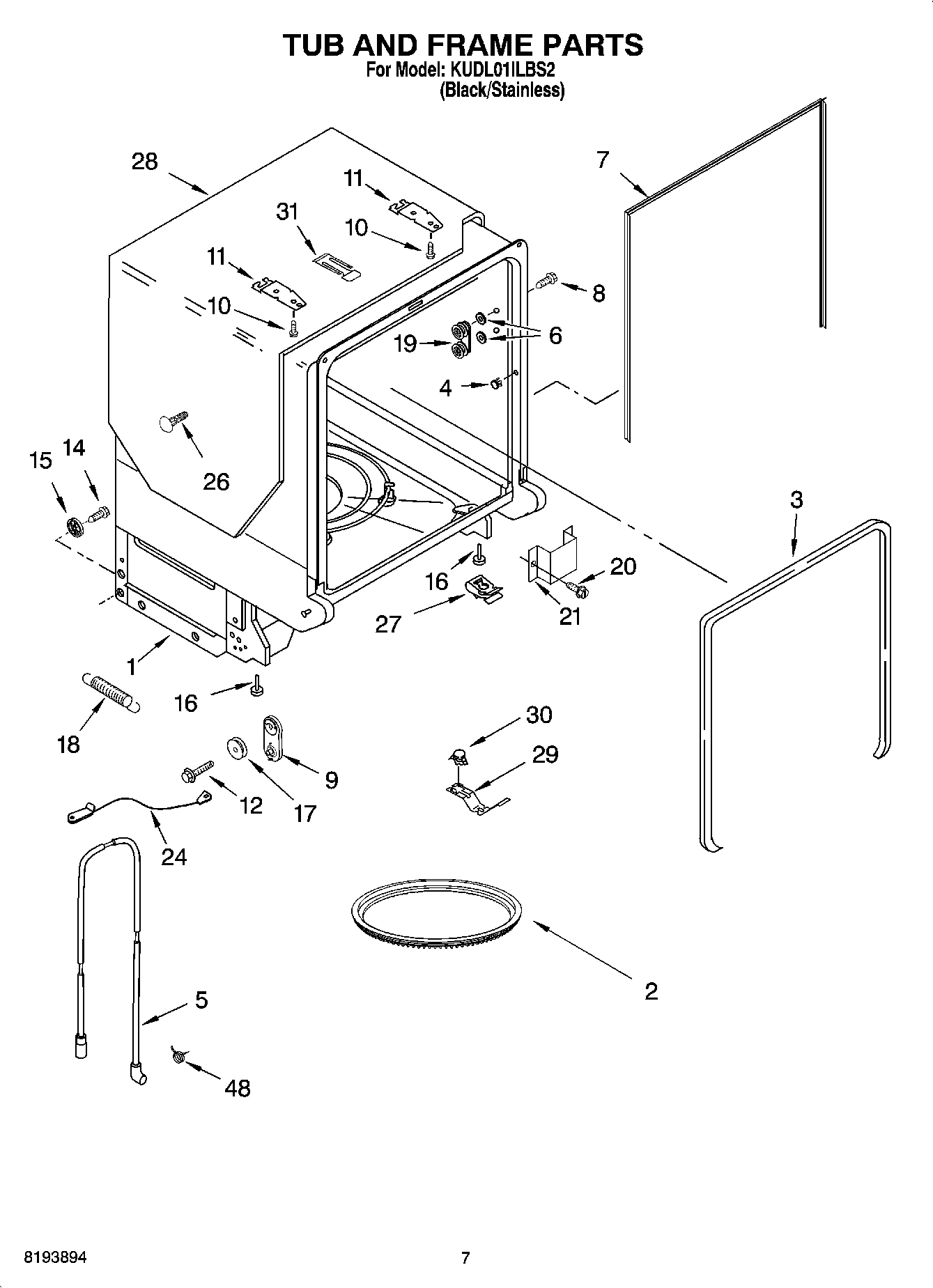

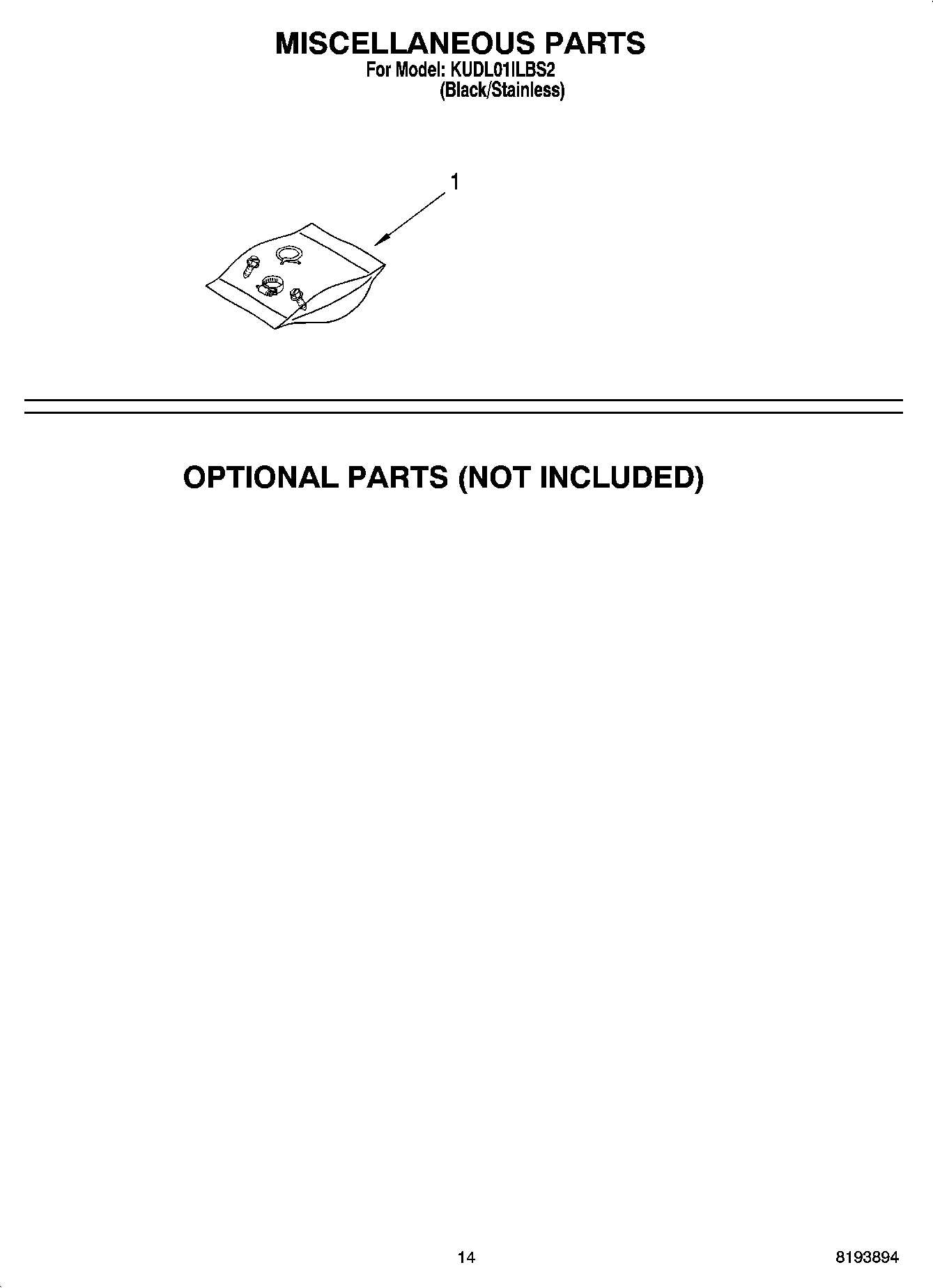

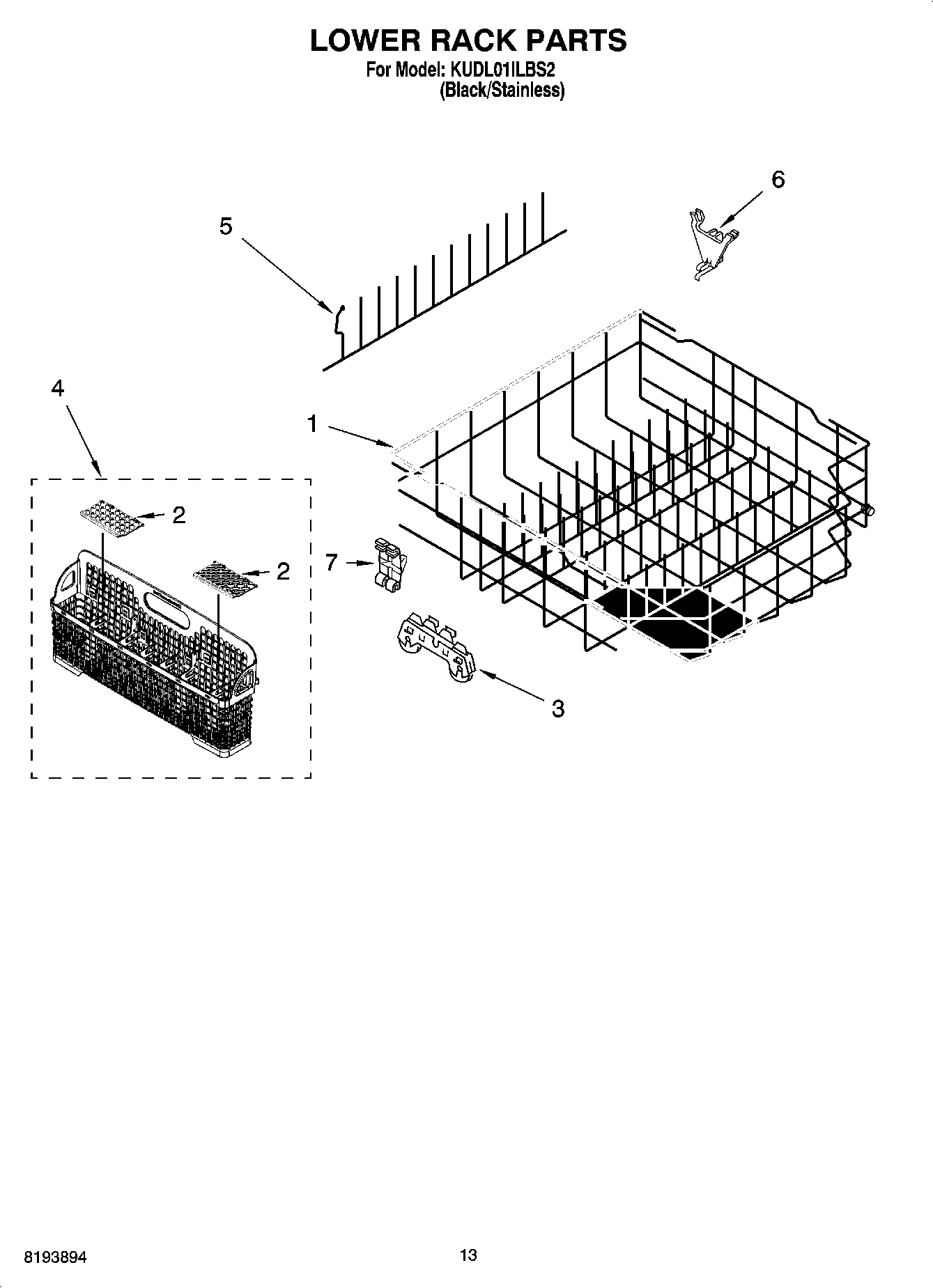

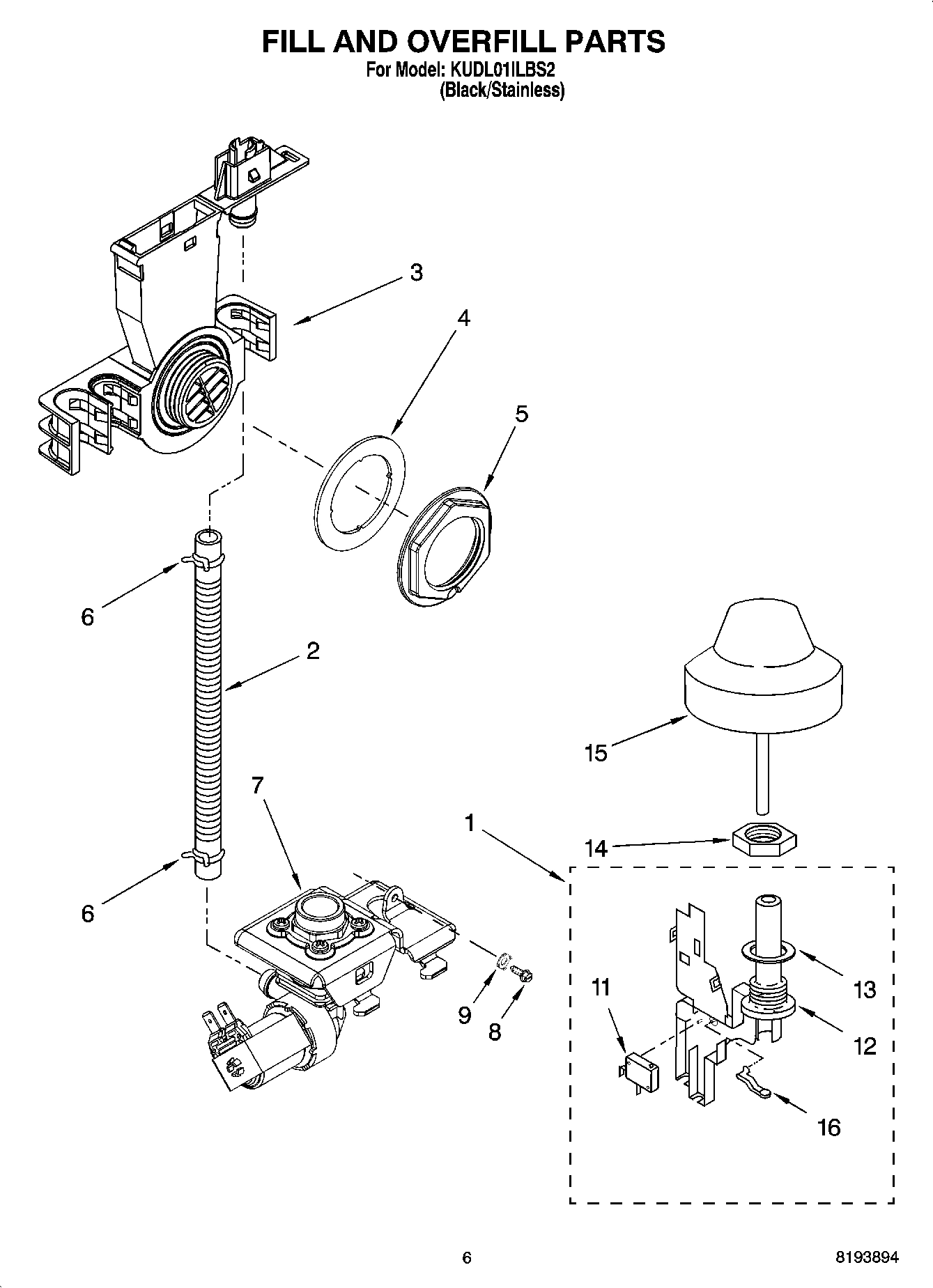

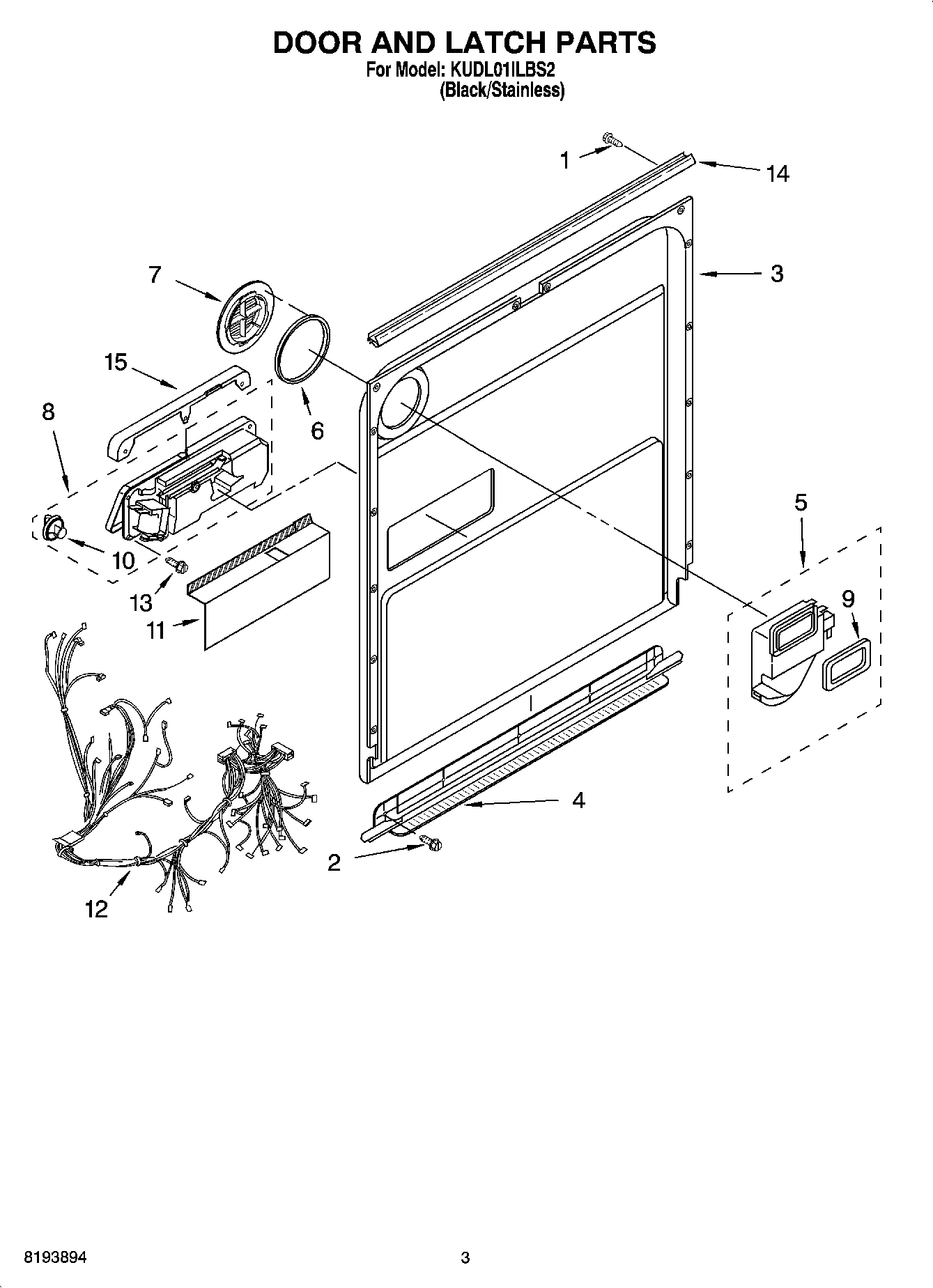

Model Whirlpool KUDL01ILBS2 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $10.80

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

1

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $17.29

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

1

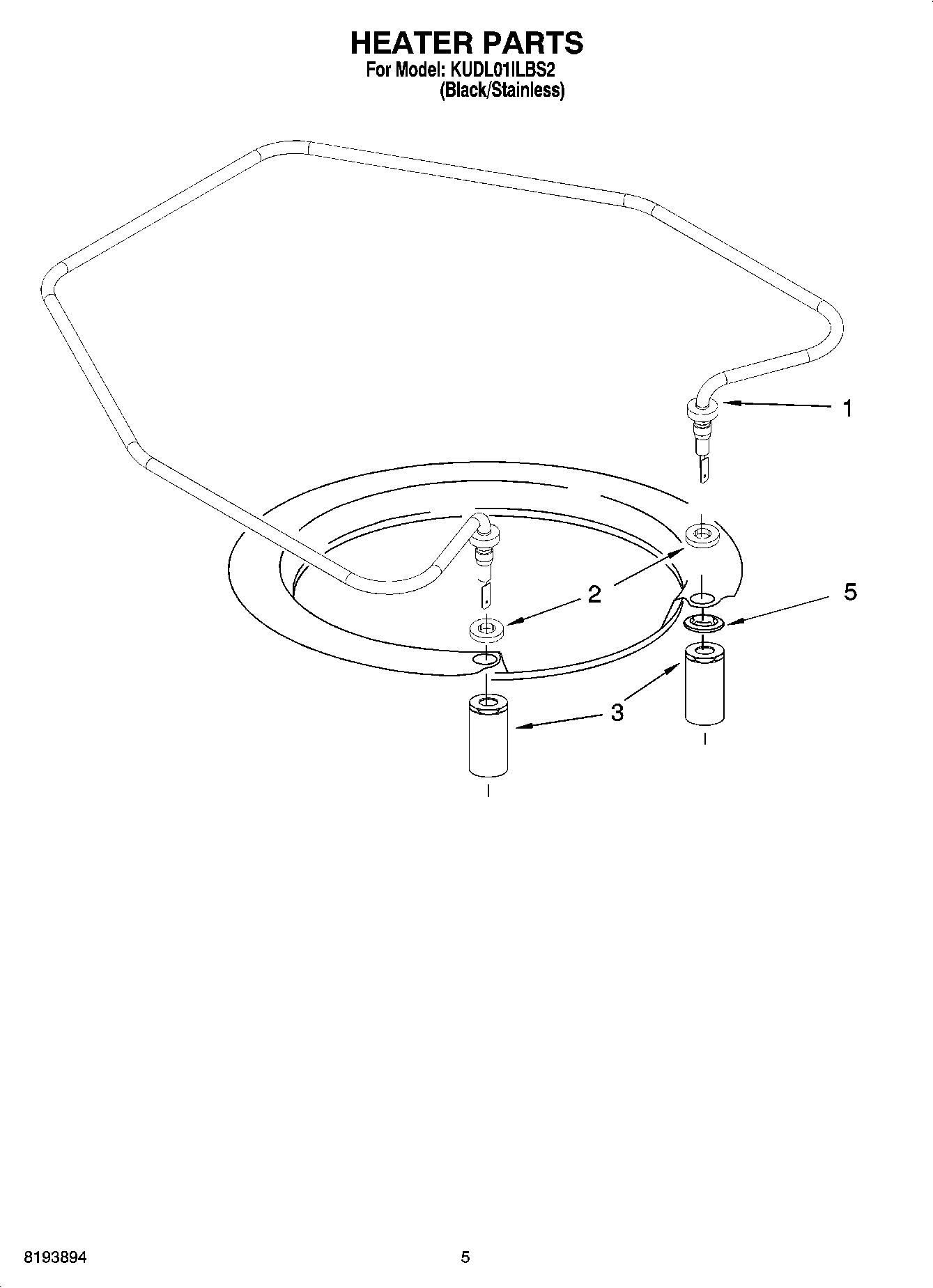

Heater Element Assembly (Includes Item 2 & El WPL 8194200 Contact Us For Availability

1

Si WPL 8171659 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

1

Feed Tube Assembly (Also Includes Item 3) WPL 8539065 Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $30.89

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $10.41

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $33.75

2

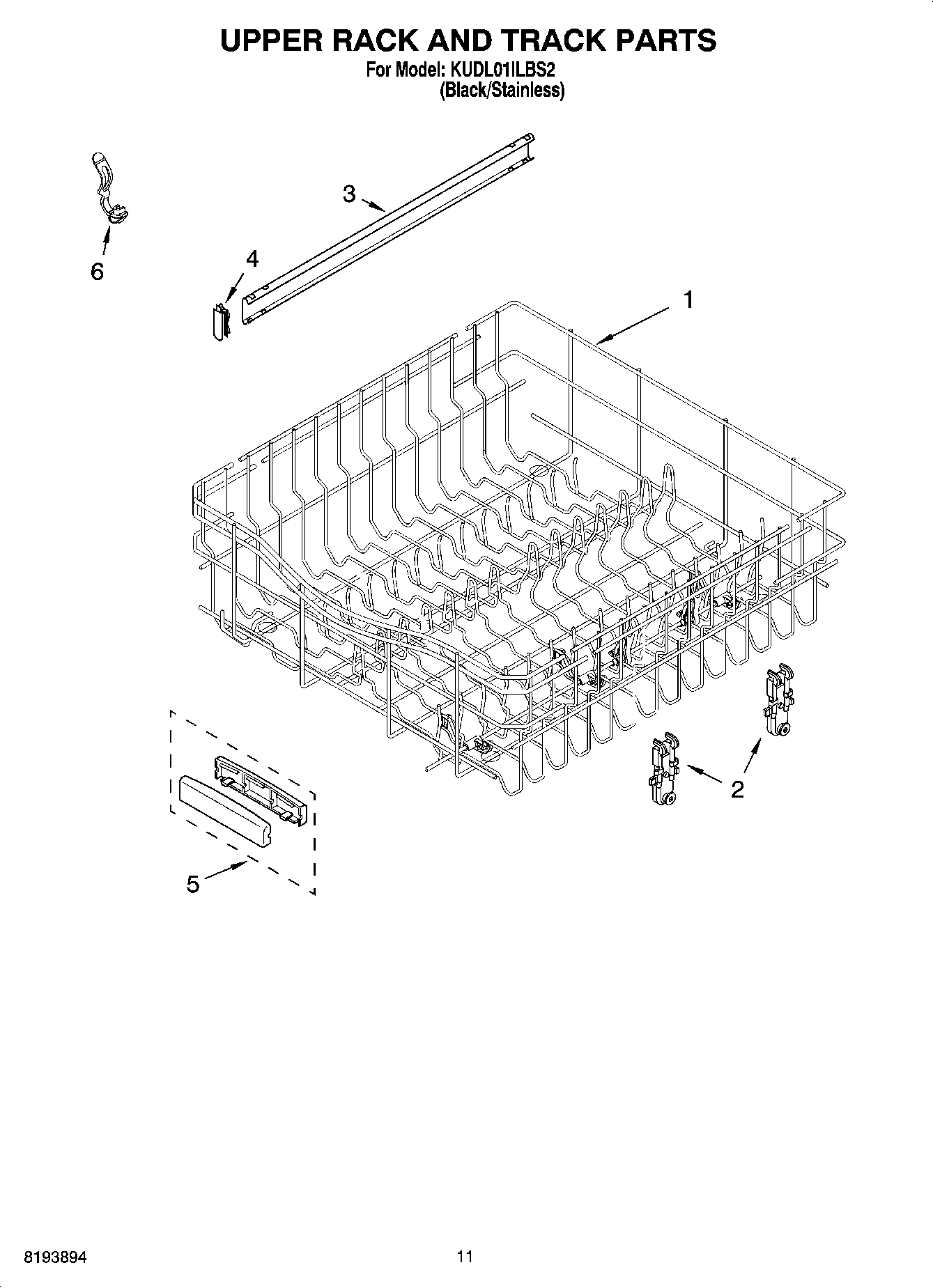

WP8268743 Whirlpool Dishwasher Upper Dishrack In Stock WPL WP8268743 $14.38

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

3

8193768 Whirlpool Dishwasher Spinner In Stock WPL 8193768 $11.33

3

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $3.46

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $31.42

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $4.52

4

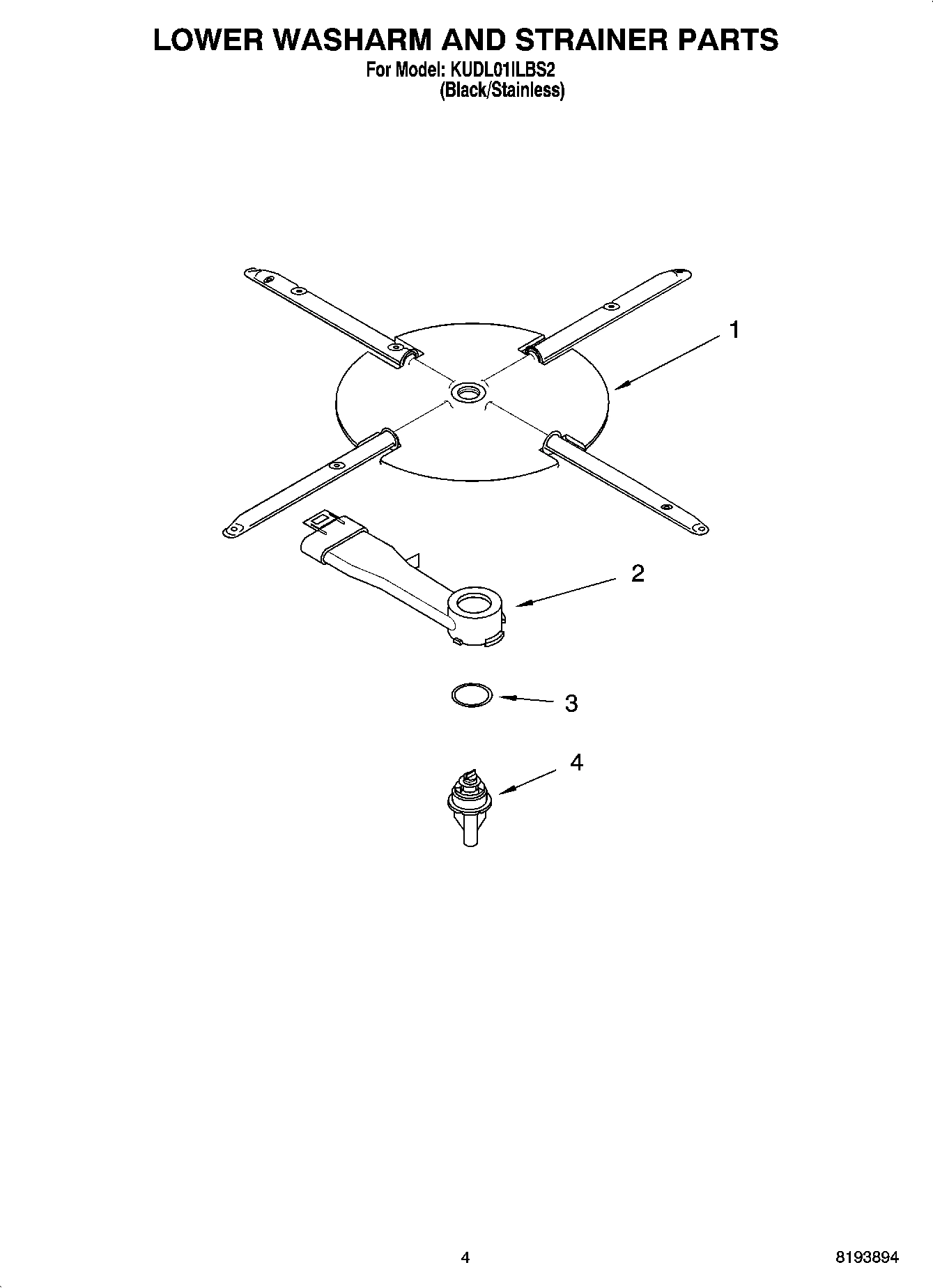

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $50.88

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $3.33

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $28.91

4

WP8531233 Whirlpool Dishwasher Silverware Bas In Stock WPL WP8531233 $50.79

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.87

4

Fastener, Push-In WPL 3400920 Contact Us For Availability

5

WP8268321 Whirlpool Dishwasher Mount In Stock WPL WP8268321 $36.00

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $24.96

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

NOTE: If heater element is removed, it must b WPL ARI114504A Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $4.78

6

Manifold WPL 8268355 Contact Us For Availability

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $6.28

7

WP8531314 Whirlpool Dishwasher Retainer Backorder WPL WP8531314 $11.58

7

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $29.72

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.33

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

9

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $39.56

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $30.25

9

Nozzle, Feed WPL 8269295 Contact Us For Availability

10

WP8533380 Whirlpool Dishwasher Cap In Stock WPL WP8533380 $13.51

10

WP8535086 Whirlpool Dishwasher Spray Arm Backorder WPL WP8535086 $42.71

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $31.09

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $6.27

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.39

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.33

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $3.33

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $15.57

Wiring Harness Main WPL 8534932 Contact Us For Availability

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

13

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $4.45

13

Seal, Sump WPL 8268395 Contact Us For Availability

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $58.90

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $3.33

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $44.65

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $5.54

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $12.13

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

Pump, Drain WPL 661658 Contact Us For Availability

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $13.60

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.37

19

WP8270019 Whirlpool Dishwasher Dishrack Wheel In Stock WPL WP8270019 $5.54

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

25

Thermister WPL 8269208 Contact Us For Availability

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $15.26

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52
