Model KUDI01ILBS4 – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS

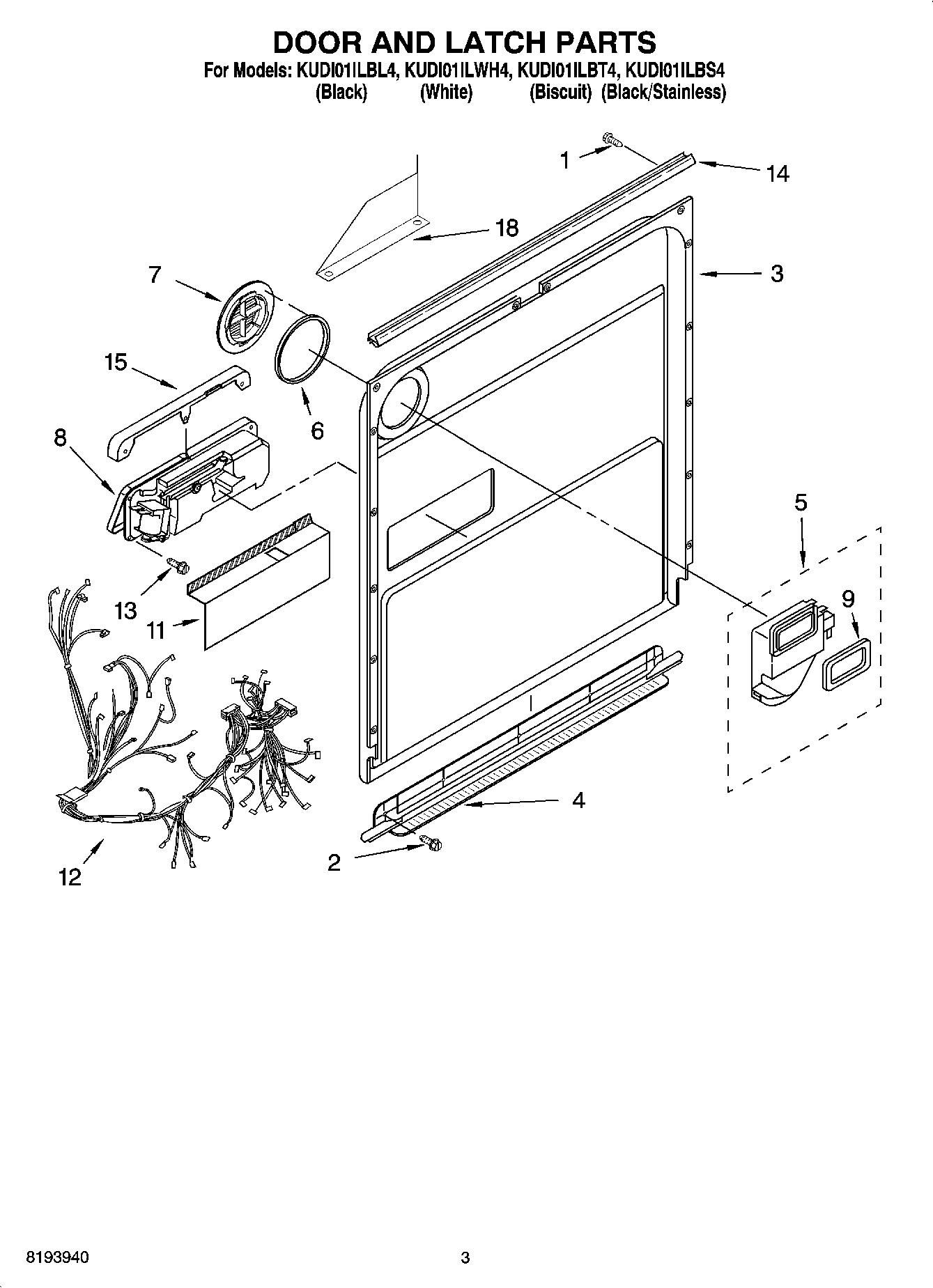

03 - DOOR AND LATCH PARTS

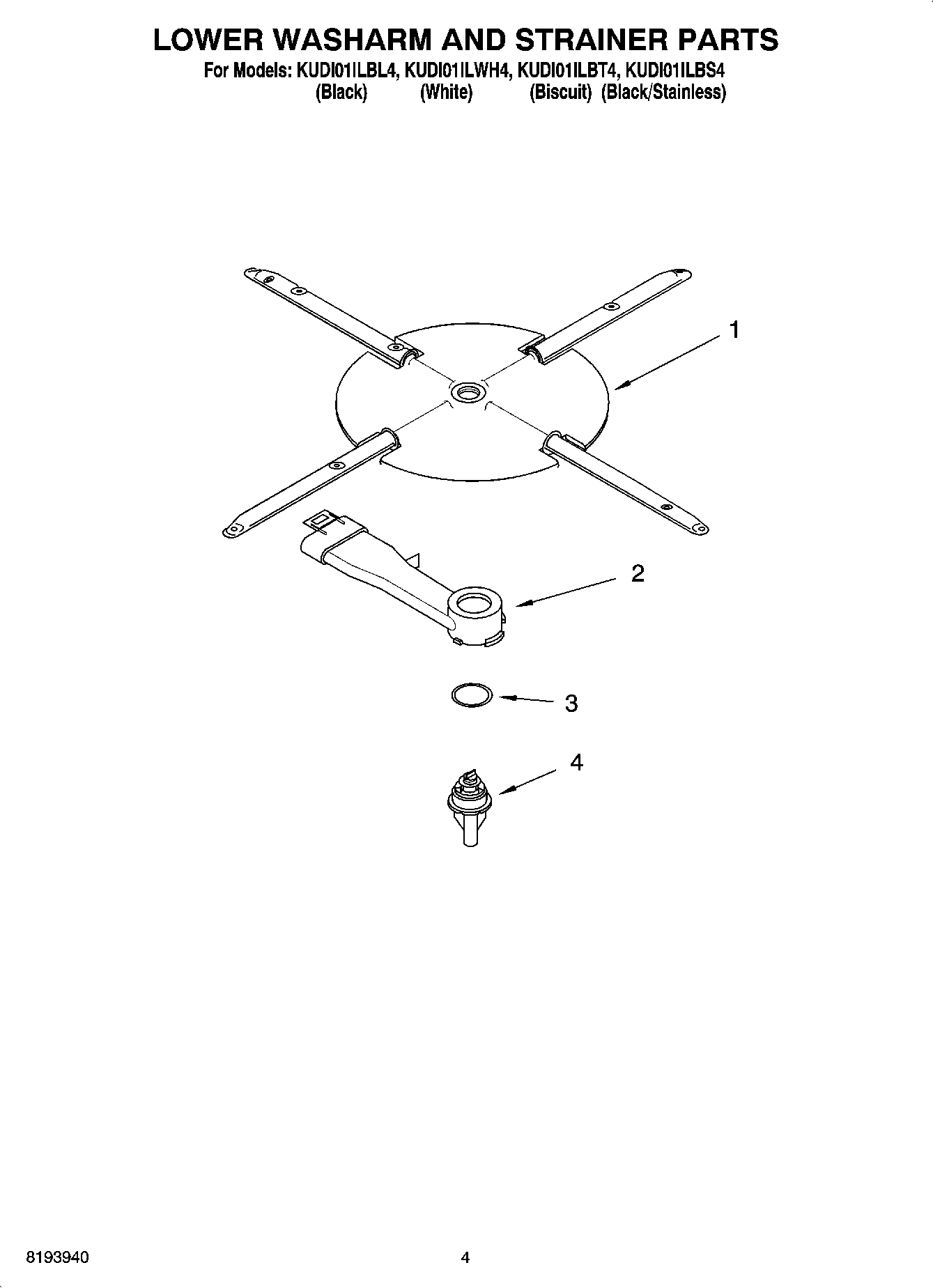

04 - LOWER WASHARM AND STRAINER PARTS

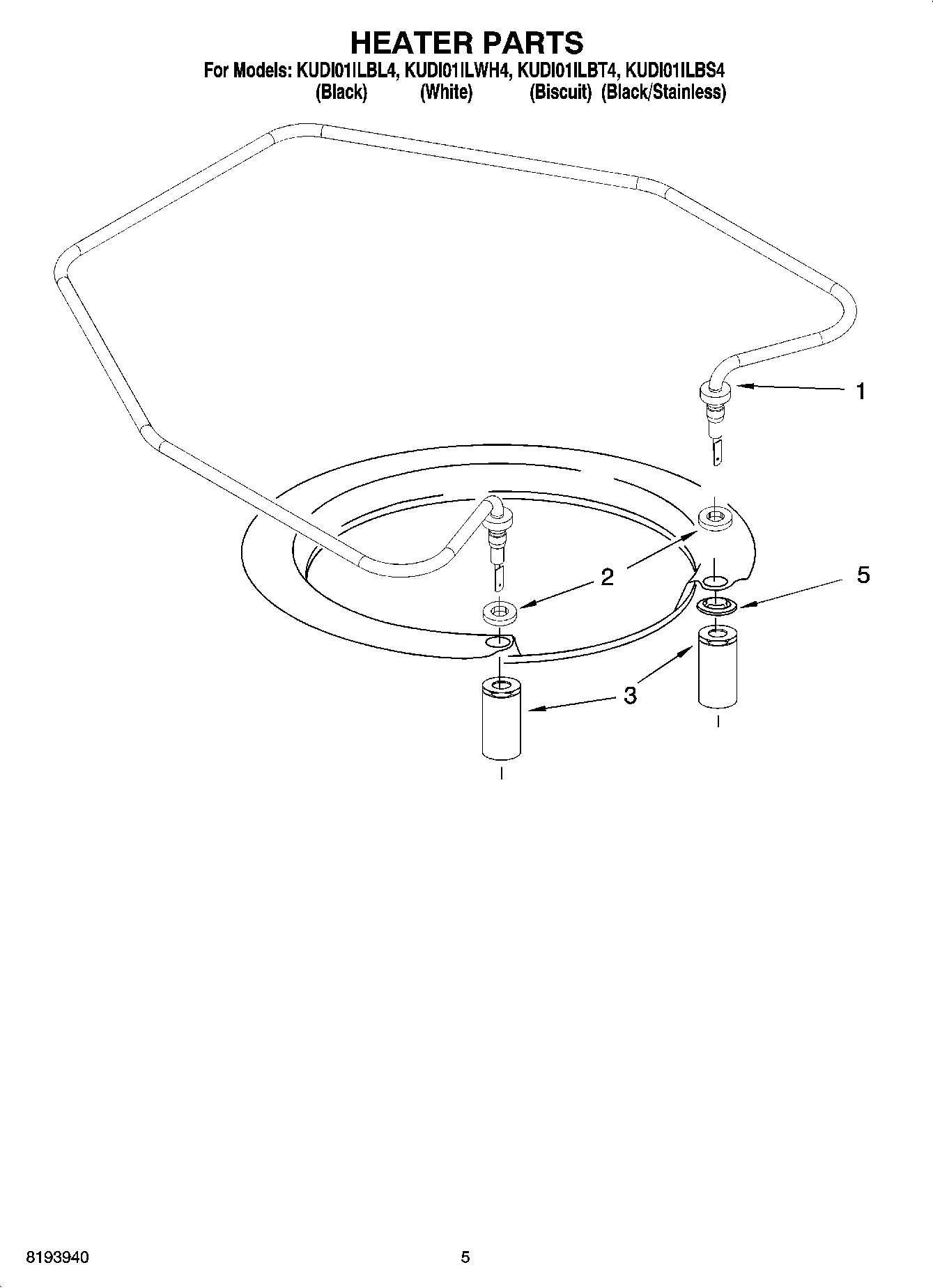

05 - HEATER PARTS

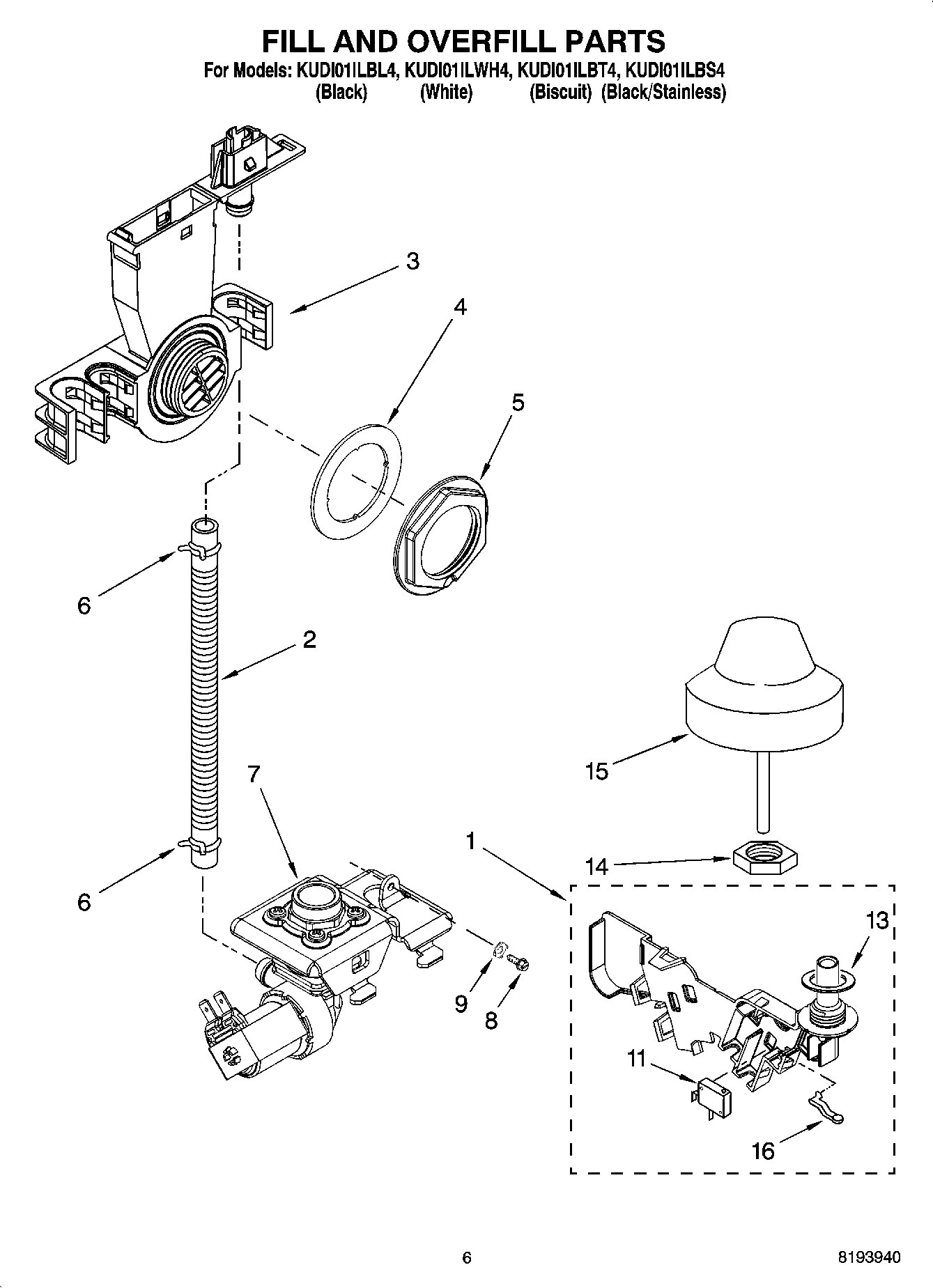

06 - FILL AND OVERFILL PARTS

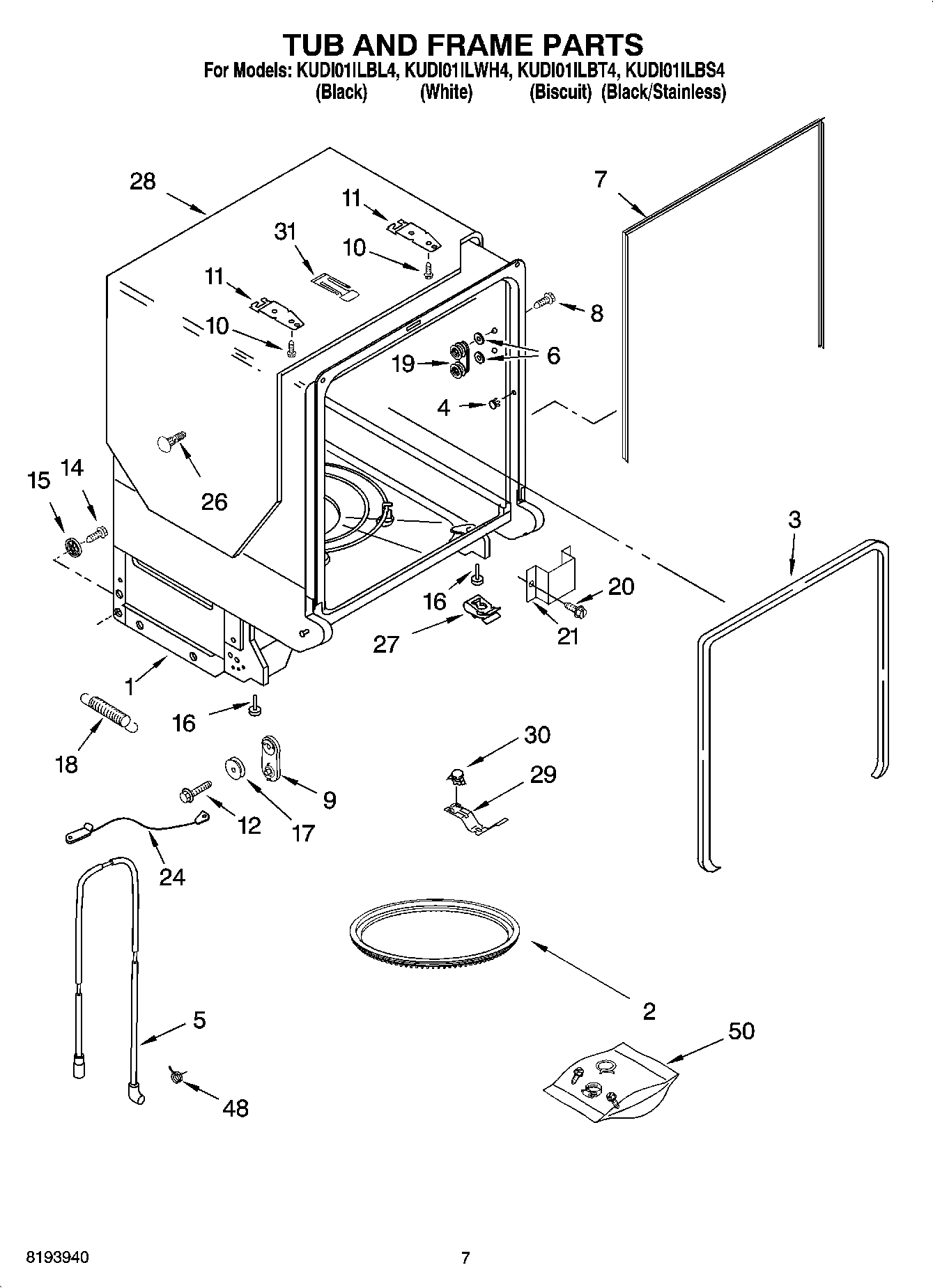

07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS

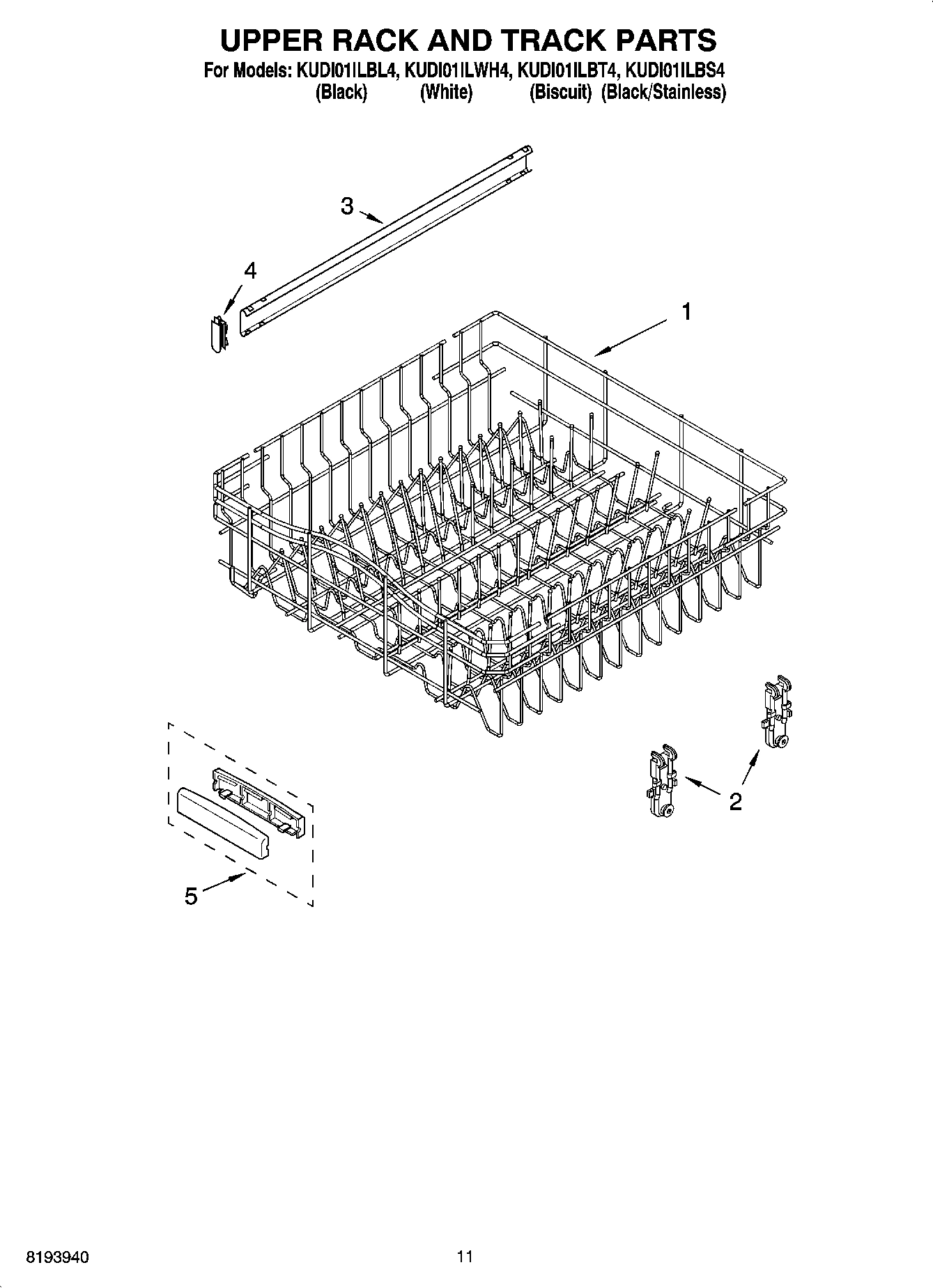

09 - UPPER RACK AND TRACK PARTS

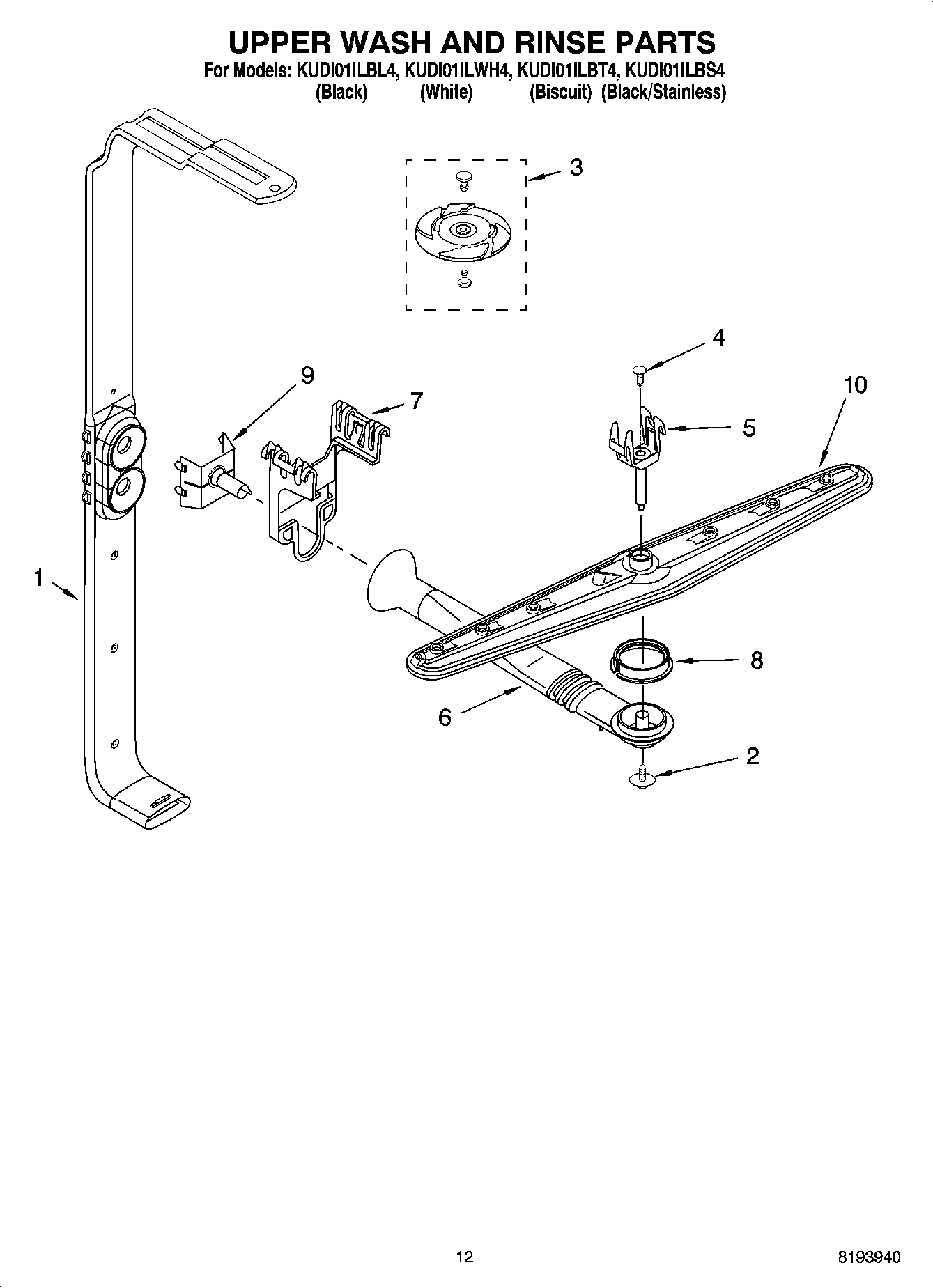

10 - UPPER WASH AND RINSE PARTS

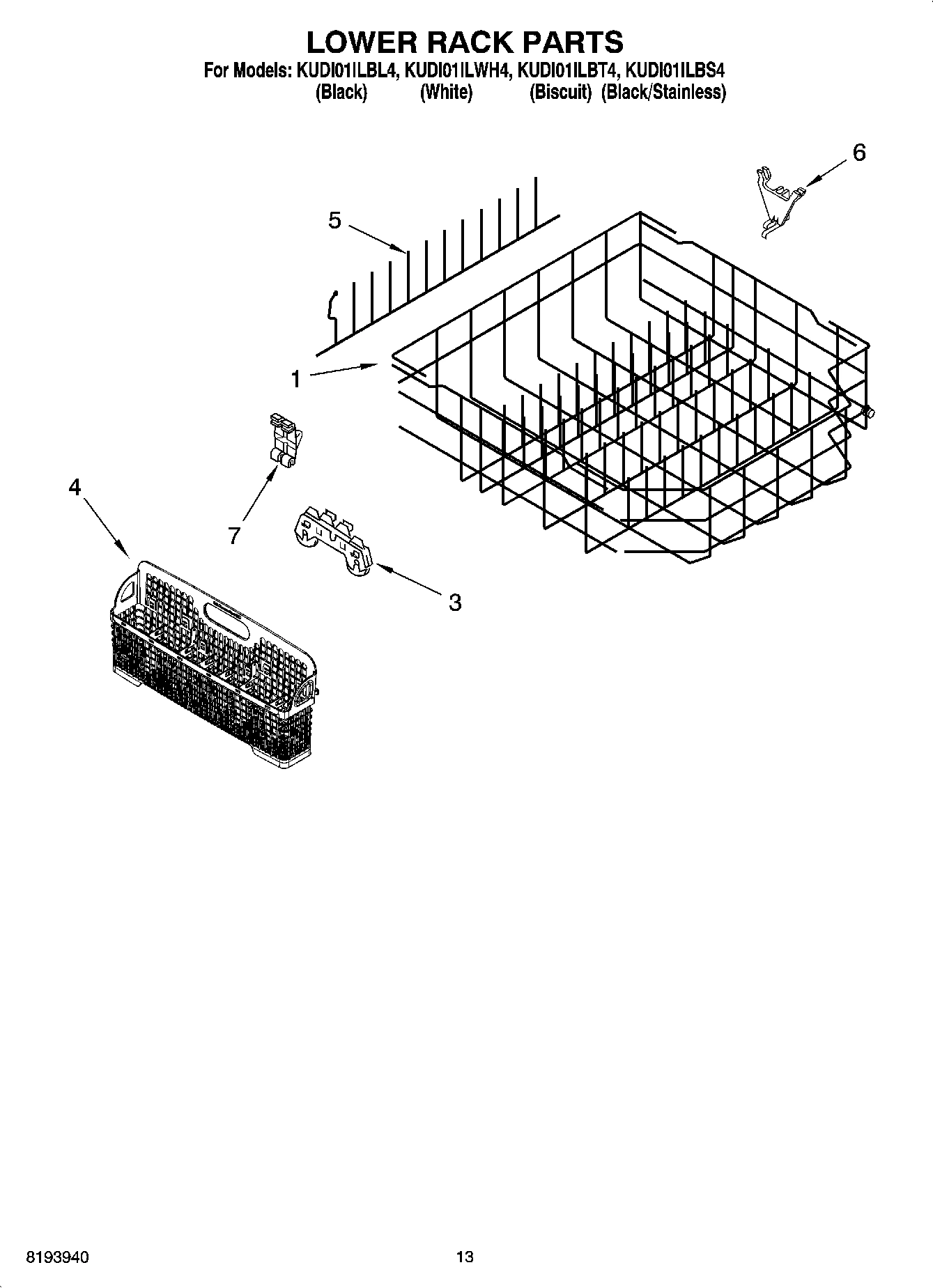

11 - LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
