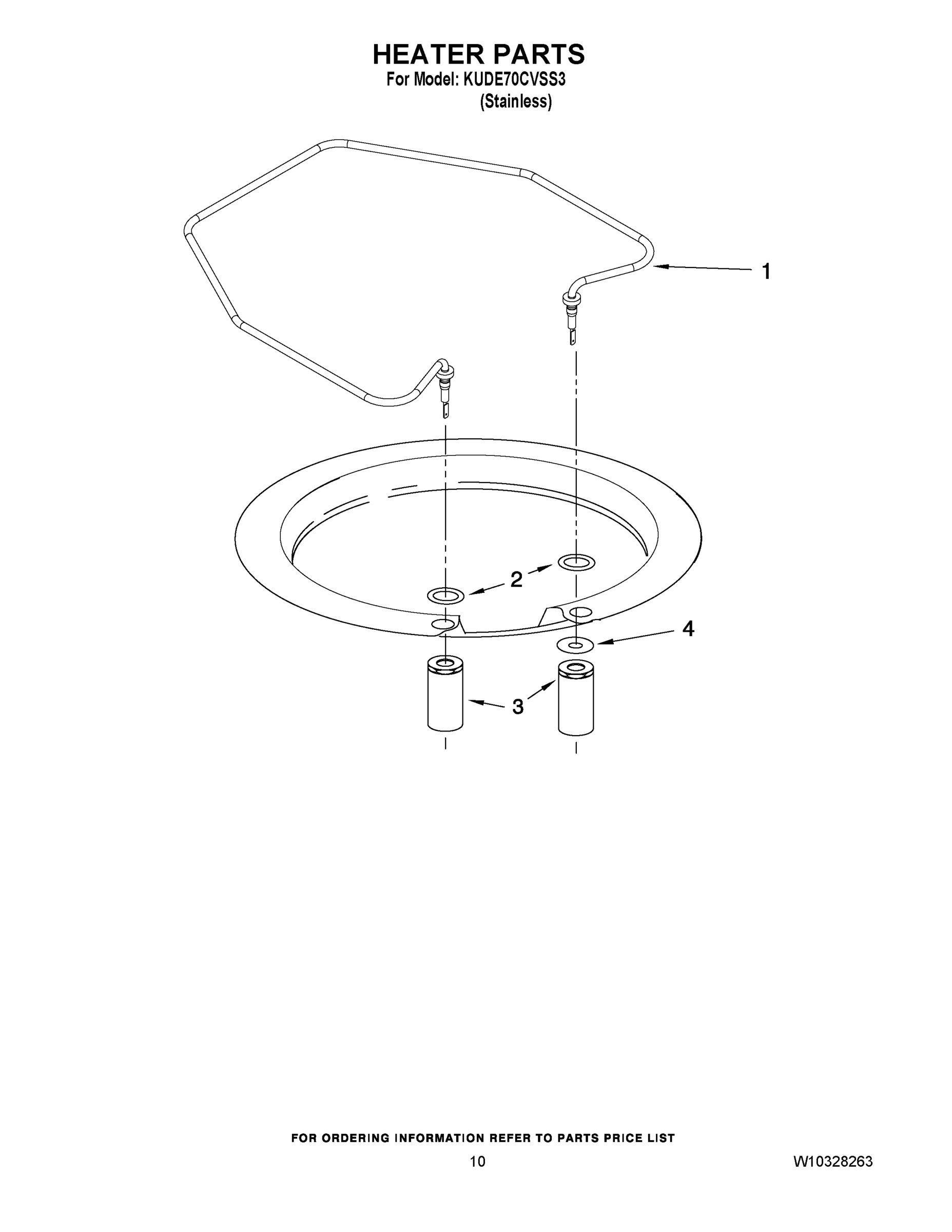

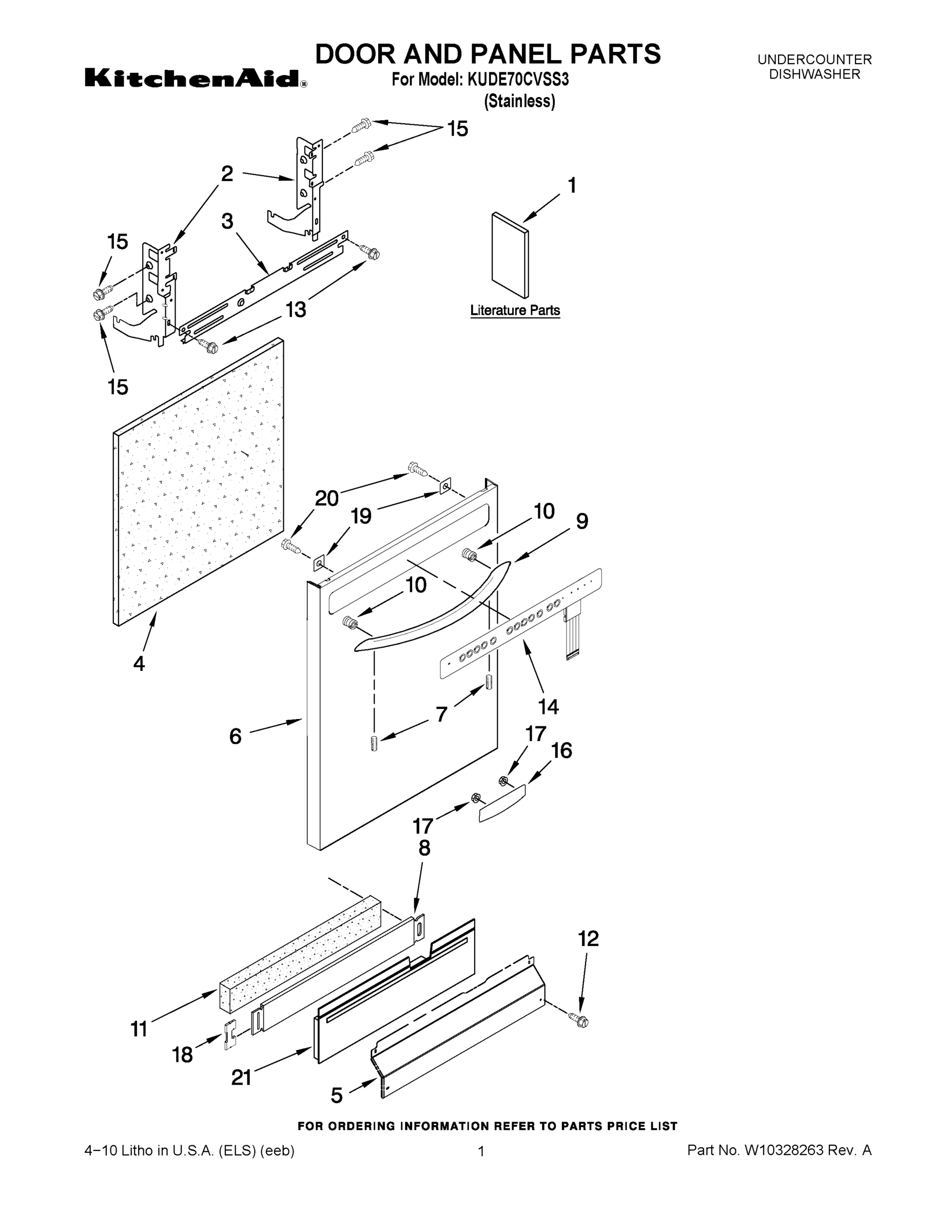

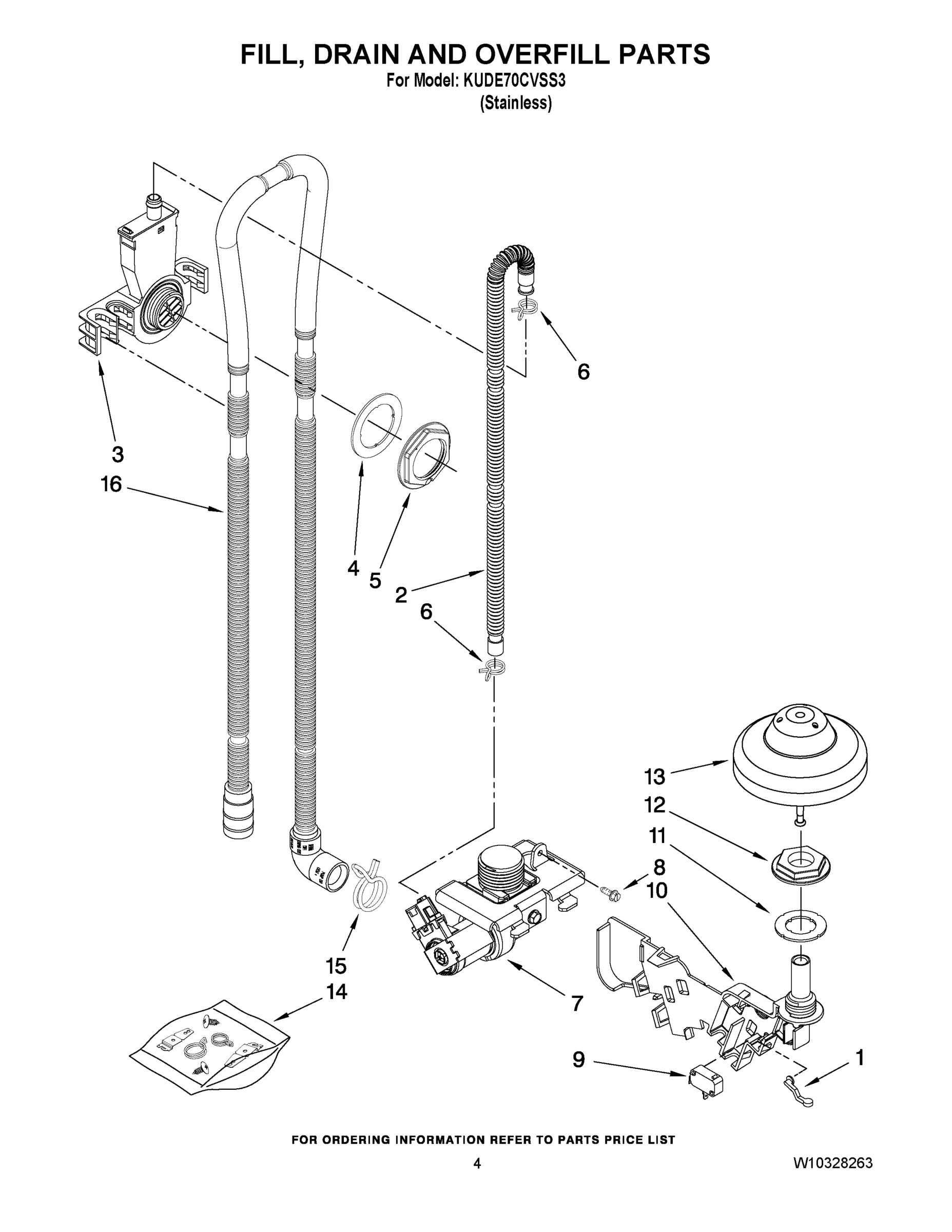

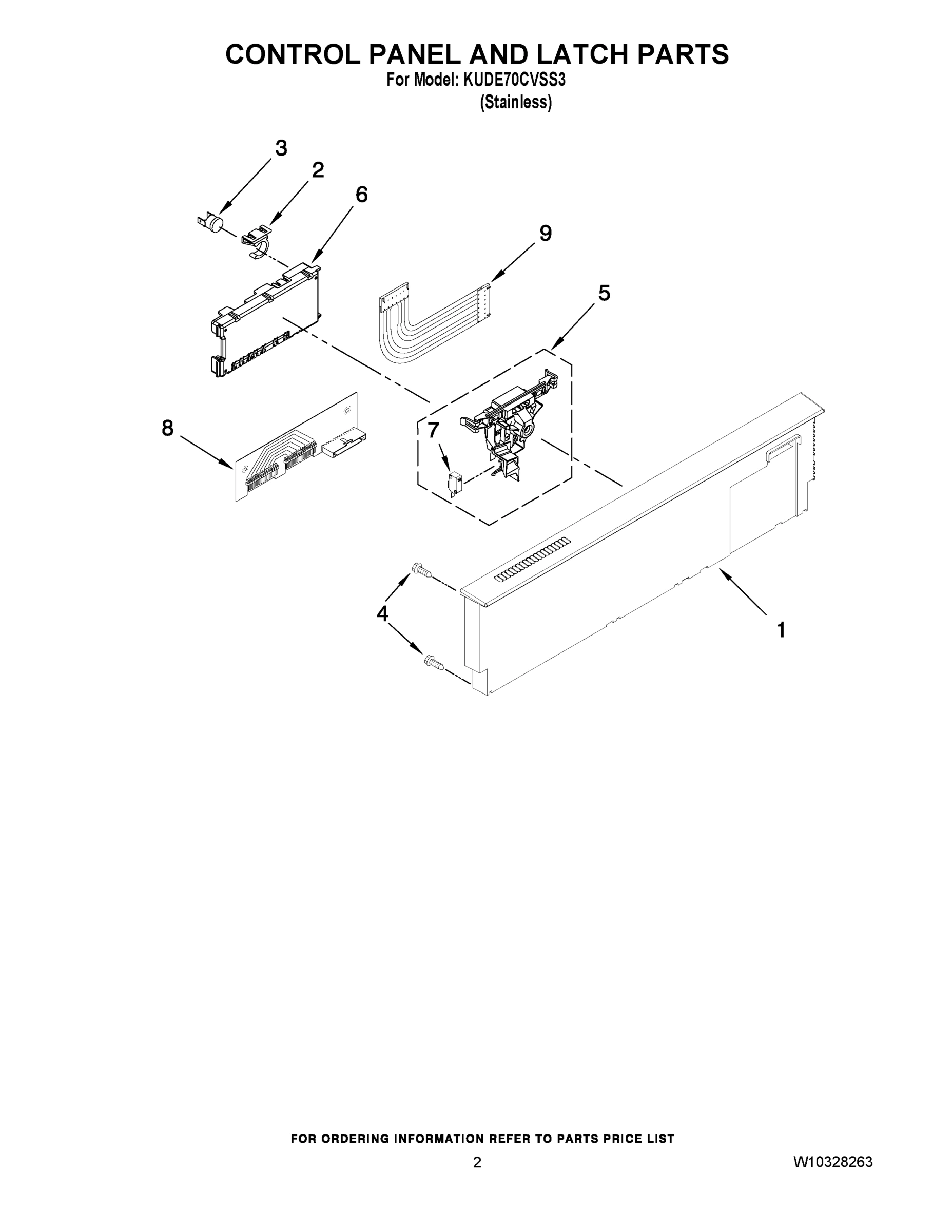

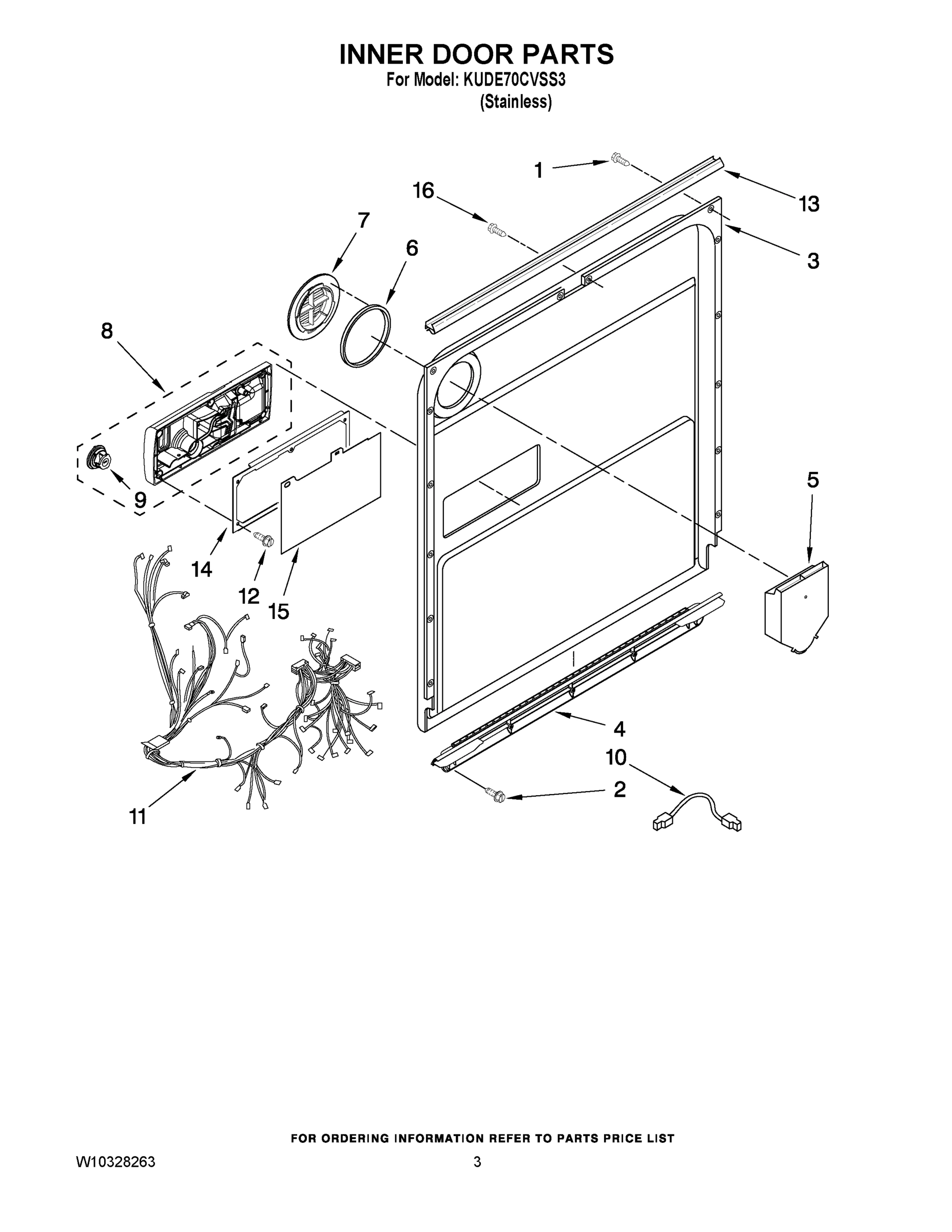

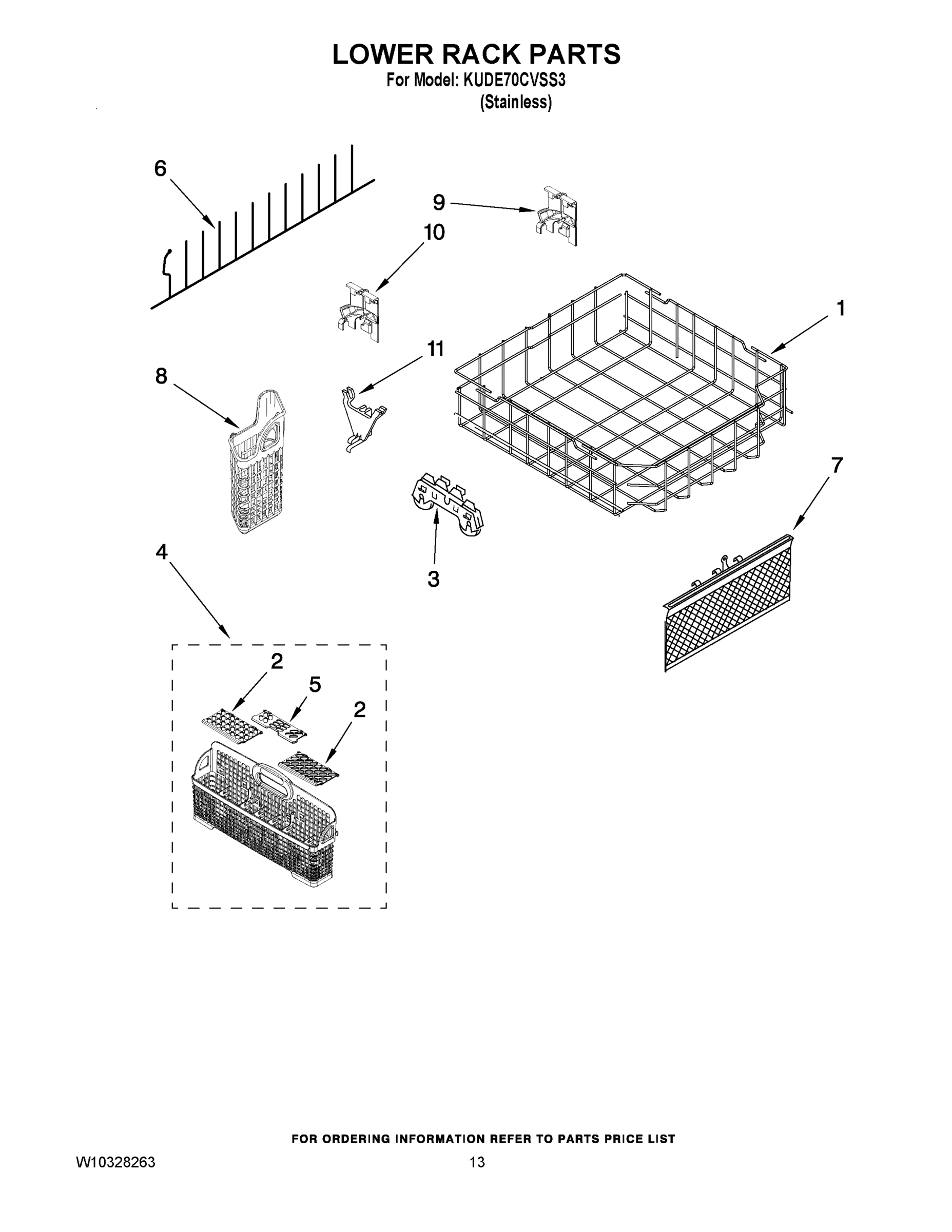

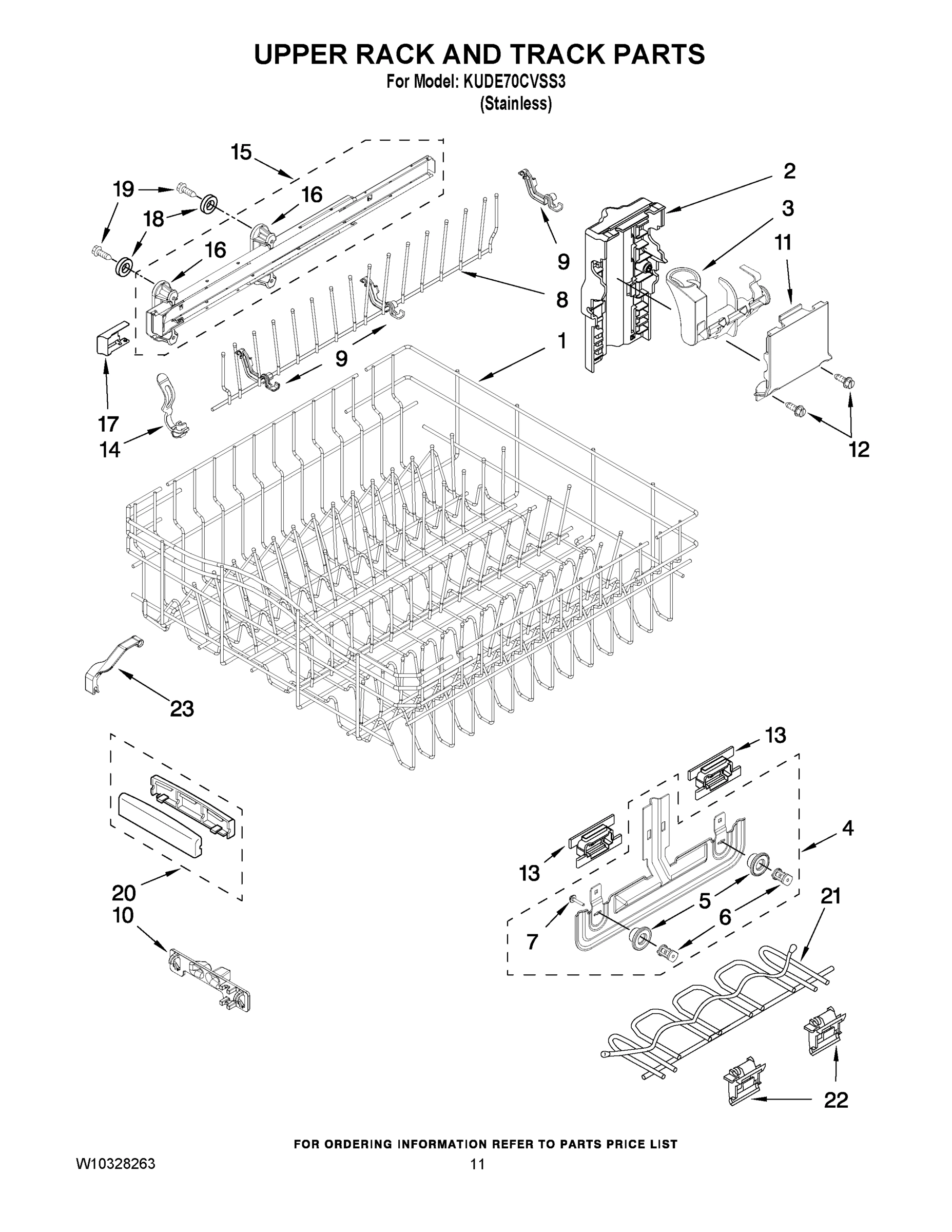

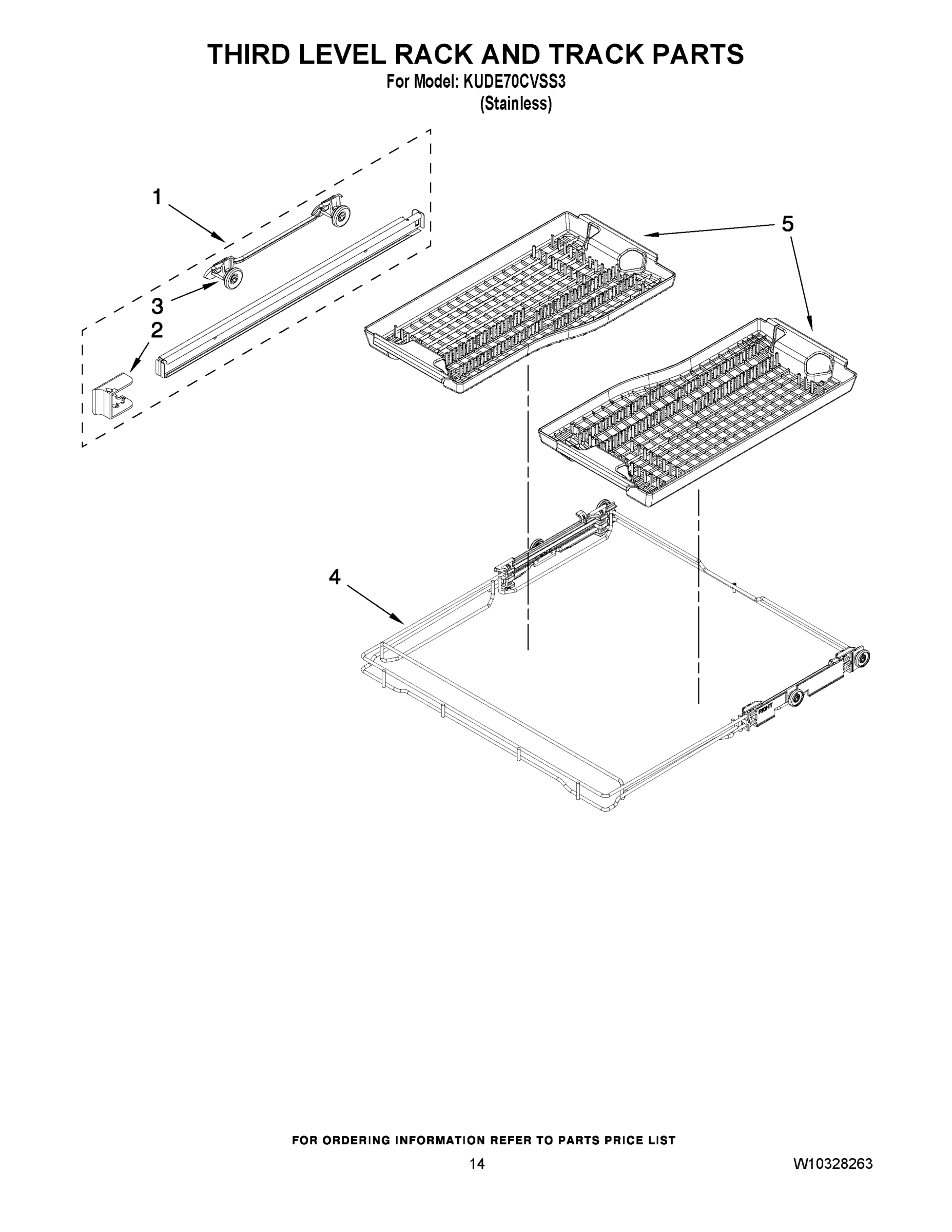

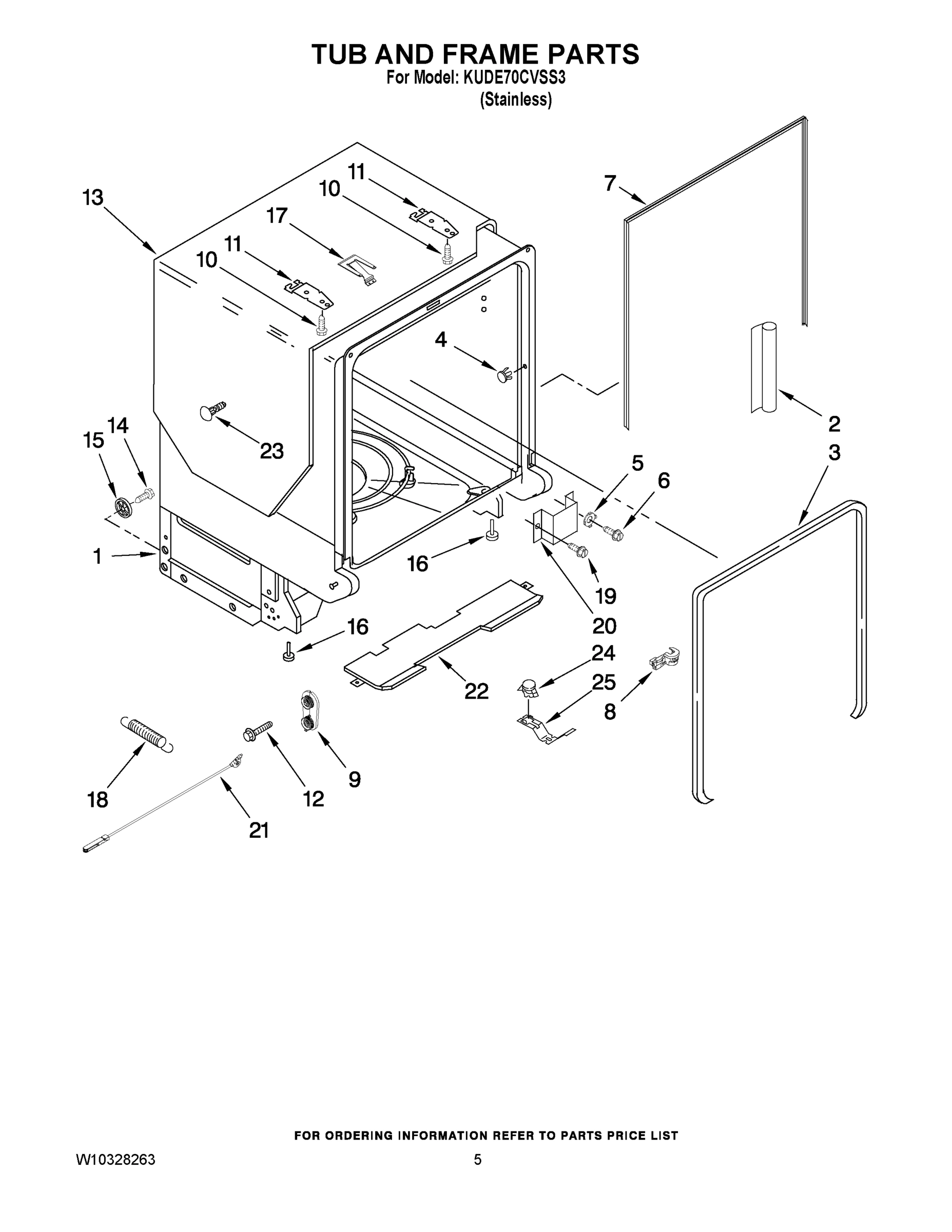

Model Whirlpool KUDE70CVSS3 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

1

WP8579262 Whirlpool Dishwasher Tube Backorder WPL WP8579262 $69.50

1

WPW10082892 Whirlpool Dishwasher Heater In Stock WPL WPW10082892 $34.77

1

WPW10195240 Whirlpool Dishwasher Track Backorder WPL WPW10195240 $72.83

1

Cover, Sieve WPL 8579241 Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $30.89

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11544573 Whirlpool Dishwasher Stop Backorder WPL W11544573 $9.59

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $10.41

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

Clip, BI-Metal WPL 8546546 Contact Us For Availability

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $73.13

3

WP8564899 Whirlpool Dishwasher Mount Assembly In Stock WPL WP8564899 $53.73

3

WPW10082868 Whirlpool Wheel In Stock WPL WPW10082868 $40.02

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $63.20

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $4.52

3

Actuator, Adjuster (Left Hand) WPL W10077839 Contact Us For Availability

3

Inner Door Mastic Assembly (Also Order Item 6 WPL W10056250 Contact Us For Availability

3

MOUNT WPL 8579242 Contact Us For Availability

3

Actuator, Adjuster (Right Hand) WPL W10077838 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $6.44

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.87

4

WPW10073520 Whirlpool Dishwasher Insulation P Backorder WPL WPW10073520 $30.25

4

WPW10077883 Whirlpool Dishwasher Air Inlet In Stock WPL WPW10077883 $29.65

4

WPW10190415 Whirlpool Dishwasher Basket Ware In Stock WPL WPW10190415 $50.25

4

RACK ASSEMBLY (THIRD LEVEL) WPL W10275189 Contact Us For Availability

4

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $30.91

5

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

5

WP8270138 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8270138 $4.56

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $90.84

5

Sprayarm WPL 8579232 Contact Us For Availability

5

Retainer, Feed Tube WPL 8579298 Contact Us For Availability

6

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

6

WP8268703 Whirlpool Dishwasher Rack Axle In Stock WPL WP8268703 $5.27

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

WP8579253 Whirlpool Screen Filter Backorder WPL WP8579253 $57.94

6

WPW10084221 Whirlpool Dishwasher Manifold Backorder WPL WPW10084221 $83.21

6

PANEL, FULL FRONT (INCLUDES ITEMS 4, 10, 16, WPL W10137621 Contact Us For Availability

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $50.29

7

WP8534008 Whirlpool Screw In Stock WPL WP8534008 $2.40

7

WPW10077877 Whirlpool Air Vent Deflector Backorder WPL WPW10077877 $11.84

7

BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability

7

Screw WPL 8281156 Contact Us For Availability

8

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

8

WP8531873 Whirlpool Dishwasher Control Board In Stock WPL WP8531873 $75.22

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

W10195738A Whirlpool Stainless Steel Door Han Backorder WPL W10195738A $25.97

9

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $31.09

9

WPW10077881 Whirlpool Dispenser Cap In Stock WPL WPW10077881 $13.65

9

WPW10082853 Whirlpool Dishwasher Tine Pivot C In Stock WPL WPW10082853 $4.21

9

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $13.34

9

WPW10175279 Whirlpool Retainer In Stock WPL WPW10175279 $3.70

9

CABLE-RIBBON WPL 8531877 Contact Us For Availability

WP8539102 Whirlpool Dishwasher Positioner In Stock WPL WP8539102 $43.85

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

WPW10056309 Whirlpool Dishwasher Motor & Pump In Stock WPL WPW10056309 $214.76

WPW10078215 Whirlpool Dishwasher Tine Row Com In Stock WPL WPW10078215 $4.52

Harness, Vent Motor WPL 8545608 Contact Us For Availability

11

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $6.27

11

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

11

WPW10078227 Whirlpool Dishwasher Pivot Tine Backorder WPL WPW10078227 $7.14

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.33

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $3.33

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $4.45

13

W10877094 Whirlpool Shield In Stock WPL W10877094 $84.53

13

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $58.90

13

WPW10077871 Whirlpool Dishwasher Float Assemb In Stock WPL WPW10077871 $48.66

14

W10056420 Whirlpool Dishwasher Overlay Backorder WPL W10056420 $215.62

14

WPW10077844 Whirlpool Dishwasher Clip In Stock WPL WPW10077844 $5.56

14

WPW10292152 Whirlpool Hardware Kit In Stock WPL WPW10292152 $18.21

15

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.37

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $3.33

15

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $5.54

16

W10021850 Whirlpool Dishwasher Nameplate Backorder WPL W10021850 $34.95

16

Mount, Track (Also Order Item 18) WPL W10077876 Contact Us For Availability

16

Disc-Valve Diverter WPL 8579251 Contact Us For Availability

17

STRIKE, LATCH WPL W10317686 Contact Us For Availability

17

Stop, Track (Right) WPL W10077848 Contact Us For Availability

17

Stop, Track (Left) WPL W10077847 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $13.60

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $4.78

19

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

20

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.33

20

Screw WPL W10123421 Contact Us For Availability

21

W11125975 Whirlpool Dishwasher Cup Shelf Backorder WPL W11125975 $42.16

22

8562026 Whirlpool Dishwasher Clip In Stock WPL 8562026 $35.41

22

WPW10179455 Whirlpool Housing Drain Pump Backorder WPL WPW10179455 $76.00

23

WPW10267076 Whirlpool Guard Clip In Stock WPL WPW10267076 $12.00

24

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $15.26

25

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

285006 Whirlpool Spray In Stock WPL 285006 $29.65

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $14.48

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $10.80

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $17.29

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $11.09

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $16.60

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $16.25

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability
