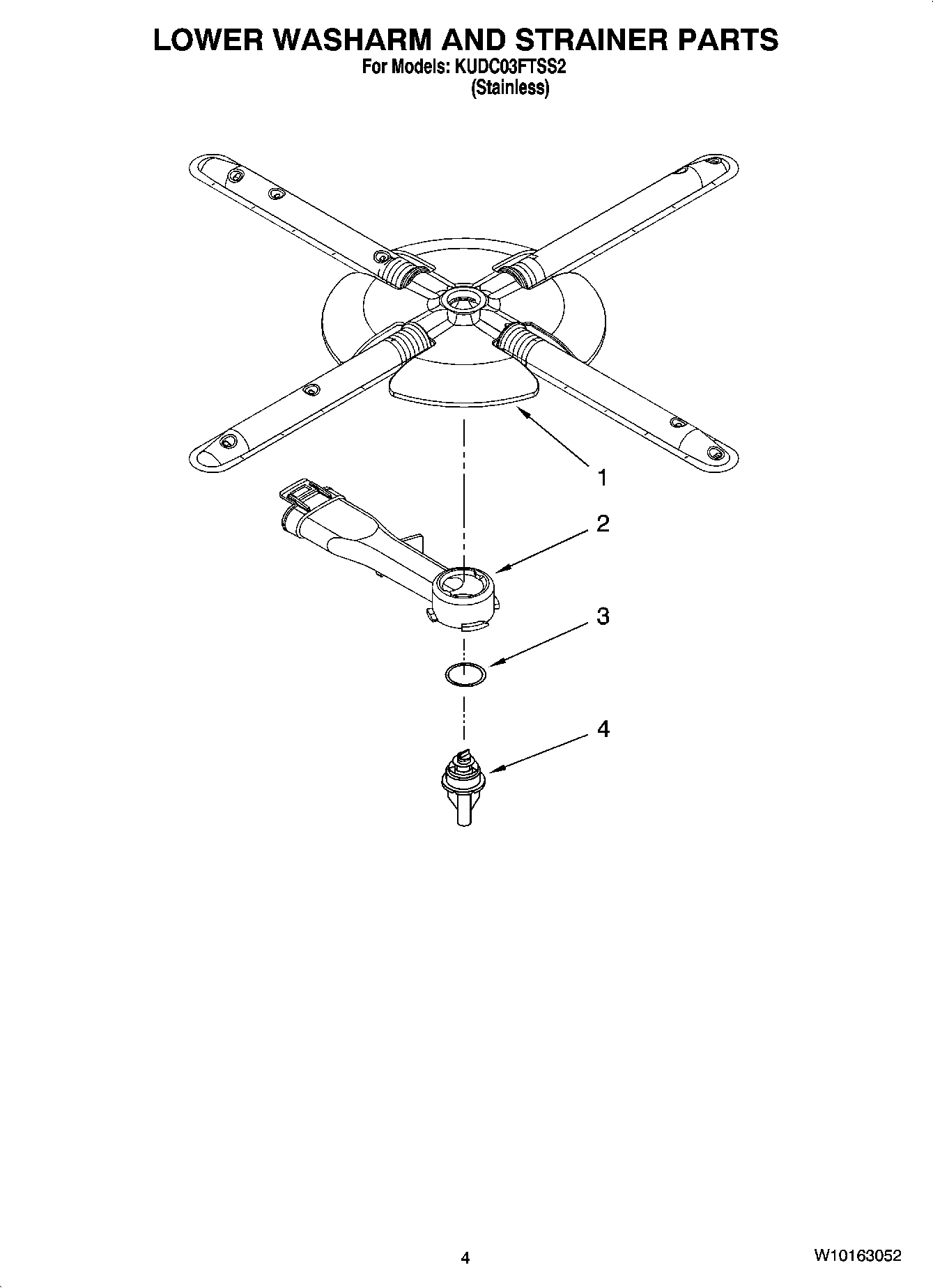

Model Whirlpool KUDC03FTSS2 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $14.48

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $10.80

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $17.29

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $125.83

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $16.60

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $16.25

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

1

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

1

Feed Tube Assembly (Also Includes Item 3) WPL W10077896 Contact Us For Availability

2

8519662 Whirlpool Dishwasher Lid Backorder WPL 8519662 $30.91

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $10.41

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

WPW10077899 Whirlpool Dishwasher Cap In Stock WPL WPW10077899 $36.98

2

WPW10078214 Whirlpool Upper Bracket Roller In Stock WPL WPW10078214 $15.92

2

Clip, BI-Metal WPL 8546546 Contact Us For Availability

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $73.13

3

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $3.46

3

WPW10082868 Whirlpool Wheel In Stock WPL WPW10082868 $40.02

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $4.52

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $6.44

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.87

4

WP8562043 Whirlpool Silverware Basket In Stock WPL WP8562043 $37.22

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $118.74

4

WPW10077883 Whirlpool Dishwasher Air Inlet In Stock WPL WPW10077883 $29.65

4

WPW10077898 Whirlpool Dishwasher Arm Support Backorder WPL WPW10077898 $78.32

4

WPW10118464 Whirlpool Dishwasher Wash Arm Plu Backorder WPL WPW10118464 $4.43

4

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

5

W10728160 Whirlpool Tine Assembly In Stock WPL W10728160 $29.52

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $90.84

5

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $4.78

5

WPW10082867 Whirlpool Dishwasher Mount Backorder WPL WPW10082867 $2.93

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

WP8531314 Whirlpool Dishwasher Retainer Backorder WPL WP8531314 $11.58

6

WP8534008 Whirlpool Screw In Stock WPL WP8534008 $2.40

6

WPW10077844 Whirlpool Dishwasher Clip In Stock WPL WPW10077844 $5.56

6

WPW10084142-includeCORE Whirlpool WPW10084142 Backorder WPL WPW10084142-includeCORE $194.01

6

Manifold WPL W10082833 Contact Us For Availability

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.33

7

WPW10077877 Whirlpool Air Vent Deflector Backorder WPL WPW10077877 $11.84

7

WPW10134019 Whirlpool Dishwasher Switch Backorder WPL WPW10134019 $31.81

7

Hanger WPL W10082832 Contact Us For Availability

7

Panel, Front (Includes Items 4, 10, 11 & 14) WPL W10137623 Contact Us For Availability

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

9

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $31.09

9

Harness, Vent Motor WPL 8545608 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $6.27

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

WPW10082841 Whirlpool Spray Arm In Stock WPL WPW10082841 $29.21

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.39

W10021850 Whirlpool Dishwasher Nameplate Backorder WPL W10021850 $34.95

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $3.33

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

12

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.33

12

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

13

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $58.90

13

WPW10077871 Whirlpool Dishwasher Float Assemb In Stock WPL WPW10077871 $48.66

14

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $5.54

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $3.33

15

WPW10077881 Whirlpool Dispenser Cap In Stock WPL WPW10077881 $13.65

16

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

16

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.37

17

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $13.60

18

WPW10078083 Whirlpool Dishwasher Dishrack Whe In Stock WPL WPW10078083 $42.13

19

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

20

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

22

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

23

W10877094 Whirlpool Shield In Stock WPL W10877094 $84.53

24

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

25

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $15.26

26

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

27

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

28

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51
