Model Whirlpool KTRV20KGAL01 – Common Parts & Diagrams

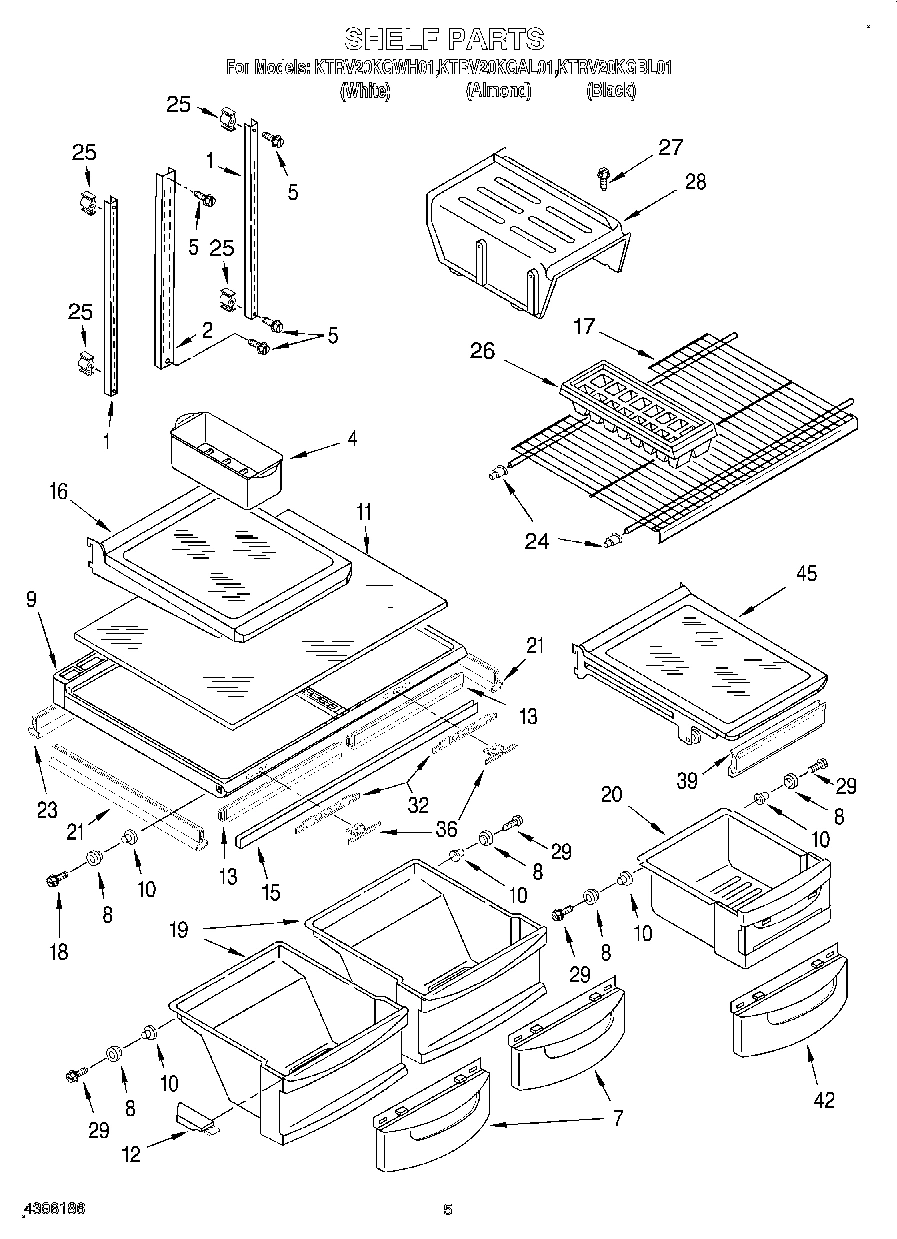

03 - SHELF
05 - UNIT
02 - LINER
06 - FREEZER DOOR, LIT/OPTIONAL
01 - CABINET
04 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRV20KGAL01
Torx Key WPL 1117510 Contact Us For Availability
Service & Wiring Sheet WPL LIT2195481 Contact Us For Availability
Use & Care Guide WPL LIT2199010 Contact Us For Availability
Energy Label WPL LIT2200701 Contact Us For Availability
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2184400 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI113009A Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2183935 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2183936 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Black) WPL 2200713 Contact Us For Availability
3
Divider, Door Shelf WPL 1123293 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2188222B Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2188222N Contact Us For Availability
10
Retainer, Insert (White) WPL 2188222W Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Endcap, Handle (White) WPL 2195995W Contact Us For Availability
14
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2195987 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
End Cap (Black) WPL 2195994B Contact Us For Availability
15
Endcap (Almond) WPL 2195994N Contact Us For Availability
15
Endcap, Handle (Black) WPL 2188132 Contact Us For Availability
15
Endcap, Handle (White) WPL 2195990 Contact Us For Availability
15
Endcap, Handle (Almond) WPL 2195991 Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
18
Nameplate (White) WPL 2188149 Contact Us For Availability
18
Nameplate (Almond) WPL 2188150 Contact Us For Availability
18
Nameplate (Black) WPL 2188151 Contact Us For Availability
18
Spacer, Handle WPL 2188146 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
End Cap (Black) WPL 2195995B Contact Us For Availability
19
Endcap (Almond) WPL 2195995N Contact Us For Availability
19
Insert, Retainer (Black) WPL 2195992B Contact Us For Availability
19
Insert, Retainer (Almond) WPL 2195992N Contact Us For Availability
19
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171066 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Insert, Handle (Black) WPL 2188154 Contact Us For Availability
21
Insert, Handle (White) WPL 2195984 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2195985 Contact Us For Availability
22
Electric Shield, Freezer Light WPL 2193491 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI113010A Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2189984 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
29
Bin, Door Shelf WPL 2171063 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Featurepak (Includes 3,20,21, 22,23,28,29,30 WPL 2200703 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Post, Damper WPL 2179859 Contact Us For Availability
38
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
40
Housing, Freezer Light WPL 2184633 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI113011A Contact Us For Availability
42
Gasket, Rear WPL 2166284 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
NI
WPL 876029 WPL 876029 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
Door Reversal Instructions WPL 2179846 Contact Us For Availability
NI
WPL 542639 WPL 542639 Contact Us For Availability
NI
WPL 799832 WPL 799832 Contact Us For Availability
NI
WPL 799833 WPL 799833 Contact Us For Availability
NI
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
