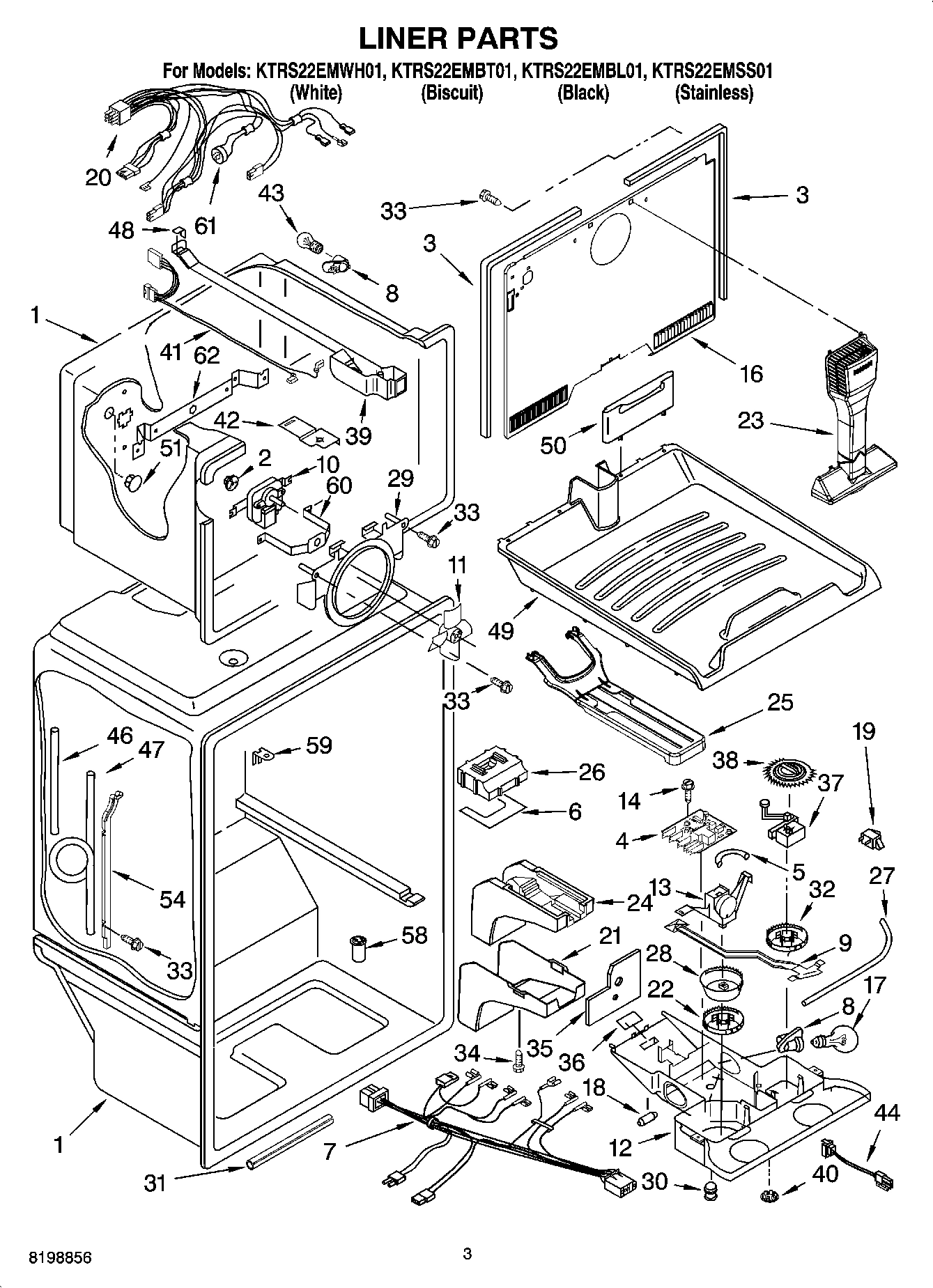

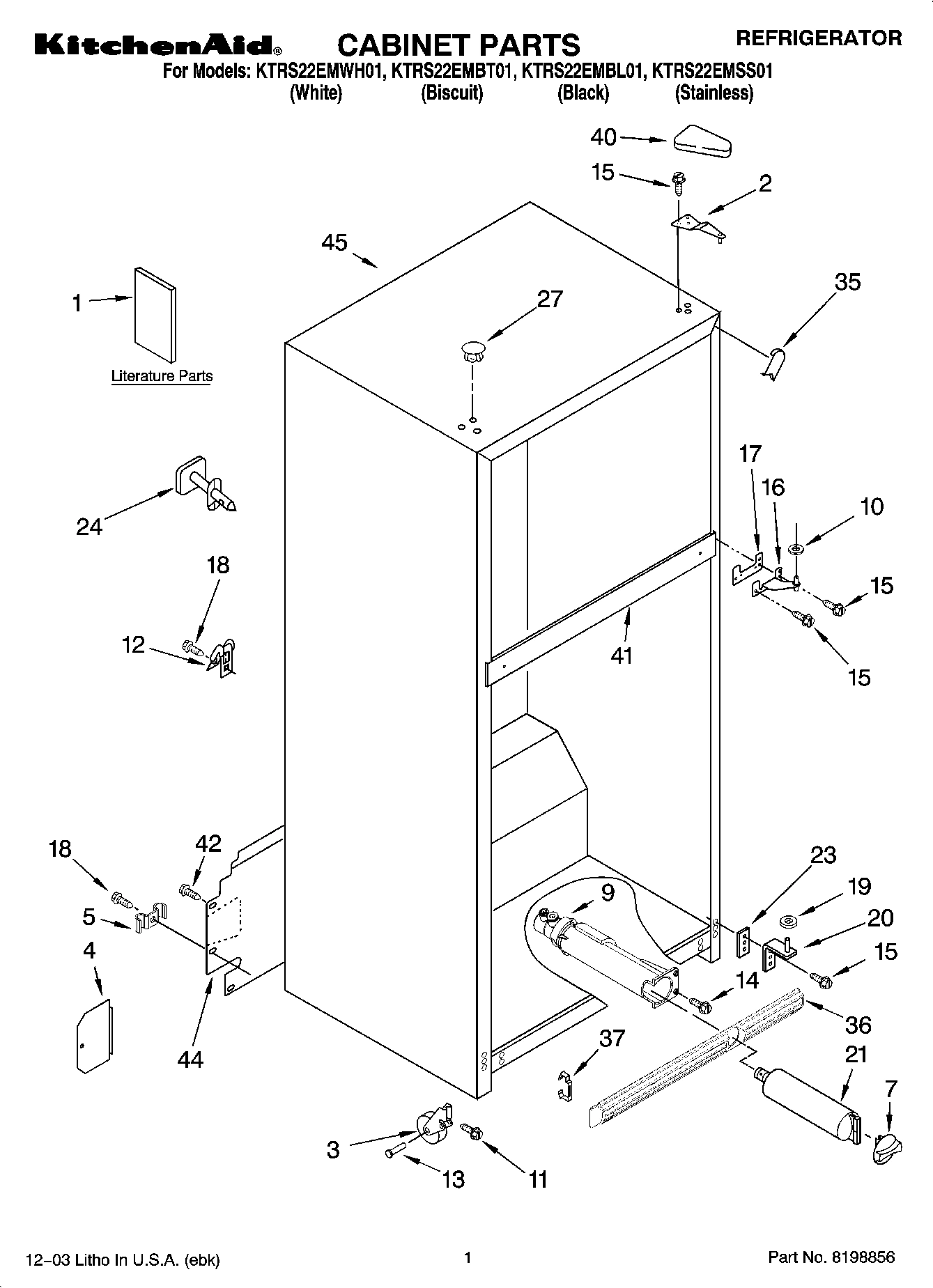

Model Whirlpool KTRS22EMBL01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $92.31

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Option WPL ARI112472A Contact Us For Availability

WPL ARI112473A WPL ARI112473A Contact Us For Availability

WPL ARI112474A WPL ARI112474A Contact Us For Availability

WPL ARI112475A WPL ARI112475A Contact Us For Availability

WPL ARI112476A WPL ARI112476A Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225596 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (White) WPL 2183862 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Black) WPL 2200621 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Biscuit) WPL 2200928 Contact Us For Availability

1

Freezer Door (Includes 6 & 8) (Stainless) WPL 2218678 Contact Us For Availability

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $56.15

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

11

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

Endcap (White) WPL 2195994W Contact Us For Availability

End Cap (Black) WPL 2195994B Contact Us For Availability

Endcap (Biscuit) WPL 2195994T Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $50.58

14

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

End Cap (Black) WPL 2195995B Contact Us For Availability

15

Endcap (Biscuit) WPL 2195995T Contact Us For Availability

16

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

17

Trim, Door WPL 2159292 Contact Us For Availability

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Clip, Heater WPL 2182338 Contact Us For Availability

Endcap (White) WPL 2195995W Contact Us For Availability

Insert, Handle (Black) WPL 2195992B Contact Us For Availability

Insert, Handle (Biscuit) WPL 2195992T Contact Us For Availability

Insert, Handle (White) WPL 2195992W Contact Us For Availability

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

Pan, Meat (Includes Items 8,10 & 29) WPL 2188818 Contact Us For Availability

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

Nut (Not Serviced) WPL ARI112469A Contact Us For Availability

Insert, Handle (Black) WPL 2188154 Contact Us For Availability

Insert, Handle (White) WPL 2195984 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support Block WPL 2201185 Contact Us For Availability

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

27

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

29

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Screw WPL 489439 Contact Us For Availability

31

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

Grille (White) WPL 2301618W Contact Us For Availability

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Gasket, Front WPL 2174396 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

41

Plate WPL 2301979 Contact Us For Availability

42

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

42

Wire Assembly Unit WPL 2187756 Contact Us For Availability

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

44

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

45

Grommet WPL 531933 Contact Us For Availability

46

Tube, Water WPL 2301621 Contact Us For Availability

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

57

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI112470A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI112471A Contact Us For Availability

60

Bracket, Evap. Fa WPL 2214979 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
