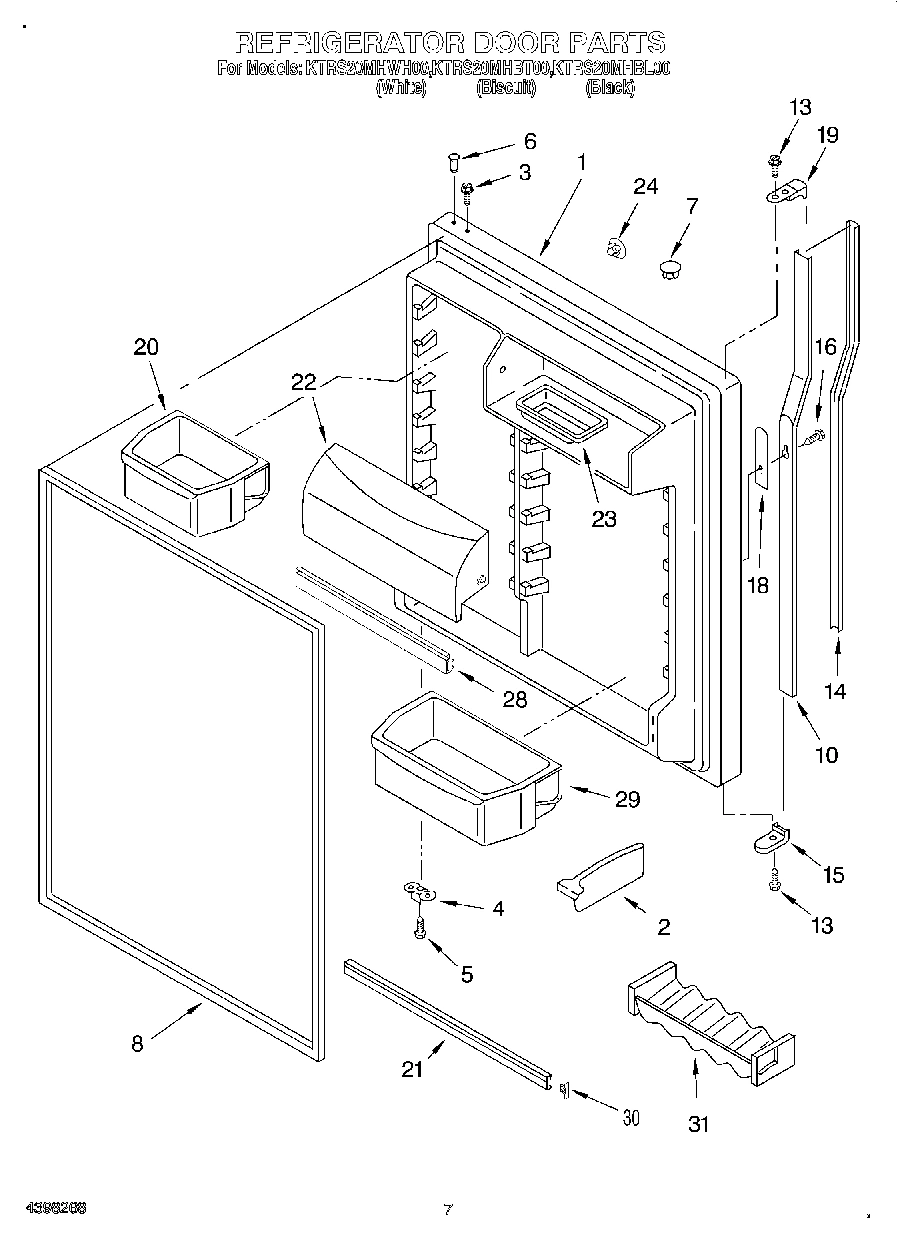

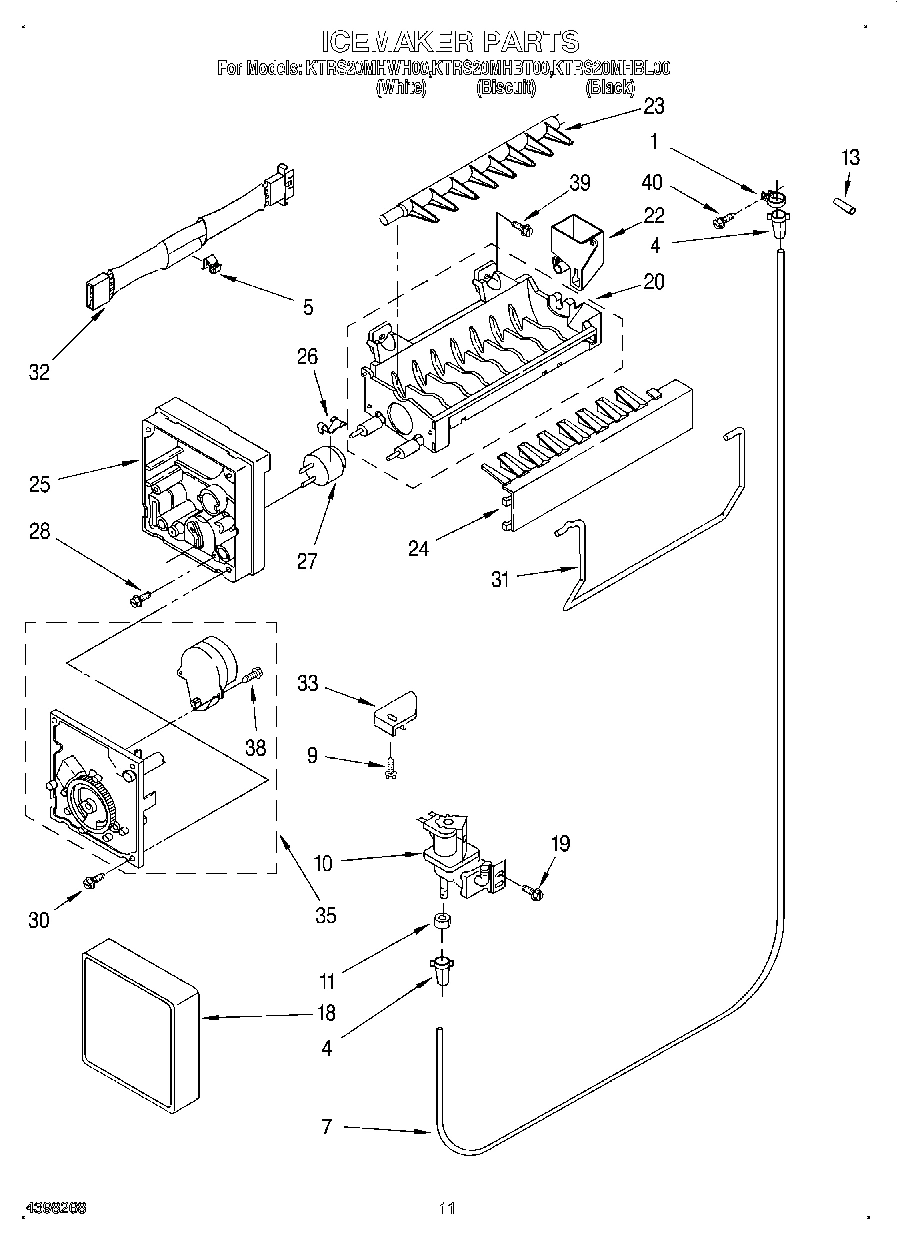

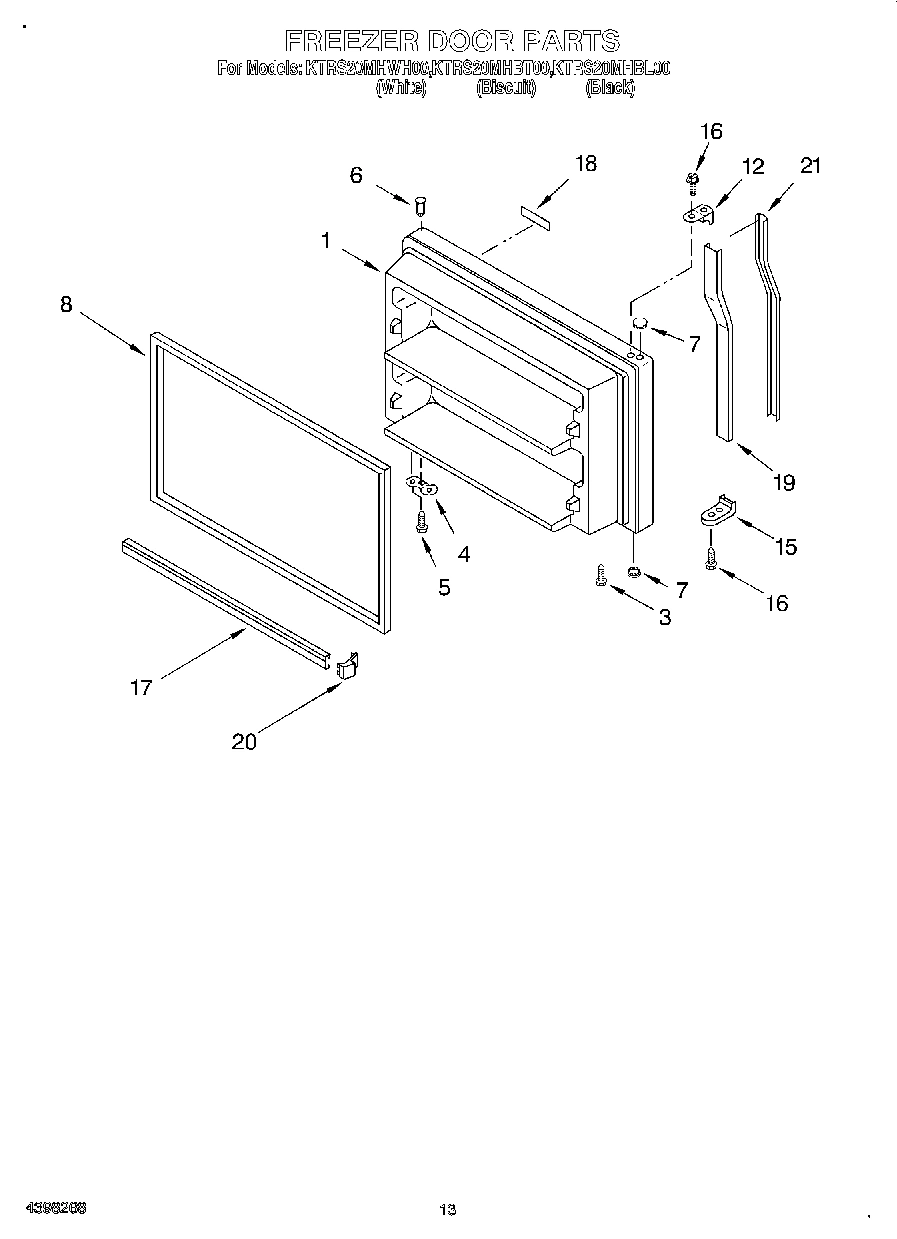

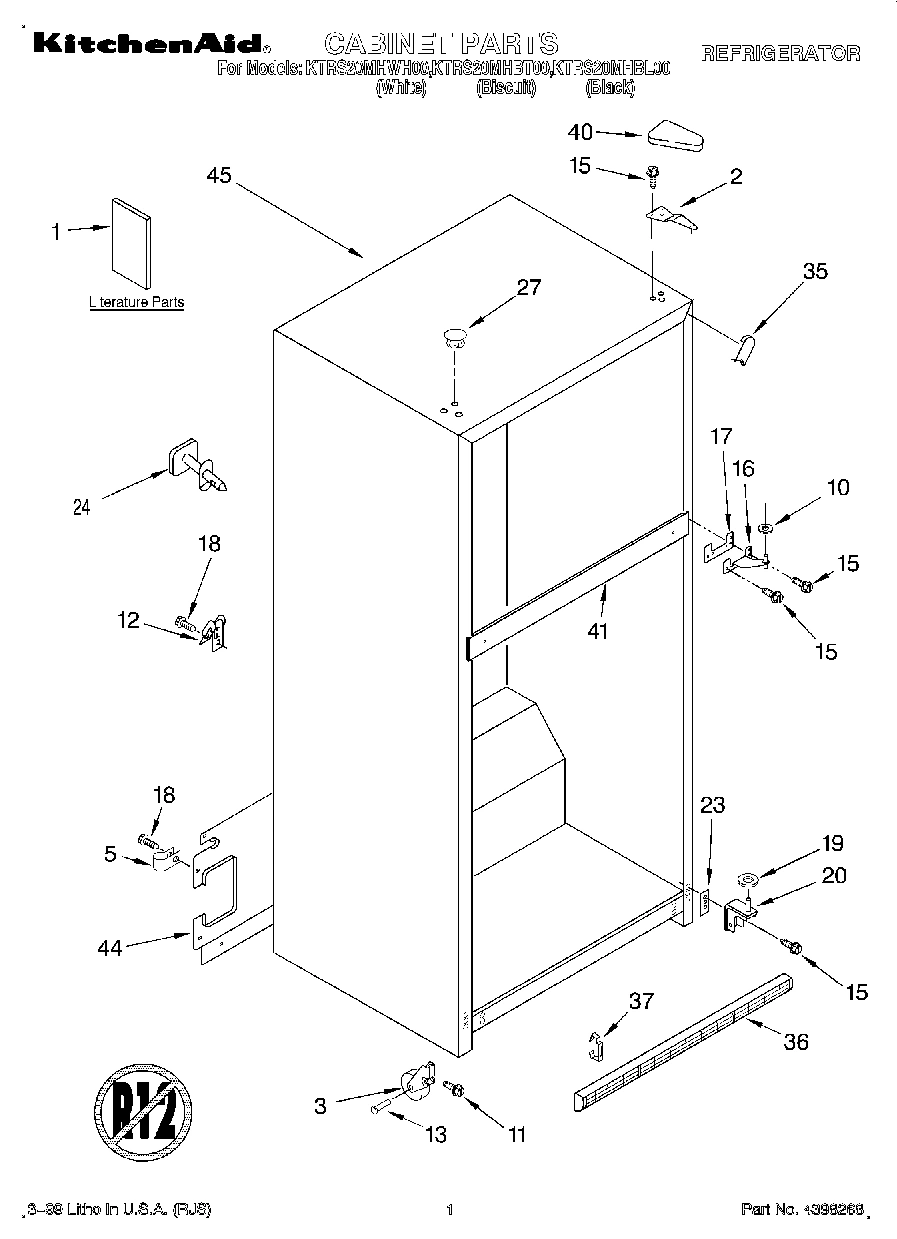

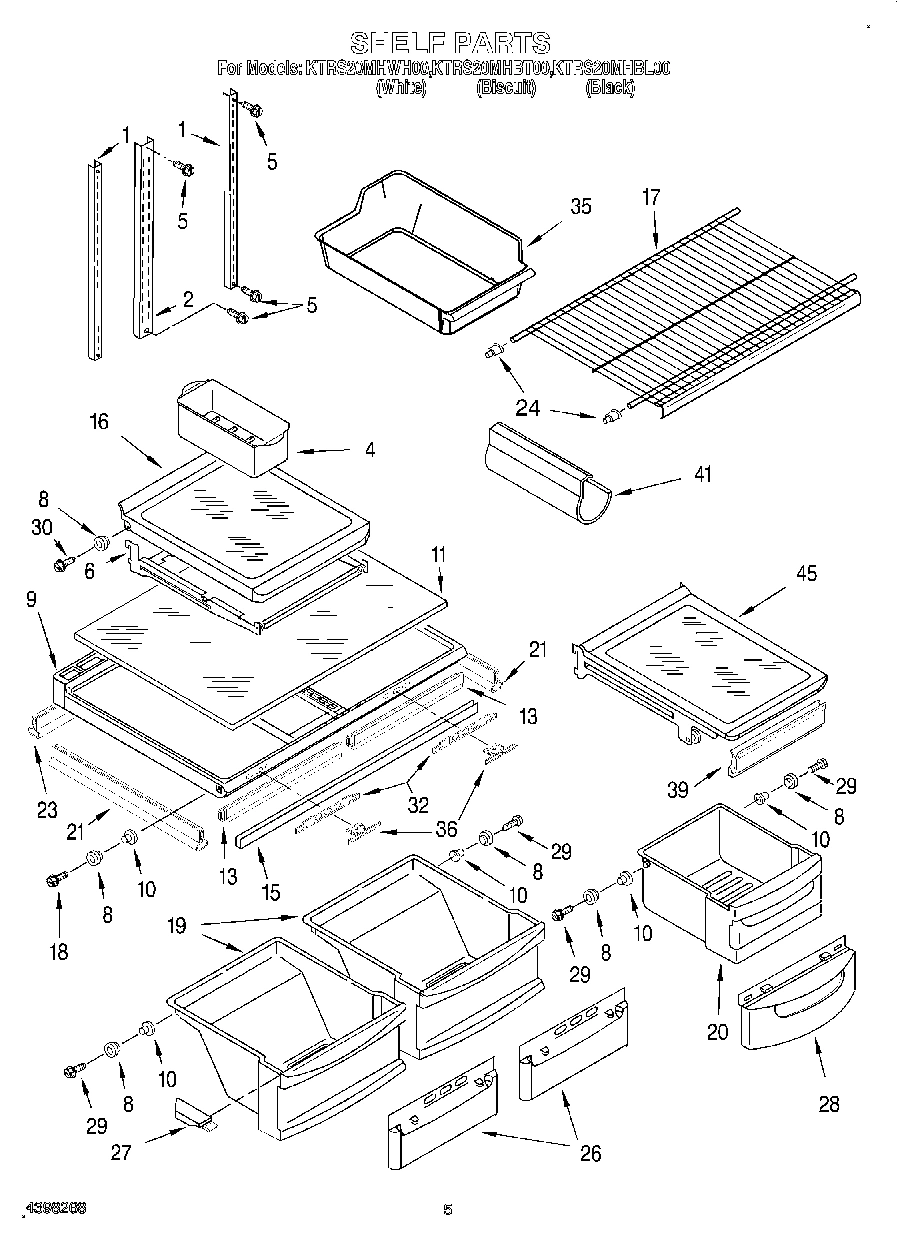

Model Whirlpool KTRS20MHBT00 – Common Parts &amp; Diagrams

1

Plate, Unit Mounting WPL 2188167 Contact Us For Availability

1

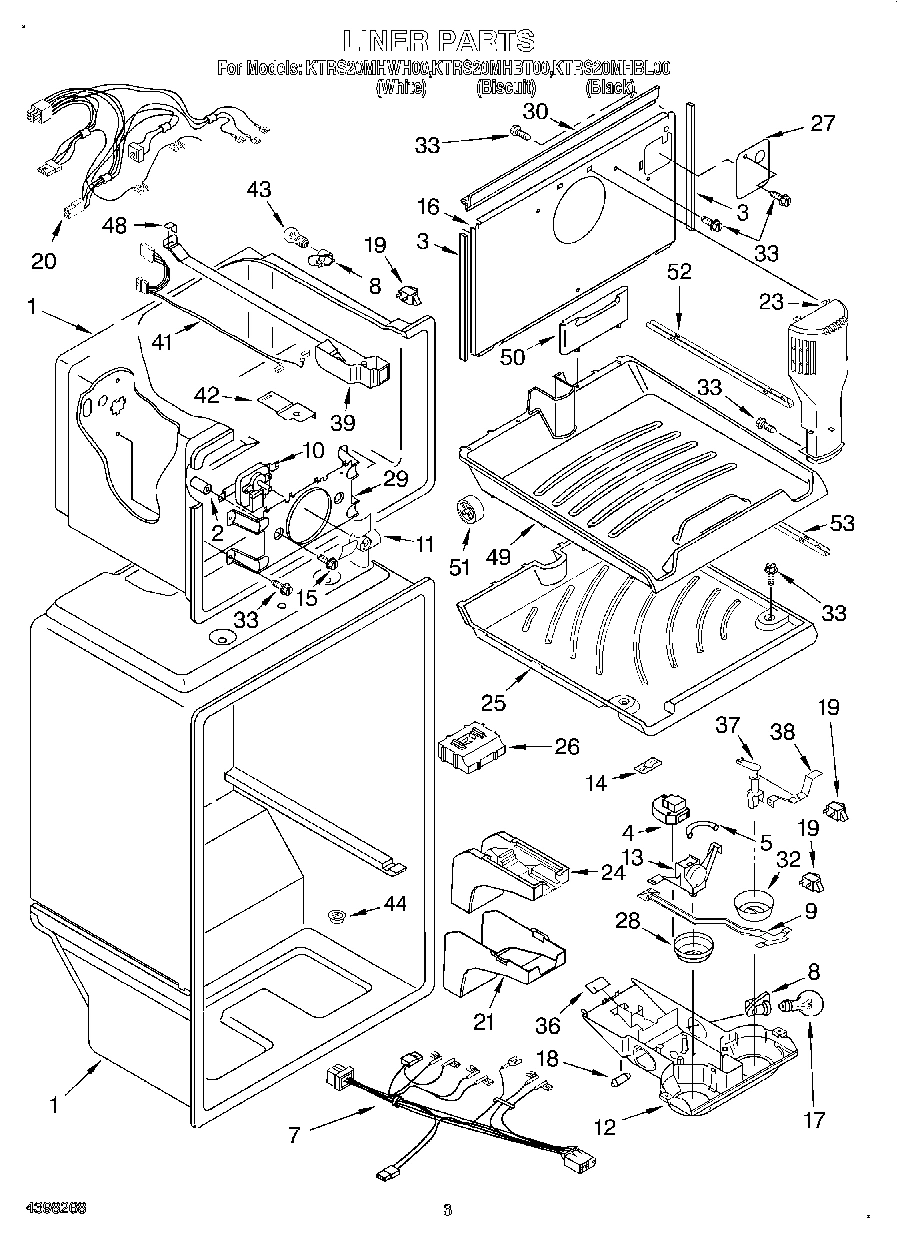

Liner (Not A Serviceable Part) WPL ARI111969A Contact Us For Availability

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

2

Grommet (2) WPL 531933 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

Condenser WPL 2195400 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $56.15

4

Timer, Defrost WPL 2193084 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2172620 Contact Us For Availability

7

Wire Assy. Control Box WPL 2200632 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

Damper, Air (Slide) WPL 2179858 Contact Us For Availability

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

Eyelet, Roller WPL 2174478 Contact Us For Availability

Extension, Air Baffle WPL 2163780 Contact Us For Availability

Fan Motor WPL 2183833 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Glass, Crisper Cover WPL 2174141 Contact Us For Availability

Clamp WPL 943322 Contact Us For Availability

Endcap (White) WPL 2195994W Contact Us For Availability

End Cap (Black) WPL 2195994B Contact Us For Availability

Endcap (Biscuit) WPL 2195994T Contact Us For Availability

Cover (Service Only) WPL 1105055 Contact Us For Availability

Control Box WPL 2200820 Contact Us For Availability

2183408 Whirlpool Refrigerator Overload Backorder WPL 2183408 $47.31

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $33.47

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability

Tube, Water Inlet WPL 2174755 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Clip, Defrost Timer WPL 2176341 Contact Us For Availability

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

End Cap (Black) WPL 2195995B Contact Us For Availability

Endcap (Biscuit) WPL 2195995T Contact Us For Availability

Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability

Screw WPL 489412 Contact Us For Availability

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

16

Cover-Evaporator WPL 2189833 Contact Us For Availability

4388239 Whirlpool Refrigerator Primary Cabine In Stock WPL 4388239 $39.33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

Trim, Door WPL 2195947 Contact Us For Availability

2174157 Whirlpool Refrigerator Front Cover Backorder WPL 2174157 $30.47

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Nameplate (White) WPL 2188149 Contact Us For Availability

Nameplate (Black) WPL 2188151 Contact Us For Availability

Nameplate (Biscuit) WPL 2200935 Contact Us For Availability

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

Endcap (White) WPL 2195995W Contact Us For Availability

Insert, Handle (Black) WPL 2195992B Contact Us For Availability

Insert, Handle (Biscuit) WPL 2195992T Contact Us For Availability

Insert, Handle (White) WPL 2195992W Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Relay (Production (Service - See Overload)) WPL 2176805 Contact Us For Availability

Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Insert, Handle (Black) WPL 2188154 Contact Us For Availability

Insert, Handle (White) WPL 2195984 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability

Nut (Not Serviced) WPL ARI111970A Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Sopport WPL 2189906 Contact Us For Availability

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Air Tower WPL 2182340 Contact Us For Availability

Cover, Unit WPL 2198740 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

Screw (4) WPL 489462 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

25

Freezer Floor WPL 2190589 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $12.08

Installation Kit WPL 482801 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

Bracket, Fan Motor WPL 2200511 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Knob, Damper WPL 2176297 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Post, Damper WPL 2179859 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Air Baffle WPL 2198921 Contact Us For Availability

39

Housing Base WPL 2184633 Contact Us For Availability

40

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability

42

Wire Assy. Unit WPL 2200798 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

43

Blade, Fan WPL 2190685 Contact Us For Availability

44

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Tube, Discharge WPL 2184451 Contact Us For Availability

47

Tube, Suction WPL 2189173 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2189449 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

Roller, Slide WPL 2176246 Contact Us For Availability

52

Side Support, Floor Assembly WPL 2179713 Contact Us For Availability

53

Center Support, Floor Assembly WPL 2179714 Contact Us For Availability

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Tray, Evaporator WPL 2189433 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

FeaturePak (Includes 17, 20) Also See Ref.Dr. WPL 2204676 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability
