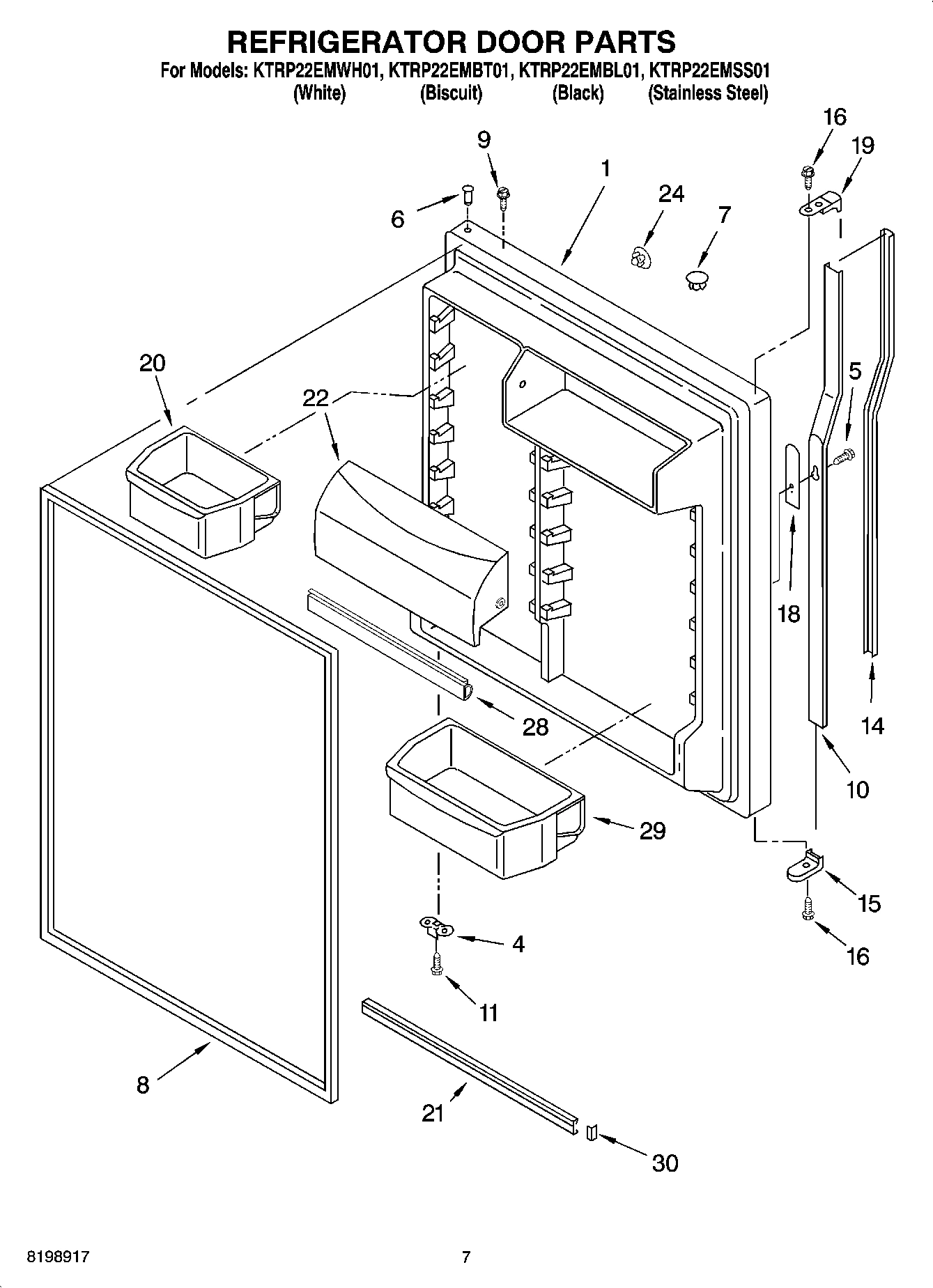

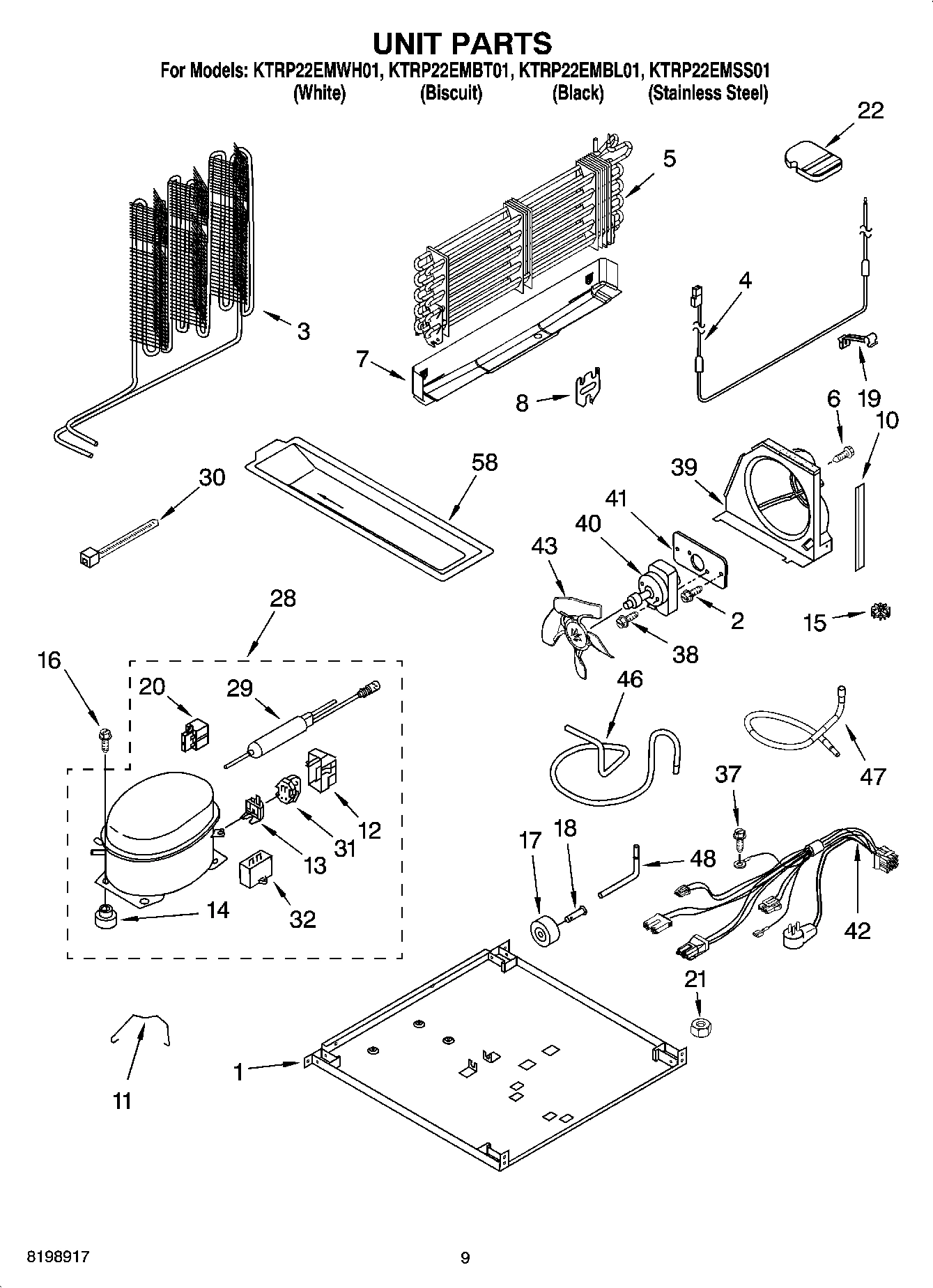

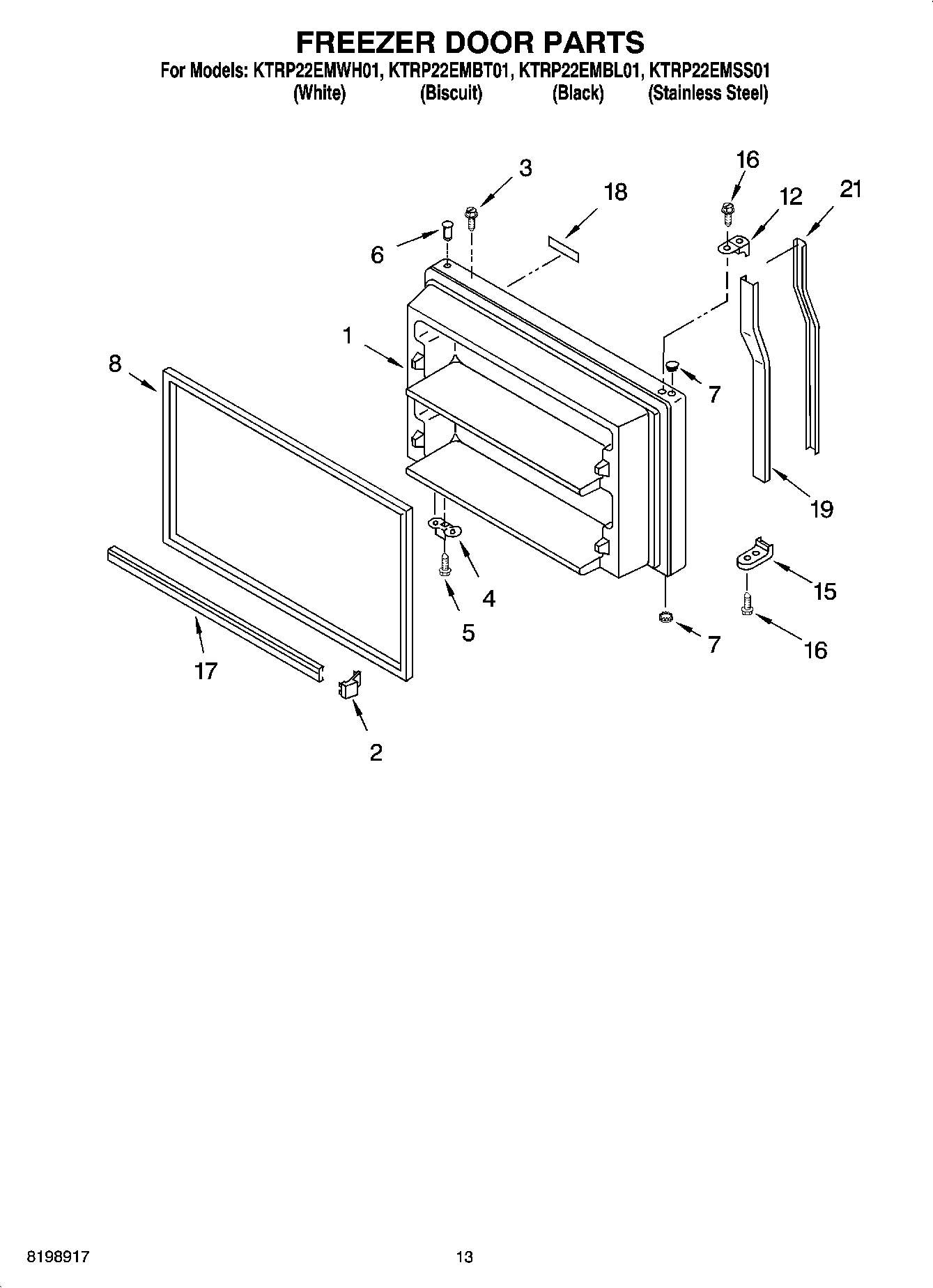

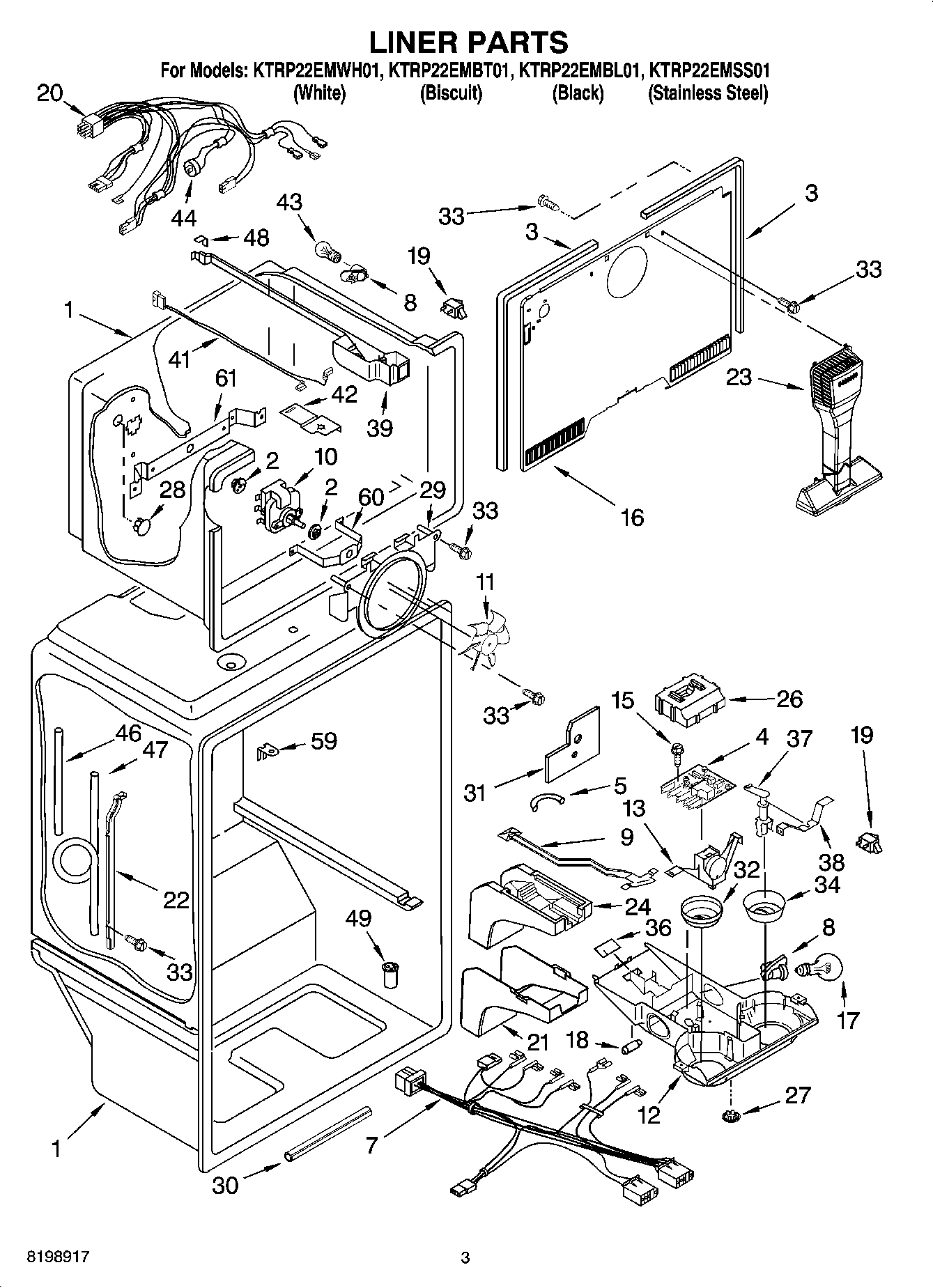

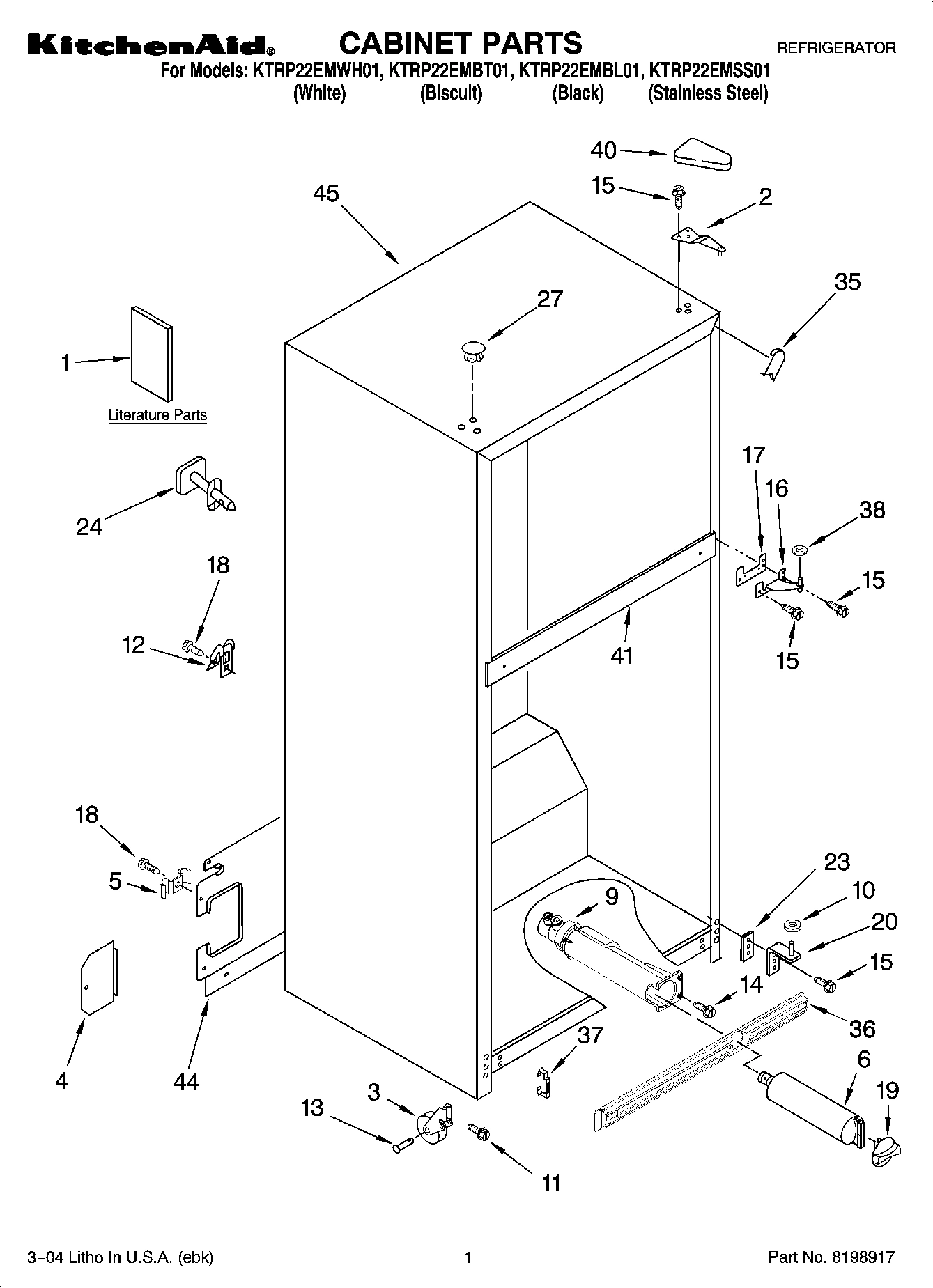

Model Whirlpool KTRP22EMBT01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Refrigerator Door (Includes 8) (White) WPL 2198970 Contact Us For Availability

1

Refrigerator Door (Includes 8) (Black) WPL 2200613 Contact Us For Availability

1

Refrigerator Door (Includes 8) (Biscuit) WPL 2200927 Contact Us For Availability

1

Refrigerator Door (Includes 8) (Stainless Ste WPL 2225504 Contact Us For Availability

1

Literature Parts (Consumer Quick Tips) WPL LIT2225415 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT2225623 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2225951 Contact Us For Availability

1

Literature Parts (Instruction Sheet, Water Fi WPL LIT2301632 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2301736 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2301817 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

Flange, Tube WPL 2210523 Contact Us For Availability

4

Cover, Water Valve WPL 2166251 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Screw, 8 x 1/2 WPL 3400873 Contact Us For Availability

5

Clamp, Tube (Water Supply Line) WPL 2301624 Contact Us For Availability

6

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $143.90

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

9

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Retainer, Insert (Black) WPL 2188222B Contact Us For Availability

Retainer, Insert (Biscuit) WPL 2188222T Contact Us For Availability

Retainer, Insert (White) WPL 2188222W Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

11

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Endcap, Handle (White) WPL 2195994W Contact Us For Availability

Endcap, Handle (Black) WPL 2195994B Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2195994T Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

Thermostat Assembly (Includes Items 5 & 18) WPL 2210491 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Insert, Handle (Black) WPL 2188155 Contact Us For Availability

Insert, Handle (White) WPL 2195986 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200932 Contact Us For Availability

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Endcap, Handle (Black) WPL 2188132 Contact Us For Availability

Endcap, Handle (White) WPL 2195990 Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2200930 Contact Us For Availability

16

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

Spacer, Handle WPL 2188146 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

Clip, Heater WPL 2182338 Contact Us For Availability

Endcap (White) WPL 2195995W Contact Us For Availability

End Cap (Black) WPL 2195995B Contact Us For Availability

Endcap (Biscuit) WPL 2195995T Contact Us For Availability

Insert, Retainer (Black) WPL 2195992B Contact Us For Availability

Insert, Retainer (Biscuit) WPL 2195992T Contact Us For Availability

Insert, Retainer (White) WPL 2195992W Contact Us For Availability

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Insert, Handle (Black) WPL 2188154 Contact Us For Availability

Insert, Handle (White) WPL 2195984 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support Block WPL 2201185 Contact Us For Availability

22

Door, Compartment WPL 2218122 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

23

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

Fitting, Water Tube (Not Serviced) WPL ARI111242A Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

28

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

29

Bin, Door Shelf WPL 2171062 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

Grille (White) WPL 2301618W Contact Us For Availability

Grille (Black) WPL 2301618B Contact Us For Availability

Grille (Biscuit) WPL 2301618T Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

38

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

41

Plate WPL 2301979 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI111243A Contact Us For Availability

44

Cover, Unit WPL 2253196 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI111244A Contact Us For Availability

46

Tube, Water WPL 2301621 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

60

Bracket, Fan Front WPL 2214979 Contact Us For Availability

100

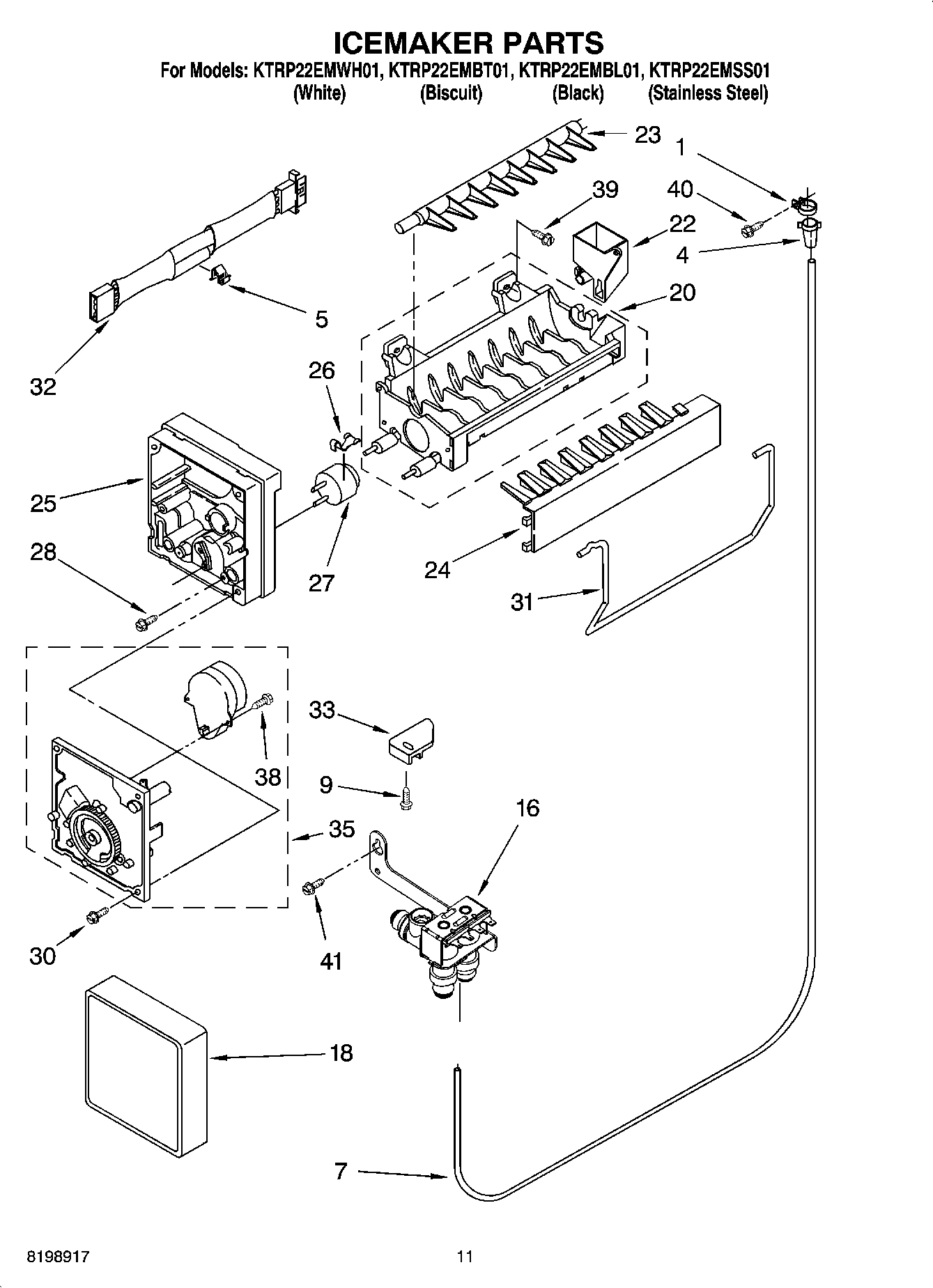

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
