Model Whirlpool KTRD18KDAL00 – Common Parts & Diagrams

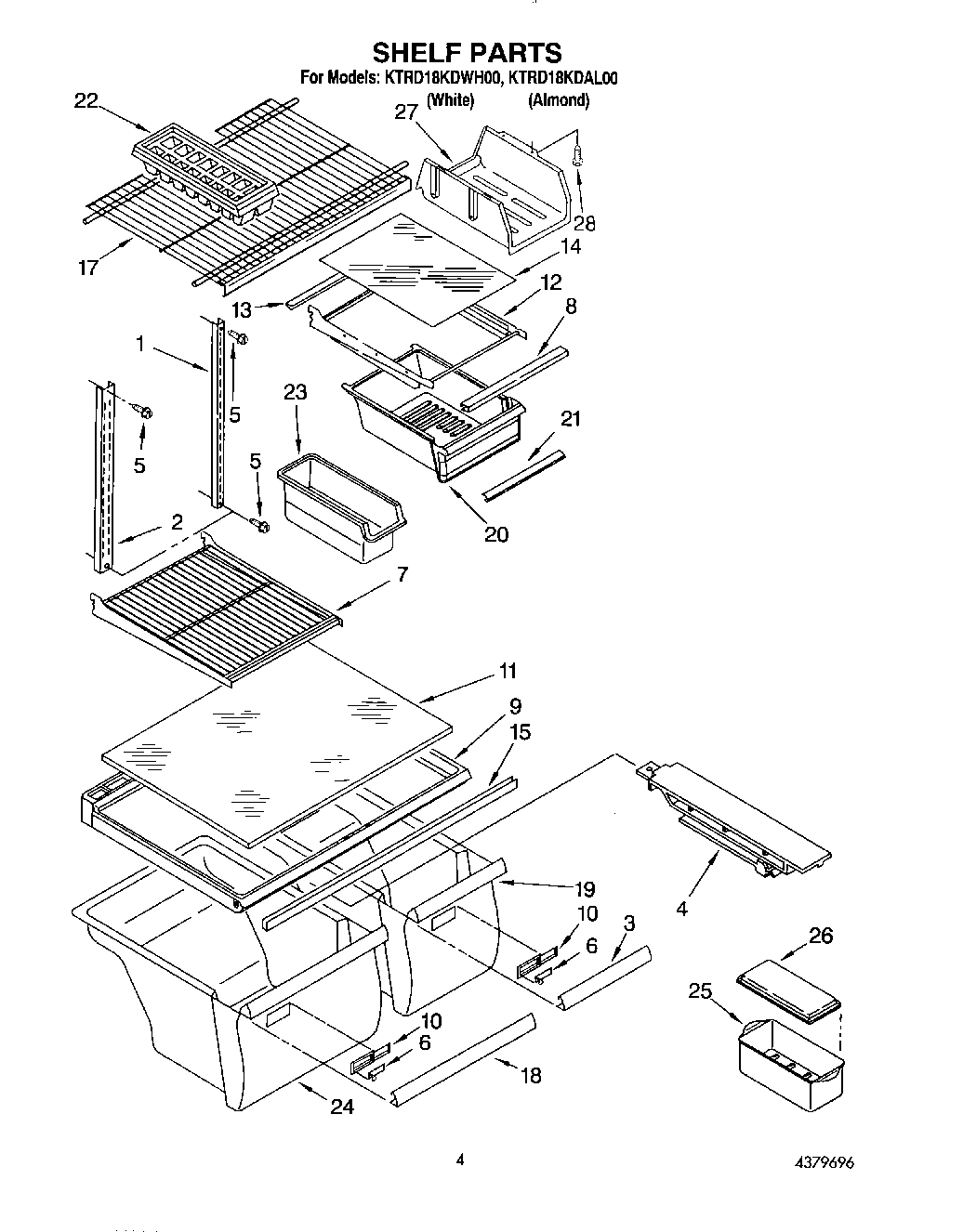

03 - SHELF

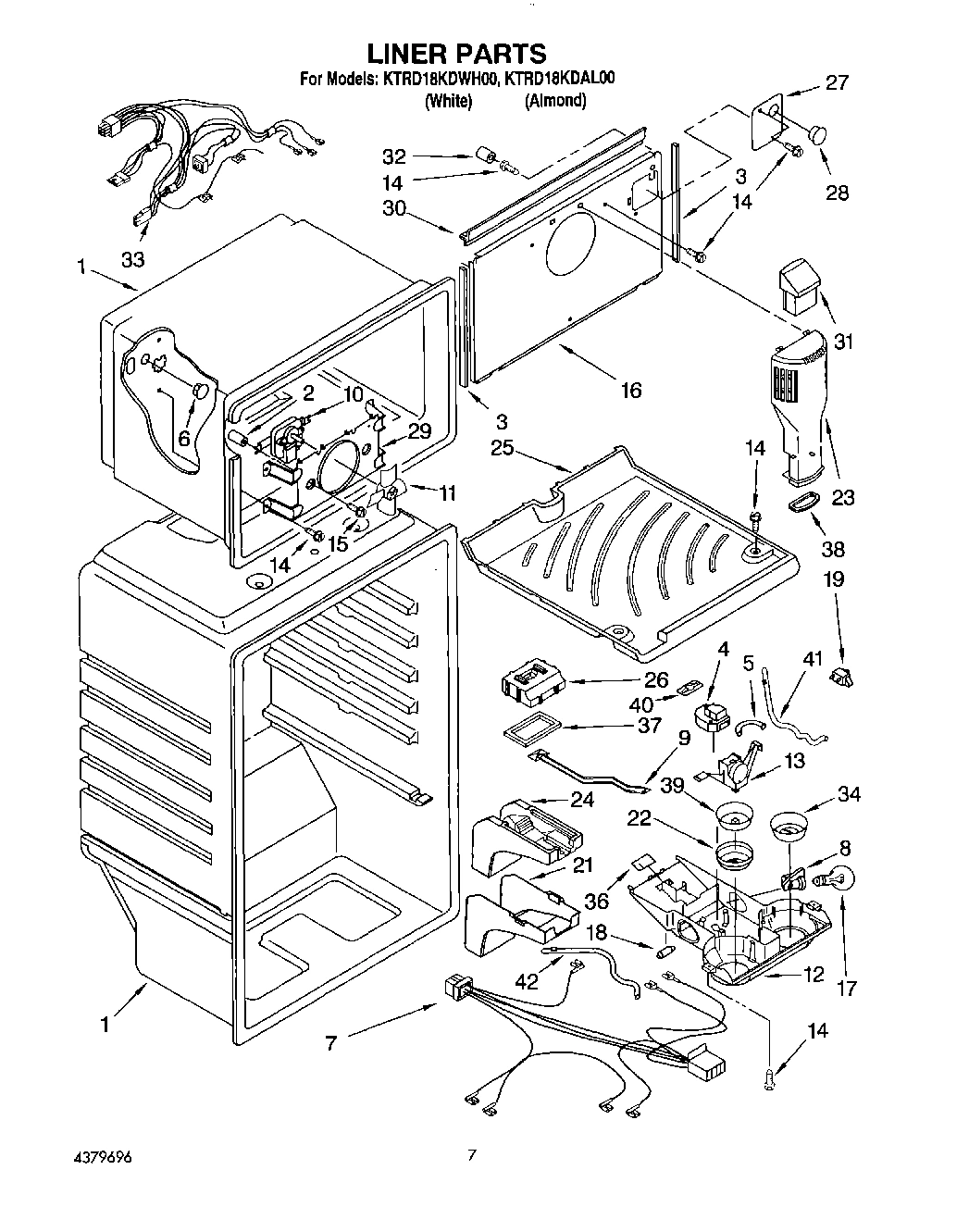

05 - LINER
04 - REFRIGERATOR DOOR
06 - UNIT, LIT/OPTIONAL
01 - CABINET
02 - FREEZER DOOR
Common parts from model Whirlpool KTRD18KDAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2168977 WPL LIT2168977 Contact Us For Availability
WPL LIT2169007 WPL LIT2169007 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2177807 WPL LIT2177807 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2171228 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2171229 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI110561A Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2171224 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2171225 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Slide, Humidity Control WPL 2176222 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177306 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
End Cap WPL 944302 Contact Us For Availability
11
Handle End, Side WPL 987870 Contact Us For Availability
12
Handle, Center (Almond) WPL 1123133 Contact Us For Availability
12
Handle, Center (White) WPL 2156670 Contact Us For Availability
12
Handle, Center (White) WPL 2168984 Contact Us For Availability
12
Handle, Center (Almond) WPL 2168985 Contact Us For Availability
13
Spacer, Handle WPL 944320 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
14
Shim, End Cap WPL 987872 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Relay (See Overload) WPL ARI110565A Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2168966 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Endcap, Insert Retainer WPL 1123210 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
19
Handle, Extension (White) WPL 2168980 Contact Us For Availability
19
Handle, Extension (Almond) WPL 2168981 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
19
End Cap WPL 944303 Contact Us For Availability
20
Trim, Door Shelf WPL 2168973 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Door Shelf WPL 2168975 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI110566A Contact Us For Availability
22
Knob, Thermostat WPL 2174522 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI110562A Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
34
Knob, Damper WPL 2174521 Contact Us For Availability
35
Trim, Door Shelf WPL 2168968 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2163889 Contact Us For Availability
36
Grille (Almond) WPL 2166133 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
37
Trim, Door Shelf WPL 2168974 Contact Us For Availability
38
Gasket, Air Tower WPL 2179839 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Light Bar, R.S. WPL 2174627 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI110563A Contact Us For Availability
42
Light Bar, L.S. WPL 2174628 Contact Us For Availability
42
Wire Assy. Unit WPL 2176279 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
46
Tube, Discharge WPL 2172660 Contact Us For Availability
47
Tube, Suction WPL 2172662 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2176379 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
