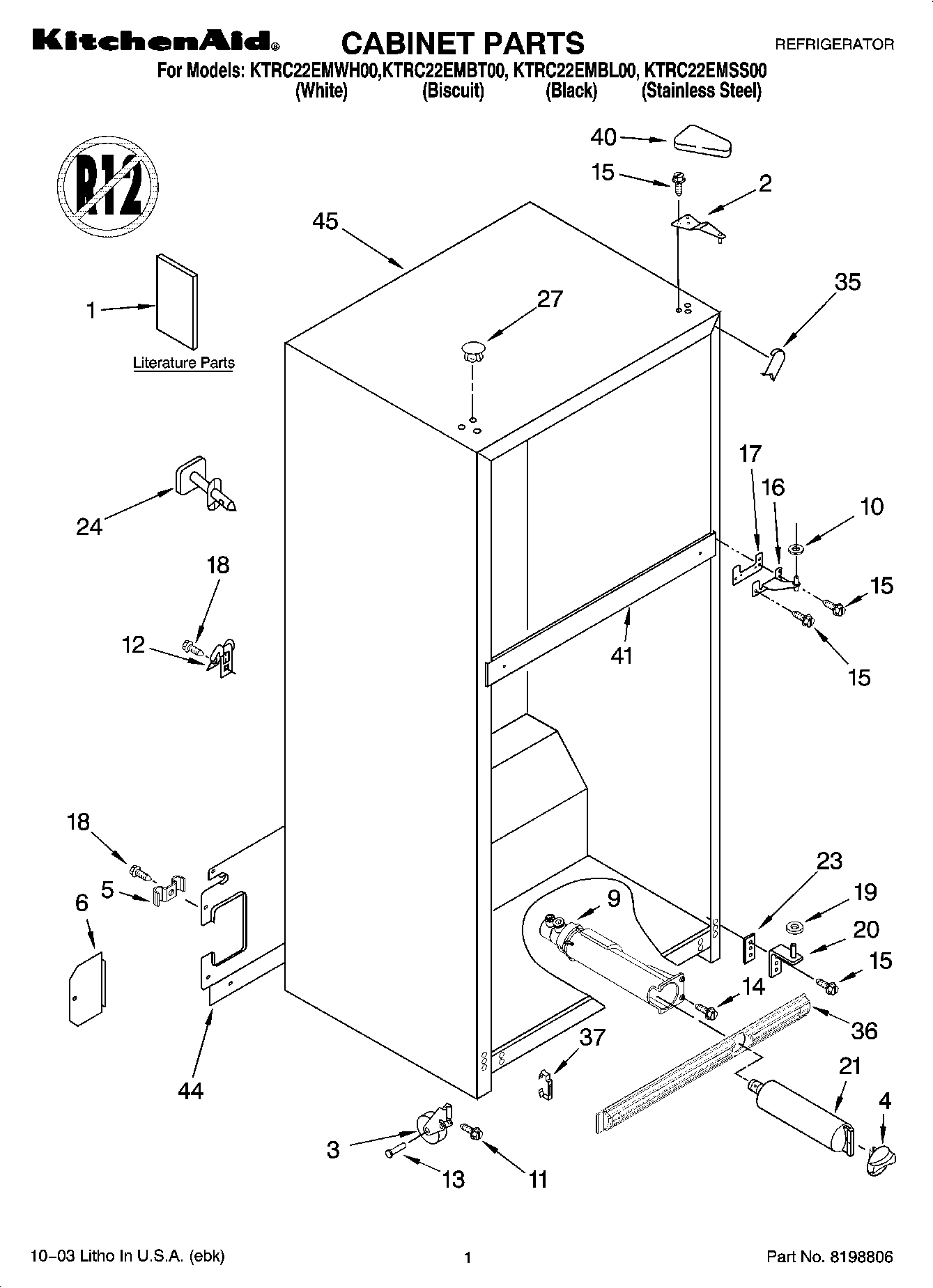

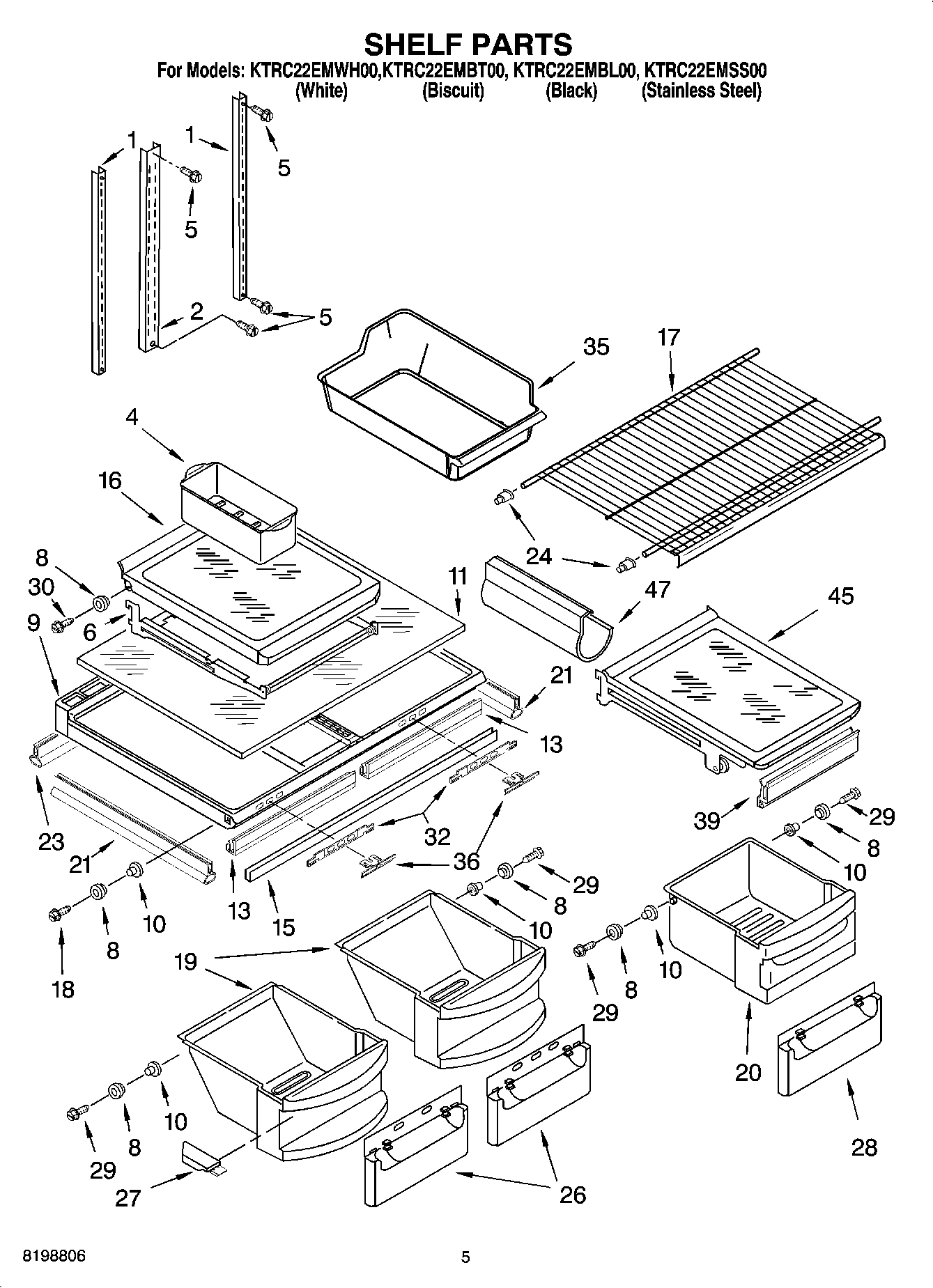

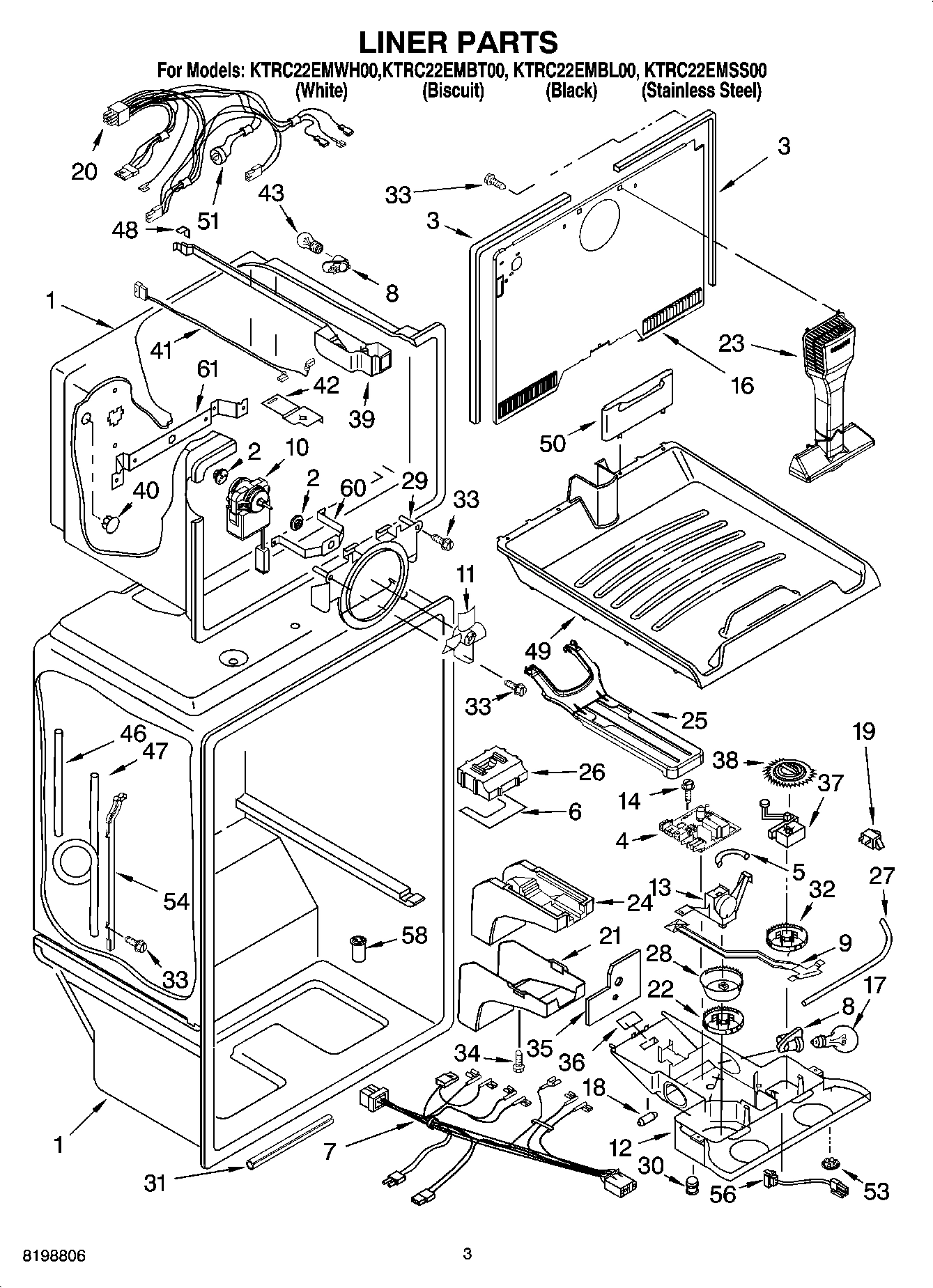

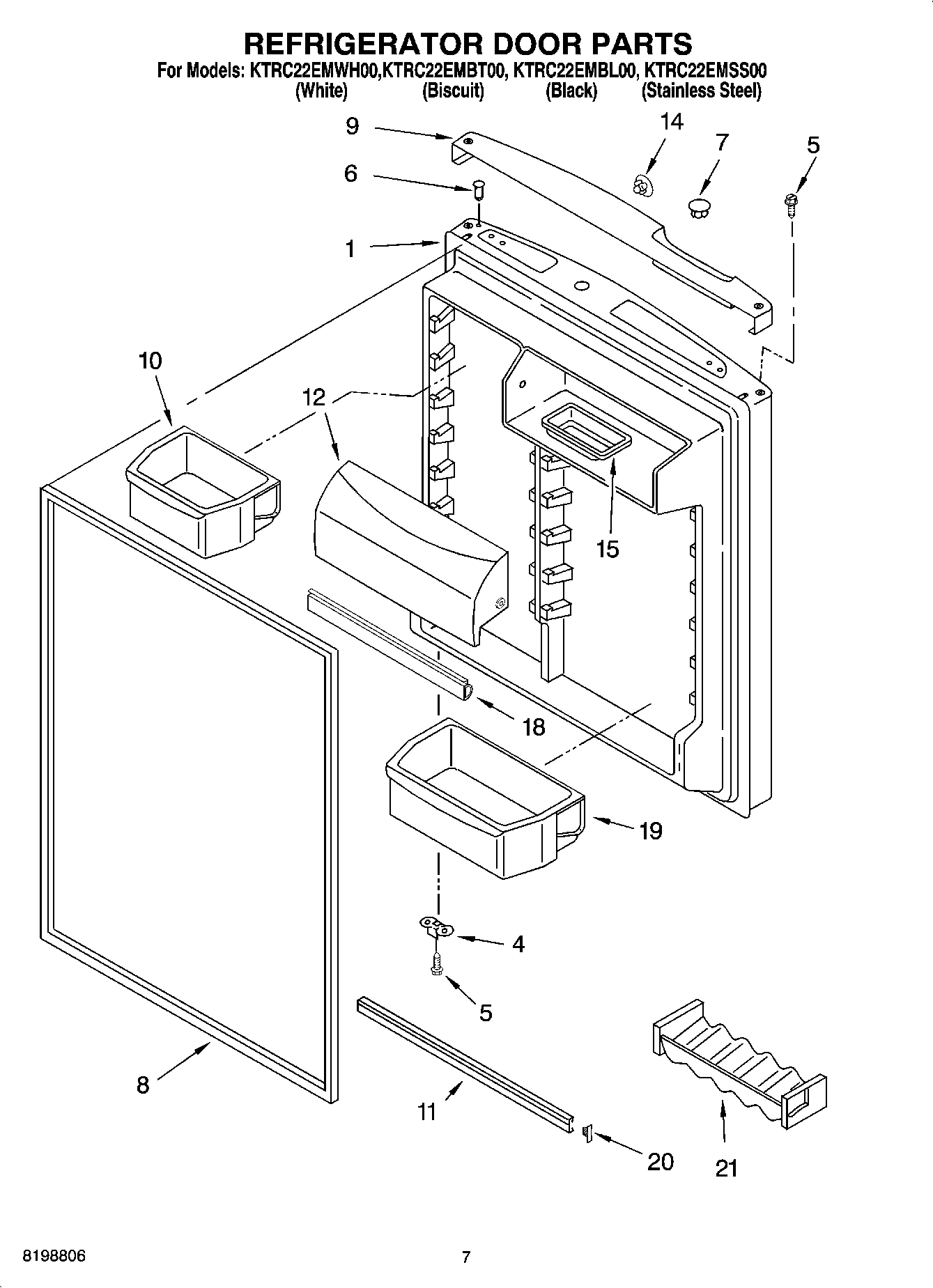

Model Whirlpool KTRC22EMWH00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Optional Par WPL ARI109973A Contact Us For Availability

WPL ARI109974A WPL ARI109974A Contact Us For Availability

WPL ARI109975A WPL ARI109975A Contact Us For Availability

WPL ARI109976A WPL ARI109976A Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Refrigerator Door (Includes 6 & 8) (White) WPL 2205214 Contact Us For Availability

1

Refrigerator Door (Includes 6 & 8) (Biscuit) WPL 2205215 Contact Us For Availability

1

Refrigerator Door (Includes 6 & 8) (Black) WPL 2205217 Contact Us For Availability

1

Refrigerator Door (Includes 6 & 8) (Stainless WPL 2212418 Contact Us For Availability

1

Literature Parts (Customer Instructions) WPL LIT2225415 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT2225623 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2225951 Contact Us For Availability

1

Literature Parts (Instrucion Sheet, Water Fil WPL LIT2301632 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2301730 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2301816 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $19.18

4

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

4

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Clamp, Tube (Water Supply Line) WPL 2301624 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

Cover, Water Valve WPL 2166251 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $94.28

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $151.83

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

9

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

9

Handle (White) WPL 2213333 Contact Us For Availability

9

Handle (Biscuit) WPL 2213334 Contact Us For Availability

9

Handle (Black) WPL 2221628 Contact Us For Availability

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door WPL 2159292 Contact Us For Availability

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $39.75

Glass, Crisper Cover WPL 2210571 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

Door, Compartment WPL 2218122 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability

Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability

Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

Butter, Dish WPL 2165792 Contact Us For Availability

16

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Shelf, Freezer WPL 2184667 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

WPW10289690 Whirlpool Ice Maker Cover In Stock WPL WPW10289690 $2.51

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Clip, Heater WPL 2182338 Contact Us For Availability

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

Pan, Crisper (Includes Rollers) WPL 2188816 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Pan, Meat (Includes Rollers) WPL 2188818 Contact Us For Availability

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability

Beverage Holder WPL 2193409 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

22

Support WPL 2201185 Contact Us For Availability

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

Fitting, Water Tube (Not Serviced) WPL ARI109967A Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

26

Window, Crisper WPL 2188276 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability

Hole Plug, Endcap (Biscuit) WPL 2200924 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

28

Window, Meat Pan WPL 2188278 Contact Us For Availability

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Screw WPL 489439 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

Slide, Humidity WPL 2174257 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.91

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Grille (White) WPL 2301618W Contact Us For Availability

Button, Humidity Control WPL 2174253 Contact Us For Availability

Grille (Black) WPL 2301618B Contact Us For Availability

Grille (Biscuit) WPL 2301618T Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Gasket, Front WPL 2174396 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

41

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

41

Rail Center (Not Serviced) WPL ARI109968A Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

44

Cover, Unit WPL 2253196 Contact Us For Availability

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI109969A Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

46

Tube, Water WPL 2301621 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

60

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
