Model Whirlpool KTRC18KDWH00 – Common Parts & Diagrams

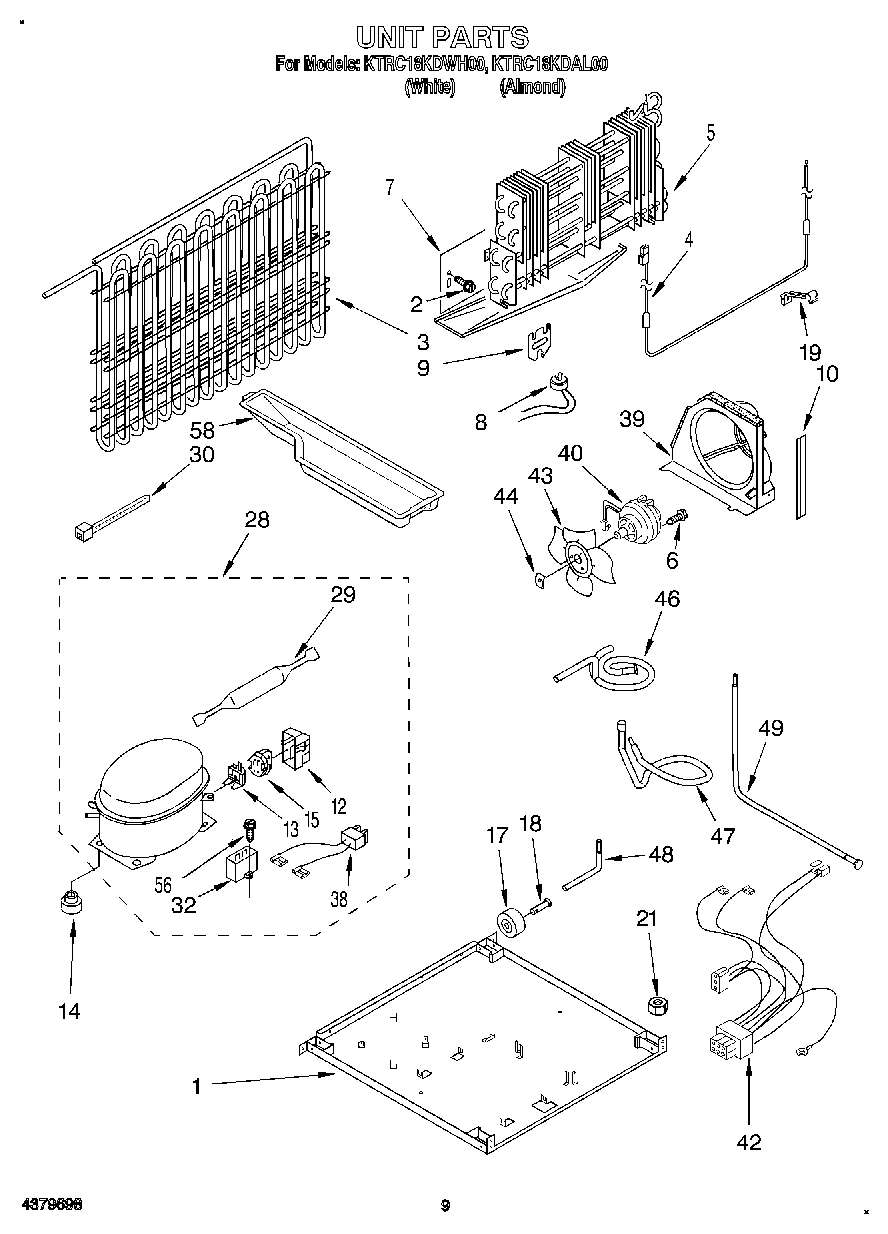

06 - UNIT, LIT/OPTIONAL

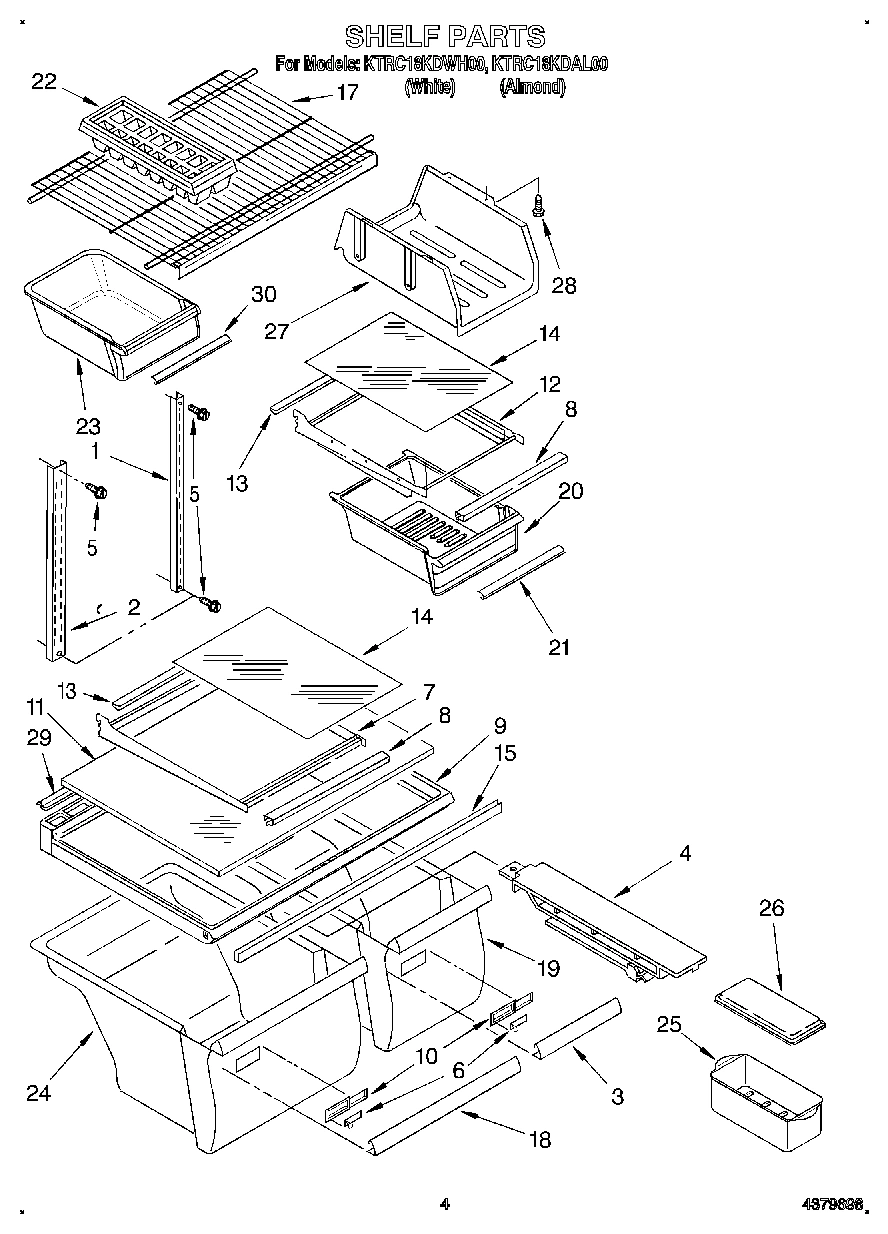

03 - SHELF
04 - REFRIGERATOR DOOR
05 - LINER
01 - CABINET
02 - FREEZER DOOR
Common parts from model Whirlpool KTRC18KDWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2171228 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2171229 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI109030A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI109027A Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2171224 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2171225 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Trim, Crisper Pan WPL 2179704 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
6
Screw WPL 489457 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 2163859 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Trim, Shelf WPL 2176262 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177306 Contact Us For Availability
9
Insert, Handle (White) WPL 2168896 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
9
Damper, Air WPL 2176268 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Insert, Handle (White) WPL 2168898 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Control Box WPL 2179798 Contact Us For Availability
12
Handle WPL 2168901 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
14
Shelf, Glass WPL 2168969 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
15
Butter, Tray WPL 1125936 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover - Evaporator WPL 2163818 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2168966 Contact Us For Availability
18
Trim, Crisper Pan WPL 2179705 Contact Us For Availability
18
Spacer, Door Handle WPL 1107650 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
20
Trim, Door Shelf WPL 2168973 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Meat Pan WPL 2176356 Contact Us For Availability
21
Trim, Door Shelf WPL 2168975 Contact Us For Availability
22
Knob, Thermostat WPL 2174522 Contact Us For Availability
23
Ice Bucket WPL 2168967 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI109028A Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Cover, Egg Bin WPL 2164374 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Shelf, Freezer WPL 2172569 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
33
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
34
Knob, Damper WPL 2174521 Contact Us For Availability
35
Trim, Door Shelf WPL 2168968 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2163889 Contact Us For Availability
36
Grille (Almond) WPL 2166133 Contact Us For Availability
37
Trim, Door Shelf WPL 2168974 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Gasket, Air Tower WPL 2179839 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
40
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Light Bar, R.S. WPL 2174627 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI109029A Contact Us For Availability
42
Light Bar, L.S. WPL 2174628 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
44
Cover, Unit WPL 2179786 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
Door Reversal Instructions WPL 2180007 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
