Model Whirlpool KTRA19EMSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

WPL ARI108591A WPL ARI108591A Contact Us For Availability

WPL ARI108592A WPL ARI108592A Contact Us For Availability

WPL ARI108593A WPL ARI108593A Contact Us For Availability

WPL ARI108594A WPL ARI108594A Contact Us For Availability

1

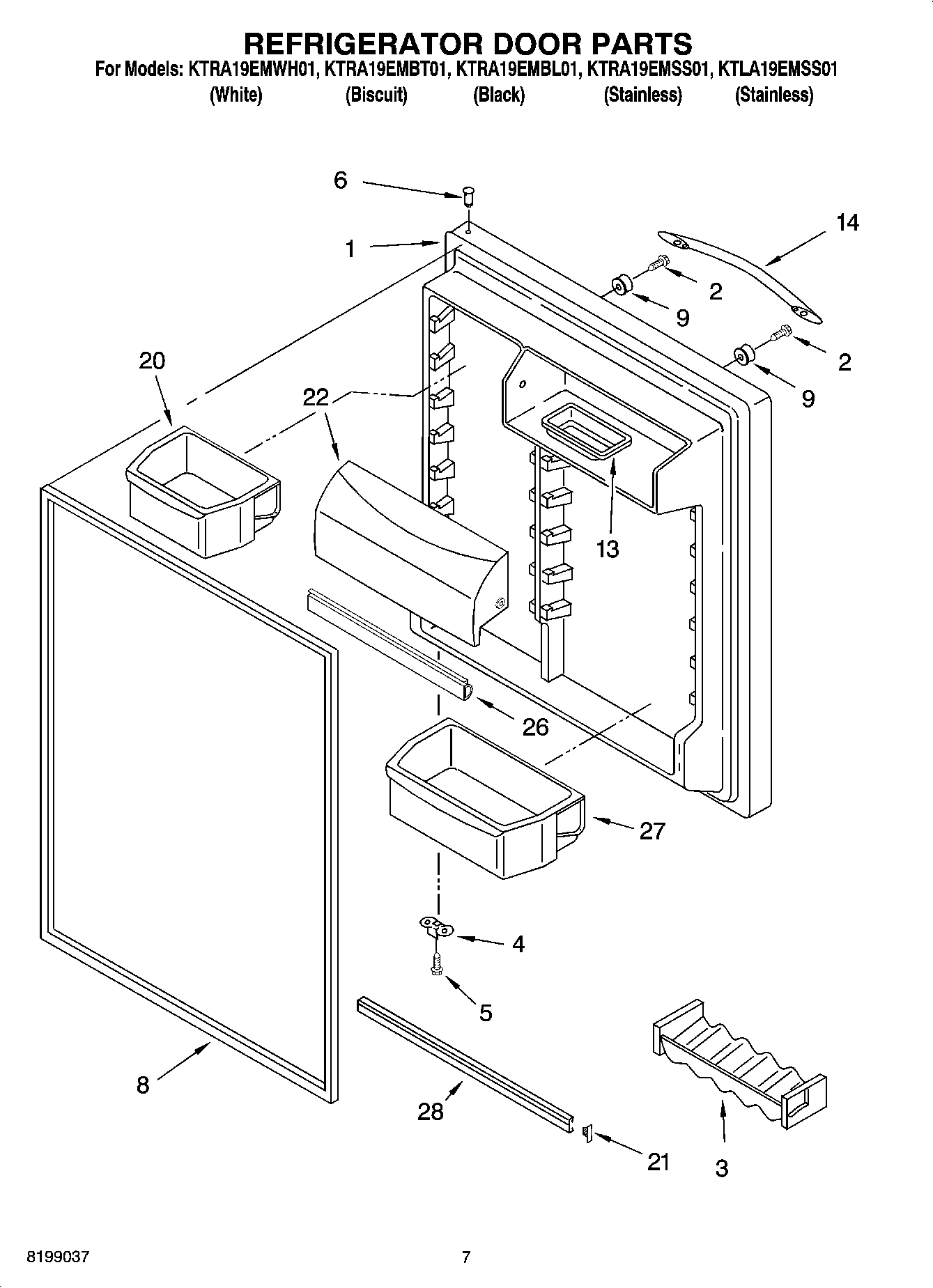

Refrigerator Door (White) WPL 2221708 Contact Us For Availability

1

Refrigerator Door (Black) WPL 2221709 Contact Us For Availability

1

Refrigerator Door (Biscuit) WPL 2221710 Contact Us For Availability

1

Refrigerator Door (Stainless, Right Hand) WPL 2221740 Contact Us For Availability

1

Refrigerator Door (Stainless, Left Hand (Incl WPL 2221741 Contact Us For Availability

1

Customer Quick Tips WPL 2225415 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Instruction Sheet, Water Filter WPL 2301632 Contact Us For Availability

1

Service & Wiring Sheet WPL 2301816 Contact Us For Availability

1

Use & Care Guide WPL 2301879 Contact Us For Availability

1

Energy Label WPL 2302197 Contact Us For Availability

1

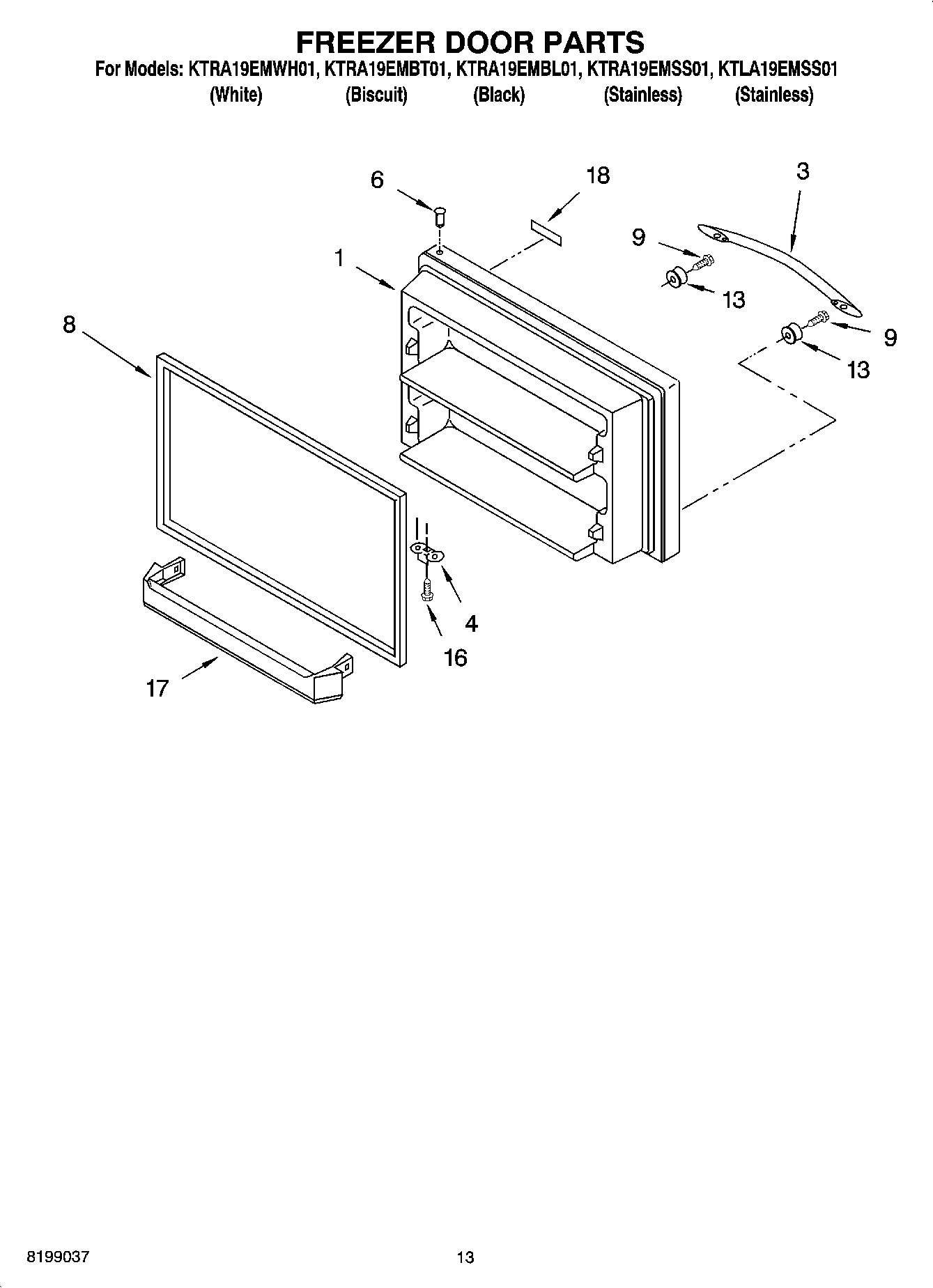

Freezer Door (White) WPL 2221714 Contact Us For Availability

1

Freezer Door (Black) WPL 2221715 Contact Us For Availability

1

Freezer Door (Biscuit) WPL 2221716 Contact Us For Availability

1

Freezer Door (Stainless, Right Hand) WPL 2221744 Contact Us For Availability

1

Freezer Door (Stainless, Left Hand (Includes WPL 2221745 Contact Us For Availability

1

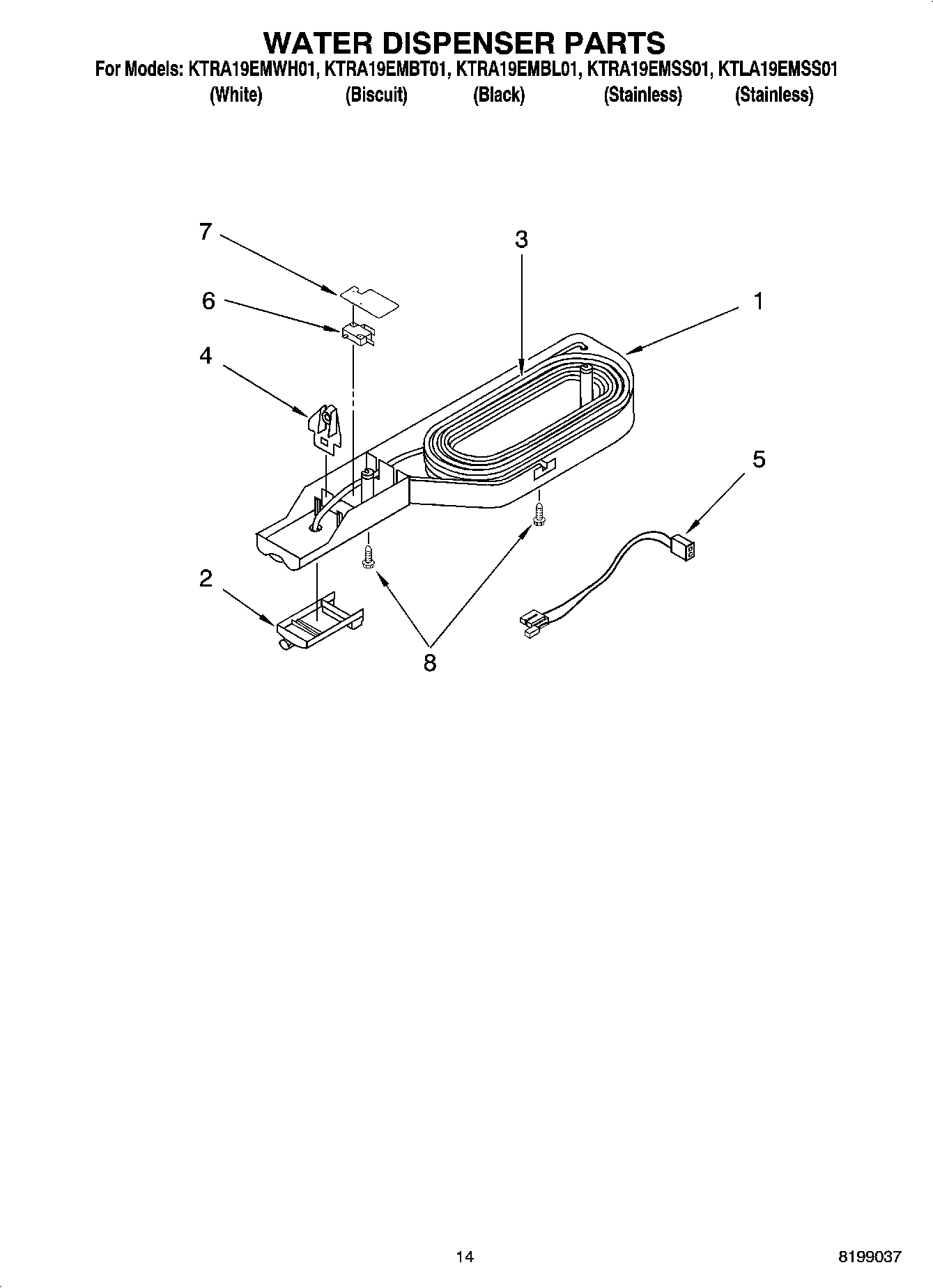

Housing, Dispenser WPL 2219617 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

Beverage Holder WPL 2193409 Contact Us For Availability

3

Handle (Stainless) WPL 2221770 Contact Us For Availability

3

Handle (White) WPL 2221771 Contact Us For Availability

3

Handle (Black) WPL 2221772 Contact Us For Availability

3

Handle (Biscuit) WPL 2221773 Contact Us For Availability

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clamp, Tube (Water Supply Line) WPL 2301624 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

8

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $124.26

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.16

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

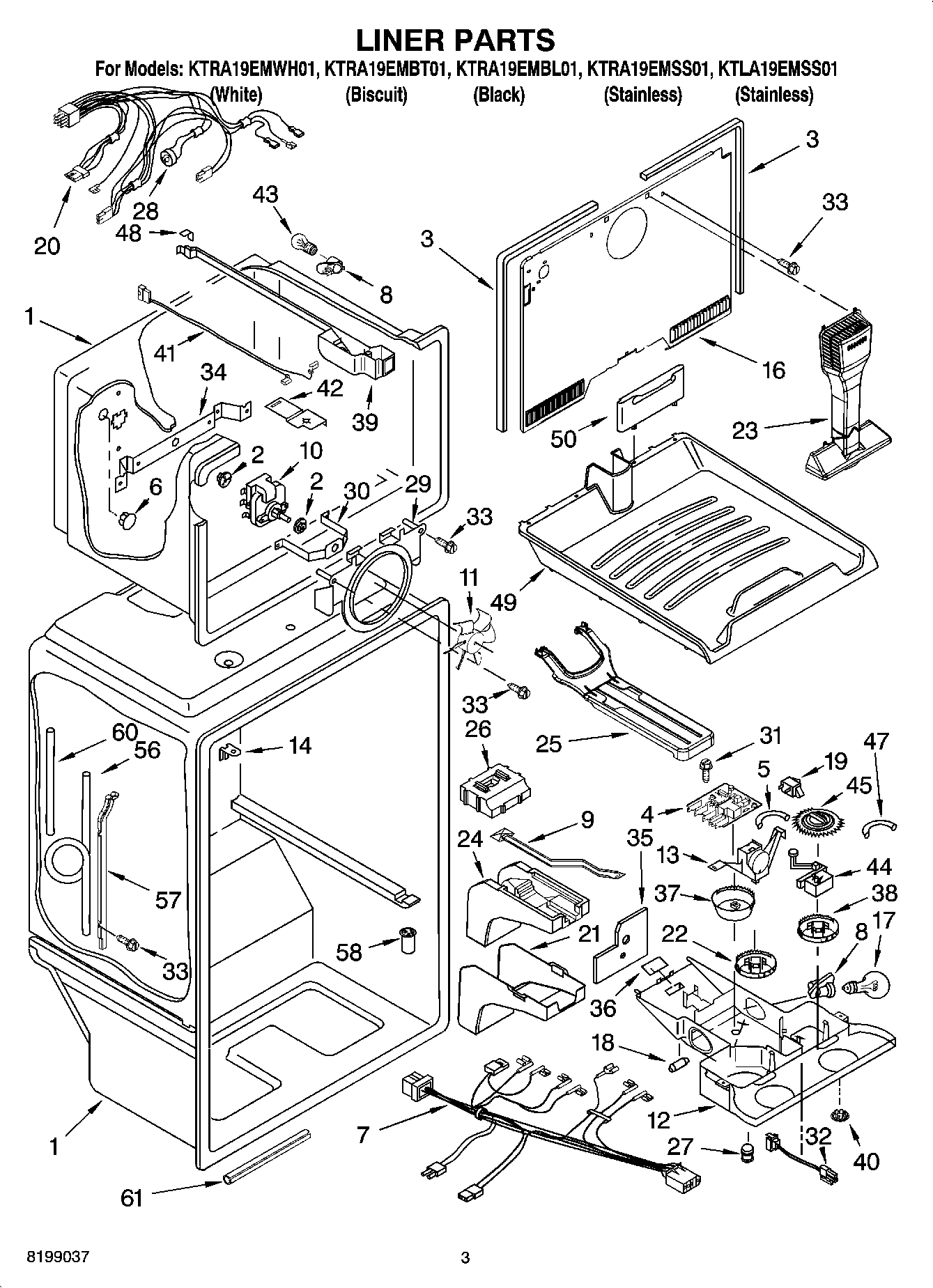

Thermostat Assembly (Includes Item 5) WPL 2302286 Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

17

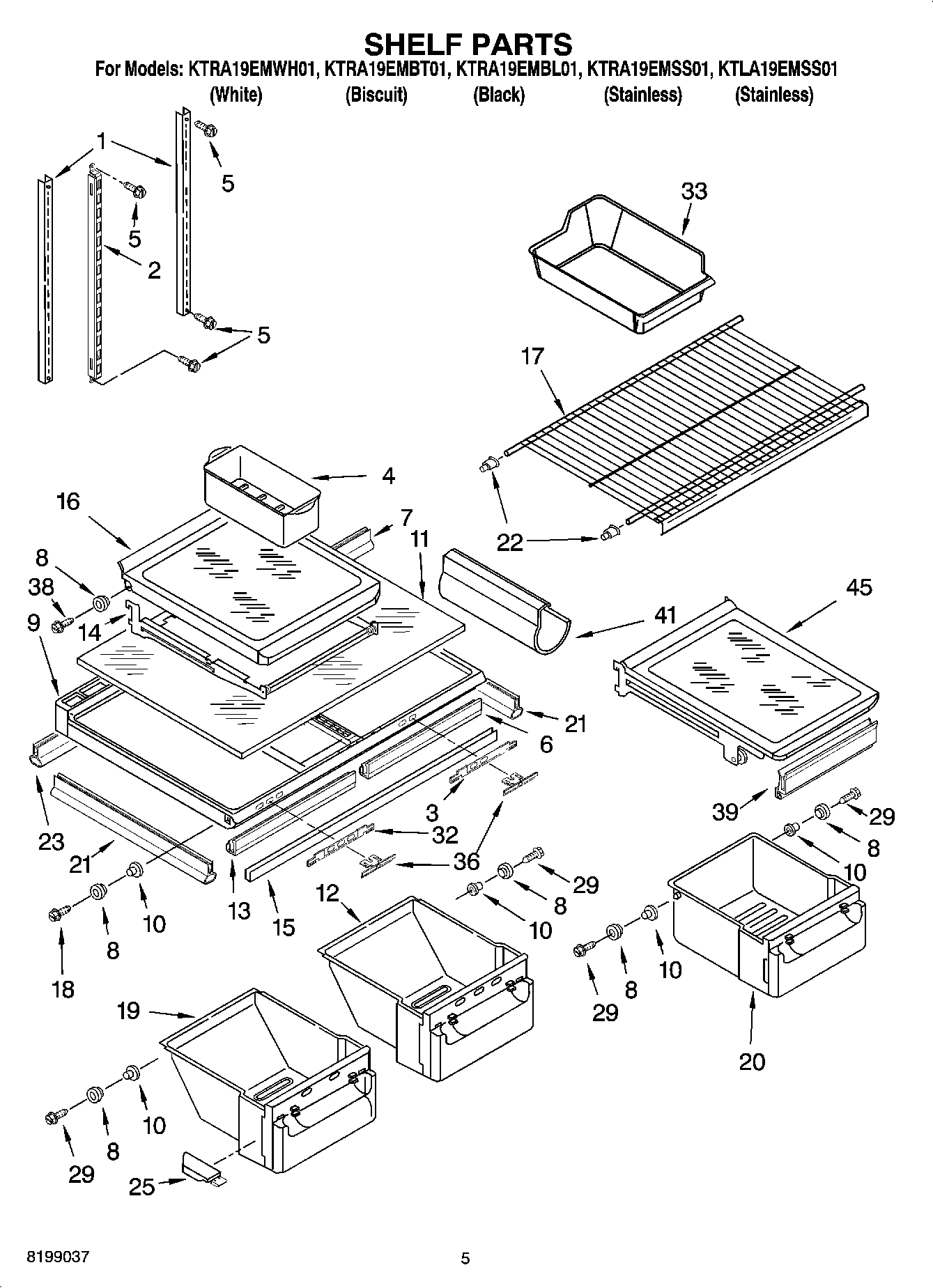

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

Trivet, Door WPL 2159291 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Nameplate (White) WPL 2212760 Contact Us For Availability

Nameplate (Biscuit) WPL 2212761 Contact Us For Availability

Nameplate (Black) WPL 2212762 Contact Us For Availability

LEFT HAND DOOR SWING (White) WPL 2221717 Contact Us For Availability

LEFT HAND DOOR SWING (Black) WPL 2221718 Contact Us For Availability

LEFT HAND DOOR SWING (Biscuit) WPL 2221719 Contact Us For Availability

LEFT HAND DOOR SWING WPL ARI108590A Contact Us For Availability

19

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

20

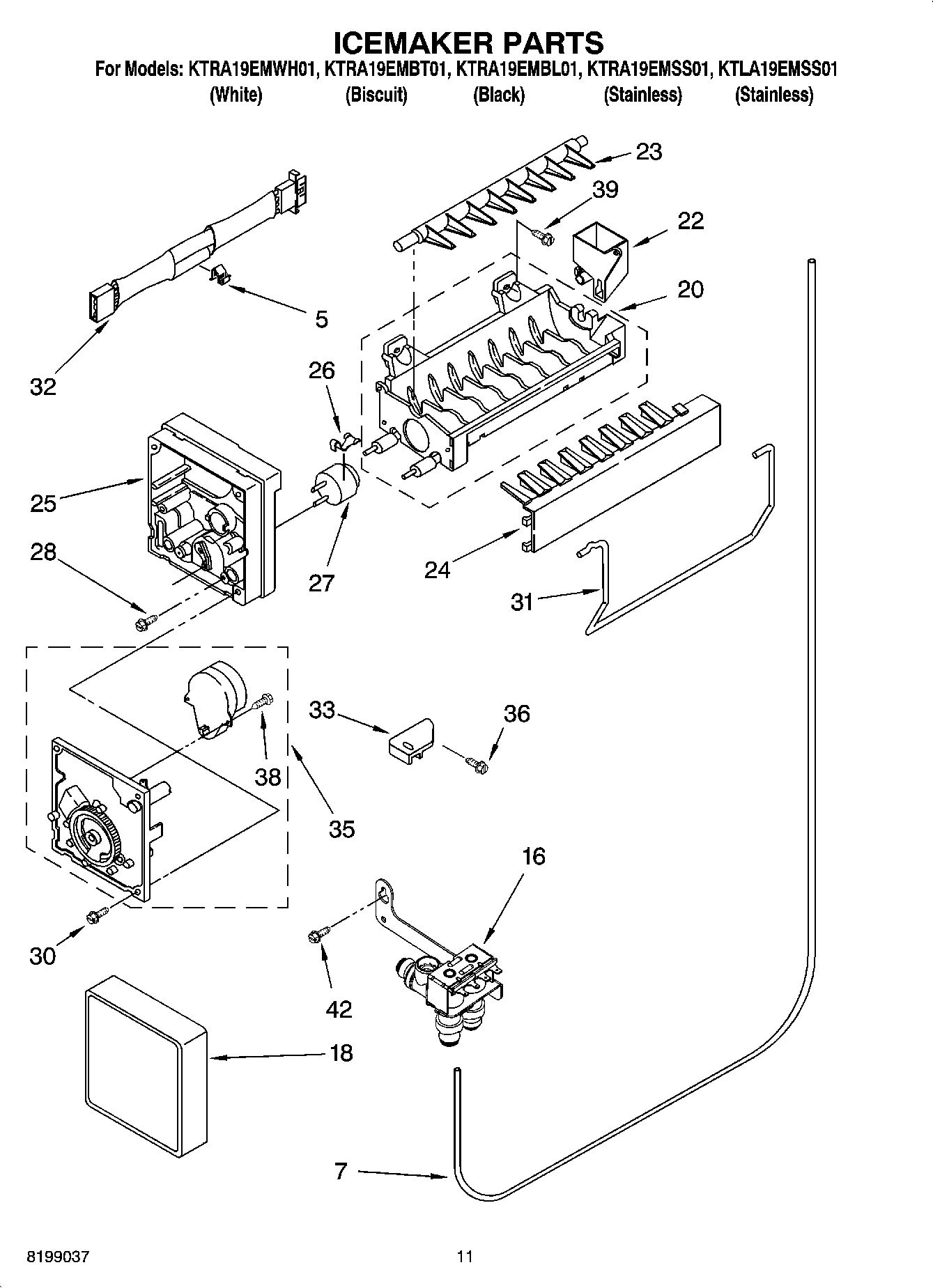

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

20

Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability

21

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Door, Compartment WPL 2218122 Contact Us For Availability

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Shim WPL 2172743 Contact Us For Availability

Support Block WPL 2201184 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

Fitting, Water Tube (Not Serviced) WPL ARI108581A Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Bin, Door WPL 2171062 Contact Us For Availability

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

White WPL 2221711 Contact Us For Availability

LEFT HAND DOOR SWING (Black) WPL 2221712 Contact Us For Availability

Biscuit WPL 2221713 Contact Us For Availability

Following Parts Not Illustrated (Optional Par WPL ARI108585A Contact Us For Availability

LEFT HAND DOOR SWING WPL ARI108586A Contact Us For Availability

29

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Grille (Black) WPL 2301619B Contact Us For Availability

Grille (Biscuit) WPL 2301619T Contact Us For Availability

Grille (White) WPL 2301619W Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $26.21

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

Air Baffle WPL 2302249 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Plate WPL 2301979 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI108582A Contact Us For Availability

42

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

42

Wire Assembly Unit WPL 2187756 Contact Us For Availability

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

44

Cover, Unit WPL 2221775 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI108583A Contact Us For Availability

46

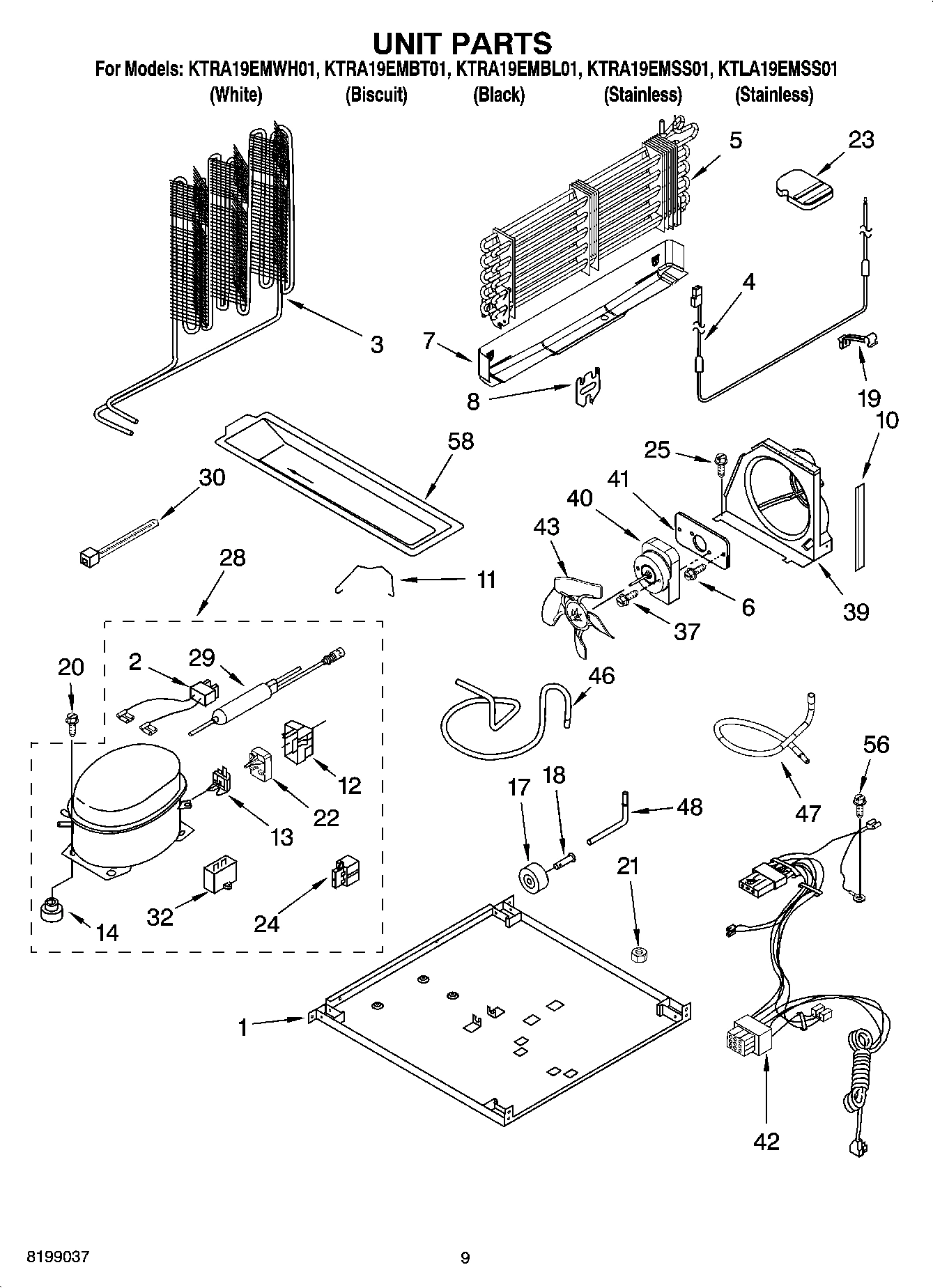

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI108588A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI108589A Contact Us For Availability

60

WPL 2301621 WPL 2301621 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
