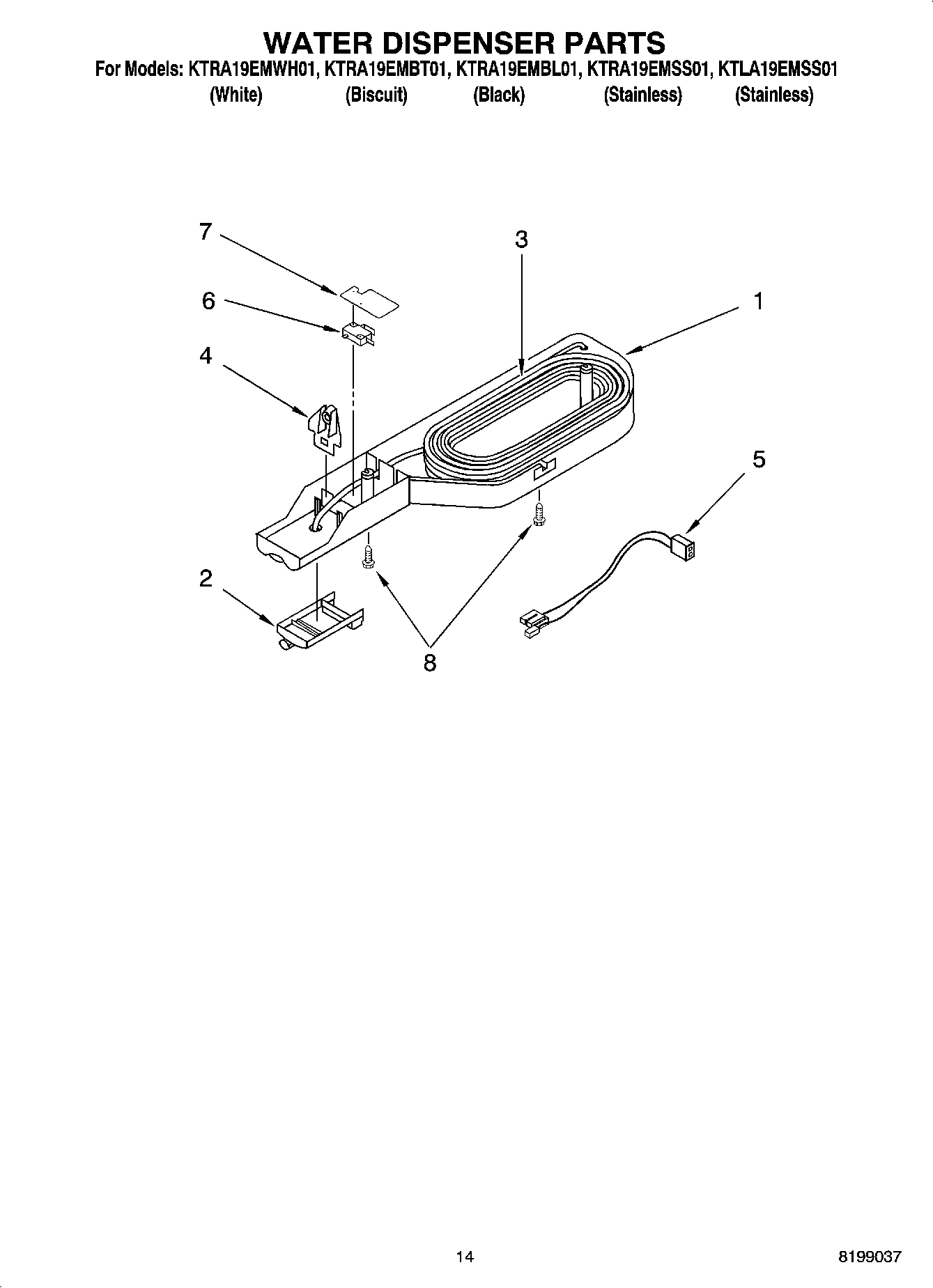

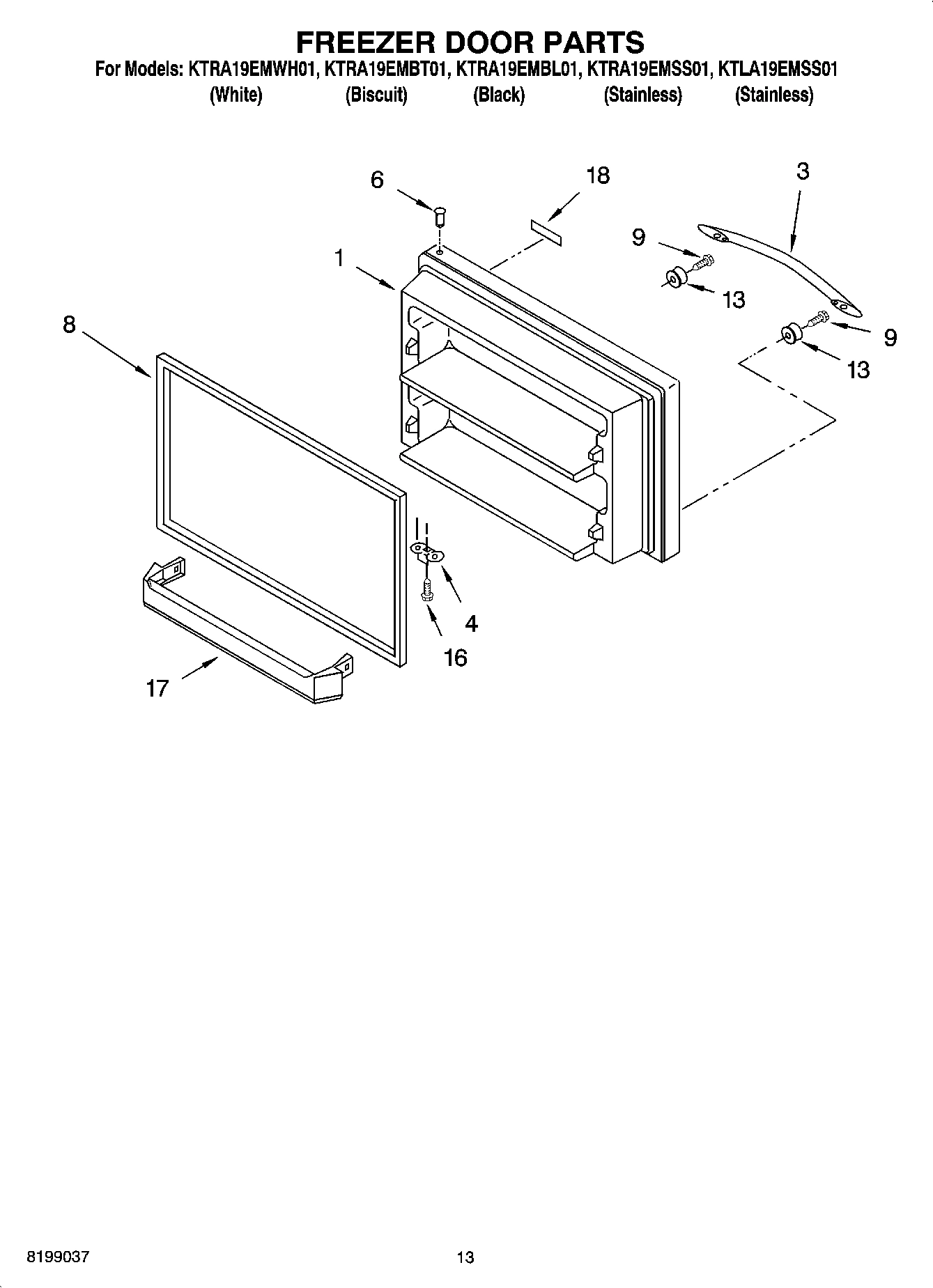

Model Whirlpool KTRA19EMBL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225597 Contact Us For Availability

1

Refrigerator Door (White) WPL 2221708 Contact Us For Availability

1

Refrigerator Door (Black) WPL 2221709 Contact Us For Availability

1

Refrigerator Door (Biscuit) WPL 2221710 Contact Us For Availability

1

Refrigerator Door (Stainless, Right Hand) WPL 2221740 Contact Us For Availability

1

Refrigerator Door (Stainless, Left Hand (Incl WPL 2221741 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI108526A Contact Us For Availability

2

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $17.06

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

Condenser WPL 2214960 Contact Us For Availability

3

Beverage Holder WPL 2193409 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $66.44

4

Flange, Tube WPL 2210523 Contact Us For Availability

4

Adaptive Defrost Control/WFI Board Combinatio WPL 2303823 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

7

Drain Pan WPL 2254294 Contact Us For Availability

7

Wire Assembly Control Box WPL 2187448 Contact Us For Availability

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $145.16

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $97.38

9

Damper, Air WPL 2212413 Contact Us For Availability

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $35.77

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

11

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $7.52

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

12

Control Box WPL 2218670 Contact Us For Availability

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $53.11

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Thermostat Assembly (Includes Item 5) WPL 2302286 Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

Handle (Stainless) WPL 2221770 Contact Us For Availability

Handle (White) WPL 2221771 Contact Us For Availability

Handle (Black) WPL 2221772 Contact Us For Availability

Handle (Biscuit) WPL 2221773 Contact Us For Availability

Clip, Retainer WPL 2210563 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $101.31

16

Cover-Evaporator WPL 2254257 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $73.09

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

18

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

20

Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability

20

Wire Assembly, Freezer Compartment (Includes WPL 2187686 Contact Us For Availability

21

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Nut (Not Serviced) WPL ARI108529A Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $54.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Door, Compartment WPL 2218122 Contact Us For Availability

Knob, Thermostat WPL 2205094 Contact Us For Availability

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Shim WPL 2172743 Contact Us For Availability

Support Block WPL 2201184 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Relay (Service Only) WPL 2183454 Contact Us For Availability

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

26

Air Diffuser, Top WPL 2179877 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

27

Bin, Door WPL 2171062 Contact Us For Availability

27

Cover, Light Lens WPL 2213495 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $284.26

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $49.65

White WPL 2221711 Contact Us For Availability

LEFT HAND DOOR SWING (Black) WPL 2221712 Contact Us For Availability

Biscuit WPL 2221713 Contact Us For Availability

Following Parts Not Illustrated (Optional Par WPL ARI108527A Contact Us For Availability

LEFT HAND DOOR SWING WPL ARI108528A Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

31

Screw WPL 8534009 Contact Us For Availability

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Slide, Humidity WPL 2174257 Contact Us For Availability

33

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $15.66

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

35

Shield, heat WPL 2204639 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $4.14

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $27.52

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Screw WPL 489439 Contact Us For Availability

Knob, Damper WPL 2204951 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Gasket, Front WPL 2174394 Contact Us For Availability

Air Baffle WPL 2302249 Contact Us For Availability

Housing Base WPL 2201152 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

41

Plate WPL 2301979 Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

42

Wire Assembly Unit WPL 2187756 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.28

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

44

Control, Freezer WPL 2204991 Contact Us For Availability

45

Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability

45

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

47

Barrier, Freezer Control WPL 2212485 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225477 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

56

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

57

Cover, Tubing WPL 2225531 Contact Us For Availability

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI108530A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI108531A Contact Us For Availability

60

WPL 2301621 WPL 2301621 Contact Us For Availability

61

WPL 2301622 WPL 2301622 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
