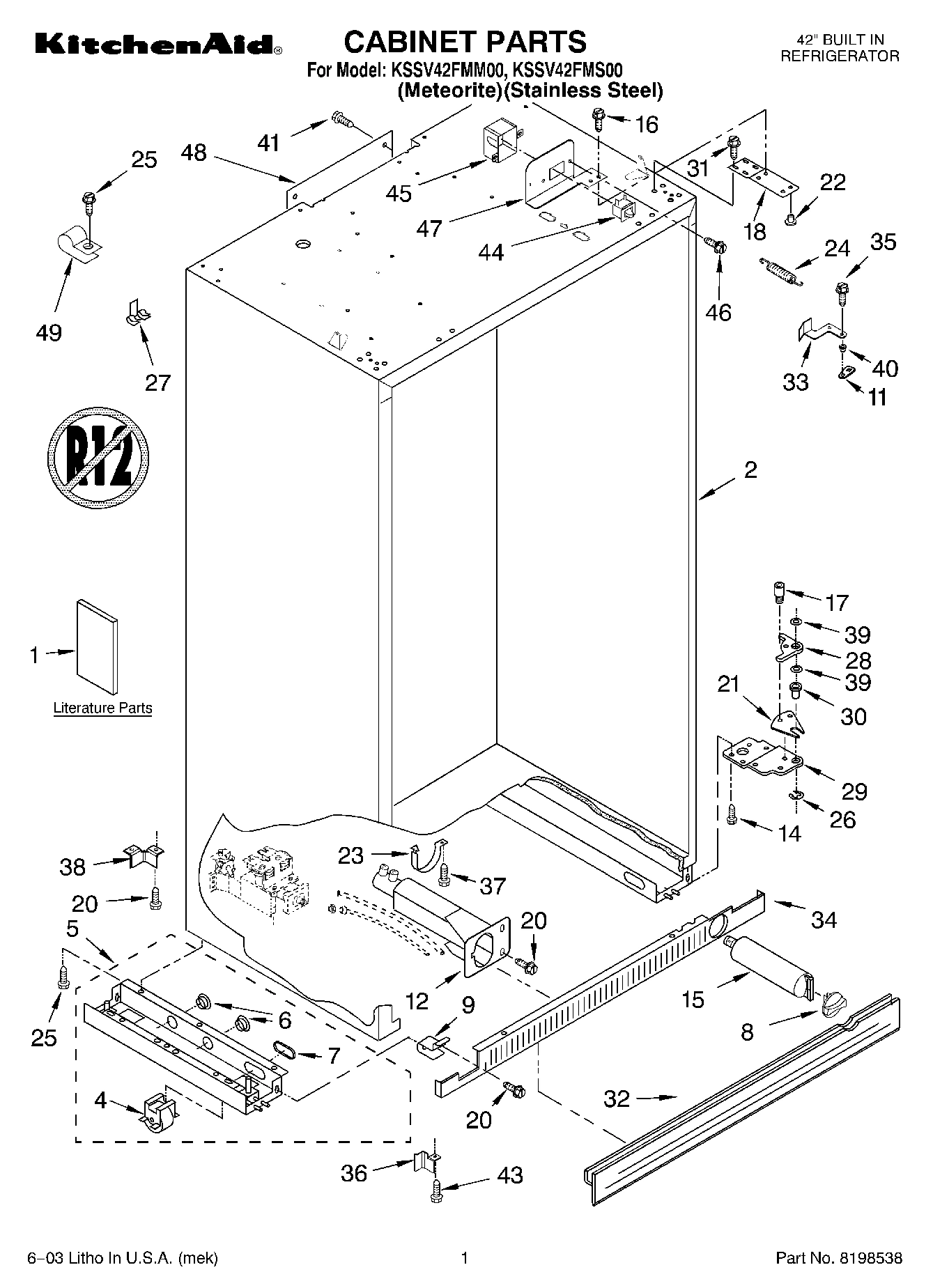

Model Whirlpool KSSV42FMM00 42`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

1

Liner (Not A Serviceable Part) WPL ARI107878A Contact Us For Availability

1

Refrigerator Door (Includes Item 9) WPL 2252330 Contact Us For Availability

1

Cabinet Trim, Right Side (Stainless Steel) WPL 2222552S Contact Us For Availability

1

Panel, Decorator (Meteorite) WPL 2252300M Contact Us For Availability

1

Panel, Decorator (Stainless steel) WPL 2252300S Contact Us For Availability

1

Control Box WPL 2215716 Contact Us For Availability

1

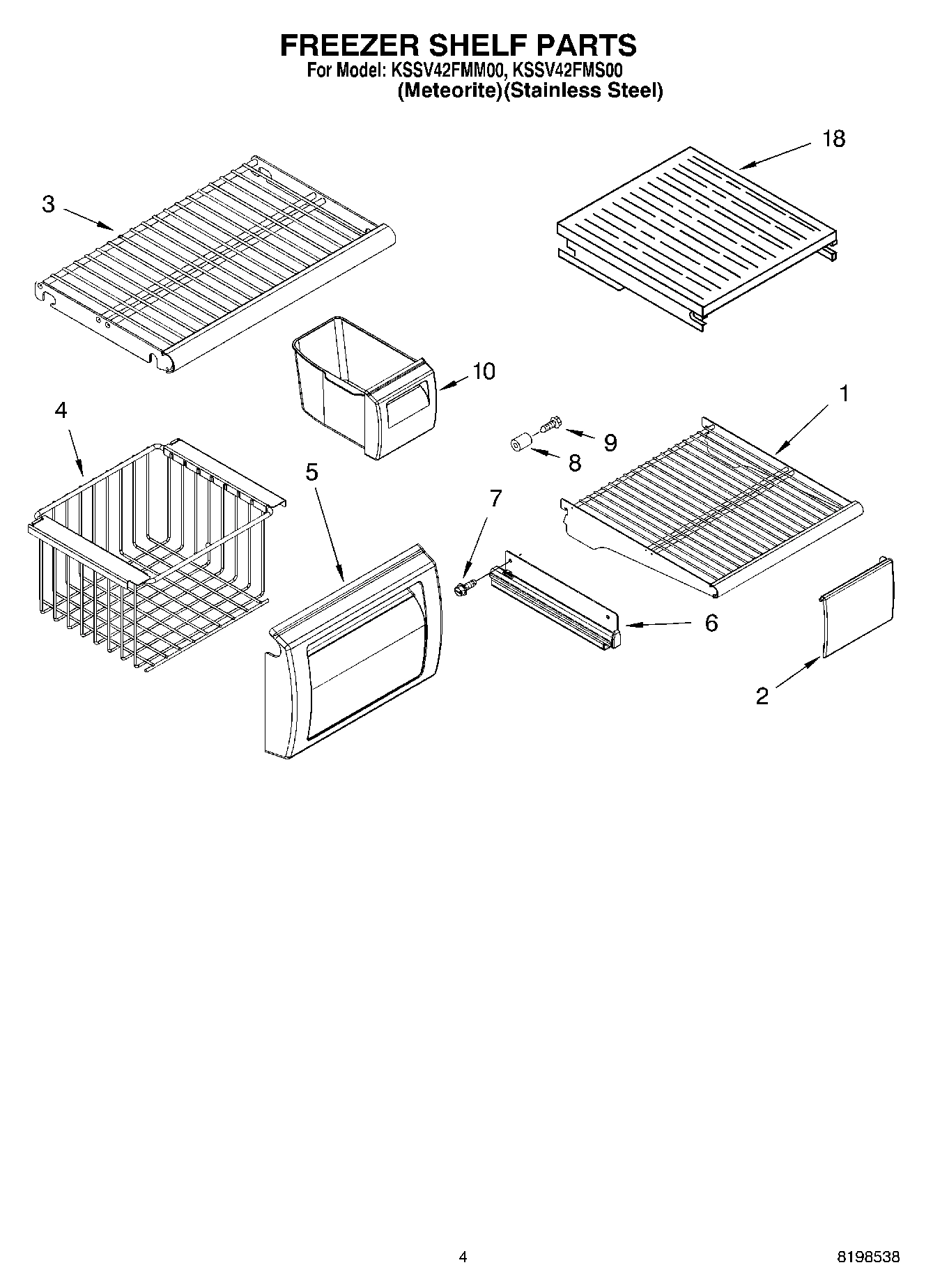

Shelf Assembly WPL 2222592 Contact Us For Availability

2

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $40.50

2

Nameplate WPL 8531728 Contact Us For Availability

2

Skin, Door (Meteorite) WPL 2252310M Contact Us For Availability

2

Skin, Door (Stainless Steel) WPL 2252310S Contact Us For Availability

2

Cover, Unit WPL 2259320 Contact Us For Availability

2

Insert, Control Box WPL 2215670 Contact Us For Availability

2

Wire Harness WPL 2187520 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability

3

Circuit Board, Housing Control WPL 2252137 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

W11318848 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318848 $97.74

4

Spacer-Door, Top WPL 2256381 Contact Us For Availability

4

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254725 Contact Us For Availability

4

Control Box Wire Harness WPL 2187424 Contact Us For Availability

4

Bracket WPL 2215508 Contact Us For Availability

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

W10839856 Whirlpool Refrigerator Front Drawer Backorder WPL W10839856 $70.77

5

WP2259077 Whirlpool Ladder Assembly Backorder WPL WP2259077 $28.09

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover-Unit, Front WPL 2259095 Contact Us For Availability

5

Panel Control, Meat Pan WPL 2258914 Contact Us For Availability

5

Side Support WPL 2259244 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $23.48

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Cabinet, Trim Top WPL 2257367 Contact Us For Availability

6

Insert, Temp- Gauge (Meteorite) WPL 2252304M Contact Us For Availability

6

Insert, Temp- Gauge (Stainless Steel) WPL 2252304S Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Support, Control Bracket WPL 2221121 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11448696 Whirlpool Refrigerator Bin Backorder WPL W11448696 $95.66

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

7

Cabinet Trim, Left Side (Stainless Steel) WPL 2222553S Contact Us For Availability

7

Cover, Temp-Gauge WPL 2252307 Contact Us For Availability

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $117.46

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

8

Gasket, Utility Bin WPL 2222982 Contact Us For Availability

8

Bezel, Temp-Gauge WPL 2252308 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

WP2266902 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266902 $215.02

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Tube, Filter Outlet WPL 2254800 Contact Us For Availability

9

Glass, Meat Pan WPL 2256277 Contact Us For Availability

9

Heater, Drain Pan WPL 2259330 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2266931 Whirlpool Refrigerator Container Backorder WPL 2266931 $104.40

W10849998 Whirlpool Glass Shelf Backorder WPL W10849998 $153.01

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $94.37

Lid-Baffle, Meat Pan WPL 2257528 Contact Us For Availability

Door Skin (Meteorite) WPL 2252309M Contact Us For Availability

Door Skin (Stainless Steel) WPL 2252309S Contact Us For Availability

Jumper Harness, Temp-Display WPL 2187682 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Cam, Door Closer WPL 2005783 Contact Us For Availability

Trim, Glass (Side) WPL 2257611 Contact Us For Availability

Baffle Assembly Control WPL 2257526 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $96.31

Cover WPL 2169935 Contact Us For Availability

W10624429 Whirlpool Refrigerator Tube Backorder WPL W10624429 $46.74

Door Spacer, Bottom WPL 2257637 Contact Us For Availability

Air Baffle, Jumper Harness WPL 2187619 Contact Us For Availability

TRIM, GLASS REAR WPL 2257582 Contact Us For Availability

W10407624 Whirlpool Refrigerator Crisper Pan Backorder WPL W10407624 $94.10

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

WP2266905 Whirlpool Refrigerator Door Gasket In Stock WPL WP2266905 $214.56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Screw WPL 3400525 Contact Us For Availability

Door Brace, Corner WPL 2258951 Contact Us For Availability

Screw WPL 488357 Contact Us For Availability

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

OVERLAY WPL 2257519 Contact Us For Availability

Clip, Thermistor WPL 2257639 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2306093 Whirlpool Evaporator In Stock WPL WP2306093 $237.23

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

CONDENSER WPL 2259307 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2252311 Contact Us For Availability

Filler, Door WPL 2266878 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2006750 Whirlpool Refrigerator Heater In Stock WPL WP2006750 $51.54

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

Edging Panel WPL 2300126B Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

Board, Control WPL 2252306 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

Trim, Glass (Front) WPL 2256228 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

Screw WPL 487522 Contact Us For Availability

Spacer, Door Bottom WPL 2004934 Contact Us For Availability

Rear Panel, Top Grille WPL 2252303 Contact Us For Availability

TRIM, GLASS REAR WPL 2256254 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Gasket, Evaporator WPL 2220832 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2256248 Whirlpool Refrigerator Front Pan Backorder WPL WP2256248 $81.88

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Diffuser Assembly WPL 2208997 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $30.25

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Bushing WPL 2002903 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Spacer, Door Bottom WPL 2004932 Contact Us For Availability

Trim, Glass Side WPL 2252255 Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Spacer, Air Baffle WPL 2259372 Contact Us For Availability

Spacer, Hinge Side WPL 2005030 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

W10323042 Whirlpool Cantilever Bin Backorder WPL W10323042 $87.01

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $93.40

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

W11553221 Whirlpool Refrigerator Door Compres Backorder WPL W11553221 $37.37

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Cover, Air Return WPL 2259066 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

W10323599 Whirlpool Refrigerator Cantilever B Backorder WPL W10323599 $59.28

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability

Spacer, Handle Side WPL 2300028 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2256243 Whirlpool Refrigerator Track In Stock WPL 2256243 $29.10

2256244 Whirlpool Refrigerator Track Backorder WPL 2256244 $40.33

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10323602 Whirlpool Refrigerator Cantilever B Backorder WPL W10323602 $54.70

Tube, Transition (Heat Loop) WPL 2259340 Contact Us For Availability

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Wire Assembly, Icemaker WPL 2254792 Contact Us For Availability

30

W10323747 Whirlpool Refrigerator Cantilever B Backorder WPL W10323747 $60.98

30

W10407627 Whirlpool Refrigerator Meat Pan Backorder WPL W10407627 $94.10

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2256366 Whirlpool Refrigerator Front Pan Backorder WPL WP2256366 $69.63

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $70.57

Shut Off Arm WPL 2221172 Contact Us For Availability

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

32

SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability

32

Spacer, Door (Handle Side) WPL 2005290 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Filler, Door WPL 2266883 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

Screw WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

37

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

and Optional Parts Not Included WPL ARI107881A Contact Us For Availability

REFRIGERANT CHARGE 7.50 oz. (R-134A) WPL ARI107882A Contact Us For Availability

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI107883A Contact Us For Availability

(Optional Parts Only) WPL ARI107884A Contact Us For Availability
