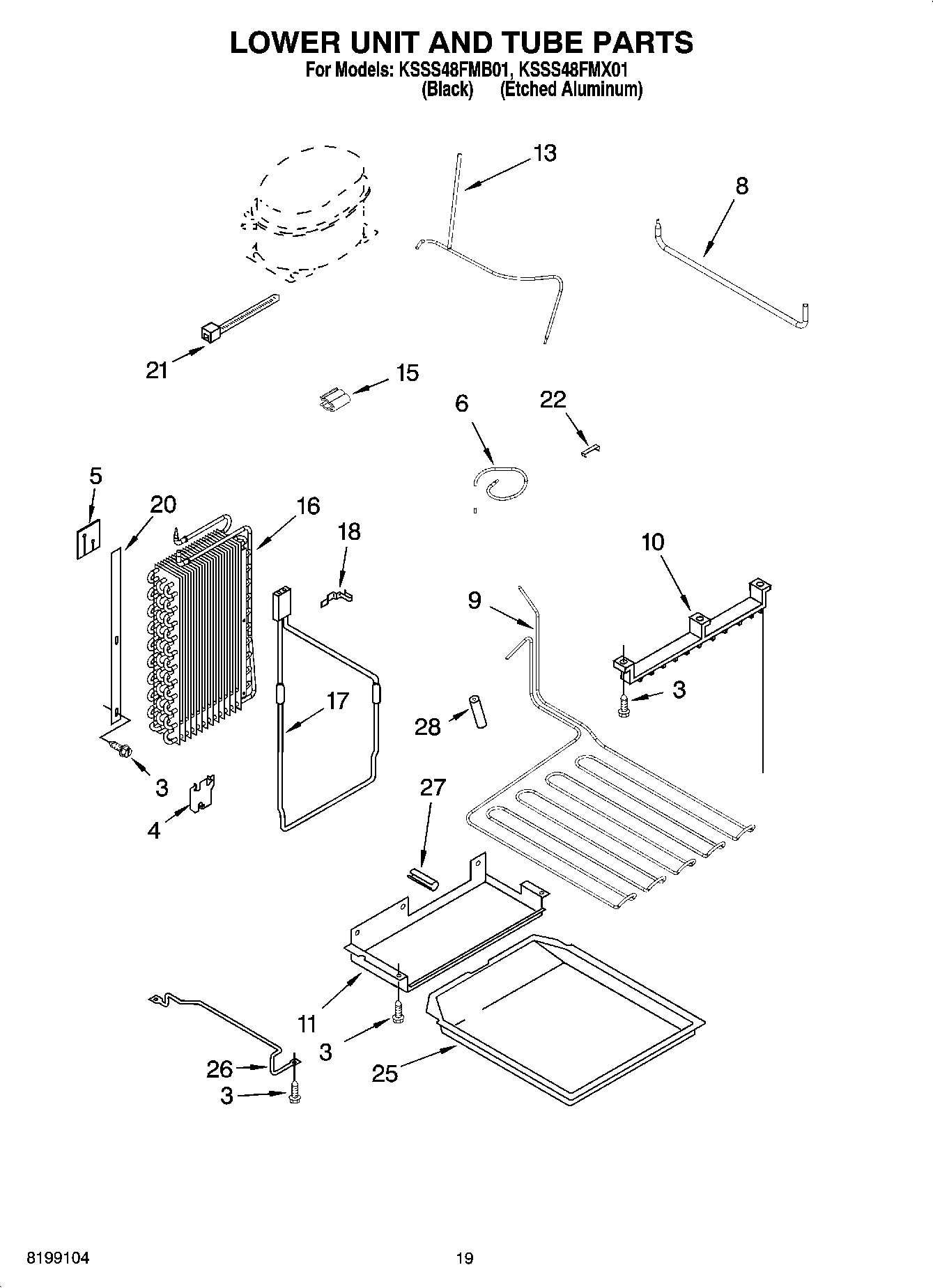

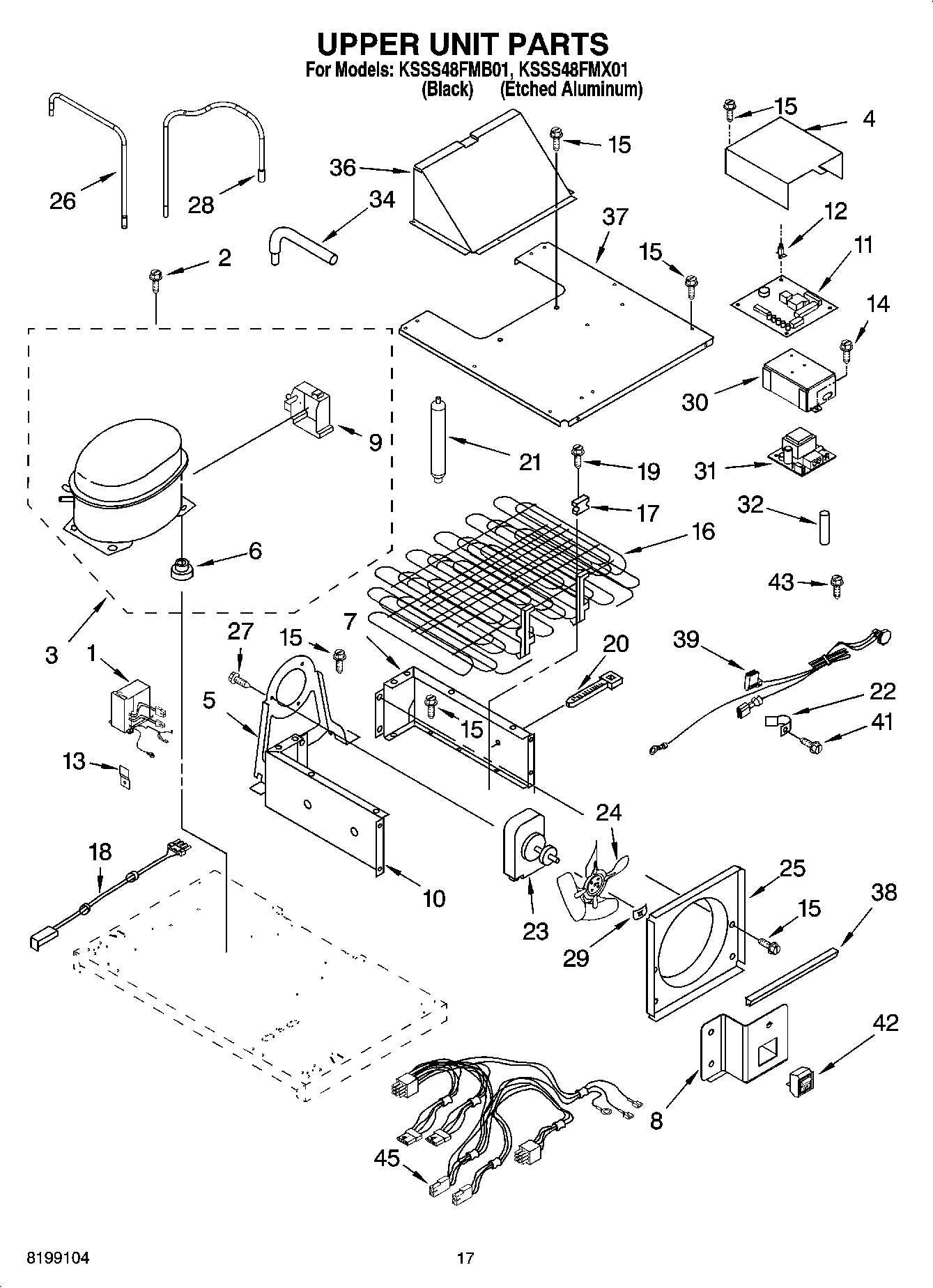

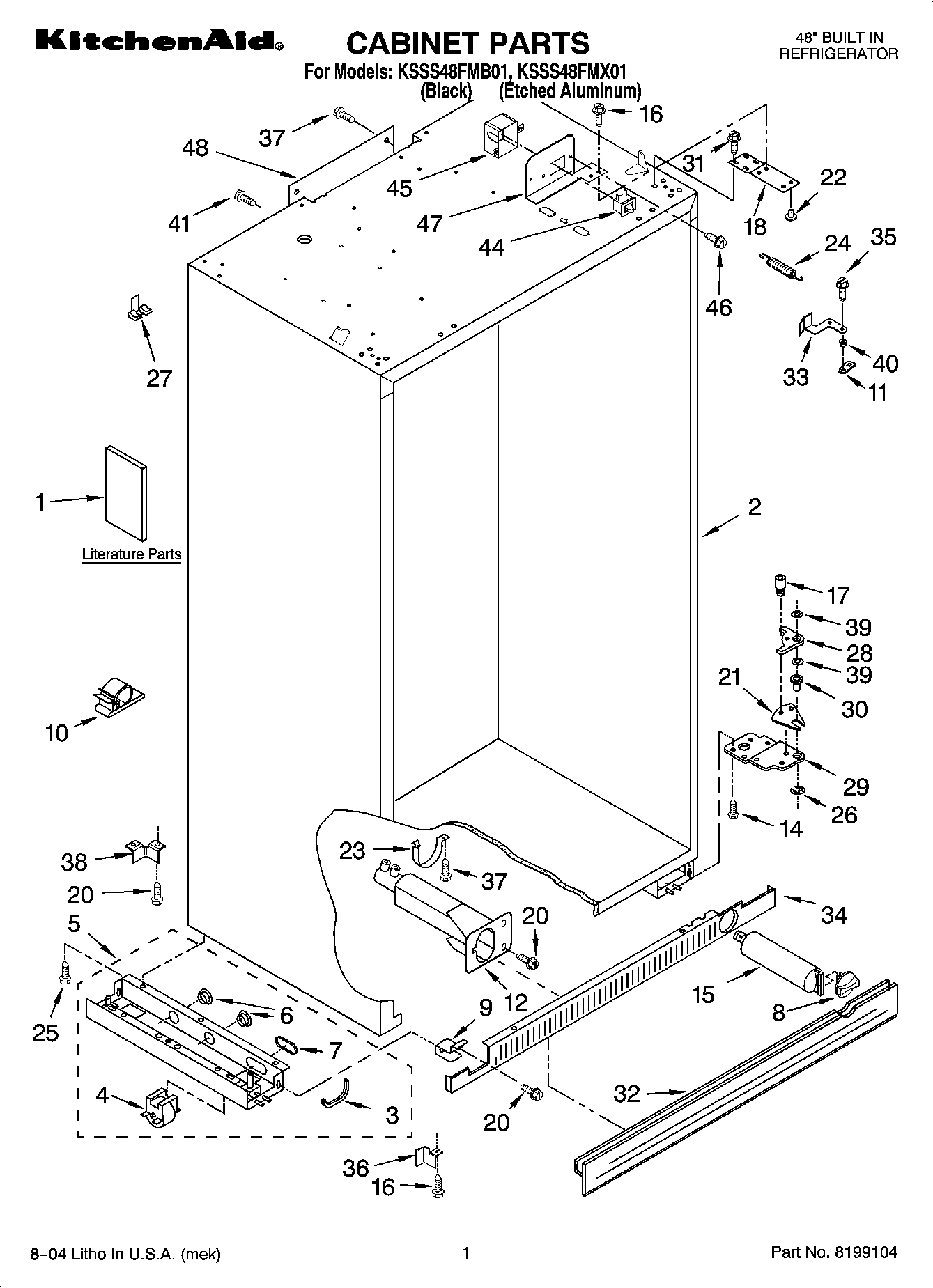

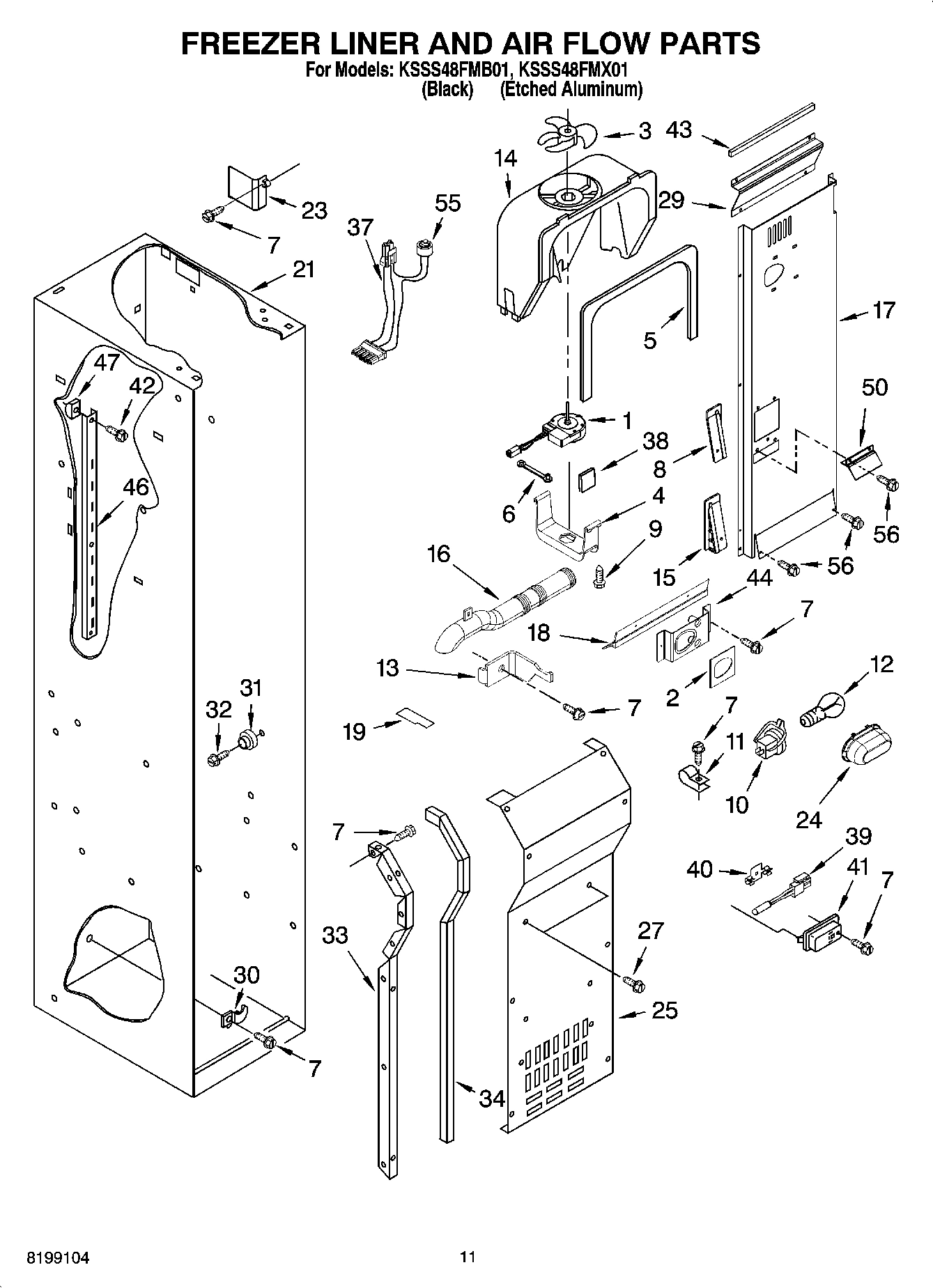

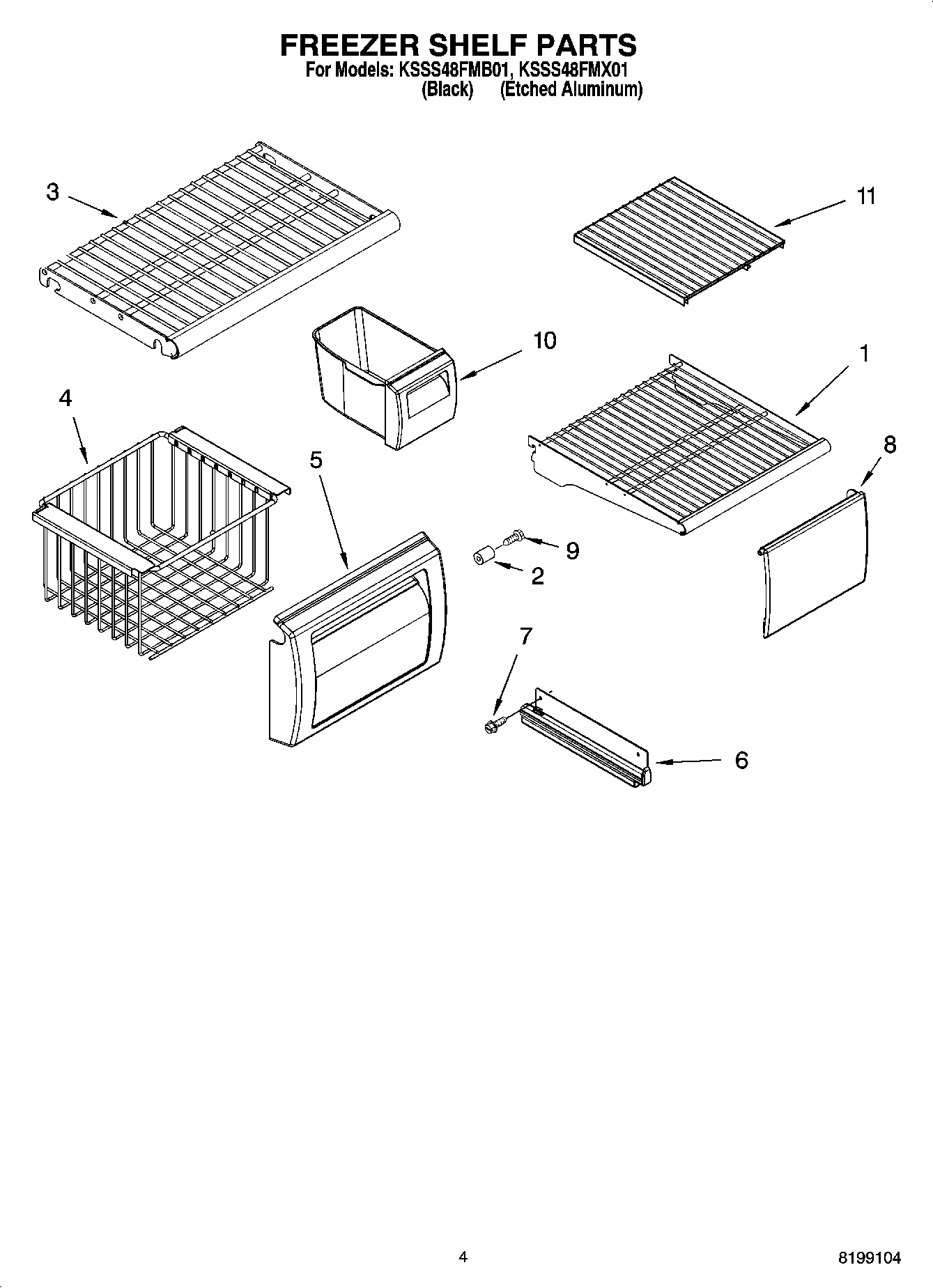

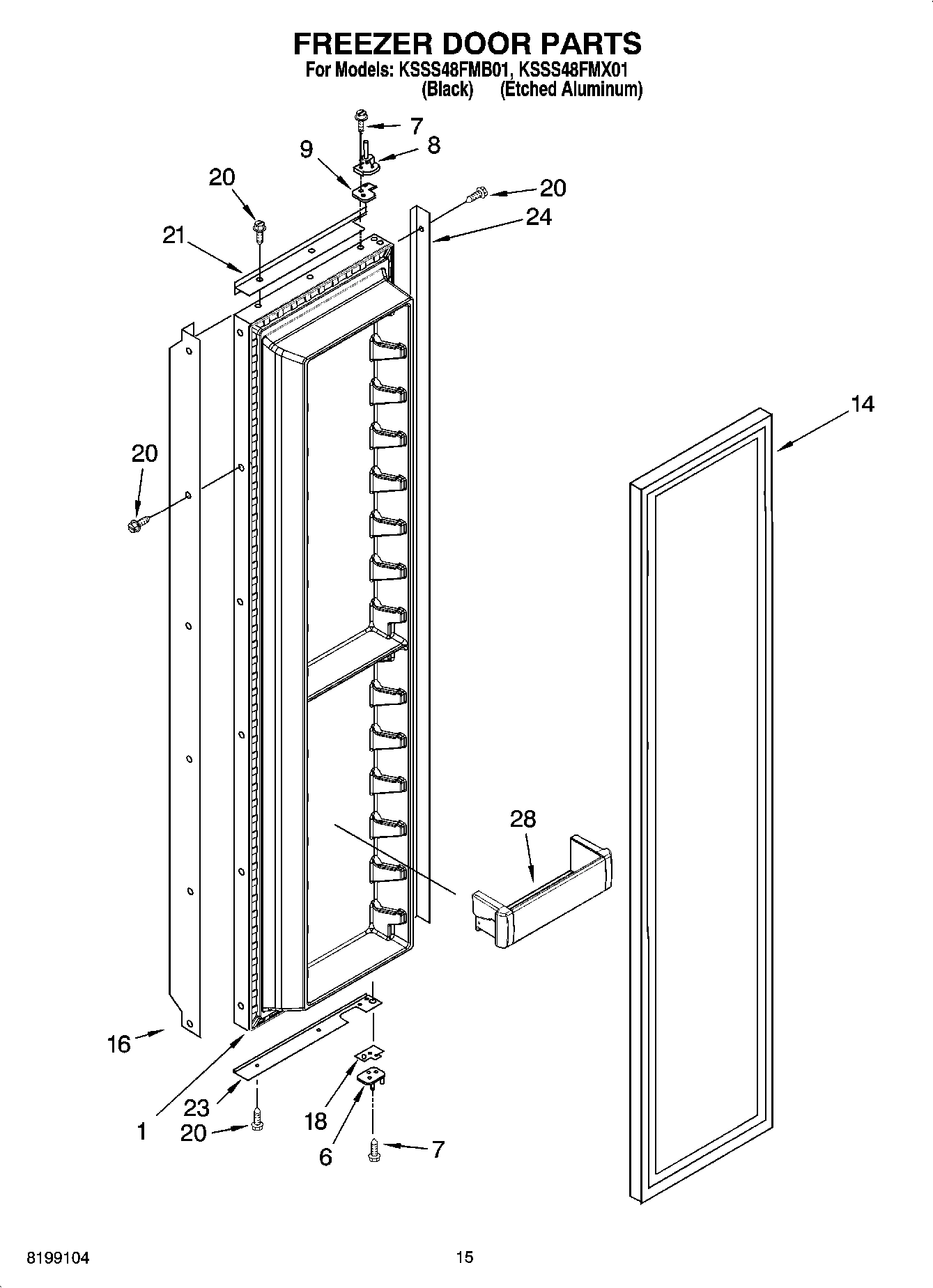

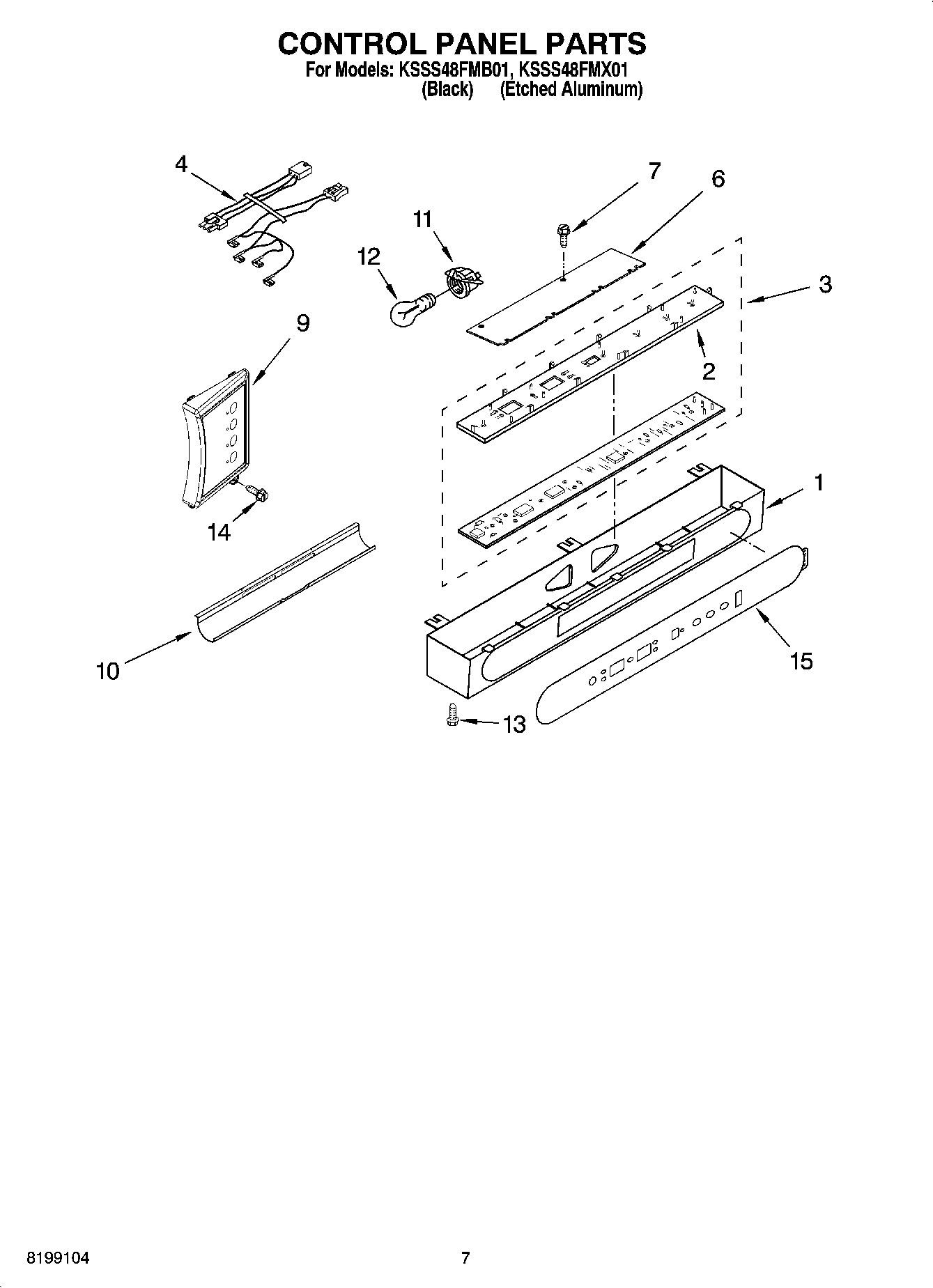

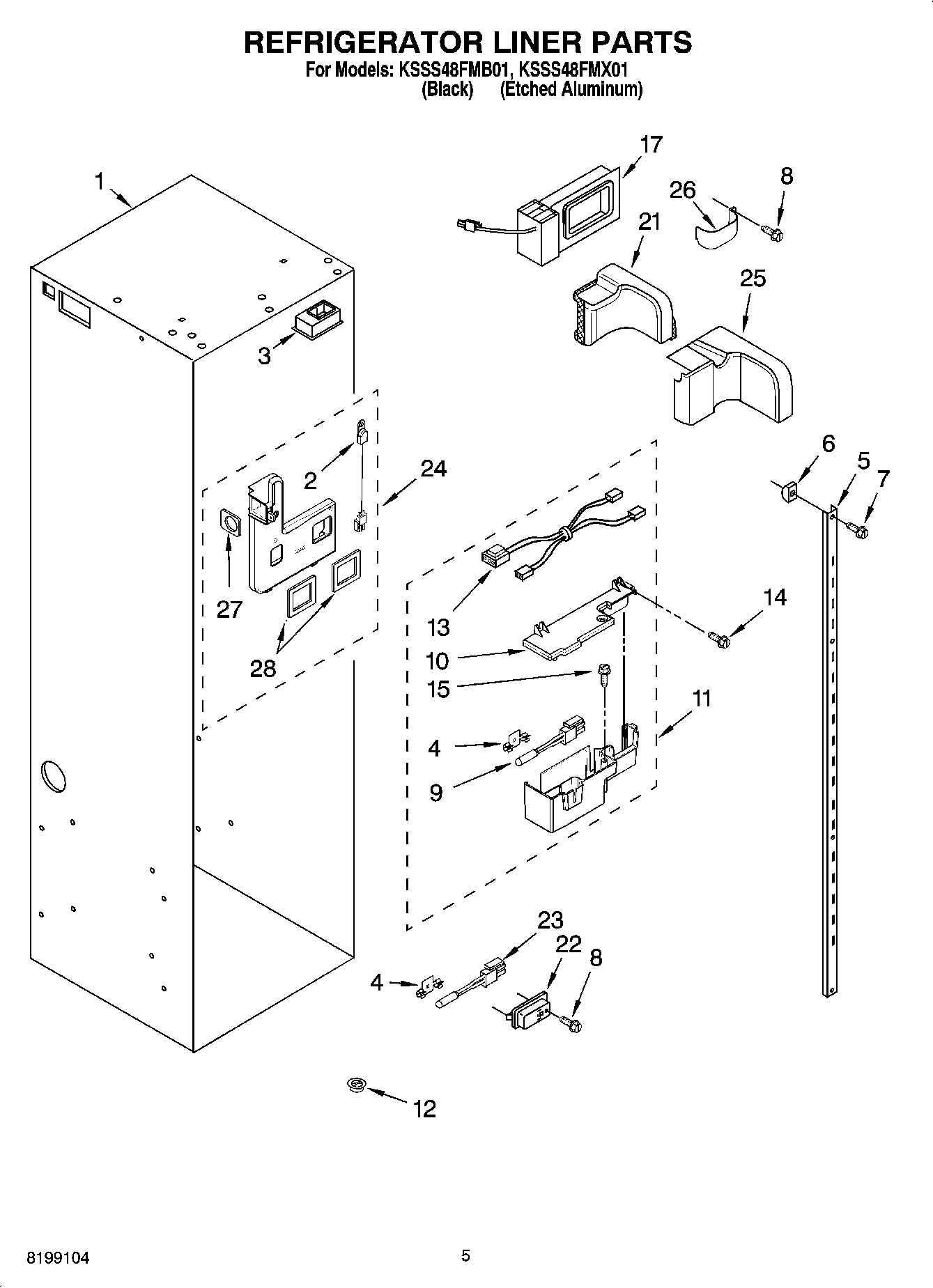

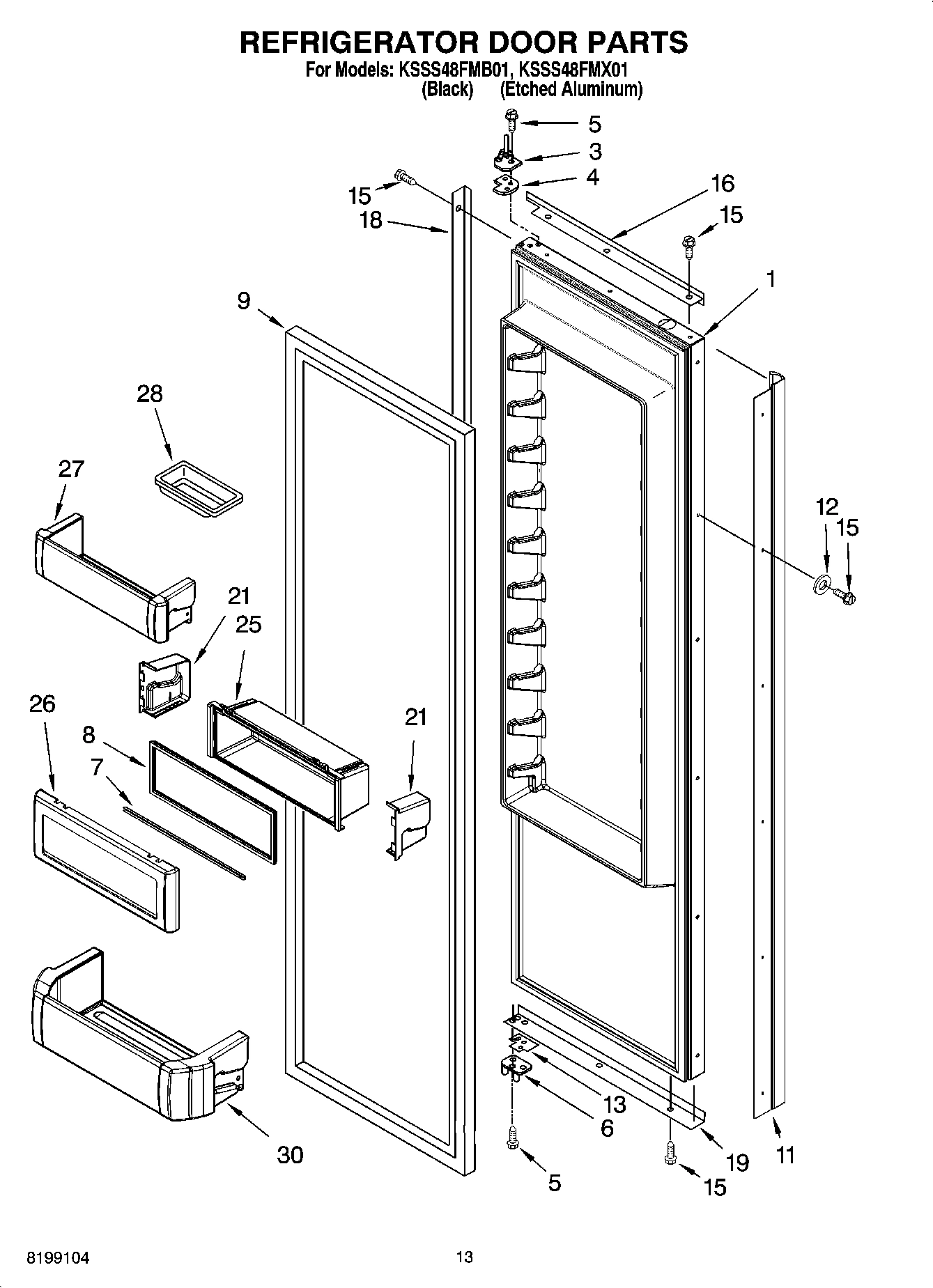

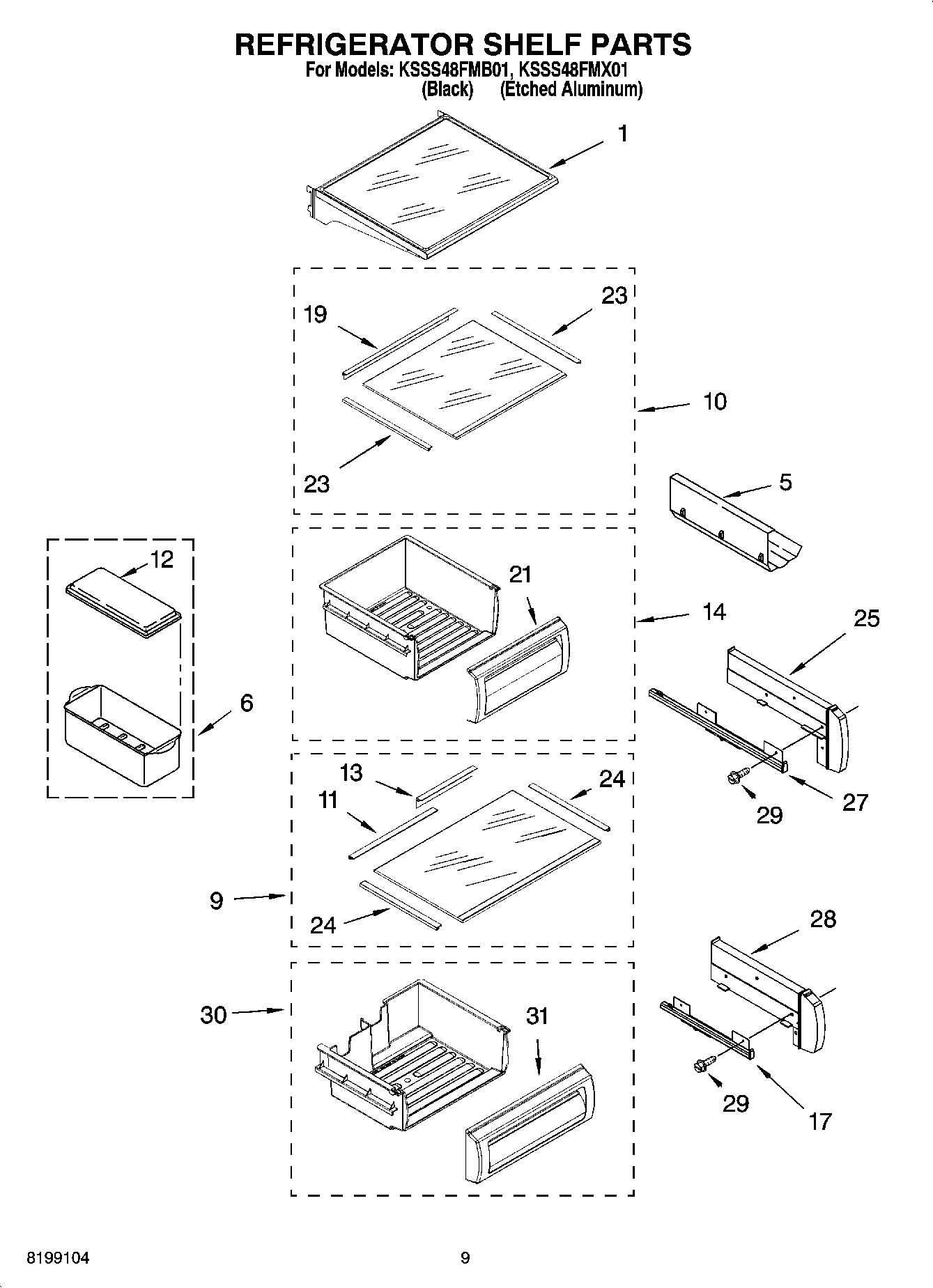

Model Whirlpool KSSS48FMX01 48`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

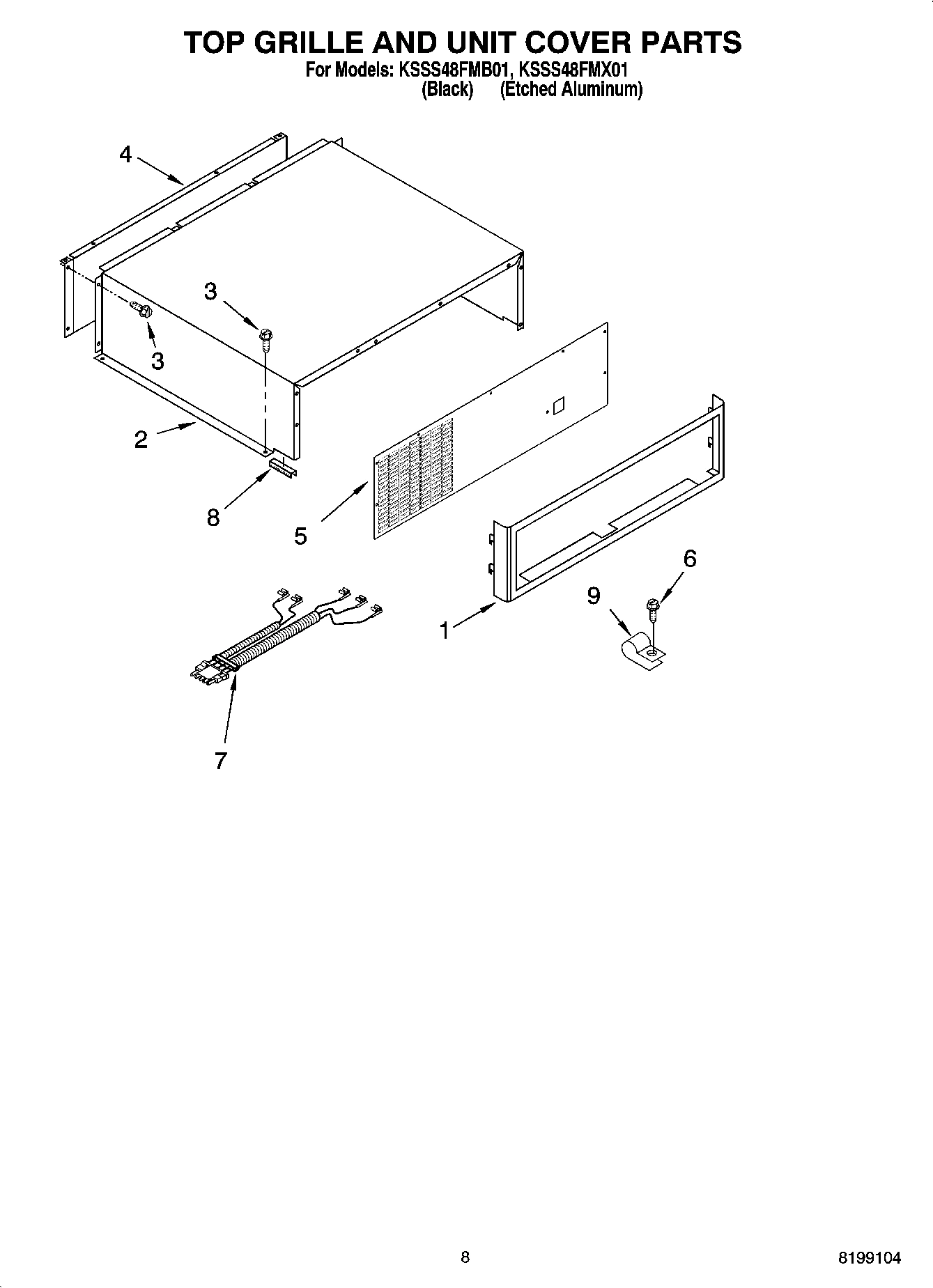

Top Grille Assembly (Black) WPL 2257403B Contact Us For Availability

1

Top Grille Assembly (Etched Aluminum) WPL 2257403X Contact Us For Availability

1

Fan Motor WPL 2259385 Contact Us For Availability

1

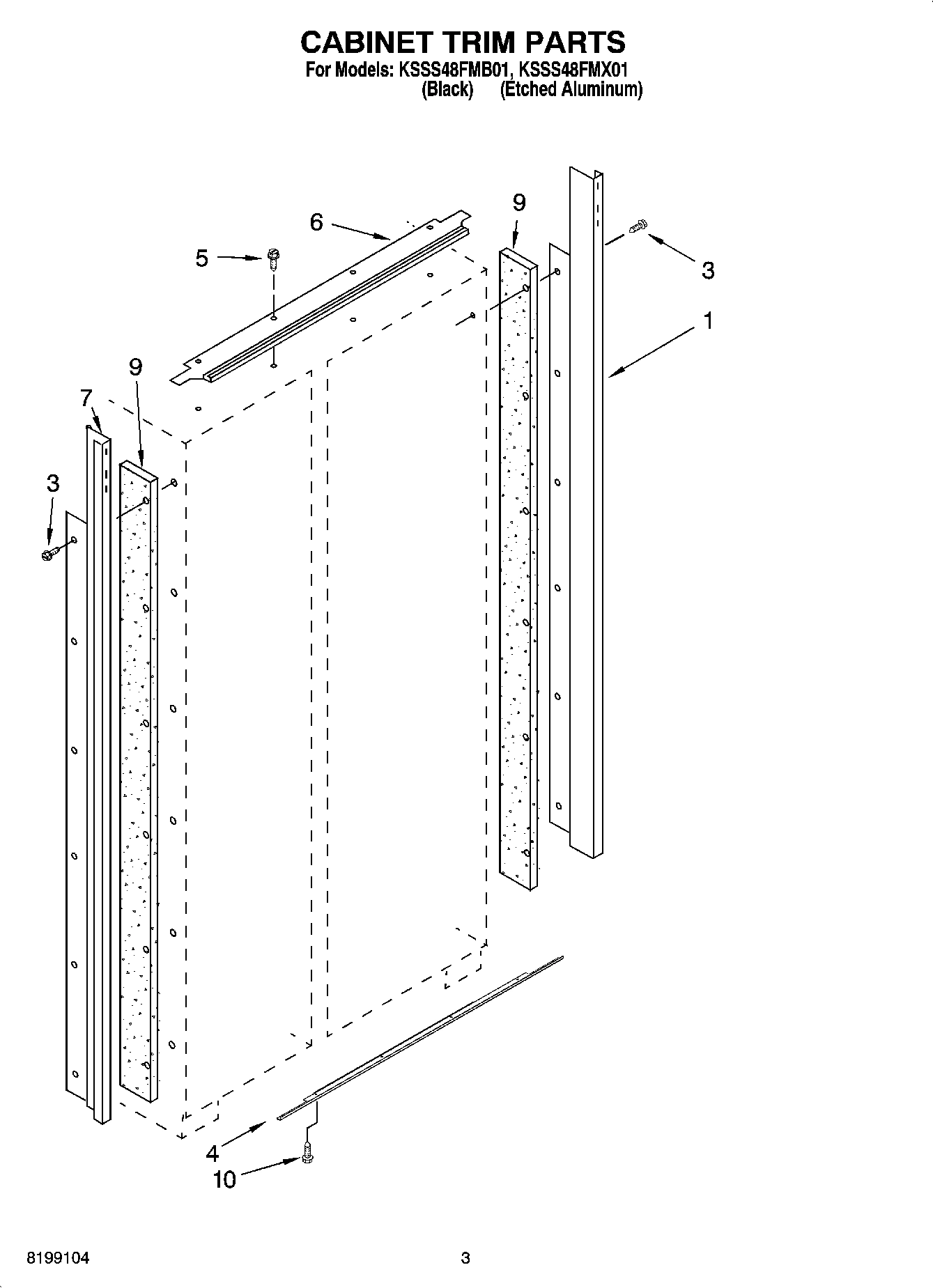

Cabinet, Trim (Right Side) (Black) WPL 2222552B Contact Us For Availability

1

Cabinet, Trim (Right Side) (Etched Aluminum) WPL 2222552X Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI155306A Contact Us For Availability

2

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $40.50

2

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $32.48

2

Cover, Unit WPL 2259320 Contact Us For Availability

2

Seal-Light, Socket WPL 2302777 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct In Stock WPL 2208970 $53.75

3

2302884 Whirlpool Refrigerator Wire Shelf Backorder WPL 2302884 $125.19

3

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $3.33

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

3

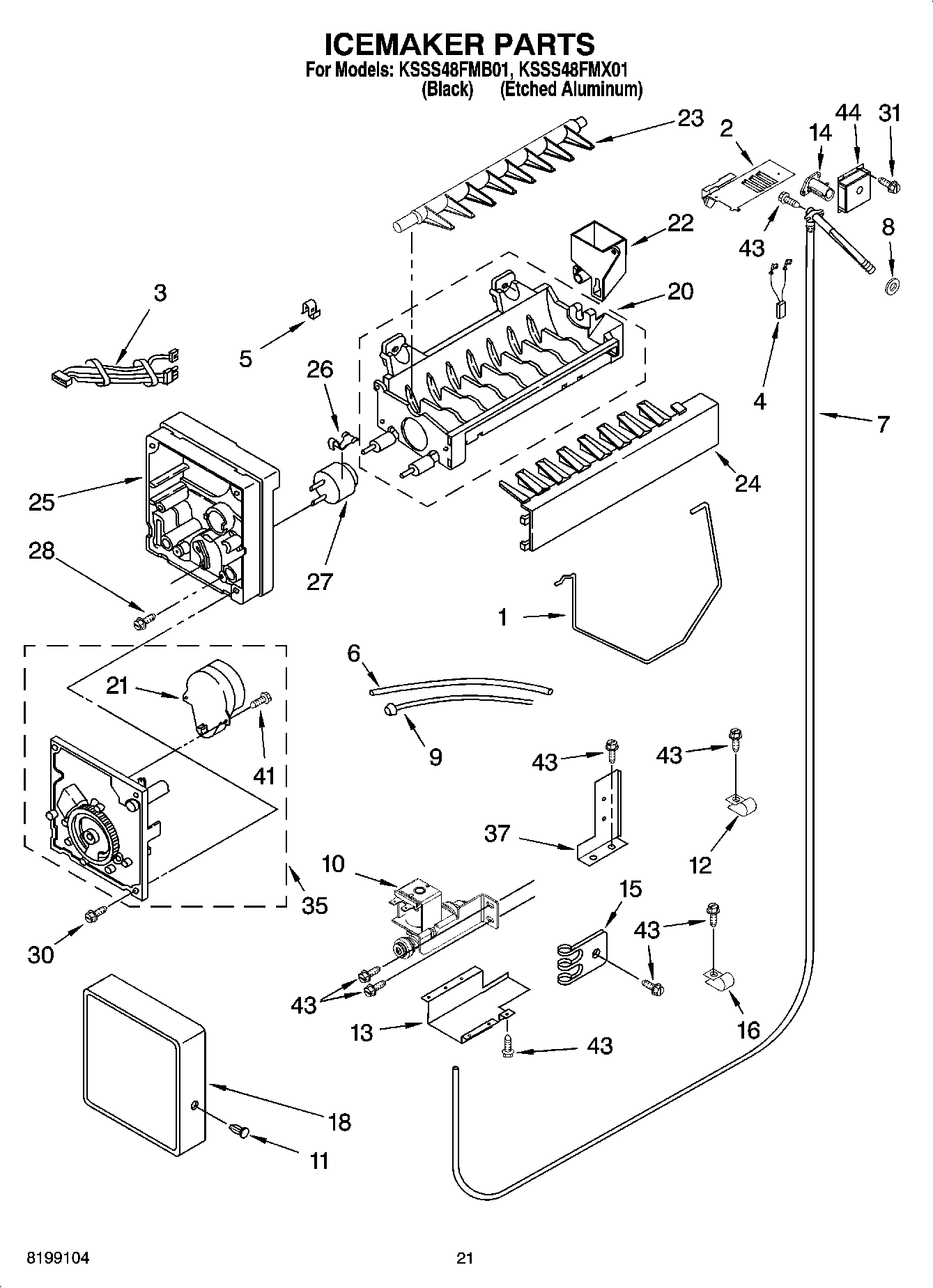

Wire Assembly, Icemaker WPL 2187715 Contact Us For Availability

4

2256466 Whirlpool Refrigerator Unit Cover Backorder WPL 2256466 $151.83

4

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

4

W11318849 Whirlpool Refrigerator Freezer Bask Backorder WPL W11318849 $97.74

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Jumper, Heater Fill Tube WPL 2187683 Contact Us For Availability

4

Cabinet, Trim (Bottom) WPL 2254726 Contact Us For Availability

5

WP2256271 Whirlpool Refrigerator Front Basket Backorder WPL WP2256271 $54.79

5

WP2259077 Whirlpool Ladder Assembly Backorder WPL WP2259077 $28.09

5

WP2302817 Whirlpool Refrigerator Gasket Backorder WPL WP2302817 $33.67

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Cover, Unit Front WPL 2302974 Contact Us For Availability

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $109.65

6

2302878 Whirlpool Refrigerator Door Hinge In Stock WPL 2302878 $36.65

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

6

W11752085 Whirlpool Door Hinge Backorder WPL W11752085 $24.30

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Cabinet, Trim Top WPL 2257368 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

7

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $3.33

7

Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability

7

Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability

7

Cabinet Trim (Left Side) (Black) WPL 2222553B Contact Us For Availability

7

Cabinet Trim (Left Side) (Etched Aluminum) WPL 2222553X Contact Us For Availability

8

2215910 Whirlpool Refrigerator Grommet Backorder WPL 2215910 $30.25

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $34.97

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $118.26

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $12.11

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $44.95

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

Spacer-Door, Top WPL 2256381 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Assembly, Meat Pan Cover (Includes- Front Tri WPL 2302843 Contact Us For Availability

2302986 Whirlpool Refrigerator Cover Backorder WPL 2302986 $35.67

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2266932 Whirlpool Refrigerator Container Backorder WPL WP2266932 $99.73

WP2313917 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2313917 $95.19

Assembly, Crisper Cover (Includes- Front Trim WPL 2302836 Contact Us For Availability

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Cam, Door Closer WPL 2005783 Contact Us For Availability

Trim, Glass Rear Side WPL 2257611 Contact Us For Availability

Clamp, Nylon WPL 488937 Contact Us For Availability

Baffle, Control Assembly WPL 2302987 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $97.12

Trim, Glass Rear WPL 2257583 Contact Us For Availability

Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability

Bracket, Vent Tube WPL 2302925 Contact Us For Availability

Jumper, Air Baffle WPL 2187619 Contact Us For Availability

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

Screw WPL 3400525 Contact Us For Availability

Screw WPL 488357 Contact Us For Availability

15

2259465 Whirlpool Refrigerator Wedge Backorder WPL 2259465 $36.07

15

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

15

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP2306094 Whirlpool Evaporator In Stock WPL WP2306094 $243.00

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

CONDENSER WPL 2259307 Contact Us For Availability

Tube, Vent WPL 2302924 Contact Us For Availability

2302954 Whirlpool Refrigerator Slide In Stock WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide In Stock WPL 2302955 $127.84

W11769878 Whirlpool Screw Backorder WPL W11769878 $7.72

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $176.19

WP2306389 Whirlpool Refrigerator Heater In Stock WPL WP2306389 $72.76

Air Duct WPL 2306044 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $65.21

2302851 Whirlpool Support Backorder WPL 2302851 $50.60

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $39.49

Door, Spacer WPL 2257637 Contact Us For Availability

Cover WPL 2257538 Contact Us For Availability

19

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $30.25

19

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $83.71

19

Screw WPL 487522 Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

Gasket, Evaporator WPL 2220832 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $55.08

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

Liner (Not A Serviceable Part) WPL ARI155307A Contact Us For Availability

Diffuser Assembly WPL 2208997 Contact Us For Availability

22

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

22

Bushing WPL 2002903 Contact Us For Availability

23

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $35.36

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $31.04

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $129.41

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Blade, Fan WPL 2190685 Contact Us For Availability

Light Shield WPL 2259367 Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $32.19

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $30.43

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $94.21

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Cover, Evaporator WPL 2306050 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Cover, Air Return WPL 2259066 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

Tube, Heat Loop Transition WPL 2259341 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $73.63

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $107.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Deflector, Air Duct WPL 2306038 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

W10407628 Whirlpool Refrigerator Meat Pan Backorder WPL W10407628 $94.10

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $28.40

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

31

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

31

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

31

WP2259350 Whirlpool Refrigerator Electronic C Backorder WPL WP2259350 $71.39

32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

32

SKIRT, GRILLE BOTTOM (BLACK) WPL 2209026B Contact Us For Availability

32

Sleeve, Condenser WPL 2000645 Contact Us For Availability

2259355 Whirlpool Refrigerator Evaporator Rai Backorder WPL 2259355 $47.78

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

34

Grille Bottom, Front (Black) WPL 2209431B Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

Screw WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $30.25

36

Cover, Fan WPL 2209495 Contact Us For Availability

37

Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability

37

Cover, Condenser WPL 2259092 Contact Us For Availability

37

Water Valve Mounting Bracket WPL 2306151 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

38

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.41

38

Grommet, Edge WPL 2307907 Contact Us For Availability

39

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

39

Service Cord WPL 2259197 Contact Us For Availability

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $24.52

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

43

Gasket, Air Duct WPL 2306052 Contact Us For Availability

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

44

Cover, Fill Tube Heater WPL 2259064 Contact Us For Availability

44

Bracket, Light WPL 2257571 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2187900 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI155309A Contact Us For Availability

and Optional Parts Not Included WPL ARI155310A Contact Us For Availability

REFRIGERANT CHARGE 7.75 oz. (R-134A) WPL ARI155311A Contact Us For Availability

46

WP2259032 Whirlpool Ladder Backorder WPL WP2259032 $27.52

47

2259445 Whirlpool Support Assembly Backorder WPL 2259445 $27.52

50

Deflector, Air WPL 2266801 Contact Us For Availability

55

WP2306462 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2306462 $71.46

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $169.15

Front Panel Kit (White) WPL 2220854 Contact Us For Availability

Front Panel Kit (Black) WPL 2220857 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 2220863 Contact Us For Availability

Static Cleaner, Black Panel WPL 978849 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI155312A Contact Us For Availability

(Optional Parts Only) WPL ARI155313A Contact Us For Availability
